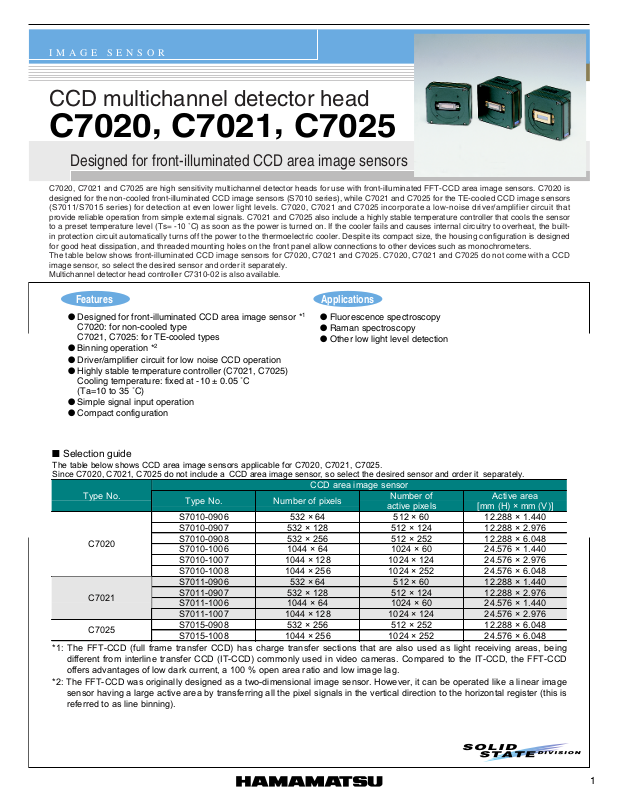

Datasheet C7025, C7021, C7020 Datasheet (HAMAMATSU)

IMAGE SENSOR

CCD multichannel detector head

C7020, C7021, C7025

Designed for front-illuminated CCD area image sensors

C7020, C7021 and C7025 are high sensitivity multichannel detector heads for use with front-illuminated FFT-CCD area image sensors. C7020 is
designed for the non-cooled front-illuminated CCD image sensors (S7010 series), while C7021 and C7025 for the TE-cooled CCD image sensors
(S7011/S7015 series) for detection at even lower light levels. C7020, C7021 and C7025 incorporate a low-noise driver/amplifier circuit that
provide reliable operation from simple external signals. C7021 and C7025 also include a highly stable temperature controller that cools the sensor
to a preset temperature level (Ts= -10 ˚C) as soon as the power is turned on. If the cooler fails and causes internal circuitry to overheat, the built­in protection circuit automatically turns off the power to the thermoelectric cooler. Despite its compact size, the housing configuration is designed
for good heat dissipation, and threaded mounting holes on the front panel allow connections to other devices such as monochrometers.
The table below shows front-illuminated CCD image sensors for C7020, C7021 and C7025. C7020, C7021 and C7025 do not come with a CCD
image sensor, so select the desired sensor and order it separately.
Multichannel detector head controller C7310-02 is also available.

Features

l

Designed for front-illuminated CCD area image sensor *
C7020: for non-cooled type
C7021, C7025: for TE-cooled types

l

Binning operation *

l

Driver/amplifier circuit for low noise CCD operation

l

Highly stable temperature controller (C7021, C7025)
Cooling temperature: fixed at -10 ± 0.05 ˚C
(Ta=10 to 35 ˚C)

l

Simple signal input operation

l

Compact configuration

2

Applications

1

l

Fluorescence spectroscopy

l

Raman spectroscopy

l

Other low light level detection

■ Selection guide

The table below shows CCD area image sensors applicable for C7020, C7021, C7025.
Since C7020, C7021, C7025 do not include aCCD area image sensor, so select the desired sensor and order itseparately.

CCD area image sensor

Type No.

C7020

C7021

C7025

*1: The FFT-CCD (full frame transfer CCD) has charge transfer sections that are also used as light receiving areas, being

different from interline transfer CCD (IT-CCD) commonly used in video cameras. Compared to the IT-CCD, the FFT-CCD
offers advantages of low dark current, a 100 % open area ratio and low image lag.

*2: The FFT-CCD was originally designed as a two-dimensional image sensor. However, it can be operated like a linear image

sensor having a large active area by transferring all the pixel signals in the vertical direction to the horizontal register (this is
referred to as line binning).

Type No. Number of pixels

S7010-0906 532 × 64 512 × 60 12.288 × 1.440
S7010-0907 532 × 128 512 × 124 12.288 × 2.976
S7010-0908 532 × 256 512 × 252 12.288 × 6.048
S7010-1006 1044 × 64 1024 × 60 24.576 × 1.440
S7010-1007 1044 × 128 1024 × 124 24.576 × 2.976
S7010-1008 1044 × 256 1024 × 252 24.576 × 6.048

S7011-0906 532 × 64 512 × 60 12.288 × 1.440
S7011-0907 532 × 128 512 × 124 12.288 × 2.976
S7011-1006 1044 × 64 1024 × 60 24.576 × 1.440
S7011-1007 1044 × 128 1024 × 124 24.576 × 2.976
S7015-0908 532 × 256 512 × 252 12.288 × 6.048
S7015-1008 1044 × 256 1024 × 252 24.576 × 6.048

Number of

active pixels

Active area

[mm (H) × mm (V)]

1

CCD multichannel detector head

C7020, C7021, C7025

■ Absolute maximum ratings

Parameter Symbol Min. Typ. Max. Unit

Supply voltage (for digital circuitry) V

Supply voltage *

3

D1

V

A1+

V

A1-

V

A2

V

D2

Vp- -+7
V

F

-0.5 - +7

- - +18

- - -18Supply voltage (for analog circuitry)

- - +30

--+7

--+14

Digital input voltage - - - V

Operating temperature

Storage temperature

C7020 0 - +50
C7021, C7025
C7020 -20 - +70
C7021, C7025

Topr

Tstg

+10 - +35

0 - +70

■ Electrical characteristics
(Ta=25 °C, V

D1

=+5 V, V

Digital input

CLK frequency f
Data video readout frequency fv - - f
Start pulse width tst 1/f

Digital output

Power supply operating conditions

Voltage

Current

A1+

=+15 V, V

A1-

= -15 V, VA2=+24 V, VD2=+5 V, Vp=+5 V, VF=+12 V, unless otherwise noted)

Parameter Symbol Min. Typ. Max. Unit

High level V
Low level V

High level (Io= -6 mA) V
Low level (Io=+6 mA) V

Digital circuitry V

V

V

Other

IH

IL

clk

IH

IL

D

A1+

A1-

V

A2

V

D2

Vp +4.75 +5.0 +5.25 V
V

F

+2.0 - +V

-0.5 - +0.8 V

- - 1 MHz

CLK

- - s

+2.0 - - V

--+0.8V

+4.75 +5.0 +5.25 V

+14.5 +15.0 +15.5 V

-14.5 -15.0 -15.5 VAnalog circuitry
+23.5 +24.0 +24.5 V
+4.75 +5.0 +5.25 V

+11.75 +12.0 +12.25 V
VD1 (+5 VDC) - - - +200 mA
V

(+15 VDC) - - - +100 mA

A1+

V

(-15 VDC) - - - -100 mA

A1-

VA2 (+24 VDC) - - - +30 mA
VD2 (+5 VDC) *

3

---+30mA

Ta=10 °C - - +0.8 +2.5 A
Ta=20 °C - - +1.4 +2.5 A

Vp (+5 DC) *

3

Ta=30 °C - +1.8 +2.5 A
Ta=35 °C - - +2.2 +2.5 A

(+12 VDC) *

VF

3

- - +100 - mA

D (1, 2)

D

/4 Hz

CLK

V

°C

V

■ Electrical and optical characteristics

(Ta=25 °C, Ts= -10 °C, VD1=+5 V, V

Parameter Symbol Min. Typ. Max. Unit

Spectral response range

Full well capacity

Conversion gain *
Dark current *

4

5

Readout noise Nr - 20 - e-rms
Dynamic range DR - 30,000 - ­Photo response non-uniformity *

*3: C7021, C7025
*4: Including the circuit gain.
*5: At MPP mode. Vertical register value. The actual value equals the sum of the vertical direction because of the binning

operation.

*6: Measured at 50 % of the full well capacity.

A1+

6

=+15 V, V

Vertical 150,000 300,000 ­Horizontal

= -15 V, VA2=+24 V, VD2=+5 V, Vp=+5 V, VF=+12 V, unless otherwise noted)

A1-

l

Fw

-

300,000 600,000 -

400 to

1100

Sv - 15 - µV/e

DS - 15 45 e-/pixel/s

PRNU - - ±10 %

-nm

-

e

-

2

CCD multichannel detector head

()

C7020, C7021, C7025

■ Specifications for temperature controller (C7021, C7025)
(Ta=25 °C, V

D1

=+5 V, V

Parameter *

Cooling temperature Ts -11 -10 -9 °C
Temperature control range
Power dissipation of TE-cooler element Pp - - 7 W
Cool down time to reset temperature to - - 5 min.
Setting temperature for overheat protection To - +45 - °C

*7: Other functions include error display, automatic power off, and detection of electrical opens and shorts by the thermosensor.

A1+

=+15 V, V

7

A1-

= -15 V, VA2=+24 V, VD2=+5 V, Vp=+5 V, VF=+12 V)

Symbol Min. Typ. Max. Unit

DTs

-0.05 - +0.05 °C

■ Spectral response

50

40

30

20

10

QUANTUM EFFICIENCY (%)

0

400 500 600 700

800 900 1000 1100 1200

(Typ. Ta=25 ˚C)

WAVELENGTH (nm)

KMPDB0051EA

■ Block diagram (front-illuminated CCD area image sensor)

IG1V

24

IG2V ISV

SS

2023 22

P1V

■ Dark current vs. temperature

10000

1000

100

/pixel/s)

-

10

1

DARK CURRENT (e

0.1

0.01

-50 -30 -20 -10

-40

P2V

15 14

TG

16

(Tentative Data)

0102030

TEMPERATURE (°C)

KMPDB0052EA

RG

1

RD

2

OS

3

45

OD OG

6

SG

4 OPTICAL

V

......

......

1H

......

2 ISOLATOIN 2 ISOLATOIN

BLACK

2n SIGNAL OUT

9

4 OPTICAL

BLACK

V=60, 124, 252
H=512, 1024

P1HP2H

4 BLANK4 BLANK

1110

IG2H

13

12

ISH

IG1H

KMPDC0015EA

3

CCD multichannel detector head

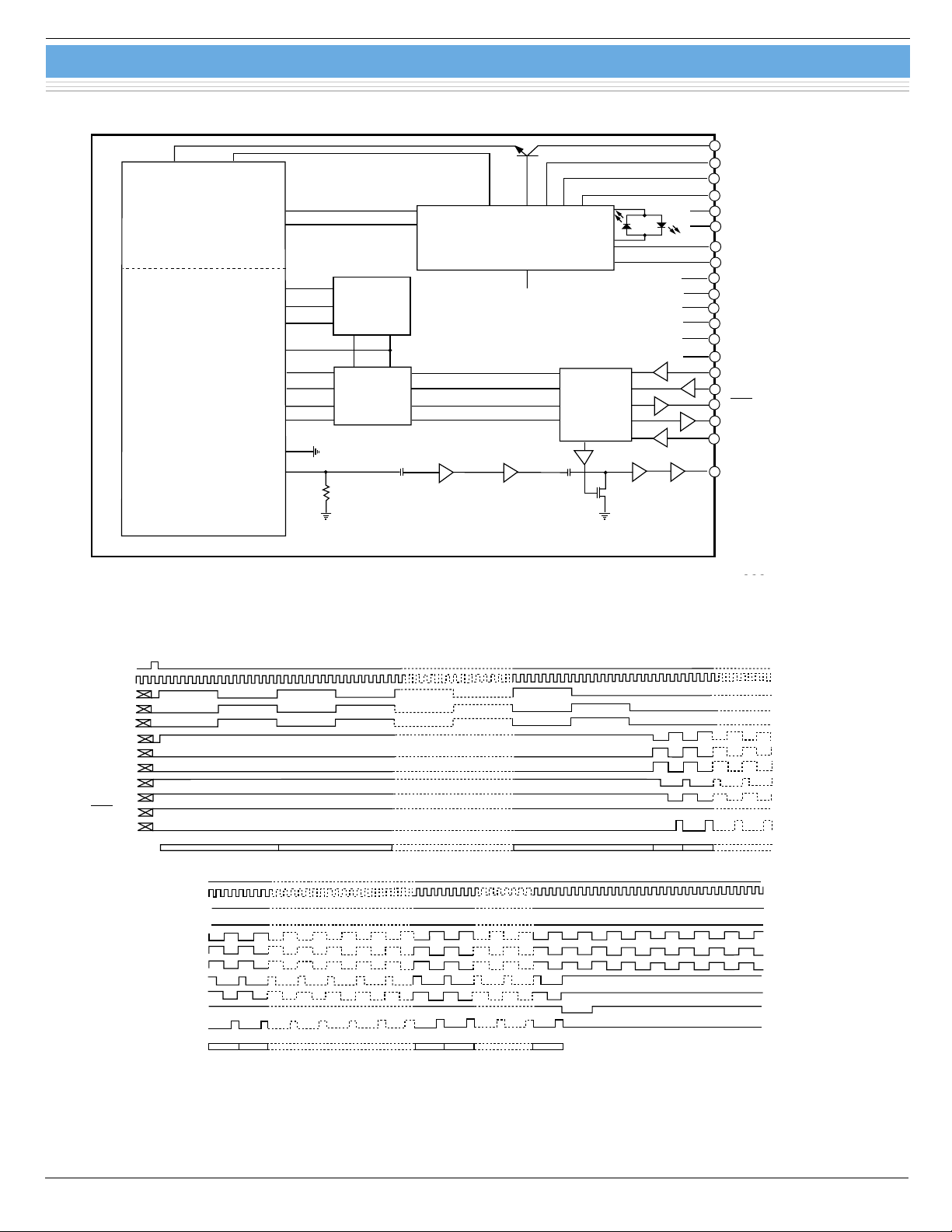

■ Block diagram of C7021, C7025

P+

TE-COOLER

CCD AREA IMAGE SENSOR
S7011/S7015 SERIES

P-

TH+
TH-

OD

RD

OG

IG1H, IG2H
IG1V, IG2V

P1V, P2V, TG

P1H, P2H

SG
RG

SS, ISV, ISH

OS

REGULATOR

VDD

DRIVER

TEMPERATURE CONTROLLER *

TH.H

VEE

PRE-AMP

INVERTER

C7020, C7021, C7025

Vp (+5V)

P. GND

D2 (+5V)

V
D. GND

LED

VF (+12V)

F. GND
Temp Monitor
Cooling Control

V

D1 (+5V)

D. GND

A1+ (+15V)

V
VA1- (-15V)

A. GND

A2 (+24V)

V

Start

TIMING

GENERATOR

CLK

EOS
Trigger

Mode Select

BUFFER

Data Video

LOW-PASS

CLAMP

FILTER

* C7020 does not include the temperature controller and TE-cooler.

■ Timing chart

Start
CLK
P1V

P2V
TG

P1H
P2H
SG
RG

Clamp
EOS
Trigger

Data Video

V-ch1 V-ch2 V-ch(M) H-ch1 H-ch2

KACCC0073EB

H-ch11H-ch10

M=68, 132, 260 N=532, 1044
V-ch1--V-ch2, V-ch (M-3)--V-ch (M): ISOLATION PIXELS
H-ch1--H-ch4, H-ch (N-3)--H-ch (N): BLANK PIXELS
H-ch5--H-ch10, H-ch (N-9)--H-ch (N-4): ISOLATION PIXELS

H-ch(N-9)H-ch(N-10)

H-ch(N)

KACCC0074EA

4

CCD multichannel detector head

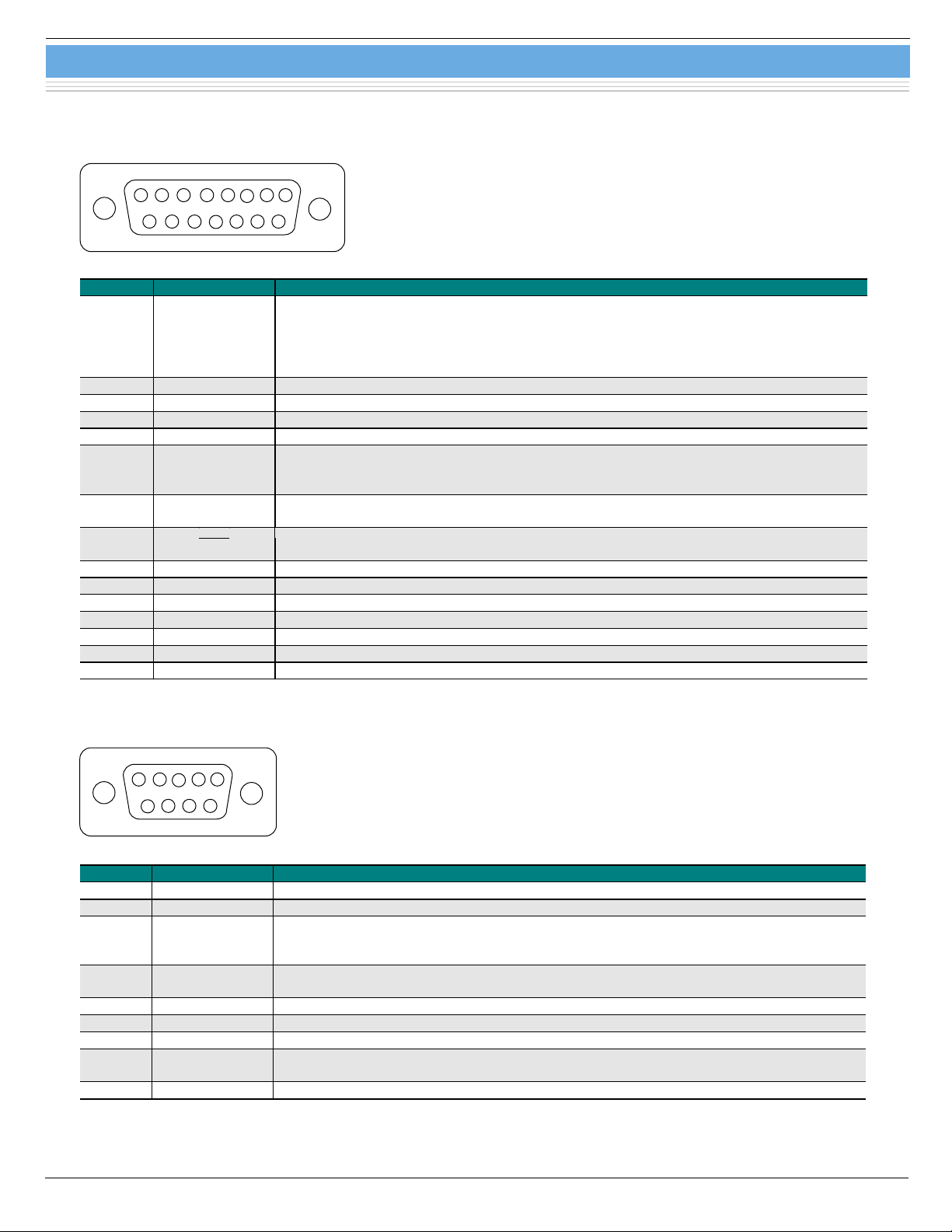

■ Pin assignment of "SIGNAL I/O" connector

15-pin D-sub connector

2345678

1

C7020, C7021, C7025

131415

9101112

KACCC0069EA

Pin No. Terminal name Description

Digital input signal used to select between the line binning operation and area scanning
operation.

1 Mode select

HCMOS compatible.
High level or left open: line binning operation

Low level: area scanning operation

2 Data video Analog video output. Positive polarity
3V
4 V
5V

(+15 V) Analog power supply

A1+

(-15 V) Analog power supply

A1-

(+5 V) Digital power supply

D1

Digital input signal for initializing the circuit.
6 Start

HCMOS compatible. Positive logic.

The interval of the start pulses determines the integration time of the CCD image sensor.

7CLK

8

EOS

Digital input signal for operating the circuit.

HCMOS compatible. Rising edge operation.

Digital input signal for indicating end-of-scan of the image sensor.

HCMOS compatible. Negative logic.
9 A. GND Analog ground

10 A. GND Analog ground
11 VA2 (+24 V) Analog power supply
12 D. GND Digital ground
13 D. GND Digital ground
14 D. GND Digital ground
15 Trigger Digital output signal for A/D conversion. HCMOS compatible. Positive logic.

■ Pin assignment of "TE CONTROL I/O" connector (C7021, C7025)

9-pin D-sub connector

2345

1

9

8

67

KACCC0075EA

Pin No. Terminal name Description

1V

2 Temp monitor Analog output signal of the temperature of the CCD image sensor

3 Cooling control

4 Vp (+5 V)

5V
6 D. GND Ground
7 D. GND Ground

8 P. GND

9 F. GND Power supply return for cooling fan
Available for using same power supply (+5 V) for "+VD2" and "+Vp".
Caution: Do not connect "VD2

These may be connected (shorted) at the power supply end, not 9-pin D-sub connector.

(+5 V) Digital power supply

D2

Digital input signal for starting to cool down. HCMOS compatible.
High level or left open: cooling
Low level: stand-by
Power supply for the thermoelectric cooler in the CCD image sensor.
(Please use AWG 18 wire)

(+12 V) Power supply for cooling fan

F

Power supply return of the thermoelectric cooler mounted in the CCD image sensor.
(Please use AWG 18 wire)

" and "Vp" together on the backside of the 9-pin D-sub connector.

5

CCD multichannel detector head

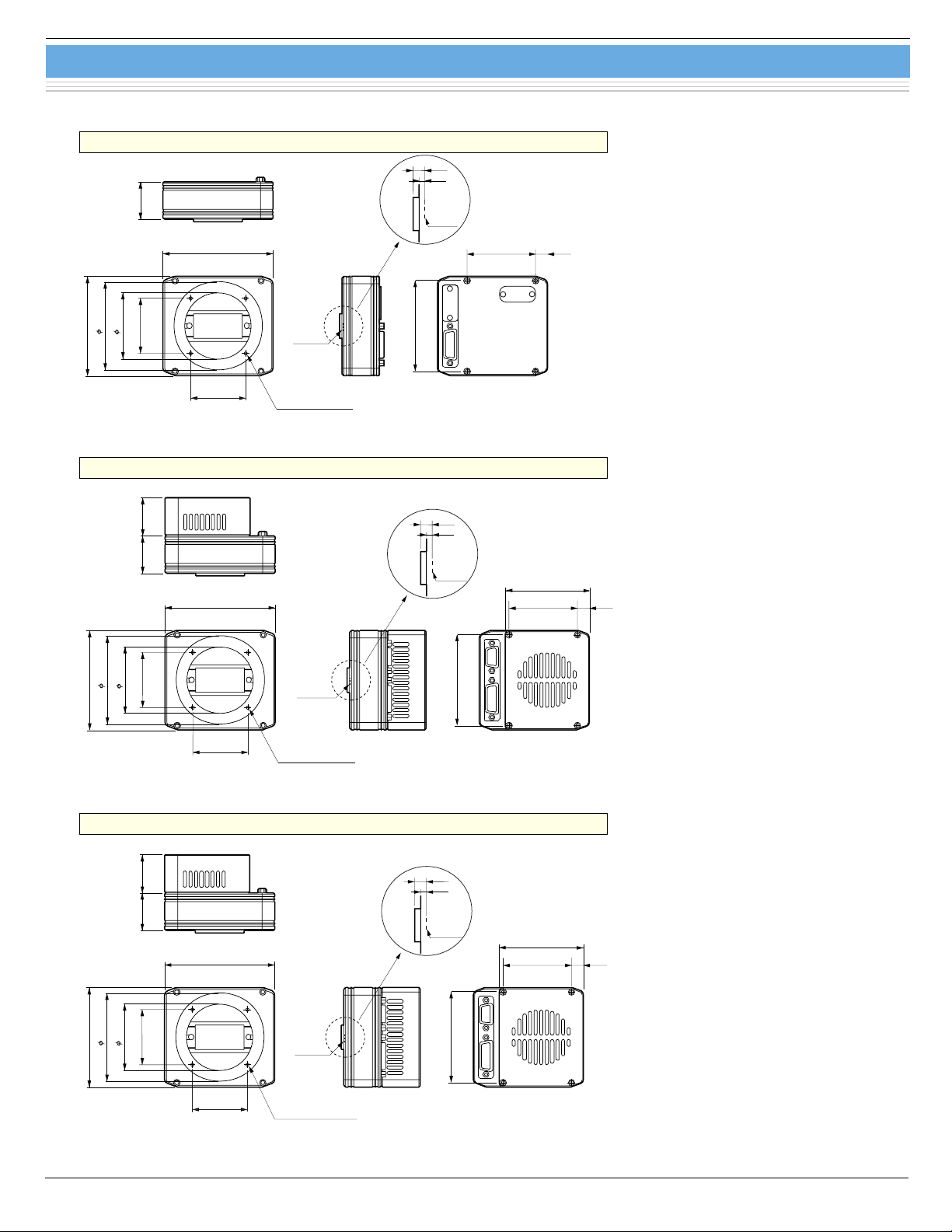

■ Dimensional outlines (unit: mm)

C7020

1.3

0.5

C7020, C7021, C7025

90.0

80.0

60.0

34.0

50.0

35.0

34.0

100.0

50.0

100.0

FOCAL
PLANE

(4 ×) M3 DEPTH 4

C7021

82.0

FOCAL
PLANE

3.4

0.5

FOCAL
PLANE

62.0

62.0

11.0

KACCA0058EA

77.0

11.0

90.0

90.0

80.0

80.0

60.0

60.0

50.0

35.0

34.0

50.0

50.0

100.0

50.0

FOCAL
PLANE

(4 ×) M3 DEPTH 4

C7025

FOCAL
PLANE

(4 ×) M3 DEPTH 4

2.5

0.5

FOCAL
PLANE

82.0

82.0

62.0

KACCA0059EA

77.0

11.0

KACCA0060EA

6

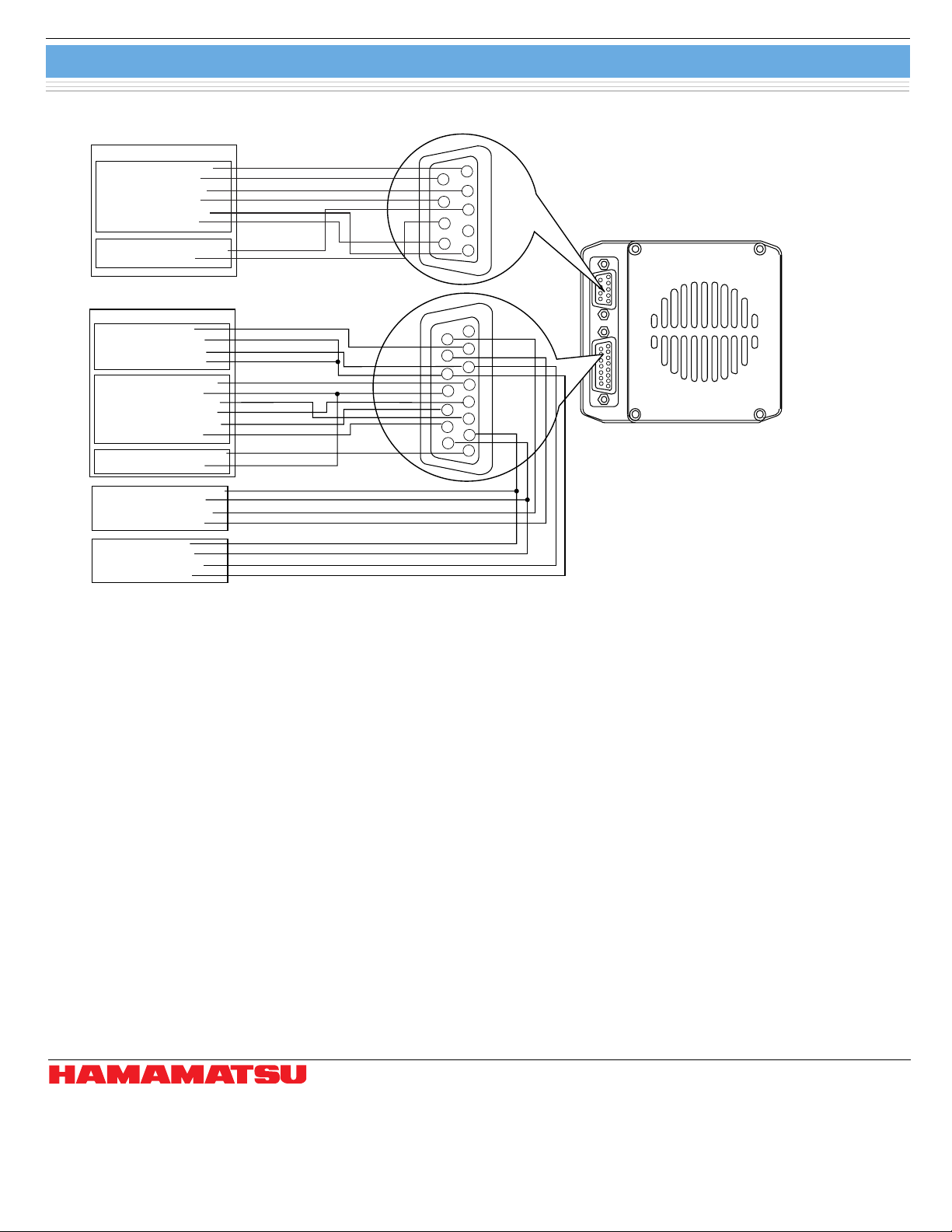

■ Connection example

TE CONTROLLER

POWER SUPPLY

CONTROLLER

I/O SIGNAL

PULSE GENERATOR

POWER SUPPLY

CONTROLLER

S/H or A/D

OSCILLOSCOPE

VF (+12V)
F.GND

P

(+5V)

V
P.GND

D2

(+5V)

V
D.GND

Cooling Control
D.GND

CLK
D.GND
Start
D.GND

V

D1

(+5V)

D.GND

A1+

(+15V)

V

A1-

(-15V)

V

A2

(+24V)

V
A.GND

Mode Select
D.GND

Analog Input
A.GND
S/H Input
D.GND

CH1
GND
Ext.Trig
GND

CCD multichannel detector head

5

9

4

8

3

7

2

6

1

8

15

7

14

6

13

5

12

4

11

3

10

2

9

1

C7020, C7021, C7025

KACCC0076EB

Information furnished by HAMAMATSU is believed to be reliable. However, no responsibility is assumed for possible inaccuracies or omissions.
Specifications are subject to change without notice. No patent rights are granted to any of the circuits described herein. ©2003 Hamamatsu Photonics K.K.

HAMAMATSU PHOTONICS K.K., Solid State Division
1126-1 Ichino-cho, Hamamatsu City, 435-8558 Japan, Telephone: [phone], Fax: [phone], http://www.hamamatsu.com

U.S.A.: Hamamatsu Corporation: 360 Foothill Road, P.O.Box 6910, Bridgewater, N.J. 08807-0910, U.S.A., Telephone: [phone], Fax: [phone]
Germany: Hamamatsu Photonics Deutschland GmbH: Arzbergerstr. 10, D-82211 Herrsching am Ammersee, Germany, Telephone: [phone], Fax: [phone]
France: Hamamatsu Photonics France S.A.R.L.: 8, Rue du Saule Trapu, Parc du Moulin de Massy, 91882 Massy Cedex, France, Telephone: [phone], Fax: [phone]
United Kingdom: Hamamatsu Photonics UK Limited: 2 Howard Court, 10 Tewin Road, Welwyn Garden City, Hertfordshire AL7 1BW, United Kingdom, Telephone: [phone], Fax: [phone]
North Europe: Hamamatsu Photonics Norden AB: Smidesvägen 12, SE-171 41 Solna, Sweden, Telephone: [phone], Fax: [phone]
Italy: Hamamatsu Photonics Italia S.R.L.: Strada della Moia, 1/E, 20020 Arese, (Milano), Italy, Telephone: [phone], Fax: [phone]

Cat. No. KACC1035E06
Feb. 2003 DN

7
