PRODUCT INFORMATION PACKET
Model No: 213TTTL16038
Catalog No: C407A
7.50 HP Brake Motor, 3 phase, 1800 RPM, 230/460 V, 213TC Frame, TENV
NEMA Definite Purpose AC Brake Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2019 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 4
Page 2
Product Information Packet: Model No: 213TTTL16038, Catalog No:C407A 7.50 HP Brake Motor, 3 phase, 1800 RPM, 230/460 V, 213TC Frame, TENV
Nameplate Specifications
Output HP 7.50 Hp Output KW 5.6 kW
Frequency 60 Hz Voltage 230/460 V
Current 19.2/9.6 A Speed 1770 rpm
Service Factor 1 Phase 3
Efficiency 92.4 % Power Factor 79
Duty Continuous Insulation Class F
Design Code B KVA Code H
Frame 213TC Enclosure Totally Enclosed Non Ventilated
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6309 Opp Drive End Bearing Size 6307
UL Recognized CSA Y
CE Y IP Code 43
Technical Specifications
Electrical Type Squirrel Cage Induction Run Starting Method Across The Line
Poles 4 Rotation Reversible
Resistance Main 1.02 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Aluminum
Shaft Type T Shaft Diameter 1.375 in
Assembly/Box Mounting F1/F2 CAPABLE
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:01/11/2019
2 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 4

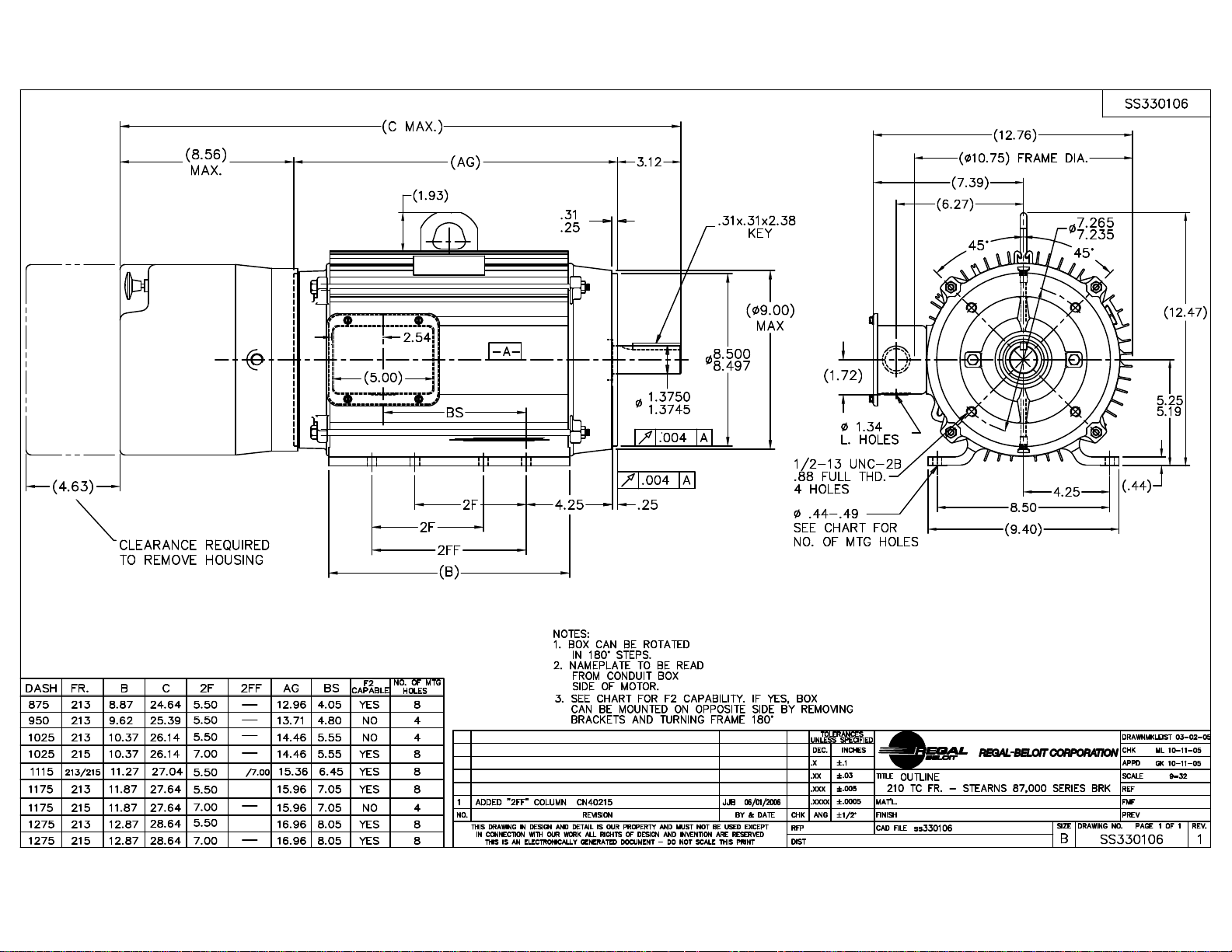

Page 3
7/25/2007 8:26:22 PM -
3 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 4
Page 4
Uncontrolled Copy
