Page 1
Product Data Sheets
C.27/4 Series C.27/6 Series C.27/7 Series
11
Page 2
C.27/4
YPICAL APPLICATIONS: the capacitor is used
T
in series to the start-winding of the single­phase electric motor, allowing its starting and increasing the torque during work. Main application fields: air-fans, pumps, circulators, and low power electric motors. The choice of the capacitor depends on expected life length and the mechanical connection of the user.
PRODUCT MARKING: TYPE A–EXAMPLE:
1.27.4AC1 MKP
ARCOTRONICS
16 µF ± 5 %
420V~ 30000h/CLASS A
470V~ 10000h/CLASS B
25/85/21
P0
16
GENERAL
Expected Life (hours)
DATA
F=50Hz
SIZES
TABLES
13 14 27 29 33 34 35 57
60000
50000
40000
30000
20000
10000
FAST-ON
0
400 410 420 430 440 450 460 470
A.C. Voltage
BIPOLAR
CABLE
FLEXIBLE
CABLE
STIFF UNIPOLAR
CABLE
HIGH
TEMPERATURE
DRAWIN
GS
12
Page 3
C.27/4
General technical data:
Reference standards IEC 252: 1993 EN 60252: 1994 CEI EN 60252: 1994
EN 60 252 approval
UL810 “construction only ”
Type of Service: Continuous
Working class:
Min. / Max. Operating Temperature: - 25 / 85 °Cor – 25 / 100 °C (see page 35)
Storage Temperature: - 40 / 90 °C
RatedvoltageVR(a.c.): 470 Volt a.c.
Rated frequency (Hz): 50 - 60 Hz
Voltage rise/fall time (max): 20 Volt / µs
Maximum Permissible Voltage: 1.10 x Rated Voltage
Maximum Permissible Current: 1.30 x Rated Current
Dissipation factor, Tgδ:
Safety class: P0
VDE Testing and Certification Institute Approved up 500 Vac Standard Marking: 250Vac
Please contact us for other types of marking
CLASS A – 30.000 hours, 420 Volt a.c. CLASS B – 10.000 hours, 470 Volt a.c.
20 x 10-4at 20°C, 50 Hz
Maximum Altitude: 2000 m
Capacitance tolerance (standard):
Mounting: Any position
Filling Resin: Polyurethane
Dielectric: Polypropylene
Plates: Self-healing metal layer
Test voltage terminal to terminal: 2 Vn for 2 s
Test voltage terminal to can: 2.000 Volt for 2 s
Leakage – Clearance in air
between parts under voltage:
Leakage – Clearance in air
between parts under voltage and
accessible metal parts:
Vibration test: IEC 68-2-6
± 5%
Polypropylene with self-extinguishing features V2 (UL94).
Can:
Noryl with self-extinguishing features VI (UL94) for diameters >
Nylon PA66 with self-extinguishing features V0: fast-on execution.
Disk:
PC-A with self-extinguishing features V0: cable execution
Noryl PPO with self-extinguishing features VI: for diameters
40mm cable execution
>
≥ 5mm
≥ 6mm
50 mm
Max Tightening torque: 5 Nm (M8) - 10 Nm (M12)
13
Page 4
C.27/4
CASE WITH FIXING BOLT
Rated
Cap.
µF
1.0 0.15 20 25 56.5 162 25 57 99 25 55 99 26
1.5 0.22 20 25 56.5 162 25 57 99 25 55 99 26
2.0 0.29 20 25 56.5 162 25 57 99 25 55 99 26
2.5 0.37 20 25 56.5 162 25 57 99 25 55 99 26
3.0 0.44 20 25 56.5 162 25 57 99 25 55 99 26
3.5 0.52 20 30 56.5 110 30 57 68 30 55 68 38
4.0 0.59 20 30 56.5 110 30 57 68 30 55 68 38
4.5 0.66 20 30 56.5 110 30 57 68 30 55 68 38
5.0 0.74 20 30 56.5 110 30 57 68 30 55 68 38
6.0 0.88 20 35 56.5 86 35 57 52 35 55 52 52
6.3 0.93 20 35 56.5 86 35 57 52 35 55 52 52
7.0 1.03 20 35 56.5 86 35 57 52 35 55 52 52
8.0 1.18 20 35 56.5 86 35 57 52 35 55 52 52
9.0 1.33 20 35 73.5 86 35 71.5 52 35 69.5 52 68
10.0 1.47 20 35 73.5 86 35 71.5 52 35 69.5 52 68
12.0 1.77 20 35 73.5 86 35 71.5 52 35 69.5 52 68
12.5 1.84 20 35 73.5 86 35 71.5 52 35 69.5 52 68
14.0 2.07 20 40 73.5 60 40 71.5 30 40 69.5 30 88
16.0 2.36 20 40 73.5 60 40 71.5 30 40 69.5 30 88
18.0 2.66 20 45 74 50 45 71.5 30 45 69.5 30 112
20.0 2.95 20 45 74 50 45 71.5 39 45 69.5 39 112
22.0 3.25 20 45 74 50 45 71.5 39 45 69.5 39 112
25.0 3.69 20 45 94.5 44 45 95 30 45 93 30 142
30.0 4.43 20 45 94.5 44 45 95 30 45 93 30 142
31.5 4.65 20 45 94.5 44 45 95 30 45 93 30 142
35.0 5.16 20 50 96 40 50 96.5 25 50 94.5 25 178
40.0 5.90 20 50 121 40 50 121.5 25 50 119.5 25 224
45.0 6.64 20 50 121 40 50 121.5 25 50 119.5 25 224
50.0
55.0
60.0
Rated
Current
7.38 20 50 121 40 60 121.5 16 60 119.5 16 224
Θ
8.12 20 55 120 32 60 120.5 16 60 118.5 16 271
Θ
8.85 20 55 120 32 60 120.5 16 60 118.5 16 271
Θ
dv/dt
A
V/µs
Diameter Height Pack. Diameter Height Pack. Diameter Height Pack. Weight
Max
FAST-ON BIPOLAR CABLE UNIPOLAR
mm mm pcs mm mm pcs mm mm pcs g
(FAST-ON)
Θ Capacitorproducedaccording to EN 60252 standard with Arcotronics self-certification
14
Page 5
C.27/4
CASE WITHOU T FIXING BOLT
Rated
Cap.
Rated
Current
dv/dt
Diameter Height Pack. Diameter Height Pack. Diameter Height Pack. Weight
Max
FAST-ON BIPOLAR CABLE UNIPOLAR
(FAST-ON)
µF
1.0 0.15 20 25 56.5 162 25 57 99 25 55 99 26
1.5 0.22 20 25 56.5 162 25 57 99 25 55 99 26
2.0 0.29 20 25 56.5 162 25 57 99 25 55 99 26
2.5 0.37 20 25 56.5 162 25 57 99 25 55 99 26
3.0 0.44 20 25 56.5 162 25 57 99 25 55 99 26
3.5 0.52 20 30 56.5 110 30 57 68 30 55 68 38
4.0 0.59 20 30 56.5 110 30 57 68 30 55 68 38
4.5 0.66 20 30 56.5 110 30 57 68 30 55 68 38
5.0 0.74 20 30 56.5 110 30 57 68 30 55 68 38
6.0 0.88 20 35 56.5 86 35 57 52 35 55 52 52
6.3 0.93 20 35 56.5 86 35 57 52 35 55 52 52
7.0 1.03 20 35 56.5 86 35 57 52 35 55 52 52
8.0 1.18 20 35 56.5 86 35 57 52 35 55 52 52
9.0 1.33 20 35 73.5 86 35 71.5 52 35 69.5 52 68
10.0 1.47 20 35 73.5 86 35 71.5 52 35 69.5 52 68
12.0 1.77 20 35 73.5 86 35 71.5 52 35 69.5 52 68
12.5 1.84 20 35 73.5 86 35 71.5 52 35 69.5 52 68
14.0 2.07 20 40 73.5 60 40 71.5 39 40 69.5 39 88
16.0 2.36 20 40 73.5 60 40 71.5 39 40 69.5 39 88
18.0 2.66 20 45 74 50 45 71.5 30 45 69.5 30 112
20.0 2.95 20 45 74 50 45 71.5 30 45 69.5 30 112
22.0 3.25 20 45 74 50 45 71.5 30 45 69.5 30 112
25.0 3.69 20 45 94.5 44 45 95 30 45 93 30 142
30.0 4.43 20 45 94.5 44 45 95 30 45 93 30 142
31.5 4.65 20 45 94.5 44 45 95 30 45 93 30 142
35.0 5.16 20 50 94.5 40 50 95 25 50 93 25 198
40.0 5.90 20 50 118.5 40 50 119 25 50 117 25 224
45.0 6.64 20 50 118.5 40 50 119 25 50 117 25 224
50.0
55.0
60.0
Θ Θ Θ
A
V/µs
7.38 20 50 118.5 40 60 119 16 60 117 16 224
8.12 20 55 118.5 32 60 119 16 60 117 16 271
8.85 20 55 118.5 32 60 119 16 60 117 16 271
mm mm pcs mm mm pcs mm mm pcs g
Θ Capacitorproducedaccording to EN60252 standard with Arcotronics self-certification
15
Page 6
C.27/4

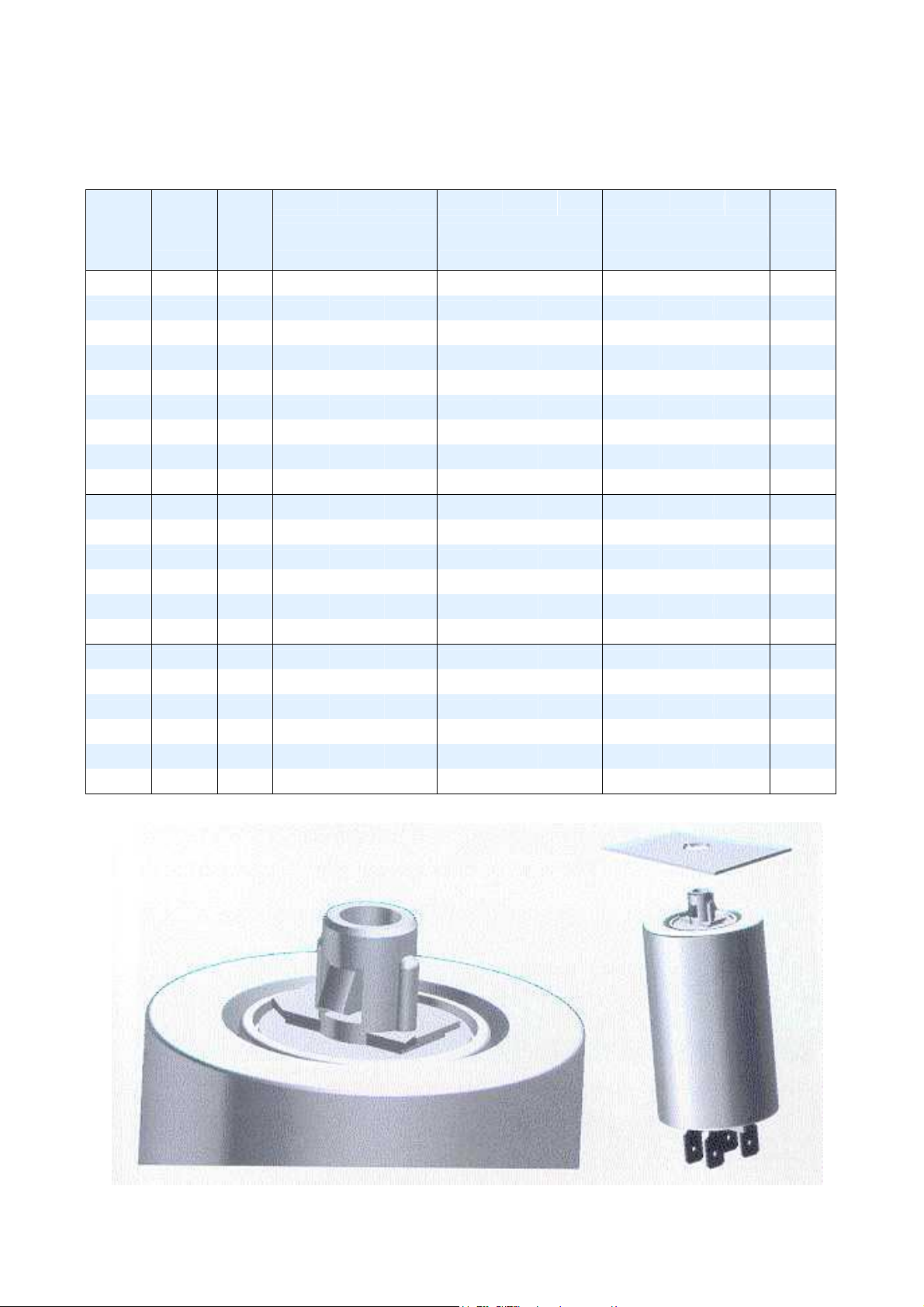

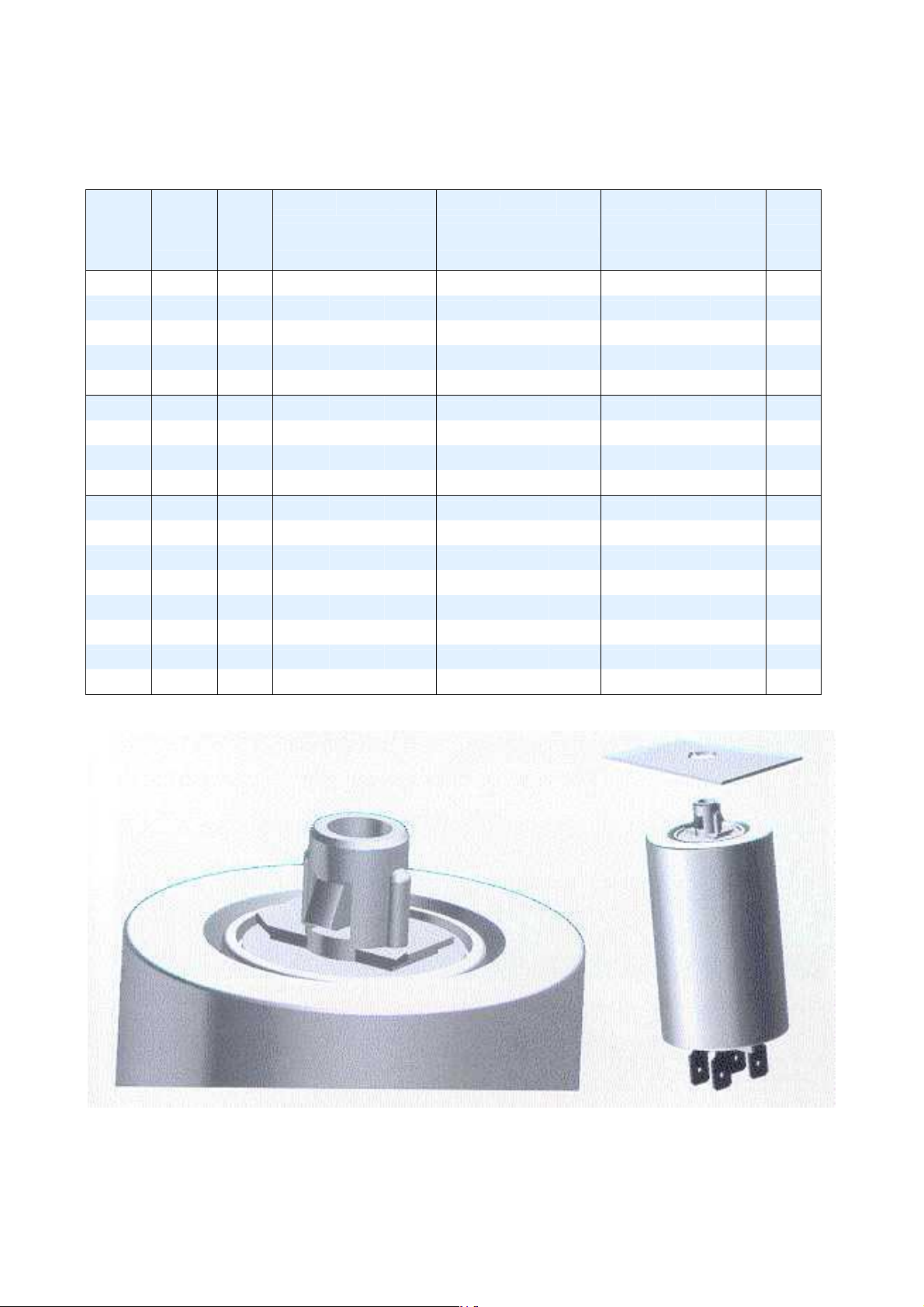

CASE WITH QUICK FITTING DEVICE
Rated
Cap.
Rated
Current
dv/dt
Diameter Height Pack. Diameter Height Pack. Diameter Height Pack. Weight
Max
FAST-ON BIPOLAR CABLE UNIPOLAR
(FAST-ON)
µF
1.0 0.15202556.59925579925559926
1.5 0.22 20 25 56.5 99 25 57 99 25 55 99 26
2.0 0.29202556.59925579925559926
2.5 0.37 20 25 56.5 99 25 57 99 25 55 99 26
3.0 0.44202556.59925579925559926
3.5 0.52 20 30 56.5 68 30 57 68 30 55 68 38
4.0 0.59203056.56830576830556838
4.5 0.66 20 30 56.5 68 30 57 68 30 55 68 38
5.0 0.74203056.56830576830556838
6.0 0.88 20 35 56.5 52 35 57 52 35 55 52 52
6.3 0.93203556.55235575235555252
7.0 1.03 20 35 56.5 52 35 57 52 35 55 52 52
8.0 1.18203556.55235575235555252
9.0 1.33 20 35 73.5 52 68
10.0 1.47 20 35 73.5 52 68
12.0 1.77 20 35 73.5 52 68
12.5 1.84 20 35 73.5 52 68
A
V/µs
mm mm pcs mm mm pcs mm mm pcs g
16
Page 7

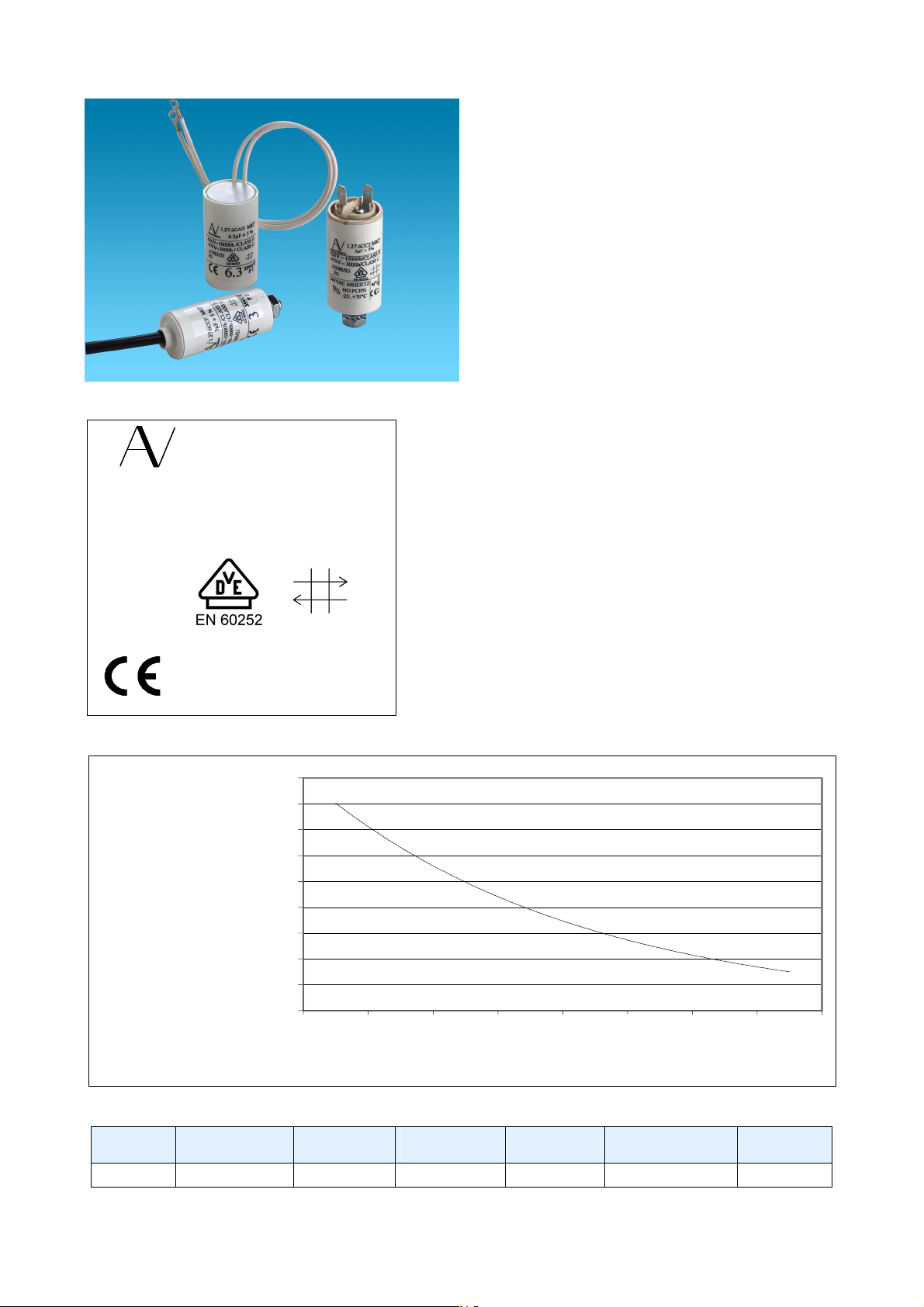

C.27/6
YPICAL APPLICATIONS: the capacitor is used in
T
series to the start-winding of the single-phase electric motor, allowing its starting and increasing the torque during work. C.27/6 series is particularly suitable for low voltage applications and medium expected life. Main application fields: air-fans, pumps, circulators, low power electric motor.
PRODUCT MARKING: TYPE C–EXAMPLE:
1.27.6CC2 MKP
ARCOTRONICS
5 µF ± 5 %
420V~ 10000h/CLASS B
470V~ 3000h/CLASS C
25/85/21
P0
5
GENERAL
F=50Hz
Expected Life (hours)
DATA
18 19 27 29 33 34 57
SIZES TABLES FAST-ON
18000
16000
14000
12000
10000
8000
6000
4000
2000
0
400 410 420 430 440 450 460 470
A.C. Voltage
BIPOLAR
CABLE
FLEXIBLE
CABLE
STIFF UNIPOLAR
CABLE
DRAWINGS
17
Page 8
C.27/6
General technical data:
Reference standards IEC 252: 1993 EN 60252: 1994 CEI EN 60252: 1994
EN 60 252 approval
UL810 “construction only ”
Great Wall approval (China)
Type of Service: Continuous
Working class:
Min. / Max. Operating Temperature: - 25 / 85 °C
Storage Temperature: - 40 / 90 °C
Rated voltage Vn (a.c.): 470 Volt a.c.
Rated frequency (Hz): 50 - 60 Hz
Voltage rise/fall time (max): 15 Volt / µs
Maximum Permissible Voltage: 1.10 x Rated Voltage
Maximum Permissible Current: 1.30 x Rated Current
Dissipation factor, Tgδ:
Safety class: P0
VDE Testing and Certification Institute Approved up 500 Vac Standard Marking: 250Vac
Please contact us for other types of marking
CLASS B – 10.000 hours, 420 Volt a.c. CLASS C – 3.000 hours, 470 Volt a.c.
20 x 10-4at 20°C, 50 Hz
Maximum Altitude: 2000 m
Capacitance tolerance (standard):
Mounting: Any position
Filling Resin: Polyurethane
Dielectric: Polypropylene
Plates: Self-healing metal layer
Test voltage terminal to terminal: 2 Vn for 2 s
Test voltage terminal to can: 2.000 Volt for 2 s
Leakage – Clearance in air
between parts under voltage:
Leakage – Clearance in air
between parts under voltage and
accessible metal parts:
Vibration test: IEC 68-2-6
± 5%
Polypropylene with self-extinguishing features V2 (UL94).
Can:
Noryl with self-extinguishing features VI (UL94) for diameters >
Nylon PA66 with self-extinguishing features V0: fast-on execution .
PC-A with self-extinguishing features V0: cable execution
Disk:
Noryl PPO with self-extinguishing features VI: for diameters > cable execution
≥ 5mm
≥ 6mm
50 mm
40mm
Max Tightening torque: 5 Nm (M8) - 10 Nm (M12)
18
Page 9
C.27/6
CASE WITH FIXING BOLT
Rated
Cap.
Rated
Current
dv/dt
Diameter Height Pack. Diameter Height Pack. Diameter Height Pack. Weight
Max
FAST-ON BIPOLAR CABLE UNIPOLAR
(FAST-ON)
µF
1.0 0.15 15 25 56.5 162 25 57 99 25 55 99 26
1.5 0.22 15 25 56.5 162 25 57 99 25 55 99 26
2.0 0.29 15 25 56.5 162 25 57 99 25 55 99 26
2.5 0.37 15 25 56.5 162 25 57 99 25 55 99 26
3.0 0.44 15 25 56.5 162 25 57 99 25 55 99 26
3.5 0.52 15 25 56.5 162 25 57 99 25 55 99 26
4.0 0.59 15 25 56.5 162 25 57 99 25 55 99 26
4.5 0.66 15 30 56.5 110 30 57 68 30 55 68 38
5.0 0.74 15 30 56.5 110 30 57 68 30 55 68 38
6.0 0.88 15 30 56.5 110 30 57 68 30 55 68 38
6.3 0.93 15 30 56.5 110 30 57 68 30 55 68 38
7.0 1.03 15 30 56.5 110 30 57 68 30 55 68 38
8.0 1.18 15 35 56.5 86 35 57 52 35 55 52 52
9.0 1.33 15 35 56.5 86 35 57 52 35 55 52 52
10.0 1.47 15 35 56.5 86 35 57 52 35 55 52 52
12.0 1.77 15 35 73.5 86 35 71,5 52 35 69.5 52 68
12.5 1.84 15 35 73.5 86 35 71.5 52 35 69.5 52 68
14.0 2.07 15 35 73.5 86 35 71.5 52 35 69.5 52 68
16.0 2.36 15 35 73.5 86 35 71.5 52 35 69.5 52 68
18.0 2.66 15 40 73.5 60 40 71.5 39 40 69.5 39 88
20.0 2.95 15 40 73.5 60 40 71.5 39 40 69.5 39 88
22.0 3.25 15 40 73.5 60 40 71.5 39 40 69.5 39 88
25.0 3.69 15 45 74 50 45 71.5 30 45 69.5 30 112
30.0 4.43 15 45 74 50 45 71.5 30 45 69.5 30 112
31.5 4.65 15 45 94.5 44 45 95 30 45 93 30 142
35.0 5.16 15 45 94.5 44 45 95 30 45 93 30 142
40.0 5.90 15 45 94.5 44 45 95 30 45 93 30 142
45.0 6.64 15 50 96 40 50 96.5 25 50 94.5 25 178
50.0 7.38 15 50 121 40 50 121.5 25 50 119.5 25 224
55.0 8.12 15 50 121 40 50 121.5 25 50 119.5 25 224
60.0
65.0
70.0
Θ Θ Θ
A
V/µs
8.85 15 50 121 40 50 121.5 25 50 119.5 25 224
9.60 15 50 121 40 50 121.5 25 50 119.5 25 224
10.30 15 50 121 40 50 121.5 25 50 119.5 25 224
mm mm pcs mm mm pcs mm mm pcs g
Θ Capacitorproducedaccording to EN60252 standard with Arcotronics self-certification
19
Page 10
C.27/6
CASE WITHOU T FIXING BOLT
Rated
Cap.
Rated
Current
dv/dt
Diameter Height Pack. Diameter Height Pack. Diameter Height Pack. Weight
Max
FAST-ON BIPOLAR CABLE UNIPOLAR (FAST-ON)
µF
1.0 0.15 15 25 56.5 162 25 57 99 25 55 99 26
1.5 0.22 15 25 56.5 162 25 57 99 25 55 99 26
2.0 0.29 15 25 56.5 162 25 57 99 25 55 99 26
2.5 0.37 15 25 56.5 162 25 57 99 25 55 99 26
3.0 0.44 15 25 56.5 162 25 57 99 25 55 99 26
3.5 0.52 15 25 56.5 162 25 57 99 25 55 99 26
4.0 0.59 15 25 56.5 162 25 57 99 25 55 99 26
4.5 0.66 15 30 56.5 110 30 57 68 30 55 68 38
5.0 0.74 15 30 56.5 110 30 57 68 30 55 68 38
6.0 0.88 15 30 56.5 110 30 57 68 30 55 68 38
6.3 0.93 15 30 56.5 110 30 57 68 30 55 68 38
7.0 1.03 15 30 56.5 110 30 57 68 30 55 68 38
8.0 1.18153556.58635575235555252
9.0 1.33 15 35 56.5 86 35 57 52 35 55 52 68
10.0 1.47 15 35 56.5 86 35 57 52 35 55 52 68
12.0 1.77 15 35 73.5 86 35 71.5 52 35 69.5 52 68
12.5 1.84 15 35 73.5 86 35 71.5 52 35 69.5 52 68
14.0 2.07 15 35 73.5 86 35 71.5 52 35 69.5 52 68
16.0 2.36 15 35 73.5 86 35 71.5 52 35 69.5 52 68
18.0 2.66 15 40 73.5 60 40 71.5 39 40 69.5 39 88
20.0 2.95 15 40 73.5 60 40 71.5 39 40 69.5 39 88
22.0 3.25 15 40 73.5 60 40 71.5 39 40 69.5 39 88
25.0 3.69 15 45 74 50 45 71.5 30 45 69.5 30 112
30.0 4.43 15 45 74 50 45 71.5 30 45 69.5 30 112
31.5 4.65 15 45 94.5 44 45 95 30 45 93 30 142
35.0 5.16 15 45 94.5 44 45 95 30 45 93 30 142
40.0 5.90 15 45 94.5 44 45 95 30 45 93 30 142
45.0 6.64 15 50 94.5 40 50 95 25 50 93 25 178
50.0 7.38 15 50 118.5 40 50 119 25 50 117 25 224
55.0 8.12 15 50 118.5 40 50 119 25 50 117 25 224
60.0
65.0
70.0
Θ Θ Θ
A
V/µs
8.85 15 50 118.5 40 50 119 25 50 117 25 224
9.60 15 50 118.5 40 50 119 25 50 117 25 224
10.30 15 50 118.5 40 50 119 25 50 117 25 224
mm mm pcs mm mm pcs mm mm pcs g
Θ Capacitorproducedaccording EN60252 standard with Arcotronics self-certification
20
Page 11
C.27/6
CASE WITH QUICK FITTING DEVICE
Rated
Cap.
Rated
Current
dv/dt
Diameter Height Pack. Diameter Height Pack. Diameter Height Pack. Weight
Max
FAST-ON BIPOLAR CABLE UNIPOLAR (FAST-ON)
µF
1.0 0.15 15 25 56.5 297 25 57 99 25 55 99 26
1.5 0.22 15 25 56.5 297 25 57 99 25 55 99 26
2.0 0.29 15 25 56.5 297 25 57 99 25 55 99 26
2.5 0.37 15 25 56.5 297 25 57 99 25 55 99 26
3.0 0.44 15 25 56.5 297 25 57 99 25 55 99 26
3.5 0.52 15 25 56.5 207 25 57 99 25 55 99 26
4.0 0.59 15 25 56.5 297 25 57 99 25 55 99 26
4.5 0.66 15 30 56.5 204 30 57 68 30 55 68 38
5.0 0.74 15 30 56.5 204 30 57 68 30 55 68 38
6.0 0.88 15 30 56.5 204 30 57 68 30 55 68 38
6.3 0.93 15 30 56.5 204 30 57 68 30 55 68 38
7.0 1.03 15 30 56.5 204 30 57 68 30 55 68 38
8.0 1.18 15 35 56.5 136 35 57 52 35 55 52 52
9.0 1.33 15 35 56.5 136 35 57 52 35 55 52 68
10.0 1.47 15 35 56.5 136 35 57 52 35 55 52 68
12.0 1.77 15 35 73.5 104 68
12.5 1.84 15 35 73.5 104 68
14.0 2.07 15 35 73.5 104 68
A
V/µs
mm mm pcs mm mm pcs mm mm pcs g
21
Page 12
C.27/7
TYPICAL APPLICATIONS: the capacitor is used in series to the start-winding of the single-phase electric motor, allowing its starting and increasing the torque during work. This series is suitable for low voltage application and medium expected life. Main application fields: air­fans, rolling shutters motors, and battery chargers.
MARKING PRODUCT: TYPE L – EXAMPLE:
ARCOTRONICS
10 µF ± 5 %
275V~ 10000h/CLASS B
425V~240/10%1000h/CLASS D
1.27.7LA1 MKP
25/85/21
P0
10
GENERAL
Expected Life Hours
DATA
23
35000
30000
25000
20000
15000
F = 50 Hz
10000
5000
0
200 210 220 230 240 250 260 270
SIZES TABLES FAST-ON BIPOLAR CABLE
24 27 29 33 34 57
A.C. Voltage
FLEXIBLE
CABLE
STIFF
UNIPOLAR
CABLE
DRAWINGS
22
Page 13
C.27/7
General technical data:
Reference standards IEC 252: 1993 EN 60252: 1994
EN 60 252 approval
UL810 “construction only ”
Type of working: Continuous
Working class:
Temperature: Operating Min. / Max.: - 40 / 85 °Cor– 25 / 85 °C
Storage: - 40 / 90 °C
Rated voltage Vn (a.c.): 275Volt a.c.
Intermittent vo ltage Vn (ac) 425 Volt – 24 minutes every 4 hours
Rated frequency (Hz): 50 - 60 Hz
Voltage rise/fall time (max): 15 Volt / µs
Maximum Permissible Voltage: 1.10 x Rated Voltage
Maximum Permissible Current: 1.30 x Rated Current
Dissipation factor Tgδ:
Safety class: P0
Maximum altitude: 2000 m
Capacitance tolerance (standard):
Mounting: Any position
Case:
Dielectric: Polypropylene
Plates: Self-healing metal layer
Voltage test terminal to terminal: 2 Vn for 2 s Continuous working / 1.5 Intermittent working
Voltage test terminal to case: 2.000 Volt for 2 s
Leakage – Clearance in air
between parts under voltage:
Leakage – Clearance in air
between parts under voltage and
accessible metal parts:
Vibration test: IEC 68-2-6
Max Tightening torque: 5 Nm (M8) - 10 Nm (M12)
VDE standard institute Approved up 500 Vac Standard Marking: 250Vac
Please contact us for other types of marking
CLASS B - 10.000 hours, 275 Volt a.c. Continuous working CLASS D - 1.000 hours, 425 Volt a.c. Intermittent Working 24min/240min
20 x 10-4at 20°C, 50 Hz
± 5%
Plastic Material with self-extinguishing features V2 (UL94).
Noryl with self-extinguishing features V1 (UL94 standard) for diameters >
Nylon PA66 with self-extinguishing features V0: fast-on execution .
PC-A with self-extinguishing features V0: cable execution
Disk:
Noryl PPO with self-extinguishing features V1: for diameters
40mm cable execution
>
≥ 5mm
≥ 6mm
50 mm
23
Page 14
C.27/7
CASE WITH FIXING BOLT
Rated
Cap.
Rated
Current
Diameter Height Pack. Diameter Height Pack. Diameter Height Pack. Weight
Max
dv/dt
FAST-ON BIPOLAR CABLE UNIPOLAR (FAST-ON)
µF
1.0 0.1 15 25 56.5 162 25 57 99 25 55 99 26
1.5 0.1 15 25 56.5 162 25 57 99 25 55 99 26
2.0 0.2 15 25 56.5 162 25 57 99 25 55 99 26
2.5 0.2 15 25 56.5 162 25 57 99 25 55 99 26
3.0 0.3 15 25 56.5 162 25 57 99 25 55 99 26
3.5 0.3 15 25 56.5 162 25 57 99 25 55 99 26
4.0 0.3 15 25 56.5 162 25 57 99 25 55 99 26
4.5 0.3 15 25 56.5 162 25 57 99 25 55 99 26
5.0 0.4 15 25 56.5 162 25 57 99 25 55 99 26
6.0 0.5 15 30 56.5 110 30 57 68 30 55 68 38
6.3 0.5 15 30 56.5 110 30 57 68 30 55 68 38
7.0 0.6 15 30 56.5 110 30 57 68 30 55 68 38
8.0 0.7 15 30 56.5 110 30 57 68 30 55 68 38
9.0 0.8 15 30 56.5 110 30 57 68 30 55 68 38
10.0 0.9 15 30 56.5 110 30 57 68 30 55 68 38
12.0 1.0 15 35 56.5 86 35 57 52 35 55 52 52
14.0 1.2 15 35 56.5 86 35 57 52 35 55 52 52
16.0 1.4 15 35 73.5 86 35 71.5 52 35 69.5 52 68
18.0 1.6 15 35 73.5 86 35 71.5 52 35 69.5 52 68
20.0 1.7 15 35 73.5 86 35 71.5 52 35 69.5 52 68
22.0 1.9 15 35 73.5 86 35 71.5 52 35 69.5 52 68
25.0 2.2 15 40 73.5 60 40 71.5 39 40 69.5 39 88
30.0 2.6 15 40 73.5 60 40 71.5 39 40 69.5 39 88
31.5 2.7 15 45 74 50 45 71.5 30 45 69.5 30 112
35.0 3.0 15 45 74 50 45 71.5 30 45 69.5 30 112
40.0 3.5 15 45 94.5 44 45 95 30 45 93 30 142
45.0
50.0
55.0
60.0
65.0
70.0
75.0
80.0
90.0
100.0
Θ
Θ
Θ
Θ
Θ
Θ
Θ
Θ
Θ
Θ
A
V/µs
3.9 15 45 94.5 44 45 95 30 45 93 30 142
4.3 15 45 94.5 44 45 95 30 45 93 30 142
4.8 15 45 94.5 44 45 95 30 45 93 30 142
5.2 15 45 94.5 44 45 95 30 45 93 30 142
5.7 15 50 96 40 50 96.5 25 50 94.5 25 178
6.1 15 50 96 40 50 96.5 25 50 94.5 25 178
6.5 15 50 96 40 50 96.5 25 50 94.5 25 178
7.0 15 50 121 40 50 121.5 25 50 119.5 25 224
7.8 15 50 121 40 50 121.5 25 50 119.5 25 224
8.7 15 50 121 40 50 121.5 25 50 119.5 25 224
mm mm pcs mm mm pcs mm mm pcs g
Θ Capacitorproducedaccording EN60252 standard with Arcotronics self-certification
24
Page 15
C.27/7
CASE WITHOU T FIXING BOLT
Rated
Cap.
Rated
Current
Diameter Height Pack. Diameter Height Pack. Diameter Height Pack. Weight
Max
dv/dt
FAST-ON BIPOLAR CABLE UNIPOLAR (FAST-ON)
µF
1.0 0.1 15 25 56.5 162 25 57 99 25 55 99 26
1.5 0.1 15 25 56.5 162 25 57 99 25 55 99 26
2.0 0.2 15 25 56.5 162 25 57 99 25 55 99 26
2.5 0.2 15 25 56.5 162 25 57 99 25 55 99 26
3.0 0.3 15 25 56.5 162 25 57 99 25 55 99 26
3.5 0.3 15 25 56.5 162 25 57 99 25 55 99 26
4.0 0.3 15 25 56.5 162 25 57 99 25 55 99 26
4.5 0.3 15 25 56.5 162 25 57 99 25 55 99 26
5.0 0.4 15 25 56.5 162 25 57 99 25 55 99 26
6.0 0.5 15 30 56.5 110 30 57 68 30 55 68 38
6.3 0.5 15 30 56.5 110 30 57 68 30 55 68 38
7.0 0.6 15 30 56.5 110 30 57 68 30 55 68 38
8.0 0.7 15 30 56.5 110 30 57 68 30 55 68 38
9.0 0.8 15 30 56.5 110 30 57 68 30 55 68 38
10.0 0.9 15 30 56.5 110 30 57 68 30 55 68 38
12.0 1.0 15 35 56.5 86 35 57 52 35 55 52 52
14.0 1.2 15 35 56.5 86 35 57 52 35 55 52 52
16.0 1.4 15 35 73.5 86 35 71.5 52 35 69.5 52 68
18.0 1.6 15 35 73.5 86 35 71.5 52 35 69.5 52 68
20.0 1.7 15 35 73.5 86 35 71.5 52 35 69.5 52 68
22.0 1.9 15 35 73.5 86 35 71.5 52 35 69.5 52 68
25.0 2.2 15 40 73.5 60 40 71.5 39 40 69.5 39 88
30.0 2.6 15 40 73.5 60 40 71.5 39 40 69.5 39 88
31.5 2.7 15 45 74 50 45 71.5 30 45 69.5 30 112
35.0 3.0 15 45 74 50 45 71.5 30 45 69.5 30 112
40.0 3.5 15 45 94.5 44 45 95 30 45 93 30 142
45.0
50.0
55.0
60.0
65.0
70.0
75.0
80.0
90.0
100.0
Θ
Θ
Θ
Θ
Θ
Θ
Θ
Θ
Θ
Θ
A
V/µs
3.9 15 45 94.5 44 45 95 30 45 93 30 142
4.3 15 45 94.5 44 45 95 30 45 93 30 142
4.8 15 45 94.5 44 45 95 30 45 93 30 142
5.2 15 45 94.5 44 45 95 30 45 93 30 142
5.7 15 50 94.5 40 50 95 25 50 93 25 178
6.1 15 50 94.5 40 50 95 25 50 93 25 178
6.5 15 50 94.5 40 50 95 25 50 93 25 178
7.0 15 50 118.5 40 50 119 25 50 117 25 224
7.8 15 50 118.5 40 50 119 25 50 117 25 224
8.7 15 50 118.5 40 50 119 25 50 117 25 224
mm mm pcs mm mm pcs mm mm pcs g
Θ Capacitorproducedaccording EN60252 standard with Arcotronics self-certification
25
Page 16
C.27/7
CASE WITH QUICK FITTING DEVICE
Rated
Cap.
Rated
Current
dv/dt
Diameter Height Pack. Diameter Height Pack. Diameter Height Pack. Weight
Max
FAST-ON BIPOLAR CABLE UNIPOLAR (FAST-ON)
µF
1.0 0.1 15 25 56.5 162 25 57 99 25 55 99 26
1.5 0.1 15 25 56.5 162 25 57 99 25 55 99 26
2.0 0.2 15 25 56.5 162 25 57 99 25 55 99 26
2.5 0.2 15 25 56.5 162 25 57 99 25 55 99 26
3.0 0.3 15 25 56.5 162 25 57 99 25 55 99 26
3.5 0.3 15 25 56.5 162 25 57 99 25 55 99 26
4.0 0.3 15 25 56.5 162 25 57 99 25 55 99 26
4.5 0.3 15 25 56.5 162 25 57 99 25 55 99 26
5.0 0.4 15 25 56.5 162 25 57 99 25 55 99 26
6.0 0.5 15 30 56.5 110 30 57 68 30 55 68 38
6.3 0.5 15 30 56.5 110 30 57 68 30 55 68 38
7.0 0.6 15 30 56.5 110 30 57 68 30 55 68 38
8.0 0.7 15 30 56.5 110 30 57 68 30 55 68 38
9.0 0.8 15 30 56.5 110 30 57 68 30 55 68 38
10.0 0.9 15 30 56.5 110 30 57 68 30 55 68 38
12.0 1.0 15 35 56.5 86 35 57 52 35 55 52 52
14.0 1.2 15 35 56.5 86 35 57 52 35 55 52 52
16.0 1.4 15 35 73.5 86 68
18.0 1.6 15 35 73.5 104 68
20.0 1.7 15 35 73.5 104 68
22.0 1.9 15 35 73.5 104 68
A
V/µs
mm mm pcs mm mm pcs mm mm pcs g
26
Page 17

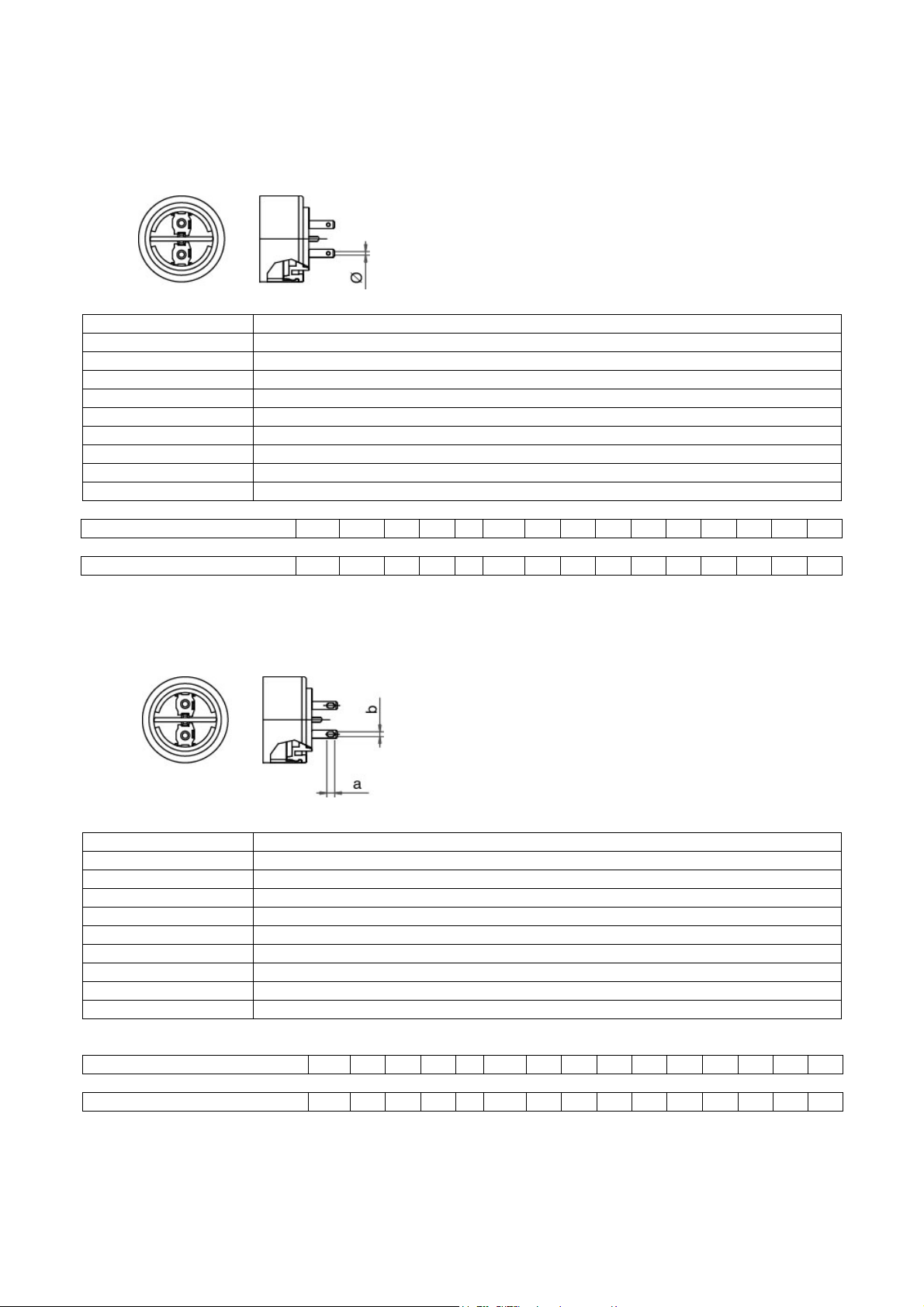

C.27 Mechanical Solutions
C.27. SERIES Fast-on 2.8 mm with Hole
YPEOF TERMINAL FAST-ON 2.8 WITH HOLE
T
Execution: Standard Protection degree IP00 Wire Material Steel tinned by electrolysis Length 2.8 mm Thickness 0.8 mm Hole Diameter 1.3 Standard DIN46244 Nut Steel coated with zinc M8 UNI5589 DIN 936 Washer Diameter 8.4 White steel coated with zinc DIN 6798
Metal bolt / quick fit execution Basic execution
C27­C27-
-C/D1
-A1
----AA--
----AA--

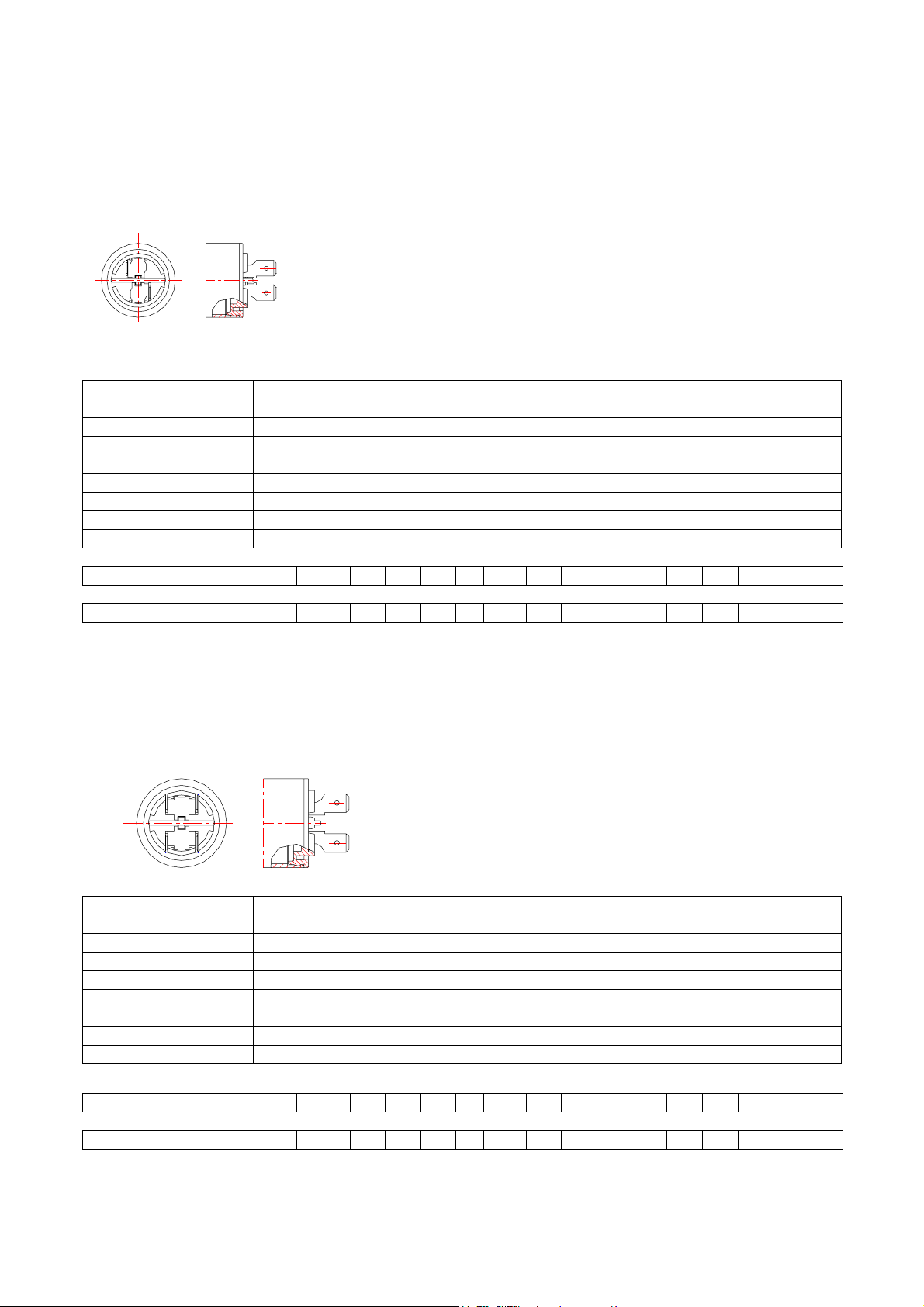

C.27. SERIES Fast-on 2.8 mm with Slot
YPEOF TERMINAL FAST ON 2.8 WITH SLOT (SOLDERING TERMINALS)
T
Execution: On request Protection degree IP00 Wire material Steel tinned by electrolysis Length 2.8 mm Thickness 0.8 mm Slot a x b 2.8 x 1.7 Standard DIN46244 Nut Steel coated with zinc M8 UNI5589 DIN 936 Washer Diameter 8.4 White steel coated with zinc DIN 6798
Metal bolt / quick fit execution Basic execution
C27-­C27--
27
C/D 4
A4
----AA--
----AA--
Page 18
C.27 Mechanical Solutions
C.27. SERIES Single Fast-on 6.3 mm
T
ERMINAL FAST-ON 6.3 (SINGLE)
Execution: Standard Protection degree IP00 Wire material Steel tinned by electrolysis Length 6.3 mm Thickness 0.8 mm Standard DIN46244 Nut Steel coated with zinc M8 UNI5589 DIN 936 Washer Diameter 8.4 White steel coated with zinc DIN 6798
Metal bolt / quick fit execution Basic execution
C27­C27-
-C/D2
-A2
----AA--
----AA--
C.27. SERIES Double Fast-on 6.3 mm
YPEOF TERMINAL FAST-ON6.3MM (DOUBLE)
T
Execution: Standard Protection degree IP00 Wire material Steel tinned by electrolysis Length 6.3 mm Thickness 0.8 mm Standard DIN46244 Nut Steel coated with zinc M8 UNI5589 DIN 936 Washer Diameter 8.4 White steel coated with zinc DIN 6798
Metal bolt / quick fit execution Basic execution
C27­C27-
-C/D3
-A3
----AA--
----AA--
28
Page 19
C.27 Mechanical Solutions
C.27. SERIES Bipolar Cable Standard Execution
Cable mark : H05 V2 V2-F 90°C
T
YPE FLEXIBLE BIPOLAR CABLE FOR HIGH TEMPERATURE
Execution: Standard Protection degree IP55 Cable PVC (Polyvinyl chloride)
Designation H05V2V2-F Standard CEI 20 – 20 Operating Temperature Conductor Flexible soft copper wire 2 x 0.75 sq.mm Insulating Polyvinyl chloride TI3 Sleeve Polyvinyl chloride TM3 Conductors colour Blue / Brown Cable stripping . (Sg) 40 mm Cable peeling (Sp) 8 mm Finishing Tinning
Metal bolt / quick fit execution
Total length S = 150 mm S = 200 mm S = 250 mm S = 300 mm S = 350 mm S = 400 mm
90 °C
C27--
C/D F
C/D F L D C/D F L E C/D F L F C/D F L G C/D F L H C/D F L I
---- --
Basic execution
Total Length
S = 150 mm S = 200 mm S = 250 mm S = 300 mm S = 350 mm S = 400 mm
C27--
29
AF
AF LD AF LE AF LF AF LG AF LH AF LI
---- --
Page 20
C.27 Mechanical Solutions
For applications requiring a specific termination, Arcotronics supplies a full range of capacitors with a bipolar cable provided with terminal. The material used (Brass – Cu Zn) provided with tinning (Gal Sn) determines the quality and reliability of the connections also in the case of very high temperatures (155°C).

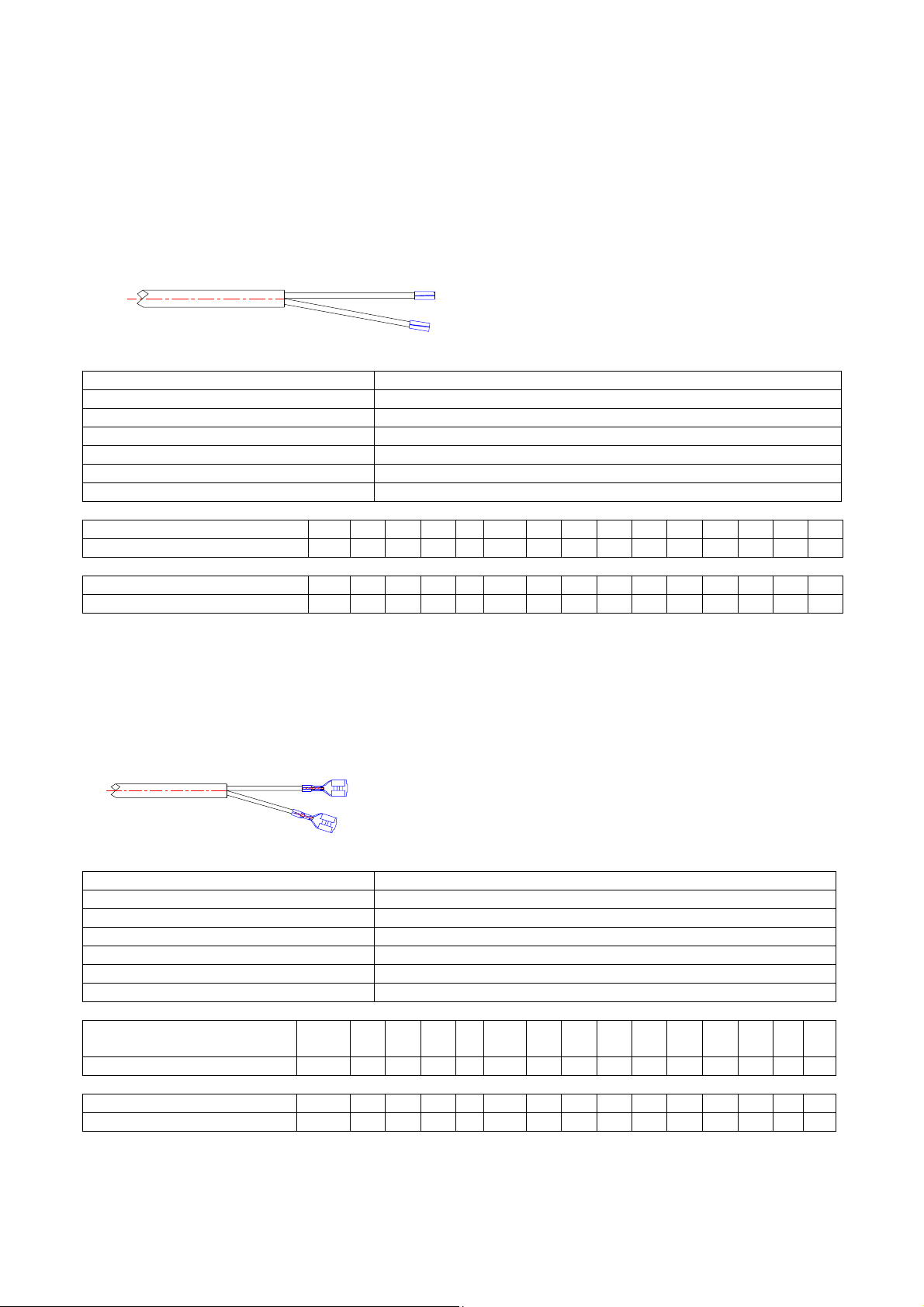

C.27. SERIES Bipolar Cable Pin Terminals
TYPE BIPOLAR CABLE WITH PIN TERMINAL Execution: Special
Cable unsheathing 40 mm
Terminations:
Point material Cu Zn gal Sn Material thickness 0.25 mm Terminal length 7 mm
Metal bolt / quick fit execution
Total length S = 300 mm
Basic execution
Total length S = 300mm
C27--
C27--
C/D J C/D J L G
AJ AJ LG
----**--
----**--
C.27. SERIES Bipolar Cable Straight Fast-on 6.3 mm
T
YPE BIPOLAR CABLE WITH STRAIGHT FAST-ON 6.3
Execution: Special
Termination: Straight Female Fast-on – 6.3
Cable stripping 40 mm Fast – on material Cu Zn gal Sn Material thickness 0.42 mm Terminal length 19.3 mm
Metal bolt / quick fit execution
Total length S = 300 mm -
Basic execution
Total length S = 300 mm -
C27--
C27--
30
C/D H C/D H L G
AH AH LG
----**--
----**--
Page 21
C.27 Mechanical Solutions

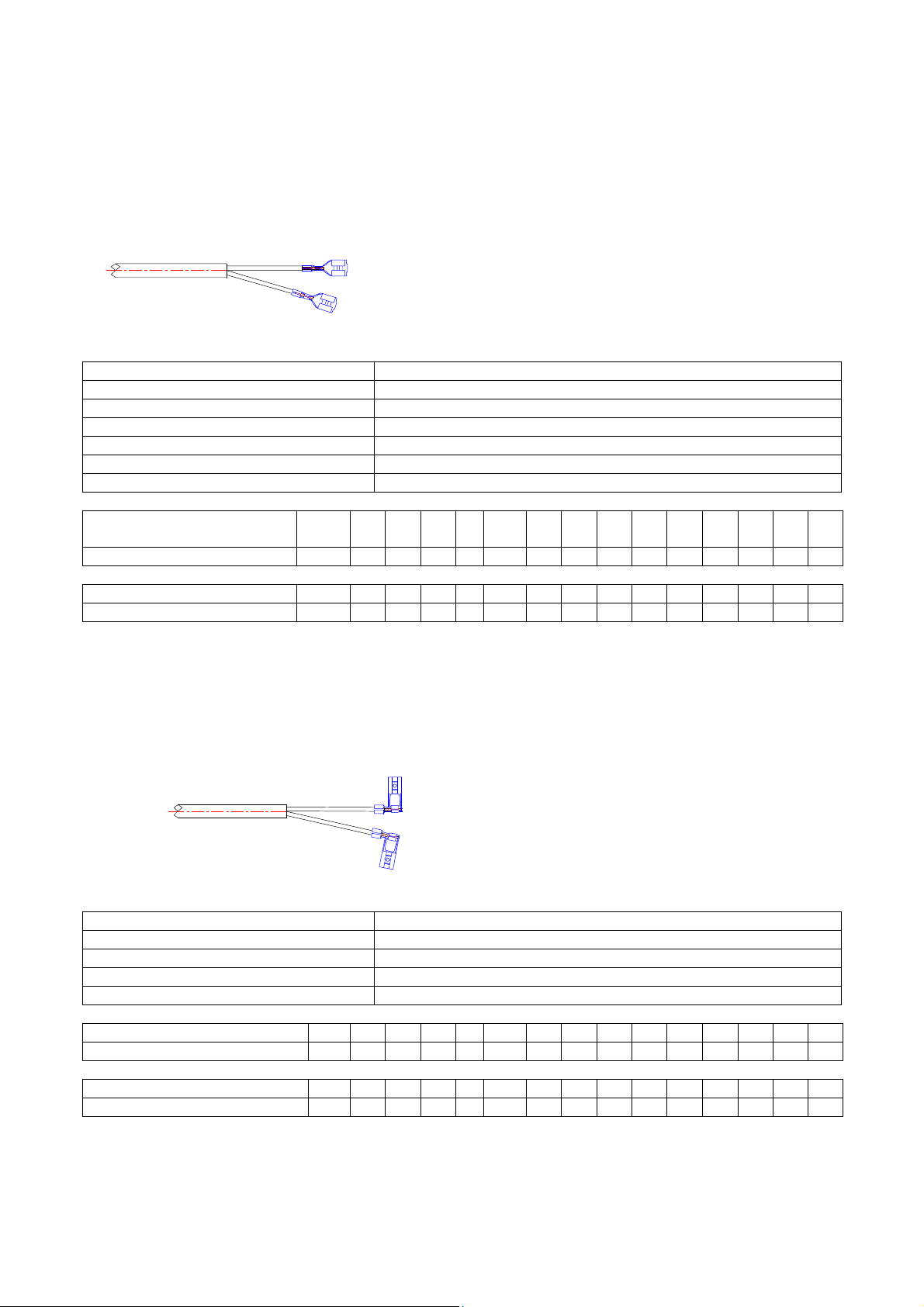

C.27. SERIES Bipolar Cable Straight Female Fast-on 4.8 mm
TYPE BIPOLAR CABLE WITH STRAIGHT FEMALE FAST-ON 4.8 Execution: Special
Termination: Straight female fast-on – 4.8
Cable unsheathing 40 mm Fast-onmaterial CuZngalSn Material thickness 0.35 mm Terminal length 15.6 mm
Metal bolt / quick fit execution
Total length S = 300 mm
Basic execution
Total length S = 300 mm
C27--
C27--
C/D G C/D G L G
AG AG LG
----**--
----**--
C.27. SERIES Bipolar Cable Flag Female Fast-on 4.8 mm
YPE BIPOLAR CABLE WITH FEMALE FLAG FAST-ON 4.8
T Execution: Special
Fast-onmaterial CuZngalSn Material thickness 0.35 mm Terminal length 12.5 mm
Metal bolt / quick fit execution
Total length S = 300 mm
Basic execution
Total length S = 300 mm
C27--
C27--
31
C/D L C/D L L G
AL AL LG
----**--
----**--
Page 22
C.27 Mechanical Solutions

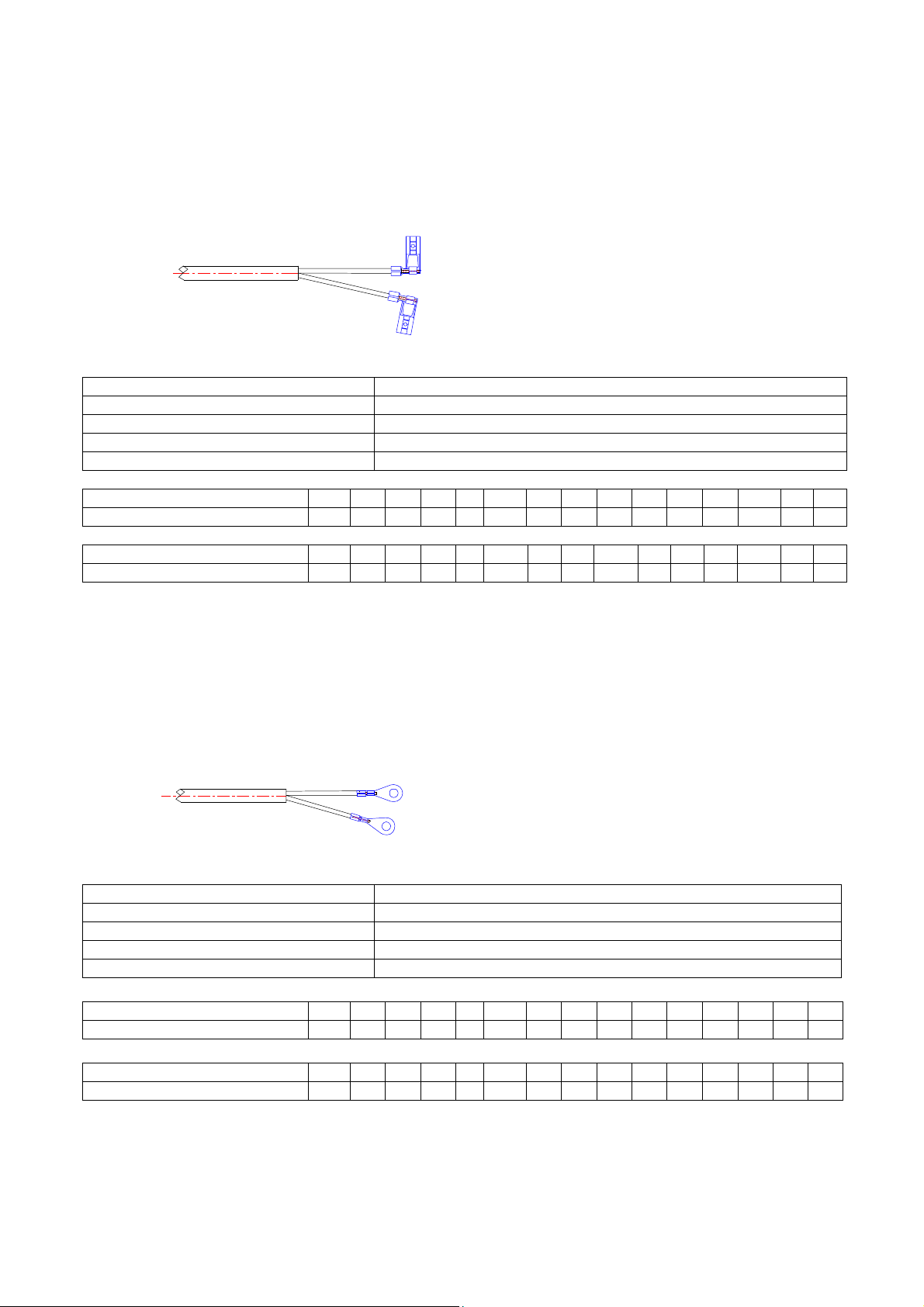

C.27. SERIES Bipolar Cable Flag Female Fast-on 6.3 mm
T
YPE BIPOLAR CABLE WITH FEMALE FLAG FAST-ON A 6.3
Execution: Special
Fast-onmaterial CuZngalSn Material thickness 0.35 mm Terminal length 12.5 mm
Metal bolt / quick fit execution
Total length S = 300 mm
Basic execution
Total length S = 300 mm
C27--
C27--
C/D K C/D K L G
AK AK LG
----**--
----**--
C.27. SERIES Bipolar Cable Ring Terminals M4
TYPE BIPOLAR CABLE WITH RING TERMINAL M4 Execution: Special
Terminal material Cu Zn gal Sn Material thickness 0.40 mm Ring diameter 4 mm
Metal bolt / quick fit execution
Total length S=300 mm
Basic execution
Total length S=300mm
C27--
C27--
32
C/D I C/D I L G
AI AI LG
----**--
----**--
Page 23
C.27 Mechanical Solutions
The range of capacitors belonging to C.27 series with a PVC unipolar cable has been specifically designed for applications in circulators and pumps fields. The cable is harmonised according to CEI 20-20 standards ( CENELEC HD21) for an operating temperature of 90°C, but assures a maximum temperature up to 105°C.

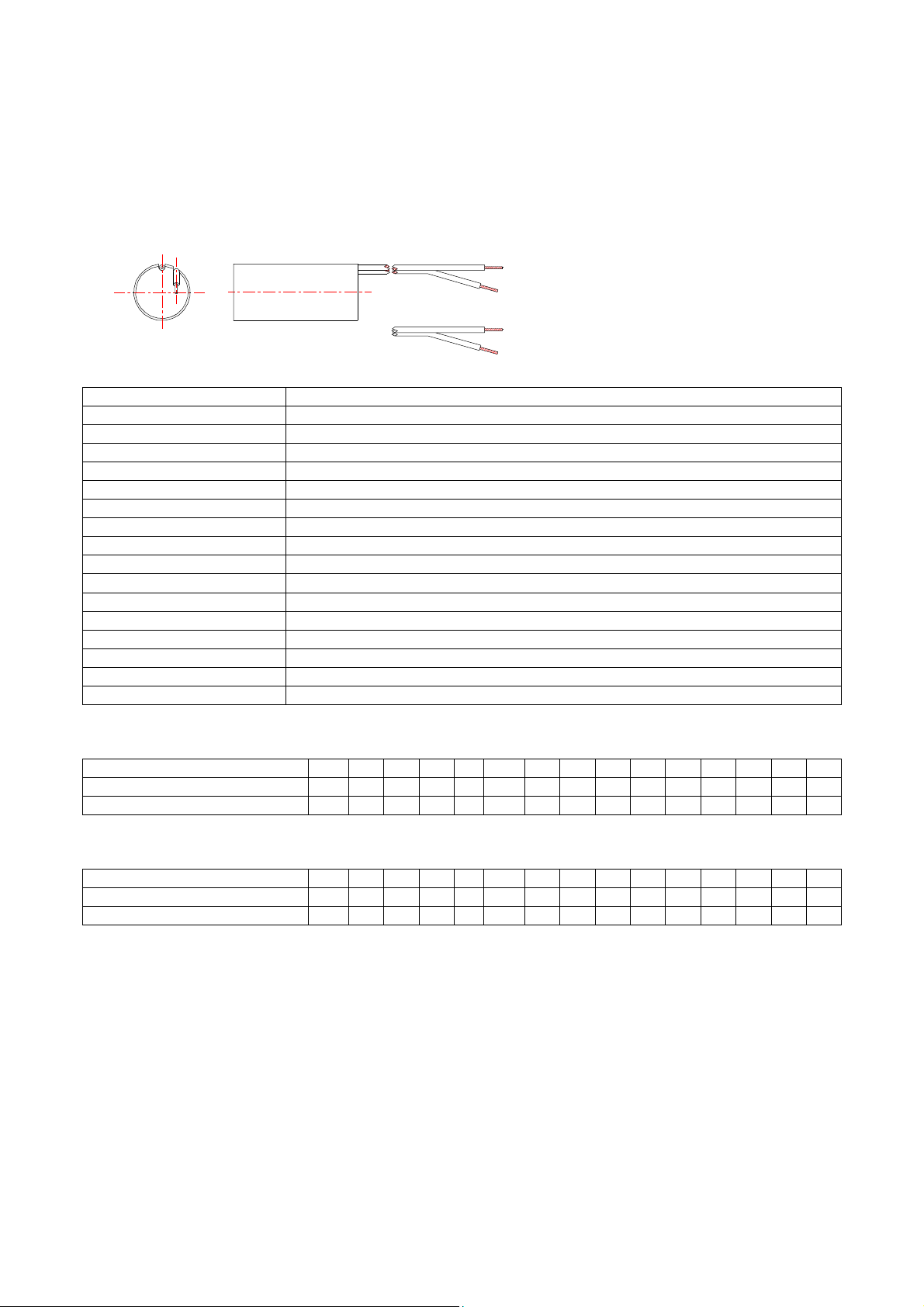

C.27. SERIES Unipolar Cable Flexible
T
YPE PVC INSULATED UNIPOLAR CABLE, WITHOUT SLEEVE FOR HIGH TEMPERATURES
Execution: Standard Protection degree IP55 Cable PVC (Polyvinyl chloride)
Designation H05V2-U Standard CEI 20 – 20 Operating temperature 90 °C
Conductor FLEXIBLE SOFT COPPER WIRE
Section 0.75 sq.mm Insulating Good quality Polyvinyl chloride TI3 Insulating: Ext. diameter Sleeve Absent Conductor colour White Rated voltage 300 / 500 V Cable unsheathing 8 mm Finishing Tinning
Metal bolt / quick fit execution
S = 100 mm S = 150 mm S = 200 mm
2.4 mm (±0.2)
C27--
C/D
----**--
AAC AAD AAE
Basic execution
S = 100 mm S = 150 mm S = 200 mm
C27--
33
A
----**--
AAC AAD AAE
Page 24
C.27 Mechanical Solutions

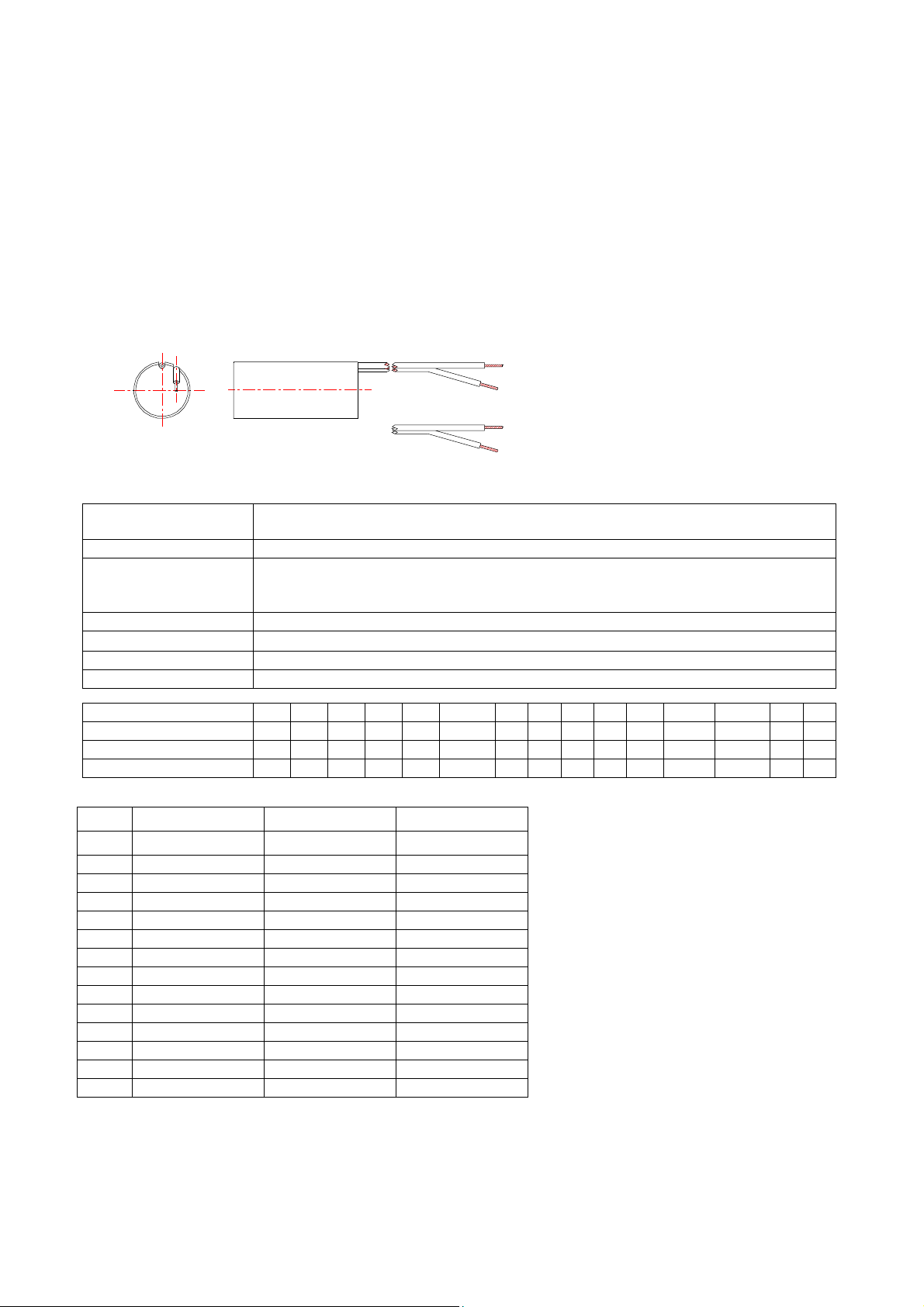

C.27 SERIES. Unipolar Cable Stiff Wires
T
YPE PVC INSULATEDUNIPOLAR CABLE, WITHOUT SLEEVE FOR HIGH TEMPERATURES
Execution: Standard Protection degree IP55 Cable PVC (Polyvinyl chloride)
Designation H05V2-U Standard CEI 20 – 20 Operating temperature 90 °C
Conductor SINGLE SOFT COPPER WIRE
Section 0.75 sq.mm Insulating Good quality Polyvinyl chloride TI3 Insulating: ext. diameter Sleeve Absent Conductors colour White Rated voltage 300 / 500 V Cable unsheathing 8 mm Cable: Minimum length 60 mm Cable: Maximum length 250mm
Metal bolt / quick fit execution
Total length S = 100 mm
S = 150 mm
2.3 mm (±0.2)
C27--
C/D C/D R A C C/D R A D
----
**
--
Basic execution
Total length S = 100 mm
S = 150 mm
C27--
34
A AR AC AR AD
----
**
--
Page 25
C.27 Mechanical Solutions
Unipolar Cable Flexible High Temperature
The range of high temperature capacitors HT has been specifically designed for applications where a long life must be assured with high temperatures i.e. for circulators pumps. The capacitors have been approved by VDE in compliance with EN60252 standard for a maximum operating temperature up to 100°C, the expected life at 100 °C @ 400 Vac is 10000 H.
Operating Temperature: Minimum / Maximum -25°C / + 100°C
10000 H (CLASS B) at 400 Vac 100 °C
Expected Life Approval: EN60252 (VDE)
Capacitance: Standard execution: PVC Stiff Cable Type of cable as for
10000 H (CLASS B) at 470 Vac 85 °C 30000 H (CLASS A) at 420 Vac 85 °C
from 1 to 9 µ F
Basic execution
S = 100 mm A/C/D S = 150 mm A/C/D S = 200 mm A/C/D
CAP. dv/dt Max Diameter Height
µFV/µs φ
120 25 48
1.5 20 25 48 220 25 48
2.5 20 25 48 320 25 48
3.5 20 30 55 420 30 55
4.5 20 30 55 520 30 55 620 35 55
6.3 20 35 55 720 35 55 820 35 55
C274E * A---- * * --
AAC AAD AAE
H
35
Page 26
C.27 Mechanical Solutions

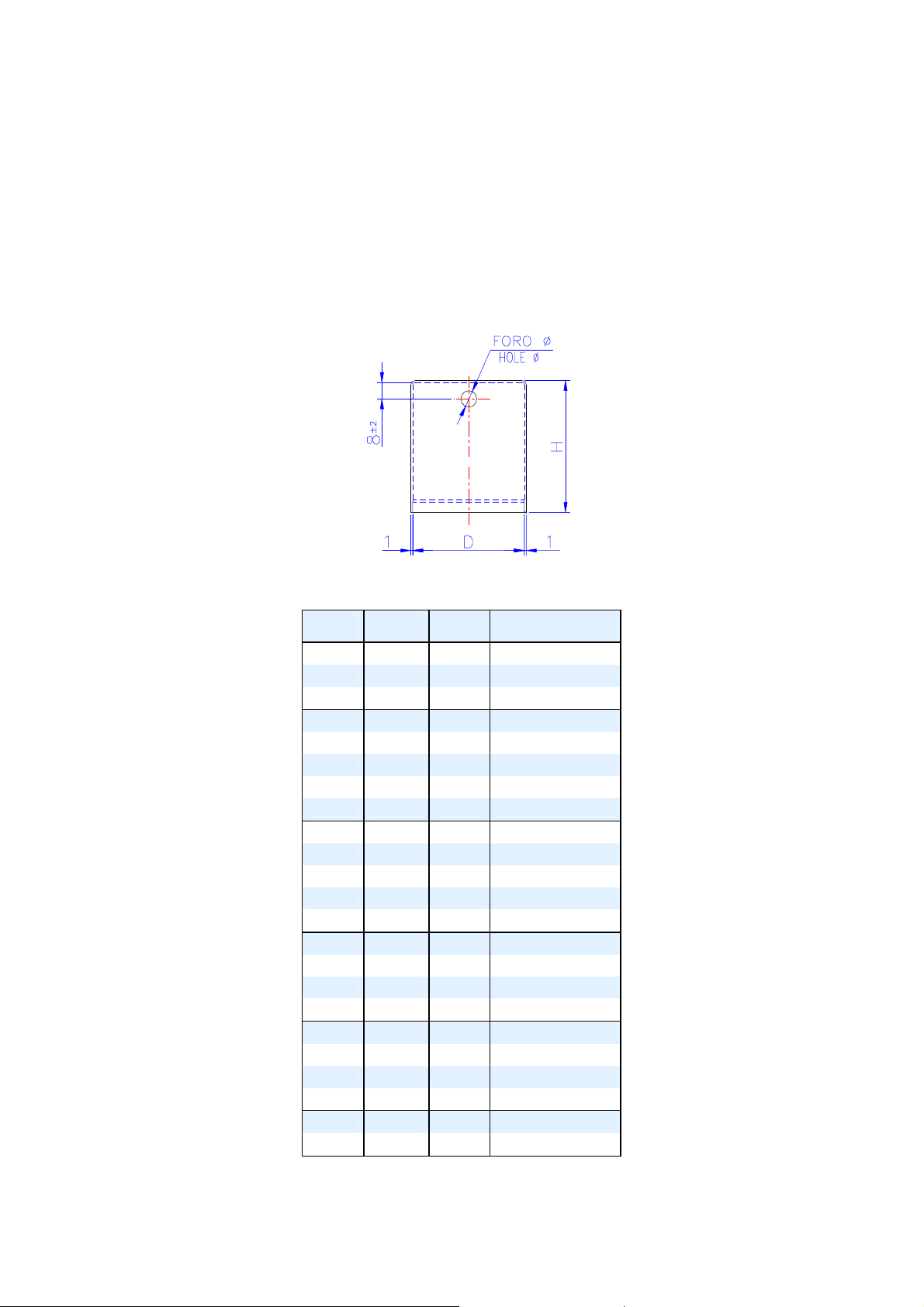

ACCESSORIES PLASTIC PROTECTION CAPACITORS:
Mechanical features
Protection degree ⇒ IP40 Material ⇒ Eva Novex V22 H864 (Polyethylene) Selfextinguishing ⇒ HB Colour ⇒ Natural
Mechanical drawing
D
(mm)
25 41 6 20.151.0079.00 25 41 8 20.151.0022.00 25 41 9 20.151.0081.00 30 40 6 20.151.0077.00 30 40 8 20.151.0023.00 30 65 8 20.151.0084.00 30 40 9 20.151.0082.00 30 40 10 20.151.0083.00 35 40 6 20.151.0078.00 35 40 8 20.151.0024.00 35 65 8 20.151.0085.00 35 40 10 20.151.0025.00 35 40 12 20.151.0026.00 40 50 6 20.151.0030.00 40 50 8 20.151.0033.00 40 50 10 20.151.0075.00 40 50 12 20.151.0035.00 45 50 6 20.151.0037.00 45 50 8 20.151.0040.00 45 50 10 20.151.0076.00 45 50 12 20.151.0042.00 50 65 8 20.151.0088.00 50 65 8 20.151.0089.00
H
(mm)
HOLE Φ
(mm)
Φ
ΦΦ
CODE
36
Page 27
C.27 Mechanical Solutions
C.27 SERIES – OPTIONS
Rated
Series Fixing Execution
C.27/4 Bolt Bipolar cable (u nipolar cable) 3.5 to 5 25 71.5 (69.5) C.27/4 Bolt Bipolar cable (unipolar cable) 6to8 30 71.5 (69.5) C.27/4 Bolt Bipolar cable (u nipolar cable) 14 to 16 35 95.5 (93.5) C.27/4 Bolt Bipolar cable (unipolar cable) 18 to 22 40 95.5 (93.5) C.27/4 Bolt Bipolar cable (u nipolar cable) 35 50 95.5 (93.5) C.27/4 Without bolt Bipolar cable (unipolar cable) 3.5to5 25 71.5 (69.5) C.27/4 Without bolt Bipolar cable (unipolar cable) 6 to 8 30 71.5 (69.5) C.27/4 Without bolt Bipolar cable (unipolar cable) 14 to 16 35 95.5 (93.5) C.27/4 Without bolt Bipolar cable (unipolar cable) 18 to 22 40 95.5 (93.5) C.27/4 Without bolt Bipolar cable (unipolar cable) 35 50 120 (119.5) C.27/6 Bolt Bipolar cable (u nipolar cable) 3.5 to 5 25 71.5 (69.5) C.27/6 Bolt Bipolar cable (unipolar cable) 6to8 30 71.5 (69.5) C.27/6 Bolt Bipolar cable (u nipolar cable) 14 to 16 35 95.5 (95.5) C.27/6 Bolt Bipolar cable (unipolar cable) 18 to 22 40 95.5 (95.5) C.27/6 Without bolt Bipolar cable (unipolar cable) 3.5 to 5 25 71.5 (69.5) C.27/6 Without bolt Bipolar cable (unipolar cable) 6to8 30 71.5 (69.5) C.27/6 Without bolt Bipolar cable (unipolar cable) 14 to 16 35 95.5 (95.5) C.27/6 Without bolt Bipolar cable (unipolar cable) 18 to 22 40 95.5 (95.5)
Cap.
(from,to)
µF
Diameter
mm
Height
mm
C.27/7 Bolt Bipolar cable (unipolar cable) 6 to 10 25 71.5 (69.5) C.27/7 Bolt Bipolar cable (unipolar cable) 12 to 14 30 71.5 (69.5) C.27/7 Bolt Bipolar cable (u nipolar cable) 25 to 30 35 95.5 (93.5) C.27/7 Bolt Bipolar cable (unipolar cable) 31.5to35 40 95.5 (93.5) C.27/7 Without bolt Bipolar cable (unipolar cable) 6 to 10 25 71.5 (69.5) C.27/7 Without bolt Bipolar cable (unipolar cable) 12 to 14 30 71.5 (69.5) C.27/7 Without bolt Bipolar cable (unipolar cable) 25 to 30 35 95.5 (93.5) C.27/7 Without bolt Bipolar cable (unipolar cable) 31.5to35 40 95.5 (93.5)
37
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
