Amphenol 7

1)

Overvoltage category III: Equipment intended for the use in installations or parts of it in which lightning overvoltages do not need to be considered,
however switching overvoltages generated by the equipment, and for cases where the reliability and the availability of the equipment or its dependent
circuits are subject to special requirements. Examples are protecting means, switches and sockets.

2)

Pollution degree 3: Conductive pollution occurs or dry non-conductive pollution occurs which becomes conductive due to condensation which is to be expected.

3)

Protection against electrical shock on the termination side has to be secured by proper mounting.

1. General Remarks

These connectors are designed and produced in conformity with the low
voltage directive (73/23/EWG) respectively Gerätesicherheitsgesetz
(German law) and are especially in accordance with the standards
DIN EN 61984 (VDE0627); IEC 60664-1 (VSE 0110-1) and IEC 60529.
The connectors may be used only within the technical ratings.
These connectors and/or plug and socket devices are designed and
produced according to DIN EN 61984/VDE 0627.
All technical data refer to mated connectors under live conditions.
The safety of the connector system depends on the correct selection of
products, proper assembly of the connector device, and a precise fit of
the connectors.

2. Application Remarks

Connectors and/or plug and socket devices must be used according to
specified technical ratings.
The technical data represents the initial value of mated parts under
predetermined conditions and length of time.These values could change
with different test parameters or product requirements.
The C 16-1/16-3 Series connectors are used in a wide variety of industries
and equipment. Some of these include industrial machines and controls,
data processing, instrumentation and test equipment, medical devices,
telecommunication’s network and equipment, plus outdoor and marine
applications.
All rated data for the connectors listed in this catalog are based on over­voltage category III

1)

and pollution degree 32)for electronic applications.

Connectors were completely mated according to their respective safety
locking mechanism. Selection and testing of connectors and/or plug and
socket devices to meet specific product or industrial requirements such as
rated voltage and the related clearances and creepage distances are the
responsibility of the user.

3. Assembling Remarks

Protection against electrical shock of the termination of the connectors
shall be secured by correct mounting. Connectors of the same or different
series being mounted side by side may be protected against incorrect
mating by the use of coding options. Care must be taken to ensure the
parts are correctly mated and screws are tightened with the proper torque.

4. Termination Remarks

Cable connectors are effectively secured when using the internal cable
clamp. When the connector contains a simple gland bushing for retention
without clamping ring the cable should have a strain relief close behind the
connector. All cable properties or specifications must be compatible with
the connector design and materials.
Designated wire conductors must be terminated to the correct poles in the
connector.
Crimp contacts must be fully inserted into the plastic housing and retention
assured with a slight tug on the wire.
Wire should be stripped correctly according to printed specifications to
insure no electrical contact can be made between the conductors. There
should be no nicked or cut strains during the stripping action.

C 16-1/16-3

Remarks
Safety classification

5. Safety Classification acc. to DIN EN 61984 VDE 0627

Style Cable clamp

with without

enclosed

mated

enclosed

unmated

protective

earthing contact

finger safety

mated

finger safety

unmated

rewirable

hand back

safety mated

connector with

breaking

capacity

1)

Male cable connector X X X X X X X X X

Female cable connector X X X X X X X X X

Male receptacle

X XXX XXX X

Female receptacle

XXXX

3)

XXX X

Male receptacle solder X X X X

3)

X

3)

XX X

Female receptacle solder X X X

3)

X

3)

X

3)

XX X

screw / crimp

screw / crimp

C 16-1

8 Amphenol

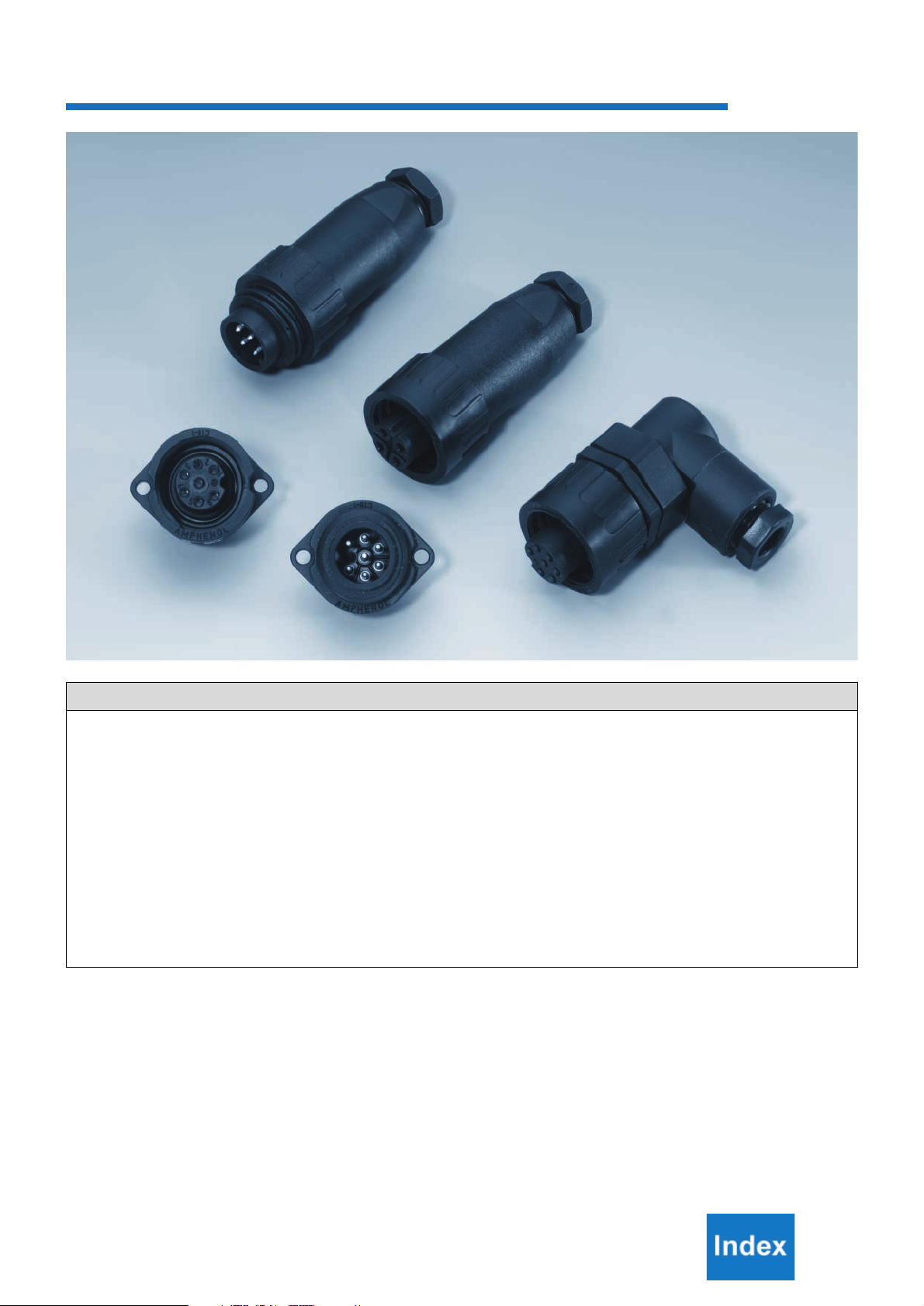

The circular connectors of the C 16-1 series are designed to meet the high
requirements of industrial applications under harsh environmental conditions.
The range includes versions with screw, solder and crimp terminations.
A selection of crimp contacts for hand crimp tools and crimp machines ensure
a reliable termination resulting in qualitative, technical and economical
advantages.
A large selection of housing styles offers the user an optimal solution.

Main features and advantages:

•Circular connectors with contact arrangements 3 + PE and 6 + PE for power
and signal applications

•For applications in machine tools, measurement and control, process
technology and medical equipment

•Housing are made from high grade plastic material

•Protected against unlocking by threaded coupling

•Cable housing straight with PG 9, 11 and 13,5 cable outlet, Cable housing 90°
with PG 9 and 11 cable outlet

• Cable housing straight or right-angled with various cable outlets

1)

• Protection degree IP 65/IP 67 per IEC 60529 in mated condition

• Internal strain relief with screw clamp or clamping ring provides a safe cable
restrain

Product description

1)

Other cable outlets uppon request

VDE 3+PE, 400 V, 16 A 1781

6+PE, 250 V, 10 A 1780

SEV 3+PE, 400 V, 16 A 00.0394

6+PE, 250 V, 6 A

UL 3+PE, 250 V, 12 A E 63093

6+PE, 250 V, 8 A

CSA 3+PE, 250 V, 12 A 48932

6+PE, 250 V, 8 A
6+PE, 250 V, 15 A

German LLyod 3+PE, 250 V, 16 A 14108 / 84

6+PE, 50 V, 8 A

C 16-1

Product description
Order information
Approvals

Contact plating

The standard plating is silver. Gold plated contacts are available upon request.
Min order quantity = 100 contacts per type.

Color coding

Upon request the coupling ring of the plugs and the housings of the receptacles
can be delivered in the colors red, green, blue, yellow and grey.
Min order quantity = 250 pcs. per type.

Mechanical coding

Achieved with special coding pins which are inserted into contact cavities.
Min. order quantity = 250 pcs. per type.

Crimp version

Order numbers do not include crimp contacts. Please order separately
(see page 33/34).
Crimp contact for higher currents are available upon request.

Crimp tooling

Ask for our catalog ”Tools“

Amphenol 9

Testhouse Characteristis

Order information

Approval No.

In general approvals refer to representative versions of the connector series. Extail and specifications of test upon request.

C 16-1

Characteristics

10 Amphenol

The stated technical values refer to the use as connector.
If these components are used as plug and socket device a reduced current carrying capacity has to be considered.

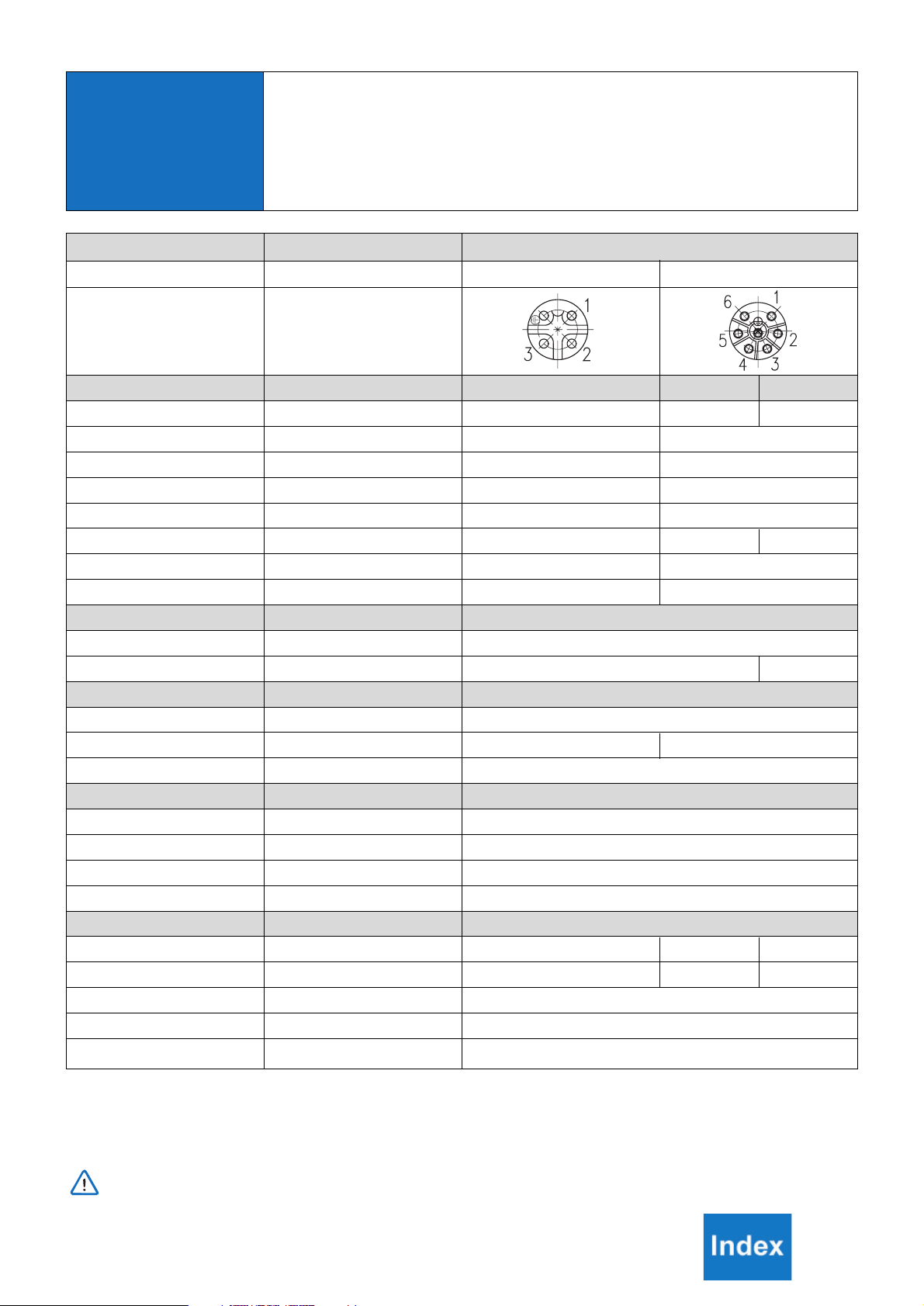

CharacteristicsGeneral Characteristics

Number of contacts 3 + PE 6 + PE

solder typescrew type crimp type

400 V 250 V 200 V

33

III

III

II

II

6000 V 4000 V

16 A / + 55 °C

10 A / + 55 °C

13 A / + 55 °C

≥ 10

8

Ω

≥ 10

8

Ω

≤ 5 m Ω

≤ 5 m Ω

40 / 125 / 5640 / 100 / 56

IP 65 / IP 67

≥ 500 mating cycles

Polyamid 6.6

Polyamid 6.6

silver plated / gold plated

schrauben löten

0,75 mm

2

crimpen

0,14 - 1,5 mm

2

max. 2,5 mm

2

Neoprene

VOUL 94

DIN 5510 Part 2
DIN 53438 Part 1-3

round thread DIN 405

S1

≤ 15 N ≤ 30 N

Electrical Characteristics

Rated insulation voltage

Pollution degree

Installation (overvoltage) category

Material group

Rated impulse withstand voltage

Current carrying capacity

Insulation resistance

Contact resistance

Climatical Characteristics

Climatic category

-40°C ... +100°C

Operating temperature

Mechanical Characteristics

IP-degree of protection

IEC 60664-1

1)

IEC 60664-1

1)

IEC 60664-1

1)

IEC 60664-1

1)

IEC 60664-1

1)

IEC 60512-5-2, Test 5b

IEC 60512-3-1

IEC 60512-2-1

IEC 60068-1

IEC 60529

Insertion and withdrawal force

Mechanical operation

Materials

Housing material

Dielectric material

Gasket material

Contact plating

Other Characteristics

Termination technique

Wire gauge mm

2

/ AWG

Flammability

Locking system

Fire protection

IEC 60512-13-2, Test 13b

IEC 60512-9-1, Test 9a

Standard

1)

IEC 60664-1 ^= VDE 0110-1 ^= DIN EN 60664-1

C 16-1

Derating curves

C 16-1

Mounting instructions

Amphenol 11

No of contacts 3 + PE No of contacts 6 + PE

alle
Ansc

all c
wire

°C

10 20 30 40 50 60 70 80 90100

0

2

4

6

8

10

A

12

14

16

18

20

22

24

alle Ko

all cont

a) Ansc

wire

b) Ansc

wire

°C

10 20 30 40 50 60 70 80 90100 110120

0

2

4

6

8

10

A

12

14

16

18

20

22

24

a

b

Amphenol C 16-1 Amphenol C 16-1

Ambient temperature

all contacts

a) wire gauge 1,5 mm

2

, 16 AWG

b) wire gauge 0,75 mm

2

, 20 AWG

Ambient temperature

all contacts
wire gauge 2,5 mm

2

, 14 AWG

Current carrying capacity

Current carrying capacity

Torque for back shell and cable clamp
min. 1Nm
max.2Nm

Torque for back shell and cable clamp
min. 1Nm
max.2Nm

coupling
ring male

coupling
ring male

female

internal
strain
relief

back shell

metal washer

sealing
gasket

clamping
ring

cable
nut

female

back shell
right angled

sealing gasket

clamping ring

cable nut

Shinning lengths

Screw contacts 7,0+1 mm

1)

Solder contacts 4,0+1 mm
Crimp contacts 0,14 - 0,50 mm

2

3+0,5 mm

0,50 - 2,50 mm

2

3,5+1 mm

1)

end splice recommended

C 16-1

Female cable connectors

Description Drawing No. of

cont.

Part No.

Cable outlet

Ø 8-10 Ø 10-12 Ø 10 -12

Female cable connector, 3+PE
screw, 6+PE solder termination, with
cable clamp or claming ring

3 + PE T 3109 001 T 3109 101 T 3109 200

6 + PE T 3105 001 T 3105 101 T 3105 200

Female cable connector, 3+PE
screw, 6+PE solder termination,
without cable clamp

3 + PE T 3109 000 T 3109 100 –

6 + PE T 3105 000 T 3105 100 –

Female cable connector, crimp
version without contacts

1)

,

with cable clamp or claming ring

6 + PE T 3105 501 T 3105 601 T 3105 701

(with clampin

ring)

Female cable connector,
right-angled, 3+PE screw,
6+PE solder termination,
with clamping ring

3 + PE T 3109 081 T 3109 091 –

6 + PE T 3105 081 T 3105 091 –

14 Amphenol

1)

Please order crimp contacts separatly, see page 33/34, part numbersystem for crimpcontacts see page 35.

Female cable connector,
right-angled, crimp version,
without contacts

1)

,

with clamping ring

6 + PE T 3105 581 T 3105 591 –

(with clamping

ring)

(with clamping

ring)

Cable outlet

Ø 6-8 Ø 8-10
