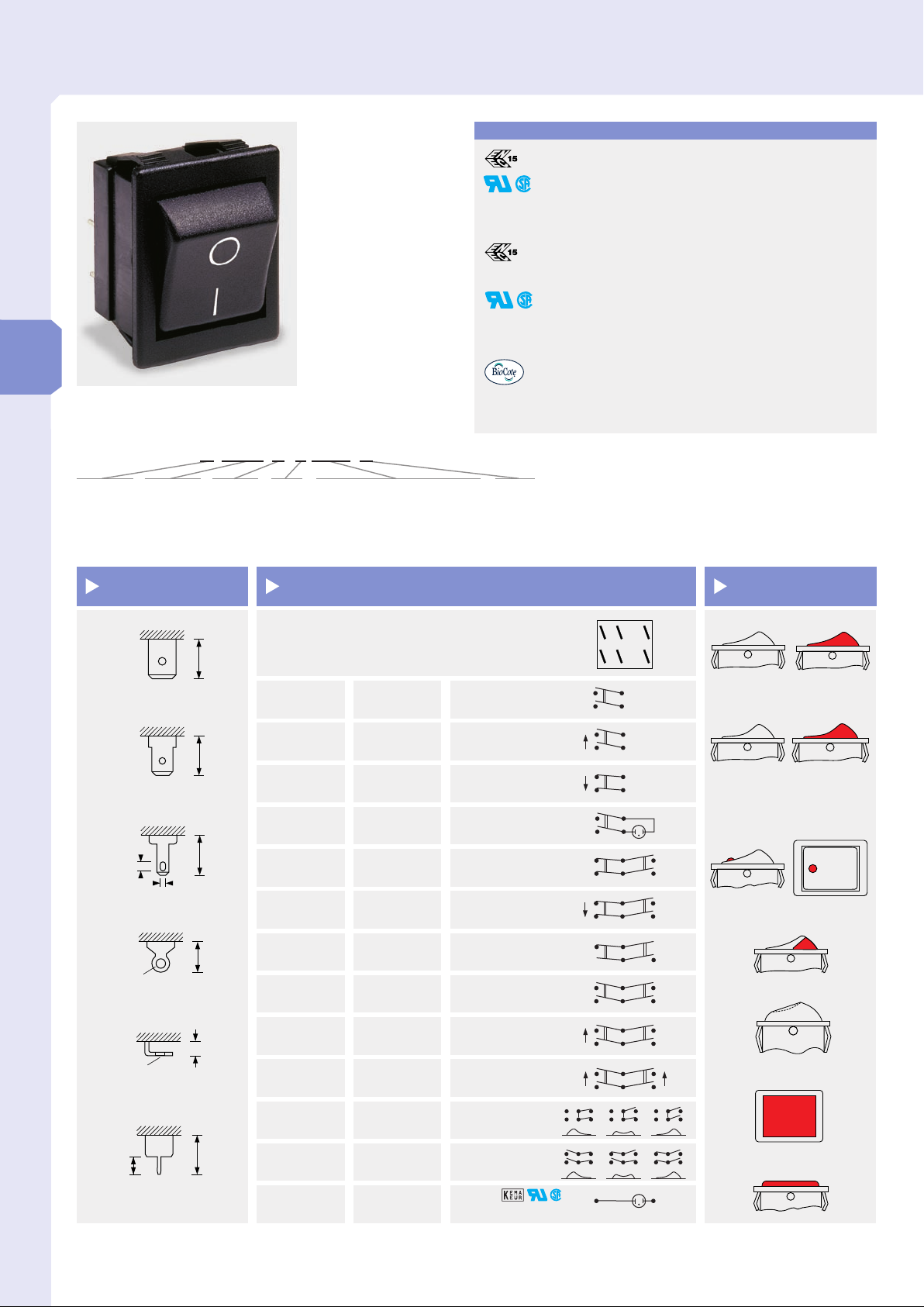

Page 1
1550 Standard & 1350 High Inrush Switches 150A to EN61058-1 and 16A 250Vac
9.1
7.0
Ø2.1
9.1
9.1
2.0
1.2
3.2
Ø2.1
9.1
4.0
12 3
45 6
12
4
536
12
4
536
12
4
536
12
4
536
12
4
536
12
4
536
៉ Standard rocker switch
៉ 1350/53 high inrush
៉ Choice of switching
circuits including 3
position
៉ Push-on, solder and
PCB terminals
៉ Choice of bezel styles
៉ Choice of panel cut outs
៉ Matching indicator
៉ Double pole
៉ Splash resistant option
៉ BioCote antimicrobial
option
rocker
switches
៉ Panel cut out ‘A’ style:
27.2 x 22.3mm
C 1553 A L
---
B
TERMINAL FUNCTION ROCKER BODY PRINT, COLOUR,VOLTAGE ETC BioCote
Approvals and specifications
1550 Series 16(4)A 250Vac T125
UL CSA 16A 250Vac, (2 posn) 250Vac 1hp, 125Vac 1/2hp,
(3 posn) 250 Vac 1/2hp, 125Vac 1/4hp.
UL 85˚C, file E45221, CSA file LR10990.
In house test:
10A 24Vdc
1350 series 16(4)A 250Vac T85 1E4 (10,000 Ops.)
1330 series 16(6)A 250Vac T125 5E4 (50,000 Ops.)
150A Inrush to EN61058-1.
UL CSA 20A 250Vac 1hp, 125Vac 1/2hp.
UL 72Vdc 7A, 36Vdc 14A.
UL 85˚C, file E45221, CSA file LR10990.
In house test:
20A 24Vdc
BioCote antimicrobial additive. Independently verified
to ISO22196:2007.
3mm contact gap except if marked µ.
Technical data on pages 4 & 5 (switches), 6 (indicators).
— Indicative rating only
— Indicative rating only
TERMINAL
C
6.3 x 0.8
H
4.8 x 0.8*
K
2.8 x 0.8*
T
Solder
U
Right angle T Solder (Not DP)
X
PCB 0.8Sq*
*Contact sales for details on 1350 series
Approvals & ratings vary with function
ON OFF Switches - ON when pressed over terminal 1
Standard
1550
1551
HP rating N/A
1552
HP rating N/A
1553
Not W, X or B rocker
High Inrush
1350
Not W, X or B rocker
1353
Not W, X or B rocker
1560 µ
1561 µ
HP rating N/A
1562 µ
In house tests only
1570 µ
125V & 250V 1/2 HP
H terminal rated T100 only
1571 µ
HP rating N/A
H terminal rated T100 only
1572 µ
HP rating N/A
H terminal rated T100 only
1484 µ
In-house tested to 10(3)A 250Vac
(B rocker only)
1487 µ
In-house tested to 10(3)A 250Vac
(B rocker only)
0480
X terminal N/A
ON - OFF
ON - OFF
(momentary ON)
ON - OFF
(momentary OFF)
ON - OFF
Lit
ON - ON
ON - ON
(momentary 1 side)
2 Circuit
ON - ON
ON - OFF - ON
ON - OFF - ON
(momentary 1 side)
ON - OFF - ON
(momentary 2 sides)
3 position selective
3 position selective
(Consult salesfor other switch options)
Indicator
Technical data on page 6
ROCKERFUNCTION
A Softline Matt
Lit (not momentary)
B Splash resistant Softline
V Curved
Matt or gloss Gloss only
Lit (not momentary)
W Splash resistant Curved
P Lit window Matt
Lit (not momentary)
X Two colour Matt
(ON OFF only - not momentary)
R Round
F Flat lens Gloss (0480 only)
Top view
A Softline lens Matt (0480 only)
as F but with raised profile
28
tel: +44 (0)20 8979 3232 • Arcolectric • email:
Page 2
2.0
25.3 Max
9.2
13.2
7.6
22.3/22.4
27.2
27.3
22.1/22.2
30.0
30.1
22.3/22.4
28.2
28.3
22.3/22.4
28.2
28.3
23.0/25.4
28.4
28.5
22.1/22.2
30.0
30.1
25.0
30.2
25.0
33.4
R3.5
32.0
25.0
R1.0
25.0
30.2
R1.6
28.9
33.2
30.2
25.0
R1.6
C1350AL - --
C1550XL - --
C1553PL - --
C1553RA --Shown with M614 bezel cover
switches
rocker
C0480AL - --
BODY
Panel cut-out * Bezel
Cut-outs must be punched in the direction of insertion
A
Gloss or Matt
B
Matt only
L
Matt only
Q
Gloss or matt
Optional snap-in M441 barrier
OPTIONS
Finish Matt is standard.
Colour Call sales for custom colours.
A full range is available for large orders.
Legend printing Select from the examples or
call sales for custom legends.
Lamp voltage Call sales for details.
Blanking plates A0494 Dummy units
to fill unused panel holes.
Protective cover
Snaps on to A, L, Q or T bodies (add G after body
in cat no). This reduces panel thickness by 1.0mm.
Panel sealing washer W42 is available for the
above body sizes. This reduces panel thickness by
0.9mm.
Covers are not suitable for momentary types.
C1553AA with M616 guard
Cut-out 22.0/22.1 x 29.4/29.5
C0480RA --Shown with M614 bezel cover
Guard accepts “A” body only
DIMENSIONS (mm)
Panel thickness
A,Q 0.75 to 3.3mm
L,B,T 0.75 to 2.5mm
R 0.75 to 3.0mm
* For cut-out details on
momentary switches call sales.
Terminal spacing - Poles 10.2 between centres
1350 High inrush, positive break switching
The 1350 series mechanism ensures
contact welds formed at switch-on,
are positively separated by the
plunger tube acting directly on the
step in the moving contact.
step
plunger tube
R
T
T body unavailable with V Rocker
Matt only
Matt only
BioCote Antimicrobial Additive
Moulded components have antimicrobial
properties using BioCote silver ion technology.
For all options call sales.
tel: +44 (0)20 8979 3232 • Arcolectric • email:
Examples of printing
EN602A EN730 EN822
29

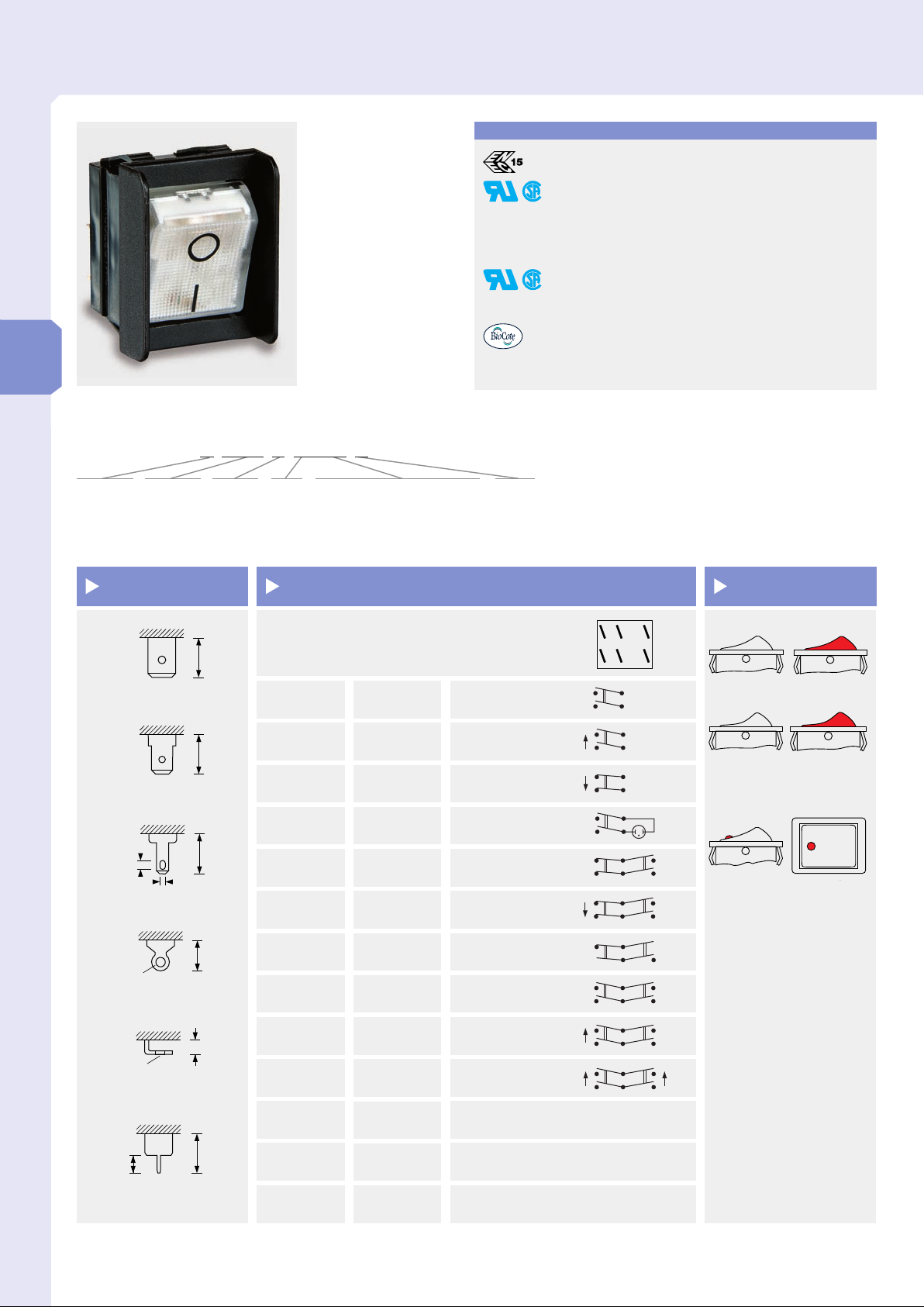

Page 3
1550 Standard & 1350 High Inrush Switches150A to EN61058-1 and 16A 250Vac
9.1
7.0
Ø2.1
9.1
9.1
2.0
1.2
3.2
Ø2.1
9.1
4.0
12 3
45 6
With Guard or Cover
៉ Standard rocker switch
៉ 1350/53 high inrush
៉ Choice of switching
circuits including 3
position
៉ Push-on, solder and
PCB terminals
៉ Choice of bezel styles
៉ Choice of panel cut outs
៉ Matching indicator
៉ Double pole
៉ Option with guard &
cover
rocker
switches
៉ Bezel size ‘G’ style
32.0 x 25.0
Approvals and specifications
1550 Series 16(4)A 250Vac T125
UL CSA 16A 250Vac, (2 posn) 250Vac 1hp, 125Vac 1/2hp,
(3 posn) 250 Vac 1/2hp, 125Vac 1/4hp.
UL 85˚C, file E45221,CSA file LR10990.
In house test:
In house test:
10A 24Vdc — Indicative rating only
1350 Series
UL CSA 20A 250Vac 1hp, 125Vac 1/2hp.
UL 72Vdc7A,36Vdc 14A,UL 85˚C, file E45221, CSA file LR10990.
20A 24Vdc — Indicative rating only
BioCote antimicrobial additive. Independently verified
to ISO22196:2007.
3mm contact gap except if marked µ.
Technical data on pages 4 & 5 (switches), 6 (indicators).
C 1553 A G
---
B
TERMINAL FUNCTION ROCKER BODY PRINT, COLOUR, VOLTAGE ETC BioCote
TERMINAL
C
6.3 x 0.8
Standard
1550
H
1551
HP rating N/A
1552
4.8 x 0.8*
K
HP rating N/A
1553
1560 µ
2.8 x 0.8*
T
1561 µ
HP rating N/A
1562 µ
In house tests only
Approvals & ratings vary with function
ON OFF Switches - ON when pressed over terminal 1
High Inrush
1350
1353
ON - OFF
ON - OFF
(momentary ON)
ON - OFF
(momentary OFF)
ON - OFF
Lit
ON - ON
ON - ON
(momentary 1 side)
2 Circuit
ON - ON
ROCKERFUNCTION
A Softline Matt
Lit (not momentary)
V Curved
Matt or gloss Gloss only
Lit (not momentary)
P Lit window Matt
Lit (not momentary)
30
U
Right angle T Solder (Not DP)
X
*Contact sales for details on 1350 series
Solder
PCB 0.8Sq*
1570 µ
125V & 250V 1/2 HP
H terminal rated T100 only
1571 µ
HP rating N/A
H terminal rated T100 only
1572 µ
HP rating N/A
H terminal rated T100 only
tel: +44 (0)20 8979 3232 • Arcolectric • email: [email protected]
ON - OFF - ON
ON - OFF - ON
(momentary 1 side)
ON - OFF - ON
(momentary 2 sides)
Page 4
2.0
25.3 Max
9.2
13.2
7.6
9.2
22.1/22.2
30.0
30.1
22.1/22.2
30.0
30.1
32.0
25.0
25.0
32.0
C1550AH - --
C1553AH - --
switches
rocker
BODY
Panel cut-out * Bezel
Cut-outs must be punched in the direction of insertion
G With Guard
Matt only
H With Cover
Matt only
OPTIONS
Finish Matt is standard.
Colour Call sales for custom colours.
A full range is available for large orders.
Legend printing Select from the examples or
call sales for custom legends.
Lamp voltage Call sales for details.
BioCote Antimicrobial Additive
Moulded components have antimicrobial
properties using BioCote silver ion technology.
DIMENSIONS (mm)
Panel thickness
G, H 0.75 to 2.5mm
* For cut-out details on
momentary switches call sales.
Terminal spacing - Poles 10.2 between centres
1350 High inrush, positive break switching
The 1350 series mechanism ensures
contact welds formed at switch-on,
are positively separated by the
plunger tube acting directly on the
step in the moving contact.
step
plunger tube
Examples of printing
EN602A EN730 EN822
31
