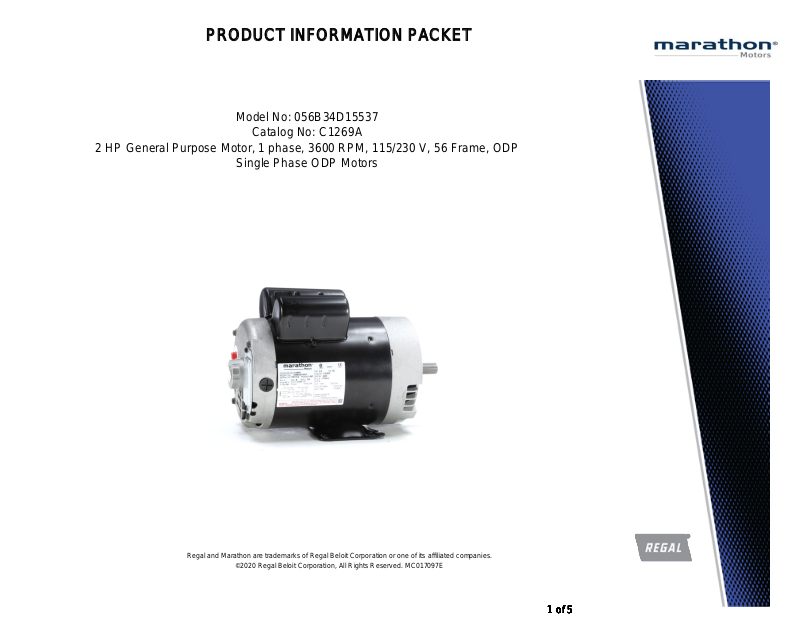

PRODUCT INFORMATION PACKET

Model No: 056B34D15537

Catalog No: C1269A

2 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56 Frame, ODP

Single Phase ODP Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 5

Product Information Packet: Model No: 056B34D15537, Catalog No:C1269A 2 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56 Frame, ODP

Nameplate Specifications

Output HP 2 Hp Output KW 1.5 kW Frequency 60 Hz Voltage 115/230 V Current 17.8/8.9 A Speed 3450 rpm Service Factor 1.15 Phase 1 Efficiency 82.9 % Power Factor 90 Duty Continuous Insulation Class B Design Code NO DESIGN CODE KVA Code K Frame 56 Enclosure Drip Proof Thermal Protection Manual Ambient Temperature 40 °C Drive End Bearing Size 6203 Opp Drive End Bearing Size 6203 UL Recognized CSA Y CE Y IP Code 12

Technical Specifications

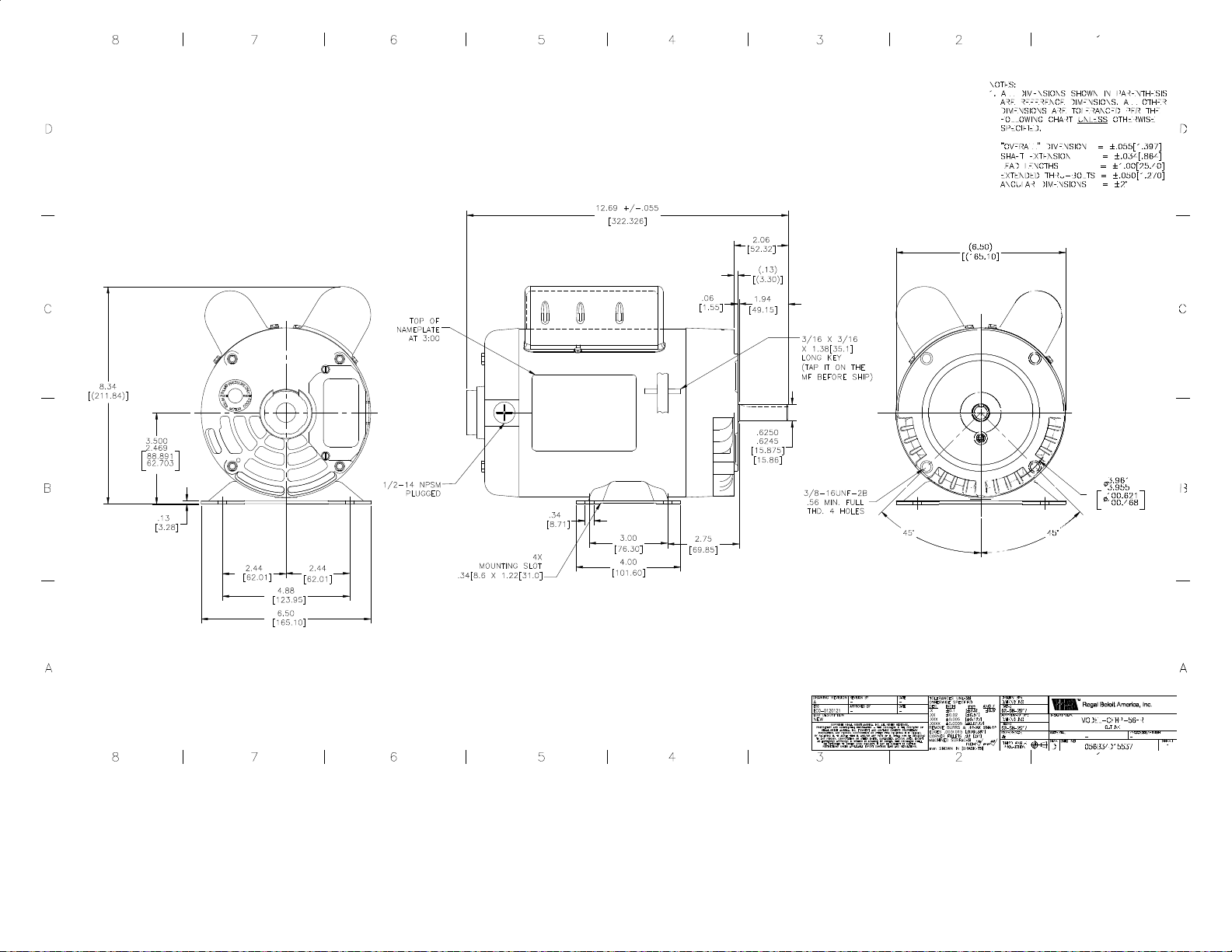

Electrical Type Capacitor Start Capacitor Run Starting Method Across The Line Poles 2 Rotation Selective Counterclockwise Resistance Main .8 Ohms Mounting Rigid Base Motor Orientation Horizontal Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Rolled Steel Shaft Type T Overall Length 12.69 in Shaft Diameter 0.625 in Shaft Extension 1.88 in Assembly/Box Mounting F1 OUT ODE BRKT RADIAL Connection Drawing 17865001 Outline Drawing 056B34D15537-S01

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:14/12/2020

2 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 5

Uncontrolled Copy

3 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 5

Uncontrolled Copy

4 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 5

HZ

1/11/2019

Uncontrolled Copy

MARATHON ELECTRIC CORPORATION

TYPICAL PERFORMANCE CURVE for AC MOTOR

Customer Curve at 230 Volts HP 2.00

60 HZ

Model No 56B34D15537

2 HP VOLTS 115/230

Catalog No C1269A

60 70 80 90 100

EFF

60 70 80 90 100

PF

3 3.5 4 4.5 5

HP

3570 3580 3590 3600 3610

RPM

3 3.5 4 4.5 5

KW

60 70 80 90 10060 70 80 90 1003 3.5 4 4.5 53570 3580 3590 3600 36103 3.5 4 4.5 512 14 16 18 20

PF

HP

KW

EFF

RPM

AMPS

1

60 RPM 3450

Eff −

−

−−

PF −

−

−−

HP −

−

−−

RPM −

−

−−

KW −

−

−−

Amps −

−

−−

0 10 20 30 40 50

0 0.5 1 1.5 2 2.5 3 3.5 4

0 0.5 1 1.5 2 2.5

0 0.5 1 1.5 2 2.5 3 3.5 4

3510 3520 3530 3540 3550 3560

0 0.5 1 1.5 2 2.5

0 0.5 1 1.5 2 2.5 3 3.5 4

Torque

0 10 20 30 40 50

0 0.5 1 1.5 2 2.5

0 2 4 6 8 10

3510 3520 3530 3540 3550 3560

0 0.5 1 1.5 2 2.5 3 3.5 4

Torque

FL TORQUE 3 Lb.Ft FL AMPS 17.8/8.9 BD TORQUE 10.3 Lb.Ft PU TORQUE 5.1 Lb.Ft LR TORQUE 5.75 Lb.Ft LR AMPS 70 WINDING SS2521380-001-1 Date

Torque

Torque in Lb.Ft
