USE X Indoor Interno Edificio INSTALLATION X Fixed Fissa INFORMATION X RoHS2 Compliant
Impiego X Outdoor Limited Esterno Limitato Posa X Restricted Mobile Mobile Limitata Informazioni X Ver. B / 14.03.19
Outdoor Esterno Mobile Mobile
Outdoor Direct Burial Esterno Interrato Mobile in Drag Chain Mobile in Catena
Formation in accordance with CEI 20-29 and IEC228
Conductor Resistance
203 Ω/Km
Capacity Core/Core 70 pF/m
Capacity Core/Shield 300 pF/m
Max Rated Voltage 49 V
Operative Temperature -15/+70°C
Cable Properties

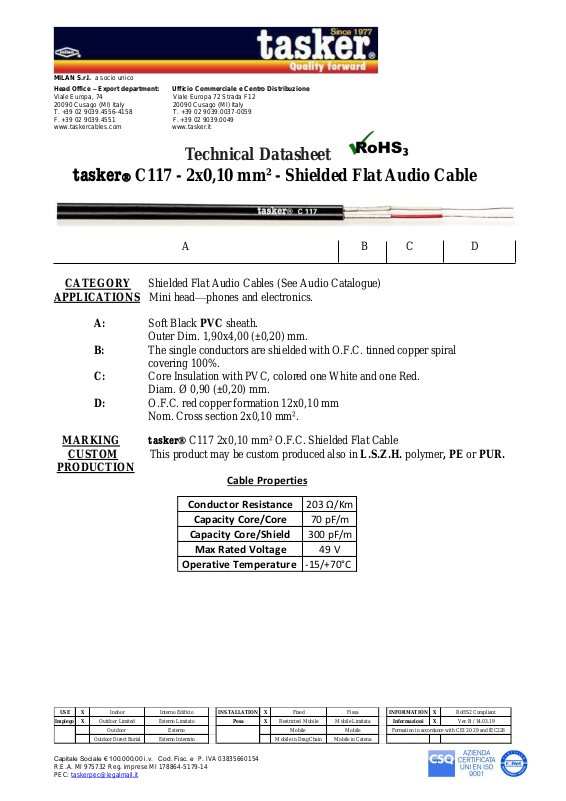

Technical Datasheet
tasker C117 - 2x0,10 mm² - Shielded Flat Audio Cable
A B C D
CATEGORY Shielded Flat Audio Cables (See Audio Catalogue)
APPLICATIONS Mini head—phones and electronics.
A: Soft Black PVC sheath.
Outer Dim. 1,90x4,00 (±0,20) mm.
B: The single conductors are shielded with O.F.C. tinned copper spiral
covering 100%.
C: Core Insulation with PVC, colored one White and one Red.
Diam. Ø 0,90 (±0,20) mm.
D: O.F.C. red copper formation 12x0,10 mm
Nom. Cross section 2x0,10 mm².
MARKING tasker® C117 2x0,10 mm² O.F.C. Shielded Flat Cable
CUSTOM This product may be custom produced also in L.S.Z.H. polymer, PE or PUR.
