Datasheet C106BG Datasheet

C106 Series

Pb

Thyristors

Surface Mount > 200 - 600V > C106 Series

Description

Glassivated PNPN devices designed for high volume
consumer applications such as temperature, light, and
speed control; process and remote control, and warning
systems where reliability of operation is important.

Features

Pin Out

• Glassivated Surface for
Reliability and Uniformity

• Power Rated at
Economical Prices

• Practical Level
Triggering and Holding
Characteristics

Functional Diagram

A,2

• Flat, Rugged, Thermopad
Construction for Low
Thermal Resistance, High
Heat Dissipation and
Durability

• Sensitive Gate Triggering

• These are Pb−Free
Devices

G,3

K,1

TO 225AA

CASE 77

3

2

1

STYLE 2

Additional Information

Datasheet

Resources

Specifications are subject to change without notice.

Samples

© 2019 Littelfuse, Inc.

Revised: 06/11/19

Thyristors

Surface Mount > 200 - 600V > C106 Series

Maximum Ratings (TJ = 25°C unless otherwise noted)

Rating Symbol Value Unit

Peak Repetitive Off−State Voltage
(Sine Wave, 50−60 Hz, RGK = 1 K,
TC = −40° to 110°C)

C106B

C106D, C106D1*

C106M

V
V

On-State RMS Current (180° Conduction Angles, TC = 80°C) I
Average On−State Current (180° Conduction Angles, T

= 80°C) I

C

Peak Non-Repetitive Surge Current
(1/2 Cycle, Sine Wave, 60 Hz, T

= +25°C)

J

Circuit Fusing Considerations (t = 8.3 ms) I
Forward Peak Gate Current

(Pulse Width 1.0 sec, TC = 80°C)
Forward Peak Gate Power (Pulse Width ≤ 1.0 µsec, T
Forward Average Gate Power (Pulse Width ≤ 1.0 µsec, T

= 80°C) P

C

= 80°C) P

C

Operating Junction Temperature Range T
Storage Temperature Range T

,

DRM

RRM

T (RMS)

T(AV)

I

TSM

2

t 1.65 A2s

I

GM

GM

G(AV)

J

stg

200
400
600

4.0 A

2.55 A

20 A

0.2 A

0.5 W

0.1 W

-40 to +110 °C

-40 to +150 °C

V

Mounting Torque (Note 2) _ 6.0 in. lb.

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied.

Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

1. V

and V

DRM

potential on the anode. Blocking voltages shall not be tested with a constant current source such that the voltage ratings of the devices are exceeded.

2. Torque rating applies with use of torque washer (Shakeproof WD19523 or equivalent). Mounting Torque in excess of 6 in. lb. does not appreciably lower case-to-sink thermal resistance.
Main terminal 2 and heat-sink contact pad are common.

for all types can be applied on a continuous basis. Ratings apply for zero or negative gate voltage; however, positive gate voltage shall not be applied concurrent with negative

RRM

Thermal Characteristics

Rating Symbol Value Unit

Thermal Resistance,

Junction−to−Case (AC)

Junction−to−Ambient

Maximum Lead Temperature for Soldering Purposes, 1/8” from case for
10 seconds

R

ƟJC

R

ƟJA

T

L

3.0
75

°C/W

260 °C

Electrical Characteristics - OFF (TJ = 25°C unless otherwise noted)

Characteristic Symbol Min Ty p Max Unit

T

Peak Repetitive Forward or Reverse Blocking Current
(V

= Rated V

AK

Electrical Characteristics - ON (T

DRM

or V

, RGK = 1 Ωk)

RRM

= 25°C unless otherwise noted)

J

Characteristic Symbol Min Ty p Max Unit

Peak Forward On-State Voltage (Note 3) (I

= 4 A) V

TM

Gate Trigger Current (Continuous dc)
(V

= 12 V, RL = 100 Ω, All Quadrants)

D

Peak Reverse Gate Voltage (I

= 10 µA) V

GR

Gate Trigger Voltage (Continuous dc)
(V

= 12 Vdc, RL = 100 Ω, TC = 25°C)

D

Gate Non−Trigger Voltage (Continuous dc) (Note 4)

= 12 V, RL = 100

(V

AK

(VAK = 12 V, RL = 100 , TJ = 110°C), TJ = 110°C)

Latching Current
(V

= 12 V, IG = 20 mA, RGK = 1 kΩ)

AK

Holding Current

= 12 Vdc)

(V

D

(Initiating Current = 20 mA, RGK = 1 kΩ)

= 25°C

J

T

= 110°C – – 100 µA

J

T

= 25°C

J

= -40°C – 35 500

T

J

T

= 25°C

J

= -40°C 0.5 0.75 1. 0

T

J

T

= 25°C

J

= -40°C – 0.35 7. 0

T

J

T

= 25°C

J

T

= -40°C _ 0.33 6.0

J

T

= +110°C _ 0.07 2.0

J

, I

I

DRM

RRM

TM

I

GT

GRM

V

GT

V

GD

I

L

_ _ 10 μA

– – 2.2 V
_ 15 200

– – 6.0 V

0.4 0.60 0.8

0.2 _ _ V

_ 0.20 5.0

µA

V

mA

_ 0.19 3.0

I

H

Specifications are subject to change without notice.

mA

© 2019 Littelfuse, Inc.

Revised: 06/11/19

Dynamic Characteristics

Characteristic Symbol Min Typ Max Unit

Critical Rate-of-Rise of Off State Voltage

= Rated V

(V

AK

Exponential Waveform, RGK = 1kΩ,TJ = 110°C)

DRM,

3. Pulse Test: Pulse Width ≤ 2.0 ms, Duty Cycle ≤ 2%.
is not included in measurement.

4. R

GK

Voltage Current Characteristic of SCR

Symbol Parameter

V

DRM

I

DRM

V

RRM

I

RRM

V

TM

I

H

Peak Repetitive Forward Off State Voltage
Peak Forward Blocking Current
Peak Repetitive Reverse Off State Voltage
Peak Reverse Blocking Current
Maximum On State Voltage
Holding Current

Thyristors

Surface Mount > 200 - 600V > C106 Series

dv/dt – 8.0 − V/µs

+C urrent

on stat e

I

at V

RR M

RR M

Quadrant 1

TM

Main Terminal 2 +

V

I

H

Quadrant 3
Main Te rminal 2

I

V

TM

off stat e

H

I

DR M

at V

+V oltage

DR M

Specifications are subject to change without notice.

© 2019 Littelfuse, Inc.

Revised: 06/11/19

Thyristors

Surface Mount > 200 - 600V > C106 Series

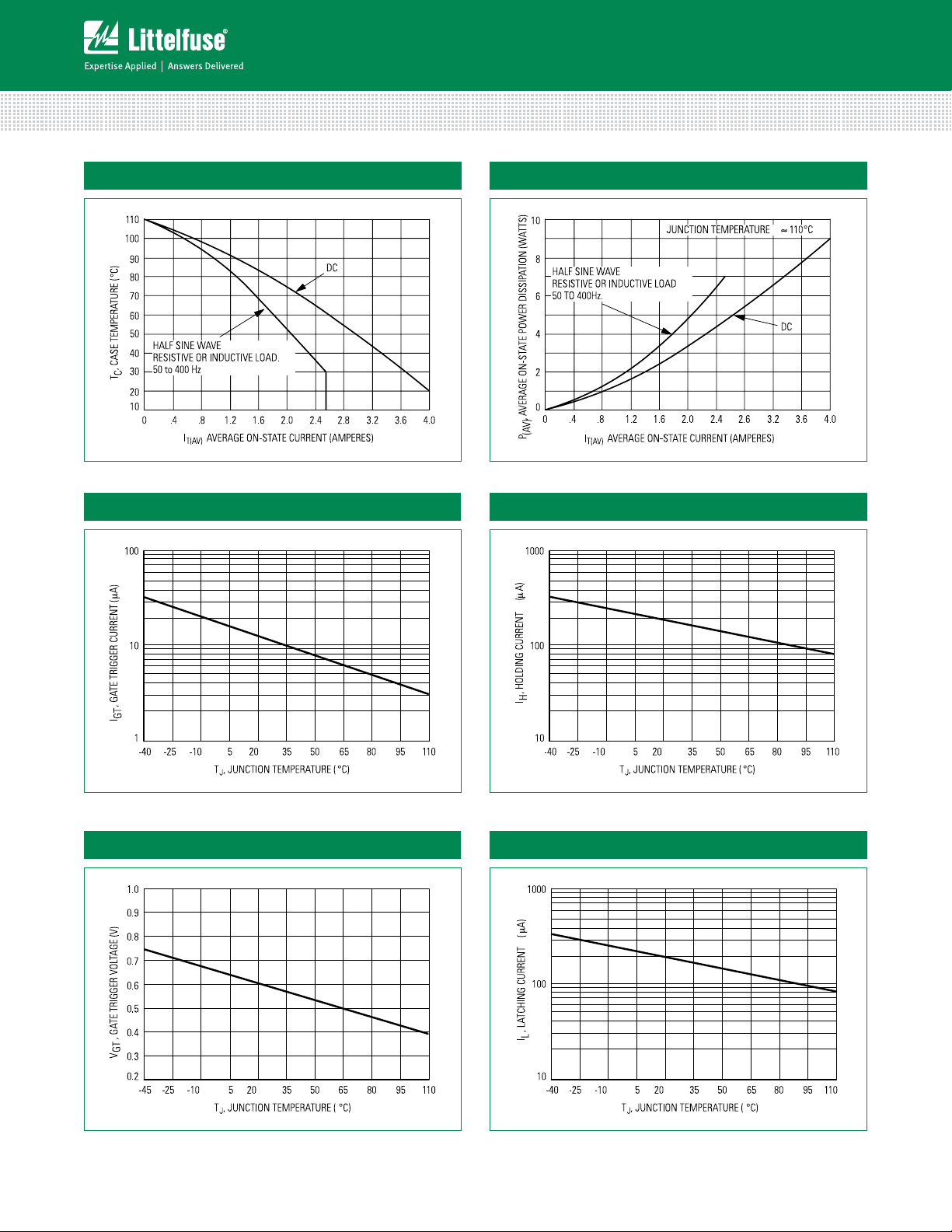

Figure 1. Average Current Derating

Figure 3. Typical Gate Trigger Current vs. Junction Temp

Figure 2. Maximum On-State Power Dissipation

Figure 4. Typical Holding Current vs. Junction Temp

Figure 5. Typical Gate Trigger Voltage vs. Junction Temp

Figure 5. Typical Latching Current vs. Junction Temp

Specifications are subject to change without notice.

© 2019 Littelfuse, Inc.

Revised: 06/11/19

Thyristors

Surface Mount > 200 - 600V > C106 Series

Dimensions

E

Q

ØP

123

L1

b2 x2

b

e e c

Dim

A 0.102 0.110 2.60 2.80

A1 0.047 0.055 1.20 1.40

b 0.028 0.034 0.70 0.86

b2 0.028 0.034 0.70 0.86

c 0.019 0.022 0.49 0.57
D 0.417 0.449 10.60 11.40
E 0.291 0.323 7.40 8.20
e 0.090 TYP 2.29 TYP
L 0.551 0.630 14.00 16.00

L1 0.091 0.106 2.30 2.70

P 0.118 0.134 3.00 3.40
Q 0.142 0.157 3.60 4.00

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. 077-01 THRU -08 OBSOLETE, NEW STANDARD 077-09.

Inches Millimeters

Min Max Min Max

A1

D

A

L

PIN4
BACKSIDE TAB

Part Marking System

TO 225AA

CASE 077

STYLE 2

1. Cathode

2. Anode

3. Gate

Y =Year
M =Month
A =Assembly Site
XX =Lot Serial Code
C106xx =Device Code
xx =B, D, D1, M, M1
G =Pb-Free Package

Pin Assignment

1 Cathode
2 Anode
3 Gate

C106xxG

YMAXX

Ordering Information

Device Package Shipping

C106BG

C106DG

C106D1G*

C106MG

C106M1G*

*D1 signifies European equivalent for D suffix and M1 signifies

European equivalent for M suffix.

TO225AA

(Pb-Free)

2500 Units/Box
