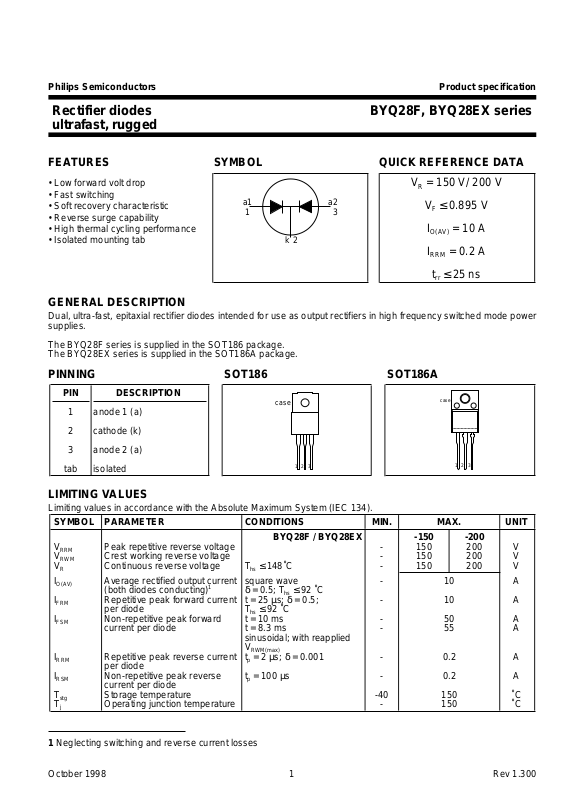

Philips Semiconductors Product specification

Rectifier diodes BYQ28F, BYQ28EX series ultrafast, rugged

FEATURES SYMBOL QUICK REFERENCE DATA

• Low forward volt drop V

• Fast switching

• Soft recovery characteristic V

• Reverse surge capability

• High thermal cycling performance I

• Isolated mounting tab

= 150 V/ 200 V

≤ 0.895 V

= 10 A

O(AV)

= 0.2 A

RRM

trr ≤ 25 ns

GENERAL DESCRIPTION

Dual, ultra-fast, epitaxial rectifier diodes intended for use as output rectifiers in high frequency switched mode power supplies.

The BYQ28F series is supplied in the SOT186 package. The BYQ28EX series is supplied in the SOT186A package.

PINNING SOT186 SOT186A

PIN DESCRIPTION

1 anode 1 (a) 2 cathode (k) 3 anode 2 (a)

tab isolated

case

123

case

123

LIMITING VALUES

Limiting values in accordance with the Absolute Maximum System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

BYQ28F / BYQ28EX -150 -200

RRM

RWM

O(AV)

FRM

FSM

RRM

RSM

stg

1 Neglecting switching and reverse current losses

Peak repetitive reverse voltage - 150 200 V Crest working reverse voltage - 150 200 V Continuous reverse voltage Ths ≤ 148˚C - 150 200 V

Average rectified output current square wave - 10 A (both diodes conducting)

δ = 0.5; Ths ≤ 92 ˚C Repetitive peak forward current t = 25 µs; δ = 0.5; - 10 A per diode Ths ≤ 92 ˚C Non-repetitive peak forward t = 10 ms - 50 A current per diode t = 8.3 ms - 55 A

sinusoidal; with reapplied

RWM(max)

Repetitive peak reverse current tp = 2 µs; δ = 0.001 - 0.2 A per diode Non-repetitive peak reverse tp = 100 µs - 0.2 A current per diode Storage temperature -40 150 ˚C Operating junction temperature - 150 ˚C

October 1998 1 Rev 1.300

Page 2

Philips Semiconductors Product specification

Rectifier diodes BYQ28F, BYQ28EX series ultrafast, rugged

ESD LIMITING VALUE

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Electrostatic discharge Human body model; - 8 kV capacitor voltage C = 250 pF; R = 1.5 kΩ

ISOLATION LIMITING VALUE & CHARACTERISTIC

Ths = 25 ˚C unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

isol

Peak isolation voltage from SOT186 package; R.H. ≤ 65%; clean and - - 1500 V all terminals to external dustfree heatsink

isol

R.M.S. isolation voltage from SOT186A package; f = 50-60 Hz; - - 2500 V all terminals to external sinusoidal waveform; R.H. ≤ 65%; clean heatsink and dustfree

isol

Capacitance from pin 2 to f = 1 MHz - 10 - pF external heatsink

THERMAL RESISTANCES

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

R R

th j-hs

th j-a

Thermal resistance junction to with heatsink compound - - 5.7 K/W heatsink without heatsink compound - - 6.7 K/W Thermal resistance junction to in free air - 55 - K/W ambient

ELECTRICAL CHARACTERISTICS

characteristics are per diode at Tj = 25 ˚C unless otherwise stated

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

rr1

rr2

rrm

Forward voltage IF = 5 A; Tj = 150˚C - 0.80 0.895 V

IF = 5 A - 0.95 1.10 V

IF = 10 A - 1.10 1.25 V Reverse current VR = V

VR = V

; Tj = 100 ˚C - 0.1 0.2 mA

RWM RWM

-210µA Reverse recovery charge IF = 2 A; VR ≥ 30 V; -dIF/dt = 20 A/µs- 4 9 nC Reverse recovery time IF = 1 A; VR ≥ 30 V; - 15 25 ns

-dIF/dt = 100 A/µs Reverse recovery time IF = 0.5 A to IR = 1 A; I Peak reverse recovery current IF = 5 A; VR ≥ 30 V; -dIF/dt = 50 A/µs - 0.5 0.7 A

= 0.25 A - 10 20 ns

rec

Forward recovery voltage IF = 1 A; dIF/dt = 10 A/µs-1-V

October 1998 2 Rev 1.300

Page 3

Philips Semiconductors Product specification

Rectifier diodes BYQ28F, BYQ28EX series ultrafast, rugged

time

rrm

Fig.1. Definition of t

, Qs and I

rr1

10%

100%

rrm

time

Fig.2. Definition of V

0.5A

I = 0.25A

rec

trr2

I = 1A

Fig.4. Definition of t

PF / W

Vo = 0.748 V Rs = 0.0293 Ohms

7 6 5 4 3 2 1 0

012345678

0.1

BYQ28

0.2

IF(AV) / A

rr2

Ths(max) / C

D = 1.0

0.5

D =

Fig.5. Maximum forward dissipation PF = f(I

diode; square current waveform where

F(AV)

F(RMS)

x √D.

F(AV)

104.4

110.1

115.8

121.5

127.2

132.9

138.6

144.3 150

) per

a = 1.57

F(AV)

Ths(max) / C

F(AV)

115.8

121.5

127.2

132.9

138.6

144.3

150

) per

Voltage Pulse Source

Current shunt

Fig.3. Circuit schematic for t

D.U.T.

to ’scope

rr2

PF / W

Vo = 0.748 V Rs = 0.0293 Ohms

0123456

BYQ28

1.9

2.2

2.8

IF(AV) / A

Fig.6. Maximum forward dissipation PF = f(I

diode; sinusoidal current waveform where a = form

factor = I

F(RMS)

/ I

October 1998 3 Rev 1.300

Page 4

Philips Semiconductors Product specification

Rectifier diodes BYQ28F, BYQ28EX series ultrafast, rugged

trr / ns

1000

100

110

dIF/dt (A/us)

IF=5A

IF=1A

Fig.7. Maximum trr at Tj = 25 ˚C; per diode

Irrm / A

IF=5A

100

Qs / nC

100

IF=5A IF=2A

1.0

0.1

1.0 10 100

IF=1A

-dIF/dt (A/us)

Fig.10. Maximum Qs at Tj = 25 ˚C; per diode

Transient thermal impedance, Zth j-hs (K/W)

0.1

0.01 1

Fig.8. Maximum I

IF / A

Tj=150C Tj=25C

-dIF/dt (A/us)

at Tj = 25 ˚C; per diode

rrm

typ

0.5 VF / V

IF=1A

10 100

BYQ28

max

1.5

Fig.9. Typical and maximum forward characteristic

IF = f(VF); parameter T

0.01

0.001 1us 10us 100us 1ms 10ms 100ms 1s 10s

pulse width, tp (s)

D =

BYQ28F/EX

Fig.11. Transient thermal impedance; per diode;

= f(tp).

th j-hs

October 1998 4 Rev 1.300

Page 5

Philips Semiconductors Product specification

Rectifier diodes BYQ28F, BYQ28EX series ultrafast, rugged

MECHANICAL DATA

Dimensions in mm Net Mass: 2 g

3.5 max

not tinned

10.2 max

5.7

max

3.2

3.0

4.4

0.9

0.5

4.4

4.0

seating

plane

13.5 min

4.4

max

2.9 max

7.9

7.5 17

max

123

0.4

5.08

Fig.12. SOT186; The seating plane is electrically isolated from all terminals.

Notes

1. Refer to mounting instructions for F-pack envelopes.

2. Epoxy meets UL94 V0 at 1/8".

0.9

0.7

2.54

top view

0.55 max

1.3

October 1998 5 Rev 1.300

Page 6

Philips Semiconductors Product specification

Rectifier diodes BYQ28F, BYQ28EX series ultrafast, rugged

MECHANICAL DATA

Dimensions in mm Net Mass: 2 g

10.3

Recesses (2x)

2.5

0.8 max. depth

3 max.

not tinned

13.5 min.

0.4

max

3.2

3.0

123

5.08

2.8

2.54

15.8 max.

max.

seating

plane

0.5

2.5

4.6

max

2.9 max

6.4

0.6

2.5

15.8 max

Fig.13. SOT186A; The seating plane is electrically isolated from all terminals.

1.3

1.0 (2x)

0.9

0.7

Notes

1. Refer to mounting instructions for F-pack envelopes.

2. Epoxy meets UL94 V0 at 1/8".

October 1998 6 Rev 1.300

Page 7

Philips Semiconductors Product specification

Rectifier diodes BYQ28F, BYQ28EX series ultrafast, rugged

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development. Preliminary specification This data sheet contains preliminary data; supplementary data may be published later. Product specification This data sheet contains final product specifications.

Limiting values

Limiting values are given in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of this specification is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

 Philips Electronics N.V. 1998

All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, it is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent or other industrial or intellectual property rights.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.

October 1998 7 Rev 1.300
