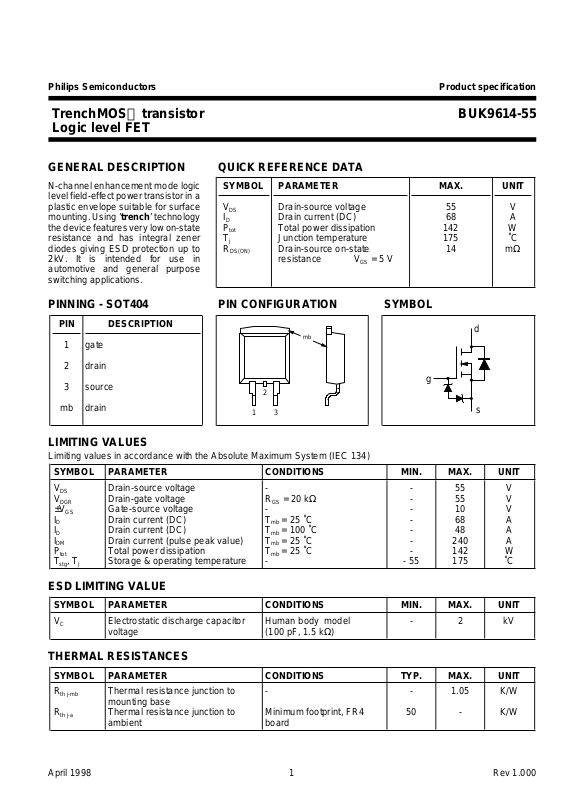

Philips Semiconductors Product specification

TrenchMOS transistor BUK9614-55
Logic level FET

GENERAL DESCRIPTION QUICK REFERENCE DATA

N-channel enhancement mode logic SYMBOL PARAMETER MAX. UNIT
level field-effectpowertransistorina
plastic envelope suitable for surface V
mounting. Using ’trench’ technology I
thedevice features very low on-state P
resistance and has integral zener T
diodes giving ESD protection up to R

DS

D

tot
j

DS(ON)

2kV. It is intended for use in resistance VGS = 5 V
automotive and general purpose
switching applications.

PINNING - SOT404 PIN CONFIGURATION SYMBOL

Drain-source voltage 55 V
Drain current (DC) 68 A
Total power dissipation 142 W
Junction temperature 175 ˚C
Drain-source on-state 14 mΩ

PIN DESCRIPTION

mb

d

1 gate
2 drain
3 source

mb drain

2

13

g

s

LIMITING VALUES

Limiting values in accordance with the Absolute Maximum System (IEC 134)

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V
V
±V
I

D

I

D

I

DM

P
T

DS
DGR

tot

stg

GS

, T

j

Drain-source voltage - - 55 V
Drain-gate voltage RGS = 20 kΩ -55V
Gate-source voltage - - 10 V
Drain current (DC) Tmb = 25 ˚C - 68 A
Drain current (DC) Tmb = 100 ˚C - 48 A
Drain current (pulse peak value) Tmb = 25 ˚C - 240 A
Total power dissipation Tmb = 25 ˚C - 142 W
Storage & operating temperature - - 55 175 ˚C

ESD LIMITING VALUE

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

C

Electrostatic discharge capacitor Human body model - 2 kV
voltage (100 pF, 1.5 kΩ)

THERMAL RESISTANCES

SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT

R

th j-mb

R

th j-a

April 1998 1 Rev 1.000

Thermal resistance junction to - - 1.05 K/W
mounting base
Thermal resistance junction to Minimum footprint, FR4 50 - K/W
ambient board

Philips Semiconductors Product specification

TrenchMOS transistor BUK9614-55

Logic level FET

STATIC CHARACTERISTICS

Tj= 25˚C unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

(BR)DSS

V

GS(TO)

I

DSS

I

GSS

±V
R

DS(ON)

(BR)GSS

Drain-source breakdown VGS = 0 V; ID = 0.25 mA; 55 - - V
voltage Tj = -55˚C 50 - - V
Gate threshold voltage VDS = VGS; ID = 1 mA 1.0 1.5 2.0 V

Tj = 175˚C 0.5 - - V

Tj = -55˚C - - 2.3 V

Zero gate voltage drain current VDS = 55 V; VGS = 0 V; - 0.05 10 µA

Tj = 175˚C - - 500 uA

Gate source leakage current VGS = ±5 V; VDS = 0 V - 0.02 1 µA

Tj = 175˚C - - 10 µA
Gate-source breakdown IG = ±1 mA; 10 - - V
voltage
Drain-source on-state VGS = 5 V; ID = 25 A - 12 14 mΩ
resistance Tj = 175˚C - - 30 mΩ

DYNAMIC CHARACTERISTICS

Tmb = 25˚C unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

g
C

C
C

t
t
t
t

L

fs

iss
oss
rss

d on
r
d off
f

d

Forward transconductance VDS = 25 V; ID = 25 A 30 65 - S
Input capacitance VGS = 0 V; VDS = 25 V; f = 1 MHz - 2900 3800 pF

Output capacitance - 500 600 pF
Feedback capacitance - 240 330 pF

Turn-on delay time VDD = 30 V; ID = 25 A; - 35 50 ns
Turn-on rise time VGS = 5 V; RG = 10 Ω - 95 145 ns
Turn-off delay time - 130 180 ns
Turn-off fall time - 60 80 ns

Internal drain inductance Measured from upper edge of drain - 2.5 - nH

tab to centre of die

L

s

Internal source inductance Measured from source lead - 7.5 - nH

soldering point to source bond pad

REVERSE DIODE LIMITING VALUES AND CHARACTERISTICS

Tj = 25˚C unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

I

DR

I

DRM

V

t

rr

Q

SD

rr

Continuous reverse drain - - 68 A
current
Pulsed reverse drain current - - 240 A
Diode forward voltage IF = 25 A; VGS = 0 V - 0.95 1.2 V

IF = 65 A; VGS = 0 V - 1.0 - V

Reverse recovery time IF = 65 A; -dIF/dt = 100 A/µs; - 57 - ns
Reverse recovery charge VGS = -10 V; VR = 30 V - 0.14 - µC

April 1998 2 Rev 1.000

Philips Semiconductors Product specification

TrenchMOS transistor BUK9614-55

Logic level FET

AVALANCHE LIMITING VALUE

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

W

DSS

Drain-source non-repetitive ID = 65 A; VDD ≤ 25 V; - - 200 mJ
unclamped inductive turn-off VGS = 5 V; RGS = 50 Ω; Tmb = 25 ˚C
energy

PD%

120
110
100

90
80
70
60
50
40
30
20
10

0

0 20 40 60 80 100 120 140 160 180

Normalised Power Derating

Tmb / C

Fig.1. Normalised power dissipation.

PD% = 100⋅PD/P

ID%

120
110
100

90
80
70
60
50
40
30
20
10

0

0 20 40 60 80 100 120 140 160 180

Tmb / C

= f(Tmb)

D 25 ˚C

Normalised Current Derating

Fig.2. Normalised continuous drain current.

ID% = 100⋅ID/I

= f(Tmb); conditions: VGS ≥ 5 V

D 25 ˚C

100

SOAX514

tp =
1 us

10 us
100 us

1 ms

10 ms
100 ms

1000

ID / A

RDS(ON) = VDS/ID

100

10

1

11055

DC

VDS / V

Fig.3. Safe operating area. Tmb = 25 ˚C

ID & IDM = f(VDS); IDM single pulse; parameter t

t

p

T

BUKX514-55

p

t

D =

T

t

Zth / (K/W)

1E+01

1E+00

1E-01

1E-02

1E-03

0.5

0.2

0.1

0.05

0.02

0

1E-07 1E-05 1E-03 1E-01 1E+01

t / s

P

D

Fig.4. Transient thermal impedance.

Z

= f(t); parameter D = tp/T

th j-mb

p

April 1998 3 Rev 1.000

Philips Semiconductors Product specification

TrenchMOS transistor BUK9614-55
Logic level FET

100

10

ID/A

5

80

60

40

20

0

0246810

4

VDS/V

VGS/V =

3.8

3.6

3.4

3.2

3.0

2.8

2.6

2.4

2.2

Fig.5. Typical output characteristics, Tj = 25 ˚C

RDS(ON)/mOhm

20

18

16

14

ID = f(VDS); parameter V

VGS/V =

3.6

GS

4

4.2

4.4

4.6
5

70

gfs/S

60

50

40

30

20

10

0

0 20406080100

.

Fig.8. Typical transconductance, Tj = 25 ˚C

ID/A

.

gfs = f(ID); conditions: VDS = 25 V

2.5

1.5

a

2

BUK959-60

Rds(on) normlised to 25degC

12

10

10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100

ID/A

Fig.6. Typical on-state resistance, Tj = 25 ˚C

R

= f(ID); parameter V

DS(ON)

100

ID/A

80

60

40

20

0

012345

Tj/C = 175 25

VGS/V

GS

Fig.7. Typical transfer characteristics.

ID = f(VGS) ; conditions: VDS = 25 V; parameter T

1

0.5

-100 -50 0 50 100 150 200

.

Fig.9. Normalised drain-source on-state resistance.

a = R

DS(ON)/RDS(ON)25 ˚C

VGS(TO) / V

2.5
max.

2

typ.

1.5

min.

1

0.5

0

-100 -50 0 50 100 150 200

Tmb / degC

= f(Tj); ID = 25 A; VGS = 5 V

BUK959-60

Tj / C

Fig.10. Gate threshold voltage.

V

j

= f(Tj); conditions: ID = 1 mA; VDS = V

GS(TO)

GS

April 1998 4 Rev 1.000

Philips Semiconductors Product specification

TrenchMOS transistor BUK9614-55
Logic level FET

1E-01

1E-02

1E-03

1E-04

1E-05

1E-05

0 0.5 1 1.5 2 2.5 3

2% typ

Sub-Threshold Conduction

98%

Fig.11. Sub-threshold drain current.

ID = f(V

6

5

4

3

Thousands pF

2

1

0

0.01 0.1 1 10 100

Fig.12. Typical capacitances, C

; conditions: Tj = 25 ˚C; VDS = V

GS)

VDS/V

, C

iss

oss

C = f(VDS); conditions: VGS = 0 V; f = 1 MHz

, C

GS

rss

Ciss

Coss
Crss

.

100

IF/A

80

60

40

Tj/C = 175 25

20

0

0 0.2 0.4 0.6 0.8 1 1.2 1.4

VSDS/V

Fig.14. Typical reverse diode current.

IF = f(V

120
110
100

90
80
70
60
50
40
30
20
10

0

); conditions: V

SDS

WDSS%

20 40 60 80 100 120 140 160 180

= 0 V; parameter T

GS

Tmb / C

Fig.15. Normalised avalanche energy rating.

W

% = f(Tmb); conditions: ID = 75 A

DSS

j

6

VGS/V

5

VDS = 14V

4

3

2

1

0

0 1020304050

QG/nC

VDS = 44V

Fig.13. Typical turn-on gate-charge characteristics.

V

= f(QG); conditions: ID = 50 A; parameter V

GS

DS

L

VDS

VGS

0

RGS

T.U.T.

Fig.16. Avalanche energy test circuit.

W

= 0.5 ⋅LI

DSS

2

D

⋅BV

DSS

/(BV

R 01

shunt

DSS−VDD

VDD

+

-

-ID/100

)

April 1998 5 Rev 1.000

Philips Semiconductors Product specification

TrenchMOS transistor BUK9614-55
Logic level FET

VDD

+

RD

VDS

VGS

0

RG

T.U.T.

Fig.17. Switching test circuit.

-

April 1998 6 Rev 1.000

Philips Semiconductors Product specification

TrenchMOS transistor BUK9614-55

Logic level FET

MECHANICAL DATA

Dimensions in mm
Net Mass: 1.4 g

2.54 (x2)

MOUNTING INSTRUCTIONS

Dimensions in mm

10.3 max

11 max

15.4

0.85 max
(x2)

4.5 max

1.4 max

0.5

Fig.18. SOT404 : centre pin connected to mounting base.

11.5

2.5

9.0

17.5

2.0

3.8

5.08

Fig.19. SOT404 : soldering pattern for surface mounting

.
