BF1108; BF1108R
Silicon RF switches
Product specification
Supersedes data of 1999 Aug 19
1999 Nov 18
Page 2
Philips Semiconductors Product specification
Silicon RF switches BF1108; BF1108R
FEATURES
• Specially designed for low loss RF switching
up to 1 GHz.
APPLICATIONS
handbook, 2 columns
34
• Various RF switching applications such as:
– Passive loop through for VCR tuner
– Transceiver switching.
DESCRIPTION
These switches are a combination of a depletion type
field-effect transistor and a bandswitching diode in an
SOT143B (BF1108) or SOT143R (BF1108R) package.
The low loss and high isolation capabilities of these
devices provide excellent RF switching functions. The
gate of theMOSFET can be isolated from ground with the
diode, resulting in low losses. Integrated diodes between
gate and source and between gate and drain protect
against excessive input voltage surges.
PINNING
PIN DESCRIPTION
1 FET gate; diode anode
2 diode cathode
3 source; note 1
4 drain; note 1
Marking code: NGp.
Fig.1 Simplified outline (SOT143B).
handbook, 2 columns
Marking code: NHp.
Fig.2 Simplified outline (SOT143R).
12
Top view
Top view
MSB014
43
12
MSB035
Note
1. Drain and source are interchangeable.
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
21(on)
21(off)
DSon
2
losses (on-state) RS=RL=50Ω;
2
isolation (off-state) 30 −−dB
f≤1 GHz
−−2dB
drain-source on-resistance VCS= 0; ID=1mA − 12 20 Ω
pinch-off voltage ID=20µA; VDS=1V −−3−4V
s
s
R
V
GSoff
CAUTION
This product is supplied in anti-static packing to prevent damage caused by electrostatic discharge during transport
and handling. For further information, refer to Philips specs.: SNW-EQ-608, SNW-FQ-302A and SNW-FQ-302B.
1999 Nov 18 2
Page 3
Philips Semiconductors Product specification
Silicon RF switches BF1108; BF1108R
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER MIN. MAX. UNIT
FET
V
DS
V
SD
V
DG
V
SG
I
D
Diode
V
R
I
F
FET and diode
T
stg
T
j
drain-source voltage − 3V
source-drain voltage − 3V
drain-gate voltage − 7V
source-gate voltage − 7V
drain current − 10 mA
continuous reverse voltage − 35 V
continuous forward current − 100 mA
storage temperature −65 +150 °C
junction temperature − 150 °C
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th j-s
thermal resistance from junction to soldering point note 1 250 K/W
Note
1. Soldering point of FET gate and diode anode lead.
STATIC CHARACTERISTICS
=25°C unless otherwise specified.
T
j
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
FET
V
(BR)GSS
V
GSoff
I
DSX
I
GSS
R
DSon
gate-source breakdown voltage VDS= 0; IGS= 0.1 mA 7 −−V
gate-source pinch-off voltage VDS=1V; ID=20µA −−3−4V
drain-source leakage current VGS= −5 V; VDS=2V −−10 µA
gate cut-off current VGS= −5 V; VDS=0 −−100 nA
drain-source on-state resistance VGS= 0; ID=1mA − 12 20 Ω
Diode
V
F
I
R
forward voltage IF=10mA −−1V
reverse current VR=25V −−50 nA
=20V;T
V
R
=75°C −−1µA
amb
1999 Nov 18 3
Page 4
Philips Semiconductors Product specification
Silicon RF switches BF1108; BF1108R
DYNAMIC CHARACTERISTICS
Common cathode; T
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
FET and diode
s
s
R
C
C
2losses (on-state) VSC=VDC= 0; RS=RL=50Ω;
21(on)
2isolation (off-state) VSC=VDC=5V; RS=RL=50Ω;
21(off)
DSon
ic
oc
drain-source on-resistance VCS= 0; ID=1mA − 12 20 Ω
input capacitance; note 2 VSC=VDC=5V; IF= 1 mA; f = 1 MHz − 1 − pF
output capacitance; note 2 VSC=VDC=5V; IF= 1 mA; f = 1 MHz − 1 − pF
Diode
C
d
r
D
diode capacitance f = 1 MHz; VR=0 − 1.1 − pF
diode forward resistance IF= 2 mA; f = 100 MHz; note 3 −−0.7 Ω
amb
=25°C.
IF= 0; note 1; f ≤ 1 GHz
V
SC=VDC
= 0; RS=RL=50Ω; IF=0;
f = 1 GHz
V
SC=VDC
= 0; RS=RL=75Ω; IF=0;
f≤1 GHz
IF= 1 mA; f ≤ 1 GHz
V
SC=VDC
=5V; RS=RL=50Ω;
IF= 1 mA; f = 1 GHz
V
SC=VDC
=5V; RS=RL=75Ω;
IF= 1 mA; f ≤ 1 GHz
V
SC=VDC
V
SC=VDC
= 0; IF= 0; f = 1 MHz − 0.65 0.9 pF
= 0; IF= 0; f = 1 MHz − 0.65 0.9 pF
−−2dB
− 1.3 − dB
−−3dB
30 −−dB
− 38 − dB
30 −−dB
Notes
1. I
= diode forward current.
F
2. Cic is the series connection of Csgand Cgc; Coc is the series connection of Cdgand Cgc.
3. Guaranteed on AQL basis; inspection level S4, AQL 1.0.
handbook, halfpage
ds s
MBL027
g, a c c g, a
SOT143B SOT143R
d
Fig.3 Simplified diagram.
1999 Nov 18 4
Page 5
Philips Semiconductors Product specification
Silicon RF switches BF1108; BF1108R
handbook, halfpage
0
2
|s
|
21(on)
(dB)
−1
−2
−3
−4
0 400 1200
VSC=VDC= 0 V; RS=RL=50Ω;IF= 0 mA (diode forward current);
Measured in test circuit (Fig.6).
800
MGS357
f (MHz)

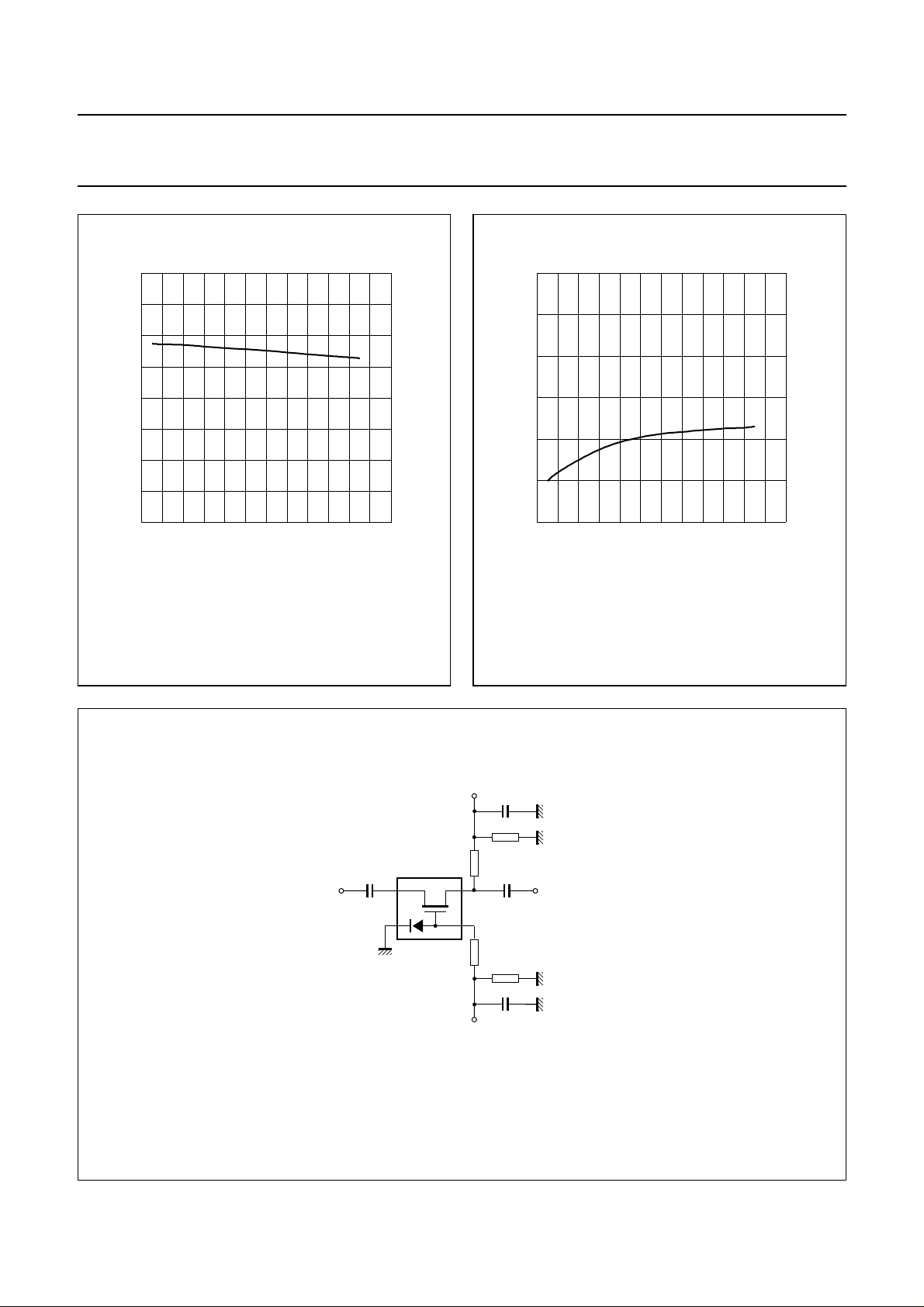

Fig.4 Losses (on-state) as a function of
frequency; typical values.
handbook, halfpage
0
2
|s
|
21(off)
(dB)
−20
−40
−60
0 400 1200
VSC=VDC= 5 V; RS=RL=50Ω;IF= 1 mA (diode forward current);
Measured in test circuit (Fig.6).
800
MGS358
f (MHz)
Fig.5 Isolation (off-state) as a function of
frequency; typical values.
handbook, full pagewidth
BF1108/BF1108R
50 Ω
input
On-state: V = 0 V.
Off-state: V = 5 V.
1 nF 1 nF
Fig.6 Test circuit.
1999 Nov 18 5
V
V
1 nF
100 kΩ
47 kΩ
4.7 kΩ
100 kΩ
1 nF
50 Ω
output
MBL028
Page 6
Philips Semiconductors Product specification
Silicon RF switches BF1108; BF1108R

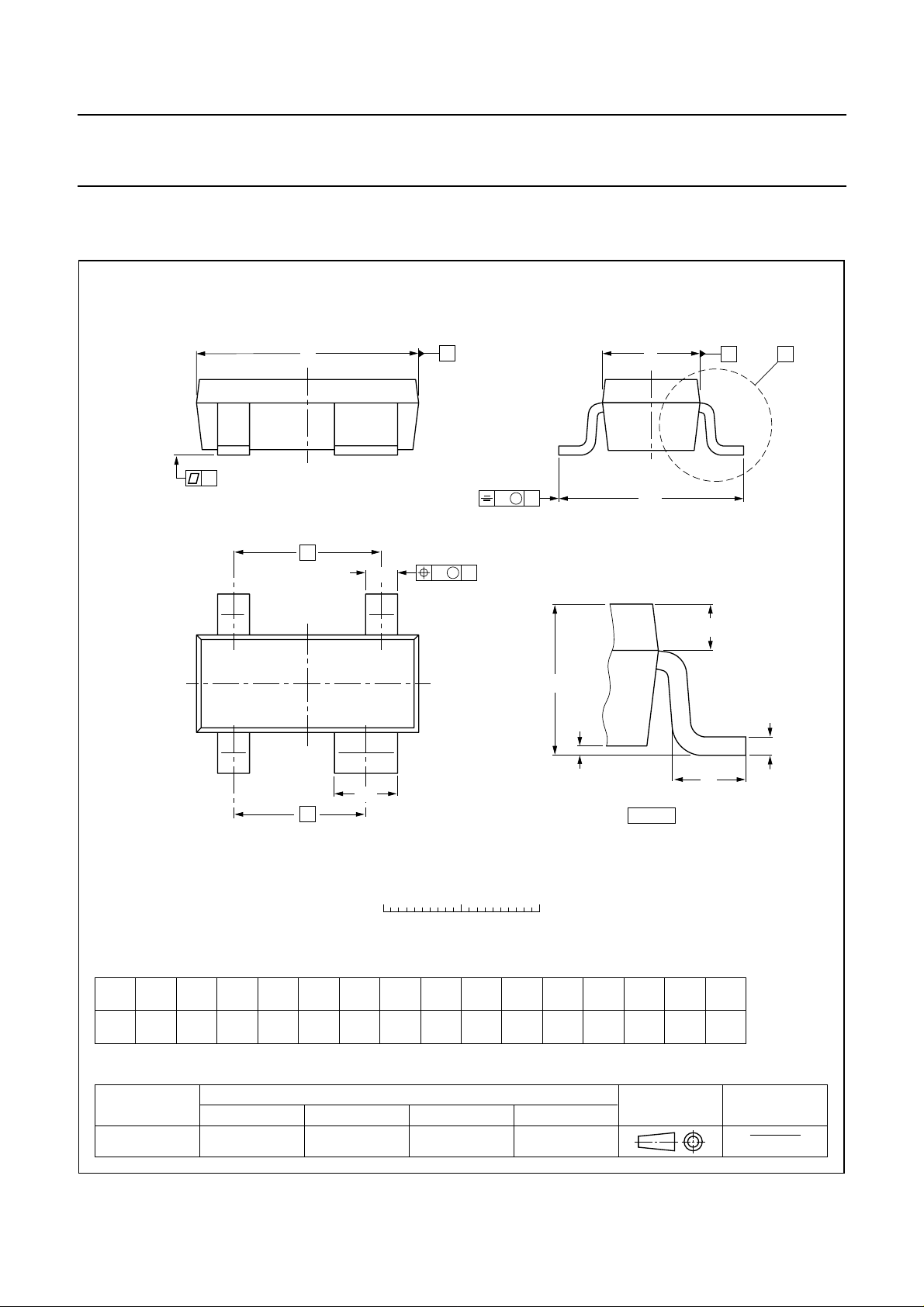

PACKAGE OUTLINES
Plastic surface mounted package; 4 leads SOT143B
D
y
e
b
p
B
w M
E
v M
A
B
H
E
A
X
34
Q
A
A
1
21
b
1
e
1
detail X
L
c
p
0 1 2 mm
scale
DIMENSIONS (mm are the original dimensions)
A
UNIT
mm
1.1
0.9
OUTLINE
VERSION
SOT143B
1
A
max
0.1
b
c
D
b
0.48
0.38
1
p
0.88
0.15
0.78
0.09
IEC JEDEC EIAJ
E
3.0
1.4
2.8
1.2
REFERENCES
e
1.9
1999 Nov 18 6
e
1.7
H
L
E
1
2.5
2.1
0.45
0.15
p
0.55
0.45
EUROPEAN
PROJECTION
ywvQ
0.1 0.10.2
ISSUE DATE
97-02-28
Page 7
Philips Semiconductors Product specification
Silicon RF switches BF1108; BF1108R

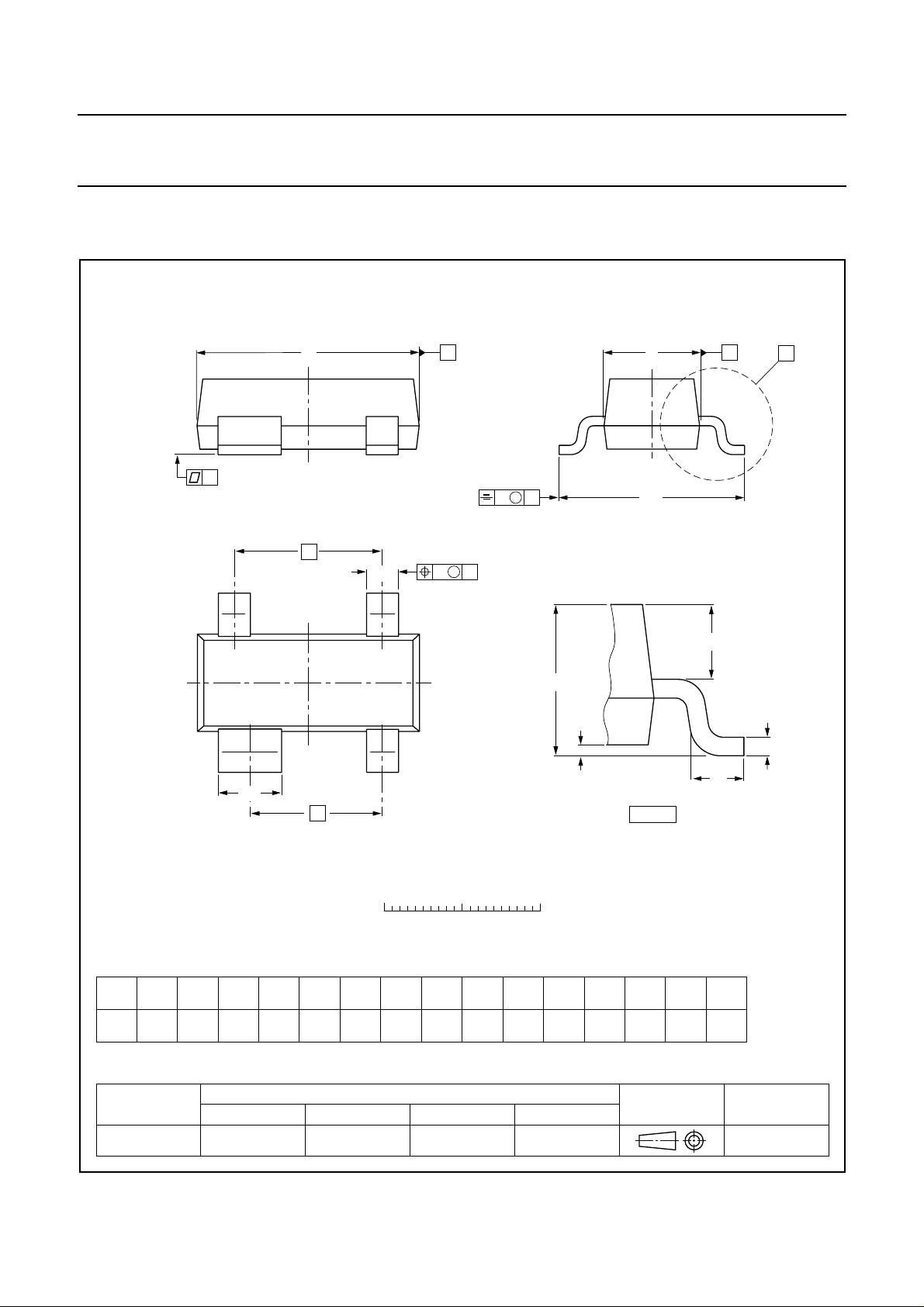

Plastic surface mounted package; reverse pinning; 4 leads SOT143R
D
y
e
b
p
w M
B
v M
A
B
E
H
E
A
X
43
Q
A
A
1
c
12
L
b
1
e
1
detail X
p
0 1 2 mm
scale
DIMENSIONS (mm are the original dimensions)
A
UNIT
A
1.1
mm
0.9
OUTLINE
VERSION
SOT143R SC-61B
max
0.1
1
b
c
0.15
0.09
D
3.0
2.8
REFERENCES
b
1
p
0.88
0.48
0.78
0.38
IEC JEDEC EIAJ
1.4
1.2
E
e
1.9
1999 Nov 18 7
e
1.7
H
L
E
1
2.5
2.1
0.55
0.25
p
0.45
0.25
EUROPEAN
PROJECTION
ywvQ
0.1 0.10.2
ISSUE DATE
97-03-10
99-09-13
Page 8
Philips Semiconductors Product specification
Silicon RF switches BF1108; BF1108R
DEFINITIONS
Data sheet status
Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
1999 Nov 18 8
Page 9
Philips Semiconductors Product specification
Silicon RF switches BF1108; BF1108R
NOTES
1999 Nov 18 9
Page 10
Philips Semiconductors Product specification
Silicon RF switches BF1108; BF1108R
NOTES
1999 Nov 18 10
Page 11
Philips Semiconductors Product specification
Silicon RF switches BF1108; BF1108R
NOTES
1999 Nov 18 11
Page 12
Philips Semiconductors – a w orldwide compan y
Argentina: see South America
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,
Tel. +61 2 9704 8141, Fax. +61 2 9704 8139
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,
Tel. +43 1 60 101 1248, Fax. +43 1 60 101 1210
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
220050 MINSK, Tel. +375 172 20 0733, Fax. +375 172 20 0773
Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 68 9211, Fax. +359 2 68 9102
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381, Fax. +1 800 943 0087
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +852 2319 7700
Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,
Tel. +45 33 29 3333, Fax. +45 33 29 3905
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615 800, Fax. +358 9 6158 0920
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,
Tel. +33 1 4099 6161, Fax. +33 1 4099 6427
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 2353 60, Fax. +49 40 2353 6300
Hungary: seeAustria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,
254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. +91 22 493 8541, Fax. +91 22 493 0966
Indonesia: PT Philips Development Corporation,Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. +62 21 794 0040 ext. 2501, Fax. +62 21 794 0080
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. +972 3 645 0444, Fax. +972 3 649 1007
Italy: PHILIPS SEMICONDUCTORS, Via Casati, 23 - 20052 MONZA (MI),
Tel. +39 039 203 6838, Fax +39 039 203 6800
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. +81 3 3740 5130, Fax. +81 3 3740 5057
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 757 4880
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +9-5 800 234 7381, Fax +9-5 800 943 0087
Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. +31 40 27 82785, Fax. +31 40 27 88399
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Norway: Box 1, Manglerud 0612, OSLO,
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474
Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,
Tel. +48 22 5710 000, Fax. +48 22 5710 001
Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 755 6918, Fax. +7 095 755 6919
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,
Tel. +65 350 2538, Fax. +65 251 6500
Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. +27 11 471 5401, Fax. +27 11 471 5398
South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. +55 11 821 2333, Fax. +55 11 821 2382
Spain: Balmes 22, 08007 BARCELONA,
Tel. +34 93 301 6312, Fax. +34 93 301 4107
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 5985 2000, Fax. +46 8 5985 2745
Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. +41 1 488 2741 Fax. +41 1 488 3263
Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. +886 2 2134 2886, Fax. +886 2 2134 2874
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. +66 2 745 4090, Fax. +66 2 398 0793
Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. +90 216 522 1500, Fax. +90 216 522 1813
Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. +44 208 730 5000, Fax. +44 208 754 8421
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +1 800 234 7381, Fax. +1 800 943 0087
Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 62 5344, Fax.+381 11 63 5777
For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 27 24825
© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
1999
Internet: http://www.semiconductors.philips.com
68
Printed in The Netherlands 125004/03/pp12 Date of release: 1999 Nov 18 Document order number: 9397 750 06477
Loading...
