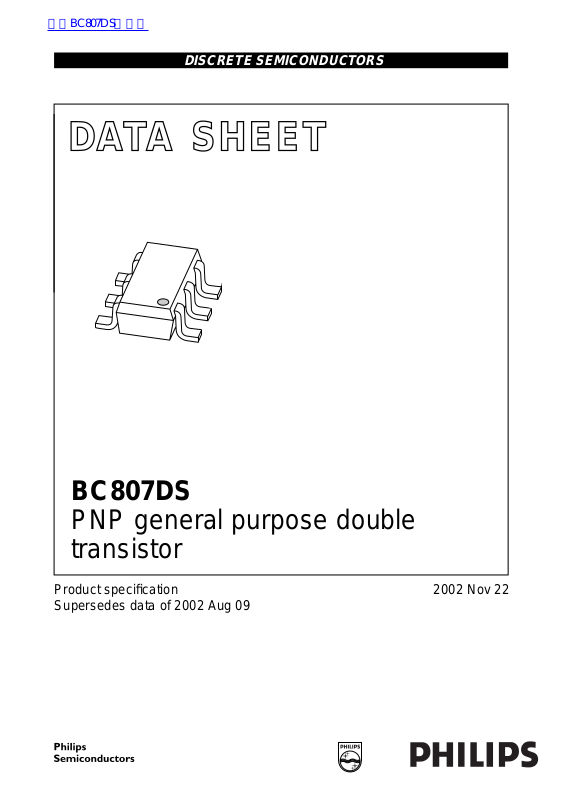

DISCRETE SEMICONDUCTORS
DATA SH EET
ook, halfpage
M3D302
BC807DS
PNP general purpose double
transistor
Product specification
Supersedes data of 2002 Aug 09
2002 Nov 22
Page 2
Philips Semiconductors Product specification
PNP general purpose double transistor BC807DS
FEATURES
• High current (500 mA)
• 600 mW total power dissipation
• Replaces two SOT23 packaged transistors on same
PCB area.
APPLICATIONS
• General purpose switching and amplification
• Push-pull amplifiers
• Multi-phase stepper motor drivers.
DESCRIPTION
PNP transistor pair in a SOT457 (SC-74) plastic package.
MARKING
TYPE NUMBER MARKING CODE
BC807DS N2
QUICK REFERENCE DATA
SYMBOL PARAMETER MAX. UNIT
V
I
I
CEO
C
CM
collector-emitter voltage −45 V
collector current (DC) −500 mA
peak collector current −1A
PINNING
PIN DESCRIPTION
1, 4 emitter TR1; TR2
2, 5 base TR1; TR2
6, 3 collector TR1; TR2
654
123
Top view
MAM457
645
TR2
TR1
132
Fig.1 Simplified outline (SOT457) and symbol.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Per transistor unless otherwise specified
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
BM
P
tot
T
stg
T
j
T
amb
collector-base voltage open emitter −−50 V
collector-emitter voltage open base −−45 V
emitter-base voltage open collector −−5V
collector current (DC) −−500 mA
peak collector current −−1A
peak base current −−200 mA
total power dissipation T
≤ 25 °C; note 1 − 370 mW
amb
storage temperature −65 +150 °C
junction temperature − 150 °C
operating ambient temperature −65 +150 °C
Per device
P
tot
total power dissipation T
≤ 25 °C; note 1 − 600 mW
amb
Note
1. Device mounted on a printed-circuit board; single sided copper; tinplated; mounting pad for collector 1 cm2.
2002 Nov 22 2
Page 3
Philips Semiconductors Product specification
PNP general purpose double transistor BC807DS
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th j-a
thermal resistancefromjunction to
ambient
Note
1. Device mounted on a printed-circuit board; single sided copper; tinplated; mounting pad for collector 1 cm
CHARACTERISTICS
T
=25°C unless otherwise specified.
amb
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Per transistor
I
CBO
I
EBO
h
FE
V
CEsat
V
BE
C
c
f
T
collector-base cut-off current VCB= −20 V; IE=0 −−−100 nA
emitter-base cut-off current VEB= −5 V; IC=0 −−−100 nA
DC current gain VCE= −1 V; IC= −100 mA; note 1 160 − 400
collector-emitter saturation voltage IC= −500 mA; IB= −50 mA; note 1 −−−700 mV
base-emitter voltage VCE= −1 V; IC= −500 mA;
collector capacitance VCB= −10 V; IE=Ie= 0; f = 1 MHz − 9 − pF
transition frequency VCE= −5 V; IC= −10 mA;
note 1 208 K/W
2
.
= −20 V; IE= 0; Tj= 150 °C −−−5µA
V
CB
V
= −1 V; IC= −500 mA; note 1 40 −−
CE
−−−1.2 V
notes 1 and 2
80 −−MHz
f = 100 MHz
Notes
1. Pulse test: t
≤ 300 µs; δ≤0.02.
p
2. VBE decreases by approximately −2 mV/K with increasing temperature.
2002 Nov 22 3
Page 4
Philips Semiconductors Product specification
PNP general purpose double transistor BC807DS
600
handbook, halfpage
h
FE
500
(1)
MHC324
400
300
(2)
200
(3)
100
0
−10
−1
−1 −10
−10
2
IC (mA)
VCE=1V.
(1) T
(2) T
(3) T
amb
amb
amb
= 150 °C.
=25°C.
= −55 °C.
Fig.2 DC current gain as a function of collector
current; typical values.
−10
−1000
handbook, halfpage
I
C
(mA)
−800
−600
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
MHC325
−400
(9)
−200
3
0
−2
0 −10
−4 −6 −8
(10)
VCE (V)
(1) IB= −7 mA.
(2) IB= −6.3 mA.
(3) IB= −5.6 mA.
(4) IB= −4.9 mA.
(5) IB= −4.2 mA.
(6) IB= −3.5 mA.
(7) IB= −2.8 mA.
(8) IB= −2.1 mA.
(9) IB= −1.4 mA.
(10) IB= −0.7 mA.
Fig.3 Collector current as a function of
collector-emitter voltage; typical values.
−10
MHC326
2
3
−10
handbook, halfpage
V
CEsat
(mV)
2
−10
−10
−1
−1
−10
−1 −10
(1)
(2)
(3)
IC (mA)
IC/IB= 10.
(1) T
(2) T
(3) T
amb
amb
amb
= 150 °C.
=25°C.
= −55 °C.
Fig.4 Collector-emitter saturation voltage as a
function of collector current; typical values.
−10
−1200
handbook, halfpage
V
BE
(mV)
MHC327
−1000
−800
−600
−400
−200
3
−10
−1
(1)
(2)
(3)
−1 −10
−10
2
−10
3
IC (mA)
VCE=1V.
(1) T
(2) T
(3) T
amb
amb
amb
= −55 °C.
=25°C.
= 150 °C.
Fig.5 Base-emitter voltage as a function of
collector current; typical values.
2002 Nov 22 4
Page 5
Philips Semiconductors Product specification
PNP general purpose double transistor BC807DS
PACKAGE OUTLINE
Plastic surface mounted package; 6 leads SOT457
D
y
56
pin 1
index
4
A
A
1
E
H
E
Q
AB
c
X
v M
A
132
L
p
e
b
p
wBM
detail X
0 1 2 mm
scale
DIMENSIONS (mm are the original dimensions)
A
UNIT
A
1.1
mm
OUTLINE
VERSION
SOT457 SC-74
0.9
0.013
0.1
b
cD
p
1
0.40
0.26
0.25
0.10
IEC JEDEC EIAJ
3.1
2.7
E
1.7
1.3
REFERENCES
e
0.95
H
E
3.0
2.5
2002 Nov 22 5
L
Qywv
p
0.6
0.33
0.2
0.23
0.2 0.10.2
EUROPEAN
PROJECTION
ISSUE DATE
97-02-28
01-05-04
Page 6
Philips Semiconductors Product specification
PNP general purpose double transistor BC807DS
DATA SHEET STATUS
LEVEL
DATA SHEET
STATUS
(1)
PRODUCT
STATUS
(2)(3)
DEFINITION
I Objective data Development This data sheet contains data from the objective specification for product
development. Philips Semiconductors reserves the right to change the
specification in any manner without notice.
II Preliminary data Qualification This data sheet contains data from the preliminary specification.
Supplementary data will be published at a later date. Philips
Semiconductors reserves the right to change the specification without
notice, in order to improve the design and supply the best possible
product.
III Product data Production This data sheet contains data from the product specification. Philips
Semiconductors reserves the right to make changes at any time in order
to improve the design, manufacturing and supply. Relevant changes will
be communicated via a Customer Product/Process Change Notification
(CPCN).
Notes
1. Please consult the most recently issued data sheet before initiating or completing a design.
2. The product status of the device(s) described in this data sheet may have changed since this data sheet was
published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com.
3. For data sheets describing multiple type numbers, thehighest-level productstatus determinesthe datasheet status.
DEFINITIONS
DISCLAIMERS
Short-form specification The data in a short-form
specification is extracted from a full data sheet with the
same type number and title. For detailed information see
the relevant data sheet or data handbook.
Limiting values definition Limiting valuesgiven arein
accordance with the Absolute Maximum Rating System
(IEC 60134). Stress above one or more of the limiting
values may cause permanent damage to the device.
These are stress ratings only and operation of the device
atthese or atanyother conditions abovethosegiven in the
Characteristics sectionsof the specificationis not implied.
Exposure to limiting values for extended periods may
affect device reliability.
Application information Applications that are
described herein for any of these products are for
illustrative purposes only. Philips Semiconductors make
norepresentationor warranty thatsuchapplicationswill be
suitable for the specified use without further testing or
modification.
Life support applications These products are not
designed for use in life support appliances, devices, or
systems where malfunction of these products can
reasonably be expectedto resultin personal injury.Philips
Semiconductorscustomersusing or sellingtheseproducts
for use in such applications do so at their own risk and
agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Right to make changes Philips Semiconductors
reserves the right to make changes in the products including circuits, standard cells, and/or software described or contained herein in order to improve design
and/or performance. When the productis infull production
(status ‘Production’), relevant changes will be
communicated via a Customer Product/Process Change
Notification (CPCN). Philips Semiconductors assumes no
responsibility or liability for the use of any of these
products, conveys no licence or title under any patent,
copyright, or mask work right to these products, and
makes no representations or warranties that these
products are free from patent, copyright, or mask work
right infringement, unless otherwise specified.
2002 Nov 22 6
Page 7
Philips Semiconductors Product specification
PNP general purpose double transistor BC807DS
NOTES
2002 Nov 22 7
