DISCRETE SEMICONDUCTORS
DATA SH EET
ook, halfpage
M3D088
BAS19; BAS20; BAS21
General purpose diodes
Product specification
Supersedes data of 1996 Sep 10
1999 May 26
Philips Semiconductors Product specification
General purpose diodes BAS19; BAS20; BAS21
FEATURES
• Small plastic SMD package
• Switching speed: max. 50 ns
• General application
• Continuous reverse voltage:
max. 100 V; 150 V; 200 V
• Repetitive peak reverse voltage:
max. 120 V; 200 V; 250 V
• Repetitive peak forward current:
max. 625 mA.
APPLICATIONS
• General purpose switching in e.g.
surface mounted circuits.
DESCRIPTION
The BAS19, BAS20, BAS21 are
general purpose diodes fabricated in
planar technology, and encapsulated
in small SOT23 plastic SMD
packages.
MARKING
TYPE NUMBER
MARKING
CODE
BAS19 JP∗
BAS20 JR∗
BAS21 JS∗
Note
1. ∗ = p: Made in Hong Kong.
∗ = t: Made in Malaysia.
handbook, halfpage
21
3
Fig.1 Simplified outline (SOT23) and symbol.
(1)
PINNING
PIN DESCRIPTION
1 anode
2 not connected
3 cathode
2
n.c.
3
MAM185
1
1999 May 26 2
Philips Semiconductors Product specification
General purpose diodes BAS19; BAS20; BAS21
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
V
I
F
I
FRM
I
FSM
P
T
T
RRM
R
tot
stg
j
repetitive peak reverse voltage
BAS19 − 120 V
BAS20 − 200 V
BAS21 − 250 V
continuous reverse voltage
BAS19 − 100 V
BAS20 − 150 V
BAS21 − 200 V
continuous forward current see Fig.2; note 1 − 200 mA
repetitive peak forward current − 625 mA
non-repetitive peak forward current square wave; Tj=25°C prior to
surge; see Fig.4
t=1µs − 9A
t = 100 µs − 3A
t = 10 ms − 1.7 A
total power dissipation T
=25°C; note 1 − 250 mW
amb
storage temperature −65 +150 °C
junction temperature − 150 °C
Note
1. Device mounted on an FR4 printed-circuit board.
1999 May 26 3
Philips Semiconductors Product specification
General purpose diodes BAS19; BAS20; BAS21
ELECTRICAL CHARACTERISTICS
T
=25°C unless otherwise specified.
j
SYMBOL PARAMETER CONDITIONS MAX. UNIT
V
F
I
R
C
d
t
rr
forward voltage see Fig.3
I
= 100 mA 1 V
F
I
= 200 mA 1.25 V
F
reverse current see Fig.5
BAS19 V
BAS20 V
BAS21 V
= 100 V 100 nA
R
V
= 100 V; Tj= 150 °C 100 µA
R
= 150 V 100 nA
R
V
= 150 V; Tj= 150 °C 100 µA
R
= 200 V 100 nA
R
= 200 V; Tj= 150 °C 100 µA
V
R
diode capacitance f = 1 MHz; VR= 0; see Fig.6 5 pF
reverse recovery time when switched from IF= 30 mA to
50 ns
IR= 30 mA; RL= 100 Ω; measured at
IR= 3 mA; see Fig.8
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
R
th j-tp
th j-a
thermal resistance from junction to tie-point 330 K/W
thermal resistance from junction to ambient note 1 500 K/W
Note
1. Device mounted on an FR4 printed-circuit board.
1999 May 26 4
Philips Semiconductors Product specification
General purpose diodes BAS19; BAS20; BAS21
GRAPHICAL DATA
amb
MBG442
(oC)
300
handbook, halfpage
I
F
(mA)
200
100
0
0 100 200
Device mounted on an FR4 printed-circuit board.
T

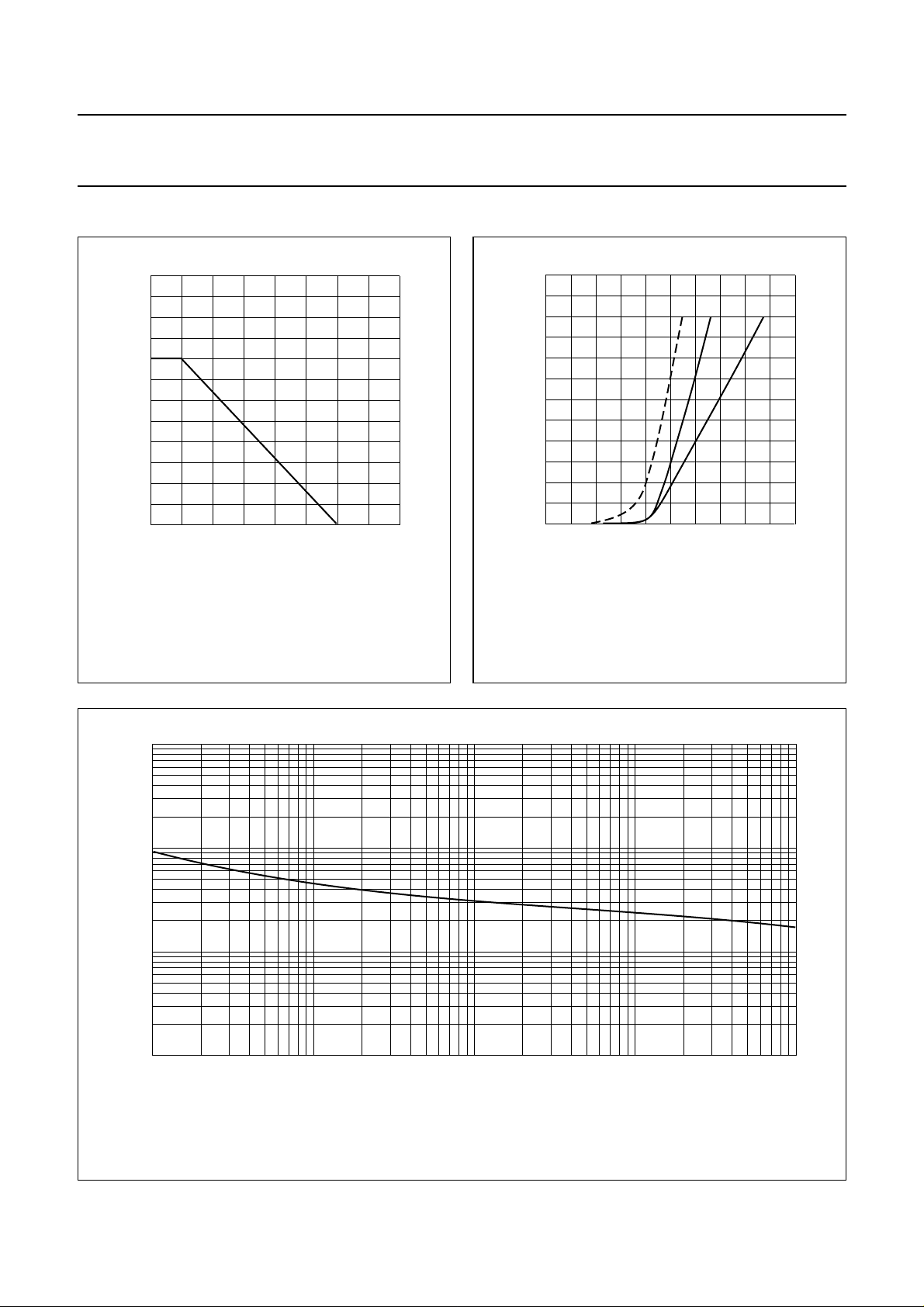

Fig.2 Maximum permissible continuous forward
current as a function of ambient temperature.
600
handbook, halfpage
I
F
(mA)
400
200
0
02
(1) Tj= 150°C; typical values.
(2) Tj=25°C; typical values.
(3) Tj=25°C; maximum values.
(1) (3)(2)
1
Fig.3 Forward current as a function of
forward voltage.
MBG384
VF (V)
2
10
handbook, full pagewidth
I
FSM
(A)
10
1
−1
10
1
Based on square wave currents.
Tj=25°C prior to surge.
Fig.4 Maximum permissible non-repetitive peak forward current as a function of pulse duration.
MBG703
10
2
10
3
10
tp (µs)
4
10
1999 May 26 5
Philips Semiconductors Product specification
General purpose diodes BAS19; BAS20; BAS21
2
10
handbook, halfpage
I
R
(µA)
10
1
1
10
2
10
(1) VR=V
(2) VR=V
0
Rmax
Rmax
(1) (2)
100
; maximum values.
; typical values.

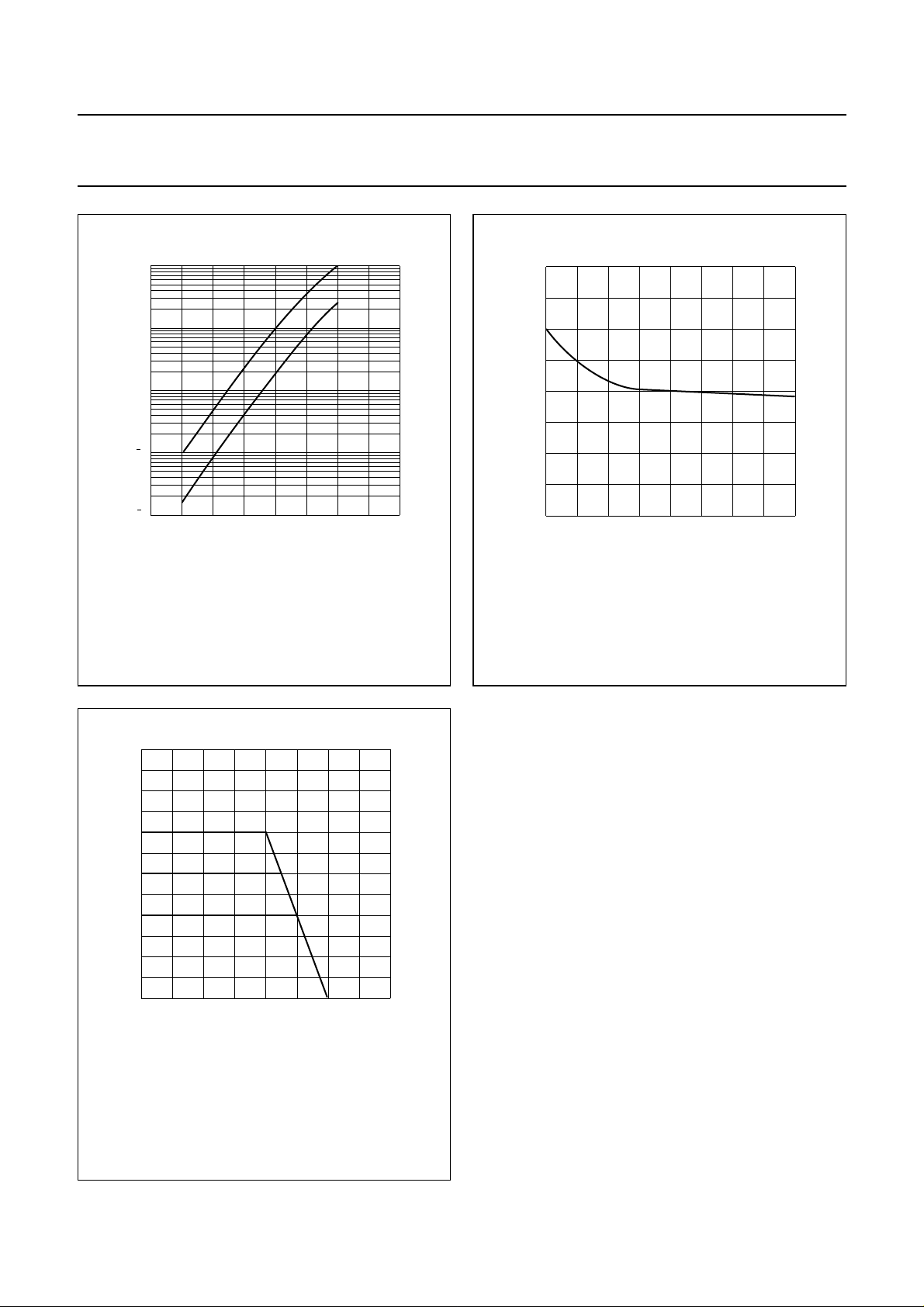

Fig.5 Reverse current as a function of
junction temperature.
Tj (
MBG381
o
C)
200
1.0
handbook, halfpage
C
d
(pF)
0.8
0.6
0.4
0.2
04862
f = 1 MHz; Tj=25°C.
MBG447
VR (V)
Fig.6 Diode capacitance as a function of reverse
voltage; typical values.
amb
MBG445
(oC)
300
handbook, halfpage
V
R
(V)
(1)
200
(2)
(3)
100
0
0 100 200
(1) BAS21.
(2) BAS20.
(3) BAS19.
T
Fig.7 Maximum permissible continuous reverse
voltage as a function of the
ambient temperature.
1999 May 26 6
Philips Semiconductors Product specification
General purpose diodes BAS19; BAS20; BAS21
handbook, full pagewidth
R = 50SΩ
V = V I x R
RF S
(1) IR= 3 mA.
I
F
D.U.T.
SAMPLING
OSCILLOSCOPE
R = 50iΩ
MGA881
t
r
10%
V
R
90%
t
p
input signal

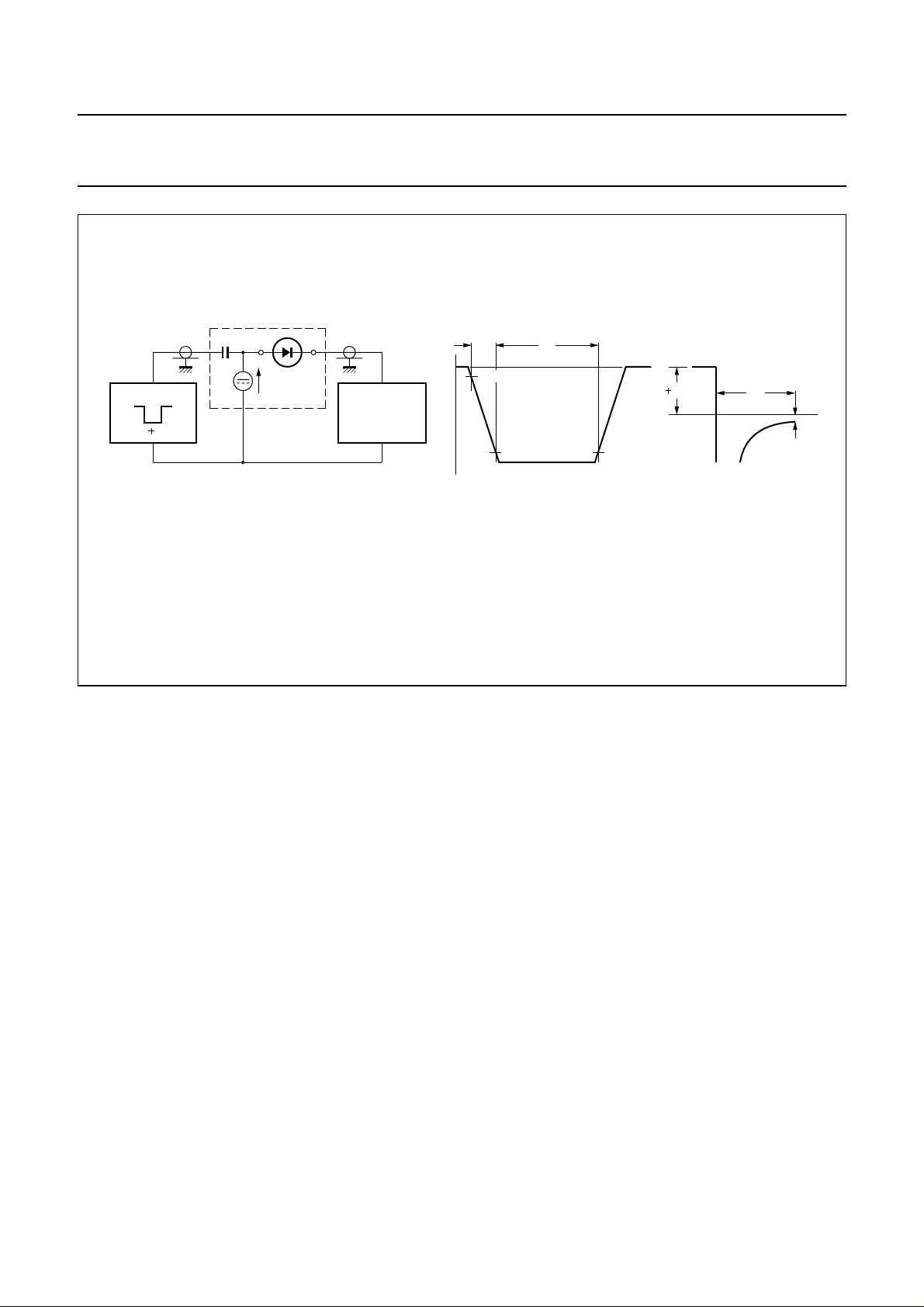

Fig.8 Reverse recovery voltage test circuit and waveforms.
t
I
F
t
rr
t
(1)
output signal
1999 May 26 7
Philips Semiconductors Product specification
General purpose diodes BAS19; BAS20; BAS21

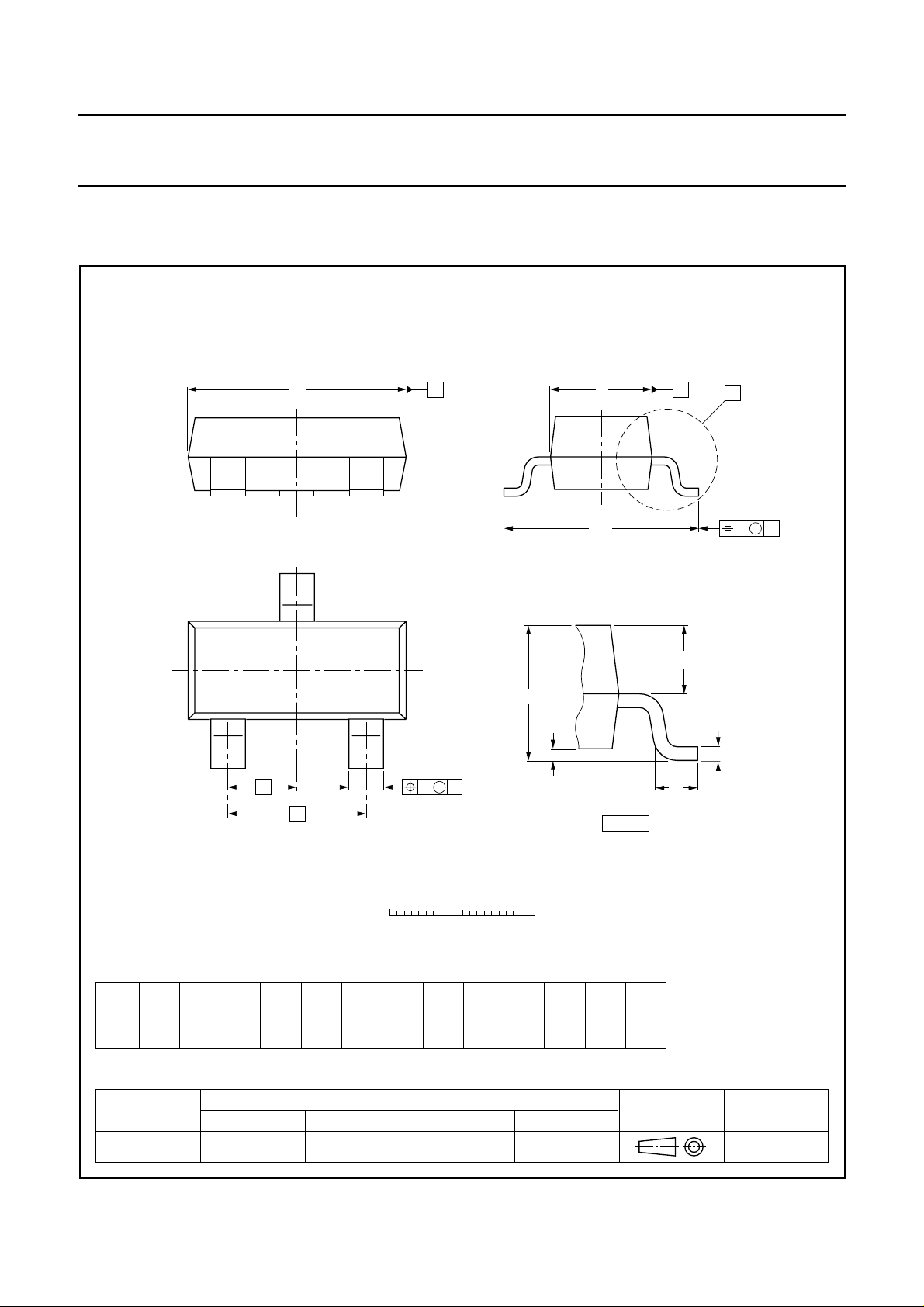

PACKAGE OUTLINE
Plastic surface mounted package; 3 leads SOT23
D
3
A
A
1
12
e
1
b
p
e
w M
B
E
H
E
detail X
AB
Q
L
p
X
v M
A
c
0 1 2 mm
scale
DIMENSIONS (mm are the original dimensions)
A
1
0.1
b
cD
p
0.48
0.15
3.0
0.38
0.09
IEC JEDEC EIAJ
2.8
1.4
1.2
e
E
1.9
REFERENCES
0.95
e
1
UNIT
mm
VERSION
A
1.1
0.9
OUTLINE
SOT23
max.
1999 May 26 8
H
2.5
2.1
L
Qwv
p
E
0.55
0.45
0.15
0.45
0.2
0.1
EUROPEAN
PROJECTION
ISSUE DATE
97-02-28
Philips Semiconductors Product specification
General purpose diodes BAS19; BAS20; BAS21
DEFINITIONS
Data Sheet Status
Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
1999 May 26 9
Philips Semiconductors Product specification
General purpose diodes BAS19; BAS20; BAS21
NOTES
1999 May 26 10
Philips Semiconductors Product specification
General purpose diodes BAS19; BAS20; BAS21
NOTES
1999 May 26 11
Philips Semiconductors – a worldwide company
Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,
Tel. +61 2 9805 4455, Fax. +61 2 9805 4466
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,
Tel. +43 1 60 101 1248, Fax. +43 1 60 101 1210
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
220050 MINSK, Tel. +375 172 20 0733, Fax. +375 172 20 0773
Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 68 9211, Fax. +359 2 68 9102
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381, Fax. +1 800 943 0087
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +852 2319 7700
Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,
Tel. +45 33 29 3333, Fax. +45 33 29 3905
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615 800, Fax. +358 9 6158 0920
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,
Tel. +33 1 4099 6161, Fax. +33 1 4099 6427
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 2353 60, Fax. +49 40 2353 6300
Hungary: seeAustria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,
254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. +91 22 493 8541, Fax. +91 22 493 0966
Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. +62 21 794 0040 ext. 2501, Fax. +62 21 794 0080
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. +972 3 645 0444, Fax. +972 3 649 1007
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. +39 02 67 52 2531, Fax. +39 02 67 52 2557
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. +81 3 3740 5130, Fax. +81 3 3740 5057
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 757 4880
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +9-5 800 234 7381, Fax +9-5 800 943 0087
Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. +31 40 27 82785, Fax. +31 40 27 88399
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Norway: Box 1, Manglerud 0612, OSLO,
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474
Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. +48 22 612 2831, Fax. +48 22 612 2327
Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 755 6918, Fax. +7 095 755 6919
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,
Tel. +65 350 2538, Fax. +65 251 6500
Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. +27 11 471 5401, Fax. +27 11 471 5398
South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. +55 11 821 2333, Fax. +55 11 821 2382
Spain: Balmes 22, 08007 BARCELONA,
Tel. +34 93 301 6312, Fax. +34 93 301 4107
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 5985 2000, Fax. +46 8 5985 2745
Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. +41 1 488 2741 Fax. +41 1 488 3263
Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. +886 2 2134 2886, Fax. +886 2 2134 2874
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. +66 2 745 4090, Fax. +66 2 398 0793
Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. +90 216 522 1500, Fax. +90 216 522 1813
Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. +44 181 730 5000, Fax. +44 181 754 8421
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +1 800 234 7381, Fax. +1 800 943 0087
Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 62 5344, Fax.+381 11 63 5777
For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 27 24825
© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
1999 65
Internet: http://www.semiconductors.philips.com
Printed in The Netherlands 115002/03/pp12 Date of release: 1999 May26 Document order number: 9397 75005885
Loading...
