Audio ICs
Dual preamplifier with ALC
BA3311L
The BA3311L is a dual preamplifier with ALC designed for use in stereo radio-cassette recorders. It comes in a compact 12-pin ZIP package and has two record / playback preamplifiers, and an ALC circuit. The preamplifiers are directly coupled to the head and do not require coupling capacitors. This prevents tape head magnetization and ”pop” noise generation. An ALC circuit with large dynamic range can be constructed with addition of just an external detector and time constant circuit.
Applications Stereo radio cassette players
Features
1) The input block uses a bias circuit that does not re­quire coupling capacitors.
2) ALC circuit requires addition of just an external de­tector and time constant circuit.

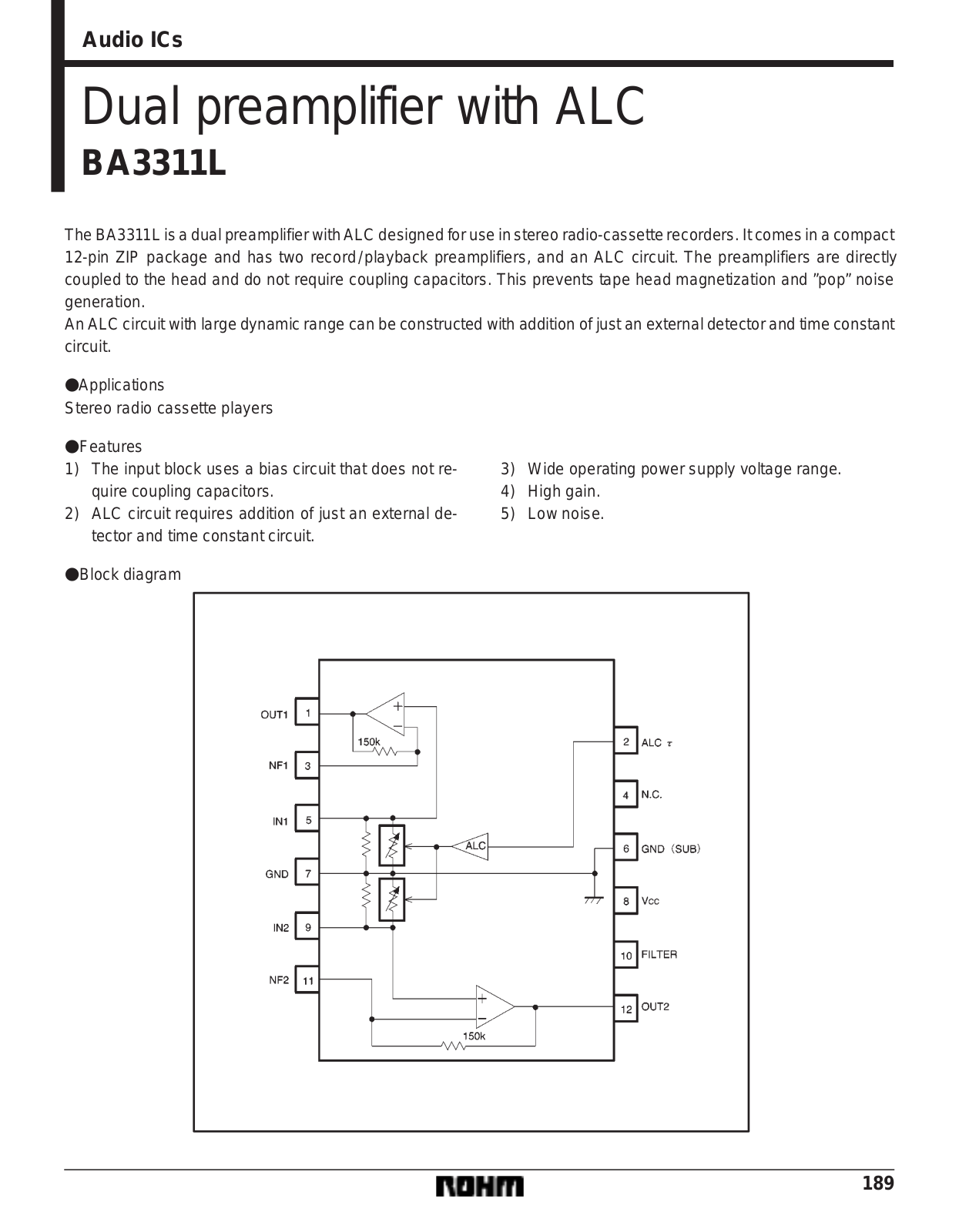

Block diagram
3) Wide operating power supply voltage range.
4) High gain.
5) Low noise.
189
Page 2
Audio ICs BA3311L

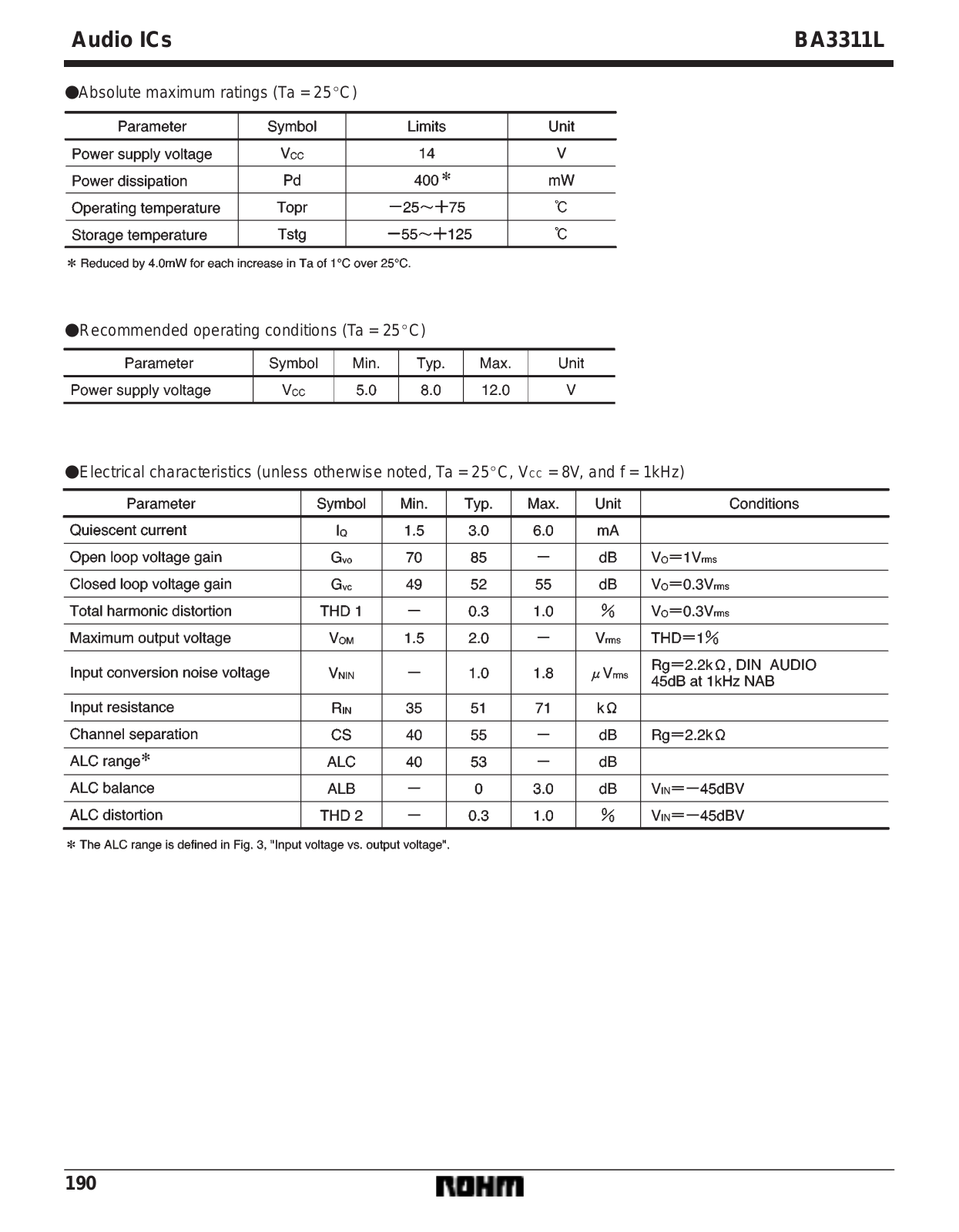

FAbsolute maximum ratings (Ta = 25_C)
FRecommended operating conditions (Ta = 25_C)
FElectrical characteristics (unless otherwise noted, Ta = 25_C, V
CC = 8V, and f = 1kHz)
190
Page 3
Audio ICs BA3311L

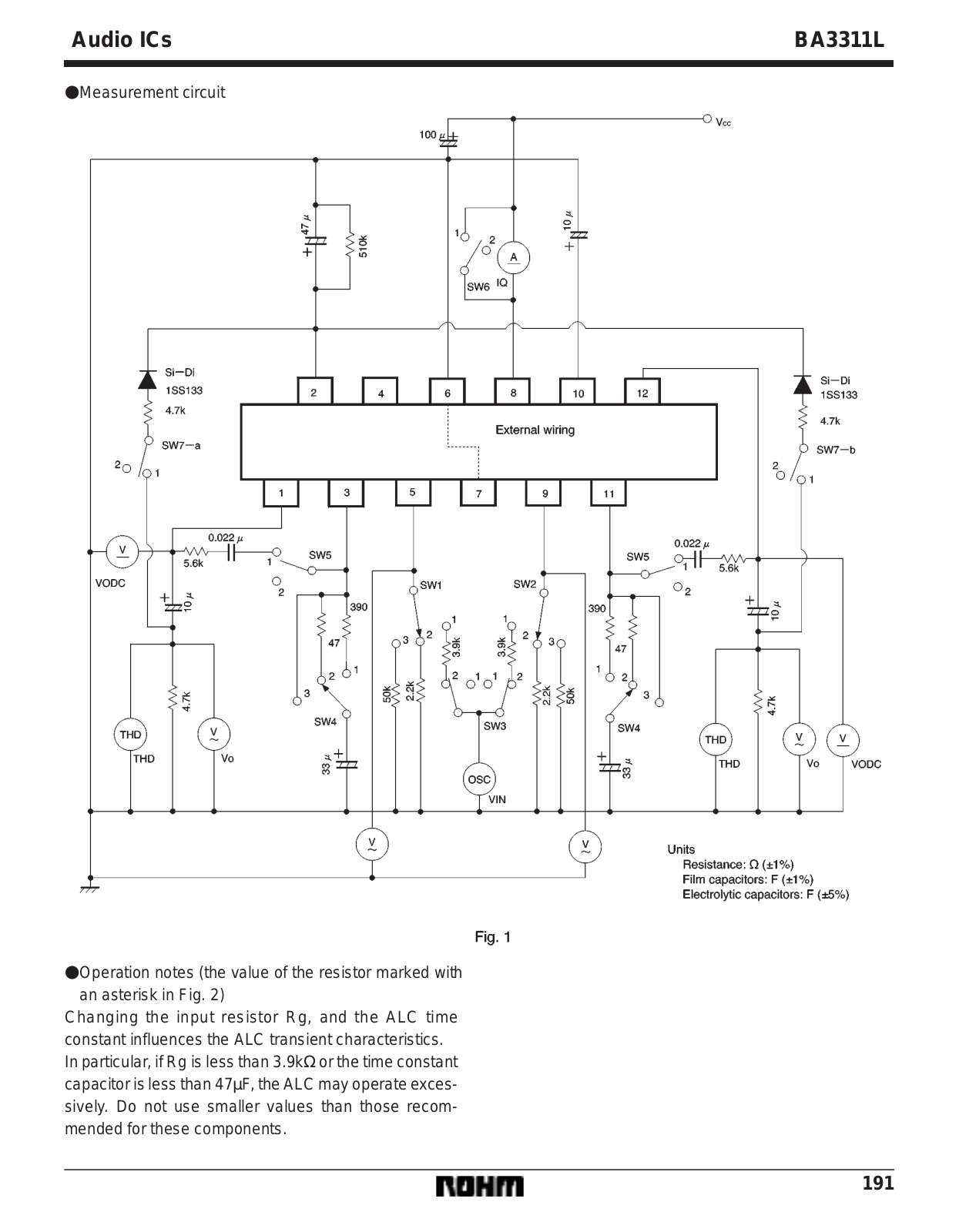

Measurement circuit
Operation notes (the value of the resistor marked with
an asterisk in Fig. 2) Changing the input resistor Rg, and the ALC time constant influences the ALC transient characteristics. In particular, if Rg is less than 3.9k or the time constant capacitor is less than 47µF , the ALC may operate exces­sively. Do not use smaller values than those recom­mended for these components.
191
Page 4
Audio ICs BA3311L
Application example
Electrical characteristics curve
192
External dimensions (Units: mm)
