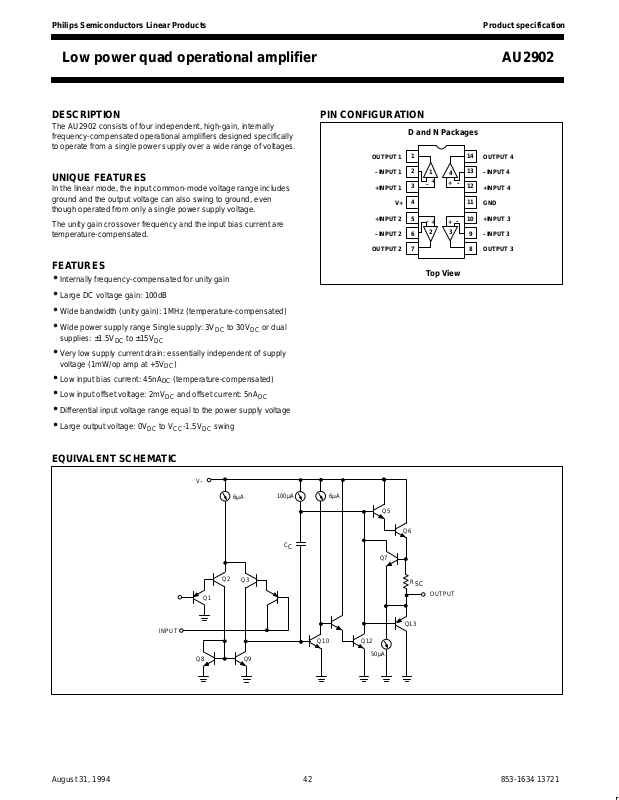

Philips Semiconductors Linear Products Product specification

AU2902Low power quad operational amplifier

42

August 31, 1994 853-1634 13721

DESCRIPTION

The AU2902 consists of four independent, high-gain, internally frequency-compensated operational amplifiers designed specifically to operate from a single power supply over a wide range of voltages.

UNIQUE FEATURES

In the linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage.

The unity gain crossover frequency and the input bias current are temperature-compensated.

FEATURES

•Internally frequency-compensated for unity gain

•Large DC voltage gain: 100dB

•Wide bandwidth (unity gain): 1MHz (temperature-compensated)

•Wide power supply range Single supply: 3V

DC

to 30VDC or dual

supplies: ±1.5V

DC

to ±15V

DC

•Very low supply current drain: essentially independent of supply

voltage (1mW/op amp at +5V

DC

)

•Low input bias current: 45nA

DC

(temperature-compensated)

•Low input offset voltage: 2mV

DC

and offset current: 5nA

DC

•Differential input voltage range equal to the power supply voltage

•Large output voltage: 0V

DC

to VCC-1.5VDC swing

PIN CONFIGURATION

+

D and N Packages

1

2

3

4 11

12

13

14

OUTPUT 1

–INPUT 1

+INPUT 1

V+

1

–

4 + –

+

7

6

5 10

9

8

2

–

3

+

–

OUTPUT 2

+INPUT 2

–INPUT 2

OUTPUT 4

–INPUT 4

+INPUT 4

GND

OUTPUT 3

+INPUT 3

–INPUT 3

Top View

EQUIVALENT SCHEMATIC

V–

OUTPUT

Q5

R

SC

Q8 Q9

Q1

Q3

6µA

100µA 6µA

Q6

Q7

Q13

Q12Q10

Q2

INPUT

50µA

C

Philips Semiconductors Linear Products Product specification

AU2902Low power quad operational amplifier

August 31, 1994

43

ORDERING INFORMATION

DESCRIPTION TEMPERATURE RANGE ORDER CODE DWG #

14-Pin Plastic Dual In-Line Package (DIP) -40 to +125°C AU2902N 0405B 14-Pin Plastic Small Outline (SO) Package -40 to +125°C AU2902D 0175D

ABSOLUTE MAXIMUM RATINGS

SYMBOL PARAMETER RATING UNIT

V

CC

Supply voltage 32 or ±16 V

DC

V

IN

Differential input voltage 32 V

DC

V

IN

Input voltage –0.3 to +32 V

DC

P

DMAX

Maximum power dissipation, TA=25°C(still–air)

1

N package 1420 mW D package 1040 mW

Output short–circuit to GND one

amplifier Continuous VCC<15VDC and TA=25°C

I

IN

Input current (VIN<–0.3V)

3

50 mA

T

A

Operating ambient temperature range

AU2902 –40 to +125 °C

T

STG

Storage temperature range –65 to +150 °C

T

SOLD

Lead soldering temperature (10sec max) 300 °C

NOTES:

1. Derate above 25°C at the following rates: N package at 11.4mW/°C D package at 8.3mW/°C

2. Short–circuits from the output to V

CC

+ can cause excessive heating and eventual destruction. The maximum output current is approximately

40mA, independent of the magnitude of V

CC

. At values of supply voltage in excess of +15VDC continuous short–circuits can exceed the

power dissipation ratings and cause eventual destruction.

3. This input current will only exist when the voltage at any of the input leads is driven negative. It is due to the collector–base junction of the

input PNP transistors becoming forward biased and thereby acting as input bias clamps. In addition, there is also lateral NPN parasitic transistor action on the IC chip. This action can cause the output voltages of the op amps to go to the V+ rail (or to ground for a large overdrive) during the time that the input is driven negative.

DC ELECTRICAL CHARACTERISTICS

VCC=5V, TA=25°C unless otherwise specified.

AU2902

SYMBOL

PARAMETER

TEST CONDITIONS

Min Typ Max

UNIT

RS=0Ω ±2 ±7

VOSOffset voltage

1

RS=0Ω, over temp. ±9

mV

∆VOS/∆T Temperature drift RS=0Ω, over temp. 7 µV/°C

IIN(+) or IIN(–) 45 250

I

BIAS

Input current

2

IIN(+) or IIN(–), over temp. 40 500

nA

∆I

BIAS

/∆T Temperature drift Over temp. 50 pA/°C

IIN(+)–IIN(–) ±5 ±50

IOSOffset current

IIN(+)–IIN(–), over temp. ±150

nA

∆IOS/∆T Temperature drift Over temp. 10 pA/°C V

CM

Common–mode voltage range

3

VCC≤30V 0 VCC–1.5 V

VCC≤30V, over temp. 0 VCC–2 V

CMRR Common–mode rejection ratio VCC=30V 65 70 dB V

OUT

Output voltage swing

RL=2kΩ, VCC=30V,

over temp.

26 V

V

OH

Output voltage high

RL≥10kΩ, VCC=30V,

over temp.

27 28 V

Philips Semiconductors Linear Products Product specification

AU2902Low power quad operational amplifier

August 31, 1994

44

DC ELECTRICAL CHARACTERISTICS (Continued)

AU2902

SYMBOL

PARAMETER

TEST CONDITIONS

Min Typ Max

UNIT

V

OL

Output voltage low

RL≤10kΩ, VCC=5V,

over temp.

5 20 mV

RL=∞, VCC=30V,

over temp.

1.5 3

ICCSupply current

RL=∞, VCC=5V,

over temp.

0.7 1.2

mA

VCC=15V (for large VO swing),

R

L

≥2kΩ

25 100

VCC=15V (for large VO swing),

R

L

≥2kΩ,

over temp.

15

Amplifier–to–amplifier coupling

5

f=1kHz to 20kHz,

input referred

–120 dB

PSRR Power supply rejection ratio RS=0Ω 65 100 dB

VIN+=+1V, VIN–=0V, VCC=15V 20 40

Output current

Source

VIN+=+1V, VIN–=0V, VCC=15V,

over temp.

10 20

VIN–=+1V, VIN+=0V, V+=15V 10 20

mA

OUT

VIN–=+1V, VIN+=0V, VCC=15V,

over temp.

5 8

VIN–=+1V, VIN+=0V, VO=200mV 12 50 µA

I

SC

Short–circuit current

4

10 40 60 mA

V

DIFF

Differential input voltage

3

V

CC

V GBW Unity gain bandwidth 1 MHz SR Slew rate 0.3 V/µs V

NOISE

Input noise voltage f=1kHz 40 nV/√Hz

NOTES:

1. V

O

≈ 1.4VDC, RS=0Ω with VCC from 5V to 30V and over full input common–mode range (0VDC+ to VCC –1.5V).

2. The direction of the input current is out of the IC due to the PNP input stage. This current is essentially constant, independent of the state of the output so no loading change exists on the input lines.

3. The input common–mode voltage or either input signal voltage should not be allowed to go negative by more than 0.3V. The upper end of the common–mode voltage range is V

CC

–1.5, but either or both inputs can go to +32V without damage.

4. Short–circuits from the output to VCC can cause excessive heating and eventual destruction. The maximum output current is approximately 40mA independent of the magnitude of V

CC

. At values of supply voltage in excess of +15VDC, continuous short–circuits can exceed the

power dissipation ratings and cause eventual destruction. Destructive dissipation can result from simultaneous shorts on all amplifiers.

5. Due to proximity of external components, insure that coupling is not originating via stray capacitance between these external parts. This typically can be detected as this type of coupling increases at higher frequencies.

A

VOL

Large–signal voltage gain

I

OUT

Output current

Sink

V/mV

Philips Semiconductors Linear Products Product specification

AU2902Low power quad operational amplifier

August 31, 1994

45

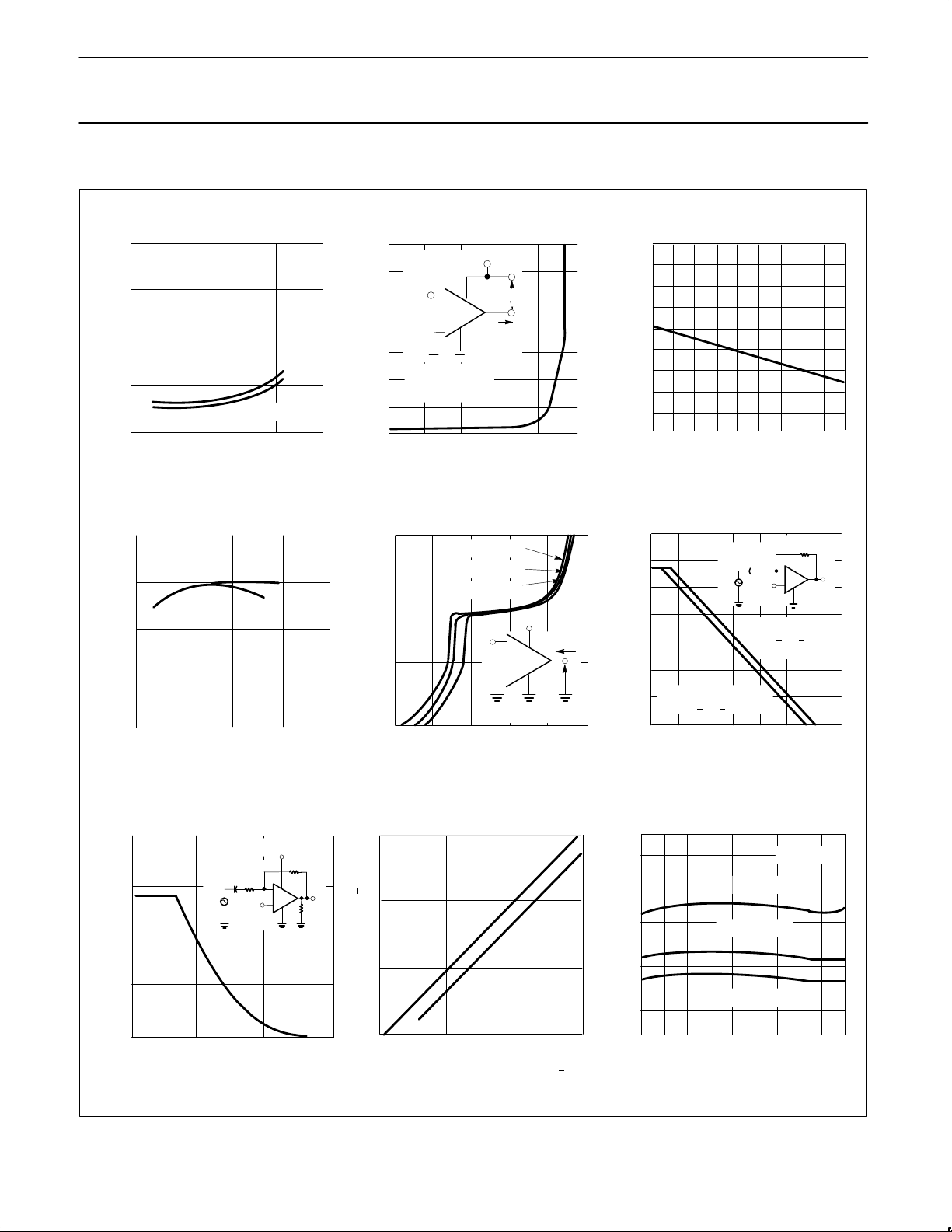

TYPICAL PERFORMANCE CHARACTERISTICS

0.1µF

4

3

2

1

0

0 10 20 30 40

T

A

= O°C to +125

o

C

T

A

= –55

o

C

SUPPLY VOLTAGE (V

DC

)

SUPPLY CURRENT DRAIN (mAdc)

INPUT – CURRENT (mAdc)

90 80

70 60 50 40 30 20 10

0

–55 –35 15 5 25 45 65 85 105 125

TEMPERATURE (

o

C)

V

O

VOL

0 10 20 30 40

SUPPLY VOLTAGE (V

DC

)

A — VOLTAGE GAIN (dB)

160

120

80

40

0

RL = 2KΩ

RL = 20KΩ

VOL — OUTPUT VOLTAGE (V )

DC

10

1

0.1

0.01

0.001 0.01 0.1 1 10 100

V+ = +5V V+ = +15V V+ = +30V

V+ /2

V

+

TA = +25oC

I

O

— OUTPUT SINK CURRENT (mADC)

–

+

V

+

V

O

0.1µF

V

IN

V+ /2

V+ = 10 to 15 Vdc and –55

o

C < TA < +125 oC

V+ = 30 Vdc and –55

o

C < TA < +125

o

C

140

120

100

80

60

40

20

0

1 10 100 1K 10K 100K 1M 10M

VOLTAGE GAIN (dB)

FREQUENCY (Hz)

15V

DC

100K

V

IN

7.5V

DC

2K

1K

V

O

20

15

10

5

0

1K

10K

100K 1M

V — OUTPUT SWING (Vp–p)

D

FREQUENCY (Hz)

NEGATIVE

POSITIVE

15

10

5

0 5 10

V

+

or V– — POWER SUPPLY VOLTAGE (+VDC)

0

90 80

70 60

50 40

30

20 10

0 –55 –35 –15 5 25 45 65 85 105 125

TA — TEMPERATURE (oC)

VCM = 0 V

DC

V+ = +30 V

DC

V+ = +15 V

DC

V+ = +5 V

DC

Supply Current Current Limiting

Voltage Gain

Output Characteristics

Current Sinking

Open–Loop Frequency

Response

Large–Signal

Frequency Response

Input Voltage Range

Input Current

+V — INPUT VOLTAGE ( V )

IN

DC

+

1 — INPUT CURRENT (nA )

B

DC

V —OUTPUT VOLTAGE

REFERENCED TO V+ (V )

2

DC

V

+

V

2

I

O

+V + / 2

+

–

INDEPENDENT

OF V+

T

A

= +25oC

8

7

6

5

4

3

2

1

0.001 0.01 0.1 1 10

IO+ — OUTPUT SOURCE CURRENT (mA

DC

)

Output Characteristics

Current Sourcing

10M

– +

Philips Semiconductors Linear Products Product specification

AU2902Low power quad operational amplifier

August 31, 1994

46

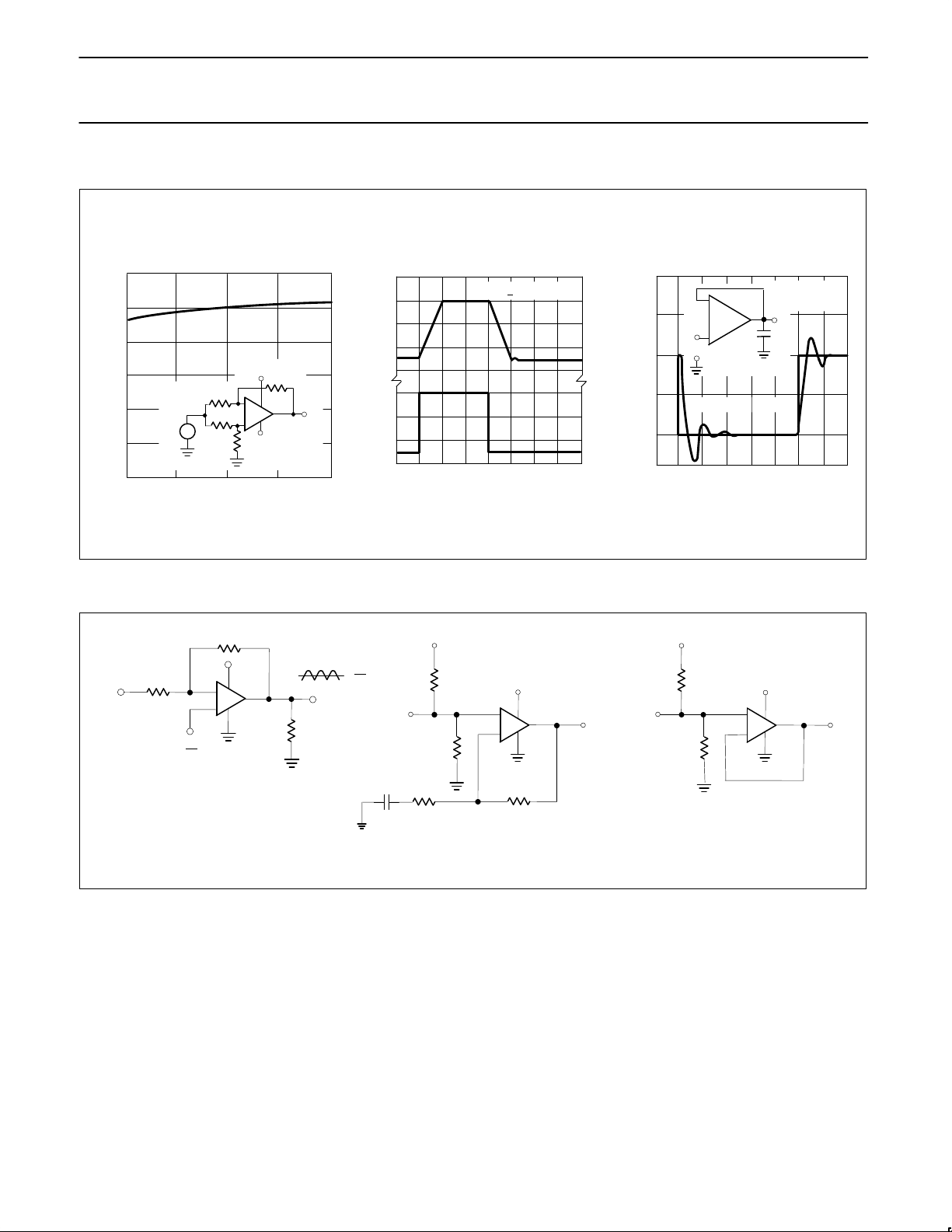

TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

INPUTOUTPUT

50pF

E

O

TA = +25oC V+ = +30V

DC

500

450

400

350

300

250

0 1 2 3 4 5 6 7 8

t — TIME (µS)

E — OUTPUT VOLTAGE (mV)

O

Voltage–Follower Pulse

Response (Small–Signal)

INPUT VOLTAGE (V) OUTPUT VOLTAGE (V)

4

3

2

1

0

3

2

1

0

RL > V+ = 15 V

DC

TIME (µs)

0 10 20 30 40

Voltage–Follower Pulse

Response

V

IN

+7.5V

DC

100K

V

IN

V

O

100

100K

–7.5 V

DC

+

120

100

80

60

40

20

0

100 1K 10K 100K 1M

f — FREQUENCY (Hz)

CMRR — COMMON–MODE REJECTION RATIO (dB)

–

+

Common–Mode Rejection Ratio

TYPICAL APPLICATIONS

BLOCKS DC GAIN

R

1

10K

V+

10K

V+

8

+

V

IN

V

O

4

RF

–

V+

2

V+

V

O

RL

4

8

R

IN

V

IN

– +

RF

V+

2

10K

V+

10K

V+

8

+

V

IN

4

–

V

O

Single Supply Inverting Amplifier Non–Inverting Amplifier Output Biasing Voltage–Follower
