Integrated Digital CCIR-601

a

FEATURES
ITU-R BT601/656 YCrCb to PAL/NTSC Video Encoder
High Quality 9-Bit Video DACs
Integral Nonlinearity <1 LSB at 9 Bits
NTSC-M, PAL-M/N, PAL-B/D/G/H/I
Single 27 MHz Crystal/Clock Required (ⴛ2 Oversampling)
75 dB Video SNR
32-Bit Direct Digital Synthesizer for Color Subcarrier
Multistandard Video Output Support:

Composite (CVBS)
Component S-Video (Y/C)
Component YUV and RGB

Video Input Data Port Supports:

CCIR-656 4:2:2 8-Bit Parallel Input Format

4:2:2 16-Bit Parallel Input Format
SMPTE 170M NTSC-Compatible Composite Video
ITU-R BT.470 PAL-Compatible Composite Video
Full Video Output Drive or Low Signal Drive Capability

34.7 mA max into 37.5 ⍀ (Doubly-Terminated 75R)

5 mA min with External Buffers
Programmable Simultaneous Composite and S-VHS
(VHS) Y/C or RGB (SCART)/YUV Video Outputs
Programmable Luma Filters (Low-Pass/Notch/Extended)
Programmable VBI (Vertical Blanking Interval)

FUNCTIONAL BLOCK DIAGRAM

V

AA

to PAL/NTSC Video Encoder

ADV7177/ADV7178

Programmable Subcarrier Frequency and Phase
Programmable LUMA Delay
Individual ON/OFF Control of Each DAC
CCIR and Square Pixel Operation
Color Signal Control/Burst Signal Control
Interlaced/Noninterlaced Operation
Complete On-Chip Video Timing Generator
OSD Support (AD7177 Only)
Programmable Multimode Master/Slave Operation
Macrovision Antitaping Rev 7.01 (ADV7178 Only)**
Closed Captioning Support
Onboard Voltage Reference
2-Wire Serial MPU Interface (I
Single Supply +5 V or +3 V Operation
Small 44-Lead PQFP Package
Synchronous 27 MHz/13.5 MHz Clock O/P

APPLICATIONS
MPEG-1 and MPEG-2 Video, DVD, Digital Satellite/

Cable Systems (Set Top Boxes/IRDs), Digital TVs,
CD Video/Karaoke, Video Games, PC Video/Multimedia

GENERAL DESCRIPTION

The ADV7177/ADV7178 is an integrated digital video encoder
that converts Digital CCIR-601 4:2:2 8- or 16-bit component
video data into a standard analog baseband television signal

2C®

Compatible)

(Continued on page 11)

M
U

ADV7177

ONLY

OSD_EN

OSD_0
OSD_1
OSD_2

COLOR

DATA

P7–P0

P15–P8

HSYNC

FIELD/VSYNC

BLANK

*Protected by U.S. Patent Numbers 5,343,196 and 5,442,355 and other intellectual property rights.
**This device is protected by U.S. Patent Numbers 4,631,603, 4,577,216, 4,819,098 and other intellectual property rights. The Macrovision anticopy process is

licensed for noncommercial home use only, which is its sole intended use in the device. Please contact sales office for latest Macrovision version available.

NOTE: ITU-R and CCIR are used interchangeably in this document (ITU-R has replaced CCIR recommendations).

2

I

C is a registered trademark of Philips Corporation.

4:2:2 TO

4:4:4

INTER-

POLATOR

CLOCK

VIDEO TIMING

GENERATOR

CLOCK

ADV7177/ADV7178

8

YCrCb

8

TO

YUV

MATRIX

8 8

CLOCK/2

8

8

RESET

YUV TO

RBG

MATRIX

8

ADD

SYNC

ADD

BURST

ADD

BURST

INTER-

POLATOR

8

INTER-

POLATOR

8

INTER-

POLATOR

I2C MPU PORT

SCLOCK SDATA ALSB GND

8

8

8

Y

LOW-PASS

FILTER

U

LOW-PASS

FILTER

V

LOW-PASS

FILTER

9

9

SIN/COS

DDS BLOCK

9

99

9

L
T

I

9

P
L
E

9

X
E
R

VOLTAGE

REFERENCE

CIRCUIT

9-BIT

DAC

9-BIT

DAC

9-BIT

DAC

DAC A (PIN 31)

DAC B (PIN 27)

DAC C (PIN 26)

V

REF

R

SET

COMP

REV. 0

Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: [phone] World Wide Web Site: http://www.analog.com
Fax: [phone] © Analog Devices, Inc., 1998

ADV7177/ADV7178–SPECIFICATIONS

5 V SPECIFICATIONS

(VAA = +5 V ⴞ 5%1, V

Parameter Conditions

STATIC PERFORMANCE

3

= 1.235 V, R

REF

1

= 300 ⍀. All specifications T

SET

Min Typ Max Units

MIN

Resolution (Each DAC) 9 Bits
Accuracy (Each DAC)

Integral Nonlinearity ±1.0 LSB
Differential Nonlinearity Guaranteed Monotonic ±1.0 LSB

DIGITAL INPUTS

Input High Voltage, V
Input Low Voltage, V
Input Current, I
Input Current, I
Input Capacitance, C

DIGITAL OUTPUTS

Output High Voltage, V
Output Low Voltage, V

3

INH

INL

4

IN

5

IN

IN

3

OH

OL

V

= 0.4 V or 2.4 V ±1 µA

IN

V

= 0.4 V or 2.4 V ±50 µA

IN

I
I

= 400 µA 2.4 V

SOURCE

= 3.2 mA 0.4 V

SINK

2V

Three-State Leakage Current 10 µA

Three-State Output Capacitance 10 pF

ANALOG OUTPUTS

Output Current
Output Current

3

6

7

R

= 300 Ω, RL = 75 Ω 16.5 17.35 18.5 mA

SET

DAC-to-DAC Matching 0.6 5 %
Output Compliance, V
Output Impedance, R
Output Capacitance, C

VOLTAGE REFERENCE

Reference Range, V

POWER REQUIREMENTS

V

AA

Low Power Mode

I

DAC

I

DAC

I

CCT

(max)
(min)

10

9

9

OC

OUT

OUT

3

REF

3, 8

I

= 0 mA 30 pF

OUT

I

VREFOUT

= 20 µA 1.112 1.235 1.359 V

0 +1.4 V

4.75 5.0 5.25 V

Power Supply Rejection Ratio COMP = 0.1 µF 0.01 0.5 %/%

NOTES

11

The max/min specifications are guaranteed over this range. The max/min values are typical over 4.75 V to 5.25 V.

12

Temperature range T

13

Guaranteed by characterization.

14

All digital input pins except pins RESET, OSD0 and CLOCK.

15

Excluding all digital input pins except pins RESET, OSD0 and CLOCK.

16

Full

drive into 75␣ Ω load.

17

Minimum drive current (used with buffered/scaled output load).

18

Power measurements are taken with Clock Frequency = 27 MHz. Max T

19

I

is the total current (min corresponds to 5 mA output per DAC, max corresponds to 18.5 mA output per DAC) to drive all three DACs. Turning off individual

DAC

DACs reduces I

10

I

(Circuit Current) is the continuous current required to drive the device.

CCT

Specifications subject to change without notice.

to T

MIN

correspondingly.

DAC

: 0°C to +70°C.

MAX

= 110°C.

J

2

to T

unless otherwise noted.)

MAX

0.8 V

10 pF

5mA

15 kΩ

62 mA
25 mA
100 150 mA

–2–

REV. 0

ADV7177/ADV7178

3.3 V SPECIFICATIONS

(VAA = +3.0 V–3.6 V1, V

REF

Parameter Conditions

STATIC PERFORMANCE

3

= 1.235 V, R

1

= 300 ⍀. All specifications T

SET

Min Typ Max Units

MIN

2

to T

unless otherwise noted.)

MAX

Resolution (Each DAC) 9 Bits
Accuracy (Each DAC)

Integral Nonlinearity ±0.5 LSB
Differential Nonlinearity Guaranteed Monotonic ±0.5 LSB

DIGITAL INPUTS

Input High Voltage, V
Input Low Voltage, V
Input Current, I
Input Current, I
Input Capacitance, C

IN

IN3,

3, 4

INL

5

IN

INH

V

= 0.4 V or 2.4 V ±1 µA

IN

V

= 0.4 V or 2.4 V ±50 µA

IN

2V

0.8 V

10 pF

DIGITAL OUTPUTS

Output High Voltage, V
Output Low Voltage, V

OH

OL

Three-State Leakage Current
Three-State Output Capacitance

ANALOG OUTPUTS

Output Current
Output Current

3

6, 7

8

3

3

I
I

= 400 µA 2.4 V

SOURCE

= 3.2 mA 0.4 V

SINK

10 µA

10 pF

R

= 300 Ω, RL = 75 Ω 16.5 17.35 18.5 mA

SET

5mA
DAC-to-DAC Matching 2.0 %
Output Compliance, V
Output Impedance, R
Output Capacitance, C

POWER REQUIREMENTS

V

AA

Normal Power Mode

I

DAC

I

DAC

I

CCT

Low Power Mode

I

DAC

I

DAC

I

CCT

(max)
(min)

9

(max)
(min)

11

10

10

10

10

OC

OUT

OUT

3, 9

I

= 0 mA 30 pF

OUT

R

= 300 Ω, RL = 150 Ω 113 116 mA

SET

0 +1.4 V

15 kΩ

3.0 3.3 3.6 V

15 mA

45 mA

60 mA

25 mA

45 mA

Power Supply Rejection Ratio COMP = 0.1 µF 0.01 0.5 %/%

NOTES

11

The max/min specifications are guaranteed over this range. The max/min values are typical over 3.0 V to 3.6 V.

12

Temperature range T

13

Guaranteed by characterization.

14

All digital input pins except pins RESET, OSD0 and CLOCK.

15

Excluding all digital input pins except pins RESET, OSD0 and CLOCK.

16

Full

drive into 75␣ Ω load.

17

DACs can output 35 mA typically at 3.3 V (R

18

Minimum drive current (used with buffered/scaled output load).

19

Power measurements are taken with Clock Frequency = 27 MHz. Max T

10

I

is the total current (min corresponds to 5 mA output per DAC, max corresponds to 38 mA output per DAC) to drive all three DACs. Turning off individual

DAC

DACs reduces I

11

I

(Circuit Current) is the continuous current required to drive the device.

CCT

Specifications subject to change without notice.

to T

MIN

correspondingly.

DAC

: 0°C to +70°C.

MAX

= 150 Ω and RL = 75 Ω), optimum performance obtained at 18 mA DAC current (R

SET

= 110°C.

J

= 300 Ω and RL = 150 Ω).

SET

–3–REV. 0

ADV7177/ADV7178–SPECIFICATIONS

(VAA = +4.75 V – 5.25 V1, V

5 V DYNAMIC SPECIFICATIONS

Parameter Conditions

1

unless otherwise noted.)

1

Filter Characteristics
Luma Bandwidth3 (Low-Pass Filter) NTSC Mode

Stopband Cutoff >54 dB Attenuation 7.0 MHz
Passband Cutoff F

3 dB

>3 dB Attenuation 4.2 MHz

Chroma Bandwidth NTSC Mode

Stopband Cutoff >40 dB Attenuation 3.2 MHz
Passband Cutoff F

Luma Bandwidth

3 dB

3

(Low-Pass Filter) PAL MODE

>3 dB Attenuation 2.0 MHz

Stopband Cutoff >50 dB Attenuation 7.4 MHz
Passband Cutoff F

3 dB

>3 dB Attenuation 5.0 MHz

Chroma Bandwidth PAL MODE

Stopband Cutoff >40 dB Attenuation 4.0 MHz

Passband Cutoff F
Differential Gain
Differential Phase

4

SNR

(Pedestal) RMS 75 dB rms

4

(Ramp) RMS 57 dB rms

SNR

Hue Accuracy
Color Saturation Accuracy
Chroma Nonlinear Gain
Chroma Nonlinear Phase

Chroma/Luma Intermod

Chroma/Luma Gain Ineq
Chroma/Luma Delay Ineq
Luminance Nonlinearity
Chroma AM Noise
Chroma PM Noise

NOTES

1

The max/min specifications are guaranteed over this range. The max/min values are typical over 4.75 V to 5.25 V.

2

Temperature range T

3

These specifications are for the low-pass filter only and guaranteed by design. For other internal filters, see Figure 5.

4

Guaranteed by characterization.

Specifications subject to change without notice.

3 dB

4

4

4

4

4

4

4

4

4

4

4

4

to T

MIN

: 0°C to +70°C.

MAX

>3 dB Attenuation 2.4 MHz
Lower Power Mode 2.0 %
Lower Power Mode 1.5 Degrees

Peak Periodic 70 dB p-p

Peak Periodic 56 dB p-p

Referenced to 40 IRE 1.0 ±%
NTSC 0.4 ±Degrees
PAL 0.6 ±Degrees
Referenced to 714 mV (NTSC) 0.2 ±%
Referenced to 700 mV (PAL) 0.2 ±%

= 1.235 V, R

REF

= 300 ⍀. All specifications T

SET

MIN

Min Typ Max Units

1.2 Degrees

1.4 %

0.6 ±%

2.0 ns

1.2 ±%

64 dB
62 dB

to T

MAX

2

–4–

REV. 0

ADV7177/ADV7178

(VAA = +3.0 V – 3.6 V1, V

1

3.3 V DYNAMIC SPECIFICATIONS

Parameter Conditions

unless otherwise noted.)

1

Filter Characteristics
Luma Bandwidth3 (Low-Pass Filter) NTSC Mode

Stopband Cutoff >54 dB Attenuation 7.0 MHz
Passband Cutoff F

3 dB

>3 dB Attenuation 4.2 MHz

Chroma Bandwidth NTSC Mode

Stopband Cutoff >40 dB Attenuation 3.2 MHz
Passband Cutoff F

Luma Bandwidth

3 dB

3

(Low-Pass Filter) PAL MODE

>3 dB Attenuation 2.0 MHz

Stopband Cutoff >50 dB Attenuation 7.4 MHz
Passband Cutoff F

3 dB

>3 dB Attenuation 5.0 MHz

Chroma Bandwidth PAL MODE

Stopband Cutoff >40 dB Attenuation 4.0 MHz

Passband Cutoff F
Differential Gain
Differential Phase

4

SNR

(Pedestal) RMS 70 dB rms

4

(Ramp) RMS 56 dB rms

SNR

Hue Accuracy
Color Saturation Accuracy
Luminance Nonlinearity
Chroma AM Noise
Chroma PM Noise
Chroma AM Noise
Chroma PM Noise

NOTES

1

The max/min specifications are guaranteed over this range. The max/min values are typical over 3.0 V to 3.6 V.

2

Temperature range T

3

These specifications are for the low-pass filter only and guaranteed by design. For other internal filters, see Figure 5.

4

Guaranteed by characterization.

Specifications subject to change without notice.

3 dB

4

4

4

4

4

4

4

4

4

to T

MIN

: 0°C to +70°C.

MAX

>3 dB Attenuation 2.4 MHz
Normal Power Mode 1.0 %
Normal Power Mode 1.0 Degrees

Peak Periodic 64 dB p-p

Peak Periodic 54 dB p-p

NTSC 64 dB
NTSC 62 dB
PAL 64 dB
PAL 62 dB

= 1.235 V, R

REF

= 300 ⍀. All specifications T

SET

MIN

Min Typ Max Units

1.2 Degrees

1.4 %

1.4 ±%

to T

MAX

2

–5–REV. 0

ADV7177/ADV7178

to T

MAX

2

unless

5 V TIMING SPECIFICATIONS

(VAA = 4.75 V – 5.25 V1, V
otherwise noted.)

= 1.235 V, R

REF

= 300 ⍀. All specifications T

SET

MIN

Parameter Conditions Min Typ Max Units

MPU PORT

3, 4

SCLOCK Frequency 0 100 kHz
SCLOCK High Pulsewidth, t
SCLOCK Low Pulsewidth, t
Hold Time (Start Condition), t
Setup Time (Start Condition), t
Data Setup Time, t

5

SDATA, SCLOCK Rise Time, t
SDATA, SCLOCK Fall Time, t
Setup Time (Stop Condition), t

ANALOG OUTPUTS

3, 5

1

2

After This Period the First Clock Is Generated 4.0 µs

3

Relevant for Repeated Start Condition 4.7 µs

4

6

7

8

4.0 µs

4.7 µs

250 ns

1 µs

300 ns

4.7 µs

Analog Output Delay 5ns
DAC Analog Output Skew 0 ns

CLOCK CONTROL
AND PIXEL PORT

f

CLOCK

Clock High Time, t
Clock Low Time, t
Data Setup Time, t
Data Hold Time, t
Control Setup Time, t
Control Hold Time, t
Digital Output Access Time, t
Digital Output Hold Time, t
Pipeline Delay, t

RESET CONTROL

3, 6

27 MHz

9

10

11

12

11

12

13

14

15

3, 4

8ns
8ns

3.5 ns
4ns
4ns
3ns

24 ns
4ns
37 Clock Cycles

RESET Low Time 6 ns

INTERNAL CLOCK CONTROL

Clock/2 Rise Time, t
Clock/2 Fall Time, t

OSD TIMING

OSD Setup Time, t
OSD Hold Time, t

NOTES

1

The max/min specifications are guaranteed over this range.

2

Temperature range T

3

TTL input values are 0 to 3 volts, with input rise/fall times ≤ 3 ns, measured between the 10% and 90% points. Timing reference points at 50% for inputs and
outputs. Analog output load ≤ 10 pF.

4

Guaranteed by characterization.

5

Output delay measured from the 50% point of the rising edge of CLOCK to the 50% point of full-scale transition.

6

Pixel Port consists of the following:
Pixel Inputs: P15–P0
Pixel Controls: HSYNC, FIELD/VSYNC, BLANK
Clock Input: CLOCK

Specifications subject to change without notice.

16

17

4

18

19

to T

MIN

: 0°C to +70°C.

MAX

7ns
7ns

6ns
2ns

–6–

REV. 0

ADV7177/ADV7178

to T

MAX

2

unless

3.3 V TIMING SPECIFICATIONS

(VAA = +3.0 V–3.6 V1, V
otherwise noted.)

= 1.235 V, R

REF

= 300 ⍀. All specifications T

SET

MIN

Parameter Conditions Min Typ Max Units

MPU PORT

3, 4

SCLOCK Frequency 0 100 kHz
SCLOCK High Pulsewidth, t
SCLOCK Low Pulsewidth, t
Hold Time (Start Condition), t
Setup Time (Start Condition), t
Data Setup Time, t

5

SDATA, SCLOCK Rise Time, t
SDATA, SCLOCK Fall Time, t
Setup Time (Stop Condition), t

ANALOG OUTPUTS

3, 5

1

2

After This Period the First Clock Is Generated 4.0 µs

3

Repeated for Start Condition 4.7 µs

4

6

7

8

4.0 µs

4.7 µs

250 ns

1 µs

300 ns

4.7 µs

Analog Output Delay 7ns
DAC Analog Output Skew 0 ns

CLOCK CONTROL
AND PIXEL PORT

f

CLOCK

Clock High Time, t
Clock Low Time, t
Data Setup Time, t
Data Hold Time, t
Control Setup Time, t
Control Hold Time, t
Digital Output Access Time, t
Digital Output Hold Time, t
Pipeline Delay, t

RESET CONTROL

15

3, 4, 6

9

10

11

12

3, 4

27 MHz
8ns
8ns

3.5 ns
4ns

11

12

13

14

4ns
3ns

24 ns
4ns
37 Clock Cycles

RESET Low Time 6 ns

INTERNAL CLOCK CONTROL

Clock/2 Rise Time, t
Clock/2 Fall Time, t

OSD TIMING

4

OSD Setup Time, t
OSD Hold Time, t

NOTES

1

The max/min specifications are guaranteed over this range.

2

Temperature range T

3

TTL input values are 0 to 3 volts, with input rise/fall times ≤ 3 ns, measured between the 10% and 90% points. Timing reference points at 50% for inputs and
outputs. Analog output load ≤ 10 pF.

4

Guaranteed by characterization.

5

Output delay measured from the 50% point of the rising edge of CLOCK to the 50% point of full-scale transition.

6

Pixel Port consists of the following:
Pixel Inputs: P15–P0
Pixel Controls: HSYNC, FIELD/VSYNC, BLANK
Clock Input: CLOCK

Specifications subject to change without notice.

MIN

18

19

to T

16

17

MAX

: 0°C to +70°C.

10 ns
10 ns

10 ns
2ns

–7–REV. 0

ADV7177/ADV7178

SDATA

SCLOCK

CONTROL

I/PS

CLOCK

HSYNC,

FIELD/VSYNC,

BLANK

t

t

3

t

6

t

2

5

t

1

t

7

Figure 1. MPU Port Timing Diagram

t

t

9

10

t

12

t

3

t

4

t

8

CONTROL

O/PS

CLOCK

CLOCK/2

CLOCK

CLOCK/2

PIXEL INPUT

DATA

HSYNC,

FIELD/VSYNC,

BLANK

Cb Y Cr Y Cb Y

t

11

t

13

t

14

Figure 2. Pixel and Control Data Timing Diagram

t

16

t

16

t

17

t

17

Figure 3. Internal Timing Diagram

CLOCK

OSD

OSD0–2

EN

t

18

t

19

Figure 4. OSD Timing Diagram

–8–

REV. 0

ADV7177/ADV7178

WARNING!

ESD SENSITIVE DEVICE

ABSOLUTE MAXIMUM RATINGS

1

VAA to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V

Voltage on Any Digital Input Pin . . GND – 0.5 V to V
Storage Temperature (T
Junction Temperature (T

Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . . +260°C

Analog Outputs to GND

NOTES

1

Stresses above those listed under Absolute Maximum Ratings may cause permanent

damage to the device. This is a stress rating only; functional operation of the device
at these or any other conditions above those listed in the operational sections of this
specification is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect device reliability.

2

Analog output short circuit to any power supply or common can be of an indefinite

duration.

) . . . . . . . . . . . . . . –65°C to +150°C

S

) . . . . . . . . . . . . . . . . . . . . . . +150°C

J

2

␣ . . . . . . . . . . . . . . GND – 0.5 to V

+ 0.5 V

AA

AA

ORDERING GUIDE

Temperature Package Package

Model Range Description Option

ADV7178KS 0°C to +70°C Plastic Quad Flatpack S-44
ADV7177KS 0°C to +70°C Plastic Quad Flatpack S-44

PACKAGE THERMAL PERFORMANCE

The 44-lead PQFP package used for this device has a junction-

to-ambient thermal resistance (θ
PCB of 53.2°C/W. The junction-to-case thermal resistance (θ

) in still air on a four-layer

JA

)

JC

is 18.8°C/W.

Care must be taken when operating the part in certain condi­tions to prevent overheating. Table I illustrates what conditions
are to be used when using the part.

Table I. Allowable Operating Conditions for ADV7177/
ADV7178 in 44-Lead PQFP Package

Condition 5 V 3 V

3 DACs ON, Double 75R
3 DACs ON, Low Power
3 DACs ON, Buffered

2

3

1

No Yes
Yes Yes
Yes Yes

2 DACs ON, Double 75R No Yes
2 DACs ON, Low Power Yes Yes
2 DACs ON, Buffered Yes Yes

NOTES

1

DAC ON, Double 75R refers to a condition where the DACs are terminated
into a double 75R load and low power mode is disabled.

2

DAC ON, Low Power refers to a condition where the DACs are terminated in a
double 75R load and low power mode is enabled.

3

DAC ON, Buffered refers to a condition where the DAC current is reduced to
5 mA and external buffers are used to drive the video loads.

PIN CONFIGURATION

P4

P2

P1

V

CLOCK/2

P10
P11
P12

OSD_EN

CLOCK

CLOCK

4344 36 35 3437

1

AA

PIN 1
IDENTIFIER

2
3

P5

4

P6

5

P7

6

P8

7

P9

8

9

10

11

12 13 14 15 16 17 18 192021 22

P14

P13

P3

GND

42

40 39 3841

ADV7177/ADV7178

PQFP

TOP VIEW

(Not to Scale)

P15

HSYNC

FIELD/VSYNC

BLANK

ALSB

P0

GND

OSD_2

AA

V

OSD_0

OSD_1

GND

RESET

33
32

31
30
29
28

27

26

25

24
23

R

SET

V

REF

DAC A

V

AA

GND

V

AA

DAC B
DAC C

COMP
SDATA

SCLOCK

CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection.
Although the ADV7177/ADV7178 feature proprietary ESD protection circuitry, permanent
damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper
ESD precautions are recommended to avoid performance degradation or loss of functionality.

–9–REV. 0

ADV7177/ADV7178

PIN FUNCTION DESCRIPTIONS

Pin Input/
No. Mnemonic Output Function

1, 20, 28, 30 V

AA

P +5 V Supply.

2 CLOCK/2 O Synchronous Clock output signal. Can be either 27 MHz or 13.5 MHz; this

can be controlled by MR32 and MR33 in Mode Register 3.

3–10, 12–14, P15–P0 I 8-Bit 4:2:2 Multiplexed YCrCb Pixel Port (P7–P0) or 16-Bit YCrCb
37–41 Pixel Port (P15–P0). P0 represents the LSB.

11 OSD_EN I Enables OSD input data on the video outputs.
15 HSYNC I/O HSYNC (Modes 1 and 2) Control Signal. This pin may be configured to

output (Master Mode) or accept (Slave Mode) Sync signals.

16 FIELD/VSYNC I/O Dual Function FIELD (Mode 1) and

VSYNC (Mode 2) Control Signal. This
pin may be configured to output (Master Mode) or accept (Slave Mode)
these control signals.

17 BLANK I/O Video Blanking Control Signal. The pixel inputs are ignored when this is

Logic Level “0.” This signal is optional.

18 ALSB I TTL Address Input. This signal sets up the LSB of the MPU address.
19, 21, 29, 42 GND G Ground Pin.
22 RESET I The input resets the on-chip timing generator and sets the ADV7177/ADV7178

into default mode. This is NTSC operation, Timing Slave Mode 0, 8-Bit

Operation, 2 × Composite and S VHS out.

23 SCLOCK I MPU Port Serial Interface Clock Input.
24 SDATA I/O MPU Port Serial Data Input/Output.

25 COMP O Compensation Pin. Connect a 0.1 µF Capacitor from COMP to V

AA

.
26 DAC C O DAC C Analog Output.
27 DAC B O DAC B Analog Output.
31 DAC A O DAC A Analog Output.
32 V
33 R

REF

SET

I/O Voltage Reference Input for DACs or Voltage Reference Output (1.2 V).

I A 300 Ω resistor connected from this pin to GND is used to control full-scale

amplitudes of the Video Signals.

34–36 OSD_0–2 I On Screen Display Inputs.
43 CLOCK O Crystal Oscillator output (to crystal). Leave unconnected if no crystal is used.
44 CLOCK I Crystal Oscillator input. If no crystal is used this pin can be driven by an

external TTL Clock source; it requires a stable 27 MHz reference Clock for
standard operation. Alternatively, a 24.52 MHz (NTSC) or 29.5 MHz (PAL)
can be used for square pixel operation.

–10–

REV. 0

ADV7177/ADV7178

(Continued from page 1)

compatible with worldwide standards. The 4:2:2 YUV video
data is interpolated to two times the pixel rate. The color­difference components (UV) are quadrature modulated using
a subcarrier frequency generated by an on-chip 32-bit digital
synthesizer (also running at two times the pixel rate). The two
times pixel rate sampling allows for better signal-to-noise ratio.
A 32-bit DDS with a 9-bit look-up table produces a superior
subcarrier in terms of both frequency and phase. In addition
to the composite output signal, there is the facility to output
S-Video (Y/C) video, YUV or RGB video.

Each analog output is capable of driving the full video-level

(34.7 mA) signal into an unbuffered, doubly terminated 75 Ω

load. With external buffering, the user has the additional option
to scale back the DAC output current to 5 mA min, thereby signifi­cantly reducing the power dissipation of the device.

The ADV7177/ADV7178 also supports both PAL and NTSC
square pixel operation.

The output video frames are synchronized with the incoming
data timing reference codes. Optionally, the encoder accepts
(and can generate) HSYNC, VSYNC and FIELD timing signals.
These timing signals can be adjusted to change pulsewidth and
position while the part is in the master mode. The encoder
requires a single two times pixel rate (27 MHz) clock for standard
operation. Alternatively, the encoder requires a 24.54 MHz clock
for NTSC or 29.5 MHz clock for PAL square pixel mode
operation. All internal timing is generated on-chip.

The ADV7177/ADV7178 modes are set up over a two-wire
serial bidirectional port (I

2

C-Compatible) with two slave addresses.

Functionally the ADV7178 and ADV7177 are the same with
the exception that the ADV7178 can output the Macrovision
anticopy algorithm, and OSD is only supported on the ADV7177.

The ADV7177/ADV7178 is packaged in a 44-lead thermally
enhanced PQFP package.

DATA PATH DESCRIPTION

For PAL B, D, G, H, I, M, N and NTSC M, N modes, YCrCb
4:2:2 data is input via the CCIR-656 compatible pixel port at a
27 MHz data rate. The pixel data is demultiplexed to from

three data paths. Y typically has a range of 16 to 235, Cr and

Cb typically have a range of 128 ± 112; however, it is possible

to input data from 1 to 254 on both Y, Cb and Cr. The
ADV7177/ADV7178 supports PAL (B, D, G, H, I, N, M) and
NTSC (with and without Pedestal) standards. The appropri­ate SYNC, BLANK and Burst levels are added to the YCrCb
data. Macrovision antitaping (ADV7178 only), closed captioning,
OSD (ADV7177 only), and teletext levels are also added to Y,
and the resultant data is interpolated to a rate of 27 MHz. The
interpolated data is filtered and scaled by three digital FIR
filters.

The U and V signals are modulated by the appropriate subcarrier
sine/cosine phases and added together to make up the chromi­nance signal. The luma (Y) signal can be delayed 1–3 luma
cycles (each cycle is 74 ns) with respect to the chroma signal.
The luma and chroma signals are then added together to make
up the composite video signal. All edges are slew rate limited.

The YCrCb data is also used to generate RGB data with
appropriate SYNC and BLANK levels. The RGB data is in
synchronization with the composite video output. Alternatively
analog YUV data can be generated instead of RGB.

The three 9-bit DACs can be used to output:

1. RGB Video.

2. YUV Video

3. One Composite Video Signal + LUMA and CHROMA

3. (S-Video).

Alternatively, each DAC can be individually powered off if not
required.

Video output levels are illustrated in Appendix 3, Appendix 4 and
Appendix 5.

INTERNAL FILTER RESPONSE

The Y filter supports several different frequency responses,
including two 4.5 MHz/5.0 MHz low-pass responses, PAL/
NTSC subcarrier notch responses and a PAL/NTSC extended
response. The U and V filters have a 2/2.4 MHz low-pass
response for NTSC/PAL. These filter characteristics are illus­trated in Figures 7 to 13.

PASSBAND

FILTER SELECTION

MR04 MR03
NTSC 0 0 2.3 0.026 7.0
PAL 0 0 3.4 0.098 7.3
NTSC 0 1 1.0 0.085 3.57
PAL 0 1 1.4 0.107 4.43
NTSC/PAL 1 0 4.0 0.150 7.5
NTSC 1 1 2.3 0.054 7.0
PAL 1 1 3.4 0.106 7.3

CUTOFF (MHz)

PASSBAND
RIPPLE (dB)

STOPBAND

CUTOFF (MHz)

Figure 5. Luminance Internal Filter Specifications

PASSBAND

FILTER SELECTION
NTSC 1.0 0.085 3.2

PAL 1.3 0.04 4.0

CUTOFF (MHz)

PASSBAND

RIPPLE (dB)

STOPBAND

CUTOFF (MHz)

STOPBAND

ATTENUATION (dB)

Figure 6. Chrominance Internal Filter Specifications

–11–REV. 0

STOPBAND

ATTENUATION (dB)

>

54 4.2

>

50 5.0

>

27.6 2.1

>

29.3 2.7

>

40 5.35

>

54 4.2

>

50.3 5.0

ATTENUATION @

>

40 0.3 2.05

>

40 0.02 2.45

F

3 dB

1.3MHz (dB)

F

3 dB

ADV7177/ADV7178

0

–10

–20

–30

AMPLITUDE – dB

–40

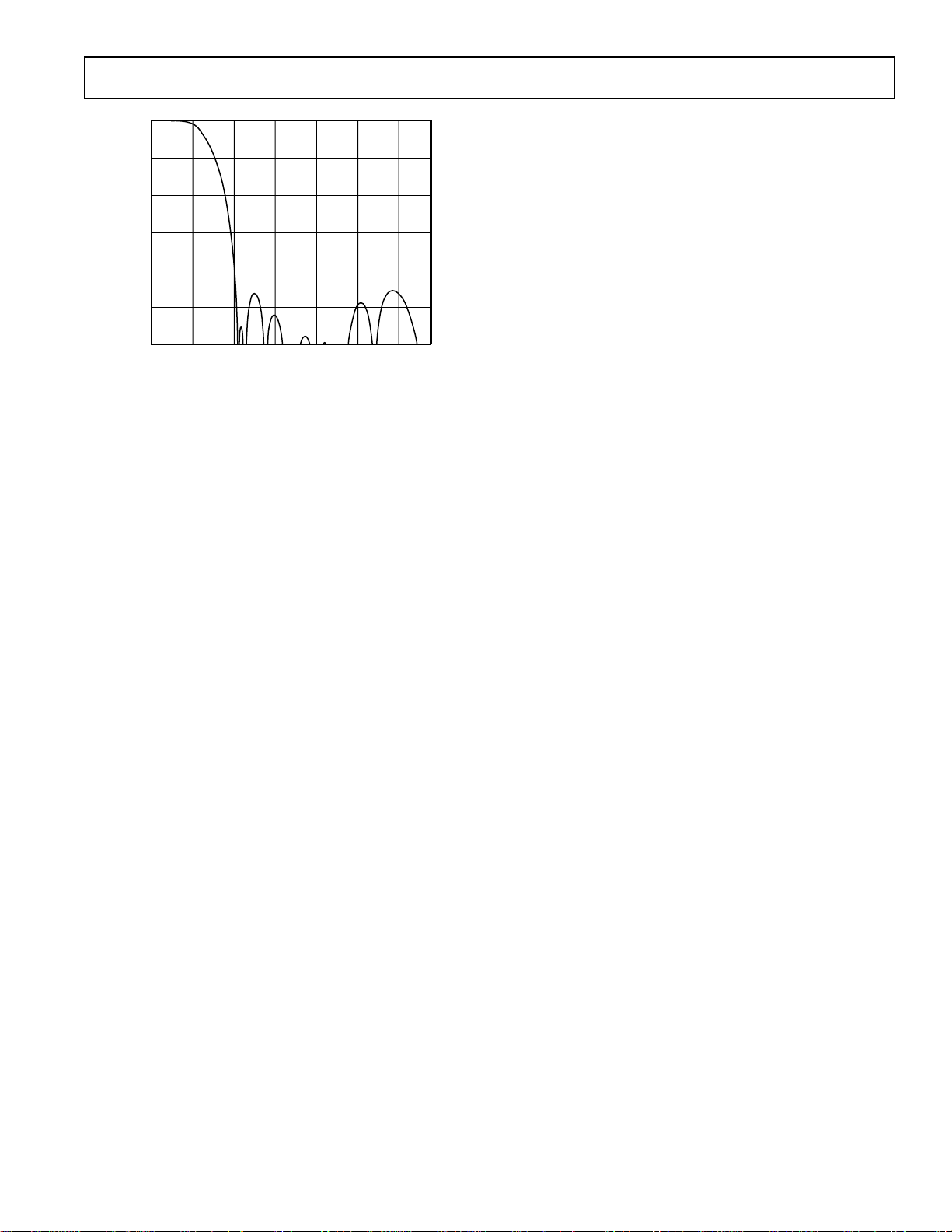

–50

–60

0 246

FREQUENCY – MHz

Figure 7. NTSC Low-Pass Filter

0

–10

–20

–30

TYPE A

TYPE B

81210

0

–10

–20

–30

AMPLITUDE – dB

–40

–50

–60

0 2468 1210

FREQUENCY – MHz

Figure 10. PAL Notch Filter

0

–10

–20

–30

AMPLITUDE – dB

–40

–50

–60

0 2468 1210

FREQUENCY – MHz

Figure 8. NTSC Notch Filter

0

–10

–20

–30

AMPLITUDE – dB

–40

–50

–60

0 2468 1210

TYPE A

FREQUENCY – MHz

Figure 9. PAL Low-Pass Filter

TYPE B

AMPLITUDE – dB

–40

–50

–60

0 2468 1210

FREQUENCY – MHz

Figure 11. NTSC/PAL Extended Mode Filter

0

–10

–20

–30

AMPLITUDE – dB

–40

–50

–60

0 2468 1210

FREQUENCY – MHz

Figure 12. NTSC UV Filter

–12–

REV. 0

ADV7177/ADV7178

0

–10

–20

–30

AMPLITUDE – dB

–40

–50

–60

02468 1210

FREQUENCY – MHz

Figure 13. PAL UV Filter

COLOR BAR GENERATION

The ADV7177/ADV7178 can be configured to generate 75%
amplitude, 75% saturation (75/7.5/75/7.5) for NTSC or 75%
amplitude, 100% saturation (100/0/75/0) for PAL color bars.
These are enabled by setting MR17 of Mode Register 1 to
Logic “1.”

SQUARE PIXEL MODE

The ADV7177/ADV7178 can be used to operate in square pixel
mode. For NTSC operation an input clock of 24.5454 MHz is
required. Alternatively an input clock of 29.5 MHz is required
for PAL operation. The internal timing logic adjusts accordingly
for square pixel mode operation.

COLOR SIGNAL CONTROL

The color information can be switched on and off the video
output using Bit MR24 of Mode Register 2.

BURST SIGNAL CONTROL

The burst information can be switched on and off the video
output using Bit MR25 of Mode Register 2.

NTSC PEDESTAL CONTROL

The pedestal on both odd and even fields can be controlled on a
line-by-line basis using the NTSC Pedestal Control Registers.
This allows the pedestals to be controlled during the vertical
blanking interval (Lines 10 to 25 and Lines 273 to 288).

PIXEL TIMING DESCRIPTION

The ADV7177/ADV7178 can operate in either 8-bit or
16-bit YCrCb Mode.

8-Bit YCrCb Mode

This default mode accepts multiplexed YCrCb inputs through
the P7–P0 pixel inputs. The inputs follow the sequence Cb0, Y0
Cr0, Y1 Cb1, Y2, etc. The Y, Cb and Cr data are input on a
rising clock edge.

16-Bit YCrCb Mode

This mode accepts Y inputs through the P7–P0 pixel inputs and
multiplexed CrCb inputs through the P15–P8 pixel inputs. The
data is loaded on every second rising edge of CLOCK. The inputs
follow the sequence Cb0, Y0 Cr0, Y1 Cb1, Y2, etc.

OSD

The ADV7177 supports OSD. There are twelve 8-bit OSD
registers, loaded with data from the four most significant bits of
Y, Cb, Cr input pixel data bytes. A choice of eight colors can,
therefore, be selected via the OSD_0, OSD_1, OSD_2 pins,
each color being a combination of 12 bits of Y, Cb, Cr pixel
data. The display is under control of the OSD_EN pin. The
OSD window can be an entire screen or just one pixel, its size
may change by using the OSD_EN signal to control the width on a
line-by-line basis. Figure 4 illustrates OSD timing on the ADV7177.

SUBCARRIER RESET

The ADV7177/ADV7178 can be used in subcarrier reset
mode. The subcarrier will reset to Field 0 at the start of the
following field when a low to high transition occurs on this
input pin.

VIDEO TIMING DESCRIPTION

The ADV7177/ADV7178 is intended to interface to off­the-shelf MPEG1 and MPEG2 decoders. Consequently, the
ADV7177/ADV7178 accepts 4:2:2 YCrCb pixel data via a
CCIR-656 pixel port, and has several video timing modes of
operation that allow it to be configured as either system master
video timing generator or a slave to the system video timing
generator. The ADV7177/ADV7178 generates all of the re­quired horizontal and vertical timing periods and levels for the
analog video outputs.

The ADV7177/ADV7178 calculates the width and placement of
analog sync pulses, blanking levels and color burst envelopes.
Color bursts are disabled on appropriate lines, and serration and
equalization pulses are inserted where required.

In addition, the ADV7177/ADV7178 supports a PAL or NTSC
square pixel operation in slave mode. The part requires an input
pixel clock of 24.5454 MHz for NTSC and an input pixel clock
of 29.5 MHz for PAL. The internal horizontal line counters
place the various video waveform sections in the correct location
for the new clock frequencies.

The ADV7177/ADV7178 has four distinct master and four
distinct slave timing configurations. Timing Control is estab­lished with the bidirectional SYNC, BLANK and FIELD/
VSYNC pins. Timing Mode Register 1 can also be used to vary
the timing pulsewidths and where they occur in relation to each
other.

–13–REV. 0

ADV7177/ADV7178

Vertical Blanking Data Insertion

It is possible to allow encoding of incoming YCbCr data on those lines of VBI that do not bear line sync or pre-/post-equalization
pulses (see Figures 14 to 25). This mode of operation is called “Partial Blanking” and is selected by setting MR31 to 1. It allows the
insertion of any VBI data (Opened VBI) into the encoded output waveform. This data is present in digitized incoming YCbCr data
stream (e.g., WSS data, CGMS, VPS, etc.). Alternatively, the entire VBI may be blanked (no VBI data inserted) on these lines by
setting MR31 to 0.

The complete VBI comprises of the following lines:
525/60 Systems, Lines 525 to 21 for Field 1 and Lines 262 to Line 284 for Field 2.
625/50 Systems, Lines 624 to Line 22 and Lines 311 to 335.

The “Opened VBI” consists of:
525/60 Systems, Lines 10 to 21 for Field 1 and second half of Line 273 to Line 284 for Field 2.
625/50 Systems, Line 7 to Line 22 and Lines 319 to 335.

Mode 0 (CCIR-656): Slave Option

(Timing Register 0 TR0 = X X X X X 0 0 0)

The ADV7177/ADV7178 is controlled by the SAV (Start Active Video) and EAV (End Active Video) time codes in the pixel data.
All timing information is transmitted using a 4-byte synchronization pattern. A synchronization pattern is sent immediately before
and after each line during active picture and retrace. Mode 0 is illustrated in Figure 14. The HSYNC, FIELD/VSYNC and BLANK
(if not used) pins should be tied high during this mode.

ANALOG

VIDEO

INPUT PIXELS

NTSC/PAL M SYSTEM

(525 LlNES/60Hz)

PAL SYSTEM

(625 LINES/50Hz)

EAV CODE

C

FF0000X

Y

Y

r

4 CLOCK

4 CLOCK 4 CLOCK

END OF ACTIVE

VIDEO LINE

8

10801

0

Y

0

FF00FFABABA

ANCILLARY DATA

268 CLOCK

280 CLOCK

B

(HANC)

801

0

SAV CODE

8

10FF0

0

0

XYC

Y

0

0

b

4 CLOCK

START OF ACTIVE

VIDEO LINE

1440 CLOCK

1440 CLOCK

Y

r

Y

Y

b

r

b

C

C

C

C

Figure 14. Timing Mode 0 (Slave Mode)

Mode 0 (CCIR-656): Master Option

(Timing Register 0 TR0 = X X X X X 0 0 1)

The ADV7177/ADV7178 generates H, V and F signals required for the SAV (Start Active Video) and EAV (End Active Video) time
codes in the CCIR-656 standard. The H bit is output on the HSYNC pin, the V bit is output on the BLANK pin, and the F bit is
output on the FIELD/VSYNC pin. Mode 0 is illustrated in Figure 15 (NTSC) and Figure 16 (PAL). The H, V and F transitions
relative to the video waveform are illustrated in Figure 17.

–14–

REV. 0

ADV7177/ADV7178

DISPLAY

522 523 524 525 1 2 3 4

H

V

F

DISPLAY

260 261 262 263 264 265 266 267 268 269 270 271 272 273 274

H

V

F

ODD FIELD

ODD FIELDEVEN FIELD

EVEN FIELD

VERTICAL BLANK

67

5

VERTICAL BLANK

9

8

Figure 15. Timing Mode 0 (NTSC Master Mode)

DISPLAY

10 11 20 21 22

DISPLAY

283

284

285

DISPLAY

622 623 624 625 1 2 3 4

H

V

F

DISPLAY

309 310 311 312 314 315 316 317

H

V

F

ODD FIELD EVEN FIELD

ODD FIELDEVEN FIELD

313

Figure 16. Timing Mode 0 (PAL Master Mode)

VERTICAL BLANK

5

VERTICAL BLANK

67

318

319 320 334

DISPLAY

22 23

21

DISPLAY

335 336

–15–REV. 0

ADV7177/ADV7178

ANALOG

VIDEO

H

F

V

Figure 17. Timing Mode 0 Data Transitions (Master Mode)

Mode 1: Slave Option HSYNC, BLANK, FIELD

(Timing Register 0 TR0 = X X X X X 0 1 0)

In this mode the ADV7177/ADV7178 accepts horizontal SYNC and Odd/Even FIELD signals. A transition of the FIELD input
when HSYNC is low indicates a new frame, i.e., vertical retrace. The BLANK signal is optional. When the BLANK input is dis-
abled, the ADV7177/ADV7178 automatically blanks all normally blank lines. Mode 1 is illustrated in Figure 18 (NTSC) and
Figure 19 (PAL).

HSYNC

BLANK

FIELD

HSYNC

BLANK

FIELD

284

DISPLAY

285

DISPLAY

522 523 524 525

DISPLAY DISPLAY

260 261 262 263 264 265 266 267 268 269 270 271 272 273 274

1234

ODD FIELDEVEN FIELD

ODD FIELD EVEN FIELD

VERTICAL BLANK

678

5

VERTICAL BLANK

9

10 11

20 21 22

283

Figure 18. Timing Mode 1 (NTSC)

–16–

REV. 0

ADV7177/ADV7178

HSYNC

BLANK

FIELD

HSYNC

BLANK

FIELD

DISPLAY

6226236246251234

ODD FIELDEVEN FIELD

DISPLAY

309 310 311 312 313 314 315 316

ODD FIELD EVEN FIELD

VERTICAL BLANK

VERTICAL BLANK

5

317

67

318 319

21 22 23

320

DISPLAY

DISPLAY

334 335 336

Figure 19. Timing Mode 1 (PAL)

Mode 1: Master Option HSYNC, BLANK, FIELD

(Timing Register 0 TR0 = X X X X X 0 1 1)

In this mode the ADV7177/ADV7178 can generate horizontal SYNC and Odd/Even FIELD signals. A transition of the FIELD
input when HSYNC is low indicates a new frame, i.e., vertical retrace. The BLANK signal is optional. When the BLANK input is
disabled, the ADV7177/ADV7178 automatically blanks all normally blank lines. Pixel data is latched on the rising clock edge follow­ing the timing signal transitions. Mode 1 is illustrated in Figure 18 (NTSC) and Figure 19 (PAL). Figure 20 illustrates the HSYNC,
BLANK and FIELD for an odd or even field transition relative to the pixel data.

HSYNC

FIELD

PAL = 12 * CLOCK/2

BLANK

PIXEL

DATA

NTSC = 16 * CLOCK/2

PAL = 132 * CLOCK/2
NTSC = 122 * CLOCK/2

Figure 20. Timing Mode 1 Odd/Even Field Transitions Master/Slave

Cb Y

Cr Y

–17–REV. 0

ADV7177/ADV7178

Mode 2: Slave Option HSYNC, VSYNC, BLANK

(Timing Register 0 TR0 = X X X X X 1 0 0)
In this mode the ADV7177/ADV7178 accepts horizontal and vertical SYNC signals. A coincident low transition of both HSYNC and

VSYNC inputs indicates the start of an odd field. A VSYNC low transition when HSYNC is high indicates the start of an even field.
The BLANK signal is optional. When the BLANK input is disabled, the ADV7177/ADV7178 automatically blanks all normally
blank lines as per CCIR-624. Mode 2 is illustrated in Figure 21 (NTSC) and Figure 22 (PAL).

HSYNC

BLANK

VSYNC

HSYNC

BLANK

VSYNC

DISPLAY

522 523 524 525

DISPLAY

260 261 262 263 264 265 266 267 268 269 270 271 272 273 274

1234

ODD FIELDEVEN FIELD

ODD FIELD EVEN FIELD

VERTICAL BLANK

678

5

VERTICAL BLANK

9

10 11

Figure 21. Timing Mode 2 (NTSC)

DISPLAY

VERTICAL BLANK

20 21 22

DISPLAY

283

284

DISPLAY

DISPLAY

285

HSYNC

BLANK

VSYNC

HSYNC

BLANK

VSYNC

6226236246251234

ODD FIELDEVEN FIELD

DISPLAY

309 310 311 312 313 314 315 316

ODD FIELD EVEN FIELD

VERTICAL BLANK

Figure 22. Timing Mode 2 (PAL)

–18–

5

317

67

318 319

320

21 22 23

DISPLAY

334 335 336

REV. 0

ADV7177/ADV7178

Mode 2: Master Option HSYNC, VSYNC, BLANK

(Timing Register 0 TR0 = X X X X X 1 0 1)

In this mode, the ADV7177/ADV7178 can generate horizontal and vertical SYNC signals. A coincident low transition of both
HSYNC and VSYNC inputs indicates the start of an Odd Field. A VSYNC low transition when HSYNC is high indicates the start
of an even field. The BLANK signal is optional. When the BLANK input is disabled, the ADV7177/ADV7178 automatically blanks
all normally blank lines as per CCIR-624. Mode 2 is illustrated in Figure 21 (NTSC) and Figure 22 (PAL). Figure 23 illus­trates the HSYNC, BLANK and VSYNC for an even-to-odd field transition relative to the pixel data. Figure 24 illustrates the
HSYNC, BLANK and VSYNC for an odd-to-even field transition relative to the pixel data.

HSYNC

VSYNC

BLANK

PIXEL
DATA

HSYNC

VSYNC

BLANK

PIXEL
DATA

PAL = 12 * CLOCK/2
NTSC = 16 * CLOCK/2

Cb Y Cr

PAL = 132 * CLOCK/2
NTSC = 122 * CLOCK/2

Figure 23. Timing Mode 2 Even-to-Odd Field Transition Master/Slave

PAL = 864 * CLOCK/2

PAL = 12 * CLOCK/2
NTSC = 16 * CLOCK/2

PAL = 132 * CLOCK/2
NTSC = 122 * CLOCK/2

NTSC = 858 * CLOCK/2

Cb Y Cr Y Cb

Figure 24. Timing Mode 2 Odd-to-Even Field Transition Master/Slave

–19–REV. 0

ADV7177/ADV7178

Mode 3: Master/Slave Option HSYNC, BLANK, FIELD

(Timing Register 0 TR0 = X X X X X 1 1 0 or X X X X X 1 1 1)

In this mode, the ADV7177/ADV7178 accepts or generates Horizontal SYNC and Odd/Even FIELD signals. A transition of the
FIELD input when HSYNC is high indicates a new frame, i.e., vertical retrace. The BLANK signal is optional. When the BLANK
input is disabled, the ADV7177/ADV7178 automatically blanks all normally blank lines as per CCIR-624. Mode 3 is illustrated in
Figure 25 (NTSC) and Figure 26 (PAL).

HSYNC

BLANK

FIELD

HSYNC

BLANK

FIELD

284

DISPLAY

285

DISPLAY

522 523 524 525

DISPLAY DISPLAY

260 261 262 263 264 265 266 267 268 269 270 271 272 273 274

1234

ODD FIELDEVEN FIELD

ODD FIELD EVEN FIELD

VERTICAL BLANK

678

5

VERTICAL BLANK

9

10 11

20 21 22

283

Figure 25. Timing Mode 3 (NTSC)

HSYNC

BLANK

FIELD

HSYNC

BLANK

FIELD

DISPLAY

6226236246251234

ODD FIELDEVEN FIELD

DISPLAY

309 310 311 312 313 314 315 316

ODD FIELDEVEN FIELD

VERTICAL BLANK

VERTICAL BLANK

Figure 26. Timing Mode 3 (PAL)

5

317

67

318 319

320

DISPLAY

21 22 23

DISPLAY

334 335 336

–20–

REV. 0

ADV7177/ADV7178

0

X

0

0101A1

ADDRESS
CONTROL

SET UP BY

ALSB

READ/WRITE

CONTROL

0 WRITE
1 READ

OUTPUT VIDEO TIMING

The video timing generator generates the appropriate SYNC,
BLANK and BURST sequence that controls the output analog
waveforms. These sequences are summarized below. In slave
modes, the following sequences are synchronized with the input
timing control signals. In master modes, the timing generator
free runs and generates the following sequences in addition to
the output timing control signals.

NTSC–Interlaced: Scan Lines 1–9 and 264–272 are always
blanked and vertical sync pulses are included. Scan Lines 525,
10–21 and 262, 263, 273–284 are also blanked and can be used
for closed captioning data. Burst is disabled on lines 1–6, 261–
269 and 523–525.

NTSC–Noninterlaced: Scan Lines 1–9 are always blanked,
and vertical sync pulses are included. Scan Lines 10–21 are also
blanked and can be used for closed captioning data. Burst is
disabled on Lines 1–6, 261–262.

PAL–Interlaced: Scan Lines 1–6, 311–318 and 624–625 are
always blanked, and vertical sync pulses are included in Fields
1, 2, 5 and 6. Scan Lines 1–5, 311–319 and 624–625 are al­ways blanked, and vertical sync pulses are included in Fields 3,
4, 7 and 8. The remaining scan lines in the vertical blanking
interval are also blanked and can be used for teletext data.
Burst is disabled on Lines 1–6, 311–318 and 623–625 in Fields
1, 2, 5 and 6. Burst is disabled on Lines 1–5, 311–319 and
623–625 in Fields 3, 4, 7 and 8.

PAL–Noninterlaced: Scan Lines 1–6 and 311–312 are always
blanked, and vertical sync pulses are included. The remaining
scan lines in the vertical blanking interval are also blanked and
can be used for teletext data. Burst is disabled on Lines 1–5,
310–312.

this configuration the SCH phase will never be reset, which
means that the output video will now track the unstable input
video. The subcarrier phase reset, when applied, will reset the
SCH phase to Field 0 at the start of the next field (e.g., subcarrier
phase reset applied in Field 5 [PAL] on the start of the next
field SCH phase will be reset to Field 0).

MPU PORT DESCRIPTION

The ADV7178 and ADV7177 support a two-wire serial (I2C­Compatible) microprocessor bus driving multiple peripherals.
Two inputs, serial data (SDATA) and serial clock (SCLOCK),
carry information between any device connected to the bus.
Each slave device is recognized by a unique address. The
ADV7178 and ADV7177 each have four possible slave ad­dresses for both read and write operations. These are unique
addresses for each device and are illustrated in Figure 27 and
Figure 28. The LSB sets either a read or write operation. Logic
Level “1” corresponds to a read operation, while Logic Level
“0” corresponds to a write operation. A1 is set by setting the
ALSB pin of the ADV7177/ADV7178 to Logic Level “0” or
Logic Level “1.”

Figure 27. ADV7178 Slave Address

1

POWER-ON RESET

1

After power-up, it is necessary to execute a reset operation. A
reset occurs on the falling edge of a high-to-low transition on
the RESET pin. This initializes the pixel port so that the
pixel inputs, P7–P0 are selected. After reset, the ADV7177/
ADV7178 is automatically set up to operate in NTSC mode.
Subcarrier frequency code 21F07C16HEX is loaded into the
subcarrier frequency registers. All other registers, with the
exception of Mode Register 0, are set to 00H. All bits in Mode
Register 0 are set to Logic Level “0” except Bit MR02. Bit
MR02 of Mode Register 0 is set to Logic Level “1.” This en­ables the 7.5 IRE pedestal.

SCH Phase Mode

The SCH phase is configured in default mode to reset every
four (NTSC) or eight (PAL) fields to avoid an accumulation of
SCH phase error over time. In an ideal system, zero SCH phase
error would be maintained forever, but in reality, this is impos­sible to achieve due to clock frequency variations. This effect is
reduced by the use of a 32-bit DDS, which generates this SCH.

Resetting the SCH phase every four or eight fields avoids the
accumulation of SCH phase error, and results in very minor
SCH phase jumps at the start of the four or eight field sequence.

Resetting the SCH phase should not be done if the video source
does not have stable timing or the ADV7177/ADV7178 is con­figured in RTC mode (MR21 = 1 and MR22 = 1). Under these
conditions (unstable video) the subcarrier phase reset should be
enabled MR22 = 0 and MR21 = 1) but no reset applied. In

To control the various devices on the bus, the following proto­col must be followed: First, the master initiates a data transfer by
establishing a start condition, defined by a high-to-low transition
on SDATA while SCLOCK remains high. This indicates that
an address/data stream will follow. All peripherals respond to
the start condition and shift the next eight bits (7-bit address
+ R/W bit). The bits transfer from MSB down to LSB. The
peripheral that recognizes the transmitted address responds by
pulling the data line low during the ninth clock pulse. This is
known as an acknowledge bit. All other devices withdraw from
the bus at this point and maintain an idle condition. The idle
condition is where the device monitors the SDATA and SCLOCK
lines waiting for the start condition and the correct transmitted
address. The R/W bit determines the direction of the data. A
Logic “0” on the LSB of the first byte means that the master
will write information to the peripheral. A Logic “1” on the
LSB of the first byte means that the master will read informa­tion from the peripheral.

–21–REV. 0

Figure 28. ADV7177 Slave Address

1

1

01A1

ADDRESS
CONTROL

SET UP BY

ALSB

READ/WRITE

CONTROL

0 WRITE
1 READ

X

ADV7177/ADV7178

The ADV7177/ADV7178 acts as a standard slave device on the
bus. The data on the SDATA pin is 8 bits long, supporting
the 7-bit addresses, plus the R/W bit. The ADV7178 has 36
subaddresses and the ADV7177 has 31 subaddresses to enable
access to the internal registers. It therefore interprets the first
byte as the device address and the second byte as the starting
subaddress. The subaddresses auto increment allows data to
be written to or read from the starting subaddress. A data
transfer is always terminated by a stop condition. The user can
also access any unique subaddress register on a one-by-one basis
without having to update all the registers. There is one excep­tion. The subcarrier frequency registers should be updated in
sequence, starting with Subcarrier Frequency Register 0. The
auto increment function should then be used to increment and
access Subcarrier Frequency Registers 1, 2 and 3. The subcarrier
frequency registers should not be accessed independently.

Stop and start conditions can be detected at any stage during
the data transfer. If these conditions are asserted out of sequence
with normal read and write operations, they cause an immediate
jump to the idle condition. During a given SCLOCK high pe­riod, the user should issue only one start condition, one stop
condition or a single stop condition followed by a single start
condition. If an invalid subaddress is issued by the user, the
ADV7177/ADV7178 will not issue an acknowledge and will
return to the idle condition. If, in auto-increment mode, the
user exceeds the highest subaddress, the following action will be
taken:

1. In Read Mode, the highest subaddress register contents will
continue to be output until the master device issues a no­acknowledge. This indicates the end of a read. A no­acknowledge condition is where the SDATA line is not
pulled low on the ninth pulse.

2. In Write Mode, the data for the invalid byte will not be
loaded into any subaddress register, a no-acknowledge will
be issued by the ADV7177/ADV7178 and the part will re­turn to the idle condition.

Figure 29 illustrates an example of data transfer for a read se­quence and the start and stop conditions.

SDATA

SCLOCK

1-7 8 9 1-7 8 9 1-7 8 9 PS

START ADDR

ACK SUBADDRESS ACK DATA ACK STOP

R/W

Figure 29. Bus Data Transfer

Figure 30 shows bus write and read sequences.

REGISTER ACCESSES

The MPU can write to or read from all of the ADV7177/
ADV7178 registers except the subaddress register, which is a
write-only register. The subaddress register determines which
register the next read or write operation accesses. All communi­cations with the part through the bus start with an access to the
subaddress register. A read/write operation is performed from/to
the target address, which then increments to the next address
until a stop command on the bus is performed.

REGISTER PROGRAMMING

The following section describes each register, including subaddress
register, mode registers, subcarrier frequency registers, subcarrier
phase register, timing registers, closed captioning extended data
registers, closed captioning data registers and NTSC pedestal
control registers in terms of its configuration.

WRITE

SEQUENCE

READ

SEQUENCE

DATA A(S)S SLAVE ADDR A(S) SUB ADDR A(S)

LSB = 0

S SLAVE ADDR A(S) SUB ADDR A(S) S SLAVE ADDR A(S) DATA A(M)

S = START BIT
P = STOP BIT

A(S) = ACKNOWLEDGE BY SLAVE
A(M) = ACKNOWLEDGE BY MASTER

LSB = 1

A(S) = NO-ACKNOWLEDGE BY SLAVE
A(M) = NO-ACKNOWLEDGE BY MASTER

DATA A(S) P

Figure 30. Write and Read Sequences

DATA P

A(M)

–22–

REV. 0

ADV7177/ADV7178

Subaddress Register (SR7–SR0)

The communications register is an 8-bit write-only register.
After the part has been accessed over the bus, and a read/write
operation is selected, the subaddress is set up. The subaddress
register determines to/from which register the operation takes
place.

Figure 31 shows the various operations under the control of
the subaddress register. Zero should always be written to
SR7–SR6.

Register Select (SR5–SR0)

These bits are set up to point to the required starting address.

MODE REGISTER 0 MR0 (MR07–MR00)
(Address [SR4–SR0] = 00H)

Figure 32 shows the various operations under the control of Mode
Register 0. This register can be read from as well as written to.

SR4 SR3 SR2

SR7–SR6 (00)

ZERO SHOULD BE WRITTEN

TO THESE BITS

ADV7178 SUBADDRESS REGISTER

SR5 SR4 SR3 SR2 SR1 SR0

0 0 0 0 0 0 MODE REGISTER 0
0 0 0 0 0 1 MODE REGISTER 1
0 0 0 0 1 0 SUBCARRIER FREQ REGISTER 0
0 0 0 0 1 1 SUBCARRIER FREQ REGISTER 1
0 0 0 1 0 0 SUBCARRIER FREQ REGISTER 2
0 0 0 1 0 1 SUBCARRIER FREQ REGISTER 3
0 0 0 1 1 0 SUBCARRIER PHASE REGISTER
0 0 0 1 1 1 TIMING REGISTER 0
0 0 1 0 0 0 CLOSED CAPTIONING EXTENDED DATA – BYTE 0
0 0 1 0 0 1 CLOSED CAPTIONING EXTENDED DATA – BYTE 1
0 0 1 0 1 0 CLOSED CAPTIONING DATA – BYTE 0
0 0 1 0 1 1 CLOSED CAPTIONING DATA – BYTE 1
0 0 1 1 0 0 TIMING REGISTER 1
0 0 1 1 0 1 MODE REGISTER 2
0 0 1 1 1 0 NTSC PEDESTAL CONTROL REG 0 (FIELD 1/3)
0 0 1 1 1 1 NTSC PEDESTAL CONTROL REG 1 (FIELD 1/3)
0 1 0 0 0 0 NTSC PEDESTAL CONTROL REG 2 (FIELD 2/4)
0 1 0 0 0 1 NTSC PEDESTAL CONTROL REG 3 (FIELD 2/4)
0 1 0 0 1 0 MODE REGISTER 3
0 1 0 0 1 1 MACROVISION REGISTER

• • • • • • " "

• • • • • • " "
1 0 0 0 1 1 MACROVISION REGISTER

SR1

MR0 BIT DESCRIPTION
Encode Mode Control (MR01–MR00)

These bits are used to set up the encode mode. The ADV7177/
ADV7178 can be set up to output NTSC, PAL (B, D, G, H, I)
and PAL (M) standard video.

Pedestal Control (MR02)

This bit specifies whether a pedestal is to be generated on
the NTSC composite video signal. This bit is invalid if the
ADV7177/ADV7178 is configured in PAL mode.

Luminance Filter Control (MR04–MR03)

The luminance filters are divided into two sets (NTSC/PAL) of
four filters, low-pass A, low-pass B, notch and extended. When
PAL is selected, bits MR03 and MR04 select one of four PAL
luminance filters; likewise, when NTSC is selected, bits MR03
and MR04 select one of four NTSC luminance filters. The
filters are illustrated in Figures 7 to 13.

SR0SR7 SR6 SR5

ADV7177 SUBADDRESS REGISTER

SR5 SR4 SR3 SR2 SR1 SR0

0 0 0 0 0 0 MODE REGISTER 0
0 0 0 0 0 1 MODE REGISTER 1
0 0 0 0 1 0 SUBCARRIER FREQ REGISTER 0
0 0 0 0 1 1 SUBCARRIER FREQ REGISTER 1
0 0 0 1 0 0 SUBCARRIER FREQ REGISTER 2
0 0 0 1 0 1 SUBCARRIER FREQ REGISTER 3
0 0 0 1 1 0 SUBCARRIER PHASE REGISTER
0 0 0 1 1 1 TIMING REGISTER 0
0 0 1 0 0 0 CLOSED CAPTIONING EXTENDED DATA – BYTE 0
0 0 1 0 0 1 CLOSED CAPTIONING EXTENDED DATA – BYTE 1
0 0 1 0 1 0 CLOSED CAPTIONING DATA – BYTE 0
0 0 1 0 1 1 CLOSED CAPTIONING DATA – BYTE 1
0 0 1 1 0 0 TIMING REGISTER 1
0 0 1 1 0 1 MODE REGISTER 2
0 0 1 1 1 0 NTSC PEDESTAL CONTROL REG 0 (FIELD 1/3)
0 0 1 1 1 1 NTSC PEDESTAL CONTROL REG 1 (FIELD 1/3)
0 1 0 0 0 0 NTSC PEDESTAL CONTROL REG 2 (FIELD 2/4)
0 1 0 0 0 1 NTSC PEDESTAL CONTROL REG 3 (FIELD 2/4)
0 1 0 0 1 0 MODE REGISTER 3
0 1 0 0 1 1 OSD REGISTER

• • ••••" "

• • ••••" "
0 1 1 1 1 0 OSD REGISTER

MR06

MR07

(0)

ZERO SHOULD

BE WRITTEN TO

THIS BIT

MR07

OUTPUT SELECT

0 YC OUTPUT
1 RGB/YUV OUTPUT

MR05

0 DISABLE
1 ENABLE

Figure 32. Mode Register 0 (MR0)

Figure 31. Subaddress Register

MR02MR04 MR03MR05MR06

FILTER SELECT

MR03

MR04

0 0 LOW-PASS FILTER (A)
0 1 NOTCH FILTER

1 0 EXTENDED MODE
1 1 LOW-PASS FILTER (B)

RGB SYNC

PEDESTAL CONTROL

MR02

0 PEDESTAL OFF
1 PEDESTAL ON

–23–REV. 0

MR01 MR00

OUTPUT VIDEO

STANDARD SELECTION

MR01

MR00

0 0 NTSC
0 1 PAL (B, D, G, H, I)
1 0 PAL (M)
1 1 RESERVED

ADV7177/ADV7178

COLOR BAR

CONTROL

MR17

0 DISABLE
1 ENABLE

MR16

(1)

ONE SHOULD

BE WRITTEN TO

THIS BIT

MR15

0 NORMAL
1 POWER-DOWN

COMPOSITE

DAC CONTROL

LUMA

DAC CONTROL

MR14

0 NORMAL
1 POWER-DOWN

MR13

0 NORMAL
1 POWER-DOWN

Figure 33. Mode Register 1 (MR1)

RGB Sync (MR05)

This bit is used to set up the RGB outputs with the sync infor­mation encoded on all RGB outputs.

Output Control (MR06)

This bit specifies if the part is in composite video or RGB/YUV
mode. Please note that the main composite signal is still avail­able in RGB/YUV mode.

MODE REGISTER 1 MR1 (MR17–MR10)
(Address (SR4–SR0) = 01H)

Figure 33 shows the various operations under the control of Mode
Register 1. This register can be read from as well as written to.

MR1 BIT DESCRIPTION
Interlaced Mode Control (MR10)

This bit is used to set up the output to interlaced or noninter­laced mode. This mode is only relevant when the part is in
composite video mode.

Closed Captioning Field Control (MR12–MR11)

These bits control the fields on which closed captioning data is
displayed; closed captioning information can be displayed on an
odd field, even field or both fields.

DAC Control (MR15–MR13)

These bits can be used to power down the DACs. This can
be used to reduce the power consumption of the ADV7177/
ADV7178 if any of the DACs are not required in the application.

Color Bar Control (MR17)

This bit can be used to generate and output an internal color
bar test pattern. The color bar configuration is 75/7.5/75/7.5
for NTSC and 100/0/75/0 for PAL. It is important to note that
when color bars are enabled the ADV7177/ADV7178 is config­ured in a master timing mode as per the one selected by bits
TR01 and TR02.

SUBCARRIER FREQUENCY REGISTER 3-0
(FSC3–FSC0)
(Address [SR4–SR0] = 05H–02H)

These 8-bit-wide registers are used to set up the subcarrier
frequency. The value of these registers are calculated by using
the following equation:

232–1

Subcarrier Frequency Register =

×F

CLK

SCF

F

MR11

FIELD SELECTION

(BOTH FIELDS)

MR10

MR10MR17

INTERLACE

CONTROL

0 INTERLACED
1 NONINTERLACED

MR12

CHROMA

DAC CONTROL

MR12MR13MR15MR16 MR14

CLOSED CAPTIONING

MR11

0 0 NO DATA OUT
0 1 ODD FIELD ONLY
1 0 EVEN FIELD ONLY
1 1 DATA OUT

i.e.: NTSC Mode,

F

= 27 MHz,

CLK

= 3.5795454 MHz

F

SCF

32

21

Subcarrier Frequency Value =

–

27 10

×

3 5795454 10

.

××

6

6

= 21F07C16 HEX

Figure 34 shows how the frequency is set up by the four registers.

SUBCARRIER

FREQUENCY

REG 3

SUBCARRIER

FREQUENCY

REG 2

SUBCARRIER

FREQUENCY

REG 1

SUBCARRIER

FREQUENCY

REG 0

FSC30

FSC29 FSC27 FSC25FSC28 FSC24FSC31 FSC26

FSC22 FSC21 FSC19 FSC17FSC20 FSC16FSC23 FSC18

FSC14

FSC13 FSC11 FSC9FSC12 FSC8FSC15 FSC10

FSC6

FSC5 FSC3 FSC1FSC4 FSC0FSC7 FSC2

Figure 34. Subcarrier Frequency Register

SUBCARRIER PHASE REGISTER (FP7–FP0)
(Address [SR4–SR0] = 06H)

This 8-bit-wide register is used to set up the subcarrier phase.
Each bit represents 1.41 degrees.

TIMING REGISTER 0 (TR07–TR00)
(Address [SR4–SR0] = 07H)

Figure 35 shows the various operations under the control of
Timing Register 0. This register can be read from as well as
written to. This register can be used to adjust the width and
position of the master mode timing signals.

TR0 BIT DESCRIPTION
Master/Slave Control (TR00)

This bit controls whether the ADV7177/ADV7178 is in master
or slave mode. This register can be used to adjust the width and
position of the master timing signals.

Timing Mode Control (TR02–TR01)

These bits control the timing mode of the ADV7177/ADV7178.
These modes are described in the Timing and Control section
of the data sheet.

BLANK Control (TR03)

This bit controls whether the BLANK input is used when the
part is in slave mode

–24–

REV. 0

ADV7177/ADV7178

BYTE 1

BYTE 0

CED6 CED5 CED3 CED1CED4 CED2 CED0CED7

CED14 CED13 CED11 CED9CED12 CED10 CED8CED15

BYTE 1

BYTE 0

CCD6 CCD5 CCD3 CCD1CCD4 CCD2 CCD0CCD7

CCD14 CCD13 CCD11 CCD9CCD12 CCD10 CCD8CCD15

TIMING

REGISTER RESET

TR07

PIXEL PORT

CONTROL

TR06

0 8-BIT
1 16-BIT

LUMA DELAY

TR05

TR04

0 0 0ns DELAY
0 1 74ns DELAY
1 0 148ns DELAY
1 1 222ns DELAY

BLACK INPUT

CONTROL

TR03

0 ENABLE
1 DISABLE

Figure 35. Timing Register 0

Luma Delay Control (TR05–TR04)

These bits control the addition of a luminance delay. Each bit
represents a delay of 74 ns.

Pixel Port Select (TR06)

This bit is used to set the pixel port to accept 8-bit or 16-bit data.
If an 8-bit input is selected the data will be set up on Pins P7–P0.

Timing Register Reset (TR07)

Toggling TR07 from low to high and low again resets the inter­nal timing counters. This bit should be toggled after power-up,
reset or changing to a new timing mode.

CLOSED CAPTIONING EVEN FIELD
DATA REGISTER 1–0 (CED15–CED00)
(Address [SR4–SR0] = 09–08H)

These 8-bit-wide registers are used to set up the closed captioning
extended data bytes on even fields. Figure 36 shows how the
high and low bytes are set up in the registers.

TR02TR03TR05TR06 TR04

TIMING MODE

SELECTION

TR02

TR01

0 0 MODE 0
0 1 MODE 1
1 0 MODE 2
1 1 MODE 3

TR01

TR00TR07

MASTER/SLAVE

CONTROL

TR00

0 SLAVE TIMING
1 MASTER TIMING

Figure 36. Closed Captioning Extended Data Register

CLOSED CAPTIONING ODD FIELD
DATA REGISTER 1–0 (CCD15–CCD00)
(Subaddress [SR4–SR0] = 0B–0AH)

These 8-bit-wide registers are used to set up the closed captioning
data bytes on odd fields. Figure 37 shows how the high and low
bytes are set up in the registers.

Figure 37. Closed Captioning Data Register

TR11 TR10TR17 TR12TR13TR15TR16 TR14

HSYNC TO PIXEL

DATA ADJUSTMENT

TR16

TR17

0 0 0 x T
0 1 1 x T
1 0 2 x T
1 1 3 x T

TIMING MODE 1 (MASTER/PAL)

HSYNC

FIELD/VSYNC

PCLK
PCLK
PCLK
PCLK

HSYNC TO FIELD

RISING EDGE DELAY

TR15

x0T
x1T

TR15

0 0 1 x T
0 1 4 x T
1 0 16 x T
1 1 128 x T

T

A

T

B

(MODE 1 ONLY)

TR14

VSYNC WIDTH
(MODE 2 ONLY)

TR14

T

B

+ 32ms

B

PCLK
PCLK

C

PCLK

PCLK

HSYNC TO

FIELD/VSYNC DELAY

TR13

TR12
0 0 0 x T
0 1 4 x T
1 0 8 x T
1 1 16 x T

T

T

B
PCLK

PCLK
PCLK

PCLK

LINE 313 LINE 314LINE 1

C

HSYNC WIDTH

TR11 TR10

0 0 1 x T
0 1 4 x T
1 0 16 x T
1 1 128 x T

T

A
PCLK

PCLK

PCLK

PCLK

Figure 38. Timing Register 1

–25–REV. 0

ADV7177/ADV7178

TIMING REGISTER 1 (TR17–TR10)
(Address [SR4–SR0] = 0CH)

Timing Register 1 is an 8-bit-wide register.

Figure 38 shows the various operations under the control of
Timing Register 1. This register can be read from as well as
written to. This register can be used to adjust the width and
position of the master mode timing signals.

TR1 BIT DESCRIPTION
HSYNC Width (TR11–TR10)

These bits adjust the HSYNC pulsewidth.

HSYNC to VSYNC/FIELD Delay Control (TR13–TR12)

These bits adjust the position of the HSYNC output relative to
the FIELD/VSYNC output.

HSYNC to FIELD Delay Control (TR15–TR14)

When the ADV7177/ADV7178 is in Timing Mode 1, these bits
adjust the position of the HSYNC output relative to the FIELD
output rising edge.

VSYNC Width (TR15–TR14)

When the ADV7177/ADV7178 is in Timing Mode 2, these bits
adjust the VSYNC pulsewidth.

HSYNC to Pixel Data Adjust (TR17–TR16)

This enables the HSYNC to be adjusted with respect to the
pixel data. This allows the Cr and Cb components to be
swapped. This adjustment is available in both master and slave
timing modes.

MODE REGISTER 2 MR2 (MR27–MR20)
(Address [SR4-SR0] = 0DH)

Mode Register 2 is an 8-bit-wide register.

Figure 39 shows the various operations under the control of Mode
Register 2. This register can be read from as well as written to.

MR2 BIT DESCRIPTION
Square Pixel Mode Control (MR20)

This bit is used to set up square pixel mode. This is available in
slave mode only. For NTSC, a 24.54 MHz clock must be sup­plied. For PAL, a 29.5 MHz clock must be supplied.

Active Video Line Control (MR23)

This bit switches between two active video line durations. A
zero selects ITU-R BT.470 (720 pixels PAL/NTSC) and a one
selects ITU-R/SMPTE “analog” standard for active video dura­tion (710 pixels NTSC 702 pixels PAL).

Chrominance Control (MR24)

This bit enables the color information to be switched on and off
the video output.

Burst Control (MR25)

This bit enables the burst information to be switched on and off
the video output.

RGB/YUV Control (MR26)

This bit enables the output from the RGB DACs to be set to
YUV output video standard. Bit MR06 of Mode Register 0
must be set to Logic Level “1” before MR26 is set.

Table II. DAC Output Configuration Matrix

MR06 MR26 DAC A DAC B DAC C

0 0 CVBS Y C
0 1 CVBS Y C
10BSR
11UYV

CVBS: Composite Video Baseband Signal
Y: Luminance Component Signal (For YUV or Y/C Mode)
C: Chrominance Signal (For Y/C Mode)
U: Chrominance Component Signal (For YUV Mode)
V: Chrominance Component Signal (For YUV Mode)
R: RED Component Video (For RGB Mode)
G: GREEN Component Video (For RGB Mode)
B: BLUE Component Video (For RGB Mode)

Low Power Control (MR27)

This bit enables the lower power mode of the ADV7177/
ADV7178. This will reduce DAC current by 50%.

LOW POWER

MODE

MR27

0 DISABLE
1 ENABLE

RGB/YUV

CONTROL

MR26

0 RGB OUTPUT
1 YUV OUTPUT

MR25

0 ENABLE BURST
1 DISABLE BURST

CHROMINANCE

CONTROL

MR24

0 ENABLE COLOR
1 DISABLE COLOR

BURST

CONTROL

CCIR624/CCIR601

CONTROL

MR23

0 CCIR624 OUTPUT
1 CCIR601 OUTPUT

Figure 39. Mode Register 2

–26–

MR21MR27 MR22MR23MR26 MR25 MR24 MR20

MR22–MR21

(00)

ZERO SHOULD
BE WRITTEN TO
THESE BITS

SQUARE PIXEL

CONTROL

MR20

0 DISABLE
1 ENABLE

REV. 0

ADV7177/ADV7178

NTSC PEDESTAL REGISTERS 3–0 (PCE15–0, PCO15–0)
(Subaddress [SR4–SR0] = 11–0EH)

These 8-bit-wide registers are used to set up the NTSC pedestal
on a line-by-line basis in the vertical blanking interval for both
odd and even fields. Figure 40 show the four control registers.
A Logic “1” in any of the bits of these registers has the effect of
turning the pedestal OFF on the equivalent line when used in
NTSC.

LINE 17 LINE 16 LINE 15 LINE 14 LINE 13 LINE 12 LINE 11 LINE 10

FIELD 1/3

FIELD 1/3

FIELD 2/4

FIELD 2/4

PCO6 PCO5 PCO3 PCO1PCO4 PCO2 PCO0PCO7

LINE 25 LINE 24 LINE 23 LINE 22 LINE 21 LINE 20 LINE 19 LINE 18

PCO14 PCO1 3 PCO11 PCO9PCO12 PCO1 0 PCO8PCO15

LINE 17 LINE 16 LINE 15 LINE 14 LINE 13 LINE 12 LINE 11 LINE 10

PCE6 PCE5 PCE3 PCE1PCE4 PCE2 PCE0PCE7

LINE 25 LINE 24 LINE 23 LINE 22 LINE 21 LINE 20 LINE 19 LINE 18

PCE14 PCE13 PCE11 PCE9PCE12 PCE10 PCE8PCE15

Figure 40. Pedestal Control Registers

MODE REGISTER 3 MR3 (MR37–MR30)
(Address [SR4–SR0] = 12H)

Mode Register 3 is an 8-bit-wide register.
Figure 41 shows the various operations under the control of
Mode Register 3.

MR3 BIT DESCRIPTION
Revision Code (MR30)

This bit is read only and indicates the revision of the device.

VBI Pass-Through Control (MR31)

This bit determines whether or not data in the vertical blanking
interval (VBI) is output to the analog outputs or blanked.

Clock Output Select (MR33–MR32)

These bits control the synchronous clock output signal. The
clock can be 27 MHz, 13.5 MHz or disabled, depending on the
values of these bits.

OSD Enable (MR35)

A logic one in MR35 will enable the OSD function on the
ADV7177.

Reserved (MR36)

These bits are reserved.

Input Default Color (MR36)

This bit determines the default output color from the DACs for
zero input data (or disconnected). A Logical “0” means that the
color corresponding to 00000000 will be displayed. A Logical
“1” forces the output color to black for 00000000 input video
data.

OSD REGISTER 0–11
(Address [SR4–SR0] = 12H–1DH)

There are 12 OSD registers as shown in Figure 42. There are
four bits for each Y, Cb and Cr value, there are four zero added
to give the complete byte for each value loaded internally.
(Y0 = [Y0
Cb

0

, Y02, Y01, Y00, 0, 0, 0, 0], Cb = [Cb3, Cb2, Cb1,

3

, 0, 0, 0, 0,], Cr = [Cr3, Cr2, Cr1, Cr0, 0, 0, 0, 0].)

OSD

REG 0

OSD

REG 1

OSD

REG 2

OSD

REG 11

MR37

MR37

ZERO SHOULD

BE WRITTEN TO

THIS BIT

INPUT DEFAULT COLOR

MR36

0 INPUT COLOR
1 BLACK

MR32MR34 MR33MR35MR36

CLOCK CONTROL

OSD ENABLE

MR35

0 DISABLE
1 ENABLE

ZERO SHOULD

BE WRITTEN TO

MR33-32

0 0 CLOCK OUTPUT OFF
0 1 13.5MHz OUTPUT
1 0 27MHz OUTPUT
1 1 CLOCK OUTPUT OFF

MR34

THIS BIT

Figure 41. Mode Register 3

Y0 Cr0

Cb0 Y1

Cr1 Cb1

Cr7 Cb7

Figure 42. OSD Registers

MR31 MR30

(READ ONLY)

VBI PASSTHROUGH

MR31

0 DISABLE
1 ENABLE

MR30

REV CODE

–27–REV. 0

ADV7177/ADV7178

APPENDIX 1

BOARD DESIGN AND LAYOUT CONSIDERATIONS

The ADV7177/ADV7178 is a highly integrated circuit containing
both precision analog and high speed digital circuitry. It has
been designed to minimize interference effects on the integrity
of the analog circuitry by the high speed digital circuitry. It is
imperative that these same design and layout techniques be
applied to the system level design so that high speed, accurate
performance is achieved. The “Recommended Analog Circuit
Layout” shows the analog interface between the device and
monitor.

The layout should be optimized for lowest noise on the ADV7177/
ADV7178 power and ground lines by shielding the digital inputs
and providing good decoupling. The lead length between groups
of V

and GND pins should by minimized to minimize induc-

AA

tive ringing.

Ground Planes

The ground plane should encompass all ADV7177/ADV7178
ground pins, voltage reference circuitry, power supply bypass
circuitry for the ADV7177/ADV7178, the analog output traces,
and all the digital signal traces leading up to the ADV7177/
ADV7178. The ground plane is the board’s common ground
plane.

This should be as substantial as possible to maximize heat
spreading and power dissipation on the board.

Power Planes

The ADV7177/ADV7178 and any associated analog circuitry
should have its own power plane, referred to as the analog
power plane (V
the regular PCB power plane (V

). This power plane should be connected to

AA

) at a single point through a

CC

ferrite bead. This bead should be located within three inches of
the ADV7177/ADV7178.

The metallization gap separating device power plane and board
power plane should be as narrow as possible to minimize the
obstruction to the flow of heat from the device into the general
board.

The PCB power plane should provide power to all digital logic
on the PC board, and the analog power plane should provide
power to all ADV7177/ADV7178 power pins and voltage refer­ence circuitry.

Plane-to-plane noise coupling can be reduced by ensuring that
portions of the regular PCB power and ground planes do not
overlay portions of the analog power plane unless they can be
arranged so that the plane-to-plane noise is common-mode.

Supply Decoupling

For optimum performance, bypass capacitors should be in­stalled using the shortest leads possible, consistent with reliable
operation, to reduce the lead inductance. Best performance is

obtained with 0.1 µF ceramic capacitor decoupling. Each

group of V

pins on the ADV7177/ADV7178 must have at

AA

least one 0.1 µF decoupling capacitor to GND. These capacitors

should be placed as close to the device as possible.

It is important to note that while the ADV7177/ADV7178 con­tains circuitry to reject power supply noise, this rejection de­creases with frequency. If a high frequency switching power
supply is used, the designer should pay close attention to reduc­ing power supply noise and consider using a three terminal voltage
regulator for supplying power to the analog power plane.

Digital Signal Interconnect

The digital inputs to the ADV7177/ADV7178 should be iso­lated as much as possible from the analog outputs and other
analog circuitry. Also, these input signals should not overlay the
analog power plane.

Due to the high clock rates involved, long clock lines to the
ADV7177/ADV7178 should be avoided to reduce noise pickup.

Any active termination resistors for the digital inputs should be
connected to the regular PCB power plane (V

) and not the

CC

analog power plane.

Analog Signal Interconnect

The ADV7177/ADV7178 should be located as close to the
output connectors as possible to minimize noise pickup and
reflections due to impedance mismatch.

The video output signals should overlay the ground plane, not
the analog power plane, to maximize the high frequency power
supply rejection.

Digital inputs, especially pixel data inputs and clocking signals,
should never overlay any of the analog signal circuitry and
should be kept as far away as possible.

For best performance, the outputs should each have a 75 Ω load

resistor connected to GND. These resistors should be placed as
close as possible to the ADV7177/ADV7178 as to minimize
reflections.

The ADV7177/ADV7178 should have no inputs left floating.
Any inputs that are not required should be tied to ground.

–28–

REV. 0

RESET

+5V (VAA)

33pF

4kV

100nF

27MHz

XTAL

OSD

INPUTS

“UNUSED
INPUTS
SHOULD BE
GROUNDED”

33pF

37–41,

3–10, 12–14

PIXEL
DATA

27MHz OR 13.5MHz

CLOCK OUTPUT

+5V (V

0.1mF

11

34
35
36

15
16
17
22
44
43

2

+5V (VAA)

10kV

)

AA

0.1mF

32

V

REF

OSD_EN

OSD_0
OSD_1

ADV7177/
ADV7178

OSD_2

P15–P0

HSYNC
FIELD/VSYNC

BLANK

RESET

CLOCK

CLOCK

CLOCK/2

ALSB

18

+5V (V

31

COMP

POWER SUPPLY DECOUPLING
FOR EACH POWER SUPPLY GROUP

1, 20, 28, 30

27

26

25

23

24

33

SET

0.1mF 0.01mF

75V

75V

75V

150V

)

AA

CHROMA

GND

V

AA

LUMA

CVBS

SCLOCK

SDATA

R

19, 21
29, 42

100V

100V

+5V (VAA)

10mF

+5V (VCC)

ADV7177/ADV7178

L1

(FERRITE BEAD)

33mF

+5V (VCC)

5kV

5kV

MPU BUS

+5V

(VCC)
GND

Figure 43. Recommended Analog Circuit Layout

–29–REV. 0

ADV7177/ADV7178

APPENDIX 2

CLOSED CAPTIONING

The ADV7177/ADV7178 supports closed captioning, conform­ing to the standard television synchronizing waveform for color
transmission. Closed captioning is transmitted during the
blanked active line time of Line 21 of the odd fields and Line
284 of even fields.

Closed captioning consists of a 7-cycle sinusoidal burst that is
frequency and phase locked to the caption data. After the clock
run-in signal, the blanking level is held for two data bits and is
followed by a Logic Level “1” start bit. 16 bits of data follow
the start bit. These consist of two 8-bit bytes, seven data bits
and one odd parity bit. The data for these bytes is stored in
closed captioning Data Registers 0 and 1.

The ADV7177/ADV7178 also supports the extended closed
captioning operation, which is active during even fields, and is
encoded on scan Line 284. The data for this operation is stored
in closed captioning extended Data Registers 0 and 1.

All clock run-in signals and timing to support closed captioning
on Lines 21 and 284 are generated automatically by the ADV7177/
ADV7178. All pixels inputs are ignored during Lines 21 and

284.

10.5 6 0.25ms

12.91ms

7 CYCLES

OF 0.5035 MHz

(CLOCK RUN-IN)

FCC Code of Federal Regulations (CFR) 47 Section 15.119
and EIA608 describe the closed captioning information for
Lines 21 and 284.

The ADV7177/ADV7178 uses a single buffering method. This
means that the closed captioning buffer is only one byte deep,
therefore there will be no frame delay in outputting the closed
captioning data unlike other 2-byte deep buffering systems. The
data must be loaded at least one line before (Line 20 or Line

283) it is outputted on Line 21 and Line 284. A typical imple­mentation of this method is to use VSYNC to interrupt a micro­processor, which will in turn load the new data (two bytes) every
field. If no new data is required for transmission you must
insert zeros in both the data registers; this is called NULLING.
It is also important to load “control codes,” all of which are
double bytes on Line 21, or a TV will not recognize them. If
you have a message like “Hello World,” which has an odd num­ber of characters, it is important to pad it out to an even number
to get “end of caption” 2-byte control code to land in the same
field.

TWO 7-BIT + PARITY
ASCII CHARACTERS

(DATA)

50 IRE

40 IRE

REFERENCE COLOR BURST

(9 CYCLES)
FREQUENCY = F
AMPLITUDE = 40 IRE

10.003ms

= 3.579545MHz

SC

27.382ms

Figure 44. Closed Captioning Waveform (NTSC)

S
T

D0–D6

A
R
T

BYTE 0

P
A
R

I
T
Y

33.764ms

D0–D6

BYTE 1

P
A
R

I

T

Y

–30–

REV. 0

APPENDIX 3

NTSC WAVEFORMS (WITH PEDESTAL)

ADV7177/ADV7178

130.8 IRE

100 IRE

7.5 IRE
0 IRE

–40 IRE

100 IRE

7.5 IRE
0 IRE

–40 IRE

1067.7mV

650mV

286mV (pk-pk)

714.2mV

Figure 45. NTSC Composite Video Levels

714.2mV

Figure 46. NTSC Luma Video Levels

835mV (pk-pk)

PEAK COMPOSITE

REF WHITE

BLACK LEVEL
BLANK LEVEL

SYNC LEVEL

REF WHITE

BLACK LEVEL
BLANK LEVEL

SYNC LEVEL

PEAK CHROMA

BLANK/BLACK LEVEL

1268.1mV

1048.4mV

387.6mV

334.2mV

48.3mV

1048.4mV

387.6mV

334.2mV

48.3mV

232.2mV

0mV

100 IRE

7.5 IRE
0 IRE

–40 IRE

Figure 47. NTSC Chroma Video Levels

720.8mV

Figure 48. NTSC RGB Video Levels

PEAK CHROMA

REF WHITE

BLACK LEVEL
BLANK LEVEL

SYNC LEVEL

1052.2mV

387.5mV

331.4mV

45.9mV

–31–REV. 0

ADV7177/ADV7178

NTSC WAVEFORMS (WITHOUT PEDESTAL)

130.8 IRE

100 IRE

0 IRE

–40 IRE

100 IRE

0 IRE

–40 IRE

1101.6mV

650mV

307mV (pk-pk)

714.2mV

BLANK/BLACK LEVEL

Figure 49. NTSC Composite Video Levels

714.2mV

BLANK/BLACK LEVEL

Figure 50. NTSC Luma Video Levels

903.2mV (pk-pk)

PEAK COMPOSITE

REF WHITE

SYNC LEVEL

REF WHITE

SYNC LEVEL

PEAK CHROMA

BLANK/BLACK LEVEL

1289.8mV

1052.2mV

338mV

52.1mV

1052.2mV

338mV

52.1mV

198.4mV

0mV

100 IRE

0 IRE

–40 IRE

Figure 51. NTSC Chroma Video Levels

715.7mV

Figure 52. NTSC RGB Video Levels

PEAK CHROMA

REF WHITE

BLANK/BLACK LEVEL

SYNC LEVEL

1052.2mV

336.5mV

51mV

–32–

REV. 0

PAL WAVEFORMS

ADV7177/ADV7178

1092.5mV

650mV

1284.2mV

1047.1mV

350.7mV

50.8mV

1047mV

350.7mV

50.8mV

300mV (pk-pk)

PEAK COMPOSITE

REF WHITE

696.4mV

BLANK/BLACK LEVEL

SYNC LEVEL

Figure 53. PAL Composite Video Levels

REF WHITE

696.4mV

BLANK/BLACK LEVEL

SYNC LEVEL

Figure 54. PAL Luma Video Levels

PEAK CHROMA

885mV (pk-pk)

BLANK/BLACK LEVEL

207.5mV

0mV

1050.2mV

351.8mV

51mV

PEAK CHROMA

Figure 55. PAL Chroma Video Levels

REF WHITE

698.4mV

BLANK/BLACK LEVEL

SYNC LEVEL

Figure 56. PAL RGB Video Levels

–33–REV. 0

ADV7177/ADV7178

UV WAVEFORMS

WHITE

YELLOW

CYAN

GREEN

MAGENTA

RED

BLUE

BLACK

505mV

334mV

171mV

BETACAM LEVEL

0mV

2171mV

2334mV

2505mV

Figure 57. NTSC 100% Color Bars No Pedestal U Levels

WHITE

YELLOW

CYAN

GREEN

MAGENTA

RED

467mV

309mV

158mV

BETACAM LEVEL

0mV

BLUE

0mV

BLACK

0mV

WHITE

YELLOW

CYAN

GREEN

MAGENTA

RED

BLUE

505mV

423mV

BETACAM LEVEL

82mV

0mV

–423mV

–505mV

BLACK

0mV

–82mV

Figure 60. NTSC 100% Color Bars No Pedestal V Levels

WHITE

YELLOW

CYAN

GREEN

MAGENTA

RED

BLUE

467mV

391mV

BETACAM LEVEL

76mV

0mV

BLACK

0mV

–76mV

–158mV

–309mV

–467mV

Figure 58. NTSC 100% Color Bars with Pedestal U Levels

WHITE

YELLOW

CYAN

GREEN

MAGENTA

RED

BLUE

350mV

232mV

118mV

SMPTE LEVEL

0mV

–118mV

–232mV

–350mV

BLACK

0mV

Figure 59. PAL 1005 Color Bars U Levels

–391mV

–467mV

Figure 61. NTSC 100% Color Bars with Pedestal V Levels

WHITE

YELLOW

CYAN

GREEN

MAGENTA

RED

BLUE

350mV

293mV

SMPTE LEVEL

57mV

0mV

–293mV

–350mV

BLACK

–57mV

Figure 62. PAL 100% Color Bars V Levels

–34–

0mV

REV. 0

APPENDIX 4

REGISTER VALUES

ADV7177/ADV7178

The ADV7177/ADV7178 registers can be set depending on the
user standard required.

The following examples give the various register formats for
several video standards.

In each case the output is set to composite o/p with all DACs
powered up and with the BLANK input control disabled. Addi­tionally, the burst and color information are enabled on the
output and the internal color bar generator is switched off. In
the examples shown, the timing mode is set to Mode 0 in slave
format. TR02–TR00 of the Timing Register 0 control the tim­ing modes. For a detailed explanation of each bit in the com­mand registers, please turn to the Register Programming section
of the data sheet. TR07 should be toggled after setting up a new
timing mode. Timing Register 1 provides additional control over
the position and duration of the timing signals. In the examples,
this register is programmed in default mode.

NTSC (FSC = 3.5795454 MHz)
Address Data

00Hex Mode Register 0 04Hex
01Hex Mode Register 1 00Hex
02Hex Subcarrier Frequency Register 0 16Hex
03Hex Subcarrier Frequency Register 1 7CHex
04Hex Subcarrier Frequency Register 2 F0Hex
05Hex Subcarrier Frequency Register 3 21Hex
06Hex Subcarrier Phase Register 00Hex
07Hex Timing Register 0 08Hex
08Hex Closed Captioning Ext Register 0 00Hex
09Hex Closed Captioning Ext Register 1 00Hex
0AHex Closed Captioning Register 0 00Hex
0BHex Closed Captioning Register 1 00Hex
0CHex Timing Register 1 00Hex
0DHex Mode Register 2 80Hex
0EHex Pedestal Control Register 0 00Hex
0FHex Pedestal Control Register 1 00Hex
10Hex Pedestal Control Register 2 00Hex
11Hex Pedestal Control Register 3 00Hex
12Hex Mode Register 3 00Hex

PAL B, D, G, H, I (FSC = 4.43361875 MHz)
Address Data

00Hex Mode Register 0 01Hex
01Hex Mode Register 1 00Hex
02Hex Subcarrier Frequency Register 0 CBHex
03Hex Subcarrier Frequency Register 1 8AHex
04Hex Subcarrier Frequency Register 2 09Hex
05Hex Subcarrier Frequency Register 3 2AHex
06Hex Subcarrier Phase Register 00Hex
07Hex Timing Register 0 08Hex
08Hex Closed Captioning Ext Register 0 00Hex
09Hex Closed Captioning Ext Register 1 00Hex
0AHex Closed Captioning Register 0 00Hex
0BHex Closed Captioning Register 1 00Hex
0CHex Timing Register 1 00Hex
0DHex Mode Register 2 80Hex

Address Data

0EHex Pedestal Control Register 0 00Hex
0FHex Pedestal Control Register 1 00Hex
10Hex Pedestal Control Register 2 00Hex
11Hex Pedestal Control Register 3 00Hex
12Hex Mode Register 3 00Hex

PAL M (FSC = 3.57561149 MHz)
Address Data

00Hex Mode Register 0 06Hex
01Hex Mode Register 1 00Hex
02Hex Subcarrier Frequency Register 0 A3Hex
03Hex Subcarrier Frequency Register 1 EFHex
04Hex Subcarrier Frequency Register 2 E6Hex
05Hex Subcarrier Frequency Register 3 21Hex
06Hex Subcarrier Phase Register 00Hex
07Hex Timing Register 0 08Hex
08Hex Closed Captioning Ext Register 0 00Hex
09Hex Closed Captioning Ext Register 1 00Hex
0AHex Closed Captioning Register 0 00Hex
0BHex Closed Captioning Register 1 00Hex
0CHex Timing Register 1 00Hex
0DHex Mode Register 2 80Hex
0EHex Pedestal Control Register 0 00Hex
0FHex Pedestal Control Register 1 00Hex
10Hex Pedestal Control Register 2 00Hex
11Hex Pedestal Control Register 3 00Hex
12Hex Mode Register 3 00Hex

–35–REV. 0

ADV7177/ADV7178

APPENDIX 5

OPTIONAL OUTPUT FILTER

If an output filter is required for the CVBS, Y, UV, Chroma and
RGB outputs of the ADV7177/ADV7178, the following filter in
Figure 63 can be used. Plots of the filter characteristics are
shown in Figures 64, 65 and 66. An output filter is not required
if the outputs of the ADV7177/ADV7178 are connected to an
analog monitor or an analog TV; however, if the output signals
are applied to a system where sampling is used (e.g., digital
TV), a filter is required to prevent aliasing.

L

1mH

IN OUT

R
75V

L

2.7mHL0.68mH

C
470pFC330pFC56pF

R
75V

Figure 63. Output Filter

0

–5

VdB – OP

–10
–15
–20
–25
–30
–35
–40

DECIBELS

–45
–50
–55
–60
–65
–70

10k 100M100k

1M 10M

FREQUENCY – Hz

Figure 64. Output Filter Plot

0

VdB – OP

–5

–10

–15

–20

DECIBELS

–25

–30

–35

1 100

10

FREQUENCY – MHz

Figure 65. Output Filter Close Up

0.0

–0.5

VdB – OP

–1.0

–1.5

–2.0

–2.5

DECIBELS

–3.0

–3.5

–4.0

–4.5

110

2

FREQUENCY – MHz

468

Figure 66. Output Filter Plot Close Up

–36–

REV. 0

APPENDIX 6

OPTIONAL DAC BUFFERING

ADV7177/ADV7178

For external buffering of the ADV7177/ADV7178 DAC out­puts, the configuration in Figure 67 is recommended. This
configuration shows the DAC outputs running at half (18 mA)
their full current (34.7 mA) capability. This will allow the
ADV7177/ADV7178 to dissipate less power, the analog current is
reduced by 50% with a R

SET

of 300 Ω and a R

of 75 Ω. This

LOAD

mode is recommended for 3.3 volt operation as optimum perfor­mance is obtained from the DAC outputs at 18 mA with a V

AA

of

3.3 volts. This buffer also adds extra isolation on the video out-

V

AA

ADV7177/ADV7178

OUTPUT
BUFFER

OUTPUT
BUFFER

OUTPUT
BUFFER

75V

75V

75V

300V

PIXEL

PORT

R

SET

V

REF

DIGITAL

CORE

DAC A

DAC B

DAC C

Figure 67. Output DAC Buffering Configuration

puts, see buffer circuit in Figure 68. When calculating absolute
output full current and voltage, use the following equation:

V

= I

OUT

I

=

OUT

K = 4.2146 constant ,V

INPUT

× R

OUT

V

()

REF

R

75V

SET

× K

V

CC

2N2907

LOAD

36V

REF

75V

=1.235 V

OUTPUT TO
TV/MONITOR

Figure 68. Recommended Output DAC Buffer

–37–REV. 0

ADV7177/ADV7178

0.037 (0.94)

0.025 (0.64)

SEATING

PLANE

OUTLINE DIMENSIONS

Dimensions shown in inches and (mm).

Plastic Quad Flatpack

(S-44)

0.548 (13.925)

34

33

0.546 (13.875)

0.398 (10.11)

0.390 (9.91)

TOP VIEW

(PINS DOWN)

0.096 (2.44)
MAX

0.88

88

23

22

C3314–2.5–8/98

0.040 (1.02)

0.032 (0.81)

0.083 (2.11)

0.077 (1.96)

0.040 (1.02)

0.032 (0.81)

44

1

0.033 (0.84)

0.029 (0.74)

12

11

0.016 (0.41)

0.012 (0.30)

–38–

PRINTED IN U.S.A.

REV. 0
