Datasheet ADS-933MM, ADS-933MC, ADS-B933 Datasheet (DATEL)

PIN FUNCTION PIN FUNCTION

1 +3.2V REF. OUT 40 NO CONNECTION
2 UNIPOLAR 39 NO CONNECTION
3 ANALOG INPUT 38 +5V ANALOG SUPPLY
4 ANALOG GROUND 37 –5V SUPPLY
5 OFFSET ADJUST 36 ANALOG GROUND
6 GAIN ADJUST 35 COMP. BITS
7 DIGITAL GROUND 34 OUTPUT ENABLE
8 FIFO/DIR 33 OVERFLOW

9 FIFO READ 32 EOC
10 FSTAT1 31 +5V DIGITAL SUPPLY
11 FSTAT2 30 DIGITAL GROUND
12 START CONVERT 29 BIT 1 (MSB)
13 BIT 16 (LSB) 28 BIT 1 (MSB)
14 BIT 15 27 BIT 2
15 BIT 14 26 BIT 3
16 BIT 13 25 BIT 4
17 BIT 12 24 BIT 5
18 BIT 11 23 BIT 6
19 BIT 10 22 BIT 7
20 BIT 9 21 BIT 8

FEATURES

• 16-bit resolution

• 3MHz sampling rate

• Functionally complete

• No missing codes over full military temperature range

• Edge-triggered

• ±5V supplies, 1.85 Watts

• Small, 40-pin, ceramic TDIP

• 85dB SNR, –84dB THD

• Ideal for both time and frequency-domain applications

16-Bit, 3MHz

Sampling A/D Converters

®

®

INNOV A TION and EX CELLENCE

GENERAL DESCRIPTION

The low-cost ADS-933 is a 16-bit, 3MHz sampling A/D
converter. This device accurately samples full-scale input
signals up to Nyquist frequencies with no missing codes. The
dynamic performance of the ADS-933 has been optimized to
achieve a signal-to-noise ratio (SNR) of 85dB and a total
harmonic distortion (THD) of –84dB.

Packaged in a 40-pin TDIP, the functionally complete
ADS-933 contains a fast-settling sample-hold amplifier, a
subranging (two-pass) A/D converter, an internal reference,
timing/control logic, and error-correction circuitry. Digital input
and output levels are TTL. The ADS-933 only requires the
rising edge of the start convert pulse to operate.

Requiring only ±5V supplies, the ADS-933 dissipates 1.85
Watts. The device is offered with a bipolar (±2.75V) analog
input range and a unipolar 0 to –5.5V input range. Models are
available for use in either commercial (0 to +70°C) or military (–
55 to +125°C) operating temperature ranges. A proprietary, auto­calibrating, error-correcting circuit enables the device to achieve
specified performance over the full military temperature range.
Typical applications include medical imaging, radar, sonar,
communications and instrumentation.

INPUT/OUTPUT CONNECTIONS

ADS-933

DATEL, Inc., Mansfield, MA 02048 (USA) • Tel: [phone] Fax: [phone] • E-mail: [e-mail] • Internet: www.datel.com

Figure 1. ADS-933 Functional Block Diagram

PRELIMINARY PRODUCT DATA

3-STATE

OUTPUT REGISTER

29 BIT 1 (MSB)
28 BIT 1 (MSB)
27 BIT 2
26 BIT 3
25 BIT 4
24 BIT 5
23 BIT 6
22 BIT 7
21 BIT 8
20 BIT 9
19 BIT 10
18 BIT 11
17 BIT 12
16 BIT 13
15 BIT 14
14 BIT 15
13 BIT 16 (LSB)

TIMING AND

CONTROL LOGIC

GAIN ADJUST 6

+3.2V REF. OUT 1

OFFSET ADJUST 5

EOC 32

+5V ANALOG SUPPLY 38
+5V DIGITAL SUPPLY 31
–5V SUPPLY 37
ANALOG GROUND 4, 36
DIGITAL GROUND 7, 30
NO CONNECTION 39, 40

CUSTOM GATE ARRAY

POWER AND GROUNDING

2-PASS ANALOG-TO-DIGITAL CONVERTER

S/H

GAIN

ADJUST

CKT.

OFFSET
ADJUST

CKT.

PRECISION

+3.2V REFERENCE

ANALOG INPUT 3

START CONVERT 12

COMP. BITS 35

10 FSTAT1
11 FSTAT2

8 FIFO/DIR
9 FIFO/READ

34 OUTPUT ENABLE

33 OVERFLOW

UNIPOLAR 2

OFFSET ADJUST 5

ADS-933

® ®

2

PARAMETERS MIN. TYP. MAX. UNITS

Operating Temp. Range, Case

ADS-933MC 0 — +70 °C
ADS-933MM –55 — +125 °C

Thermal Impedance

θjc — 4 — °C/Watt
θca — 18 — °C/Watt

Storage Temperature Range –65 — +150 °C
Package Type 40-pin, metal-sealed, ceramic TDIP

Weight 0.56 ounces (16 grams)

ABSOLUTE MAXIMUM RATINGS

PARAMETERS LIMITS UNITS

+5V Supply (Pins 31, 38) 0 to +6 Volts
–5V Supply (Pin 37) 0 to –6 Volts
Digital Inputs (Pins 8, 9, 12, 34, 35) –0.3 to +V

DD +0.3 Volts

Analog Input (Pin 3) ±5 Volts
Lead Temperature (10 seconds) +300 °C

PHYSICAL/ENVIRONMENTAL

FUNCTIONAL SPECIFICATIONS

(TA = +25°C, ±VCC = ±5V, +VDD = +5V, 3MHz sampling rate, and a minimum 3 minute warm-up ➀ unless otherwise specified.)

+25°C 0 to +70°C –55 to +125°C

ANALOG INPUT MIN. TYP. MAX. MIN. TYP. MAX. MIN. TYP. MAX. UNITS

Input Voltage Range

Unipolar — 0 to –5.5 — — 0 to –5.5 — — 0 to –5.5 — Volts
Bipolar — ±2.75 — — ±2.75 — — ±2.75 — Volts

Input Resistance Pin 3 655 687 — 655 687 — 655 687 — Ω
Input ResistancePin 2 418 426 — 418 426 — 418 426 — Ω
Input Capacitance — 10 15 — 10 15 — 10 15 pF

DIGITAL INPUTS

Logic Levels

Logic "1" +2.0 — — +2.0 — — +2.0 — — Volts
Logic "0" — — +0.8 — — +0.8 — — +0.8 Volts
Logic Loading "1" — — +20 — — +20 — — +20 µA
Logic Loading "0" ➁ — — –20 — — –20 — — –20 µA

Start Convert Positive Pulse Width ➂ 20 50 — 20 50 — 20 50 — ns

STATIC PERFORMANCE

Resolution — 16 — — 16 — — 16 — Bits
Integral Nonlinearity (f

in = 10kHz) — ±1 — — ±1.5 — — ±2 — LSB

Differential Nonlinearity (f

in = 10kHz) –0.95 ±0.5 +1.0 –0.95 ±0.5 +1.0 –0.95 ±0.5 +1.5 LSB

Full Scale Absolute Accuracy — ±0.15 ±0.3 — ±0.3 ±0.5 — ±0.5 ±0.8 %FSR
Bipolar Zero Error (Tech Note 2) — ±0.1 ±0.2 — ±0.2 ±0.4 — ±0.4 ±0.6 %FSR

(Unipolar offset spec same as Bipolar zero)

Bipolar Offset Error (Tech Note 2) — ±0.1 ±0.2 — ±0.2 ±0.4 — ±0.4 ±0.6 %FSR
Gain Error (Tech Note 2) — ±0.15 ±0.3 — ±0.3 ±0.5 — ±0.5 ±0.8 %
No Missing Codes (f

in = 10kHz) 16 — — 16 — — 16 — — Bits

DYNAMIC PERFORMANCE

Peak Harmonics (–0.5dB)

dc to 500kHz — — 81 — –86 — — –86 — dB
500kHz to 1MHz — –84 80 — –84 — — –84 — dB

Total Harmonic Distortion (–0.5dB)

dc to 500kHz — –84 80 — –84 — — –84 — dB
500kHz to 1MHz — –83 80 — –83 — — –83 — dB

Signal-to-Noise Ratio

(w/o distortion, –0.5dB)
dc to 500kHz 81 85 — — 85 — — 85 — dB
500kHz to 1MHz 81 85 — — 85 — — 85 — dB

Signal-to-Noise Ratio ➃

(& distortion, –0.5dB)
dc to 500kHz 78 82 — — 82 — — 82 — dB
500kHz to 1MHz 78 81 — — 81 — — 81 — dB

Noise — 80 — — 80 — — 80 — µVrms
Two-Tone Intermodulation

Distortion (f

in = 200kHz,

240kHz, f

s = 3MHz, –0.5dB) — –87 — — –87 — — –87 — dB

Input Bandwidth (–3dB)

Small Signal (–20dB input) — 9.8 — — 9.8 — — 9.8 — MHz
Large Signal (–0.5dB input) — 10.2 — — 10.2 — — 10.2 — MHz

Feedthrough Rejection

(f

in = 1MHz) — 90 — — 90 — — 90 — dB

Slew Rate — ±120 — — ±120 — — ±120 — V/µs
Aperture Delay Time — +8 — — +8 — — +8 — ns
Aperture Uncertainty — 3 — — 3 — — 3 — psrms
S/H Acquisition Time

( to ±0.001%FSR, 5.5V step) — 180 — — 180 — — 180 — ns

ADS-933

® ®

3

+25°C 0 TO +70°C –55 TO +125°C

DYNAMIC PERFORMANCE (Cont.) MIN. TYP. MAX. MIN. TYP. MAX. MIN. TYP. MAX. UNITS
ANALOG OUTPUT

Overvoltage Recovery Time ➄ — — 333 — — 333 — — 333 ns
A/D Conversion Rate 3 — — 3 — — 3 — — MHz
Internal Reference

Voltage 3.15 +3.2 — — +3.2 — — +3.2 — Volts
Drift — ±30 — — ±30 — — ±30 — ppm/°C

External Current — 5 — — 5 — — 5 — mA

DIGITAL OUTPUTS

Logic Levels

Logic "1" +2.4 — — +2.4 — — +2.4 — — Volts
Logic "0" — — +0.4 — — +0.4 — — +0.4 Volts
Logic Loading "1" — — –4 — — –4 — — –4 mA
Logic Loading "0" — — +4 — — +4 — — +4 mA

Output Coding

Offset Binary / Complementary Offset Binary / Two's Complement / Complementary Two's Complement

POWER REQUIREMENTS

Power Supply Ranges ⑥

+5V Supply +4.75 +5.0 +5.25 +4.75 +5.0 +5.25 +4.9 +5.0 +5.25 Volts
–5V Supply –4.75 –5.0 –5.25 –4.75 –5.0 –5.25 –4.9 –5.0 –5.25 Volts

Power Supply Currents

+5V Supply — +220 260 — +220 260 — +220 260 mA
–5V Supply –140 –150 — –140 –150 — –140 –150 — mA

Power Dissipation — 1.85 2.0 — 1.85 2.0 — 1.85 2.0 Watts
Power Supply Rejection — — ±0.07 — — ±0.07 — — ±0.07 %FSR/%V

Footnotes:

➃ Effective bits is equal to:

➀ All power supplies must be on before applying a start convert pulse. All

supplies and the clock (START CONVERT) must be present during
warm-up periods. The device must be continuously converting during
this time.

➁ When COMP. BITS (pin 35) is low, logic loading "0" will be –350µA.
➂ A 3MHz clock with a 50nsec positive pulse width is used for all

production testing. See Timing Diagram for more details.

6.02

(SNR + Distortion) – 1.76 + 20 log

Full Scale Amplitude

Actual Input Amplitude

➄ This is the time required before the A/D output data is valid once the

analog input is back within the specified range.

➅ The minimum supply voltages of +4.9V and –4.9V for ±V

DD are required for

–55°C operation only. The minimum limits are +4.75V and –4.75V when
operating at +125°C.

TECHNICAL NOTES

1. Obtaining fully specified performance from the ADS-933
requires careful attention to pc-card layout and power
supply decoupling. The device's analog and digital ground
systems are connected to each other internally. For optimal
performance, tie all ground pins (2, 4, 7, 30 and 36) directly
to a large analog ground plane beneath the package.

Bypass all power supplies and the +3.2V reference output
to ground with 4.7µF tantalum capacitors in parallel with

0.1µF ceramic capacitors. Locate the bypass capacitors as
close to the unit as possible.

2. The ADS-933 achieves its specified accuracies without the
need for external calibration. If required, the device's small
initial offset and gain errors can be reduced to zero using
the adjustment circuitry shown in Figure 2. When using this
circuitry, or any similar offset and gain calibration hardware,
make adjustments following warm-up. To avoid interaction,
always adjust offset before gain. Tie pins 5 and 6 to
ANALOG GROUND (pin 4) if not using offset and gain
adjust circuits.

3. Pin 35 (COMP. BITS) is used to select the digital output
coding format of the ADS-933. See Tables 2a and 2b.
When this pin has a TTL logic "0" applied, it complements
all of the ADS-933’s digital outputs.

When pin 35 has a logic "1" applied, the output coding is
complementary offset binary. Applying a logic "0" to pin
35 changes the coding to offset binary. Using the MSB
output (pin 29) instead of the MSB output (pin 28) changes
the respective output codings to complementary two's
complement and two's complement.

Pin 35 is TTL compatible and can be directly driven with
digital logic in applications requiring dynamic control over
its function. There is an internal pull-up resistor on pin 35
allowing it to be either connected to +5V or left open when
a logic "1" is required.

4. To enable the three-state outputs, connect OUTPUT
ENABLE (pin 34) to a logic "0" (low). To disable, connect
pin 34 to a logic "1" (high).

ADS-933

® ®

4

DELAY PIN TRANSITION MIN. TYP. MAX. UNITS

Direct mode to FIFO enabled 8 – 10 20 ns
FIFO enabled to direct mode 8 – 10 20 ns
FIFO READ to output data valid 9 – – 40 ns
FIFO READ to status update when changing

from <half full (1 word) to empty

9 – – 20 ns

FIFO READ to status update when changing
from ≥half full (8 words) to <half full (7 words)

9 – – 110 ns

FIFO READ to status update when changing
from full (16 words) to ≥half full (15 words)

9 – – 190 ns

Falling edge of EOC to status update when writing
first word into empty FIFO

32 – – 190 ns

Falling edge of EOC to status update when
changing FIFO from <half full (7 words) to 32 – – 110 ns
≥half full (8 words)

Falling edge of EOC to status update when filling
FIFO with 16th word

32 – – 28 ns

INTERNAL FIFO OPERATION

The ADS-933 contains an internal, user-initiated, 18-bit, 16­word FIFO memory. Each word in the FIFO contains the 16
data bits as well as the MSB and overflow bits. Pins 8 (FIFO/
DIR) and 9 (FIFO READ) control the FIFO's operation. The
FIFO's status can be monitored by reading pins 10 (FSTAT1)
and 11 (FSTAT2).

When pin 8 (FIFO/DIR) has a logic "1" applied, the FIFO is
inserted into the digital data path. When pin 8 has a logic
"0" applied, the FIFO is transparent and the output data goes
directly to the output three-state register (whose operation is
controlled by pin 34 (ENABLE)). Read and write commands
to the FIFO are ignored when the ADS-933 is operated in
the "direct" mode. It takes a maximum of 20ns to switch the
FIFO in or out of the ADS-933’s digital data path.

FIFO Write and Read Modes

Once the FIFO has been enabled (pin 8 high), digital data is
automatically written to it, regardless of the status of FIFO
READ (pin 9). Assuming the FIFO is initially empty, it will
accept data (18-bit words) from the next 16 consecutive A/D
conversions. As a precaution, pin 9 (which controls the
FIFO's READ function) should not be low when data is first
written to an empty FIFO.

When the FIFO is initially empty, digital data from the first
conversion (the "oldest" data) appears at the output of the

FIFO immediately after the first conversion has been completed
and remains there until the FIFO is read.

If the output three-state register has been enabled (logic "0"
applied to pin 34), data from the first conversion will appear at
the output of the ADS-933. Attempting to write a 17th word to a
full FIFO will result in that data, and any subsequent
conversion data, being lost.

Once the FIFO is full (indicated by FSTAT1 and FSTAT2 both
equal to "1"), it can be read by dropping the FIFO READ line
(pin 9) to a logic "0" and then applying a series of 15 rising
edges to the read line. Since the first data word is already
present at the FIFO output, the first read command (the first
rising edge applied to FIFO READ) will bring data from the
second conversion to the output. Each subsequent read
command/rising edge brings the next word to the output lines.
After the 15th rising edge brings the 16th data word to the FIFO
output, the subsequent falling edge on READ will update the
status outputs (after a 20ns maximum delay) to FSTAT1 = 0,
FSTAT2 = 1 indicating that the FIFO is empty.

If a read command is issued after the FIFO empties, the last
word (the 16th conversion) will remain present at the outputs.

FIFO Reset Feature

At any time, the FIFO can be reset to an empty state by putting
the ADS-933 into its "direct" mode (logic "0" applied to pin 8,
FIFO/DIR) and also applying a logic "0" to the FIFO READ line
(pin 9). The empty status of the FIFO will be indicated by
FSTAT1 going to a "0" and FSTAT2 going to a "1". The status
outputs change 40ns after applying the control signals.

FIFO Status, FSTAT1 and FSTAT2

Monitor the status of the data in the FIFO by reading the two
status pins, FSTAT1 (pin 10) and FSTAT2 (pin 11).

CONTENTS FSTAT1 FSTAT2

Empty (0 words) 0 1
<half full (<8 words) 0 0
half-full or more (≥8 words) 1 0
Full (16 words) 1 1

Table 1. FIFO Delays

1

0

0

1

1

0

0

1

0

1

0

1

0

1

1

0

1

0

5. Applying a start convert pulse while a conversion is in
progress (EOC = logic "1") will initiate a new and probably
inaccurate conversion cycle. Data from both the inter­rupted and subsequent conversions will be invalid.

6. Do not enable/disable or complement the output bits or
read from the FIFO during the conversion process (from the
rising edge of EOC to the falling edge of EOC).

7. The OVERFLOW bit (pin 33) switches from 0 to 1 when the
input voltage exceeds that which produces an output of all
1’s or when the input equals or exceeds the voltage that
produces all 0’s. When COMP BITS is activated, the above
conditions are reversed.

ADS-933

® ®

5

LED's to the digital outputs and performing adjustments until
certain LED's "flicker" equally between on and off. Other
approaches employ digital comparators or microcontrollers to
detect when the outputs change from one code to the next.

For the ADS-933, offset adjusting is normally accomplished
when the analog input is 0 minus ½ LSB (–42µV). See Table
2b for the proper bipolar output coding.

Gain adjusting is accomplished when the analog input is at
nominal full scale minus 1½ LSB's (+2.749874V).

Note: Connect pin 5 to ANALOG GROUND (pin 4) for
operation without zero/offset adjustment. Connect pin 6 to
pin 4 for operation without gain adjustment.

Zero/Offset Adjust Procedure

1. Apply a train of pulses to the START CONVERT input (pin

12) so that the converter is continuously converting.

2. For zero/offset adjust, apply –42µV to the ANALOG INPUT
(pin 3).

3. Adjust the offset potentiometer until the code flickers
between 1000 0000 0000 0000 and 0111 1111 1111 1111
with pin 35 tied high (complementary offset binary) or
between 0111 1111 1111 1111 and 1000 0000 0000 0000
with pin 35 tied low (offset binary).

4. Two's complement coding requires using BIT 1 (MSB) (pin

29). With pin 35 tied low, adjust the trimpot until the output
code flickers between all 0’s and all 1’s.

Gain Adjust Procedure

1. For gain adjust, apply +2.749874V to the ANALOG INPUT
(pin 3).

2. Adjust the gain potentiometer until all output bits are 0’s and
the LSB flickers between a 1 and 0 with pin 35 tied high
(complementary offset binary) or until all output bits are 1’s
and the LSB flickers between a 1 and 0 with pin 35 tied low
(offset binary).

3. Two's complement coding requires using BIT 1 (MSB)
(pin 29). With pin 35 tied low, adjust the gain trimpot until
the output code flickers equally between 0111 1111 1111
1111 and 0111 1111 1111 1110.

4. To confirm proper operation of the device, vary the applied
input voltage to obtain the output coding listed in Table 2b.

1111 1111 1111 1111

LSB "1" to "0"
1110 0000 0000 0000
1100 0000 0000 0000
1000 0000 0000 0000
0111 1111 1111 1111
0100 0000 0000 0000
0010 0000 0000 0000
0000 0000 0000 0001

LSB "0" to "1"
0000 0000 0000 0000

OFFSET BINARY

MSB LSB MSB LSB MSB LSB MSB LSB

+FS –1 LSB

+FS –1 1/2 LSB

+3/4 FS
+1/2 FS

0

–1 LSB
–1/2 FS
–3/4 FS

–FS +1 LSB

–FS + 1/2 LSB

–FS

OUTPUT CODING

INPUT

RANGE

±2.75V

+2.749916
+2.749874
+2.062500
+1.375000

0.000000
–0.000084
–1.375000
–2.062500
–2.749916
–2.749958
–2.750000

0000 0000 0000 0000

LSB "0" to "1"
0001 1111 1111 1111
0011 1111 1111 1111
0111 1111 1111 1111
1000 000 000 0000
1011 1111 1111 1111
1101 1111 1111 1111
1111 1111 1111 1110

LSB "1" to "0"

1111 1111 1111 1111

COMP. OFF. BIN.

0111 1111 1111 1111

LSB "1" to "0"
0110 0000 0000 0000
0100 0000 0000 0000
0000 0000 0000 0000
1111 1111 1111 1111
1100 0000 0000 0000
1010 0000 0000 0000
1000 0000 0000 0001

LSB "0" to "1"
1000 0000 0000 0000

TWO'S COMP.

1000 0000 0000 0000

LSB "0" to "1"
1001 1111 1111 1111
1011 1111 1111 1111
1111 1111 1111 1111
0000 0000 0000 0000
0011 1111 1111 1111
0101 1111 1111 1111
0111 1111 1111 1110

LSB "1" to "0"
0111 1111 1111 1111

COMP. TWO'S COMP.

BIPOLAR

SCALE

Table 2b. Output Coding

Complementary Offset Binary 1
Offset Binary 0
Complementary Two’s Complement 1

(Using MSB, pin 29)
Two’s Complement 0

(Using MSB, pin 29)

OUTPUT FORMAT PIN 35 LOGIC LEVEL

Table 2a. Setting Output Coding Selection (Pin 35)

Figure 2. Connection Diagram

CALIBRATION PROCEDURE

Connect the converter per Figure 2. Any offset/gain
calibration procedures should not be implemented until the
device is fully warmed up. To avoid interaction, adjust offset
before gain. The ranges of adjustment for the circuits in
Figure 2 are guaranteed to compensate for the ADS-933’s
initial accuracy errors and may not be able to compensate for
additional system errors.

A/D converters are calibrated by positioning their digital
outputs exactly on the transition point between two adjacent
digital output codes. This is accomplished by connecting

ADS-933

20k

Ω

33
32
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13

OVERFLOW
EOC
BIT 1 (MSB)
BIT 1 (MSB)
BIT2
BIT 3
BIT 4
BIT 5
BIT 6
BIT 7
BIT 8
BIT 9
BIT 10
BIT 11
BIT 12
BIT 13
BIT 14
BIT 15
BIT 16 (LSB)

ANALOG
GROUND

DIGITAL
GROUND

0.1µF

4.7µF

0.1µF
COMP. BITS

4.7µF

+3.2V
REF. OUT

FIFO READ

31

7, 30

35

1

9

+5V
DIGITAL

–5V+5V

OFFSET
ADJUST

GAIN

ADJUST

5

6

3

0.1µF

4.7µF

2, 4, 36

37

0.1µF

4.7µF

38

+ +

20k

Ω

–5V+5V

–5V

+5V ANALOG

12START CONVERT

ANALOG INPUT

34 ENABLE

8 FIFO/DIR

10 FSTAT1

11 FSTAT2

+5V

+5V

+5V

–5V

ADS-933

® ®

6

THERMAL REQUIREMENTS

All DATEL sampling A/D converters are fully characterized
and specified over operating temperature (case) ranges of 0
to +70°C and –55 to +125°C. All room-temperature (T

A =

+25°C) production testing is performed without the use of heat
sinks or forced-air cooling. Thermal impedance figures for
each device are listed in their respective specification tables.

These devices do not normally require heat sinks, however,
standard precautionary design and layout procedures should
be used to ensure devices do not overheat. The ground and
power planes beneath the package, as well as all pcb signal
runs to and from the device, should be as heavy as possible
to help conduct heat away from the package. Electrically
insulating, thermally-conductive "pads" may be installed

underneath the package. Devices should be soldered to
boards rather than "socketed", and of course, minimal air flow
over the surface can greatly help reduce the package
temperature.

In more severe ambient conditions, the package/junction
temperature of a given device can be reduced dramatically
(typically 35%) by using one of DATEL's HS Series heat sinks.
See Ordering Information for the assigned part number. See
page 1-183 of the DATEL Data Acquisition Components
Catalog for more information on the HS Series. Request
DATEL Application Note AN-8, "Heat Sinks for DIP Data
Converters," or contact DATEL directly, for additional
information.

Figure 3. ADS-933 Timing Diagram

This device has three pipeline delays. Four start convert pulses (clock cycles) must be applied for valid data
from the first conversion to appear at the output of the A/D.

START

CONVERT

INTERNAL S/H

N N+1

EOC

53ns typ.

OUTPUT

DATA

Data N-4 Valid Data N-1 Valid

Invalid

Data

Data N-2 Valid

20ns typ.

Data N Valid

265ns typ.

68ns typ.

Notes:

N+5

Conversion Time

The start convert positive pulse width must be between either 20 and 60nsec or 200 and 310nsec
(when sampling at 3MHz) to ensure proper operation. For sampling rates lower than 3MHz, the start pulse
can be wider than 310nsec, however a minimum pulse width low of 20nsec should be maintained. A 3MHz

clock with a 50nsec positive pulse width is used for all production testing.

Scale is approximately 50ns per division. fs = 3MHz.1.

2.

3.

N+2 N+3

N+4

161ns typ.

Data N-3 Valid

178ns typ.

Acquisition Time

170ns typ.

50ns typ.

20ns typ.

Hold

ADS-933

® ®

7

Figure 5. ADS-933 Evaluation Board Schematic.

20k

R4

123

U2

9876543

2

11

1

19

18

17

16

15

14

13

12

1020

7

4HCT573

UUT

B6B7B8

B9

B10

B11

+5VD

DGND

MSB

B2B3B4

B5

B12

B13

B14

B15

LSB

START

FSTAT2

FSTAT1

NC

NC

+5VA

-5VA
AGND

COMP

ENABLE

OF

EOC

READ

FIFO/DIR

DGND

GAIN

OFFSET

AGND

ANA IN

+3.2VREF

U6

12345

678

9

101112

13141516171819

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

U1

12

11

13

8

9

10

74HCT74

2.2µF

C13

333129

2725232119

171513

11

97531

34323028262422

20

181614

12

10

864

2

P1

FST2

START

FST1

B16

FIF/DIRB15

READB14

N.C.

B13

COMPLIMB12

ENABLEB11

DGNDB10

DGNDB9

DGNDB8

DGNDB7

DGNDB6

DGNDB5

DGNDB4

EOCB3

OVRFLWB2

B1B MSBB1(MSB)

2.2µF

C11

0.1µF

C20

U4

9876543

2

11 1

19

18

17

16

15

14

13

12

1020

7

4HCT573

0.1µF

C15

33pF

C10

1

2

0.1µF

C18

0.1µF

C3

2.2µF

C1

2.2µF

C14

2.2µF

C2

2.2µF

C9

SG8

SG7

2.2µF

C12

2.2µF

C21

R2

R1

3.3k

R3

1

2

U1

2

3

1

6

5

4

74HCT74

SG9

SG6

2.2µF

C4

20mH

L4

AR1

2

3

4

6

7

0.1µF

C5

20mH

L3

U3

98765

432

11

1

19

18

17

16

15

14

13

12

1020

7

4HCT573

SG4

SG3

X1

1

7

8

14

3MHZ

SG2

74HC86

C6

2.2µF

20mH

L2

0.1µF

C19

J5

P2

123456789

1011121314151617181920212223242526

50

R6

SG5

12

13

11

74HC86

U5

4

5

6

J2

20mH

L1

74HC86

B2

2

J3

0.1µF

C16

0.1µF

C17

2.2µF

C7

B1

1

J4

J1

0.1µF

C8

SG1

B3

COMP

ENABLE

+5VA

+5VA +5VA

+5VA

+5VA

+5VA

+5VA

+5VF

+5VF

+5VF

+5VF

+5VF

+5VF

+5VF

FIF

FIFRDRD

START

CONVERT

B2

AB9

AB9

+15V

+15V

EOC

AB8

AB8

AB1

AB1

AB2

AB2

AB3

AB3

AB4

AB4

AB5

AB5

AB6

AB6

AB7

AB7

AB16

AB16

AB15

AB15

AB14

AB14

AB13

AB13

AB12

AB12

AB11

AB11

AB10AB10

AB10

FIFO/DIR

READ

COMPLIM

B15

B14

FST2

OVRFLW

B1

+5VD +5VD

+5VD

+5VD

+5VD

+5VD

B4B5B6

B7

B1B MSB

B13

B16

B8

B12

B11

B10

B9

–15V

–15V

AGND AGND AGND AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

–5VA

–5VA –5VA

–5VA

–5VA

–5VA

–5VA

DGND

DGND

DGND

DGND

DGND

DGND

DGND

DGNDDGND

DGND

DGND

DGND

DGND DGND

DGND

DGND

DGND

DGND

DGND

DGND

START CONVERT

ANALOG INPUT

OPTION

AMPLIFIER

3 2 1

7

14

7

(LSB)

GAIN ADJUST

OFFSET

ADJUST

321

1

1

(MSB)

(LSB)

14

+5VF

+5VF

COMP

ADS-933 EVALUATION BOARD

20k

R5

123

+5VA

–5VA

U5

231

U5

9

8

10

74HC86

FST1

U5

32

32

32

1

DGND

0.1µF

0.1µF

AGND

MSB

ADS-933

® ®

® ®

INNOV A TION and EX CELLENCE

DATEL makes no representation that the use of its products in the circuits described herein, or the use of other technical information contained herein, will not infringe upon existing or future patent rights. The descriptions
contained herein do not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without notice. The DATEL logo is a registered DATEL,

Inc. trademark.

DS-0367P 05/97

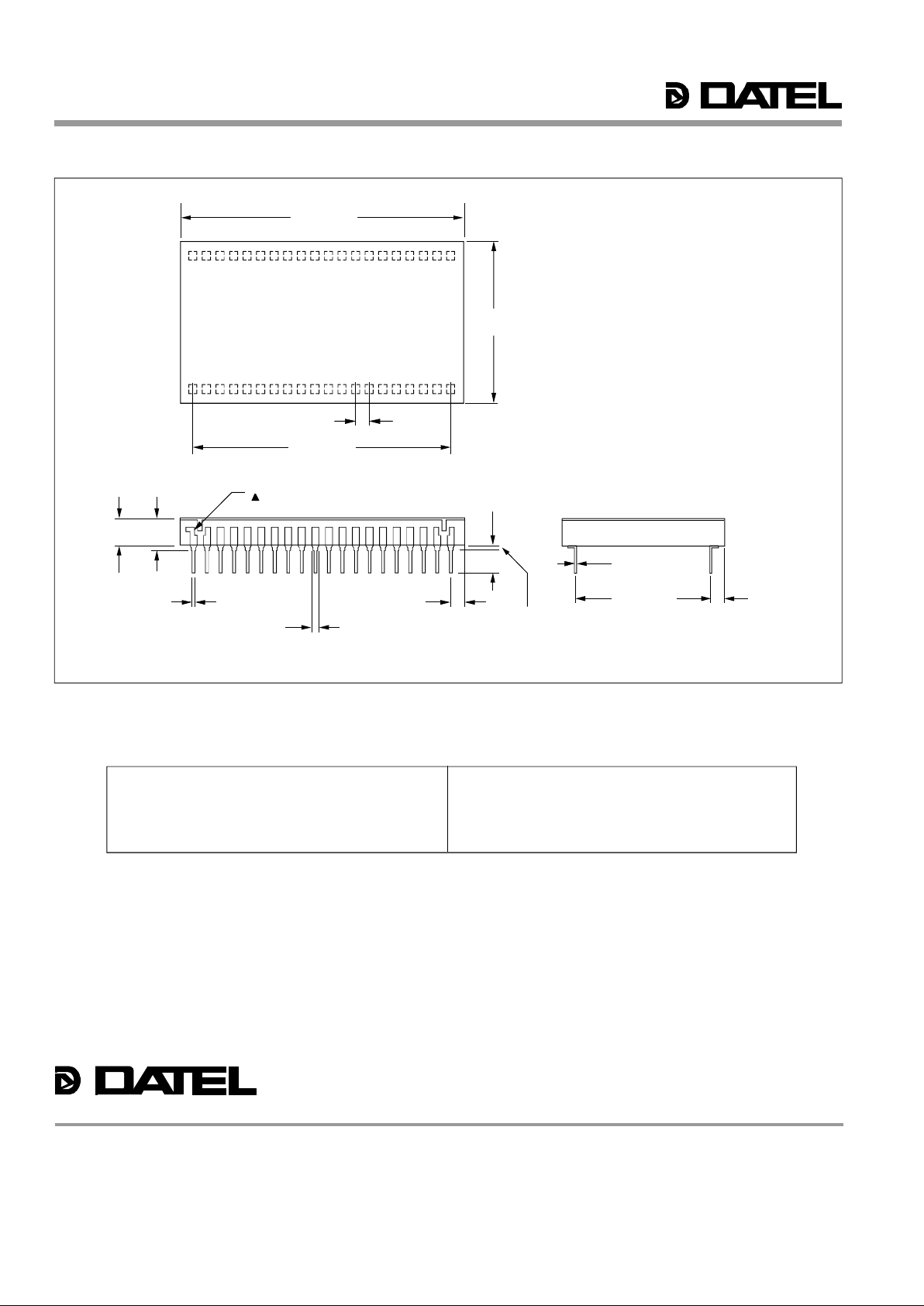

MECHANICAL DIMENSIONS INCHES (mm)

ORDERING INFORMATION

OPERATING ANALOG

MODEL TEMP. RANGE INPUT
ADS-933MC 0 to +70°C Bipolar (±2.75V)

ADS-933MM –55 to +125°C Bipolar (±2.75V)

Receptacles for PC board mounting can be ordered through AMP, Inc., Part # 3-331272-8 (Component Lead
Socket), 40 required. For MIL-STD-883 product, or surface mount packaging, contact DATEL.

ACCESSORIES
ADS-B933 Evaluation Board (without ADS-933)

HS-40 Heat Sink for all ADS-933 models

PIN 1 INDEX
( ON TOP)

2.12/2.07

(53.85/52.58)

0.018 ±0.002

(0.457)

0.100 TYP.
(2.540)

0.110/0.090

(2.794/2.286)

SEATING

PLANE

0.035/0.015

(0.889/0.381)

0.200/0.175

(5.080/4.445)

0.245 MAX.
(6.223)

0.210 MAX.
(5.334)

0.045/0.035

(1.143/0.889)

1.11/1.08

(28.20/27.43)

1 20

21 40

1.900 ±0.008
(48.260)

Dimension Tolerances (unless otherwise indicated):
2 place decimal (.XX) ±0.010 (±0.254)
3 place decimal (.XXX) ±0.005 (±0.127)

Lead Material: Kovar alloy
Lead Finish:

50 microinches (minimum) gold plating

over 100 microinches (nominal) nickel plating

0.015/0.009

(0.381/0.229)

0.900 ±0.010
(22.86)

0.110/0.090

(2.794/2.286

DATEL, Inc. 11 Cabot Boulevard, Mansfield, MA 02048-1151
Tel: [phone] [phone] Fax: [phone]
Internet: www.datel.com E-mail: [e-mail]
Data sheet fax back: [phone]

DATEL (UK) LTD. Tadley, England Tel: [phone]
DATEL S.A.R.L. Montigny Le Bretonneux, France Tel: [phone]
DATEL GmbH München, Germany Tel: [phone]
DATEL KK Tokyo, Japan Tel: [phone], Osaka Tel: [phone]

ISO 9001

ISO 9001

REGISTERED
