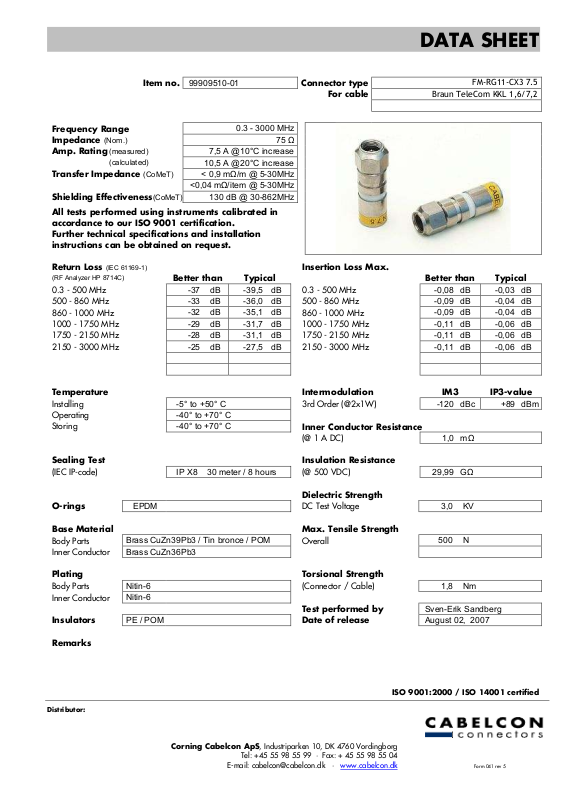

DATA SHEET
Item no.
Connector type
For cable
Frequency Range
Impedance
Amp. Rating
Transfer Impedance
Return Loss
Inner Conductor Resistance
O-rings
Test performed by
Insulators
Date of release
99909510-01
0.3 - 3000 MHz
(Nom.)
(measured)
(calculated)
(CoMeT)
7,5 A @10°C increase
10,5 A @20°C increase
< 0,9 mΩ/m @ 5-30MHz
<0,04 mΩ/item @ 5-30MHz
Shielding Effectiveness
(CoMeT)
130 dB @ 30-862MHz
All tests performed using instruments calibrated in
accordance to our ISO 9001 certification.
Further technical specifications and installation
instructions can be obtained on request.
(IEC 61169-1)
(RF Analyzer HP 8714C)
0.3 - 500 MHz
500 - 860 MHz
860 - 1000 MHz
1000 - 1750 MHz
1750 - 2150 MHz
2150 - 3000 MHz
Better than Typical Better than Typical
-37 dB -39,5 dB
-33 dB -36,0 dB
-32 dB -35,1 dB
-29 dB -31,7 dB
-28 dB -31,1 dB
-25 dB -27,5 dB
75 Ω
Insertion Loss Max.
0.3 - 500 MHz
500 - 860 MHz
860 - 1000 MHz
1000 - 1750 MHz
1750 - 2150 MHz
2150 - 3000 MHz
FM-RG11-CX3 7.5
Braun TeleCom KKL 1,6/7,2
-0,08 dB -0,03 dB
-0,09 dB -0,04 dB
-0,09 dB -0,04 dB
-0,11 dB -0,06 dB
-0,11 dB -0,06 dB
-0,11 dB -0,06 dB
Distributor:
Temperature
Installing
Operating
Storing
Sealing Test
(IEC IP-code)
EPDM
Base Material
Body Parts
Inner Conductor
Brass CuZn39Pb3 / Tin bronce / POM
Brass CuZn36Pb3
Plating
Body Parts
Inner Conductor
Nitin-6
Nitin-6
PE / POM
Remarks
-5° to +50° C
-40° to +70° C
-40° to +70° C
IP X8 30 meter / 8 hours
Intermodulation IM3 IP3-value
3rd Order (@2x1W)
-120 dBc +89 dBm
(@ 1 A DC)
1,0 mΩ
Insulation Resistance
(@ 500 VDC)
29,99 GΩ
Dielectric Strength
DC Test Voltage
Max. Tensile Strength
Overall
Torsional Strength
(Connector / Cable)
3,0 KV
500 N
1,8 Nm
Sven-Erik Sandberg
August 02, 2007
ISO 9001:2000 / ISO 14001 certified
Corning Cabelcon ApS, Industriparken 10, DK 4760 Vordingborg
Tel: +45 55 98 55 99 · Fax: + 45 55 98 55 04
O:\TestAfd\DATABLAD\CX3\Braun TeleCo m\Koaxline KKL 1,6_7,2\99909510 FM-RG11-CX3 7.5\99909 510-01.doc
E-mail: cabelcon@cabelcon.dk · www.cabelcon.dk
Form 041 rev 5
