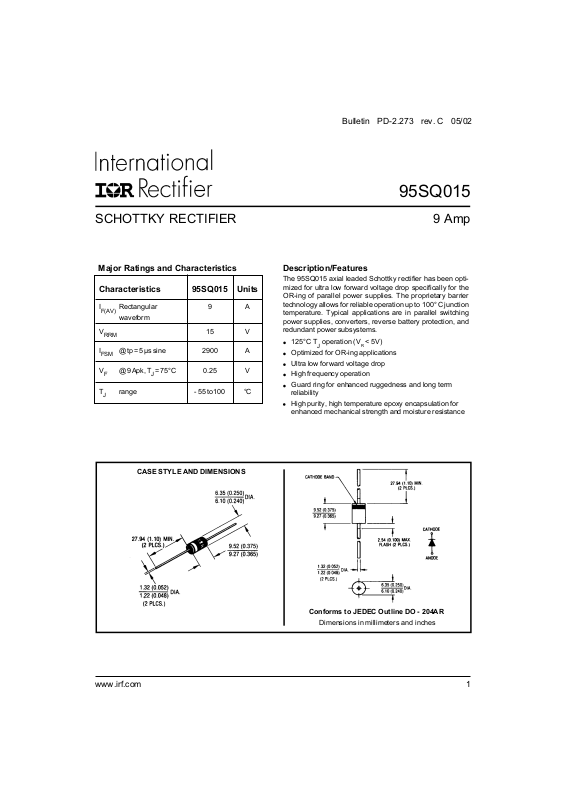

Bulletin PD-2.273 rev. C 05/02
95SQ015
SCHOTTKY RECTIFIER
Major Ratings and Characteristics
Characteristics 95SQ015 Units
I
Rectangular 9 A
F(AV)
waveform
V
RRM
I
@ tp = 5 µs sine 2900 A
FSM
VF@ 9 Apk, TJ = 75°C 0.25 V
TJrange - 55 to 100 °C

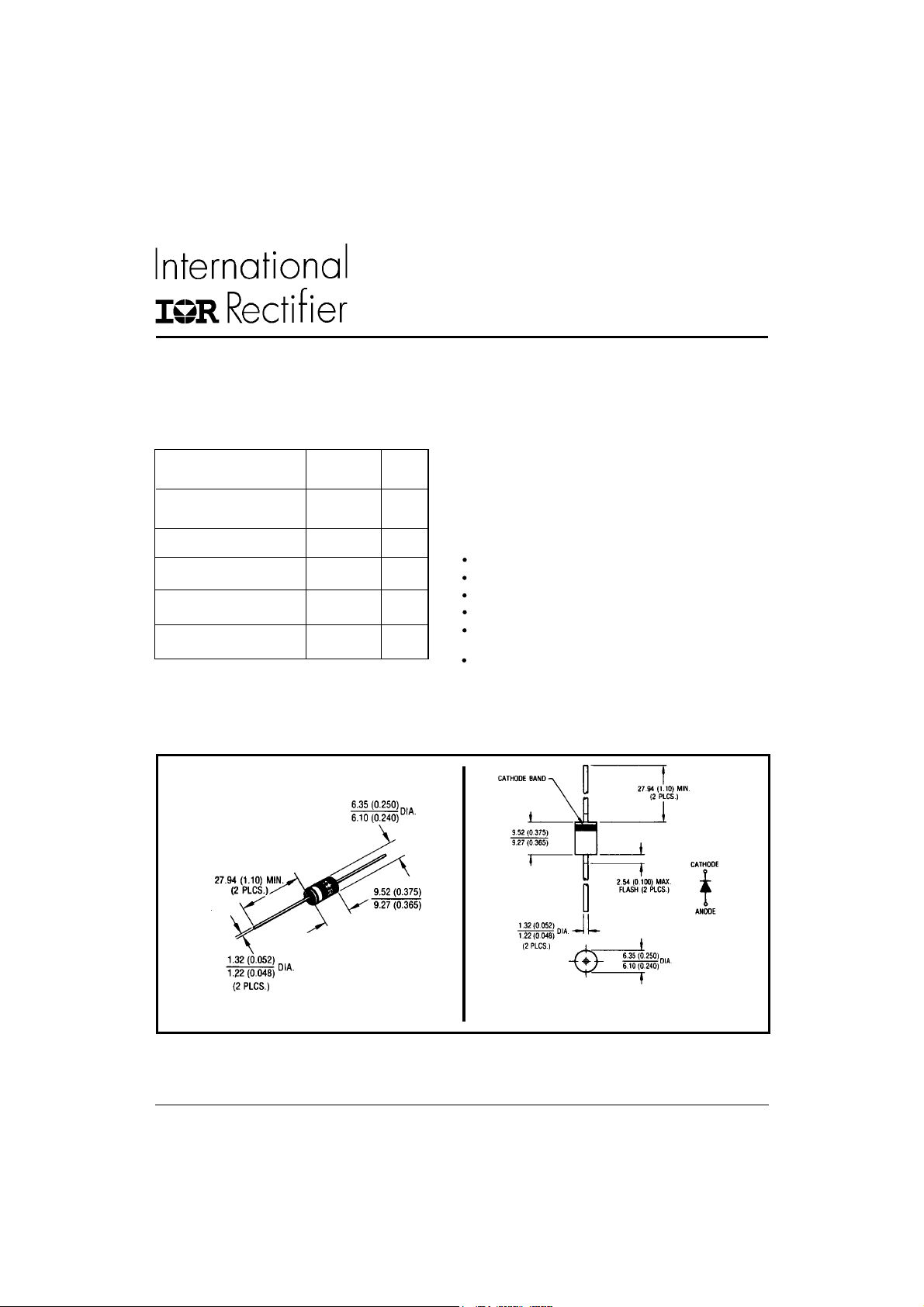

CASE STYLE AND DIMENSIONS
15 V
9 Amp
Description/Features
The 95SQ015 axial leaded Schottky rectifier has been optimized for ultra low forward voltage drop specifically for the
OR-ing of parallel power supplies. The proprietary barrier
technology allows for reliable operation up to 100° C junction
temperature. Typical applications are in parallel switching
power supplies, converters, reverse battery protection, and
redundant power subsystems.
125°C TJ operation (VR < 5V)
Optimized for OR-ing applications
Ultra low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
www.irf.com
Conforms to JEDEC Outline DO - 204AR
Dimensions in millimeters and inches
1
Page 2
95SQ015
Bulletin PD-2.273 rev. C 05/02
Voltage Ratings
Part number 95SQ015
VRMax. DC Reverse Voltage (V) 15
V
Max. Working Peak Reverse Voltage (V) 25
RWM
Absolute Maximum Ratings
Parameters 95SQ Units Conditions
I
Max. Average Forward Current 9 A 50% duty cycle @ TC = 55° C, rectangular wave form
F(AV)
* See Fig. 5
I
Max. Peak One Cycle Non-Repetitive 2900 5µs Sine or 3µs Rect. pulse
FSM
Surge Current * See Fig. 7 400 10ms Sine or 6ms Rect. pulse
EASNon-Repetitive Avalanche Energy 4.50 mJ T
A
= 25 °C, I
J
= 1 Amps, L = 9 mH
AS
IARRepetitive Avalanche Current 1 A Current decaying linearly to zero in 1 µsec
Frequency limited by T
max. VA = 3 x VR typical
J
Following any rated
load condition and
with rated V
RRM
applied
Electrical Specifications
Parameters 95SQ Units Conditions
VFMMax. Forward Voltage Drop (1) 0.31 V @ 9A
* See Fig. 1 0.37 V @ 18A
0.25 V @ 9A
0.31 V @ 18A
IRMMax. Reverse Leakage Current (1) 7 mA TJ = 25 °C
* See Fig. 2 348 mA TJ = 100 °C
310 mA TJ = 100 °C VR = 12V
190 mA TJ = 100 °C VR = 5V
CTMax. Junction Capacitance 1300 pF VR = 5VDC, (test signal range 100Khz to 1Mhz) 25 °C
LSTypical Series Inductance 10.0 nH Measured lead to lead 5mm from body
dv/dt Max. Voltage Rate of Change 10000 V/ µs
(Rated VR)
TJ = 25 °C
TJ = 75 °C
VR = rated V
(1) Pulse Width < 300µs, Duty Cycle < 2%
R
Thermal-Mechanical Specifications
Parameters 95SQ Units Conditions
TJMax. Junction Temperature Range -55 to 125 °C
T
Max. Storage Temperature Range -55 to 150 °C
stg
R
Max. Thermal Resistance Junction 8.0 °C/W DC operation * See Fig. 4
thJL
to Lead 1/8 inch lead leangth
R
Typical Thermal Resistance, 44 °C/W
thJA
Junction to Air
wt Approximate Weight 1.4(0.049) g (oz.)
Case Style DO - 204AR JEDEC
2
www.irf.com
Page 3
95SQ015
8
5
Bulletin PD-2.273 rev. C 05/02
100
10
F
T = 100°C
J
T = 75°C
J
T = 25°C
J
1
Instantaneous Forward Current - I (A)
1000
T = 100°C
J
100
R
10
1
Reverse Current - I (mA)
.1
05101
75°C
50°C
25°C
Reverse Volt age - V (V)
R

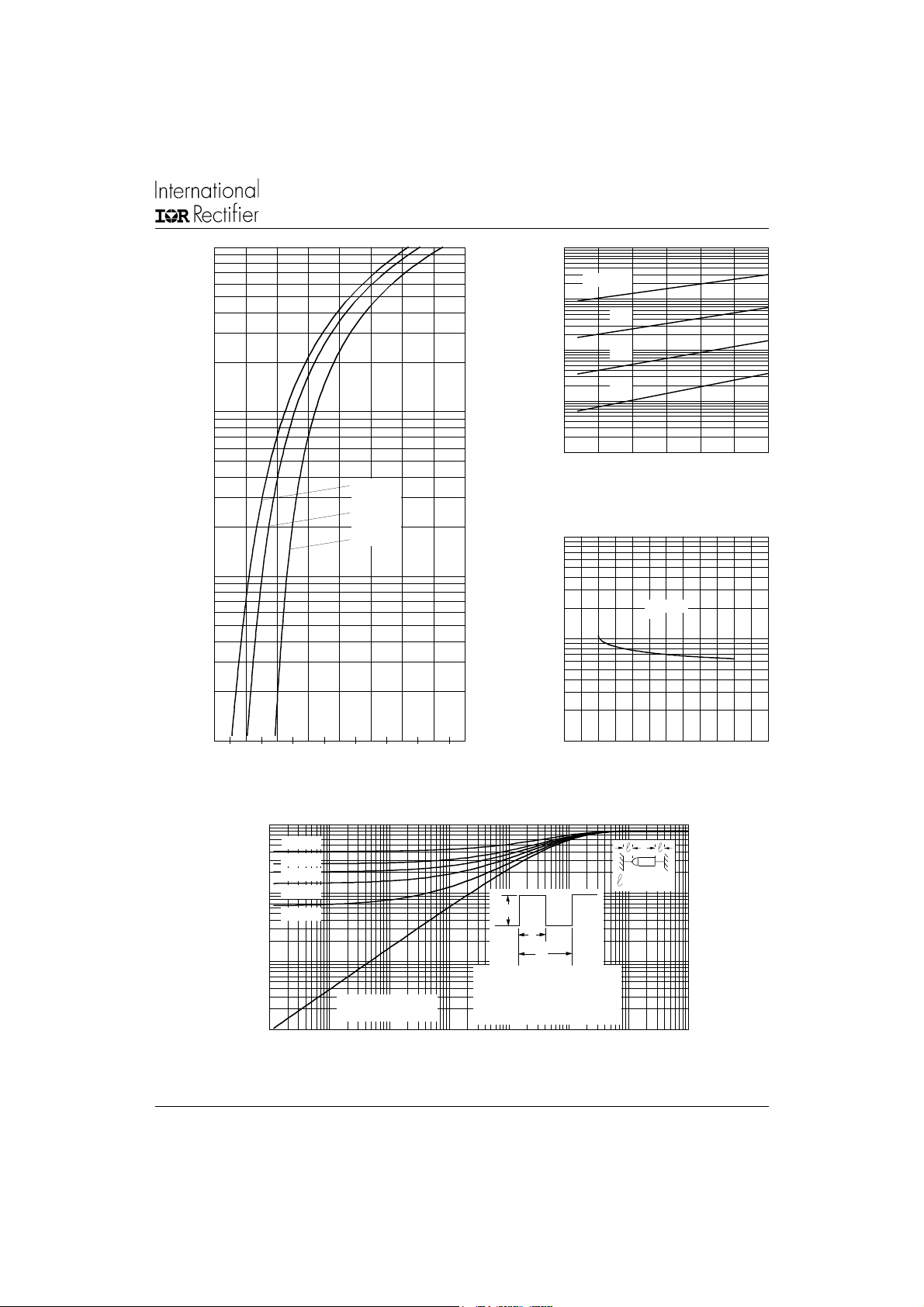

Fig. 2 - Typical Values of Reverse Current
Vs. Reverse Voltage
10000
T
1000
T = 25°C
J
.1
0.1.2.3.4.5.6.7.
Forward Vol tage Dr op - V (V)
FM
Fig. 1 - Maximum Forward Voltage Drop Characteristics
10
D = 0. 50
D = 0.33
D = 0.25
D = 0.17
1
thJL
D = 0.08
.1
Ther mal Impedance - Z (°C/W)
.01
.00001 .0001 . 001 .01 .1 1 10 100
Single Pulse
(Thermal Resist ance)
t , Rect angular Pulse Durat ion ( Seconds)
1
Fig. 4 - Maximum Thermal Impedance Z
www.irf.com
Junction Capacitance - C (pF)
100
0 5 10 15 20 25 30
Fig. 3 - Typical Junction Capacitance
P
DM
t
1
t
Not es:
1. Duty factor D = t / t
2. Peak T = P x Z + T
2
JDM
Characteristics
thJL
1
2
thJL
Reverse Vol tage - V (V)
R
Vs. Reverse Voltage
= 1/ 8 in ch
C
3
Page 4
95SQ015
Bulletin PD-2.273 rev. C 05/02
105
100
95
90
85
80
75
Allowable Case Temperature - (°C)
= 1/8 inch
70
02468101214
Average Forward Current - I (A)
95SQ015
R (DC) = 8. 0° C/W
thJL
DC
F( AV)

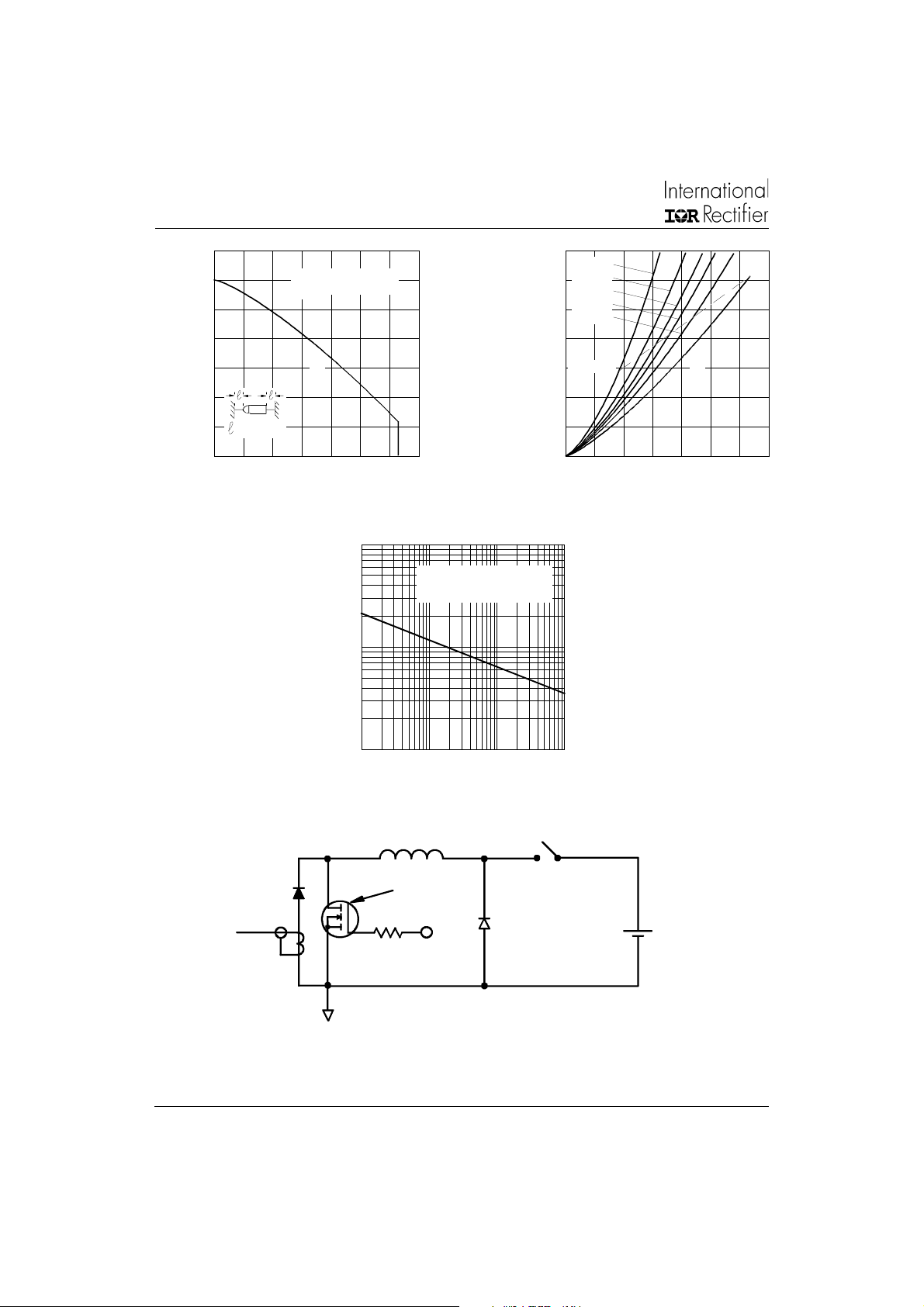

Fig. 5 - Maximum Allowable Case Temperature
Vs. Average Forward Current
10000
FSM
1000
Average Power Loss - (Watts)
At Any Rated Load Condition
And With Rated V Applied
Following Surge
RRM
3.5
D = 0. 08
D = 0. 17
3
D = 0. 25
D = 0. 33
2.5
D = 0. 50
2
RMS Li mit
1.5
1
.5
0
0 2 4 6 8 10 12 14
Average Forward Current - I (A)
DC
F(AV)
Fig. 6 - Forward Power Loss Characteristics
Non-Repetitive Surge Current - I (A)
100
10 100 1000 10000
Square Wave Pulse Duration - t (microsec)
p
Fig. 7 - Maximum Non-Repetitive Surge Current
L
HIG H-SPEED
SW ITCH
FREE-WHEEL
D IO D E
40HFL40S02
Vd = 25 Volt
+
CURRENT
MONITOR
DUT
IRFP460
Rg = 25 ohm
Fig. 8 - Unclamped Inductive Test Circuit
4
www.irf.com
Page 5
Ordering Information Table
Device Code
95SQ015
Bulletin PD-2.273 rev. C 05/02
95 S Q 015 TR
1 243
1 - 95 = current x 10
2 - S = DO-204AR
3 - Q = Schottky Q Series
4 - Voltage Rating (15V)
5 - TR = Tape & Reel package (1500 pcs)
- = Box package (200 pcs)
5
This product has been designed and qualified for Industrial Level.
Data and specifications subject to change without notice.
Qualification Standards can be found on IR's Web site.
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7309
Visit us at www.irf.com for sales contact information. 05/02
www.irf.com
