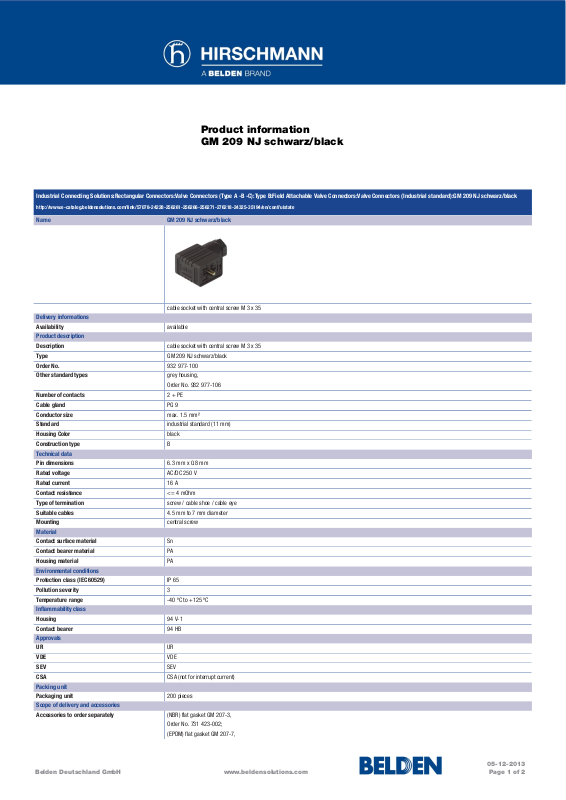

Datasheet 932 977-100 Specification

Product information
GM 209 NJ schwarz/black

Industrial Connecting Solutions:Rectangular Connectors:Valve Connectors (Type A -B -C):Type B:Field Attachable Valve Connectors:Valve Connectors (Industrial standard):GM 209 NJ schwarz/black

http://www.e-catalog.beldensolutions.com/link/57078-24228-256261-256266-256271-276218-24325-35194/en/conf/uistate

Name GM 209 NJ schwarz/black



Delivery informations

Availability available

Product description

Description cable socket with central screw M 3 x 35

Type GM 209 NJ schwarz/black

Order No. 932 977-100

Other standard types grey housing,

Number of contacts 2 + PE

Cable gland PG 9

Conductor size max. 1.5 mm²

Standard industrial standard (11 mm)

Housing Color black

Construction type B

Technical data

Pin dimensions 6.3 mm x 0.8 mm

Rated voltage AC/DC 250 V

Rated current 16 A

Contact resistance <= 4 mOhm

Type of termination screw / cable shoe / cable eye

Suitable cables 4.5 mm to 7 mm diameter

Mounting central screw

Material

Contact surface material Sn

Contact bearer material PA

Housing material PA

Environmental conditions

Protection class (IEC 60529) IP 65

Pollution severity 3

Temperature range -40 ºC to +125 ºC

Inflammability class

Housing 94 V-1

Contact bearer 94 HB

Approvals

UR UR

VDE VDE

SEV SEV

CSA CSA (not for interrupt current)

Packing unit

Packaging unit 200 pieces

Scope of delivery and accessories

Accessories to order separately (NBR) flat gasket GM 207-3,

cable socket with central screw M 3 x 35

Order No. 932 977-106

Order No. 731 423-002;

(EPDM) flat gasket GM 207-7,



Belden Deutschland GmbH  www.beldensolutions.com



05-12-2013

Page1of2



Industrial Connecting Solutions:Rectangular Connectors:Valve Connectors (Type A -B -C):Type B:Field Attachable Valve Connectors:Valve Connectors (Industrial standard):GM 209 NJ schwarz/black

http://www.e-catalog.beldensolutions.com/link/57078-24228-256261-256266-256271-276218-24325-35194/en/conf/uistate

Order No. 731 755-004;

knurled screw GDM 3011-8,

Order No. 732 574-001;

stainless steel screw GDM 3011 RF-1,


Drawing

Order No. 734 363-001

Belden Deutschland GmbH

Im Gewerbepark 2

58579 Schalksmühle

Germany

Phone: [phone]

E-Mail: [e-mail]

The information published in the websites has been compiled as carefully as possible. It is subject to alteration without notice in technical as well as in price-related/commercial respect.

The complete information and data were available on user documentation. Mandatory information can only be obtained by a concrete query.


