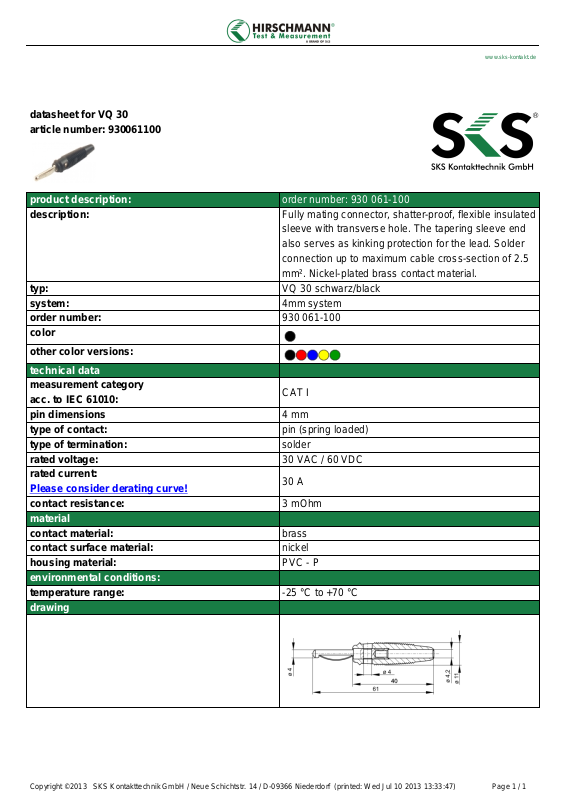

datasheet for VQ 30
article number: 930061100
product description: order number: 930 061-100
description: Fully mating connector, shatter-proof, flexible insulated
sleeve with transverse hole. The tapering sleeve end
also serves as kinking protection for the lead. Solder
connection up to maximum cable cross-section of 2.5
mm². Nickel-plated brass contact material.
typ: VQ 30 schwarz/black
system: 4mm system
order number: 930 061-100
color
other color versions:
technical data
measurement category
acc. to IEC 61010:
CAT I
pin dimensions 4 mm
type of contact: pin (spring loaded)
type of termination: solder
rated voltage: 30 VAC / 60 VDC
rated current:
Please consider derating curve!
30 A
contact resistance: 3 mOhm
material
contact material: brass
contact surface material: nickel
housing material: PVC - P
environmental conditions:
temperature range: -25 °C to +70 °C
drawing
