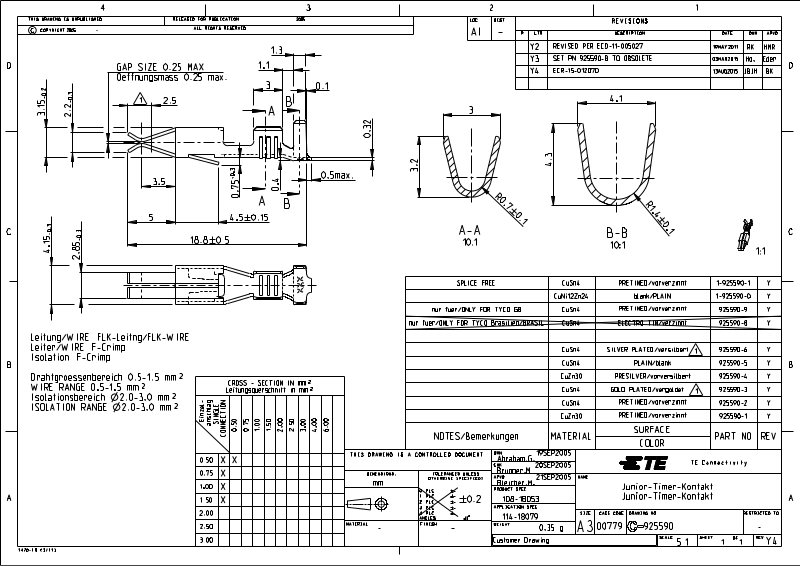

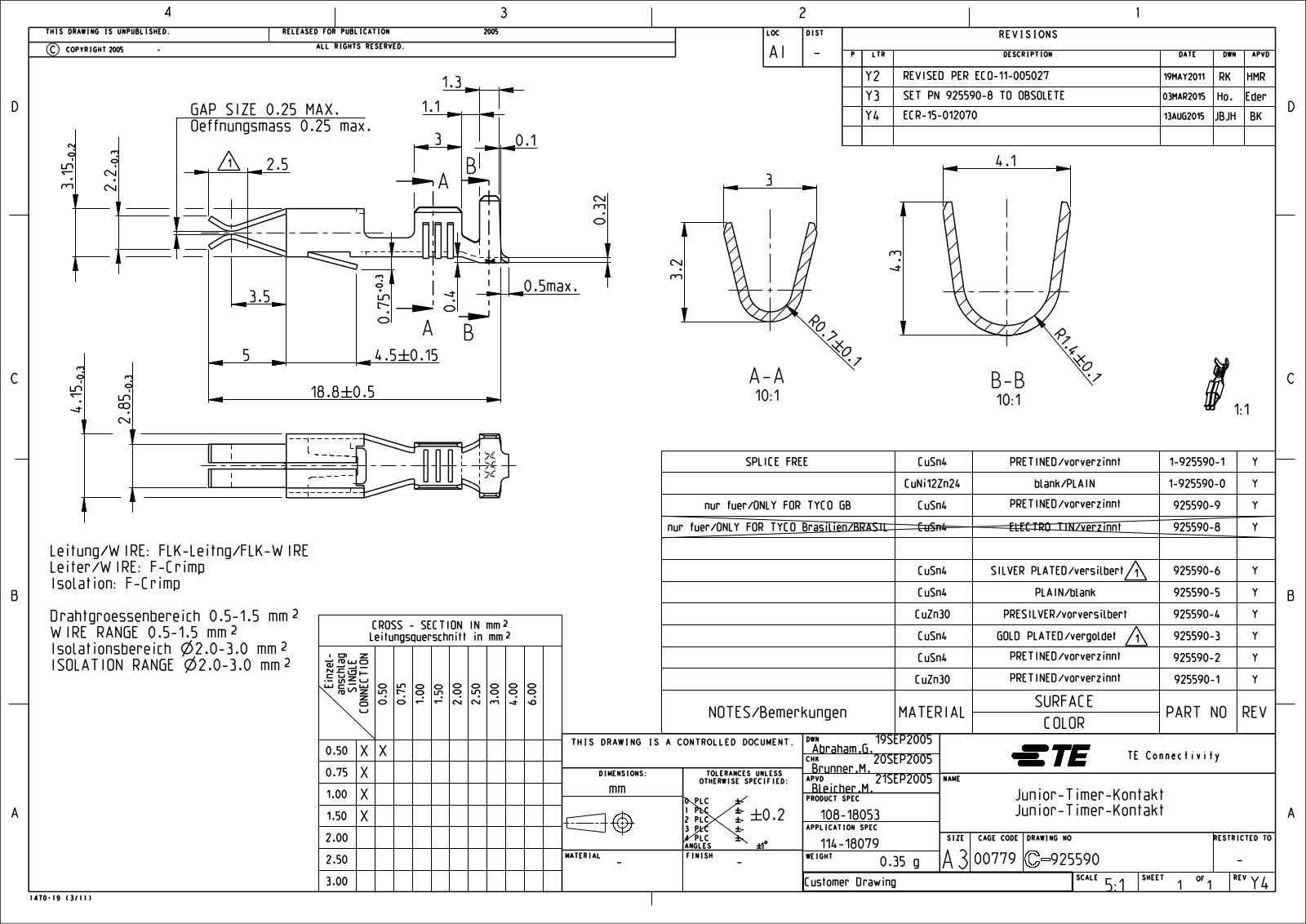

Page 1
THIS DRAWING IS UNPUBLISHED.
C
COPYRIGHT
2005
4
RELEASED FOR PUBLICATION
-
ALL RIGHTS RESERVED.
3
2005
2 1
LOC DIST
AI -
P LTR DATE
REVISIONS
DESCRIPTION
DWN
APVD
1.3
Y2
Y3
D D
GAP SIZE 0.25 MAX.
1.1
Y4
REVISED PER ECO-11-005027
SET PN 925590-8 TO OBSOLETE
ECR-15-012070
19MAY2011
03MAR2015
13AUG2015
RK HMR
Ho. Eder
JBJH BK
Oeffnungsmass 0.25 max.
-0.2
3.15
-0.3
2.2
3
1
2.5
0.1
4.1
3
0.32
4.3
+0.3
3.2
max.0.5
3.5
0.4
0.75
R0.7
R1.4
5
C
-0.3
-0.3
18.8 0.5
4.5 0.15
A-A
10:1
4.15
2.85
0.1
0.1
B-B
10:1
1:1
C
B
A
1470-19 (3/11)
Leitung/WIRE: FLK-Leitng/FLK-WIRE
Leiter/WIRE: F-Crimp
Isolation: F-Crimp
Drahtgroessenbereich 0.5-1.5 mm²
WIRE RANGE 0.5-1.5 mm²
Isolationsbereich n2.0-3.0 mm²
ISOLATION RANGE n2.0-3.0 mm²
Einzel-
anschlag
0.50
0.75
1.00
1.50
2.00
2.50
3.00
CROSS - SECTION IN mm²
Leitungsquerschnitt in mm²
SINGLE
0.50
0.75
1.00
1.50
2.00
2.50
CONNECTION
X
X
3.00
X
X
X
4.00
6.00
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
mm
MATERIAL FINISH
- -
SPLICE FREE CuSn4 PRETINED/vorverzinnt 1-925590-1 Y
CuNi12Zn24 blank/PLAIN 1-925590-0 Y
nur fuer/ONLY FOR TYCO GB CuSn4
nur fuer/ONLY FOR TYCO Brasilien/BRASIL CuSn4 ELECTRO TIN/verzinnt 925590-8 Y
CuSn4 SILVER PLATED/versilbert 925590-6 Y
CuSn4 PLAIN/blank 925590-5 Y
CuZn30 PRESILVER/vorversilbert 925590-4 Y
CuSn4 GOLD PLATED/vergoldet 925590-3 Y
CuSn4
CuZn30
PRETINED/vorverzinnt
PRETINED/vorverzinnt
PRETINED/vorverzinnt
925590-9 Y
1
1
925590-2 Y
925590-1 Y
SURFACE
NOTES/Bemerkungen MATERIAL PART NO REV
COLOR
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
DWN
Abraham,G.
CHK
Brunner,M.
APVD
Bleicher,M.
-
-
-
-
1$
PRODUCT SPEC
108-18053
APPLICATION SPEC
114-18079
WEIGHT
Customer Drawing
19SEP2005
20SEP2005
21SEP2005
0.35 g
NAME
Junior-Timer-Kontakt
Junior-Timer-Kontakt
SIZE CAGE CODE DRAWING NO
A3
00779
925590
SCALE SHEET
TE Connectivity
5:1
OF
1 1
RESTRICTED TO
-
REV
B
A
Y4
