Page 1

 

87C528

CMOS single-chip 8-bit microcontroller

Product specification 1996 Aug 16

INTEGRATED CIRCUITS

IC20 Data Handbook

Page 2

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16 853–1687 17197

DESCRIPTION

The 87C528 single-chip 8-bit microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. The 87C528 has the same instruction set as the 80C51. Three versions of the derivative exist:

•83C528—32k bytes mask programmable ROM

•80C528—ROMless version of the 83C528

•87C528—32k bytes EPROM

This device provides architectural enhancements that make it applicable in a variety of applications in consumer, telecom and general control systems, especially in those systems which need large ROM and RAM capacity on-chip.

The 87C528 contains a 32k × 8 EPROM, a 512 × 8 RAM, four 8-bit I/O ports, two 16-bit timer/event counters (identical to the timers of the 80C51), a 16-bit timer (identical to the timer 2 of the 80C52), a watchdog timer with a separate oscillator, a multi-source, two-priority-level, nested interrupt structure, two serial interfaces (UART and I

C-bus), and on-chip oscillator and timing circuits.

In addition, the 87C528 has two software selectable modes of power reduction—idle mode and power-down mode. The idle mode freezes the CPU while allowing the RAM, timers, serial port, and interrupt system to continue functioning. The power-down mode saves the RAM contents but freezes the oscillator, causing all other chip functions to be inoperative.

FEATURES

•80C51 instruction set

– 32k × 8 EPROM – 512 × 8 RAM – Memory addressing capability

64k ROM and 64k RAM

– Three 16-bit counter/timers – On-chip watchdog timer with oscillator – Full duplex UART – I

C serial interface

•Power control modes:

– Idle mode – Power-down mode – Warm start from power-down

•CMOS and TTL compatible

•Extended temperature ranges

•EPROM code protection

•OTP package available

•Two speed ranges at V

= 5V

– 16MHz – 20MHz

PIN CONFIGURATIONS

1 2 3

4 5

6 7 8

9 10 11 12 13 14 15 16 17 18 19 20

T2/P1.0

T2EX/P1.1

P1.2

P1.3 P1.4

P1.5

SCL/P1.6

RST RxD/P3.0 TxD/P3.1

INT0

/P3.2

INT1

/P3.3 T0/P3.4 T1/P3.5

SDA/P1.7

/P3.6

/P3.7

XTAL2 XTAL1

P2.0/A8

P2.1/A9

P2.2/A10

P2.3/A11

P2.4/A12

P2.5/A13

P2.6/A14

P2.7/A15

PSEN

ALE

P0.7/AD7

P0.6/AD6

P0.5/AD5

P0.4/AD4

P0.3/AD3

P0.2/AD2

P0.1/AD1

P0.0/AD0

DUAL

IN-LINE

PACKAGE

QUAD

FLAT

PACK

12 22

PLASTIC LEADED

CHIP

CARRIER

6 1 40

18 28

SU00162

Page 3

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

BLOCK DIAGRAM

PROGRAMMABLE I/O

CPU

T0 T1

COUNTERS

XTAL2 XTAL1

INT0

INT1

CONTROL

SERIAL IN SERIAL OUT

OSCILLATOR

AND

TIMING

PROGRAM

MEMORY

(32K x 8

EPROM)

RAM AUX–RAM

DATA

MEMORY

(256 x 8)

TWO 16-BIT

TIMER/EVENT

COUNTERS

DATA

MEMORY

(256 x 8)

16-BIT TIMER/

EVENT COUNTER

WATCHDOG

TIMER

64K-BYTE BUS

EXPANSION

CONTROL

PROGRAMMABLE

SERIAL PORT

FULL DUPLEX UART

SYNCHRONOUS SHIFT

BIT-LEVEL

INTERFACE

FREQUENCY REFERENCE

T2 T2EX

RST

EXTERNAL

INTERRUPTS

PARALLEL PORTS,

ADDRESS/DATA BUS

AND I/O PINS

SHARED WITH

PORT 3

INTERNAL

INTERRUPTS

SDA SCL

SU00166

Page 4

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

ORDERING INFORMATION

PHILIPS

PART ORDER NUMBER

PART MARKING

PHILIPS NORTH AMERICA

PART ORDER

NUMBER

ROMless ROM ROMless ROM

Drawing

Number

TEMPERATURE oC RANGE

AND PACKAGE

FREQ

MHz

P80C528FBP P83C528FBP/xxx P80C528FBP N P83C528FBP N SOT129-1 0 to +70, Plastic Dual In-line Package 16

P80C528FBA P83C528FBA/xxx P80C528FBA A P83C528FBA A SOT187-2 0 to +70, Plastic Leaded Chip Carrier 16

P80C528FBB P83C528FBB/xxx P80C528FBB B P83C528FBB B SOT307-2

0 to +70, Plastic Quad Flat Pack 16

P80C528FFP P83C528FFP/xxx P80C528FFP N P83C528FFP N SOT129-1 –40 to +85, Plastic Dual In-line Package 16

P80C528FFA P83C528FFA/xxx P80C528FFA A P83C528FFA A SOT187-2 –40 to +85, Plastic Leaded Chip Carrier 16 P80C528FFB P83C528FFB/xxx P80C528FFB B P83C528FFB B SOT307-2

–40 to +85, Plastic Quad Flat Pack 16 P80C528FHP P83C528FHP/xxx P80C528FHP N P83C528FHP N SOT129-1 –40 to +125, Plastic Dual In-line Package 16 P80C528FHA P83C528FHA/xxx P80C528FHA A P83C528FHA A SOT187-2 –40 to +125, Plastic Leaded Chip Carrier 16 P80C528FHB P83C528FHB/xxx P80C528FHB B P83C528FHB B SOT307-2

–40 to +125, Plastic Quad Flat Pack 16

NOTE:

1. xxx denotes the ROM code number.

2. SOT311 replaced by SOT307-2.

Page 5

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

EPROM

Drawing

Number

TEMPERATURE oC RANGE

AND PACKAGE

FREQ

MHz

P87C528EBP N SOT129-1 0 to +70, Plastic Dual In-line Package 16 P87C528EBF FA 0590B

0 to +70, Ceramic Dual In-line Package

w/Window

16 P87C528EBA A SOT187-2 0 to +70, Plastic Leaded Chip Carrier 16 P87C528EBL KA 1472A

0 to +70, Ceramic Leaded Chip Carrier

w/Window

16 P87C528EBB B SOT307-2

0 to +70, Plastic Quad Flat Pack 16

P87C528EFP N SOT129-1 –40 to +85, Plastic Dual In-line Package 16 P87C528EFF FA 0590B

–40 to +85, Ceramic Dual In-line Package

w/Window

16 P87C528EFA A SOT187-2 –40 to +85, Plastic Leaded Chip Carrier 16

P87C528EFB B SOT307-2

–40 to +85, Plastic Quad Flat Pack 16

P87C528GBP N SOT129-1 0 to +70, Plastic Dual In-line Package 20 P87C528GBF FA 0590B

0 to +70, Ceramic Dual In-line Package

w/Window

20 P87C528GBA A SOT187-2 0 to +70, Plastic Leaded Chip Carrier 20 P87C528GBL KA 1472A

0 to +70, Ceramic Leaded Chip Carrier

w/Window

20 P87C528GFP N SOT129-1 –40 to +85, Plastic Dual In-line Package 20 P87C528GFF FA 0590B

–40 to +85, Ceramic Dual In-line Package

w/Window

20 P87C528GFA A SOT187-2 –40 to +85, Plastic Leaded Chip Carrier 20

Page 6

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

CERAMIC AND PLASTIC LEADED CHIP CARRIER PIN FUNCTIONS

LCC

6 1 40

18 28

Pin Function

1 NC* 2 P1.0/T2 3 P1.1/T2EX 4 P1.2 5 P1.3 6 P1.4 7 P1.5 8 P1.6/SCL

9 P1.7/SDA 10 RST 11 P3.0/RxD 12 NC* 13 P3.1/TxD 14 P3.2/INT0 15 P3.3/INT1 16 P3.4/T0 17 P3.5/T1 18 P3.6/WR 19 P3.7/RD 20 XTAL2 21 XTAL1 22 V

Pin Function

23 NC* 24 P2.0/A8 25 P2.1/A9 26 P2.2/A10 27 P2.3/A11 28 P2.4/A12 29 P2.5/A13 30 P2.6/A14 31 P2.7/A15 32 PSEN 33 ALE 34 NC* 35 EA 36 P0.7/AD7 37 P0.6/AD6 38 P0.5/AD5 39 P0.4/AD4 40 P0.3/AD3 41 P0.2/AD2 42 P0.1/AD1 43 P0.0/AD0 44 V

SU00163A

* DO NOT CONNECT

PLASTIC QUAD FLAT PACK PIN FUNCTIONS

QFP

44 34

12 22

Pin Function

1 P1.5 2 P1.6/SCL 3 P1.7/SDA 4 RST 5 P3.0/RxD 6 NC* 7 P3.1/TxD 8 P3.2/INT0

9 P3.3/INT1 10 P3.4/T0 11 P3.5/T1 12 P3.6/WR 13 P3.7/RD 14 XTAL2 15 XTAL1 16 V

17 NC* 18 P2.0/A8 19 P2.1/A9 20 P2.2/A10 21 P2.3/A11 22 P2.4/A12

Pin Function

23 P2.5/A13 24 P2.6/A14 25 P2.7/A15 26 PSEN 27 ALE 28 NC* 29 EA 30 P0.7/AD7 31 P0.6/AD6 32 P0.5/AD5 33 P0.4/AD4 34 P0.3/AD3 35 P0.2/AD2 36 P0.1/AD1 37 P0.0/AD0 38 V

39 NC* 40 P1.0/T2 41 P1.1/T2EX 42 P1.2 43 P1.3 44 P1.4

SU00164

* DO NOT CONNECT

LOGIC SYMBOL

PORT 0

PORT 1PORT 2

PORT 3

ADDRESS AND

DATA BUS

ADDRESS BUS

T2 T2EX

RxD TxD

INT0 INT1

T0 T1

SECONDARY FUNCTIONS

RST

PSEN

ALE

XTAL1

XTAL2

SCL SDA

SU00165

Page 7

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

PIN DESCRIPTION

PIN NO.

MNEMONIC DIP LCC QFP TYPE NAME AND FUNCTION

20 22 16 I Ground: circuit ground potential.

40 44 38 I Power Supply: +5V power supply pin during normal operation, Idle mode and

Power-down mode.

P0.0–0.7 39–32 43–36 37–30 I/O Port 0: Port 0 is an open-drain, bidirectional I/O port. Port 0 pins that have 1s written to

them float and can be used as high-impedance inputs. Port 0 is also the multiplexed low-order address and data bus during accesses to external program and data memory. In this application, it uses strong internal pull-ups when emitting 1s.

P1.0–P1.7 1–8 2–9 40–44

1–3

I/O Port 1: Port 1 is an 8-bit bidirectional I/O port with internal pull-ups, except P1.6 and P1.7

which have open drain. Port 1 pins that have 1s written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 1 pins that are externally pulled low will source current because of the internal pull-ups. (See DC Electrical Characteristics: I

). Port 1 can sink/source one TTL (4 LSTTL) inputs. Port 1 receives the low-order address byte during program memory verification. Port 1 also serves alternate functions for timer 2:

1 2 40 I T2 (P1.0): Timer/counter 2 external count input (following edge triggered). 2 3 41 I T2EX (P1.1): Timer/counter 2 trigger input. 7 8 2 I/O SCL (P1.6): I2C serial port clock line. 8 9 3 I/O SDA (P1.7): I2C serial port data line.

P2.0–P2.7 21–28 24–31 18–25 I/O Port 2: Port 2 is an 8-bit bidirectional I/O port with internal pull-ups. Port 2 pins that have

1s written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 2 pins that are externally being pulled low will source current because of the internal pull-ups. (See DC Electrical Characteristics: I

). Port 2 emits the high-order address byte during fetches from external program memory and during accesses to external data memory that use 16-bit addresses (MOVX @DPTR). In this application, it uses strong internal pull-ups when emitting 1s. During accesses to external data memory that use 8-bit addresses (MOV @Ri), port 2 emits the contents of the P2 special function register.

P3.0–P3.7 10–17 11,

13–19

7–13

I/O Port 3: Port 3 is an 8-bit bidirectional I/O port with internal pull-ups. Port 3 pins that have

1s written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 3 pins that are externally being pulled low will source current because of the pull-ups. (See DC Electrical Characteristics: I

). Port 3 also serves the special features of

the SC80C51 family, as listed below:

10 11 5 I RxD (P3.0): Serial input port 11 13 7 O TxD (P3.1): Serial output port 12 14 8 I INT0 (P3.2): External interrupt 13 15 9 I INT1 (P3.3): External interrupt 14 16 10 I T0 (P3.4): Timer 0 external input 15 17 11 I T1 (P3.5): Timer 1 external input 16 18 12 O WR (P3.6): External data memory write strobe 17 19 13 O RD (P3.7): External data memory read strobe

RST 9 10 4 I/O Reset: A high on this pin for two machine cycles while the oscillator is running, resets the

device. An internal diffused resistor to V

permits a power-on reset using only an external

capacitor to V

. After a watchdog timer overflow, this pin is pulled high while the internal

reset signal is active.

ALE 30 33 27 I/O Address Latch Enable: Output pulse for latching the low byte of the address during an

access to external memory. In normal operation, ALE is emitted at a constant rate of 1/6 the oscillator frequency, and can be used for external timing or clocking. Note that one ALE pulse is skipped during each access to external data memory.

PSEN 29 32 26 O Program Store Enable: The read strobe to external program memory. When the device is

executing code from the external program memory, PSEN

is activated twice each machine

cycle, except that two PSEN

activations are skipped during each access to external data

memory. PSEN

is not activated during fetches from internal program memory.

EA 31 35 29 I External Access Enable: EA must be externally held low during RESET to enable the

device to fetch code from external program memory locations 0000H to 7FFFH. If EA

is held high during RESET, the device executes from internal program memory unless the program counter contains an address greater than 7FFFH. EA

is don’t care after RESET.

XTAL1 19 21 15 I Crystal 1: Input to the inverting oscillator amplifier and input to the internal clock generator

circuits.

XTAL2 18 20 14 O Crystal 2: Output from the inverting oscillator amplifier.

Page 8

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

Table 1. 8XC524/8XC528 Special Function Registers

SYMBOL DESCRIPTION

DIRECT

ADDRESS

BIT ADDRESS, SYMBOL, OR ALTERNATIVE PORT FUNCTION MSB LSB

RESET VALUE

ACC* Accumulator E0H E7 E6 E5 E4 E3 E2 E1 E0 00H B* B register F0H F7 F6 F5 F4 F3 F2 F1 F0 00H DPTR:

DPH DPL

Data pointer (2 bytes):

Data pointer high Data pointer low

83H 82H

00H 00H

AF AE AD AC AB AA A9 A8

IE*# Interrupt enable A8H EA ES1 ET2 ES0 ET1 EX1 ET0 EX0 00H

BF BE BD BC BB BA B9 B8

IP*# Interrupt priority B8H – PS1 PT2 PS0 PT1 PX1 PT0 PX0 x0000000B

87 86 85 84 83 82 81 80

P0* Port 0 80H AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0 FFH

97 96 95 94 93 92 91 90

P1* Port 1 90H SDA SEL – – – – T2EX T2 FFH

A7 A6 A5 A4 A3 A2 A1 A0

P2* Port 2 A0H A15 A14 A13 A12 A11 A10 A9 A8 FFH

B7 B6 B5 B4 B3 B2 B1 B0 P3* Port 3 B0H RD WR T1 T0 INT1 INT0 TxD RxD FFH PCON Power control 87H SMOD – – – GF1 GF0 PD IDL 0xxx0000B

D7 D6 D5 D4 D3 D2 D1 D0 PSW* Program status word D0H CY AC F0 RS1 RS0 OV F1 P 00H RCAP2H#

RCAP2L# SBUF

Capture high Capture low Serial data buffer

CBH CAH

99H

00H 00H xxxxxxxxB

9F 9E 9D 9C 9B 9A 99 98 SCON* Serial controller 98H SM0 SM1 SM2 REN TB8 RB8 TI RI 00H S1BIT# Serial I2C data D9H/RD SDI 0 0 0 0 0 0 0 x0000000B

WR SD0 X X X X X X X 0xxxxxxxB

S1INT# Serial I2C interrupt DAH INT X X X X X X X 0xxxxxxxB

DF DE DD DC DB DA D9 D8 S1SCS*# Serial I2C control D8H/RD SDI SCI CLH BB RBF WBF STR ENS xxxx0000B

WR SD0 SC0 CLH X X X STR ENS 00xxxx00B

SP Stack pointer 81H 07H

8F 8E 8D 8C 8B 8A 89 88 TCON* Timer control 88H TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0 00H

CF CE CD CC CB CA C9 C8 T2CON*# Timer 2 control C8H TF2 EXF2 RCLK TCLK EXEN2 TR2 C/T2

CP/RL2

00H

TH0 TH1 TH2# TL0 TL1 TL2# T3#

Timer high 0 Timer high 1 Timer high 2 Timer low 0 Timer low 1 Timer low 2 Watchdog timer

8CH 8DH CDH 8AH 8BH CCH FFH

00H 00H 00H 00H 00H 00H

00H TMOD Timer mode 89H GATE C/T M1 M0 GATE C/T M1 M0 00H WDCON# Watchdog control A5H A5H

* SFRs are bit addressable. # SFRs are modified from or added to the 80C51 SFRs.

Page 9

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

Table 2. Internal and External Program Memory Access with Security Bit Set

INSTRUCTION

ACCESS TO INTERNAL

PROGRAM MEMORY

ACCESS TO EXTERNAL

PROGRAM MEMORY

MOVC in internal program memory YES YES MOVC in external program memory NO YES

INTERNAL DATA MEMORY

The internal data memory is divided into three physically separated segments: 256 bytes of RAM, 256 bytes of AUX-RAM, and a 128 bytes special function area. These can be addressed each in a different way. – RAM 0 to 127 can be addressed directly and indirectly as in the

80C51. Address pointers are R0 and R1 of the selected register bank.

– RAM 128 to 255 can only be addressed indirectly as in the 80C51.

Address pointers are R0 and R1 of the selected register bank.

– AUX-RAM 0 to 255 is indirectly addressed in the same way as

external data memory with the MOVX instructions. Address pointers are R0, R1 of the selected register bank and DPTR. An access to AUX-RAM 0 to 255 will not affect ports P0, P2, P3.6 and P3.7.

An access to external data memory locations higher than 255 will be performed with the MOVX DPTR instructions in the same way as in the 8051 structure, so with P0 and P2 as data/address bus and P3.6 and P3.7 as write and read timing signals. Note that these external data memory cannot be accessed with R0 and R1 as address pointer.

TIMER 2

Timer 2 is functionally equal to the Timer 2 of the 8052AH. Timer 2 is a 16-bit timer/counter. These 16 bits are formed by two special function registers TL2 and TH2. Another pair of special function register RCAP2L and RCAP2H form a 16-bit capture register or a 16-bit reload register. Like Timer 0 and 1, it can operate either as a timer or as an event counter. This is selected by bit C/T2N in the special function register T2CON. It has three operating modes: capture, autoload, and baud rate generator mode which are selected by bits in T2CON.

WATCHDOG TIMER T3

The watchdog timer consists of an 11-bit prescaler and an 8-bit timer formed by special function register T3. The prescaler is incremented by an on-chip oscillator with a fixed frequency of 1MHz. The maximum tolerance on this frequency is –50% and +100%. The 8-bit timer increments every 2048 cycles of the on-chip oscillator. When a timer overflow occurs, the microcontroller is reset and a reset output pulse of 16 × 2048 cycles of the on-chip oscillator is generated at pin RST. The internal RESET signal is not inhibited when the external RST pin is kept low by, for example, an external reset circuit. The RESET signal drives port 1, 2, 3 into the high state and port 0 into the high impedance state.

The watchdog timer is controlled by one special function register WDCON with the direct address location A5H. WDCON can be read and written by software. A value of A5H in WDCON halts the on-chip oscillator and clears both the prescaler and timer T3. After the RESET signal, WDCON contains A5H. Every value other than A5H in WDCON enables the watchdog timer. When the watchdog timer is enabled, it runs independently of the XTAL-clock.

Timer T3 can be read on the fly. Timer T3 can only be written if WDCON contains the value 5AH. A successful write operation to T3 will clear the prescaler and WDCON, leaving the watchdog enabled and preventing inadvertent changes of T3. To prevent an overflow of

the watchdog timer, the user program has to reload the watchdog timer within periods that are shorter than the programmed watchdog timer internal. This time interval is determined by an 8-bit value that has to be loaded in register T3 while at the same time the prescaler is cleared by hardware.

Watchdog timer interval =

[256  (T3)]  2048

on  chip oscillator frequency

BIT-LEVEL I2C INTERFACE

This bit-level serial I/O interface supports the I2C-bus. P1.6/SCL and P1.7/SDA are the serial I/O pins. These two pins meet the I

C specification concerning the input levels and output drive capability. Consequently, these pins have an open drain output configuration. All the four modes of the I

C-bus are supported:

– master transmitter – master receiver – slave transmitter – slave receiver

The advantages of the bit-level I

C hardware compared with a full software I2C implementation are: – the hardware can generate the SCL pulse

– Testing a single bit (RBF respectively, WBF) is sufficient as a

check for error free transmission.

The bit-level I

C hardware operates on serial bit level and performs the following functions: – filtering the incoming serial data and clock signals

– recognizing the START condition – generating a serial interrupt request SI after reception of a START

condition and the first falling edge of the serial clock – recognizing the STOP condition – recognizing a serial clock pulse on the SCL line – latching a serial bit on the SDA line (SDI) – stretching the SCL LOW period of the serial clock to suspend the

transfer of the next serial data bit – setting Read Bit Finished (RBF) when the SCL clock pulse has

finished and Write Bit Finished (WBF) if there is no arbitration loss

detected (i.e., SDA = 0 while SDO = 1) – setting a serial clock Low-to-High detected (CLH) flag – setting a Bus Busy (BB) flag on a START condition and clearing

this flag on a STOP condition – releasing the SCL line and clearing the CLH, RBF and WBF flags

to resume transfer of the next serial data bit – generating an automatic clock if the single bit data register S1BIT

is used in master mode. The following functions must be done in software:

– handling the I

C START interrupts – converting serial to parallel data when receiving – converting parallel to serial data when transmitting – comparing the received slave address with its own – interpreting the acknowledge information – guarding the I

C status if RBF or WBF = 0.

Page 10

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

Additionally, if acting as master: – generating START and STOP conditions

– handling bus arbitration – generating serial clock pulses if S1BIT is not used.

Three SFRs control the bit-level I

C interface: S1INT, S1BIT and

S1SCS.

INTERRUPT SYSTEM

The interrupt structure of the 8XC528 is the same as that used in the 80C51, but includes two additional interrupt sources: one for the third timer/counter, T2, and one for the I

C interface. The interrupt

enable and interrupt priority registers are IE and IP.

IE: Interrupt Enable Register

This register is located at address A8H. Refer to Table 3.

IE SFR (A8H)

7 6 5 4 3 2 1 0

EA ES1 ET2 ES ET1 EX1 ET0 EX0

IP: Interrupt Priority Register

This register is located at address B8H. Refer to Table 4.

IP SFR (B8H)

7 6 5 4 3 2 1 0 –

PS1 PT2 PS PT1 PX1 PT0 PX0

Table 3. Description of IE Bits

MNEMONIC BIT FUNCTION

EA IE.7 General enable/disable control:

0 = NO interrupt is enabled.

1 = ANY individually enabled interrupt will be accepted. ES1 IE.6 Enable bit-level I2C I/O interrupt ET2 IE.5 Enable Timer 2 interrupt

ES IE.4 Enable Serial Port interrupt ET1 IE.3 Enable Timer 1 interrupt EX1 IE.2 Enable External interrupt 1 ET0 IE.1 Enable Timer 0 interrupt EX0 IE.0 Enable External interrupt 0

Table 4. Description of IP Bits

MNEMONIC BIT FUNCTION

– IP.7 Reserved. PS1 IP.6 Bit-level I2C interrupt priority level PT2 IP.5 Timer 2 interrupt priority level

PS IP.4 Serial Port interrupt priority level PT1 IP.3 Timer 1 interrupt priority level PX1 IP.2 External Interrupt 1 priority level PT0 IP.1 Timer 0 interrupt priority level PX0 IP.0 External Interrupt 0 priority level

The interrupt vector locations and the interrupt priorities are:

Source Priority within Level

Vector Address 0003H IE0 Highest 002BH TF2+EXF2 0053H SI (I

C) 000BH TF0 0013H IE1 001BH TF1 0023H R1+T1 Lowest

Page 11

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

OSCILLATOR CHARACTERISTICS

XTAL1 and XTAL2 are the input and output, respectively, of an inverting amplifier. The pins can be configured for use as an on-chip oscillator, as shown in the Logic Symbol.

To drive the device from an external clock source, XTAL1 should be driven while XTAL2 is left unconnected. There are no requirements on the duty cycle of the external clock signal, because the input to the internal clock circuitry is through a divide-by-two flip-flop. However, minimum and maximum high and low times specified in the data sheet must be observed.

RESET

A reset is accomplished by holding the RST pin high for at least two machine cycles (24 oscillator periods), while the oscillator is running. To insure a good power-up reset, the RST pin must be high long enough to allow the oscillator time to start up (normally a few milliseconds) plus two machine cycles. At power-up, the voltage on V

and RST must come up at the same time for a proper start-up.

IDLE MODE

In idle mode, the CPU puts itself to sleep while all of the on-chip peripherals stay active. The instruction to invoke the idle mode is the last instruction executed in the normal operating mode before the idle mode is activated. The CPU contents, the on-chip RAM, and all of the special function registers remain intact during this mode. The idle mode can be terminated either by any enabled interrupt (at which time the process is picked up at the interrupt service routine and continued), or by a hardware reset which starts the processor in the same manner as a power-on reset.

POWER-DOWN MODE

In the power-down mode, the oscillator is stopped and the instruction to invoke power-down is the last instruction executed. The power-down mode can be terminated by a RESET in the same way as in the 80C51 or in addition by one of two external interrupts, INT0 or INT1. A termination with an external interrupt does not affect the internal data memory and does not affect the special function registers. This makes it possible to exit power-down without changing the port output levels. To terminate the power-down mode with an external interrupt INT0

or INT1 must be switched to level-sensitive and must be enabled. The external interrupt input signal INT0

and INT1 must be kept low until the oscillator has restarted and stabilized. An instruction following the instruction that puts the device in the power-down mode will be executed. A reset generated by the watchdog timer terminates the power-down mode in the same way as an external RESET, and only the contents of the on-chip RAM are preserved. The control bits for the reduced power modes are in the special function register PCON.

DESIGN CONSIDERATIONS

At power-on, the voltage on VDD and RST must come up at the same time for a proper start-up.

When the idle mode is terminated by a hardware reset, the device normally resumes program execution, from where it left off, up to two machine cycles before the internal reset algorithm takes control. On-chip hardware inhibits access to internal RAM in this event, but access to the port pins is not inhibited. To eliminate the possibility of an unexpected write when idle is terminated by reset, the instruction following the one that invokes idle should not be one that writes to a port pin or to external memory.

Table 5 shows the state of I/O ports during low current operating modes.

Table 5. External Pin Status During Idle and Power-Down Modes

MODE PROGRAM MEMORY ALE PSEN PORT 0 PORT 1 PORT 2 PORT 3

Idle Internal 1 1 Data Data Data Data Idle External 1 1 Float Data Address Data Power-down Internal 0 0 Data Data Data Data Power-down External 0 0 Float Data Data Data

ABSOLUTE MAXIMUM RATINGS

1, 2, 3

PARAMETER

RATING UNIT

Operating temperature under bias

0 to +70, or

–40 to +85, or

–40 to +125

°C

Storage temperature range –65 to +150 °C Voltage on any other pin to V

–0.5 to VDD +0.5 V Input, output current on any two pins ±10 mA Power dissipation

(based on package heat transfer limitations, not device power consumption)

1.0 W

NOTES:

1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any conditions other than those described in the AC and DC Electrical Characteristics section of this specification is not implied.

2. This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive static charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated maxima.

3. Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to V

unless otherwise

noted.

Page 12

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

DC ELECTRICAL CHARACTERISTICS

amb

= 0°C to +70°C (VDD = 5V ±10%), –40°C to +85°C (VDD = 5V ±10%), or –40°C to +125°C (VDD = 5V ±10%), VSS=0V

TEST LIMITS

SYMBOL PARAMETER PART TYPE CONDITIONS MIN MAX UNIT

Input low voltage, except EA

, P1.6/SCL, P1.7/SDA

0°C to 70°C

–40°C to +85°C

–0.5 –0.5

0.2VCC–0.1

0.2V

–0.15

V V

IL1

Input low voltage to EA 0°C to 70°C

–40°C to +85°C

0 0

0.2VCC–0.3

0.2V

–0.35

V V

IL2

Input low voltage to P1.6/SCL, P1.7/SDA

–0.5 0.3V V

Input high voltage, except XTAL1, RST, P1.6/SCL, P1.7/SDA

0°C to 70°C

–40°C to +85°C

0.2VCC+0.9

0.2V

+1.0

VCC+0.5 V

+0.5

V V

IH1

Input high voltage, XTAL1, RST 0°C to 70°C

–40°C to +85°C

0.7V

0.7VCC+0.1

VCC+0.5 V

+0.5

V V

IH2

Input high voltage, P1.6/SCL, P1.7/SDA

3.0 6.0 V

Output low voltage, ports 1, 2, 3, except P1.6/SCL, P1.7/SDA

IOL = 1.6mA

0.45 V

OL1

Output low voltage, port 0, ALE, PSEN

IOL = 3.2mA

0.45 V

OL2

Output low voltage, P1.6/SCL, P1.7/SDA IOL = 3.0mA

0.4 V

Output high voltage, ports 1, 2, 3 IOH = –60µA

= –25µA

2.4

0.75V

V V

OH1

Output high voltage, Port 0 in external bus mode, ALE, PSEN

, RST

IOH = –800µA

= –300µA

2.4

0.75V

V V

Logical 0 input current, ports 1, 2, 3, except P1.6/SCL, P1.7/SDA

0°C to 70°C

–40°C to +85°C

VIN = 0.45V –50

–75

µA µA

Logical 1-to-0 transition current, ports 1, 2, 3, except P1.6/SCL, P1.7/SDA

0°C to 70°C

–40°C to +85°C

See note 3 –650

–750

µA µA

IL1

Input leakage current, port 0 VIN = VIL or V

±10

µA

IL2

Input leakage current, P1.6/SCL, P1.7/SDA 0V<Vi<6.0V

0V<V

<6.0V

±10

µA µA

Power supply current: See note 4 Active mode @ 16MHz 0oC to 70oC

–40

C to +85oC

25 35

Idle mode @ 16MHz 0oC to 70oC

–40

C to +85oC

5 6

Power down mode 50 µA

RST

Internal reset pull-down resistor 50 300 kΩ

Pin Capacitance 10 pF

NOTES:

1. Capacitive loading on Port 0 and Port 2 may cause spurious noise pulses to be superimposed on the V

s of ALE and ports 1 and 3. The noise is due to external bus capacitance discharging into the port and port 2 pins when these pins make 1-to-0 transactions during bus operations. In the worst cases (capacitive loading > 100pF), the noise pulse on the ALE pin may exceed 0.8V . In such cases, it may be desirable to qualify ALE with a Schmitt Trigger, or use an address latch with a Schmitt Trigger STROBE input. Under steady state (non-transient) conditions, I

must be externally limited as follows: 10mA per port pin, port 0 total (all bits) 26mA, ports 1, 2, and total each

(all bits) 15mA.

2. Capacitive loading on Ports 0 and 2 may cause the V

on ALE and PSEN to momentarily fall below the 0.9VCC specification when the

address bits are stabilizing.

3. Pins of ports 1, 2, and 3 source a transition current when they are being externally driven from 1 to 0. The transition current reaches its maximum value when V

is approximately 2V.

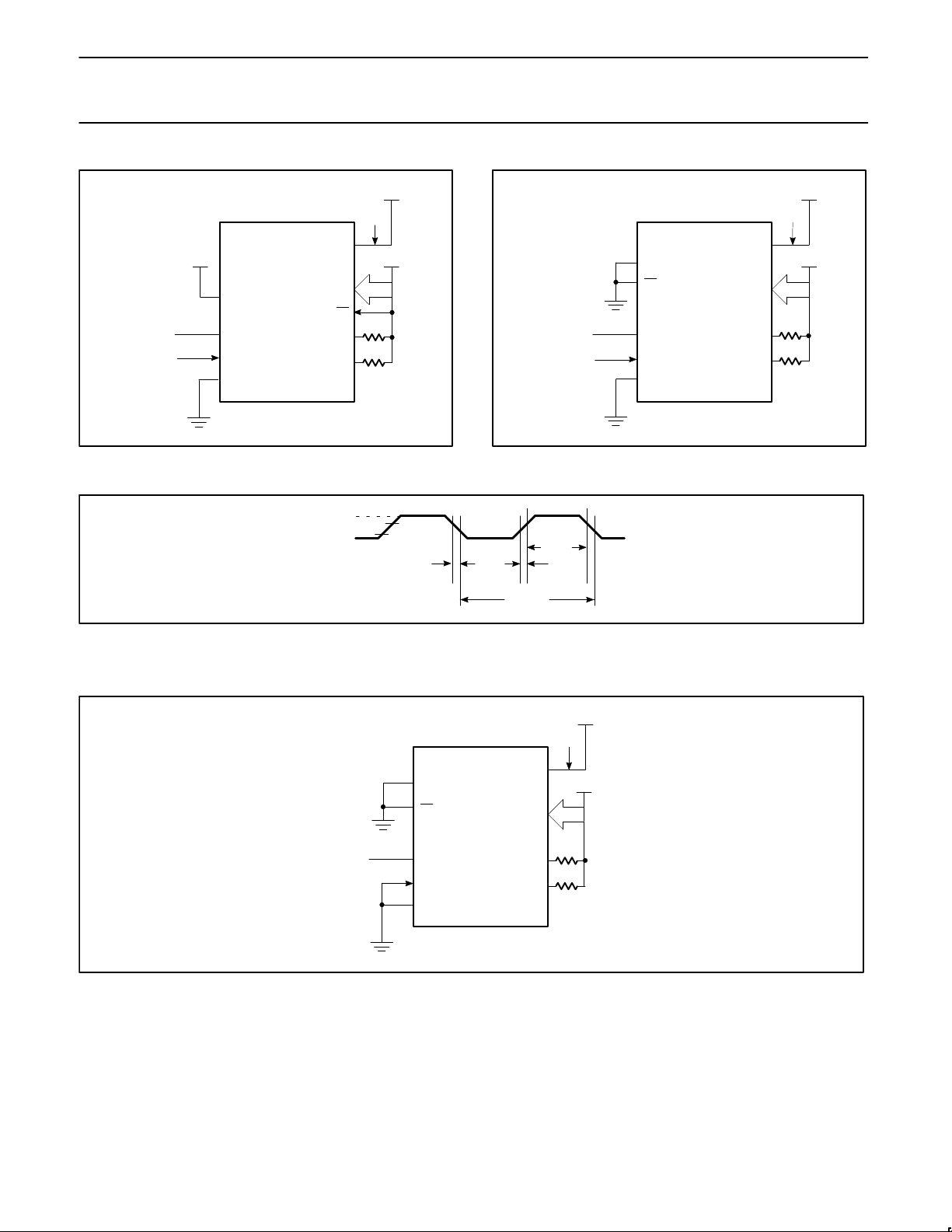

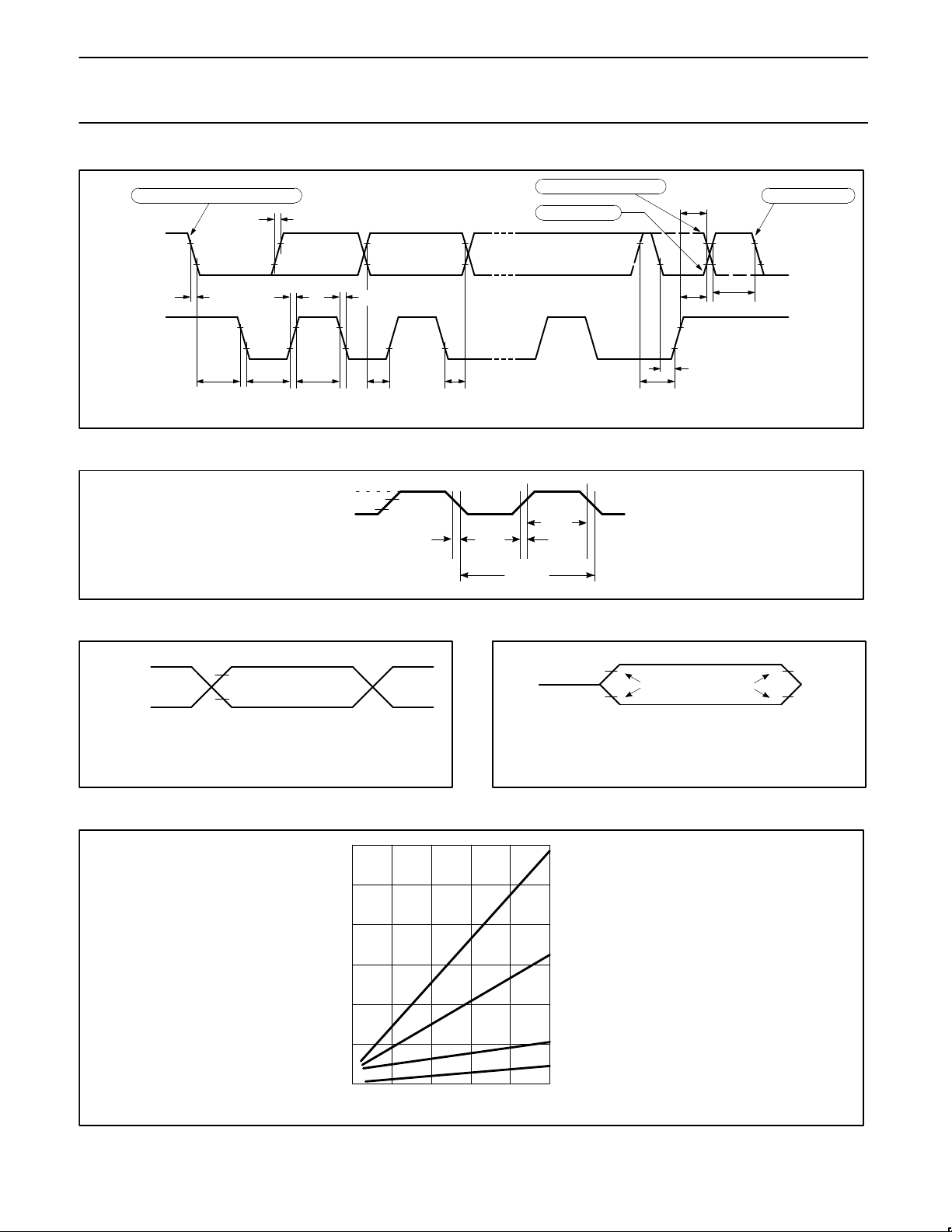

4. See Figures 10 through 13 for I

test conditions.

5. The input threshold voltage of P1.6 and P1.7 (SIO1) meets the I

C specification, so an input voltage below 1.5V will be recognized as a logic

0 while an input voltage above 3.0V will be recognized as a logic 1.

Page 13

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

AC ELECTRICAL CHARACTERISTICS

1, 2

16MHz CLOCK VARIABLE CLOCK

SYMBOL FIGURE PARAMETER MIN MAX MIN MAX UNIT

1/t

CLCL

1 Oscillator frequency: Speed Versions

87C528 P878C528EXX

P878C528GXX

3.5

16 20

MHz MHz

LHLL

1 ALE pulse width 85 2t

CLCL

–40 ns

AVLL

1 Address valid to ALE low 8 t

CLCL

–55 ns

LLAX

1 Address hold after ALE low 28 t

CLCL

–35 ns

LLIV

1 ALE low to valid instruction in 150 4t

CLCL

–100 ns

LLPL

1 ALE low to PSEN low 23 t

CLCL

–40 ns

PLPH

1 PSEN pulse width 143 3t

CLCL

–45 ns

PLIV

1 PSEN low to valid instruction in 83 3t

CLCL

–105 ns

PXIX

1 Input instruction hold after PSEN 0 0 ns

PXIZ

1 Input instruction float after PSEN 38 t

CLCL

–25 ns

AVIV

1 Address to valid instruction in 208 5t

CLCL

–105 ns

PLAZ

1 PSEN low to address float 10 10 ns

Data Memory

RLRH

2, 3 RD pulse width 275 6t

CLCL

–100 ns

WLWH

2, 3 WR pulse width 275 6t

CLCL

–100 ns

RLDV

2, 3 RD low to valid data in 148 5t

CLCL

–165 ns

RHDX

2, 3 Data hold after RD 0 0 ns

RHDZ

2, 3 Data float after RD 55 2t

CLCL

–70 ns

LLDZ

2, 3 ALE low to valid data in 350 8t

CLCL

–150 ns

AVDV

2, 3 Address to valid data in 398 9t

CLCL

–165 ns

LLWL

2, 3 ALE low to RD or WR low 138 238 3t

CLCL

–50 3t

CLCL

+50 ns

AVWL

2, 3 Address valid to WR low or RD low 120 4t

CLCL

–130 ns

QVWX

2, 3 Data valid to WR transition 3 t

CLCL

–60 ns

WHQX

2, 3 Data hold after WR 13 t

CLCL

–50 ns

RLAZ

2, 3 RD low to address float 0 0 ns

WHLH

2, 3 RD or WR high to ALE high 23 103 t

CLCL

–40 t

CLCL

+40 ns

External Clock

CHCX

6 High time 20 20 ns

CLCX

6 Low time 20 20 ns

CLCH

6 Rise time 20 20 ns

CHCL

6 Fall time 20 20 ns

Shift Register

XLXL

4 Serial port clock cycle time 750 12t

CLCL

QVXH

4 Output data setup to clock rising edge 492 10t

CLCL

–133 ns

XHQX

4 Output data hold after clock rising edge 8 2t

CLCL

–117 ns

XHDX

4 Input data hold after clock rising edge 0 0 ns

XHDV

4 Clock rising edge to input data valid 492 10t

CLCL

–133 ns

NOTES:

1. Parameters are valid over operating temperature range unless otherwise specified.

2. Load capacitance for port 0, ALE, and PSEN

= 100pF, load capacitance for all other outputs = 80pF.

Page 14

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

AC ELECTRICAL CHARACTERISTICS – I2C INTERFACE

SYMBOL PARAMETER INPUT OUTPUT I2C SPECIFICATION

SCL TIMING CHARACTERISTICS

HD;STA

START condition hold time ≥ 14 t

CLCL

Note 2 ≥ 4.0µs

LOW

SCL LOW time ≥ 16 t

CLCL

Note 2 ≥ 4.7µs

HIGH

SCL HIGH time ≥ 14 t

CLCL

≥ 80 t

CLCL

≥ 4.0µs

SCL rise time ≤ 1µs

Note 5 ≤ 1.0µs

SCL fall time ≤ 0.3µs

≤ 0.3µs

SDA TIMING CHARACTERISTICS

SU;DAT1

Data set-up time ≥ 250ns Note 2 ≥ 250ns

HD;DAT

Data hold time ≥ 0ns Note 2 ≥ 0ns

SU;STA

Repeated START set-up time ≥ 14 t

CLCL

Note 2 ≥ 4.7µs

SU;STO

STOP condition set-up time ≥ 14 t

CLCL

Note 2 ≥ 4.0µs

BUF

Bus free time ≥ 14 t

CLCL

Note 2 ≥ 4.7µs

SDA rise time ≤ 1µs

Note 5 ≤ 1.0µs

SDA fall time ≤ 0.3µs

≤ 0.3µs

NOTES:

1. At f

CLK

= 3.5MHz, this evaluates to 14 × 286ns = 4µs, i.e., the bit-level I2C interface can respond to the I2C protocol for f

CLK

≥ 3.5MHz.

2. This parameter is determined by the user software, it has to comply with the I

3. This value gives the autoclock pulse length which meets the I

C specification for the specified XTAL clock frequency range. Alternatively, the

SCL pulse may be timed by software.

4. Spikes on SDA and SCL lines with a duration of less than 4 × f

CLK

will be filtered out.

5. The rise time is determined by the external bus line capacitance and pull-up resistor, it must be ≤ 1µs.

6. The maximum capacitance on bus lines SDA and SCL is 400pF.

Page 15

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

EXPLANATION OF THE AC SYMBOLS

Each timing symbol has five characters. The first character is always ‘t’ (= time). The other characters, depending on their positions, indicate the name of a signal or the logical status of that signal. The designations are: A – Address C – Clock D – Input data H – Logic level high I – Instruction (program memory contents) L – Logic level low, or ALE

P – PSEN Q – Output data R – RD

signal t – Time V – Valid W– WR

signal X – No longer a valid logic level Z – Float Examples: t

AVLL

= Time for address valid to ALE low.

LLPL

= Time for ALE low to PSEN low.

PXIZ

ALE

PSEN

PORT 0

PORT 2

A0–A15 A8–A15

A0–A7 A0–A7

AVLL

PXIX

LLAX

INSTR IN

LHLL

PLPH

LLIV

PLAZ

LLPL

AVIV

SU00006

PLIV

LLAX

ALE

PSEN

PORT 0

PORT 2

A0–A7

FROM RI OR DPL

DATA IN A0–A7 FROM PCL INSTR IN

P2.0–P2.7 OR A8–A15 FROM DPH A0–A15 FROM PCH

WHLH

LLDV

LLWL

RLRH

RLAZ

AVLL

RHDX

RHDZ

AVWL

AVDV

RLDV

SU00007

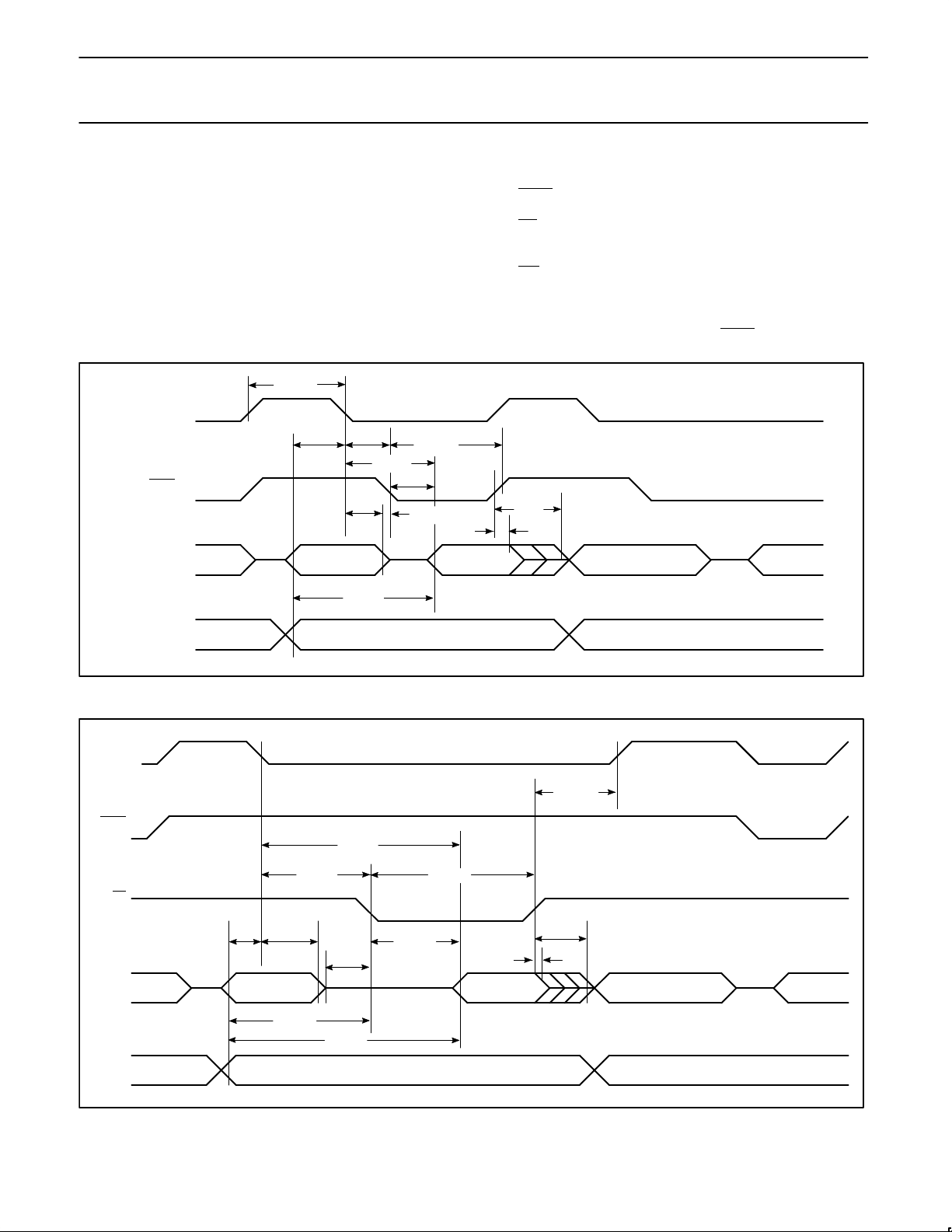

Figure 1. External Program Memory Read Cycle

Figure 2. External Data Memory Read Cycle

Page 16

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

LLAX

ALE

PSEN

PORT 0

PORT 2

A0–A7

FROM RI OR DPL

DATA OUT A0–A7 FROM PCL INSTR IN

P2.0–P2.7 OR A8–A15 FROM DPF A0–A15 FROM PCH

WHLH

LLWL

WLWH

AVLL

AVWL

QVWX

WHQX

SU00069

0 1 2 3 4 5 6 7 8

INSTRUCTION

ALE

CLOCK

OUTPUT DATA

WRITE TO SBUF

INPUT DATA

CLEAR RI

VALID VALID VALID VALID VALID VALID VALID VALID

SET TI

SET RI

XLXL

QVXH

XHQX

XHDX

XHDV

SU00027

1 2 30 4 5 6 7

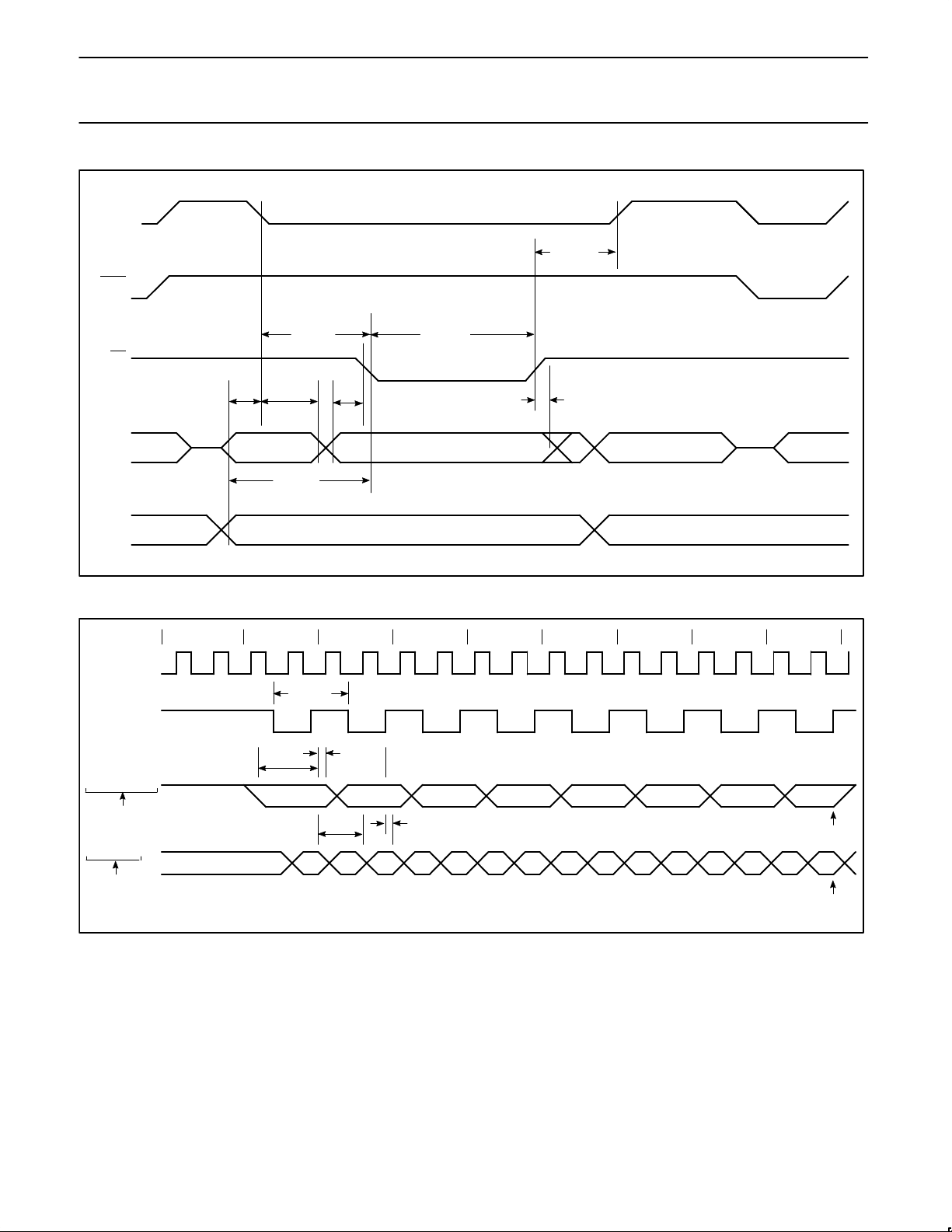

Figure 3. External Data Memory Write Cycle

Figure 4. Shift Register Mode Timing

Page 17

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

SU;STA

BUF

SU;STO

0.7 V

0.3 V

0.7 V

0.3 V

FDtRC

HIGH

LOW

HD;STA

SU;DAT1

HD;DAT

SU;DAT2

SU;DAT3

START condition

repeated START condition

SDA

(INPUT/OUTPUT)

SCL

(INPUT/OUTPUT)

STOP condition

START or repeated START condition

SU00107A

VCC–0.5

0.45V

0.7V

0.2VCC–0.1

CHCL

CLCL

CLCH

CLCX

CHCX

SU00009

VDD–0.5

0.45V

0.2V

+0.9

0.2V

–0.1

NOTE: AC inputs during testing are driven at VDD –0.5 for a logic ‘1’ and 0.45V for a logic ‘0’. Timing measurements are made at V

min for a logic ‘1’ and VIL max for a logic ‘0’.

SU00167

LOAD

+0.1V

LOAD

–0.1V

VOH–0.1V

VOL+0.1V

NOTE:

TIMING

REFERENCE

POINTS

For timing purposes, a port is no longer floating when a 100mV change from load voltage occurs, and begins to float when a 100mV change from the loaded V

OH/VOL

level occurs. IOH/IOL ≥ ±20mA.

SU00011

Figure 8. Float Waveform

MAX ACTIVE MODE

TYP ACTIVE MODE

MAX IDLE MODE

TYP IDLE MODE

4MHz

FREQ AT XTAL1

8MHz 12MHz 16MHz 20MHz

SU00168

Figure 5. Timing SIO1 (I2C) Interface

Figure 7. AC Testing Input/Output

Valid only within frequency specifications of the device under test

Figure 6. External Clock Drive

Figure 9. ICC vs. FREQ.

Page 18

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

RST

XTAL1

XTAL2

(NC)

CLOCK SIGNAL

P1.6

P1.7

* *

SU00169

RST

XTAL1

XTAL2

(NC)

CLOCK SIGNAL

P1.6

P1.7

* *

SU00170

VCC–0.5

0.45V

0.7V

0.2VCC–0.1

CHCL

CLCL

CLCH

CLCX

CHCX

SU00009

RST

XTAL1

XTAL2

(NC)

P1.6

P1.7

* *

SU00171

Figure 10. IDD Test Condition, Active Mode

All other pins are disconnected

Figure 12. Clock Signal Waveform for

Figure 11. IDD Test Condition, Idle Mode

Tests in Active and Idle Modes

CLCH

= t

CHCL

= 5ns

All other pins are disconnected

NOTE:

* Ports 1.6 and 1.7 should be connected to VDD through resistors of sufficiently high value such that the sink current into these pins does not

exceed the I

specifications.

OL1

Figure 13. IDD Test Condition, Power Down Mode

All other pins are disconnected. V

= 2V to 5.5V

Page 19

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

EPROM CHARACTERISTICS

The 87C528 is programmed by using a modified Quick-Pulse Programming algorithm. It differs from older methods in the value used for V

(programming supply voltage) and in the width and

number of the ALE/PROG pulses. The 87C528 contains two signature bytes that can be read and used

by an EPROM programming system to identify the device. The signature bytes identify the device as an 87C528 manufactured by Philips.

Table 6 shows the logic levels for reading the signature byte, and for programming the program memory, the encryption table, and the lock bits. The circuit configuration and waveforms for quick-pulse programming are shown in Figures 14 and 15. Figure 16 shows the circuit configuration for normal program memory verification.

Quick-Pulse Programming

The setup for microcontroller quick-pulse programming is shown in Figure 14. Note that the 87C528 is running with a 4 to 6MHz oscillator The reason the oscillator needs to be running is that the device is executing internal address and program data transfers.

The address of the EPROM location to be programmed is applied to ports 1, 2 and 3, as shown in Figure 14. The code byte to be programmed into that location is applied to port 0. RST, PSEN

and pins of ports 2 and 3 specified in Table 6 are held at the ’Program Code Data’ levels indicated in Table 6. The ALE/PROG is pulsed low 25 times as shown in Figure 15.

To program the encryption table, repeat the 25 pulse programming sequence for addresses 0 through 3FH, using the ‘Pgm Encryption Table’ levels. Do not forget that after the encryption table is programmed, verification cycles will produce only encrypted data.

To program the lock bits, repeat the 25 pulse programming sequence using the ‘Pgm Lock Bit’ levels. After one lock bit is programmed, further programming of the code memory and encryption table is disabled. However, the other lock bit can still be programmed.

Note that the EA

/VPP pin must not be allowed to 90 above the

maximum specified V

level for any amount of time. Even a narrow glitch above that voltage can cause permanent damage to the device. The V

source should be well regulated and free of glitches

and overshoot.

Program Verification

If lock bit 2 has not been programmed, the on-chip program memory can be read out for program verification. The address of the program

memory locations to be read is applied to ports 1, 2 and 3 as shown in Figure 16. The other pins are held at the ‘Verify Code Data’ levels indicated in Table 6. The contents of the address location will be emitted on port 0. External pull ups are required on port 0 for this operation.

If the encryption table has been programmed, the data presented at port 0 will be the exclusive NOR of the program byte with one of the encryption bytes. The user will have to know the encryption table contents in order to correctly decode the verification data. The encryption table itself cannot be read out.

Reading the Signature Bytes

The signature bytes are read by the same procedure as a normal verification of locations 030H and 031 H, except that P3.6 and P3.7 need to be pulled to a logic low. The values are:

(030H) = 15H indicates manufactured by Philips (031H) = 9BH indicates 87C528

Program Lock Bits

The 87C528 has 3 programmable lock bits that will provide different levels of protection for the on-chip code and data (see Table 7).

Erasing the EPROM also erases the encryption array and the program lock bits, returning the part to full functionality.

Program/Verify Algorithms

Any algorithm in agreement with the conditions listed in Table 6, and which satisfies the timing specifications, is suitable.

Erasure Characteristics

Erasure of the EPROM begins to occur when the chip is exposed to light with wavelengths shorter than approximately 4,000 angstroms. Since sunlight and fluorescent lighting have wavelengths in this range, exposure to these light sources over an extended time (about 1 week in sunlight, or 3 years in room level fluorescent lighting) could cause inadvertent erasure. For this and secondary effects,

it is recommended that an opaque label be placed over the window. For elevated temperature or environments where solvents

are being used, apply Kapton tape Fluorglas part number 2345-5, or equivalent.

The recommended erasure procedure is exposure to ultraviolet light (at 2537 angstroms) to an integrated dose of at least 15W-sec/cm2. Exposing the EPROM to an ultraviolet lamp of 12,000µW/cm2 rating for 20 to 39 minutes, at a distance of about 1 inch, should be sufficient. Erasure leaves the array in an all 1 s state.

Table 6. EPROM Programming Modes

MODE RST PSEN ALE/PROG EA/V

P2.7 P2.6 P3.7 P3.6

Read signature 1 0 1 1 0 0 0 0 Program code data 1 0 0* V

1 0 1 1 Verify code data 1 0 1 1 0 0 1 1 Pgm encryption table 1 0 0* V

1 0 1 0 Pgm lock bit 1 1 0 0* V

1 1 1 1 Pgm lock bit 2 1 0 0* V

1 1 0 0 Pgm lock bit 3 1 0 0* V

0 1 0 1

NOTES:

1. ‘0’ = Valid low for that pin, ‘1’ = valid high for that pin.

2. V

= 12.75V ±0.25V.

3. Vcc = 5V ±10% during programming and verification. * ALE/PROG

receives 25 programming pulses while VPP is held at 12.75V. Each programming pulse is low for 100µs (±10µs) and high for a

minimum of 10µs.

Page 20

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

Table 7. Program Lock Bits

PROGRAM LOCK BITS

1,2

LB1 LB2 LB3 PROTECTION DESCRIPTION

1 U U U No Program Lock features enabled. (Code verify will still be encrypted by the Encryption Array if programmed.) 2 P U U MOVC instructions executed from external program memory are disabled from fetching code bytes from

Internal memory, EA is jumped and latched on Reset, and further programming of the EPROM Is disabled. 3 P P U Same as 2, also verify is disabled. 4 P P P Same as 3, external execution is disabled. Internal data RAM is not accessible.

NOTES:

1. P - programmed. U - unprogrammed.

2. Any other combination of the lock bits is not defined.

A0–A7

1 1 1

4–6MHz

+5V

PGM DATA

+12.75V 25 100µs PULSES TO GROUND 0 1 0

A8–A13

RST P3.6 P3.7 XTAL2

XTAL1

ALE/PROG

PSEN

P2.7 P2.6

P2.0–P2.5

87C528

A14

P3.4

SU00172

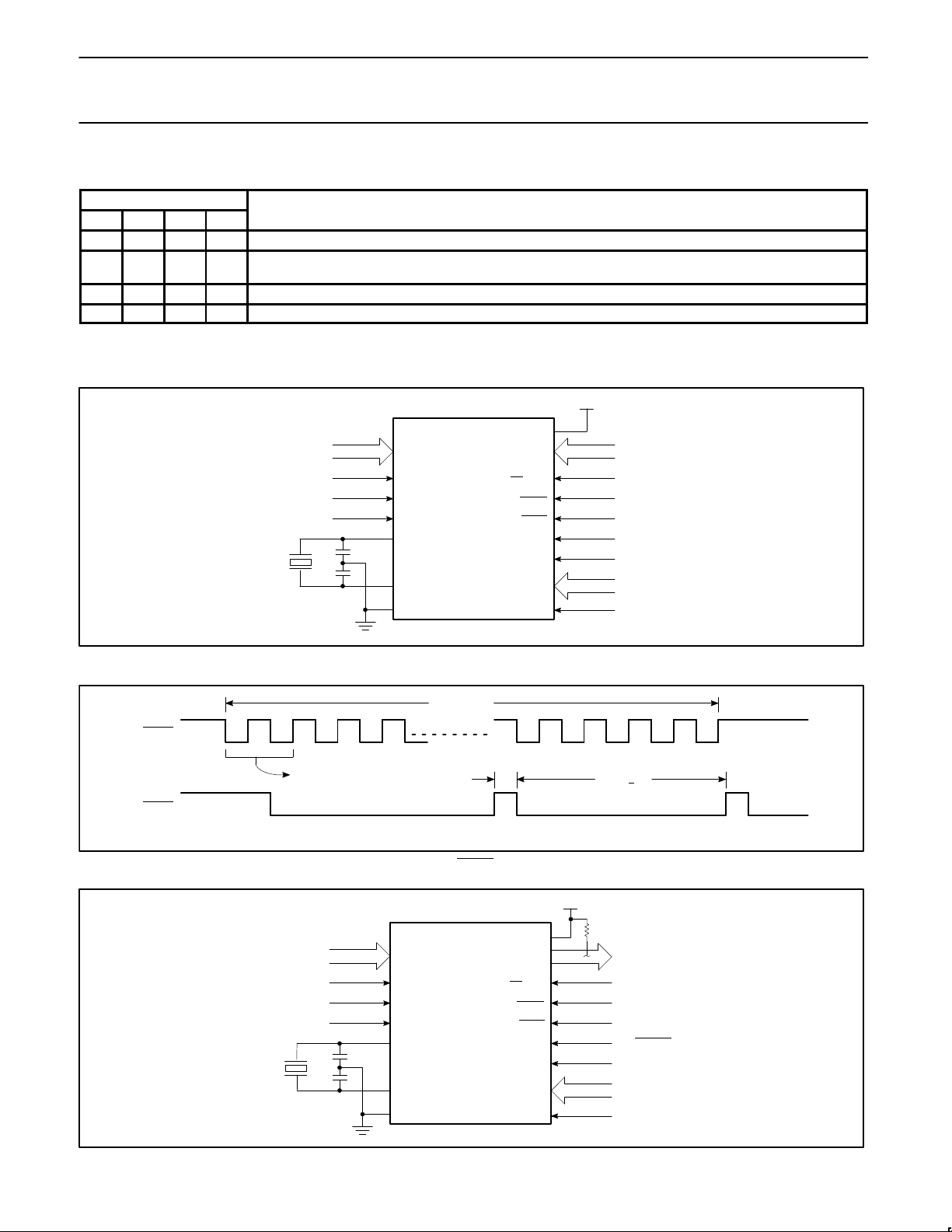

Figure 14. Programming Configuration

ALE/PROG:

1 0

25 PULSES

100µs+1010µs MIN

SU00018

Waveform

A0–A7

1 1 1

4–6MHz

+5V

PGM DATA

1 1 0 0 ENABLE 0

A8–A13

RST P3.6 P3.7 XTAL2

XTAL1

EA/V

ALE/PROG

PSEN

P2.7 P2.6

P2.0–P2.5

87C528

A14

P3.4

SU00173

Figure 16. Program Verfication

Figure 15. PROG

Page 21

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

EPROM PROGRAMMING AND VERIFICATION CHARACTERISTICS

amb

= 21°C to +27°C, Vcc = 5V±10%, VSS = 0V (See Figure 17)

SYMBOL PARAMETER MIN MAX UNIT

Programming supply voltage 12.5 13.0 V

Programming supply current 50 mA

1/t

CLCL

Oscillator frequency 4 6 MHz

AVGL

Address setup to PROG low 48t

CLCL

GHAX

Address hold after PROG 48t

CLCL

DVGL

Data setup to PROG low 48t

CLCL

GHDX

Data hold after PROG 48t

CLCL

EHSH

P2.7 (ENABLE) high to V

48t

CLCL

SHGL

VPP setup to PROG low 10 µs

GHSL

VPP hold after PROG 10 µs

GLGH

PROG width 90 110 µs

AVQV

Address to data valid 48t

CLCL

ELQZ

ENABLE low to data valid 48t

CLCL

EHQZ

Data float after ENABLE 0 48t

CLCL

GHGL

PROG high to PROG low 10 µs

PROGRAMMING* VERIFICATION*

ADDRESS ADDRESS

DATA IN DATA OUT

LOGIC 1 LOGIC 1

LOGIC 0

AVQV

EHQZ

ELQV

EHSH

SHGL

GHSL

GLGH

GHGL

AVGL

GHAX

DVGL

GHDX

P1.0–P1.7 P2.0–P2.5

PORT 0

ALE/PROG

EA/V

P2.7 ENABLE

SU00174

NOTE:

* FOR PROGRAMMING VERIFICATION SEE FIGURE 14.

FOR VERIFICATION CONDITIONS SEE FIGURE 16.

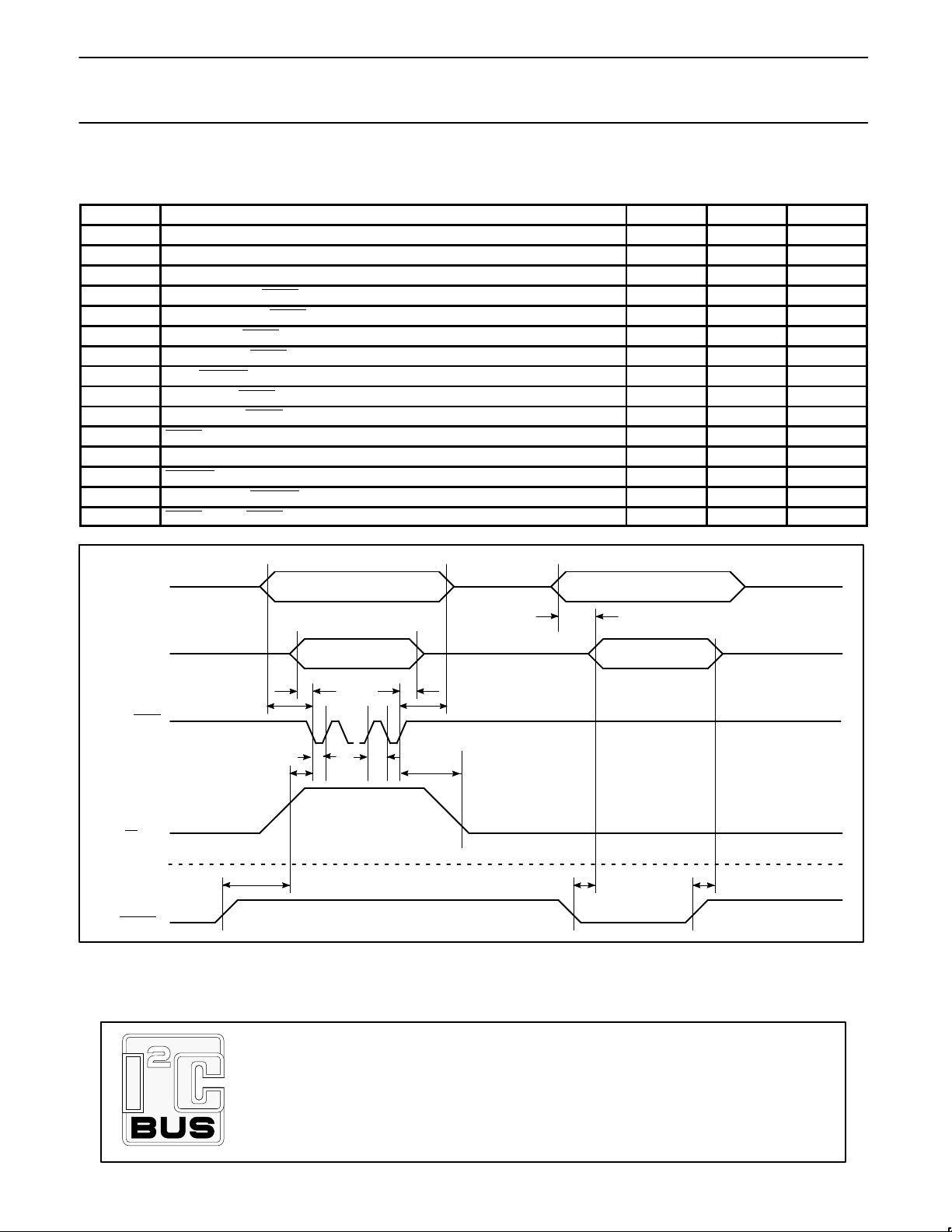

Figure 17. EPROM Programing and Verification

Purchase of Philips I2C components conveys a license under the Philips’ I2C patent to use the components in the I

C system provided the system conforms to the

C specifications defined by Philips. This specification can be ordered using the

code 9398 393 40011.

Page 22

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

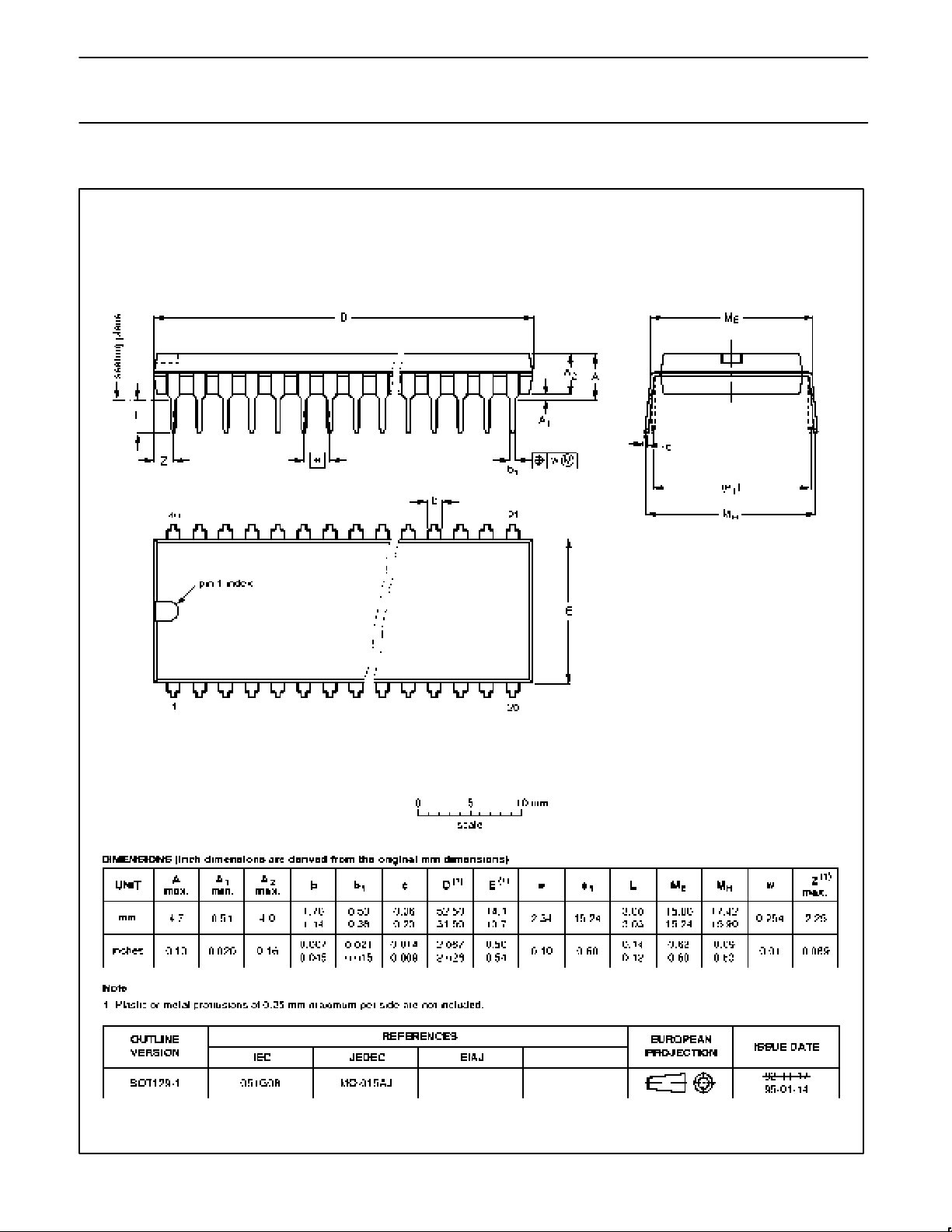

DIP40: plastic dual in-line package; 40 leads (600 mil) SOT129-1

Page 23

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

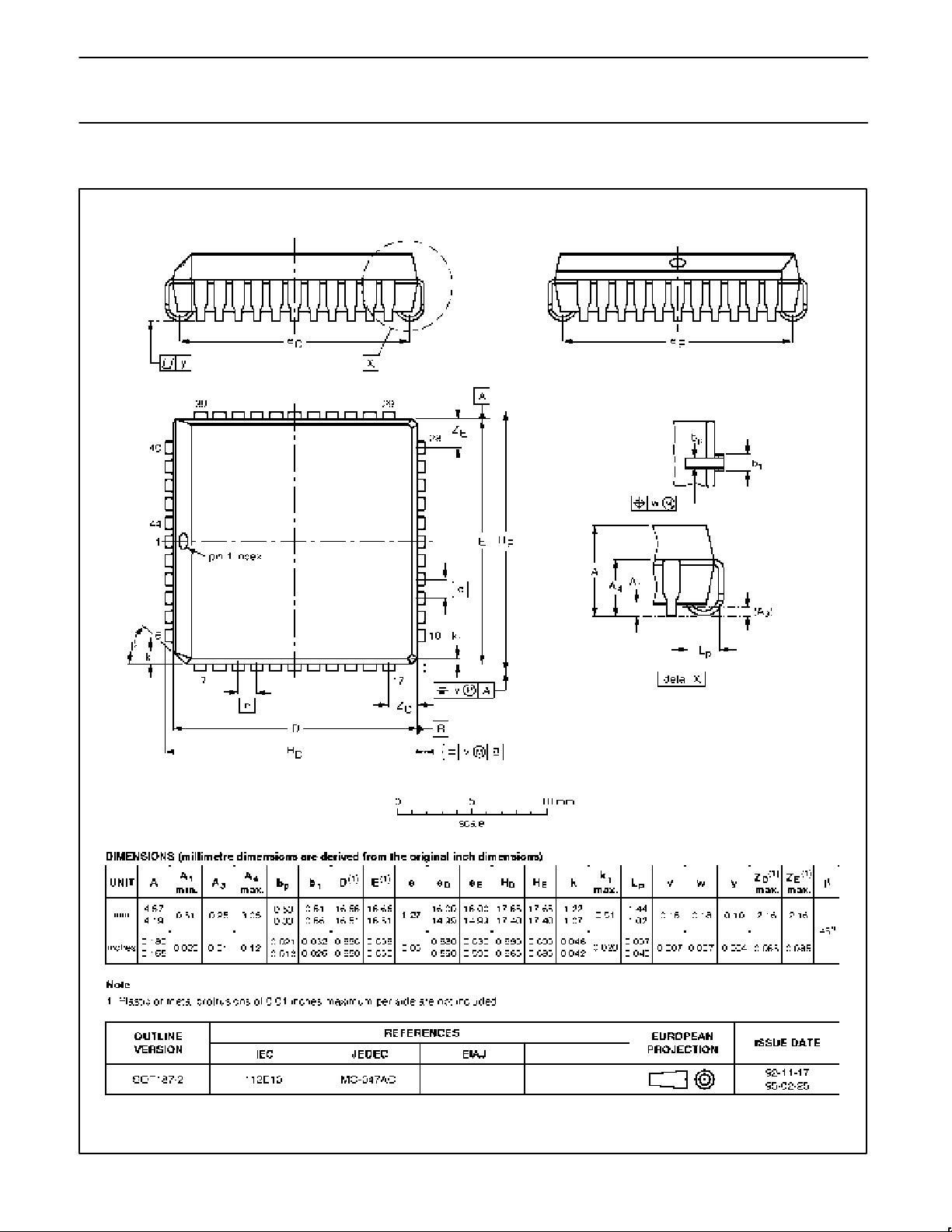

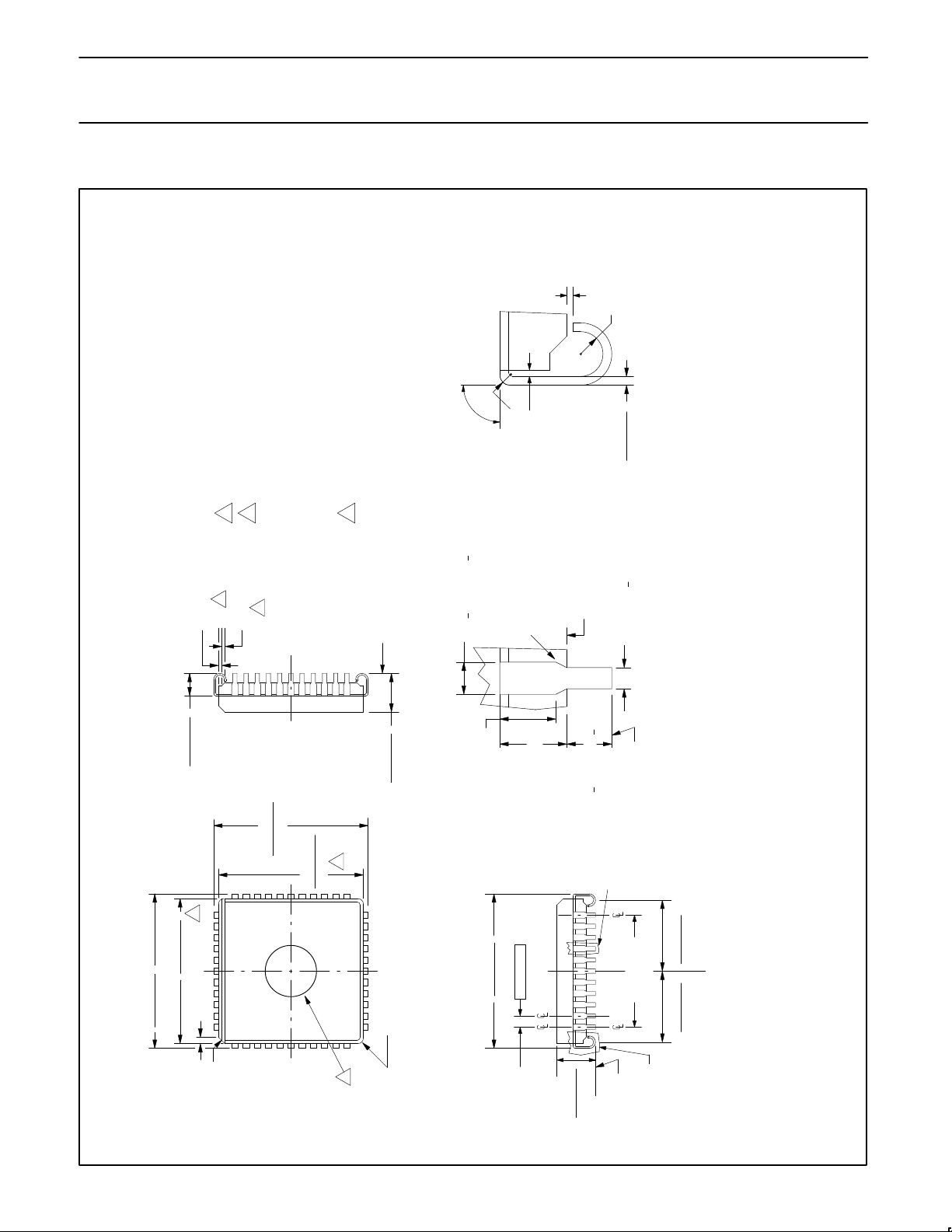

PLCC44: plastic leaded chip carrier; 44 leads SOT187-2

Page 24

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

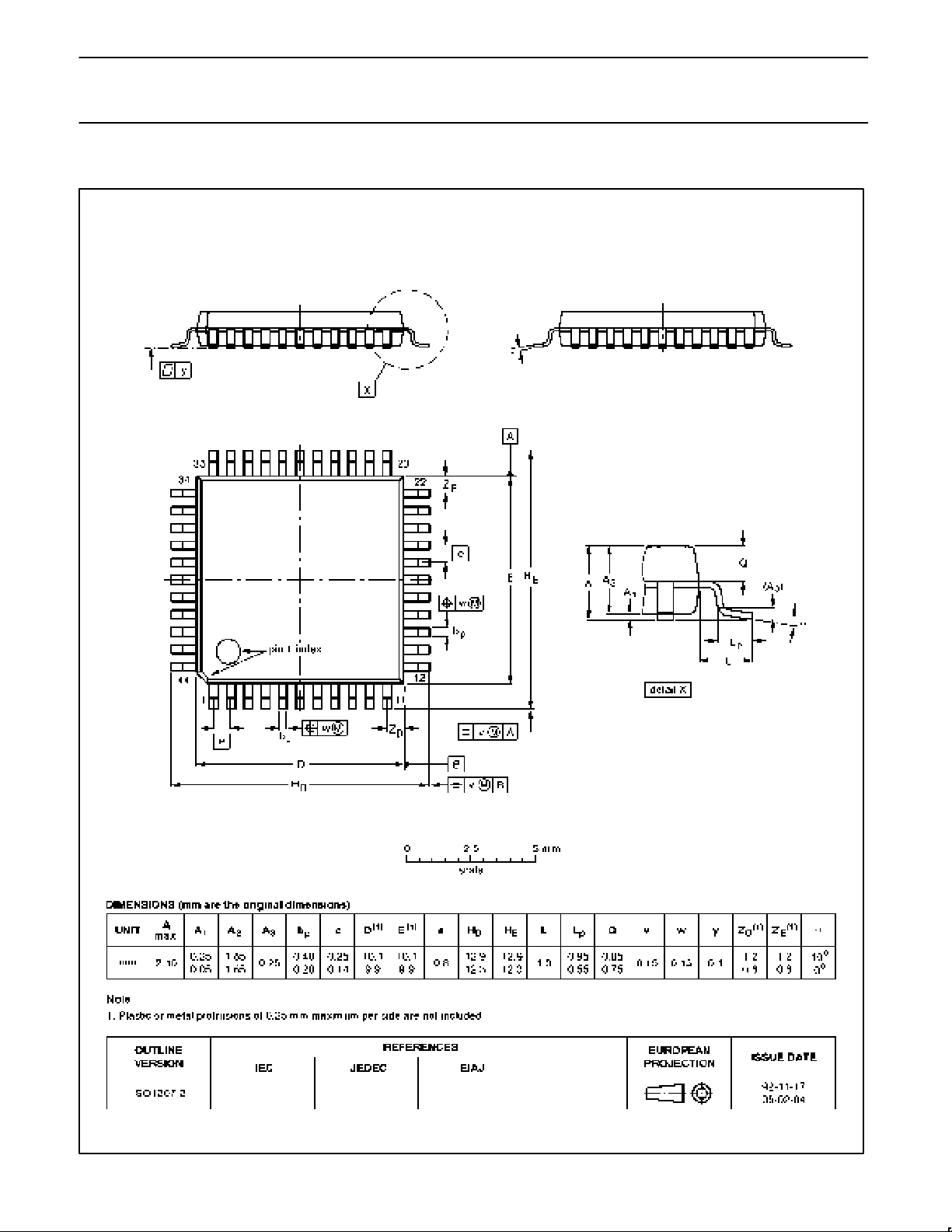

QFP44: plastic quad flat package; 44 leads (lead length 1.3 mm); body 10 x 10 x 1.75 mm SOT307-2

Page 25

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

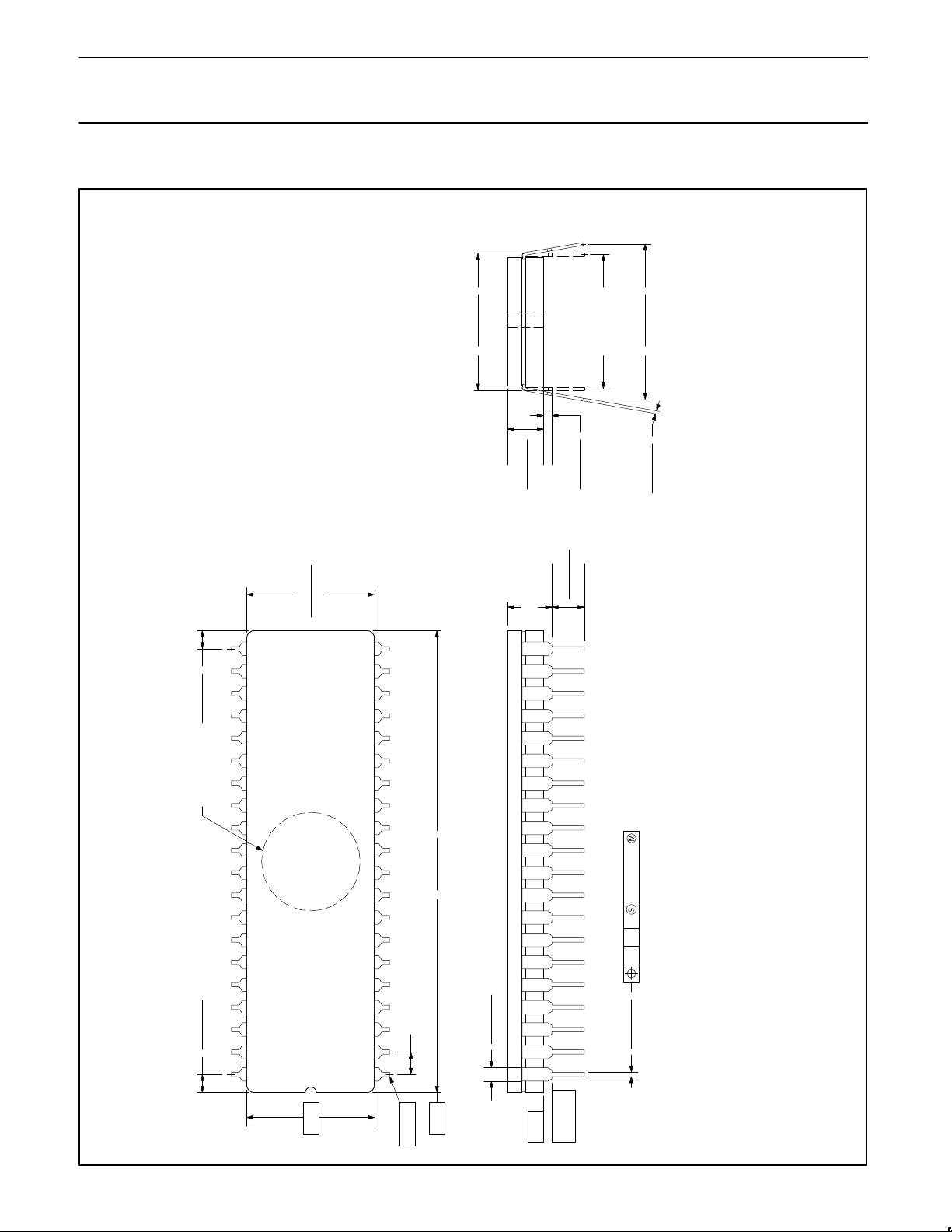

0590B 40-PIN (600 mils wide) CERAMIC DUAL IN-LINE (F) PACKAGE (WITH WINDOW (FA) PACKAGE)

NOTES:

1. Controlling dimension: Inches. Millimeters are

2. Dimension and tolerancing per ANSI Y14. 5M-1982.

3. “T”, “D”, and “E” are reference datums on the body

4. These dimensions measured with the leads

5. Pin numbers start with Pin #1 and continue

6. Denotes window location for EPROM products.

and include allowance for glass overrun and meniscus

on the seal line, and lid to base mismatch.

constrained to be perpendicular to plane T.

counterclockwise to Pin #40 when viewed

shown in parentheses.

from the top.

– D –

PIN # 1

– E –

0.225 (5.72) MAX.

0.010 (0.254)T E D

0.023 (0.58)

0.015 (0.38)

0.165 (4.19)

0.125 (3.18)

0.070 (1.78)

0.050 (1.27)

– T –

SEATING

PLANE

0.620 (15.75)

0.590 (14.99)

(NOTE 4)

0.598 (15.19)

0.571 (14.50)

BSC

0.600 (15.24)

0.695 (17.65)

0.600 (15.24)

(NOTE 4)

0.015 (0.38)

0.010 (0.25)

0.175 (4.45)

0.145 (3.68)

0.055 (1.40)

0.020 (0.51)

0.100 (2.54) BSC

2.087 (53.01)

2.038 (51.77)

0.098 (2.49)

0.040 (1.02)

0.098 (2.49)

0.040 (1.02)

SEE NOTE 6

853–0590B 06688

Page 26

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

1472A 44-PIN CERQUAD J-BEND (K) PACKAGE

NOTES:

1. All dimensions and tolerances to conform

2. UV window is optional.

3. Dimensions do not include glass protrusion.

Glass protrusion to be 0.005 inches maximum

4. Controlling dimension millimeters.

5. All dimensions and tolerances include

lead trim offset and lead plating finish.

6. Backside solder relief is optional and

dimensions are for reference only.

1.02 (0.040) X 45°

16.89 (0.665)

16.00 (0.630)

17.65 (0.695)

17.40 (0.685)

CHAMFER

16.89 (0.665)

16.00 (0.630)

17.65 (0.695)

17.40 (0.685)

on each side.

to ANSI Y14.5–1982.

3 X 0.63 (0.025) R MIN.

3.05 (0.120)

2.29 (0.090)

4.83 (0.190)

3.94 (0.155)

SEATING

PLANE

0.38 (0.015)

0.51 (0.02) X 45°

17.65 (0.656)

17.40 (0.685)

1.27 (0.050)

12.7 (0.500)

8.13 (0.320)

7.37 (0.290)

40X

4.83 (0.190)

3.94 (0.155)

SEATING

PLANE

0.15 (0.006) MIN.

0.25 (0.010) R MIN.

0.508 (0.020) R MIN.

0.25 (0.010)

0.15 (0.006)

90 + 5

–10

° °

0.076 (0.003) MIN.

DETAIL B

mm/(inch)

SEE DETAIL B

SEE DETAIL A

DETAIL A

TYP. ALL SIDES

mm/(inch)

1.52 (0.060) REF.

0.482 (0.019 + 0.002)

SEATING

PLANE

1.02 + 0.25 (0.040 + 0.010)

BASE PLANE

45 TYP.

4 PLACES

0.73 + 0.08 (0.029 + 0.003)

1.27 (0.050) TYP.

NOMINAL

8.13 (0.320)

7.37 (0.290)

853-1472A 05854

Page 27

Philips Semiconductors Product specification

87C528CMOS single-chip 8-bit microcontroller

1996 Aug 16

Philips Semiconductors and Philips Electronics North America Corporation reserve the right to make changes, without notice, in the products, including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification.

LIFE SUPPORT APPLICATIONS Philips Semiconductors and Philips Electronics North America Corporation Products are not designed for use in life support appliances, devices, or systems where malfunction of a Philips Semiconductors and Philips Electronics North America Corporation Product can reasonably be expected

to result in a personal injury. Philips Semiconductors and Philips Electronics North America Corporation customers using or selling Philips Semiconductors and Philips Electronics North America Corporation Products for use in such applications do so at their own risk and agree to fully indemnify Philips Semiconductors and Philips Electronics North America Corporation for any damages resulting from such improper use or sale.

This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips Semiconductors reserves the right to make changes at any time without notice in order to improve design and supply the best possible product.

Philips Semiconductors 811 East Arques Avenue P.O. Box 3409 Sunnyvale, California 94088–3409 Telephone 800-234-7381

DEFINITIONS

Data Sheet Identification Product Status Definition

Objective Specification

Preliminary Specification

Product Specification

Formative or in Design

Preproduction Product

Full Production

This data sheet contains the design target or goal specifications for product development. Specifications may change in any manner without notice.

This data sheet contains Final Specifications. Philips Semiconductors reserves the right to make changes at any time without notice, in order to improve design and supply the best possible product.

Philips Semiconductors and Philips Electronics North America Corporation

 Copyright Philips Electronics North America Corporation 1996

 
