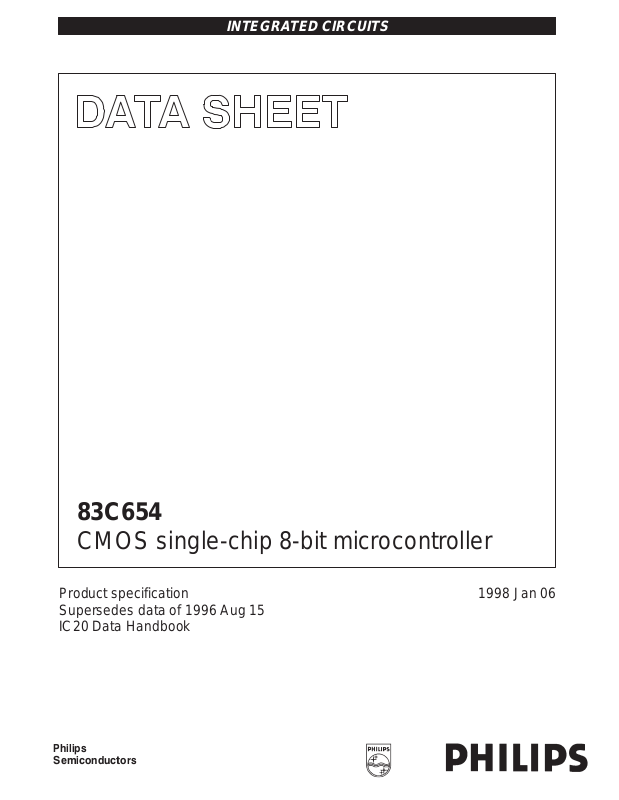

INTEGRATED CIRCUITS

83C654

CMOS single-chip 8-bit microcontroller

Product specification Supersedes data of 1996 Aug 15 IC20 Data Handbook

 

1998 Jan 06

Page 2

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

DESCRIPTION

The P83C654 Single-Chip 8-Bit Microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. The 83C654 has the same instruction set as the 80C51. Two versions of the derivative exist:

83C654 — 16k bytes mask programmable

ROM

87C654 — EPROM version (described in a

separate data sheet)

This device provides architectural enhancements that make it applicable in a variety of applications for general control systems. The 83C654 contains a non-volatile 16k × 8 read-only program memory, a volatile 256 × 8 read/write data memory, four 8-bit I/O ports, two 16-bit timer/event counters (identical to the timers of the 80C51), a multi-source, two-priority-level, nested interrupt structure, an I

C interface, UART and on-chip oscillator and timing circuits. For systems that require extra capability, the

BLOCK DIAGRAM

FREQUENCY REFERENCE

8XC654 can be expanded using standard TTL compatible memories and logic.

The device also functions as an arithmetic processor having facilities for both binary and BCD arithmetic plus bit-handling capabilities. The instruction set consists of over 100 instructions: 49 one-byte, 45 two-byte and 17 three-byte. With a 16(24)MHz crystal, 58% of the instructions are executed in 0.75(0.5)µs and 40% in 1.5(1)µs. Multiply and divide instructions require 3(2)µs.

COUNTERS

FEATURES

•80C51 central processing unit

•16k × 8 ROM expandable externally to

64k bytes

•256 × 8 RAM, expandable externally to

64k bytes

•Two standard 16-bit timer/counters

•Four 8-bit I/O ports

•I

C-bus serial I/O port with byte oriented

master and slave functions

•Full-duplex UART facilities

•Power control modes

– Idle mode – Power-down mode

•ROM code protection

•Extended frequency range: 3.5 to 24 MHz

•Three operating ambient temperature

ranges:

0 to +70°C –40 to +85°C –40 to +125°C

XTAL2 XTAL1

OSCILLATOR

INT0

EXTERNAL

INTERRUPTS

AND

TIMING

CPU

INTERNAL

INTERRUPTS

INT1

PROGRAM

MEMORY

(16K x 8 ROM)

64K BYTE BUS

EXPANSION

CONTRTOL

CONTROL

DATA

MEMORY

(256 x 8 RAM)

PROGRAMMABLE I/O

PARALLEL PORTS,

ADDRESS/DATA BUS

AND I/O PINS

T0 T1

TWO 16-BIT

TIMER/EVENT

COUNTERS

PROG SERIAL PORT FULL DUPLEX UART

SYNCHRONOUS SHIFT

SERIAL IN SERIAL OUT

SHARED WITH

PORT 3

C SERIAL I/O

SDA

SCL

SHARED

WITH

PORT 1

1998 Jan 06

Page 3

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

LOGIC SYMBOL

VSSV

RST XTAL1 XTAL2

PSEN

ALE

FUNCTIONS

ALTERNATE

INT0 INT1

PORT 3

RxD

TxD

T0 T1

PORT 0PORT 1PORT 2

DATA BUS

ADDRESS AND

SCL SDA

ADDRESS BUS

PIN CONFIGURA TIONS Plastic dual in-line package

P1.0 P1.1 P1.2 P1.3 P1.4 P1.5

SCL/P1.6

SDA/P1.7

RST RxD/P3.0 TxD/P3.1

/P3.2

INT0

/P3.3

INT1

T0/P3.4 T1/P3.5

/P3.6 /P3.7

XTAL2 XTAL1

1 2 3 4 5 6 7 8 9

PLASTIC

DUAL

IN-LINE

PACKAGE

12 13 14 15 16 17 18 19 20

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21

P0.0/AD0 P0.1/AD1 P0.2/AD2 P0.3/AD3 P0.4/AD4 P0.5/AD5 P0.6/AD6 P0.7/AD7 EA ALE PSEN P2.7/A15 P2.6/A14 P2.5/A13 P2.4/A12 P2.3/A11 P2.2/A10 P2.1/A9 P2.0/A8

SU00933

Plastic shrink dual in-line package

P1.0 P1.1

2 3

P1.2

P1.3

P1.4

P1.5

RST

/P3.2

/P3.3 T0/P3.4 T1/P3.5

/P3.6

/P3.7

XTAL2 XTAL1

NC*

7 8

9 10 11 12

13 14 15 16 17 18 19 20 21

SCL/P1.6

SDA/P1.7

RxD/P3.0

TxD/P3.1 INT0 INT1

* Do not connect.

SHRINK

DUAL

IN-LINE

PACKAGE

42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22

P0.0/AD0 P0.1/AD1 P0.2/AD2 P0.3/AD3 P0.4/AD4 P0.5/AD5 P0.6/AD6 P0.7/AD7 EA

NC* ALE

PSEN P2.7/A15 P2.6/A14 P2.5/A13 P2.4/A12 P2.3/A11 P2.2/A10 P2.1/A9 P2.0/A8

SU00934

1998 Jan 06

Page 4

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

Plastic leaded chip carrier

P1.4

P1.3

P1.2

P1.1

P1.0

NC*

VDDP0.0/AD0

P0.1/AD1

P0.2/AD2

27 28

P2.3/A11

P2.2/A10

P0.3/AD3

4041

39 P0.4/AD4 38

37 36 35 34 33 32 31 30 P2.6/A14 29

P2.4/A12

P0.5/AD5

P0.6/AD6 P0.7/AD7 EA NC*NC* ALE PSEN P2.7/A15

P2.5/A13

SU00929

P1.5

P1.6/SCL

P1.7/SDA

RST

P3.0/RxD

P3.1/TxD P3.2/INT0 P3.3/INT1

P3.4/T0 P3.5/T1

XTAL1

1234

NC*

56 7 8

10 11

PLASTIC LEADED CHIP CARRIER

12 13 14

15 16 17

18 19

20 21 22 23 24 25 26

XTAL2

P3.7/RD

P3.6/WR

P2.0/A8

424344

P2.1/A9

* Do not connect.

Plastic quad flat pack

P1.5

P1.6/SCL

P1.7/SDA

RST

P3.0/RxD

SS4

P3.1/TxD P3.2/INT0 P3.3/INT1

P3.4/T0 P3.5/T1

SS3

P1.4

P1.3

P1.2

4344 1 2

3 4 5 6 7 8 9

10 11

12 13

P3.6/WR

QUAD FLAT PACK

14 15 16 17 18 19 20

XTAL2

P3.7/RD

P1.1

XTAL1

P1.0

SS1

39404142

NC*

VDDP0.0/AD0

P0.1/AD1

363738

P2.1/A9

P2.0/A8

P2.2/A10

P0.2/AD2

21 22

P2.3/A11

P0.3/AD3

3435

33 P0.4/AD4 32

31 30 29 28 27 26 25 24 P2.6/A14 23

P2.4/A12

P0.5/AD5

P0.6/AD6 P0.7/AD7

SS2

ALE PSEN P2.7/A15

P2.5/A13

SU00935

* Do not connect. (QFP only): Due to EMC improvements, all V

1998 Jan 06

pins (6, 16, 28, 39) must be connected to V

on the 80C652/83C654.

Page 5

Philips Semiconductors Product specification

NUMBER

AND PACKAGE

2,3

83C654CMOS single-chip 8-bit microcontroller

ORDERING INFORMATION

PHILIPS PART ORDER NUMBER

PART MARKING

ROMless

P80C652EBP P83C654EBP/xxx P80C652EBPN P83C654EBPN S87C654-4N40 SOT129-1 0 to +70,

P80C652EBA P83C654EBA/xxx P80C652EBAA P83C654EBAA S87C654-4A44 SOT187-2 0 to +70,

P80C652EBB P83C654EBB/xxx P80C652EBBB P83C654EBBB S87C654-4B44 SOT307-2 0 to +70,

P80C652EFP P83C654EFP/xxx P80C652EFPN P83C654EFPN S87C654-5N40 SOT129-1 –40 to +85,

P80C652EFA P83C654EFA/xxx P80C652EFAA P83C654EFAA S87C654-5A44 SOT187-2 –40 to +85,

P80C652EFB P83C654EFB/xxx P80C652EFBB P83C654EFBB S87C654-5B44 SOT307-2 –40 to +85,

P80C652EHP P83C654EHP/xxx P80C652EHPN P83C654EHPN SOT129-1 –40 to +125,

P80C652EHA P83C654EHA/xxx P80C652EHAA P83C654EHAA SOT187-2 –40 to +125,

P80C652EHB P83C654EHB/xxx P80C652EHBB P83C654EHBB SOT307-2 –40 to +125,

P80C652IBP P83C654IBP/xxx P80C652IBPN P83C654IBPN SOT129-1 0 to +70,

P80C652IBA P83C654IBA/xxx P80C652IBAA P83C654IBAA SOT187-2 0 to +70,

P80C652IBB P83C654IBB/xxx P80C652IBBB P83C654IBBB SOT307-2 0 to +70,

P80C652IFP P83C654IFP/xxx P80C652IFPN P83C654IFPN SOT129-1 –40 to +85,

P80C652IFA P83C654IFA/xxx P80C652IFAA P83C654IFAA SOT187-2 –40 to +85,

P80C652IFB P83C654IFB/xxx P80C652IFBB P83C654IFBB SOT307-2 –40 to +85,

ROM ROMless

P83C654EBR/xxx SOT270-1 0 to +70,

NOTES:

1. For full specification, see the 80C652/83C652 data sheet.

2. 83C654 frequency range is 3.5MHz–16MHz or 3.5MHz–24MHz.

3. For specification of the EPROM version, see the 87C654 data sheet.

4. xxx denotes the ROM code number.

PHILIPS NORTH AMERICA

PART ORDER NUMBER

ROM EPROM

S87C654-7N40 SOT129-1 0 to +70,

S87C654-7A44 SOT187-2 0 to +70,

S87C654-8N40 SOT129-1 –40 to +85,

S87C654-8A44 SOT187-2 –40 to +85,

DRAWING

TEMPERA TURE RANGE (°C)

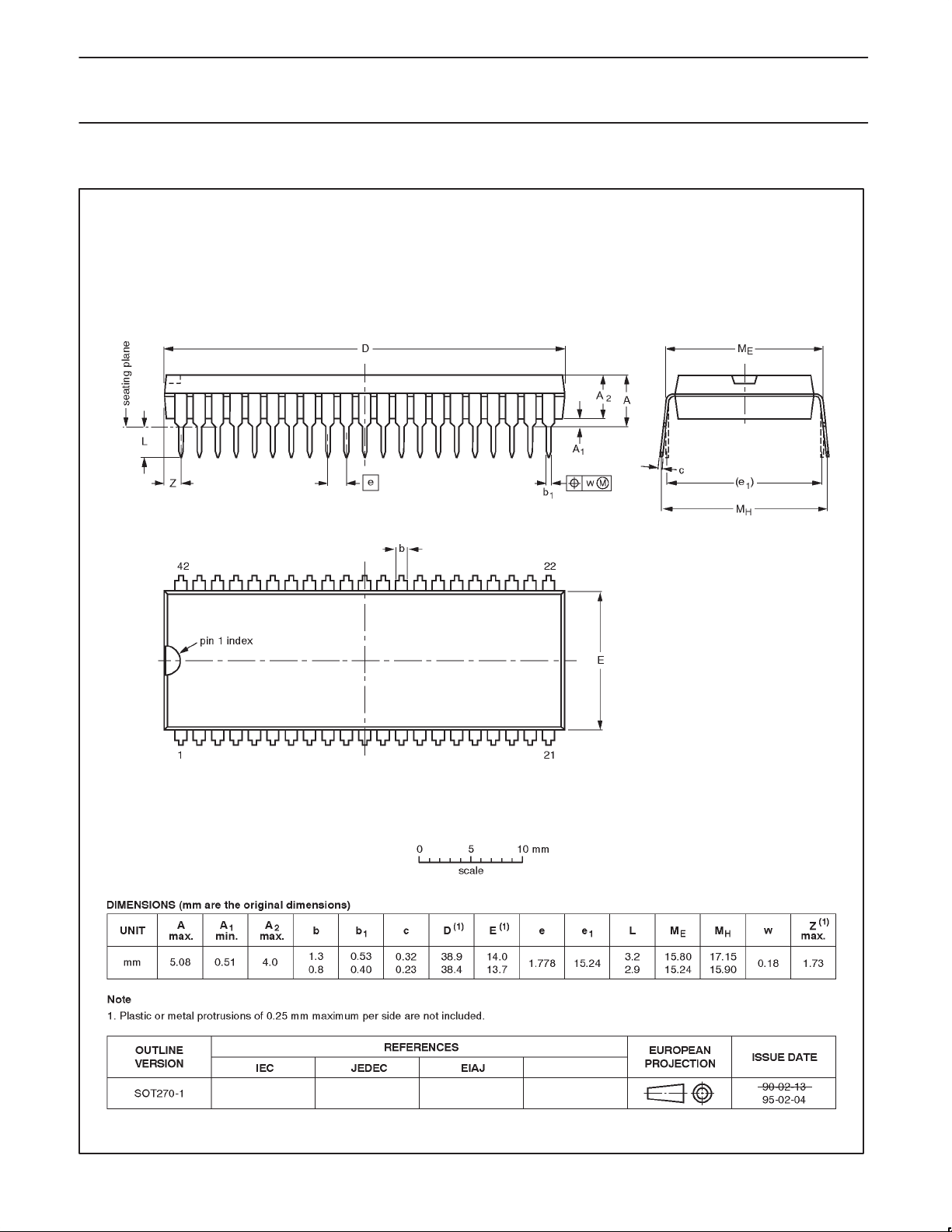

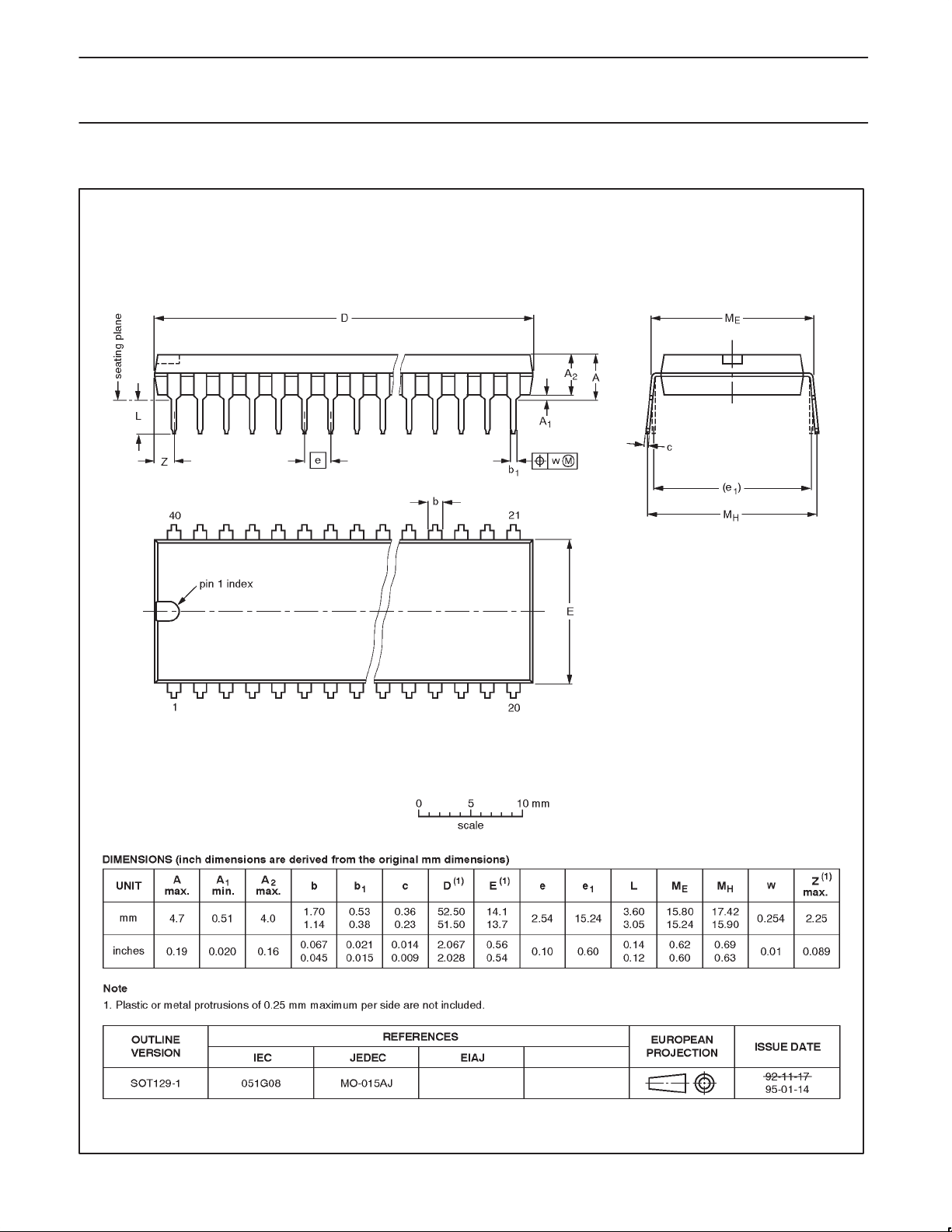

Plastic Dual In-line Package

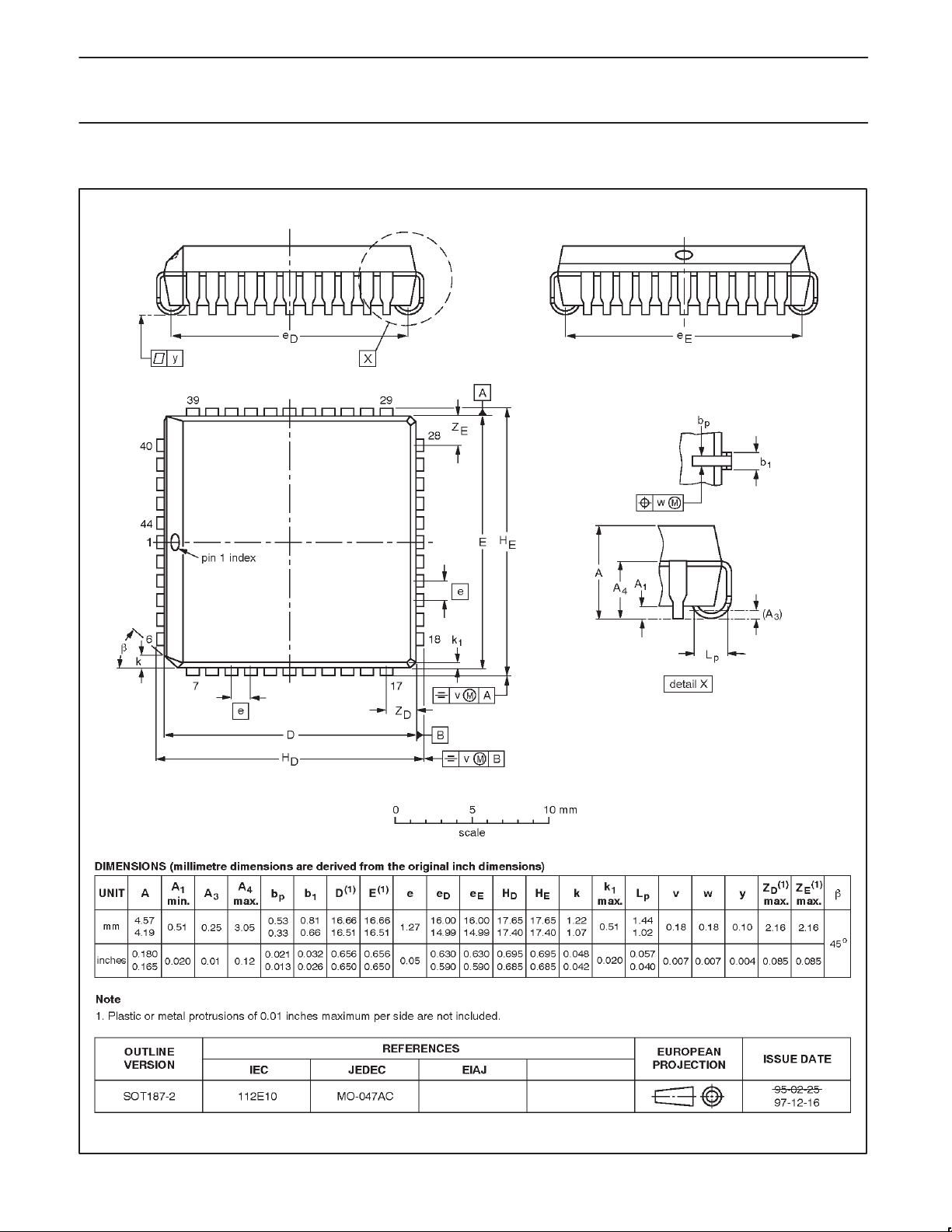

Plastic Leaded Chip Carrier

Plastic Quad Flat Pack

Plastic Shrink Dual In-Line Package

Plastic Dual In-line Package

Plastic Leaded Chip Carrier

Plastic Quad Flat Pack

Plastic Dual In-line Package

Plastic Leaded Chip Carrier

Plastic Quad Flat Pack

Plastic Dual In-line Package

Plastic Leaded Chip Carrier

Plastic Dual In-line Package

Plastic Leaded Chip Carrier

Plastic Dual In-line Package

Plastic Leaded Chip Carrier

Plastic Quad Flat Pack

Plastic Dual In-line Package

Plastic Leaded Chip Carrier

Plastic Quad Flat Pack

FREQ

1998 Jan 06

Page 6

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

PIN DESCRIPTIONS

PIN NUMBER

MNEMONIC DIP PLCC QFP TYPE NAME AND FUNCTION

P0.0–0.7 39–32 43–36 37–30 I/O Port 0: Port 0 is an open-drain, bidirectional I/O port. Port 0 pins that have 1s written to them

P1.0–P1.7 1–8 2–9 40–44,

P1.6 7 8 2 I/O SCL: I2C-bus serial port clock line. P1.7 8 9 3 I/O SDA: I2C-bus serial port data line.

P2.0–P2.7 21–28 24–31 18–25 I/O Port 2: Port 2 is an 8-bit bidirectional I/O port with internal pull-ups. Port 2 pins that have 1s

P3.0–P3.7 10–17 11,

RST 9 10 4 I Reset: A high on this pin for two machine cycles while the oscillator is running, resets the

ALE 30 33 27 I/O Address Latch Enable: Output pulse for latching the low byte of the address during an

PSEN 29 32 26 O Program Store Enable: Read strobe to external program memory via Port 0 and Port 2. It is

EA 31 35 29 I External Access: If during a RESET, EA is held at TTL, level HIGH, the CPU executes out

XTAL1 19 21 15 I Crystal 1: Input to the inverting oscillator amplifier and input to the internal clock generator

XTAL2 18 20 14 O Crystal 2: Output from the inverting oscillator amplifier.

NOTE:

To avoid “latch-up” effect at power-on, the voltage on any pin at any time must not be higher than V

20 22 6, 16,

28, 39

I Ground: 0V reference. With the QFP package all VSS pins (V

connected.

SS1

to V

) must be

SS4

40 44 38 I Power Supply: This is the power supply voltage for normal, idle, and power-down

operation.

float and can be used as high-impedance inputs. Port 0 is also the multiplexed low-order address and data bus during accesses to external program and data memory. In this application, it uses strong internal pull-ups when emitting 1s.

I/O Port 1: Port 1 is an 8-bit bidirectional I/O port with internal pull-ups, except P1.6 and P1.7

1–3

which are open drain. Port 1 pins that have 1s written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 1 pins that are externally pulled low will source current because of the internal pull-ups. (See DC Electrical Characteristics: I Alternate functions include:

written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 2 pins that are externally being pulled low will source current because of the internal pull-ups. (See DC Electrical Characteristics: I during fetches from external program memory and during accesses to external data memory

). Port 2 emits the high-order address byte

that use 16-bit addresses (MOVX @DPTR). In this application, it uses strong internal pull-ups when emitting 1s. During accesses to external data memory that use 8-bit addresses (MOV @Ri), port 2 emits the contents of the P2 special function register.

I/O Port 3: Port 3 is an 8-bit bidirectional I/O port with internal pull-ups. Port 3 pins that have 1s

13–195,7–13

written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 3 pins that are externally being pulled low will source current because of the pull-ups. (See DC Electrical Characteristics: I family, as listed below:

). Port 3 also serves the special features of the 80C51

10 11 5 I RxD (P3.0): Serial input port 11 13 7 O TxD (P3.1): Serial output port 12 14 8 I INT0 (P3.2): External interrupt 13 15 9 I INT1 (P3.3): External interrupt 14 16 10 I T0 (P3.4): Timer 0 external input 15 17 11 I T1 (P3.5): Timer 1 external input 16 18 12 O WR (P3.6): External data memory write strobe 17 19 13 O RD (P3.7): External data memory read strobe

device. An internal diffused resistor to V capacitor to V

permits a power-on reset using only an external

access to external memory. In normal operation, ALE is emitted at a constant rate of 1/6 the oscillator frequency . Note that one ALE pulse is skipped during each access to external data memory.

activated twice each machine cycle during fetches from the external program memory. When executing out of external program memory two activations of PSEN access to external data memory. PSEN from external program memory. PSEN

is not activated (remains HIGH) during no fetches

can sink/source 8 LSTTL inputs and can drive CMOS

are skipped during each

inputs without external pull–ups.

of the internal program memory ROM provided the Program Counter is less than 16384. If during a RESET, EA memory. EA

is held a TTL LOW level, the CPU executes out of external program

is not allowed to float.

circuits.

+ 0.5V or VSS – 0.5V, respectively.

1998 Jan 06

Page 7

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

Table 1. 8XC652/654 Special Function Registers

SYMBOL DESCRIPTION

ACC* Accumulator E0H E7 E6 E5 E4 E3 E2 E1 E0 00H B* B register F0H F7 F6 F5 F4 F3 F2 F1 F0 00H DPTR:

DPH DPL

IE*# Interrupt enable A8H EA ES1 ES0 ET1 EX1 ET0 EX0 0x000000B

IP*# Interrupt priority B8H – PS1 PS0 PT1 PX1 PT0 PX0 xx000000B

P0* Port 0 80H AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0 FFH

P1*# Port 1 90H SDA SCL FFH

P2* Port 2 A0H A15 A14 A13 A12 A11 A10 A9 A8 FFH

P3* Port 3 B0H RD WR T1 T0 INT1 INT0 TXD RXD FFH PCON# Power control 87H SMOD – – – GF1 GF0 PD IDL 0xxx0000B

S0CON*# Serial 0 port control 98H SM0 SM1 SM2 REN TB8 RB8 TI RI 00H S0BUF# Serial 0 data buffer 99H xxxxxxxxB

PSW* Program status word D0H CY AC F0 RS1 RS0 OV F1 P 00H S1DAT# Serial 1 data DAH 00H SP Stack pointer 81H 07H S1ADR# Serial 1 address DBH

Data pointer (2 bytes) Data pointer high Data pointer low

DIRECT

ADDRESS

83H 82H

BIT ADDRESS, SYMBOL, OR ALTERNATIVE PORT FUNCTION MSB LSB

AF AE AD AC AB AA A9 A8

BF BE BD BC BB BA B9 B8

87 86 85 84 83 82 81 80

97 96 95 94 93 92 91 90

A7 A6 A5 A4 A3 A2 A1 A0

B7 B6 B5 B4 B3 B2 B1 B0

9F 9E 9D 9C 9B 9A 99 98

D7 D6 D5 D4 D3 D2 D1 D0

 SLAVE ADDRESS 

GC 00H

RESET VALUE

00H 00H

S1STA# Serial 1 status D9H SC4 SC3 SC2 SC1 SC0 0 0 0 F8H

DF DE DD DC DB DA D9 D8

S1CON*# Serial 1 control D8H CR2 ENS1 STA STO SI AA CR1 CR0 00000000B

8F 8E 8D 8C 8B 8A 89 88 TCON* Timer control 88H TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0 00H TH1 T imer high 1 8DH 00H TH0 T imer high 0 8CH 00H TL1 Timer low 1 8BH 00H TL0 Timer low 0 8AH 00H TMOD Timer mode 89H GATE C/T M1 M0 GATE C/T M1 M0 00H

* SFRs are bit addressable. # SFRs are modified from or added to the 80C51 SFRs.

1998 Jan 06

Page 8

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

ROM CODE PROTECTION (83C654)

The 83C654 has an additional security feature. ROM code protection may be selected by setting a mask–programmable security bit (i.e., user dependent). This feature may be requested during ROM code submission. When selected, the ROM code is protected and cannot be read out at any time by any test mode or by any instruction in the external program memory space.

The MOVC instructions are the only instructions that have access to program code in the internal or external program memory. The EA RESET and is “don’t care” after RESET (also if the security bit is not set). This implementation prevents reading internal program code by switching from external program memory to internal program memory during a MOVC instruction or any other instruction that uses immediate data.

input is latched during

OSCILLA T OR CHARACTERISTICS

XTAL1 and XTAL2 are the input and output, respectively, of an inverting amplifier. The pins can be configured for use as an on-chip oscillator, as shown in the Logic Symbol, page 3.

To drive the device from an external clock source, XTAL1 should be driven while XTAL2 is left unconnected. There are no requirements on the duty cycle of the external clock signal, because the input to the internal clock circuitry is through a divide-by-two flip-flop. However, minimum and maximum high and low times specified in the data sheet must be observed.

Reset

A reset is accomplished by holding the RST pin high for at least two machine cycles (24 oscillator periods), while the oscillator is running. To insure a good power-on reset, the RST pin must be high long enough to allow the oscillator time to start up (normally a few milliseconds) plus two machine cycles. At power-on, the voltage on V come up at the same time for a proper start-up.

and RST must

Idle Mode

In the idle mode, the CPU puts itself to sleep while all of the on-chip peripherals stay active. The instruction to invoke the idle mode is the last instruction executed in the normal operating mode before the idle mode is activated. The CPU contents, the on-chip RAM, and all of the special function registers remain intact during this mode. The idle mode can be terminated either by any

enabled interrupt (at which time the process is picked up at the interrupt service routine and continued), or by a hardware reset which starts the processor in the same manner as a power-on reset.

Power-Down Mode

In the power-down mode, the oscillator is stopped and the instruction to invoke power-down is the last instruction executed. Only the contents of the on-chip RAM are preserved. A hardware reset is the only way to terminate the power-down mode. The control bits for the reduced power modes are in the special function register PCON. Table 2 shows the state of the I/O ports during low current operating modes.

I2C SERIAL COMMUNICA TION — SIO1

The I2C serial port is identical to the I2C serial port on the 8XC552. The operation of this subsystem is described in detail in the 8XC552 section of this manual.

Note that in both the 8XC652/4 and the 8XC552 the I to port pins P1.6 and P1.7. Because of this, P1.6 and P1.7 on these parts do not have a pull-up structure as found on the 80C51. Therefore P1.6 and P1.7 have open drain outputs on the 8XC652/4.

C pins are alternate functions

Table 2. External Pin Status During Idle and Power-Down Mode

MODE

Idle Internal 1 1 Data Data Data Data Idle External 1 1 Float Data Address Data Power-down Internal 0 0 Data Data Data Data Power-down External 0 0 Float Data Data Data

Serial Control Register (S1CON) – See Table 3

S1CON (D8H)

Bits CR0, CR1 and CR2 determine the serial clock frequency that is generated in the master mode of operation.

CR2 ENS1 STA STO SI AA CR1 CR0

PROGRAM

MEMORY

ALE PSEN PORT 0 PORT 1 PORT 2 PORT 3

Table 3. Serial Clock Rates

BIT FREQUENCY (kHz) AT f

CR2 CR1 CR0

0 0 0 23 47 62.5 94 256 0 0 1 27 54 71 107 0 1 0 31.25 62.5 83.3 125 0 1 1 37 75 100 150 1 0 0 6.25 12.5 17 25 960 1 0 1 50 100 133 1 1 0 100 200 1 1 1 0.24 < 62.5

NOTES:

1. These frequencies exceed the upper limit of 100kHz of the I

6MHz 12MHz 16MHz 24MHz f

0 to 255

0.49 < 62.5 0 to 254

OSC

DIVIDED BY

OSC

1 1 1

1 1

267

0.65 < 55.6 0 to 253

C-bus specification and cannot be used in an I2C-bus application.

200

400

0.98 < 50.0 0 to 251

96 × (256 – (reload value Timer 1))

reload value range Timer 1 (in mode 2)

224 192 160

120

1998 Jan 06

Page 9

Philips Semiconductors Product specification

TYPE

TEMPERATURE RANGE (°C)

83C654CMOS single-chip 8-bit microcontroller

ABSOLUTE MAXIMUM RATINGS

Storage temperature range –65 to +150 °C Voltage on any other pin to V Input, output current on any single pin ±5 mA Power dissipation

(based on package heat transfer limitations, not device power consumption)

NOTES:

1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any conditions other than those described in the AC and DC Electrical Characteristics section of this specification is not implied.

2. This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive static charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated maxima.

3. Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to V noted.

1, 2, 3

PARAMETER

RATING UNIT

–0.5 to + 6.0 V

1 W

unless otherwise

DEVICE SPECIFICATIONS

SUPPLY VOLTAGE (V) FREQUENCY (MHz)

MIN. MAX. MIN. MAX.

P83C654EBx 4.5 5.5 3.5 16 0 to +70 P83C654EFx 4.5 5.5 3.5 16 –40 to +85 P83C654FHx 4.5 5.5 3.5 16 –40 to +125

P83C654IBx 4.5 5.5 3.5 24 0 to +70 P83C654IFx 4.5 5.5 3.5 24 –40 to +85

1998 Jan 06

Page 10

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

DC ELECTRICAL CHARACTERISTICS

VSS = 0V, VDD = 5V ± 10%

TEST LIMITS

SYMBOL PARAMETER PART TYPE CONDITIONS MIN. MAX. UNIT

V V

V V V

I I

R C

IL1

IL2 IH

IH1

IH2 OL

OL1 OL2 OH

OH1

L1 L2

RST IO

Input low voltage, except EA, P1.6/SCL, P1.7/SDA

Input low voltage to EA

Input low voltage to P1.6/SCL, P1.7/SDA

Input high voltage, except XTAL1, RST, P1.6/SCL, P1.7/SDA

Input high voltage, XTAL1, RST

Input high voltage, P1.6/SCL, P1.7/SDA

Output low voltage, ports 1, 2, 3, except P1.6/SCL, P1.7/SDA

Output low voltage, port 0, ALE, PSEN IOL = 3.2mA Output low voltage, P1.6/SCL, P1.7/SDA IOL = 3.0mA 0.4 V Output high voltage, ports 1, 2, 3, ALE, PSEN

Output high voltage; port 0 in external bus mode

Logical 0 input current, ports 1, 2, 3, except P1.6/SCL, P1.7/SDA

Logical 1-to-0 transition current, ports 1, 2, 3, except P1.6/SCL, P1.7/SDA

Input leakage current, port 0, EA 0.45V < V Input leakage current, P1.6/SCL, P1.7/SDA

Power supply current: See note 1

Active mode @ 16MHz Active mode @ 24MHz Idle mode @ 16MHz Idle mode @ 24MHz Power down mode Power down mode

2, 11

2, 11 3, 11 3, 11

4, 5 4, 5

Internal reset pull-down resistor 50 150 kΩ Pin capacitance Freq.=1MHz 10 pF

NOTES:

1. See Figures 9 through 11 for I

2. The operating supply current is measured with all output pins disconnected; XTAL1 driven with t V

= VSS + 0.5V; VIH = V

3. The idle mode supply current is measured with all output pins disconnected; XTAL1 driven with t V

4. The power-down current is measured with all output pins disconnected; XTAL2 not connected; Port 0 = P1.6 = P1.7 = V EA

5. 2V ≤ V

6. The input threshold voltage of P1.6 and P1.7 (SIO1) meets the I

= V

–0.5V; XTAL2 not connected; Port 0 = P1.6 = P1.7 = VDD; EA = RST = VSS. See Figure 10.

= RST = VSS. See Figure 11.

≤ VDDmax.

logic 0 while an input voltage above 0.7V

test conditions.

–0.5V; XTAL2 not connected; EA = RST = Port 0 = P1.6 = P1.7 = VDD. See Figure 9.

will be recognized as a logic 1.

0 to +70°C –0.5 0.2VDD–0.1 V

–40 to +85°C –0.5 0.2VDD–0.15 V

–40 to +125°C –0.5 0.2VDD–0.25 V

0 to +70°C –0.5 0.2VDD–0.3 V

–40 to +85°C –0.5 0.2VDD–0.35 V

–40 to +125°C –0.5 0.2VDD–0.45 V

–0.5 0.3V

0 to +70°C 0.2VDD+0.9 VDD+0.5 V

–40 to +85°C 0.2VDD+1.0 VDD+0.5 V

–40 to +125°C 0.2VDD+1.0 VDD+0.5 V

0 to +70°C 0.7V

VDD+0.5 V

–40 to +85°C 0.7VDD+0.1 VDD+0.5 V

–40 to +125°C 0.7VDD+0.1 VDD+0.5 V

IOL = 1.6mA

8, 9

0.7V

6.0 V

0.45 V

IOH = –60µA 2.4 V IOH = –25µA 0.75V IOH = –10µA 0.9V

IOH = –800µA 2.4 V IOH = –300µA 0.75V

IOH = –80µA 0.9V

0 to +70°C VIN = 0.45V –50 µA

–40 to +85°C –75 µA

–40 to +125°C –75 µA

0 to +70°C See note 7 –650 µA

–40 to +85°C –750 µA

–40 to +125°C –750 µA

0V < V

< V

< 6.0V ±10 µA

< 6.0V µA

±10 µA

VDD=5.5V 28.0 mA VDD=5.5V 35.0 mA

6 mA 7 mA

50 µA

–40 to +125°C 100 µA

= tf = 5ns;

= tf = 5ns; VIL = VSS + 0.5V;

;

C specification, so an input voltage below 0.3VDD will be recognized as a

V V

1998 Jan 06

Page 11

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

7. Pins of ports 1 , 2, and 3 source a transition current when they are being externally driven from 1 to 0. The transition current reaches its maximum value when V

8. Capacitive loading on ports 0 and 2 may cause spurious noise to be superimposed on the V to external bus capacitance discharging into the port 0 and port 2 pins when these pins make 1-to-0 transitions during bus operations. In the

is approximately 2V .

s of ALE and ports 1 and 3. The noise is due

worst cases (capacitive loading > 100pF), the noise pulse on the ALE pin may exceed 0.8V . In such cases, it may be desirable to qualify ALE with a Schmitt Trigger, or use an address latch with a Schmitt Trigger STROBE input.

9. Under steady state (non-transient) conditions, I I

= 26mA total for Port 0; Maximum IOL = 15mA total for Ports 1, 2, and 3; Maximum IOL = 71mA total for all output pins. If IOL exceeds the

test conditions, V

10.Capacitive loading on ports 0 and 2 may cause the V

may exceed the related specification. Pins are not guaranteed to sink current greater than the listed test conditions.

address bits are stabilizing.

11. I

for other frequencies can be derived from Figure 1, where FREQ is the external oscillator frequency in MHz. I

DDMAX

(mA)

must be externally limited as follows: Maximum IOL = 10mA per port pin; Maximum

on ALE and PSEN to momentarily fall below the 0.9VDD specification when the

is given in mA.

DDMAX

(mA)

(1)

(2)

(1)

(2)

0481216

(1) MAXIMUM OPERATING MODE: V (2) MAXIMUM IDLE MODE: VDD = V

These values are valid within the specified frequency range.

= V

DDmax

XTAL1

(MHz)

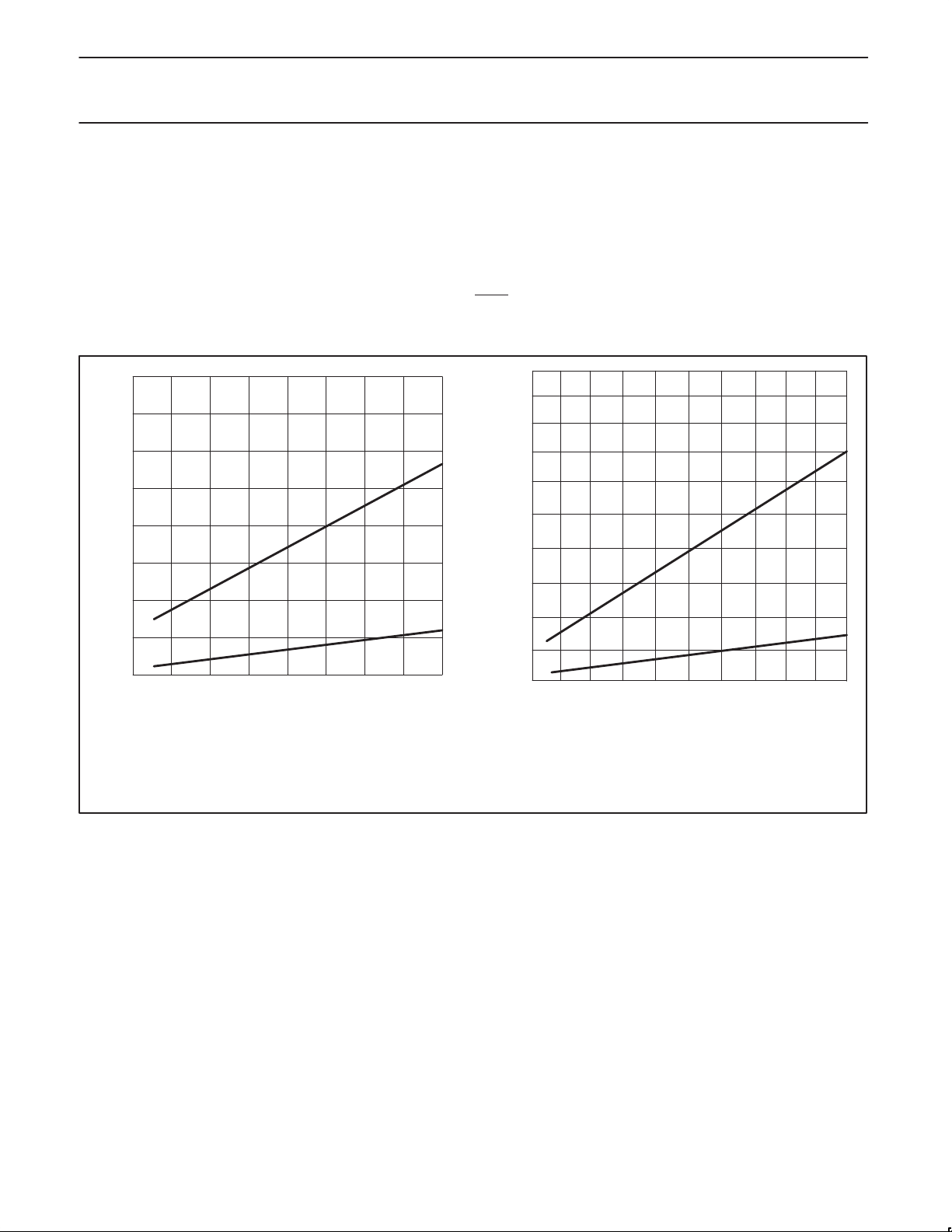

Figure 1. IDD vs. Frequency

(1) MAXIMUM OPERATING MODE: V (2) MAXIMUM IDLE MODE: VDD = V These values are valid within the specified

frequency range.

81216

= V

DDmax

XTAL1

(MHz)

1998 Jan 06

Page 12

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

AC ELECTRICAL CHARACTERISTICS

1, 2

(16 MHz type)

16MHz CLOCK VARIABLE CLOCK

SYMBOL FIGURE PARAMETER MIN MAX MIN MAX UNIT

1/t t

LHLL

AVLL

LLAX

LLIV

LLPL

PLPH

PLIV

PXIX

PXIZ

AVIV

PLAZ

CLCL

2 Oscillator frequency 3.5 16 MHz 2 ALE pulse width 85 2t 2 Address valid to ALE low 8 t 2 Address hold after ALE low 28 t 2 ALE low to valid instruction in 150 4t 2 ALE low to PSEN low 23 t 2 PSEN pulse width 143 3t 2 PSEN low to valid instruction in 83 3t

–40 ns

CLCL

–55 ns

CLCL

–35 ns

CLCL

–100 ns

CLCL

–40 ns

CLCL

–45 ns

CLCL

–105 ns

CLCL

2 Input instruction hold after PSEN 0 0 ns 2 Input instruction float after PSEN 38 t 2 Address to valid instruction in 208 5t

–25 ns

CLCL

–105 ns

CLCL

2 PSEN low to address float 10 10 ns

Data Memory

RLRH

WLWH

RLDV

RHDX

RHDZ

LLDV

AVDV

LLWL

AVWL

QVWX

WHQX

RLAZ

WHLH

3, 4 RD pulse width 275 6t 3, 4 WR pulse width 275 6t 3, 4 RD low to valid data in 148 5t

–100 ns

CLCL

–100 ns

CLCL

–165 ns

CLCL

3, 4 Data hold after RD 0 0 ns 3, 4 Data float after RD 55 2t 3, 4 ALE low to valid data in 350 8t 3, 4 Address to valid data in 398 9t 3, 4 ALE low to RD or WR low 138 238 3t 3, 4 Address valid to WR low or RD low 120 4t 3, 4 Data valid to WR transition 3 t 3, 4 Data setup time before WR 288 7t 3, 4 Data hold after WR 13 t

–50 3t

CLCL

–130 ns

CLCL

–60 ns

CLCL

–150 ns

CLCL

–50 ns

CLCL

–70 ns

CLCL

–150 ns

CLCL

–165 ns

CLCL

+50 ns

CLCL

3, 4 RD low to address float 0 0 ns 3, 4 RD or WR high to ALE high 23 103 t

–40 t

CLCL

+40 ns

CLCL

Shift Register

XLXL

QVXH

XHQX

XHDX

XHDV

5 Serial port clock cycle time 5 Output data setup to clock rising edge 5 Output data hold after clock rising edge 5 Input data hold after clock rising edge 5 Clock rising edge to input data valid

0.75 12t 492 10t

80 2t

CLCL

–133 ns

CLCL

–117 ns

CLCL

0 0 ns

492 10t

–133 ns

CLCL

External Clock

CHCX

CLCX

CLCH

CHCL

6 High time 6 Low time 6 Rise time 6 Fall time

20 20 t 20 20 t

20 20 ns 20 20 ns

CLCL – CLCL –

CLCX

CHCX

NOTES:

1. Parameters are valid over operating temperature range unless otherwise specified.

2. Load capacitance for port 0, ALE, and PSEN

= 100pF, load capacitance for all other outputs = 80pF.

3. These values are characterized but not 100% production tested.

µs

ns ns

1998 Jan 06

Page 13

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

AC ELECTRICAL CHARACTERISTICS

1, 2

(24 MHz type)

24MHz CLOCK VARIABLE CLOCK

SYMBOL FIGURE PARAMETER MIN MAX MIN MAX UNIT

1/t t

LHLL

AVLL

LLAX

LLIV

LLPL

PLPH

PLIV

PXIX

PXIZ

AVIV

PLAZ

CLCL

2 Oscillator frequency 3.5 24 MHz 2 ALE pulse width 43 2t 2 Address valid to ALE low 17 t 2 Address hold after ALE low 17 t 2 ALE low to valid instruction in 102 4t 2 ALE low to PSEN low 17 t 2 PSEN pulse width 80 3t 2 PSEN low to valid instruction in 65 3t

–40 ns

CLCL

–25 ns

CLCL

–25 ns

CLCL

–65 ns

CLCL

–25 ns

CLCL

–45 ns

CLCL

–60 ns

CLCL

2 Input instruction hold after PSEN 0 0 ns 2 Input instruction float after PSEN 17 t 2 Address to valid instruction in 128 5t

–25 ns

CLCL

–80 ns

CLCL

2 PSEN low to address float 10 10 ns

Data Memory

RLRH

WLWH

RLDV

RHDX

RHDZ

LLDV

AVDV

LLWL

AVWL

QVWX

WHQX

RLAZ

WHLH

3, 4 RD pulse width 150 6t 3, 4 WR pulse width 150 6t 3, 4 RD low to valid data in 118 5t

–100 ns

CLCL

–100 ns

CLCL

–90 ns

CLCL

3, 4 Data hold after RD 0 0 ns 3, 4 Data float after RD 55 2t 3, 4 ALE low to valid data in 180 8t 3, 4 Address to valid data in 210 9t 3, 4 ALE low to RD or WR low 75 175 3t 3, 4 Address valid to WR low or RD low 92 4t 3, 4 Data valid to WR transition 12 t 3, 4 Data setup time before WR 162 7t 3, 4 Data hold after WR 17 t

–50 3t

CLCL

–75 ns

CLCL

–30 ns

CLCL

–130 ns

CLCL

–25 ns

CLCL

–28 ns

CLCL

–150 ns

CLCL

–165 ns

CLCL

+50 ns

CLCL

3, 4 RD low to address float 0 0 ns 3, 4 RD or WR high to ALE high 17 67 t

–25 t

CLCL

+25 ns

CLCL

Shift Register

XLXL

QVXH

XHQX

XHDX

XHDV

5 Serial port clock cycle time 5 Output data setup to clock rising edge 5 Output data hold after clock rising edge 5 Input data hold after clock rising edge 5 Clock rising edge to input data valid

0.5 12t

283 10t

23 2t

CLCL

–133 ns

CLCL

–60 ns

CLCL

0 0 ns

283 10t

–133 ns

CLCL

External Clock

CHCX

CLCX

CLCH

CHCL

6 High time 6 Low time 6 Rise time 6 Fall time

17 17 t 17 17 t

5 5 ns 5 5 ns

CLCL – CLCL –

CLCX

CHCX

NOTES:

1. Parameters are valid over operating temperature range unless otherwise specified.

2. Load capacitance for port 0, ALE, and PSEN

= 100pF, load capacitance for all other outputs = 80pF.

3. These values are characterized but not 100% production tested.

µs

ns ns

1998 Jan 06

Page 14

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

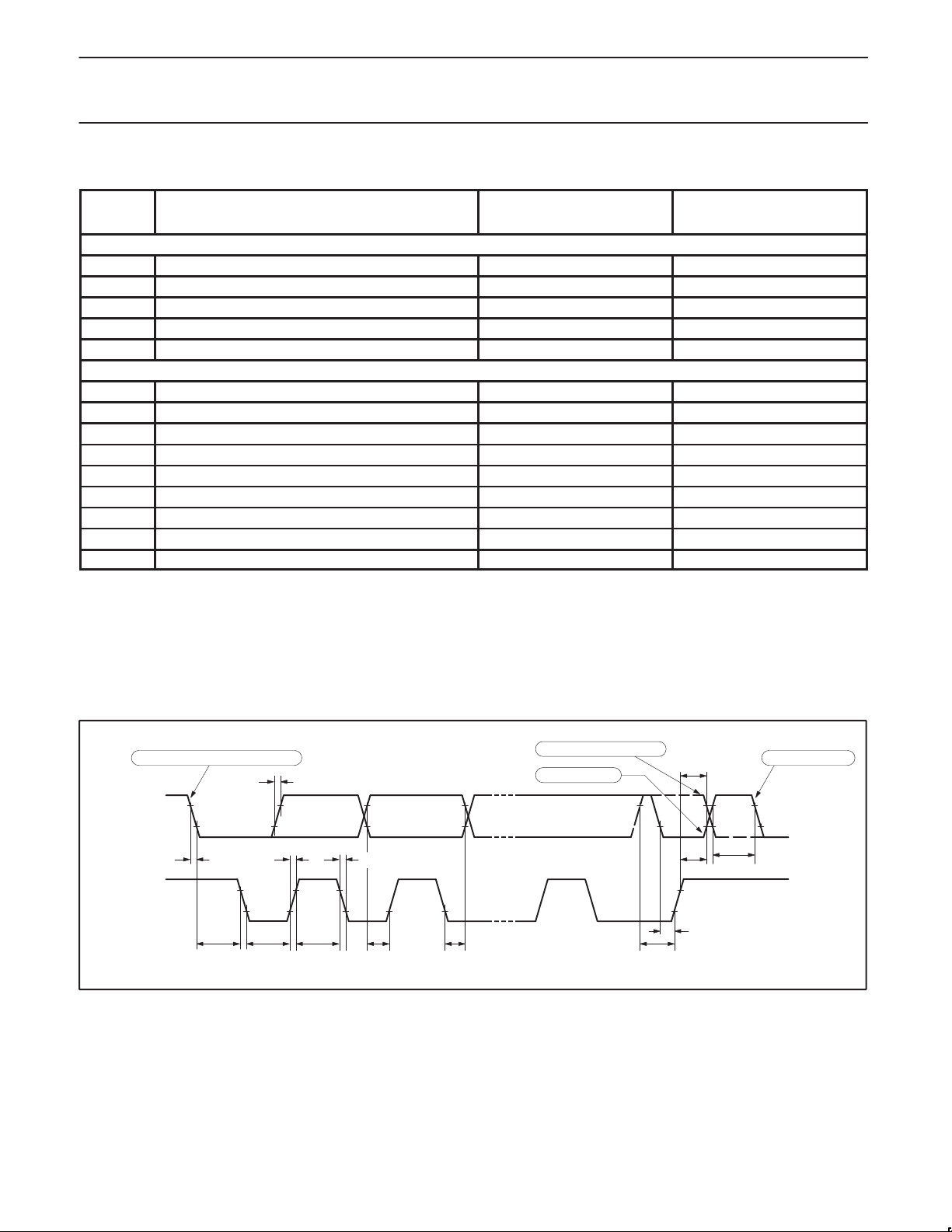

AC ELECTRICAL CHARACTERISTICS – I2C INTERFACE

SYMBOL PARAMETER INPUT OUTPUT

SCL TIMING CHARACTERISTICS

HD;STA

LOW

HIGH

STAR T condition hold time ≥ 14 t SCL LOW time ≥ 16 t SCL HIGH time ≥ 14 t

CLCL CLCL CLCL

SCL rise time ≤ 1µs – SCL fall time ≤ 0.3µs < 0.3µs

SDA TIMING CHARACTERISTICS

SU;DAT1

SU;DAT2

SU;DAT3

HD;DAT

SU;STA

SU;STO

BUF

Data set-up time ≥ 250ns > 20 t SDA set-up time (before rep. STAR T cond.) ≥ 250ns > 1µs SDA set-up time (before STOP cond.) ≥ 250ns > 8 t Data hold time ≥ 0ns > 8 t Repeated START set-up time ≥ 14 t STOP condition set-up time ≥ 14 t Bus free time ≥ 14 t

CLCL CLCL CLCL

SDA rise time ≤ 1µs – SDA fall time ≤ 0.3µs < 0.3µs

NOTES:

1. At 100 kbit/s. At other bit rates this value is inversely proportional to the bit-rate of 100 kbit/s.

2. Determined by the external bus-line capacitance and the external bus-line pull-resistor, this must be < 1µs.

3. Spikes on the SDA and SCL lines with a duration of less than 3 t SCL = 400pF.

4. t

= 1/f

CLCL

interface meets the I

= one oscillator clock period at pin XTAL1. For 63ns (42ns) < t

OSC

C-bus specification for bit-rates up to 100 kbit/s.

will be filtered out. Maximum capacitance on bus-lines SDA and

CLCL

< 285ns (16MHz (24MHz) > f

CLCL

> 3.5MHz) the SIO1

OSC

> 4.0µs > 4.7µs > 4.0µs

CLCL

> 4.7µs > 4.0µs > 4.7µs

– t

1 1 1

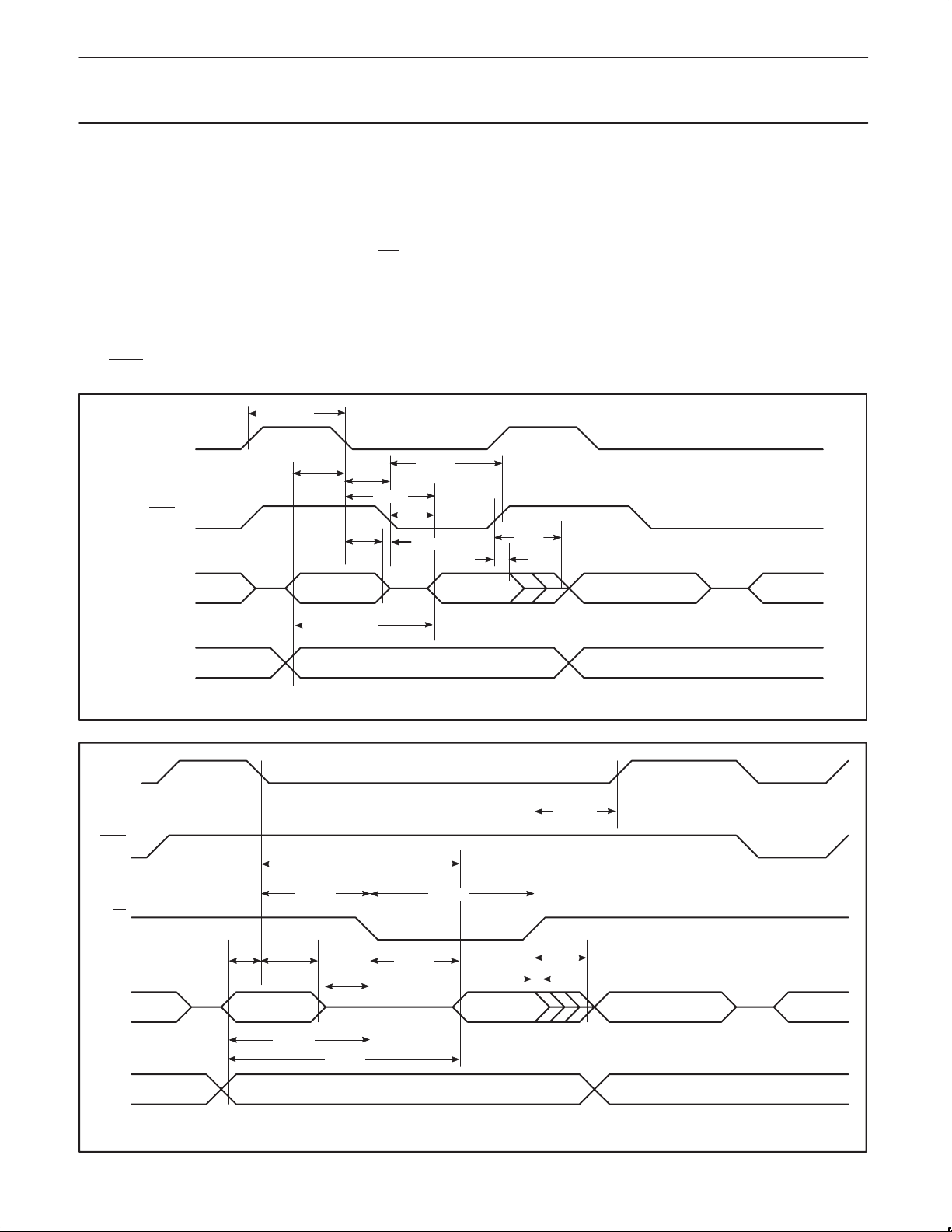

TIMING SIO1 (I2C) INTERFACE

START or repeated START condition

SDA

(INPUT/OUTPUT)

FDtRC

SCL

(INPUT/OUTPUT)

HD;STA

LOW

HIGH

SU;DAT1

HD;DAT

repeated START condition

STOP condition

SU;DAT2

SU;STA

SU; STO

0.7 V

0.3 V

BUF

DD DD

SU;DAT3

START condition

0.7 V

0.3 V

1998 Jan 06

Page 15

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

EXPLANATION OF THE AC SYMBOLS

Each timing symbol has five characters. The first character is always ‘t’ (= time). The other characters, depending on their positions, indicate the name of a signal or the logical status of that signal. The designations are: A – Address C – Clock D – Input data H – Logic level high I – Instruction (program memory contents) L – Logic level low, or ALE P – PSEN

AVLL

LHLL

ALE

PSEN

PORT 0

Q – Output data R–RD

signal t – Time V – V alid W– WR

signal X – No longer a valid logic level Z – Float Examples: t

= Time for address valid

AVLL

to ALE low.

= Time for ALE low

LLPL

to PSEN

PLPH

LLPL

LLIV

LLAX

A0–A7 A0–A7

PLAZ

PLIV

PXIX

INSTR IN

low.

PXIZ

ALE

PSEN

PORT 0

PORT 2

AVLL

A0–A7

FROM RI OR DPL

AVWL

AVIV

A8–A15 A8–A15

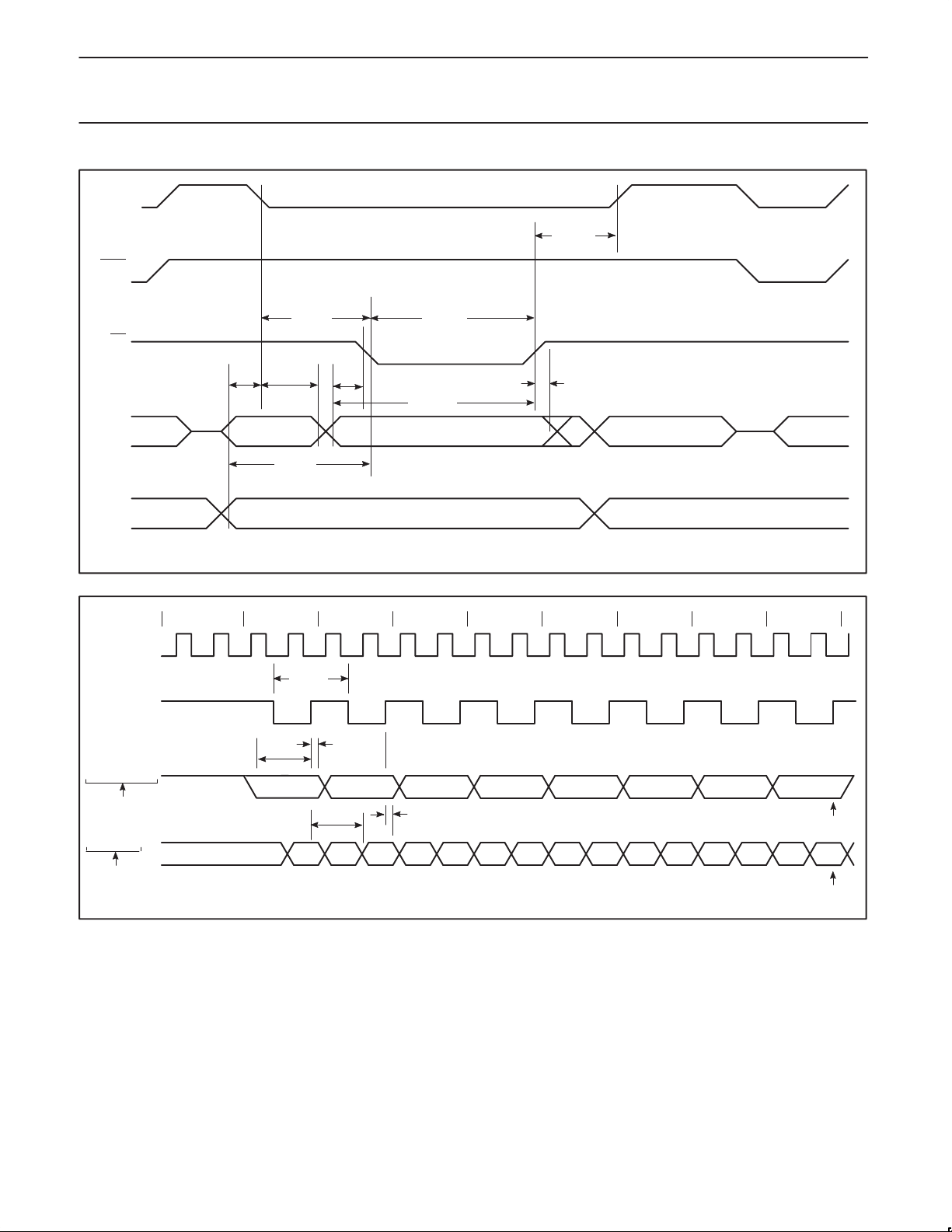

Figure 2. External Program Memory Read Cycle

WHLH

LLDV

LLWL

LLAX

RLAZ

AVDV

P2.0–P2.7 OR A8–A15 FROM DPH A8–A15 FROM PCH

RLDV

RLRH

RHDZ

RHDX

DATA IN A0–A7 FROM PCL INSTR IN

1998 Jan 06

Figure 3. External Data Memory Read Cycle

Page 16

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

ALE

WHLH

PSEN

PORT 0

PORT 2

INSTRUCTION

ALE

CLOCK

OUTPUT DATA

WLWH

QVWX

DATA OUT A0–A7 FROM PCL INSTR IN

WHQX

AVLL

LLAX

A0–A7

FROM RI OR DPL

AVWL

LLWL

P2.0–P2.7 OR A8–A15 FROM DPH A8–A15 FROM PCH

Figure 4. External Data Memory Write Cycle

012345678

XLXL

QVXH

XHQX

WRITE TO SBUF

INPUT DATA

CLEAR RI

1998 Jan 06

XHDV

VALID VALID VALID VALID VALID VALID VALID VALID

XHDX

SET TI

SET RI

Figure 5. Shift Register Mode Timing

Page 17

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

IH1

0.8V

CHCL

CLCX

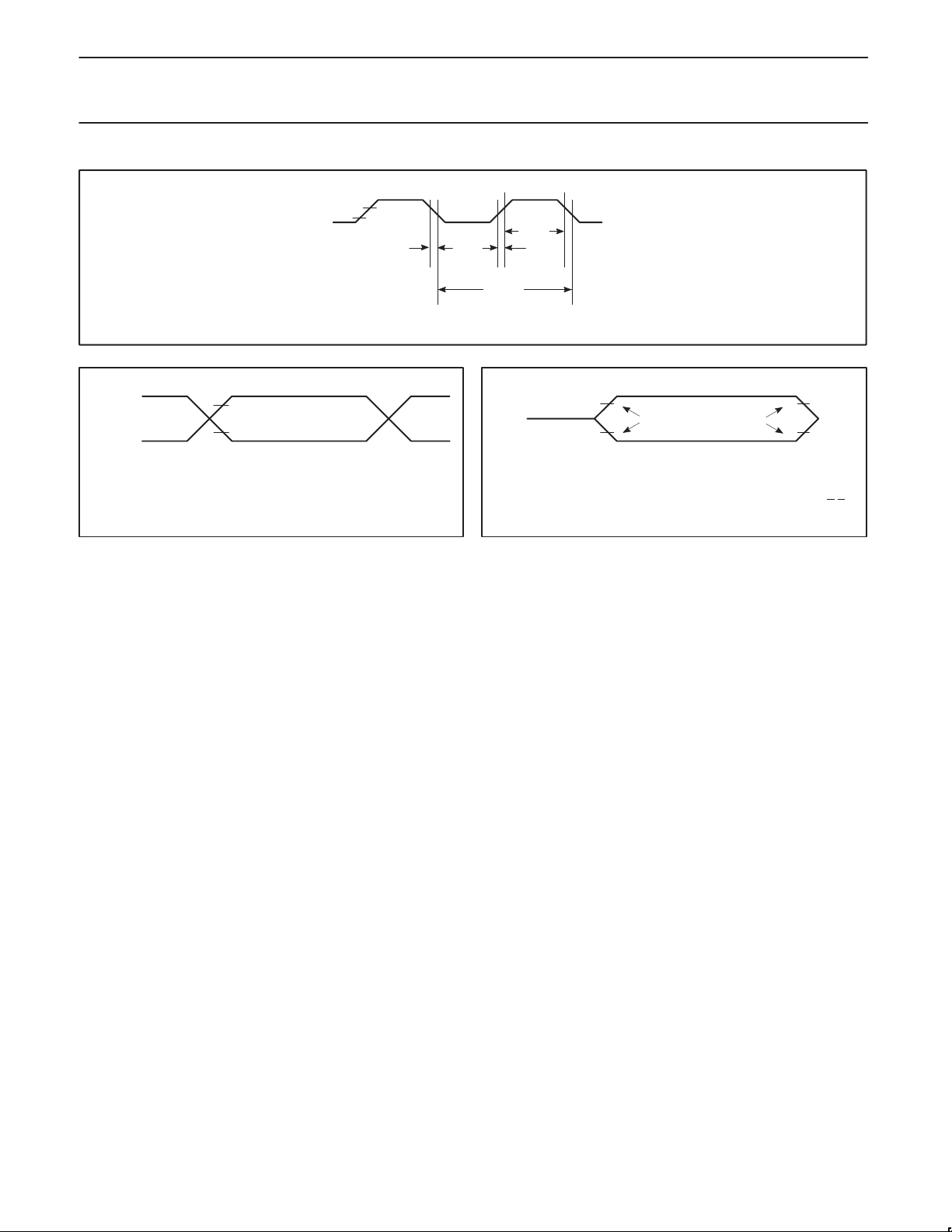

Figure 6. External Clock Drive at XTAL1

CLCL

CHCX

CLCH

VDD–0.5

0.45V

NOTE:

AC INPUTS DURING TESTING ARE DRIVEN AT V

0.45V FOR A LOGIC ‘0’. TIMING MEASUREMENTS ARE MADE AT V LOGIC ‘1’ AND V

MAX FOR A LOGIC ‘0’.

0.2V

+0.9

–0.1

–0.5 FOR A LOGIC ‘1’ AND

Figure 7. AC Testing Input/Output

MIN FOR A

+0.1V

LOAD

–0.1V

LOAD

NOTE:

FOR TIMING PURPOSES, A PORT IS NO LONGER FLOATING WHEN A 100MV CHANGE FROM LOAD VOLTAGE OCCURS, AND BEGINS TO FLOAT WHEN A

100mV CHANGE FROM THE LOADED V 20mA.

TIMING

REFERENCE

POINTS

LEVEL OCCURS. IOH/IOL > +

OH/VOL

Figure 8. Float Waveform

–0.1V

+0.1V

1998 Jan 06

Page 18

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

(NC)

CLOCK SIGNAL

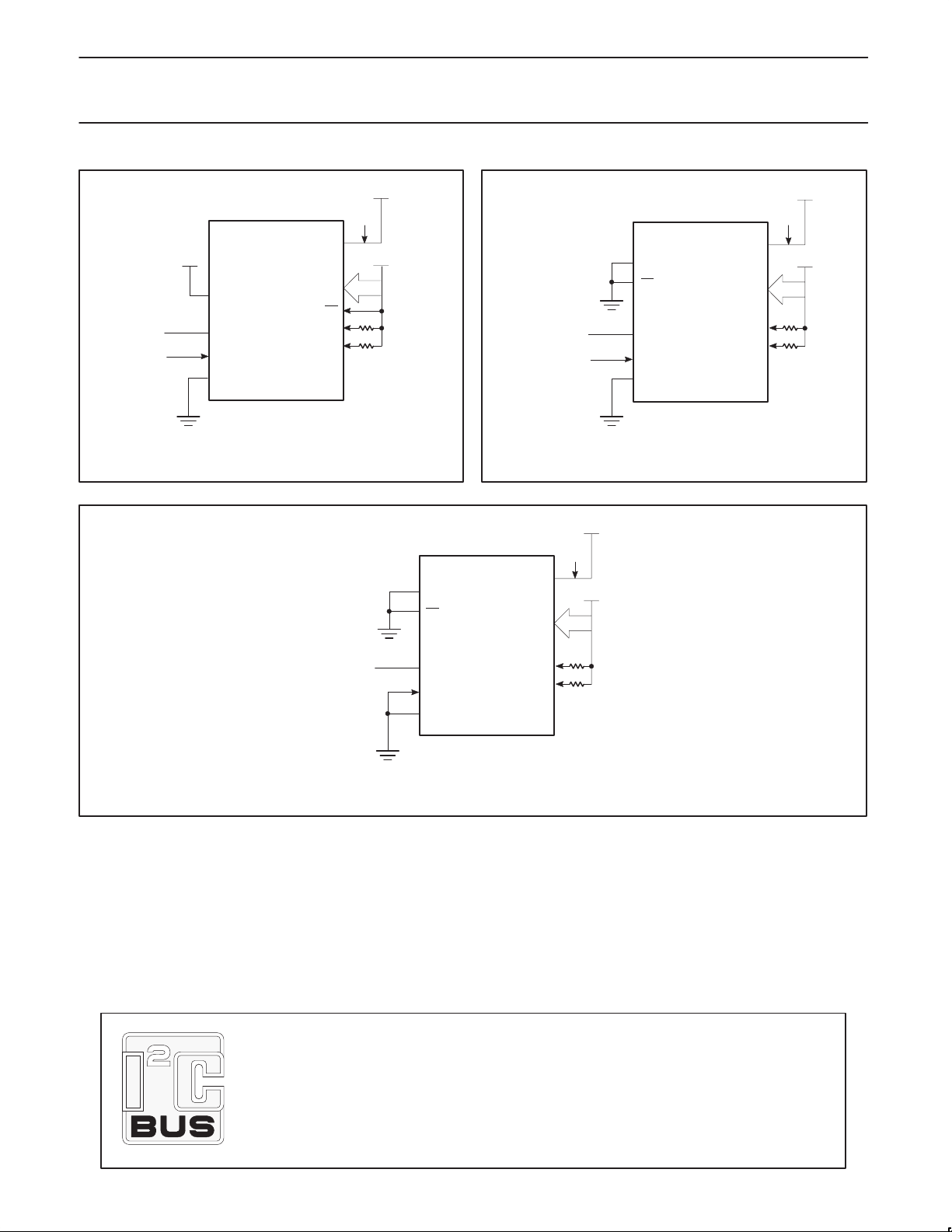

Figure 9. IDD Test Condition, Active Mode

RST

XTAL2

XTAL1

EA P1.6 P1.7

All other pins are disconnected

* *

CLOCK SIGNAL

(NC)

Figure 10. I

RST

XTAL2

XTAL1

Test Condition, Idle Mode

P1.6 P1.7

* *

All other pins are disconnected

RST EA

NOTE:

* Ports 1.6 and 1.7 should be connected to V

exceed the I

specification.

OL1

Purchase of Philips I2C components conveys a license under the Philips’ I2C patent to use the components in the I2C system provided the system conforms to the I2C specifications defined by Philips. This specification can be ordered using the code 9398 393 40011.

(NC)

XTAL2

XTAL1

P1.6 P1.7

* *

Figure 11. IDD Test Condition, Power Down Mode

All other pins are disconnected. V

through resistors of sufficiently high value such that the sink current into these pins does not

= 2V to 5.5V

1998 Jan 06

Page 19

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

DIP40: plastic dual in-line package; 40 leads (600 mil) SOT129-1

1998 Jan 06

Page 20

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

PLCC44: plastic leaded chip carrier; 44 leads SOT187-2

1998 Jan 06

Page 21

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

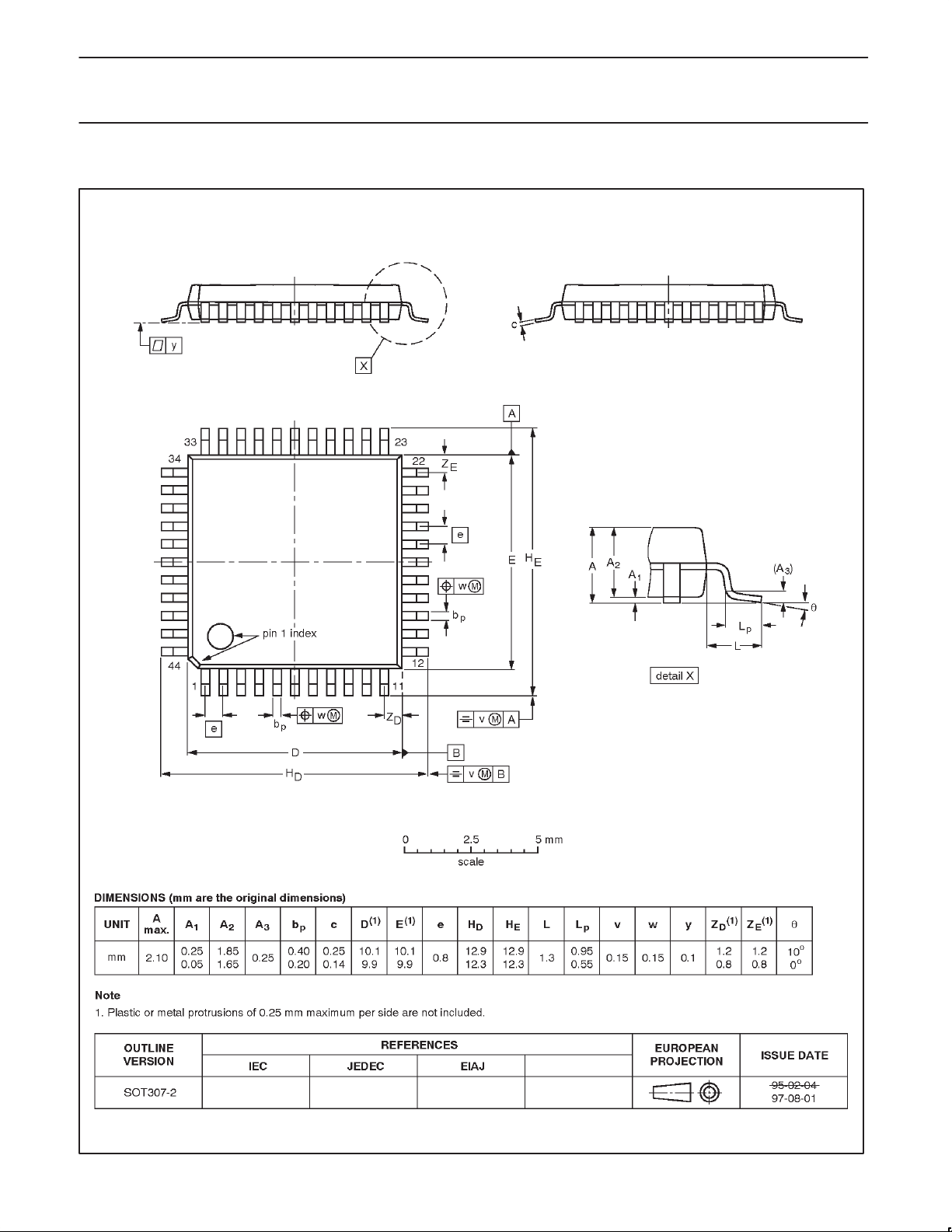

QFP44: plastic quad flat package; 44 leads (lead length 1.3 mm); body 10 x 10 x 1.75 mm SOT307-2

1998 Jan 06

Page 22

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

SDIP42: plastic shrink dual in-line package; 42 leads (600 mil) SOT270-1

1998 Jan 06

Page 23

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

NOTES

1998 Jan 06

Page 24

Philips Semiconductors Product specification

83C654CMOS single-chip 8-bit microcontroller

Data sheet status

Objective specification

Preliminary specification

Product specification

Product status

Development

Qualification

Production

Definition

This data sheet contains the design target or goal specifications for product development. Specification may change in any manner without notice.

This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips Semiconductors reserves the right to make chages at any time without notice in order to improve design and supply the best possible product.

This data sheet contains final specifications. Philips Semiconductors reserves the right to make changes at any time without notice in order to improve design and supply the best possible product.

[1]

[1] Please consult the most recently issued datasheet before initiating or completing a design.

Definitions

Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For

detailed information see the relevant data sheet or data handbook. Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one

or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.

Disclaimers

Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can

reasonably be expected to result in personal injury . Philips Semiconductors customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified.

Philips Semiconductors 811 East Arques Avenue P.O. Box 3409 Sunnyvale, California 94088–3409 Telephone 800-234-7381

 Copyright Philips Electronics North America Corporation 1998

Date of release: 06-98

Document order number: 9397 750 04048

 

1998 Jan 06
