INTEGRATED CIRCUITS

80CL410/83CL410

Low voltage/low power single-chip

8-bit microcontroller with I

Product specification 1995 Jan 20 IC20 Data Handbook

 

Page 2

Philips Semiconductors Product specification

Numb

Low voltage/low power single-chip

8-bit microcontroller with I

DESCRIPTION

The 80CL410/83CL410 (hereafter generically referred to as 8XCL410) is manufactured in an advanced CMOS process that allows the part to operate at supply voltages down to

1.8V and oscillator frequencies down to DC. The 8XCL410 has the same instruction set as the 80C51.

The 8XCL410 features a 4k byte ROM (83CL410), 128 bytes RAM (both ROM and RAM are externally expandable to 64k bytes), four 8-bit ports, two 16-bit timer/counters, an I thirteen source, two priority level nested interrupt structure, and on-chip oscillator circuitry suitable for quartz crystal, ceramic resonator, RC, or LC.

The 8XCL410 has two reduced power modes that are the same as those on the standard 80C51. The special reduced power feature of this part is that it can be stopped and then restarted. Running from an external clock source, the clock can be stopped and after a period of time restarted. The 8XCL410 will resume operation from where it was when the code stopped with no loss of internal state, RAM contents, or Special Function Register contents. If the internal oscillator is used the part cannot be stopped and started, but the power-down mode, which can be terminated via an interrupt, can be used to achieve similar power savings and then restart without loss of on-chip RAM and Special Function Register values.

C serial interface, a

FEA TURES

•Single supply voltage 1.8V to 6.0V

•Frequency from DC to 12MHz

•80C51 based architecture

– 4k × 8 ROM (64k external) – 128 × 8 RAM (64k external) – Four 8-bit I/O ports – Two 16-bit timer/counters – A thirteen-source, two-level, nested

priority interrupt structure

– 10 external interrupts

•Fully static 80C51 CPU

•I

C Serial Interface

•Two power control modes

– Idle mode – Power-down mode – can be terminated

by reset or external interrupt

•Wake-up via external interrupts at port 1

•Single supply voltage 1.8V to 6.0V

•Frequency range of DC to 12MHz

•On-chip oscillator (quartz crystal, ceramic

resonator, RC, LC)

•Very low power consumption

•Operating temperature range:

–40 to +85°C

80CL410/83CL410

PIN CONFIGURATION

INT2/P1.0 INT3/P1.1

INT4/P1.2

INT5/P1.3 INT6/P1.4

INT7/P1.5

SCL/INT8/P1.6

SDA/INT9/P1.7

INT0

INT1/P3.3

SEE NEXT PAGE FOR QFP PIN FUNCTIONS.

/P3.2

T0/P3.4

T1/P3.5

/P3.6

XTAL2

XTAL1

1 2

4 5

RST

P3.0

P3.1

12 13

/P3.7

44 34

12 22

DIP

VSO

QFP

32 31

28 27

23 22

P0.0/AD0

P0.1/AD1

P0.2/AD2

P0.3/AD3

P0.4/AD4

P0.5/AD5

P0.6/AD6

P0.7/AD7 EA

ALE

PSEN

P2.7/A15 P2.6/A14

P2.5/A13

P2.4/A12

P2.3/A11

P2.2/A10 P2.1/A9

P2.0/A8

ORDERING CODE

PHILIPS PART ORDER NUMBER

PART MARKING

ROMless ROM ROMless ROM

P80CL410HFP P83CL410HFP P80CL410HF N P83CL410HF N

P80CL410HFT P83CL410HFT P80CL410HF D P83CL410HF D

P83CL410HFH

NOTE:

1. Parts ordered by the Philips North America part number will be marked with the Philips part marking.

For emulation purposes, the P85CL000 (Piggyback version) with 256 bytes of RAM is recommended.

1995 Jan 20

PHILIPS NORTH AMERICA

PART ORDER NUMBER

TEMPERATURE °C

AND PACKAGE

–40 to +85,

40-Pin Plastic Dual In-line Package

–40 to +85,

40-Pin Plastic Very Small Outline

Package

–40 to +85,

44-Pin Plastic Quad Flat Pack

Drawing

FREQUENCY

32kHZ to 12MHz SOT129-1

32kHZ to 12MHz SOT158-1

32kHZ to 12MHz SOT307-2

Page 3

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

PLASTIC QUAD FLAT PACK PIN FUNCTIONS

44 34

QFP

12 22

Pin Function Pin Function

1 P1.5/INT7 23 P2.5/A13 2 P1.6/INT8/SCL 24 P2.6/A14 3 P1.7/INT9/SDA 25 P2.7/A15 4 RST 26 PSEN 5 P3.0 27 ALE 6 NC 28 NC 7 P3.1 29 EA 8 P3.2/INT0 30 P0.7/AD7

9 P3.3/INT1 31 P0.6/AD6 10 P3.4/T0 32 P0.5/AD5 11 P3.5/T1 33 P0.4/AD4 12 P3.6/WR 34 P0.3/AD3 13 P3.7/RD 35 P0.2/AD2 14 XTAL2 36 P0.1/AD1 15 XTAL1 37 P0.0/AD0 16

17 NC 39 NC 18 P2.0/A8 40 P1.0/INT2 19 P2.1/A9 41 P1.1/INT3 20 P2.2/A10 42 P1.2/INT4 21 P2.3/A11 43 P1.3/INT5 22 P2.4/A12 44 P1.4/INT6

LOGIC SYMBOL

XTAL1

XTAL2

RST

PSEN

ALE

INT0 INT1

T0 T1

Alternate Functions

Port 3

80CL410/83CL410

Address and

Port 0

Port 1Port 2

Data Bus

INT2 INT3 INT4

INT5 INT6 INT7 INT8/SCL INT9/SDA

Address Bus

1995 Jan 20

Page 4

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

BLOCK DIAGRAM

FREQUENCY REFERENCE

XTAL2 XTAL1

OSCILLATOR

AND

TIMING

CPU

10 3

INTERNAL

INTERRUPTS

PROGRAM

MEMORY

(4K × 8 ROM)

64K BYTE BUS

EXPANSION CONTRTOL

DATA

MEMORY

(128 × 8 RAM)

PROGRAMMABLE I/O

80CL410/83CL410

COUNTER (1)

T0 T1

TWO 16-BIT

TIMER/EVENT

COUNTERS

I2C-BUS SERIAL I/O

EXTERNAL

INTERRUPTS

(1) Pins shared with parallel port pins.

(1)

CONTROL

PARALLEL PORTS,

ADDRESS/DATA BUS

AND I/O PINS

SDA SCL

(1)

1995 Jan 20

Page 5

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

PIN DESCRIPTION

PIN NO.

MNEMONIC

P0.0–0.7 30–37 39–32 I/O Port 0: Port 0 is an open-drain, bidirectional I/O port. Port 0 pins that have 1s written

P1.0–P1.7 40–44

7 I/O SCL (P1.6): I2C serial bus clock. 8 I/O SDA (P1.7): I2C serial bus data. 1–8 I INT2–INT9 (P1.0–P1.7): Additional external interrupts.

P2.0–P2.7 18–25 21–28 I/O Port 2: Port 2 is an 8-bit bidirectional I/O port with internal pull-ups. Port 2 pins that

P3.0–P3.7 5, 7–13 10–17 I/O Port 3: Port 3 is an 8-bit bidirectional I/O port with internal pull-ups. Port 3 pins that

RST 4 9 I Reset: A high on this pin for two machine cycles while the oscillator is running, resets

ALE 27 30 O Address Latch Enable: Output pulse for latching the low byte of the address during

PSEN 26 29 O Program Store Enable: The read strobe to external program memory. When the

EA 29 31 I External Access Enable: EA must be externally held low to enable the device to

XTAL1 15 19 I Crystal 1: Input to the inverting oscillator amplifier and input for an external clock

XTAL2 14 18 O Crystal 2: Output from the inverting oscillator amplifier.

QFP

16 20 I Ground: 0V reference. 38 40 I Power Supply: This is the power supply voltage for normal, idle, and power-down

1–3

8 12 I INT0 (P3.2): External interrupt 0

9 13 I INT1 (P3.3): External interrupt 1 10 14 I T0 (P3.4): Timer 0 external input 11 15 I T1 (P3.5): Timer 1 external input 12 16 O WR (P3.6): External data memory write strobe 13 17 O RD (P3.7): External data memory read strobe

DIL40/

VSO40

1–8 I/O Port 1: Port 1 is an 8-bit bidirectional I/O port with internal pull-ups. Port 1 pins that

TYPE NAME AND FUNCTION

operation.

to them float and can be used as high-impedance inputs. Port 0 is also the multiplexed low-order address and data bus during accesses to external program and data memory. In this application, it uses strong internal pull-ups when emitting 1s.

have 1s written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 1 pins that are externally pulled low will source current because of the internal pull-ups. (See DC Electrical Characteristics: I include:

have 1s written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 2 pins that are externally being pulled low will source current because of the internal pull-ups. (See DC Electrical Characteristics: I the high-order address byte during fetches from external program memory and during accesses to external data memory that use 16-bit addresses (MOVX @DPTR). In this application, it uses strong internal pull-ups when emitting 1s. During accesses to external data memory that use 8-bit addresses (MOV @Ri), port 2 emits the contents of the P2 special function register.

have 1s written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 3 pins that are externally being pulled low will source current because of the pull-ups. (See DC Electrical Characteristics: I special features of the 80C51 family, as listed below:

the device. An internal diffused resistor to V external capacitor to V

an access to external memory. In normal operation, ALE is emitted at a constant rate of 1/6 the oscillator frequency, and can be used for external timing or clocking. Note that one ALE pulse is skipped during each access to external data memory.

device is executing code from the external program memory, PSEN each machine cycle, except that two PSEN access to external data memory. PSEN program memory.

fetch code from external program memory locations 0000H to 0FFFH. If EA high, the device executes from internal program memory unless the program counter contains an address greater than 0FFFH.

source.

activations are skipped during each

is not activated during fetches from internal

80CL410/83CL410

). Additional functions

). Port 2 emits

). Port 3 also serves the

permits a power-on reset using only an

is activated twice

is held

1995 Jan 20

Page 6

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

Table 1. 8XCL410 Special Function Registers

SYMBOL DESCRIPTION

ACC* Accumulator E0H E7 E6 E5 E4 E3 E2 E1 E0 00H B* B register F0H F7 F6 F5 F4 F3 F2 F1 F0 00H

DPTR:

DPH DPL

IP0*# Interrupt priority 0 B8H – – PS1 – PT1 PX1 PT0 PX0 xx000000B

IP1*# Interrupt priority 1 F8H PX9 PX8 PX7 PX6 PX5 PX4 PX3 PX2 00H

IEN0*# Interrupt enable 0 A8H EA – ES1 – ET1 EX1 ET0 EX0 00H

IEN1*# Interrupt enable 1 E8H EX9 EX8 EX7 EX6 EX5 EX4 EX3 EX2 00H

IRQ1*# Interrupt request flag C0H IQ9 IQ8 IQ7 IQ6 IQ5 IQ4 IQ3 IQ2 00H IX1# Interrupt polarity E9H 00H P0* Port 0 80H 87 86 85 84 83 82 81 80 FFH P1* Port 1 90H 97 96 95 94 93 92 91 90 FFH P2* Port 2 A0H A7 A6 A5 A4 A3 A2 A1 A0 FFH P3* Port 3 B0H B7 B6 B5 B4 B3 B2 B1 B0 FFH

Data pointer (2 bytes):

High byte Low byte

DIRECT

ADDRESS

83H 82H

BIT ADDRESS, SYMBOL, OR ALTERNATIVE PORT FUNCTION MSB LSB

BF BE BD BC BB BA B9 B8

FF FE FD FC FB FA F9 F8

AF AE AD AC AB AA A9 A8

EF EE ED EC EB EA E9 E8

C7 C6 C5 C4 C3 C2 C1 C0

80CL410/83CL410

RESET VALUE

00H 00H

PCON Power control 87H SMOD – – – GF1 GF0 PD IDL 0xxx0000B

D7 D6 D5 D4 D3 D2 D1 D0

PSW* Program status word D0H CY AC F0 RS1 RS0 OV – P 00H

S1ADR# Slave address DBH 00H

DF DE DD DC DB DA D9 D8 S1CON*# Serial control D8H – ENS1 STA STO SI AA CR1 CR0 x0000000B S1DAT#

S1STA# SP Stack pointer 81H 07H

TCON* Timer/counter con-

TMOD Timer/counter mode 89H GATE C/T M1 M0 GATE C/T M1 M0 00H TH0 Timer 0 high byte 8CH 00H TH1 Timer 1 high byte 8DH 00H TL0 Timer 0 low byte 8AH 00H TL1 Timer 1 low byte 8BH 00H

* SFRs are bit addressable. # SFRs are modified from or added to the 80C51 SFRs.

Serial data Serial status

trol

DAH D9H

8F 8E 8D 8C 8B 8A 89 88

88H TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0 00H

00H 11111000B

1995 Jan 20

Page 7

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

PORT OPTIONS

The pins of port 1 (not P1.6/SCL or P1.7/SDA), port 2, and port 3 may be individually configured with one of the following port options (see Figure 1):

Option 1: Standard Port—

quasi-bidirectional I/O with pull-up. The strong booster pull-up p1 is turned on for two oscillator periods after a 0-to-1 transition in the port latch. See Figure 1(a).

Option 2: Open Drain—quasi-bidirectional

I/O with n-channel open drain output. Use as an output requires the connection of an external pull-up resistor. See Figure 1(b).

Option 3: Push-Pull—output with drive

capability in both polarities. Under this option, pins can only be used as outputs. See Figure 1(c).

The definition of port options for port 0 is slightly different.

Two cases have to be examined. First, accesses to external memory (EA access above the built-in memory boundary), and second, I/O accesses.

External Memory Accesses

Option 1: True 0 and 1 are written as

Option 2: An external pull-up resistor is

Option 3: Not allowed for external memory

I/O Accesses

Option 1: When writing a 1 to the port latch,

= 0 or

address to the external memory (strong pull-up is used).

needed for external accesses.

accesses as the port can only be used as output.

the strong pull-up p1 will be on for two oscillator periods. No weak pull-up exists. Without an external pull-up, this option can be used as a high-impedance input.

80CL410/83CL410

Option 2: Open drain—quasi-bidirectional

I/O with n-channel open drain output. Use as an output requires the connection of an external pull-up resistor. See Figure 1(c).

Option 3: Push-Pull—output with drive

capability in both polarities. Under this option, pins can only be used as outputs.

Individual mask selection of the post-reset state is available on any of the above pins. Make your selection by appending “S” or “R” to option 1, 2, or 3 above (e.g., 1S for a standard I/O to be set after RESET or 2R for an open-drain I/O to be reset after RESET.

Option S: Set—after reset, this pin will be

initialized High.

Option R: Reset—after reset, this pin will be

initialized Low.

(a)

(b)

(c)

FROM PORT LATCH

INPUT DATA

READ PORT PIN

FROM PORT LATCH

INPUT DATA

READ PORT PIN

STRONG PULL-UP

TWO OSCILLATOR PERIODS

INPUT

BUFFER

INPUT

BUFFER

STRONG PULL-UP

+5V

I/O PIN

+5V

I/O PIN

+5V

EXTERNAL PULL-UP

I/O PIN

FROM PORT LATCH

1995 Jan 20

Figure 1. Ports

Page 8

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

POWER-DOWN MODE

The instruction setting PCON.1 is the last executed prior to going into the power-down mode. In power-down mode, the oscillator is stopped. The contents of the the on-chip RAM and SFRs are preserved. The port pins output the values held by their respective SFRs. ALE and PSEN

In the power-down mode, V reduced to minimize power consumption. However, the supply voltage must not be reduced until the power-down mode is active, and must be restored before the hardware reset is applied and frees the oscillator. Reset must be held active until the oscillator has restarted and stabilized.

From the power-down mode the part can be restarted by using either the wake-up mode or the Reset Mode.

Wake-Up Mode

Setting both PD and IDL bits in the PCON register forces the controller into the power-down mode. Setting both bits enable the controller to be woken-up from the power-down mode via either an enabled external interrupt INT2–INT9, or a reset operation.

An external interrupt for an enabled interrupt INT2–INT9 at port 1 starts both the oscillator and the delay counter. To ensure that the oscillator is stable before the controller restarts, the internal clock will remain inactive for 1536 oscillator periods after the interrupt

are held low.

may be

is detected. This is controlled by the on-chip delay counter. After this, the PD flag will be reset, the controller is now in the Idle mode and the interrupt will be handled in the normal way.

Reset Mode

Setting only the PD bit in the PCON register again forces the controller into the power-down mode, but in this case it can only be restored to normal operation with a direct reset operation.

To restore normal operation, the RESET pin has to be kept High for a minimum of 24 oscillator periods. The on-chip delay counter is inactive. The user has to insure that the oscillator is stable before any operation is attempted. Figure 2 illustrates the two possibilities for wake-up.

IDLE MODE

The instruction that sets PCON.0 is the last instruction executed before going into idle mode. In idle mode, the internal clock is stopped for the CPU, but not for the interrupt, timer, and serial port functions. The CPU status is preserved along with the stack pointer, program counter, program status word and accumulator. The RAM and all other registers maintain their data during idle mode. The port pins retain the logical states they held at idle mode activation. ALE and PSEN

80CL410/83CL410

There are two methods used to terminate the idle mode. Activation of any interrupt will cause PCON to be cleared by hardware; terminating idle mode. The interrupt is serviced, and following the instruction RETI, the next instruction to be executed will be the one following the instruction that put the device in the the idle mode.

Flag bits GF0 and GF1 can be used to determine whether the interrupt was received during normal execution or idle mode. For example, the instruction that writes to PCON.0 can also set or clear one or both flag bits. When idle mode is terminated by an interrupt, the service routine can examine the status of the flag bits.

The second method of terminating the idle mode is with an external hardware reset. Since the oscillator is still running, the hardware reset is required to be active for only two machine cycles to complete the reset operation. Reset redefines all SFRs, but does not affect the state of the on-chip RAM.

The status of the external pins during idle and power-down mode is shown in Table 2. If the power-down mode is activated while accessing external memory, port data held in the special function register P2 is restored to port 2. If the data is a logic 1, the port pin is held high during the power-down mode.

hold at the logic high level.

Table 2. External Pin Status During Idle and Power-Down Modes

MODE PROGRAM MEMORY ALE PSEN PORT 0 PORT 1 PORT 2 PORT 3

Idle Internal 1 1 Data Data Data Data Idle External 1 1 Floating Data Address Data Power-down Internal 0 0 Data Data Data Data Power-down External 0 0 Floating Data Data Data

EXTERNAL INTERRUPT

1995 Jan 20

POWER-DOWN

RESET PIN

OSCILLATOR

DELAY COUNTER

1536 PERIODS

Figure 2. Wake-Up Operation

> 24 PERIODS

Page 9

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

SDA

ARBITRATION LOGIC

SCL

I2C-BUS SERIAL I/O

The serial port supports the twin line I2C-bus.

The I

C-bus consists of a data line (SDA) and a clock line (SCL). These lines also function as I/O port lines P1.7 and P1.6 respectively. The system is unique because data transport, clock generation, address recognition and bus control arbitration are all controlled by hardware. The I I/O has complete autonomy in byte handling and operates in four modes: – Master transmitter

– Master receiver – Slave transmitter – Slave receiver

These functions are controlled by the S1CON register. S1STA is the status register whose contents may also be used as a vector to various service routines. S1DAT is the data shift register and S1ADR the slave address register. Slave address recognition is performed by hardware.

S1CON (D8H) Serial control register

CR2 ENS1 STA STO SI AA CR1 CR0

CR0, CR1, CR2

These three bits determine the serial clock frequency when SIO is in a master mode.

C-bus serial

76 5 43 2 1 0

S1CON

76 5 43 2 1 0

S1STA

AA Assert acknowledge bit. When

SI SIO interrupt flag. When the SI

SLAVE ADDRESS

S1ADR

SHIFT REGISTER

S1DAT

BUS CLOCK GENERATOR

Figure 3. Serial I/O

the AA flag is set, an acknowledge (low level to SDA) will be returned during the acknowledge clock pulse on the SCL line when: – own slave address is received – general call address is

received (S1ADR.0 = 1)

– data byte received while

device is programmed as master

– data byte received while

device is selected slave

With AA = 0, no acknowledge will be returned. Consequently, no interrupt is requested when the “own slave address” or general call address is received.

flag is set, an acknowledge is returned after any one of the following conditions: – a start condition is generated

in master mode

– own slave address received

during AA = 1

– general call address received

while S1ADR.0 and AA = 1

– data byte received or

transmitted in master mode (even if arbitration is lost)

– data byte received or

transmitted as selected slave

– stop or start condition received

as selected slave receiver or transmitter

80CL410/83CL410

INTERNAL BUS

STO STOP flag. With this bit set while

STA START flag. When the STA bit is

ENS1 When ENS1 = 0, the SIO is

in master mode, a STOP condition is generated. When a STOP condition is detected on the bus, the SIO hardware clears the STO flag. In the slave mode, the STO flag may also be set to recover from an error condition. In this case, no STOP condition is transmitted to the I

C-bus. However, the SIO hardware behaves as if a STOP condition has been received and releases SDA and SCL. The SIO then switches to the “not addressed” slave receiver mode. The STO flag is automatically cleared by hardware.

set in slave mode, the SIO hardware checks the status of

the I

C-bus and generates a START condition if the bus is free. If STA is set while the SIO is in master mode, SIO transmits a repeated STAR T condition.

disabled. The SDA and SCL outputs are in a high-impedance state; P1.6 and P1.7 function as open drain ports.

When ENS1 = 1, the SIO is enabled. The P1.6 and P1.7 port latches must be set to logic 1.

1995 Jan 20

Page 10

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

S1STA (D9H) Status register

SC4 SC3 SC2 SC1 SC0 0 0 0

S1STA is an 8-bit read-only special function register. S1STA.3–S1ST A.7 hold a status code. S1STA.0–S1STA.2 are held LOW. The contents of S1ST A may be used as a vector to a service routine. This optimizes response time of the software and consequently that of

the I

C-bus.

The following is a list of the status codes:

Abbreviations used:

SLA: 7-bit slave address R: Read bit W: Write bit ACK

: Acknowledgement (acknowledge

bit = 0)

ACK: Not Acknowledge (acknowledge

bit = 1) DATA: 8-bit byte to or from the I MST: Master SLV: Slave TRX: Transmitter REC: Receiver

MST/TRX mode

S1STA value 08H – a START condition has been

transmitted 10H – a repeated START condition has

been transmitted 18H – SLA and W have been transmitted,

ACK received 20H – SLA and W have been transmitted,

ACK

received

28H – DATA of S1DAT has been

transmitted, ACK received 30H – DATA of S1DAT has been

transmitted, ACK 38H – Arbitration lost in SLA, R/W or DATA

received

C-bus

MST/REC mode

S1STA value 08H – a START condition has been

10H – a repeated START condition has

38H – Arbitration lost while returning ACK 40H – SLA and R have been transmitted,

48H – SLA and R have been transmitted,

50H – DATA has been received, ACK

58H – DATA has been received, ACK

SLV/REC mode

S1STA value 60H – Own SLA and W have been received,

68H – Arbitration lost in SLA, R/W as MST.

70H – General CALL has been received,

78H – Arbitration lost in SLA, R/W as MST.

80H – Previously addressed with own SLA.

88H – Previously addressed with own SLA.

90H – Previously addressed with general

98H – Previously addressed with general

A0H – A STOP condition or repeated START

transmitted

been transmitted

ACK received

ACK

received

returned

ACK returned

Own SLA and W have been received, ACK returned

ACK returned

General CALL has been received

DATA byte received, ACK returned

DATA byte received, ACK

CALL. DATA byte has been received, ACK has been returned

CALL. DATA byte has been received, ACK

has been returned

condition has been received while still addressed as SLV/REC or SLV/TRX

returned

80CL410/83CL410

SLV/TRX mode

S1STA value A8H – Own SLA and R have been received,

ACK returned

B0H – Arbitration lost in SLA, R/W as MST.

Own SLA and R have been received, ACK returned

B8H – DAT A byte has been transmitted,

ACK received

C0H– DATA byte has been transmitted,

ACK

received

C8H– Last DATA byte has been transmitted

(AA = logic 0), ACK received

Miscellaneous

S1STA value 00H – Bus error during MST mode or

selected SLV mode, due to an erroneous ST ART or STOP condition

F8H – No relevant state interruption

available, SI = 0.

S1DAT (DAH) Data Shift Register

76543210

Data shift register S1DAT

This register contains the serial data to be transmitted or data that has just been received. Bit 7 is transmitted or received first, i.e., data is shifted from left to right.

S1ADR (DBH) Slave Address Register

76543210

S1ADR.0, GC: 0 = general CALL address is

not recognized

1 = general CALL address is

recognized S1ADR.7-1: own slave address This 8-bit register may be loaded with the

7-bit slave address, to which the controller will respond when programmed as a slave receiver/transmitter. The LSB bit (GC) is used to determine whether the general CALL address is recognized.

Table 3. SCL Frequency

CR2 CR1 CR0 f

0 0 0 256 14.0 23.4 46.9 0 0 1 224 16.0 26.8 53.6 0 1 0 192 18.6 31.3 62.5 0 1 1 160 22.4 37.5 75.0 1 0 0 960 3.73 6.25 12.5 1 0 1 120 29.8 50 100 1 1 0 60 59.7 100 – 1 1 1 not allowed – – –

1995 Jan 20

BIT RATE (kHz) at f

DIVIDED BY 3.58MHz 6MHz 12MHz

OSC

Page 11

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

INTERRUPT SYSTEM

External events and the real-time-driven on-chip peripherals require service by the CPU asynchronous to the execution of any particular section of code. To tie the asynchronous activities of these functions to normal program execution, a multiple-source, two-priority level, nested interrupt system is provided. The 8XCL410 acknowledges interrupt requests from thirteen sources, as follows:

– INT0 and INT1 – Timer 0 and timer 1

–I

C-bus serial I/O interrupt

– INT2 to INT9 (port 1)

Each interrupt vectors to a separate location in program memory for its service routine. Each source can be individually enabled or disabled by corresponding bits in the internal enable registers (IEN0, IEN1) The priority level is selected via the interrupt priority register (IP0, IP1). All enabled sources can be globally disabled or enabled.

External Interrupts INT2–INT9

Port 1 lines serve an alternative purpose as eight additional interrupts INT2–INT9. When enabled, each of these lines can “wake-up” the device from power-down mode. Using the IX1 register, each pin may be initialized to either active high or low. IRQ1 is the interrupt request flag register. Each flag, if the interrupt is enabled, will be set on an interrupt request but it must be cleared by software.

IEN0 (A8H) Interrupt enable register

76543210

EA — ES1 — ET1 EX1 ET0 EX0

Bit Symbol Function

IEN0.7 EEA General enable/disable

IEN0.6 — (unused) IEN0.5 ES1 Enable I IEN0.4 — (unused) IEN0.3 ET1 Enable Timer T1 interrupt IEN0.2 EX1 Enable external interrupt 1 IEN0.1 ET0 Enable Timer T0 interrupt IEN0.0 EX0 Enable external interrupt 0

control 0 = no interrupt is enabled 1 = any individually enabled

interrupt will be accepted

C SIO interrupt

IEN1 (E8H) Interrupt enable register

76543210

EX9 EX8 EX7 EX6 EX5 EX4 EX3 EX2

Bit Symbol Function

IEN1.7 EX9 Enable external interrupt 9 IEN1.6 EX8 Enable external interrupt 8 IEN1.5 EX7 Enable external interrupt 7 IEN1.4 EX6 Enable external interrupt 6 IEN1.3 EX5 Enable external interrupt 5 IEN1.2 EX4 Enable external interrupt 4 IEN1.1 EX3 Enable external interrupt 3 IEN1.0 EX2 Enable external interrupt 2

where 0= interrupt disabled

IP0 (B8H) Interrupt priority register

76543210

— — PS1 — PT1 PX1 PT0 PX0

Bit Symbol Function

IP0.7 — (unused) IP0.6 — (unused) IP0.5 PS1 I

IP0.4 — (unused) IP0.3 PT1 Timer 1 interrupt

IP0.2 PX1 External interrupt 1

IP0.1 PT0 Timer 0 interrupt

IP0.0 PX0 External interrupt 0

IP1 (F8H) Interrupt priority register

76543210

PX9 PX8 PX7 PX6 PX5 PX4 PX3 PX2

Bit Symbol Function

IP1.7 PX9 External interrupt 9 priority IP1.6 PX8 External interrupt 8 priority IP1.5 PX7 External interrupt 7 priority IP1.4 PX6 External interrupt 6 priority IP1.3 PX5 External interrupt 5 priority IP1.2 PX4 External interrupt 4 priority IP1.1 PX3 External interrupt 3 priority IP1.0 PX2 External interrupt 2 priority

Interrupt priority is as follows:

1= interrupt enabled

C SIO interrupt

priority level

prioity level

priority level

prioity level

priority level

level level level level level level level level

0– low priority 1– high priority

80CL410/83CL410

IX1 (E9H) Interrupt polarity register

76543210

IL9 IL8 IL7 IL6 IL5 IL4 IL3 IL2

Bit Symbol Function

IX1.7 IL9 External interrupt 9 polarity

level

IX1.6 IL8 External interrupt 8 polarity

level

IX1.5 IL7 External interrupt 7 polarity

level

IX1.4 IL6 External interrupt 6 polarity

level

IX1.3 IL5 External interrupt 5 polarity

level

IX1.2 IL4 External interrupt 4 polarity

level

IX1.1 IL3 External interrupt 3 polarity

level

IX1.0 IL2 External interrupt 2 polarity

level

Writing either a “1” or “0” to an IX1 register bit sets the priority level of the corresponding external interrupt to active High or Low, respectively.

1995 Jan 20

Page 12

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

IRQ1 (C0H) Interrupt request flag register

76543210

IQ9 IQ8 IQ7 IQ6 IQ5 IQ4 IQ3 IQ2

Bit Symbol Function

IRQ1.7 IQ9 External interrupt 9 request

IRQ1.6 IQ8 External interrupt 8 request

IRQ1.5 IQ7 External interrupt 7 request

IRQ1.4 IQ6 External interrupt 6 request

IRQ1.3 IQ5 External interrupt 5 request

IRQ1.2 IQ4 External interrupt 4 request

IRQ1.1 IQ3 External interrupt 3 request

IRQ1.0 IQ2 External interrupt 2 request

Priority Vector Source

X0 (highest) 0003H External 0 S1 002BH I X5 0053H External 5 T0 000BH Timer 0 X6 005BH External 6 X1 0013H External 1 X2 003BH External 2 X7 0063H External 7 T1 001BH Timer 1 X3 0043H External 3 X8 006BH External 8 X4 004BH External 4 X9 (lowest) 0073H External 9

IX1 Interrupt polarity register E9H IRQ1 Interrupt request flag C0H

IEN0 Interrupt enable register A8H IEN1 Interrupt enable register E8H

IP0 Interrupt priority register B8H IP1 Interrupt priority register F8H

flag

(INT2–INT9)

C port

SFR

OSCILLATOR CIRCUITRY

The on-chip oscillator circuitry of the 8XCL410 is a single stage inverting amplifier biased by an internal feedback resistor. (See Figure 4.) The oscillator can be operated with a quartz crystal, ceramic resonator, LC network or RC network. See Figure 5 for different configurations. When ordering parts, it is necessary to specify an oscillator option. The options are: RC when an RC network will be used, OSC 2 for oscillator operation below 4MHz, OSC 3 for oscillator operation from 4MHz to 10MHz, OSC 4 for oscillator operation above 10MHz, and 32kHz if 32kHz to 400kHz operation is desired.

For operation as a standard quartz oscillator, no external components are needed (except at 32KHz). When using external capacitors, ceramic resonators, coils, and RC networks to drive the oscillator, five different configurations are supported (see Figure 5 and Table 4).

In the power-down mode the oscillator is stopped and XTAL1 is pulled high. The oscillator inverter is switched off to ensure no current will flow. To drive the device with an external clock source, apply the external clock signal to XTAL1, and leave XTAL2 to float, as shown in Figure 5(f). There are no requirements on the duty cycle of the external clock, since the input to the internal clocking circuitry is split using a flip-flop.

The following options are provided for optimum on-chip oscillator performance. Please state option when ordering:

Osc.1: Figure 5(c). An option for 32kHz

Osc.2: Figure 5(e). An option for low-power,

Osc.3: An option for medium frequency

Osc.4: An option for high frequency range

RC: Figure 5(g). An option for an RC

The equivalent circuit data of the internal oscillator compares with that of matched crystals.

The externally adjustable RC oscillator has a frequency range from 100kHz to 500kHz. (See Figure 7.)

clock applications with external trimmer for frequency adjustment.

A 4.7MΩ bias resistor must be connected in parallel with the crystal.

low-frequency operations using LC components or quartz.

range applications.

applications.

oscillator.

80CL410/83CL410

Power-on Reset

The 8XCL410 contains on-chip circuitry which switch the port pins to the customer-defined logic level as soon as V exceeds 1.3V if the mask option “ON” has been chosen (see Figures 8 and 9). As soon as the minimum supply voltage is reached, the oscillator will start up. However, to ensure that the oscillator is stable before the controller starts, the clock signals are gated away from the CPU for a further 1536 oscillator periods.

An hysteresis of approximately 50mV at a typical power-on switching level of 1.3V will ensure correct operation.

The on-chip power–on reset circuitry can also be switched off via the mask option “OFF”. This option reduces the power-down current to typically 800µA and can be chosen if external reset circuitry is used. For applications not requiring the internal reset, option “OFF” should be chosen.

An automatic reset can be obtained at power-on by connecting the RST pin to V via a 10µF capacitor. At power-on, the voltage on the RST pin is equal to V the capacitor voltage, and decreases from V

as the capacitor discharges through the

internal resistor R the capacitor, the more slowly V decreases. V lower threshold of the Schmitt trigger long enough to effect a complete reset. The time required is the oscillator start-up time, plus 2 machine cycles.

to ground. The larger

RST

must remain above the

RST

P80CL410: ROM-less VERSION OF P83CL410

The P80CL410 is a low voltage ROMless version of the P83CL410. The mask options on the P80CL410 are fixed as follows:

•Port Options:

All ports except P16/P17 have option “1S”, i.e., standard port, High after reset. The ports P16/P17 have option “2S”, i.e., open drain, High after reset.

•Oscillator option: OSC3

•Power-on Reset option: OFF

minus

1995 Jan 20

Page 13

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

XTAL1 XTAL2

bias

To internal timing circuits

80CL410/83CL410

XTAL1 XTAL2

(a) Oscillator Configuration for

Quartz Crystal

XTAL1 XTAL2

(e) Configuration for

LC Network

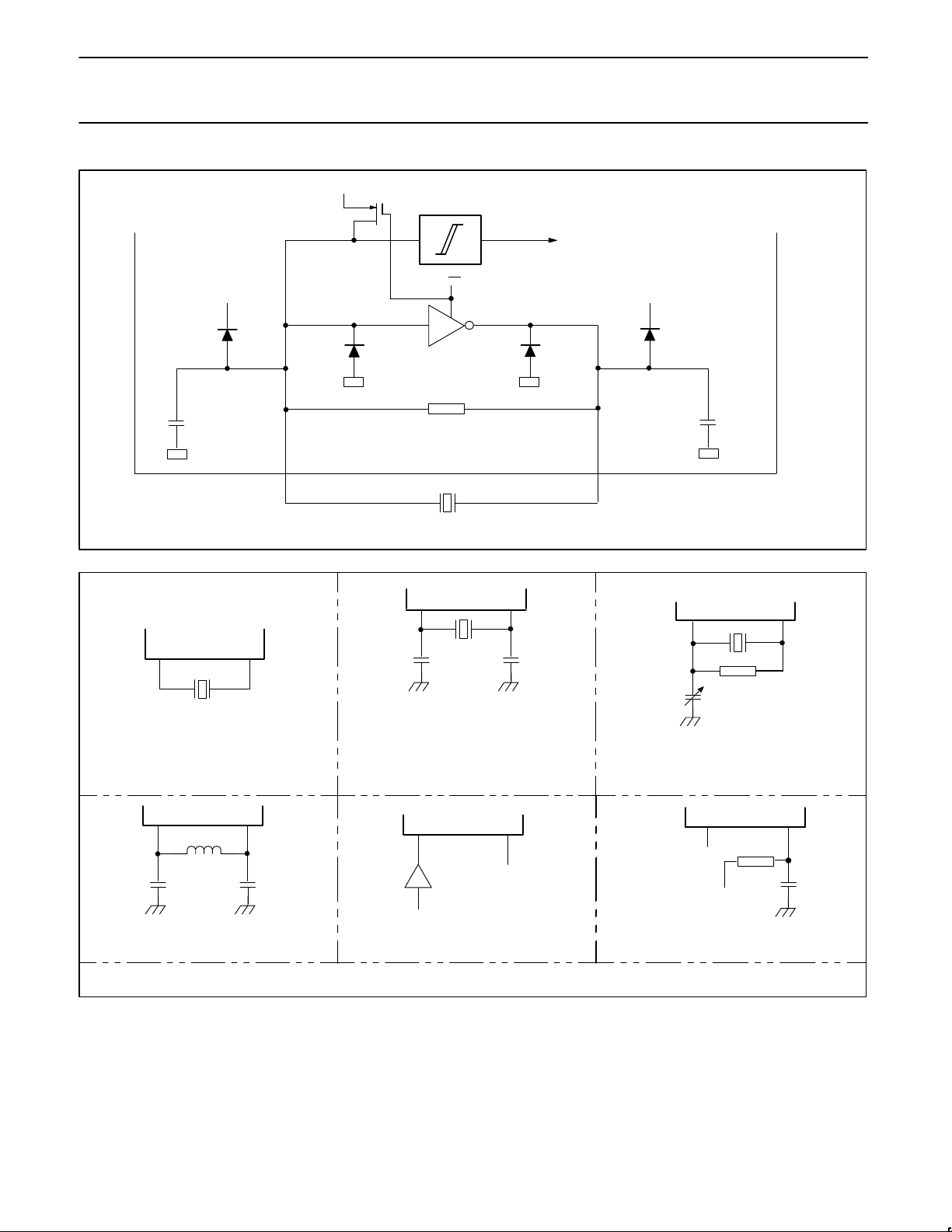

Figure 4. Oscillator

XTAL1 XTAL2

(b) Quartz Oscillator with External

Capacitors

(d) Configuration for

Ceramic Resonator

XTAL1 XTAL2

N.C.

(f) External Clock

Configuration

Figure 5. Oscillator Configurations

XTAL1 XTAL2

4.7 MEG

32kHz Operation

XTAL1 XTAL2

N.C.

(g) RC Network

Configuration

1995 Jan 20

Page 14

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

Table 4. Oscillator Type Selection Guide

C1 EXT. C2 EXT. MAXIMUM RESONAT OR

RESONAT OR f (MHz) OPTION MIN MAX MIN MAX SERIES RESISTANCE

Quartz 0.032 Osc.1 5 15 0 0 15kΩ Quartz 1.0 Osc.2 0 30 0 30 600Ω Quartz 3.58 Osc.2 0 15 0 15 100Ω Quartz 4.0 Osc.2 0 20 0 20 75Ω Quartz 6.0 Osc.3 0 10 0 10 60Ω Quartz 10.0 Osc.4 0 15 0 15 60Ω Quartz 12.0 Osc.4 0 10 0 10 40Ω Quartz 16.0 Osc.4 0 15 0 15 20Ω

PXE 0.455 Osc.2 40 50 40 50 10Ω PXE 1.0 Osc.2 15 50 15 50 100Ω PXE 3.58 Osc.2 0 40 0 40 10Ω PXE 4.0 Osc.2 0 40 0 40 10Ω PXE 6.0 Osc.2 0 20 0 20 5Ω PXE 10.0 Osc.3 0 15 0 15 6Ω PXE 12.0 Osc.4 10 40 10 40 6Ω

LC Osc.2 20 90 20 90 10µH = 1Ω

NOTE:

1. 32kHz quartz crystals with a series resistance higher than 15kΩ will reduce the guaranteed supply voltage range to 2.5 to 3.5V.

80CL410/83CL410

100µH = 5Ω

1mH = 75Ω

Table 5. Oscillator Equivalent Circuit Parameters (see Figure 6)

PARAMETER OPTION SYMBOL CONDITION MIN TYP MAX UNIT

Transconductance Osc.1 g

Osc.2 g Osc.3 g Osc.4 g

Input capacitance Osc.1 c1

Osc.2 c1 Osc.3 c1 Osc.4 c1

Output capacitance Osc.1 c2

Osc.2 c2 Osc.3 c2 Osc.4 c2

Output resistance Osc.1 R2 – 3800 – kΩ

Osc.2 R2 – 65 – kΩ Osc.3 R2 – 18 – kΩ Osc.4 R2 – 5.0 – kΩ

m m m m

i i i i

T = +25°C; VDD = 4.5V – 15 – µs T = +25°C; VDD = 4.5V 200 600 1000 µs T = +25°C; VDD = 4.5V 400 1500 4000 µs T = +25°C; VDD = 4.5V 1000 4000 10000 µs

– 3.0 – pF – 8.0 – pF – 8.0 – pF – 8.0 – pF

– 23.0 – pF – 8.0 – pF – 8.0 – pF – 8.0 – pF

1995 Jan 20

Page 15

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

XTAL1

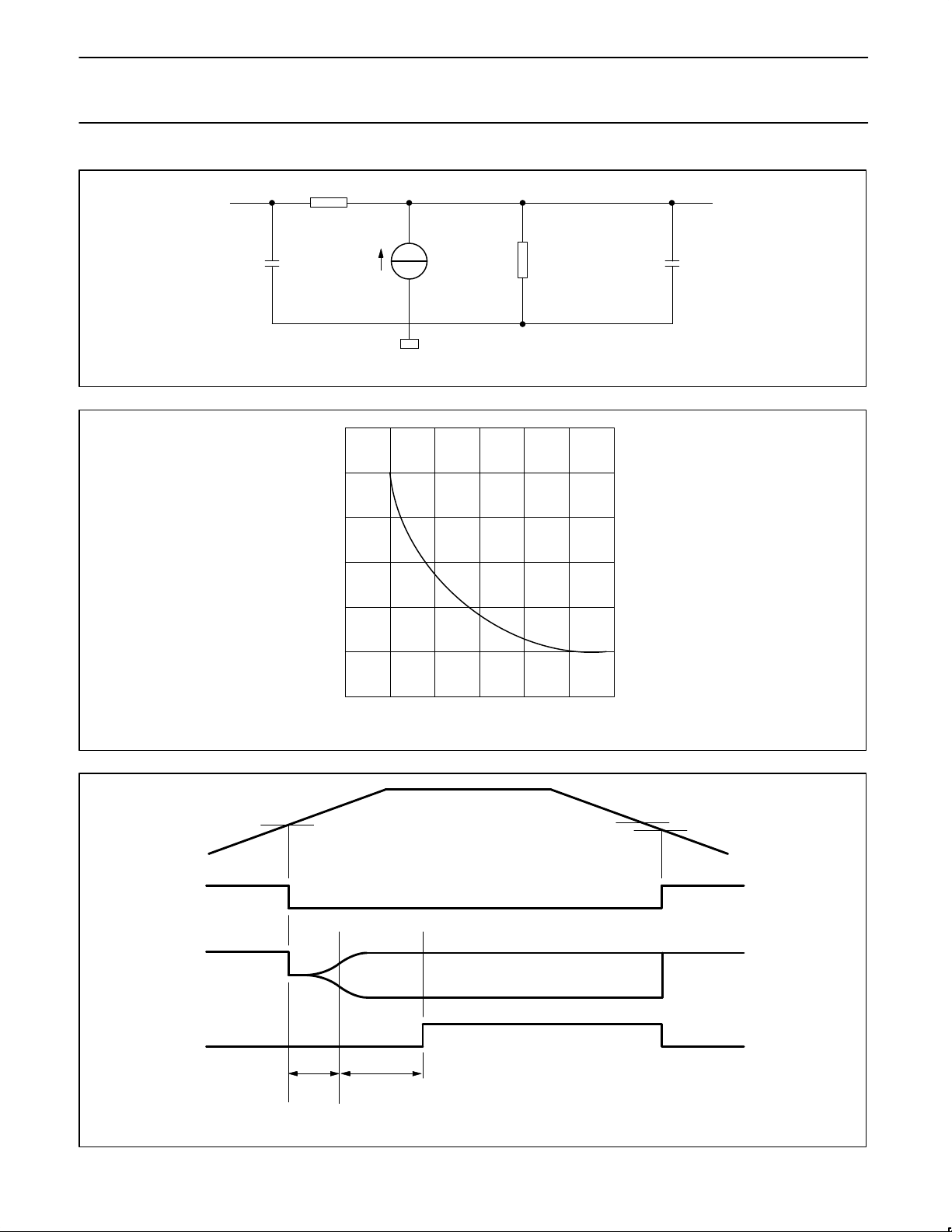

Figure 6. Equivalent Circuit Diagram

600

400

80CL410/83CL410

XTAL2

SUPPLY VOLTAGE

POWER-ON RESET

(INTERNAL)

OSCILLATOR

OSC

(kHz)

SWITCHING LEVEL PDR

200

02 4 6

RC (µs)

Figure 7. Frequency as a Function of RC

HYSTERESIS

CPU RUNNING

1995 Jan 20

START-UP

TIME

1536 OSCILLATOR

PERIODS DELAY

Figure 8. Power-on Reset Switching Level

Page 16

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

ABSOLUTE MAXIMUM RATINGS

PARAMETER RATING UNIT

Supply voltage –0.5 to +6.5 V All input voltages –0.5 to VDD +0.5 V DC current into any input or output 5 mA Total power dissipation 300 mW Storage temperature range –65 to +150 °C Operating ambient temperature range –40 to +85 °C Operating junction temperature 125 °C

NOTES:

1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any conditions other than those described in the AC and DC Electrical Characteristics section of this specification is not implied.

2. This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive static charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated maxima.

3. Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to V noted.

RST

10µF

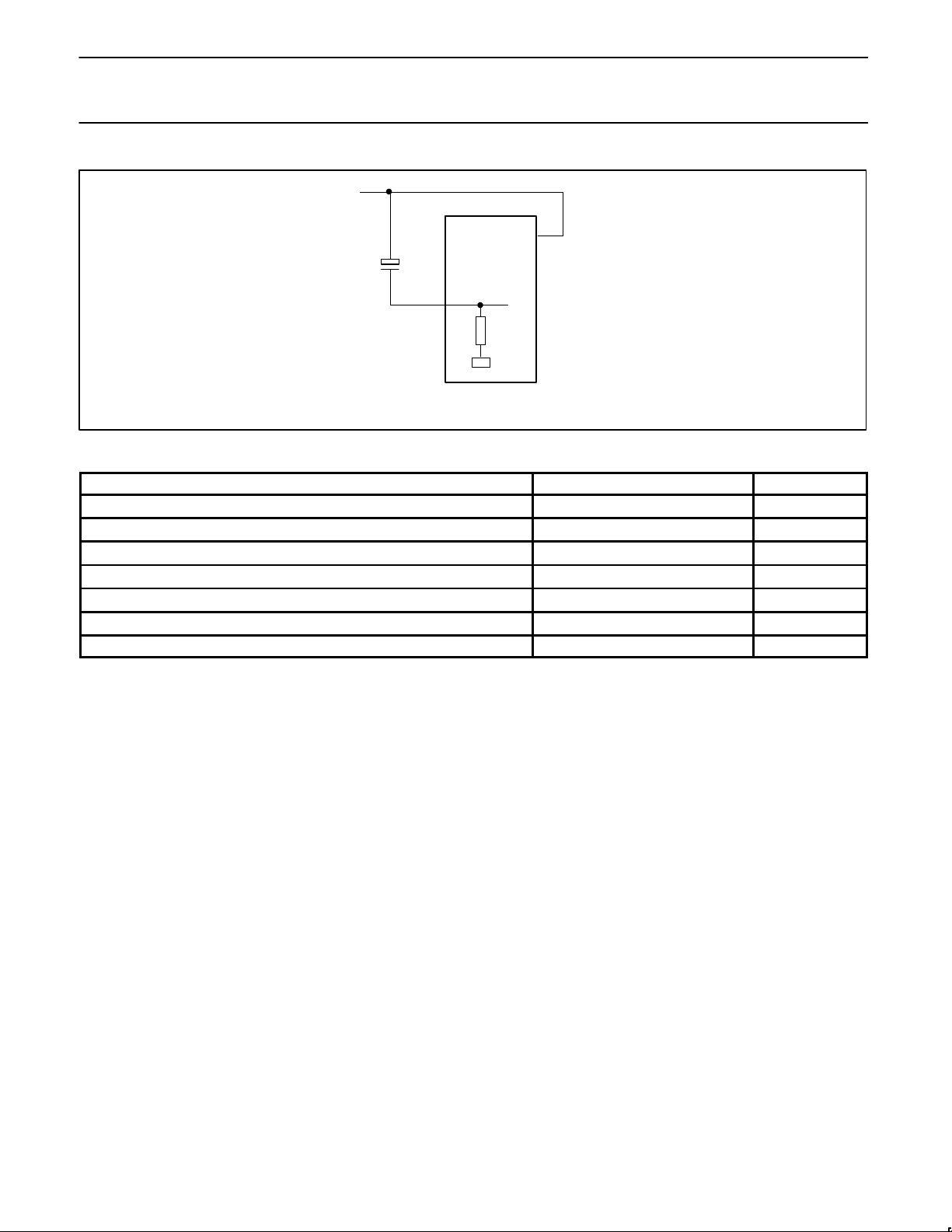

Figure 9. Recommended Power-on Reset Circuitry

1, 2, 3

8XCL410

RST

80CL410/83CL410

unless otherwise

1995 Jan 20

Page 17

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

DC ELECTRICAL CHARACTERISTICS

= –40°C to +85°C, VSS = 0V

amb

TEST LIMITS

SYMBOL PARAMETER CONDITIONS MIN MAX UNIT

OL1

RST

NOTES:

1. The operating supply current is measured with all output pins disconnected; XTAL1 driven with t not connected; EA

2. The idle supply current is measured with all output pins disconnected; XTAL1 driven with t connected; EA

3. The power-down current is measured with all output pins disconnected; XTAL1 not connected; EA outputs connected to V

4. The RC-oscillator is not implemented in this version.

5. Circuits with “power-on reset” option “OFF” are tested at V

Supply voltage f

(see Figure 13) 1.8 6.0 V

CLK

RAM retention voltage in power-down mode 1.0 — V Power supply current:

Operating

Idle mode

Power-down mode

OSC 1 option f

= 32kHz, VDD = 1.8V, T

CLK

OSC 2 option f OSC 2 option f OSC 3 option f OSC 4 option f

OSC 1 option f

= 32kHz, VDD = 1.8V, T

CLK

OSC 2 option f OSC 2 option f OSC 3 option f OSC 4 option f

= +25°C — 50 µA

= 3.58MHz, VDD = 3V — 2.5 mA

CLK

= 10MHz, VDD = 5V — 14 mA

CLK

= 12MHz, VDD = 5V — 16 mA

CLK

= 12MHz, VDD = 5V — 20 mA

CLK

= 3.58MHz, VDD = 3V — 1.0 mA

CLK

= 10MHz, VDD = 5V — 5.0 mA

CLK

= 12MHz, VDD = 5V — 7.0 mA

CLK

= 12MHz, VDD = 5V — 8.5 mA

CLK

VDD = 1.8V, T

amb

= +25°C — 25 µA

amb

= +25°C — 10 µA

amb

Input low voltage V Input high voltage 0.7V Output sink current, except SDA, SCL VDD = 5V, VOL = 0.4V 1.6 mA

VDD = 2.5V, VOL = 0.4V 0.7 mA Output sink current, SDA, SCL VDD = 5V, VOL = 0.4V 3.0 mA Output source current (push-pull options only) VDD = 5V, VOH = VDD – 0.4V 1.6 mA

VDD = 2.5V, VOH = VDD – 0.4V 0.7 mA

Logical 0 input current, ports 1, 2, 3 VDD = 5V,VIN = 0.4V –100 µA

VDD = 2.5V,VIN = 0.4V –50 µA

Logical 1-to-0 transition current, ports 1, 2, 3 VDD = 5V, VIN = VDD/2 –1.0 mA

VDD = 2.5V, VIN = VDD/2 –500 µA

Input leakage current, port 0, EA VSS < V

< V

Internal reset pull-down resistor 10 200 kΩ

= RST = Port 0 = VDD; all open drain outputs connected to VSS.

= Port 0 = VDD; RST = VSS; all open drain outputs connected to VSS.

= 1.8V, with option “ON” (typically 1.3V) are tested at V

DDMIN

= tf = 10ns; VIL = VSS, VIH = VDD; XTAL2 not

80CL410/83CL410

0.3V

±10 µA

= 2.3V.

DDMIN

= tf = 10ns; VIL = VSS, VIH = VDD; XTAL2

= port 0 = VDD; RST = VSS; all open-drain

V V

1995 Jan 20

Page 18

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

1.8

1.6

1.4

1.2

1.0

IDD (mA)

0.8

0.6

0.4

0.2

80CL410/83CL410

1.2MHz

32kHz

0123456

MIN = 1.8V

VDD (V)

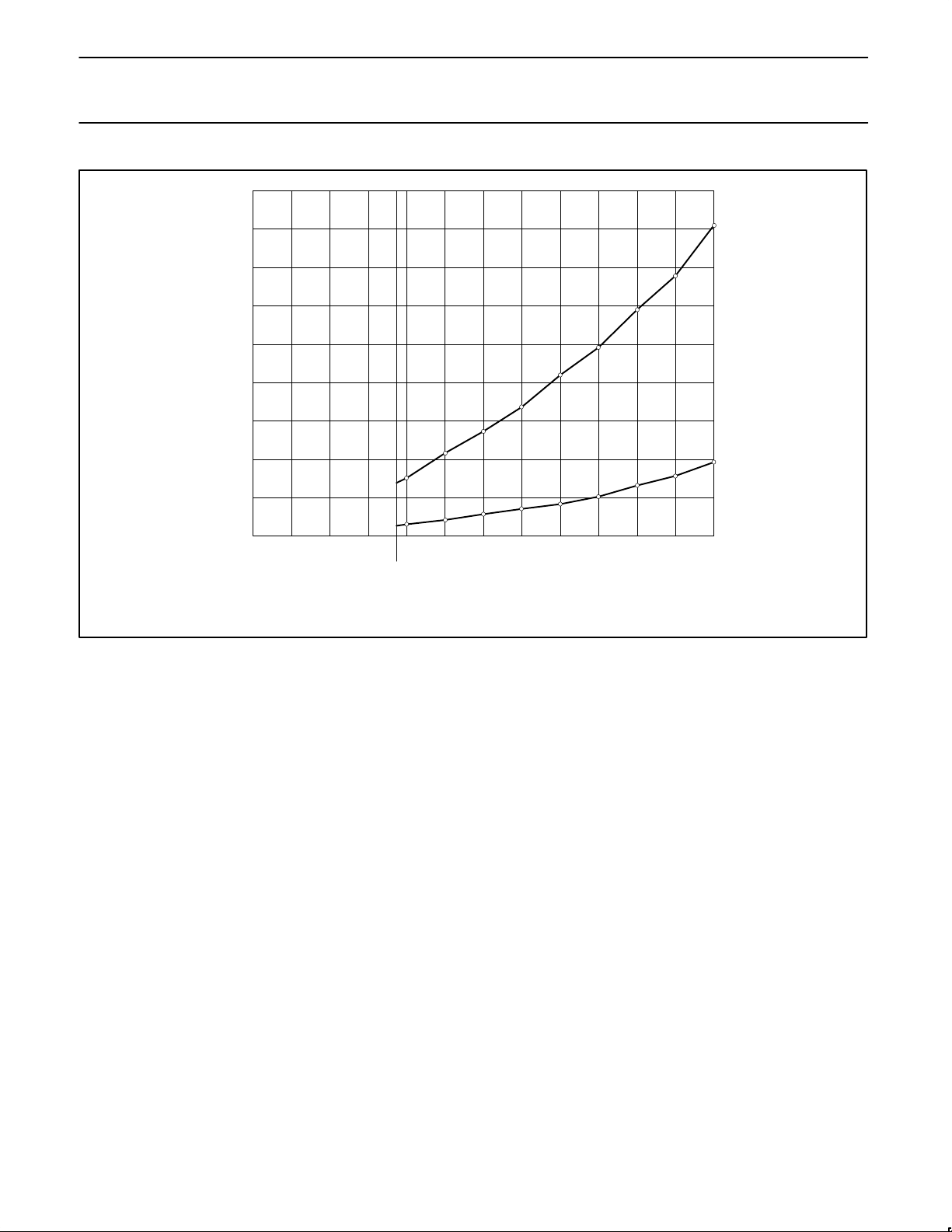

Typical Operating Current Versus Supply and Frequency (32kHz–1.2MHz) at +25°C

1995 Jan 20

Page 19

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

AC ELECTRICAL CHARACTERISTICS

= –40°C to +85°C, VSS = 0V

amb

SYMBOL FIGURE PARAMETER MIN MAX MIN MAX UNIT

Program Memory

1/t

CLCL

LIV

CIV

CIF

AVI

AFC

10 ALE pulse width 127 2t 10 Address valid to ALE low 43 t 10 Address hold after ALE low 48 t 10 ALE low to valid instruction in 233 4t 10 ALE low to PSEN low 58 t 10 PSEN pulse width 215 3t 10 PSEN low to valid instruction in 125 3t 10 Input instruction hold after PSEN 0 0 ns 10 Input instruction float after PSEN 63 t 10 Address to valid instruction in 302 5t 10 PSEN low to address float 0 0 ns

Data Memory

DFR

DWX

AFR

WHLH

11 RD pulse width 400 6t 12 WR pulse width 400 6t

11, 12 Address hold time after ALE 48 – t

11 RD low to valid data in 250 5t 11 Data float after RD 97 2t 11 ALE low to valid data in 517 8t

11 Address to valid data in 585 9t 11, 12 ALE low to RD or WR low 200 300 3t 11, 12 Address valid to WR low or RD low 203 4t

12 Data valid to WR transition 23 t

11 Data valid to WR 433 – 7t

12 Data hold after WR 33 t

11 RD low to address float 11, 12 RD or WR high to ALE high 43 123 t

NOTES:

1. Parameters are valid over operating temperature range unless otherwise specified.

2. Load capacitance for port 0, ALE, and PSEN

3. Interfacing the 8XCL410 to devices with float time up to 75ns is permitted. This limited bus connection will not cause damage to port 0 drivers.

1, 2

12MHz CLOCK VARIABLE CLOCK

Oscillator frequency 0 20 MHz

12 12 ns

= 50pF, load capacitance for all other outputs = 40pF .

80CL410/83CL410

–40 ns

CLCL

–40 ns

CLCL

–35 ns

CLCL

–100 ns

CLCL

–25 ns

CLCL

–35 ns

CLCL

–125 ns

CLCL

–20 ns

CLCL

–115 ns

CLCL

–100 ns

CLCL

–100 ns

CLCL

–35 – ns

CLCL

–165 ns

CLCL

–70 ns

CLCL

–150 ns

CLCL

–165 ns

CLCL

–50 3t

CLCL

–130 ns

CLCL

–60 ns

CLCL

–150 – ns

CLCL

–50 ns

CLCL

–40 t

CLCL

+50 ns

CLCL

+40 ns

CLCL

1995 Jan 20

Page 20

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

ALE

PSEN

PORT 0

PORT 2

LIV

CIV

A0–A7 A0–A7

AVI

A8–A15 A8–A15

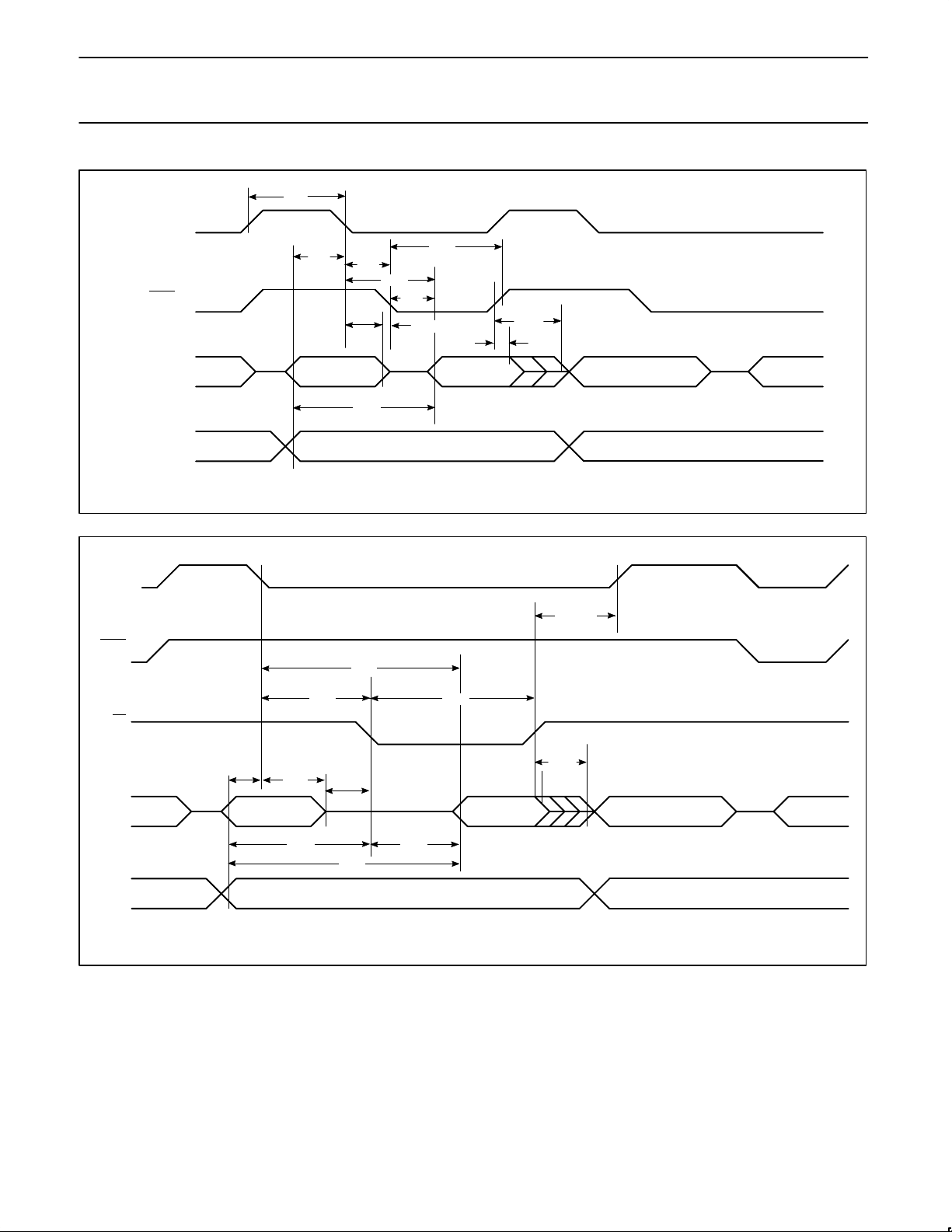

Figure 10. External Program Memory Read Cycle

AFC

INSTR IN

80CL410/83CL410

CIF

ALE

PSEN

PORT 0

PORT 2

A0–A7

FROM RI OR DPL

WHLH

AFR

P2.0–P2.7 OR A8–A15 FROM DPH A8–A15 FROM PCH

DFR

DATA IN A0–A7 FROM PCL INSTR IN

Figure 11. External Data Memory Read Cycle

1995 Jan 20

Page 21

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

ALE

PSEN

PORT 0

PORT 2

A0–A7

FROM RI OR DPL

DWX

P2.0–P2.7 OR A8–A15 FROM DPH A8–A15 FROM PCH

80CL410/83CL410

WHLH

DATA OUT A0–A7 FROM PCL INSTR IN

0.9 V

0.4 V

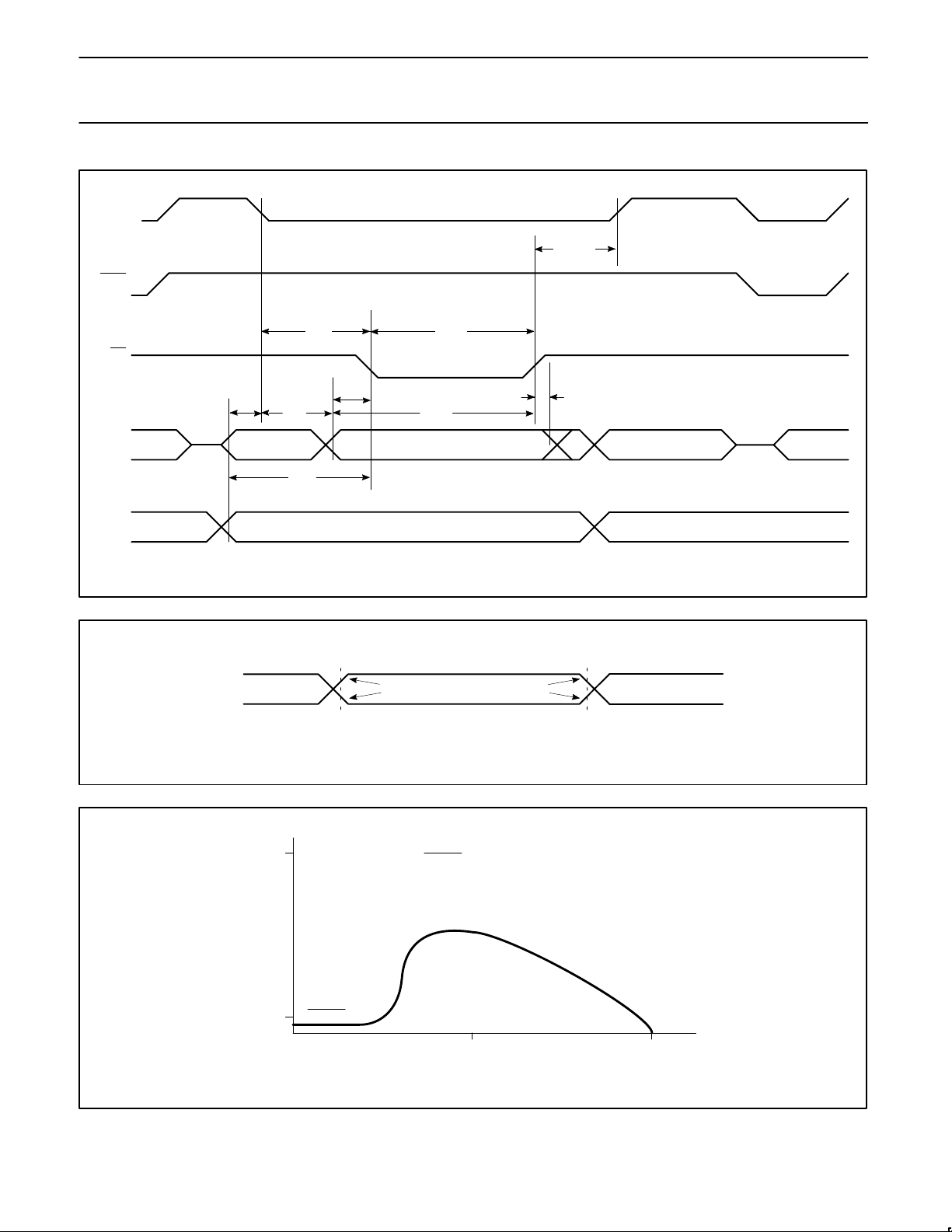

Figure 12. External Data Memory Write Cycle

0.7 V

0.3 V

TEST POINTS

0.7 V

0.3 V

Figure 13. AC Testing Input Waveform

500µA

–I

100µA

1995 Jan 20

VDD/2 V

Figure 14. Input Current

Page 22

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

100

f (MHz)

0.1

80CL410/83CL410

(mA)

12MHz

8MHz

0.01 01234567

(V)

NOTE: Below 32kHz, clock has to be supplied externally.

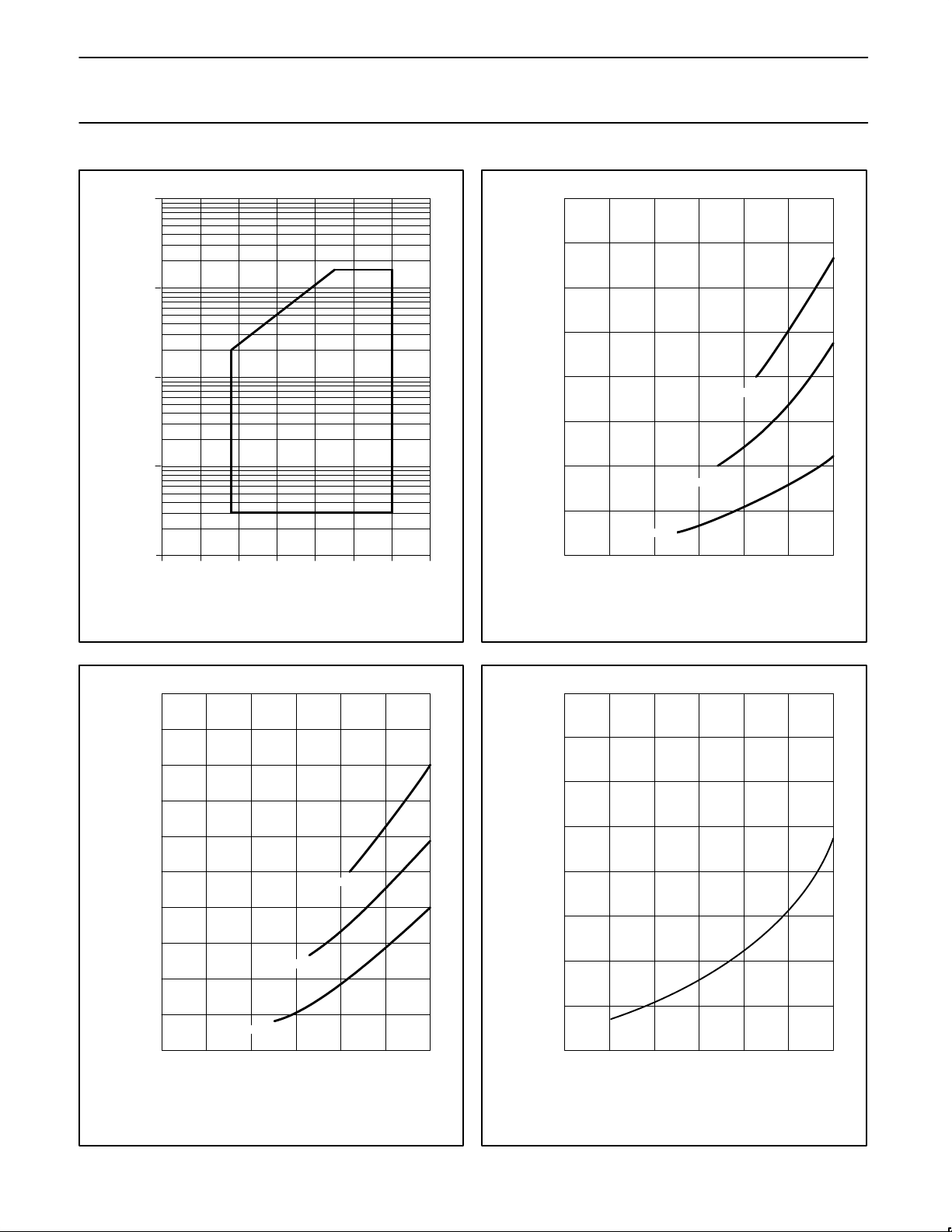

Figure 15. Frequency Operating Range

IDLE

(mA)

8MHz

12MHz

3.58MHz

12 4 6

(V)

Figure 16. Typical Operating Current as a Function of

(µA)

Frequency and V

, T

amb

= 25°C

0 2 4 61 3 5

Figure 17. Typical Idle Current as a Function of

Frequency and V

1995 Jan 20

3.58MHz

0246135

(V)

Figure 18. Typical Power-Down Current Vs.

, T

amb

= 25°C

Frequency and VDD, T

amb

= 25oC

Page 23

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

PIGGYBACK SPECIFICATION

The differences between the masked version and the piggyback are described herein.

General Description

The P85CL000HFZ is a piggy-back version with 256 bytes of RAM used for emulation of the P83CL410 microcontroller. The P85CL000HFZ is manufactured in an advanced CMOS technology. The instruction set of the P85CL000HFZ is based on that of the 8051. The device has low power consumption and a wide supply voltage range. The P85CL000HFZ has two software selectable modes of reduced activity for further power reduction: Idle and Power-down. For timing and AC/DC characteristics, please refer to the P83CL410 specifications.

Features

•Full static 80C51 CPU

•8-bit CPU, RAM, I/O in a single

40-lead DIP

•Socket for up to 16k external EPROM

•256 bytes RAM, expandable externally to

64K bytes

•Four 8-bit ports, 32 I/O lines

•Two 16-bit timer/event counters

•External memory expandable up to 128K,

external ROM up to 64K and/or RAM up to 64K

•Thirteen source, thirteen vector interrupt

structure with two priority levels

•Full duplex serial port (UART)

•I

C-bus interface for serial transfer on two

lines

80CL410/83CL410

•Enhanced architecture with:

– non-page oriented instructions – direct addressing – four eight byte RAM register banks – stack depth up to 128 bytes – multiply , divide, subtract and compare

instructions

•STOP and IDLE instructions

•Wake-up via external interrupts at port 1

•Single supply voltage of 1.8V to 6.0V

•On-chip oscillator (option: oscillator 4)

•Very low current consumption

•Operating temperature range:

–40 to +85°C

ST ANDARD PIGGYBACK

Types: P85CL000HFZ

Emulation for: P83CL410, P80CL51

List of differences between masked microcontroller and corresponding piggyback:

PARAMETER

RAM size 128 256 ROM size 4k EPROM size dependent (max 16k) Port option 1, 2, 3 1 Oscillator option Osc. 1, 2, 3, 4, RC Osc. 4 Mech. dimensions Standard Dual In-Line, Small Outline See SOT158A Current cons. I Voltage range full full, limited by EPROM ESD specification not tested (dif ferent package)

MASKED CONTROLLER PIGGYBACK

IDD (OSC. 4) + I

EPROM

1995 Jan 20

Purchase of Philips I2C components conveys a license under the Philips’ I2C patent

to use the components in the I

C specifications defined by Philips. This specification can be ordered using the

C system provided the system conforms to the

code 9398 393 40011.

Page 24

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

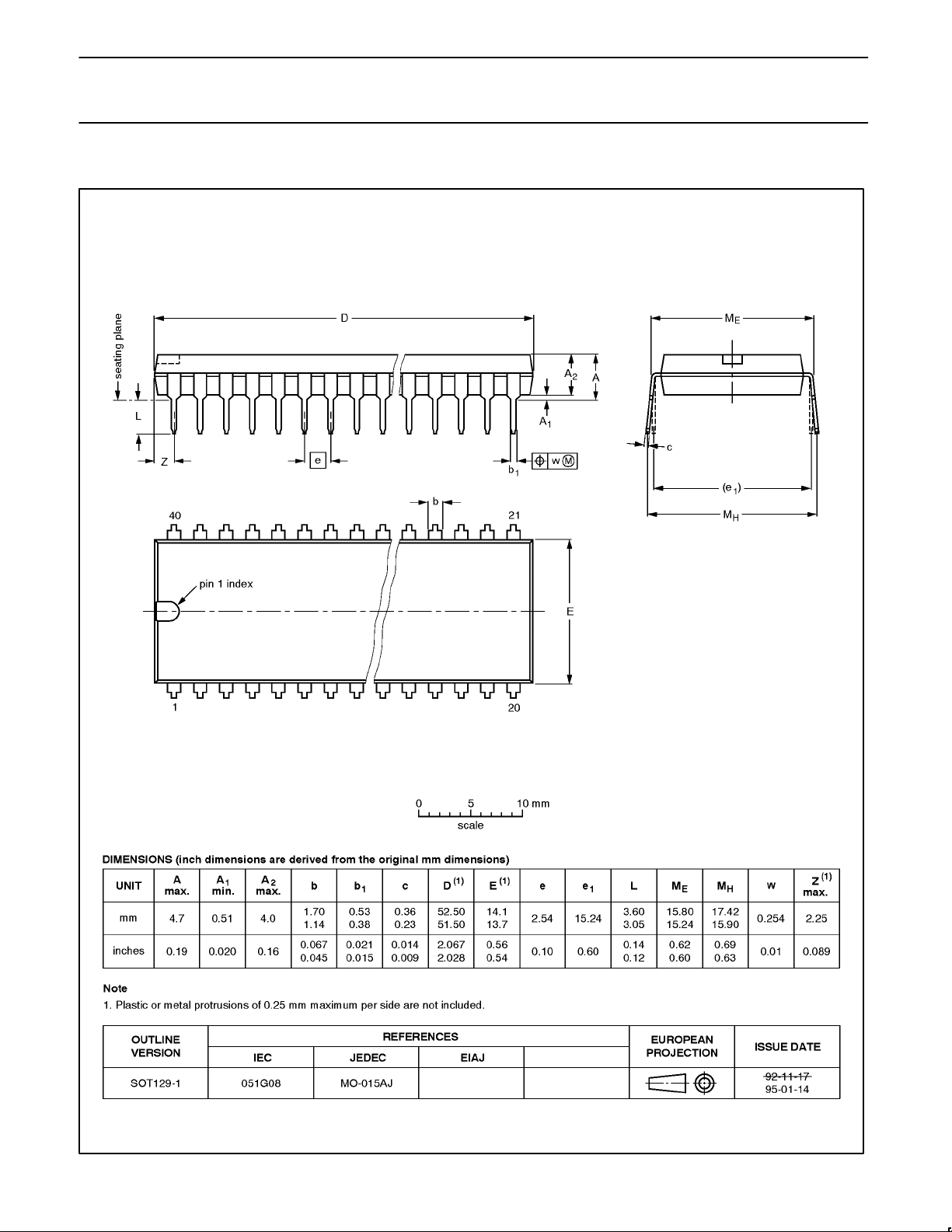

DIP40: plastic dual in-line package; 40 leads (600 mil) SOT129-1

80CL410/83CL410

1995 Jan 20

Page 25

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

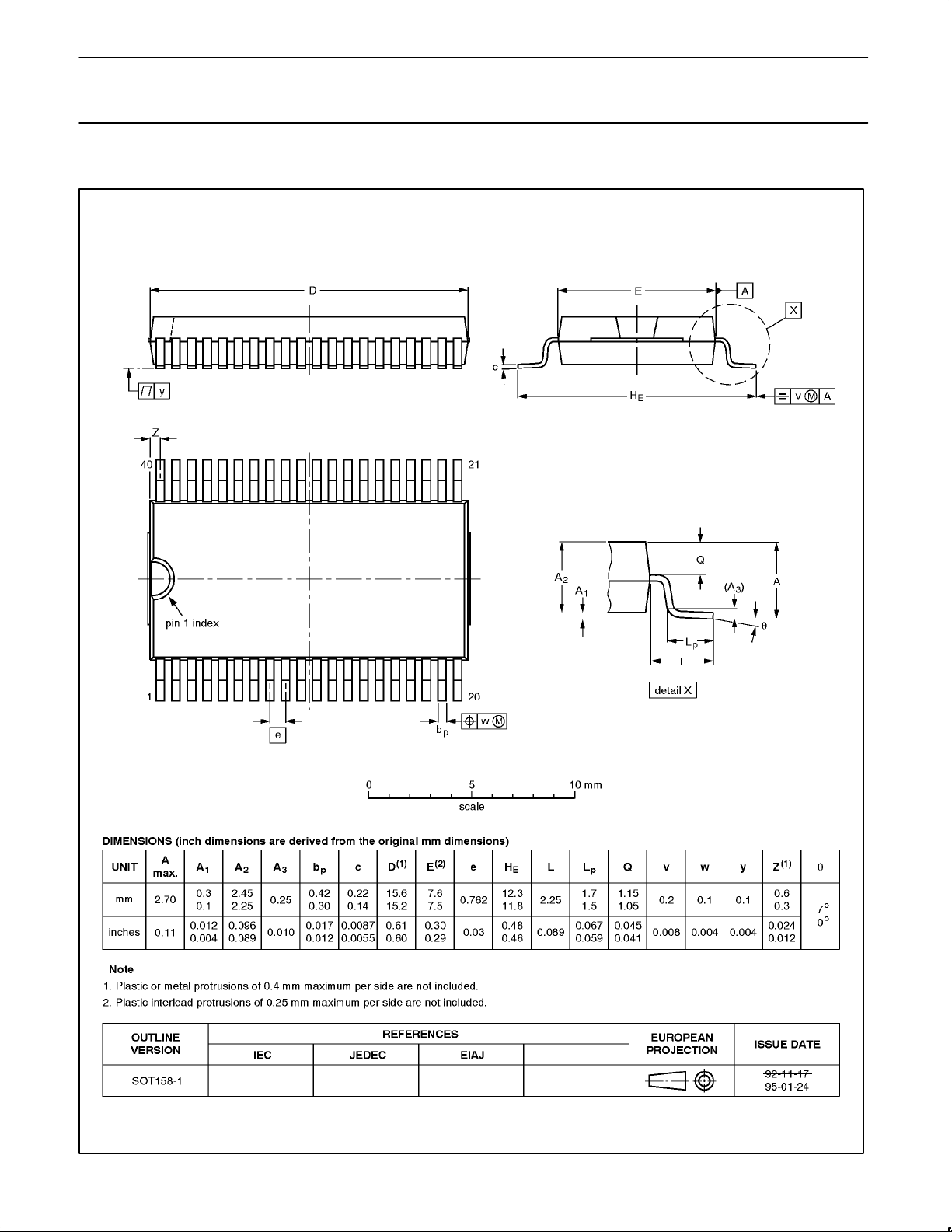

VSO40: plastic very small outline package; 40 leads SOT158-1

80CL410/83CL410

1995 Jan 20

Page 26

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

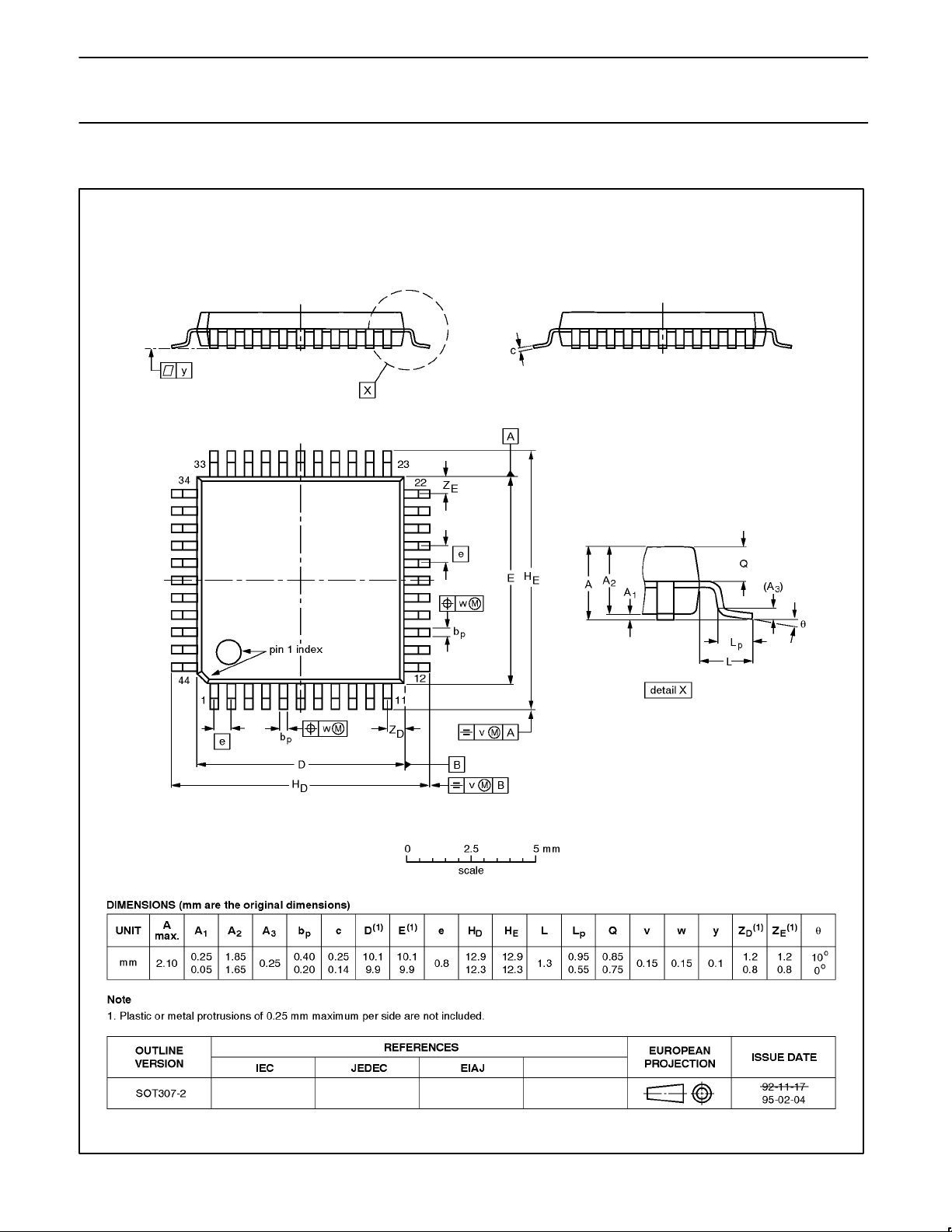

QFP44: plastic quad flat package; 44 leads (lead length 1.3 mm); body 10 x 10 x 1.75 mm SOT307-2

80CL410/83CL410

1995 Jan 20

Page 27

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

80CL410/83CL410

NOTES

1995 Jan 20

Page 28

Philips Semiconductors Product specification

Low voltage/low power single-chip

8-bit microcontroller with I

80CL410/83CL410

DEFINITIONS

Data Sheet Identification Product Status Definition

Objective Specification

Preliminary Specification

Product Specification

Philips Semiconductors and Philips Electronics North America Corporation reserve the right to make changes, without notice, in the products, including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification.

LIFE SUPPORT APPLICA TIONS Philips Semiconductors and Philips Electronics North America Corporation Products are not designed for use in life support appliances, devices, or systems where malfunction of a Philips Semiconductors and Philips Electronics North America Corporation Product can reasonably be expected

to result in a personal injury. Philips Semiconductors and Philips Electronics North America Corporation customers using or selling Philips Semiconductors and Philips Electronics North America Corporation Products for use in such applications do so at their own risk and agree to fully indemnify Philips Semiconductors and Philips Electronics North America Corporation for any damages resulting from such improper use or sale.

Philips Semiconductors 811 East Arques Avenue P.O. Box 3409 Sunnyvale, California 94088–3409 Telephone 800-234-7381

Formative or in Design

Preproduction Product

Full Production

This data sheet contains the design target or goal specifications for product development. Specifications may change in any manner without notice.

This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips Semiconductors reserves the right to make changes at any time without notice in order to improve design and supply the best possible product.

This data sheet contains Final Specifications. Philips Semiconductors reserves the right to make changes at any time without notice, in order to improve design and supply the best possible product.

Philips Semiconductors and Philips Electronics North America Corporation

 Copyright Philips Electronics North America Corporation 1995
