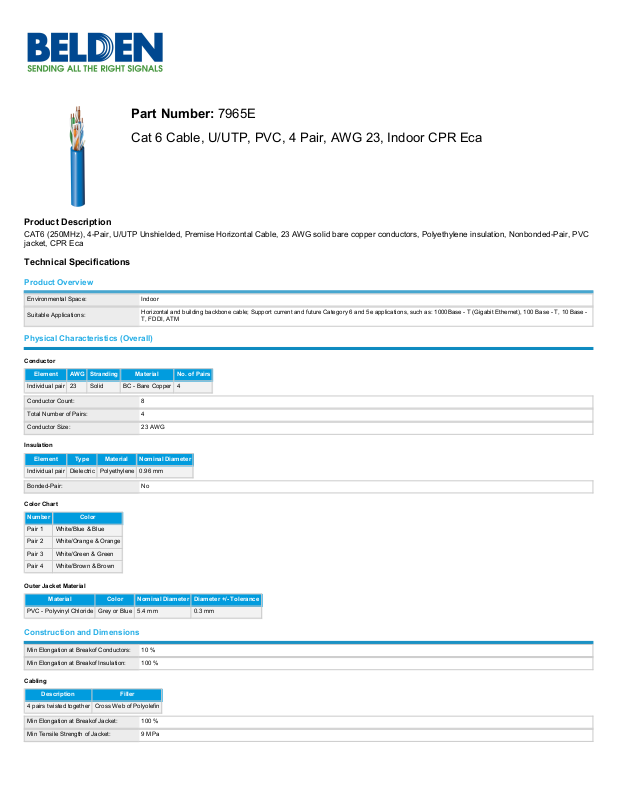

Datasheet 7965E BLUE Specification

Part Number: 7965E

Cat 6 Cable, U/UTP, PVC, 4 Pair, AWG 23, Indoor CPR Eca

Product Description

CAT6 (250MHz), 4-Pair, U/UTP Unshielded, Premise Horizontal Cable, 23 AWG solid bare copper conductors, Polyethylene insulation, Nonbonded-Pair, PVC
jacket, CPR Eca

Technical Specifications

Product Overview

Environmental Space: Indoor

Suitable Applications:

Horizontal and building backbone cable; Support current and future Category 6 and 5e applications, such as: 1000Base - T (Gigabit Ethernet), 100 Base - T, 10 Base ­T, FDDI, ATM

Physical Characteristics (Overall)

Conductor

Element AWG Stranding Material No. of Pairs

Individual pair 23 Solid BC - Bare Copper 4

Conductor Count: 8

Total Number of Pairs: 4

Conductor Size: 23 AWG

Insulation

Element Type Material Nominal Diameter

Individual pair Dielectric Polyethylene 0.96 mm

Bonded-Pair: No

Color Chart

Number Color

Pair 1 White/Blue & Blue

Pair 2 White/Orange & Orange

Pair 3 White/Green & Green

Pair 4 White/Brown & Brown

Outer Jacket Material

Material Color Nominal Diameter Diameter +/- Tolerance

PVC - Polyvinyl Chloride Grey or Blue 5.4 mm 0.3 mm

Construction and Dimensions

Min Elongation at Breakof Conductors: 10 %

Min Elongation at Breakof Insulation: 100 %

Cabling

Description Filler

4 pairs twisted together Cross Web of Polyolefin

Min Elongation at Breakof Jacket: 100 %

Min Tensile Strength of Jacket: 9 MPa

Electrical Characteristics

Conductor DCR

Max. Conductor DCR Max DCR Unbalanced Between Pairs [%] Max. DCR Unbalanced Within Pair [%]

95 Ohm/km 4 % 2 Ohm

Capacitance

Max. Capacitance Unbalance Max. Mutual Capacitance

1,600 pF/m 56 pF/m

Impedance

Nominal Characteristic Impedance

100 Ohm

Delay

Max. Delay Skew Nominal Velocity of Propagation (VP) [%]

40 ns/100m 70 %

High Freq

Frequency

[MHz]

Max. Insertion Loss

(Attenuation)

Min. NEXT

[dB]

Min. PSNEXT

[dB]

Min. ACR

[dB]

Min. PSACR

[dB]

Min. ACRF

(ELFEXT) [dB]

Min. PSACRF

(PSELFEXT) [dB]

Min. RL (Return

Loss) [dB]

Min. TCL

[dB]

Min. ELTCTL

[dB]

1 MHz 2.1 dB/100m 75.3 dB 72.3 dB 73.2 dB 70.2 dB 70 dB 67 dB 20 dB 40 dB 35 dB

4 MHz 3.8 dB/100m 66.3 dB 63.3 dB 62.4 dB 59.4 dB 58 dB 55 dB 23 dB 34 dB 23 dB

10 MHz 6 dB/100m 60.3 dB 57.3 dB 54.3 dB 51.3 dB 50 dB 47 dB 25 dB 30 dB 15 dB

16 MHz 7.6 dB/100m 57.2 dB 54.2 dB 49.6 dB 46.6 dB 45.9 dB 42.9 dB 25 dB 28 dB 10.9 dB

20 MHz 8.5 dB/100m 55.8 dB 52.8 dB 47.3 dB 44.3 dB 44 dB 41 dB 25 dB 27 dB 9 dB

31.2 MHz 10.7 dB/100m 52.9 dB 49.9 dB 42.1 dB 39.1 dB 40.1 dB 37.1 dB 23.6 dB 25.1 dB 5.1 dB

62.5 MHz 15.5 dB/100m 48.4 dB 45.4 dB 32.9 dB 29.9 dB 34.1 dB 31.1 dB 21.5 dB 22 dB

100 MHz 19.9 dB/100m 45.3 dB 42.3 dB 25.4 dB 22.4 dB 30 dB 27 dB 20.1 dB 20 dB

155 MHz 25.3 dB/100m 42.4 dB 39.4 dB 17.1 dB 14.1 dB 26.2 dB 23.2 dB 18.8 dB 18.1 dB

200 MHz 29.1 dB/100m 40.8 dB 37.8 dB 11.6 dB 8.6 dB 24 dB 21 dB 18 dB 17 dB

250 MHz 33 dB/100m 39.3 dB 36.3 dB 6.3 dB 3.3 dB 22 dB 19 dB 17.3 dB 16 dB

High Freq Table Note: ): Limits below 4MHz are for information only.

Coupling Attenuation Class: Type III

Segregation class according EN50174-2: a

Current

Max. Recommended Current [A]

1.5 A

Voltage

Voltage Rating [V]

72 V

Temperature Range

Installation Temp Range: 0°C To +50°C

Operating Temp Range: -30°C to +60°C

Mechanical Characteristics

Bulk Cable Weight: 37 kg/km

Max Recommended Pulling Tension: 80 N

Min Bend Radius During Installation: 46 mm

Min Bend Radius During Operation: 23 mm

Standards

ISO/IEC Compliance: ISO/IEC 11801 2nd edition (2002) and ISO/IEC 11801 Amendment 2 (2010)

CPR Euroclass: Eca

CENELEC Compliance: EN 50173-1 (2011)

Data Category: Category 6

ANSI Compliance: ANSI/TIA/EIA 568-C.2 (2009)

Applicable Environmental and Other Programs

EU RoHS Compliance Date
(yyyy-mm-dd):

2004-01-01

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1

Burning Load: 460 kJ/m

Part Number

Variants

Item # Color

7965E.05A305 Black

7965E.011000 Blue

7965E.01200 Blue

7965E.01305 Blue

7965E.01500 Blue

7965E.01A305 Blue

7965E.01B100 Blue

7965E.001000 Gray, RAL 7032

7965E.00305 Gray, RAL 7032

7965E.00500 Gray, RAL 7032

7965E.00A305 Gray, RAL 7032

7965E.00B100 Gray, RAL 7032

7965E.03500 Green

7965E.03305 Green

Patent: https://www.belden.com/resources/patents

History

Revision Number: 4
