Page 1
:
:
:
:
:
:
Charge : 75mA x 16hrs at 20
℃
(3C) (2C)
(0.5C)
(0.1C)
(0.2C)
Type
: Rechargeable Nickel Metal
Hydride Cylindrical Cell
Nominal Dimension
(with Sleeve)
Applications
Φ = 14.5mm
H = 28.7mm
Recommended discharge current
75 to 2250mA
Nominal Voltage
Capacity
: 1.2V
Nominal: 750mAh
Minimum: 750mAh
Typical: 770mAh
When discharged at 150mA to
1.0V at 20℃
Charging Condition
Fast Charge
:
75mA for 16 hrs at 20℃
375mA to 750mA (0.5 to 1C)
charge termination control recommended
control parameters:
-∆V
: 0-5mV
DT/dt : 0.8℃/min (0.5 to 0.9C)
0.8 - 1℃/min (1C)
TCO :
45 - 50℃
Timer : 105% nominal input
Service Life
Continuous
Overcharge
: >500 cycles (IEC standard)
: 75mA maximum current for 1 year.
No conspicuous deformation and/or
(for ref. only)
leakage
Weight
Internal Resistance
: 15.0g
Average 35mΩ upon fully charged
(Max. 45mΩ) at 1000Hz
Max. Charging Voltage : 1.5V at 75mA charging
Ambient Temperature
Range
Standard Charge : 0 to 45℃
Fast Charging : 10 to 45℃
Discharge : -20 to 50℃
Storage : -20 to 35℃

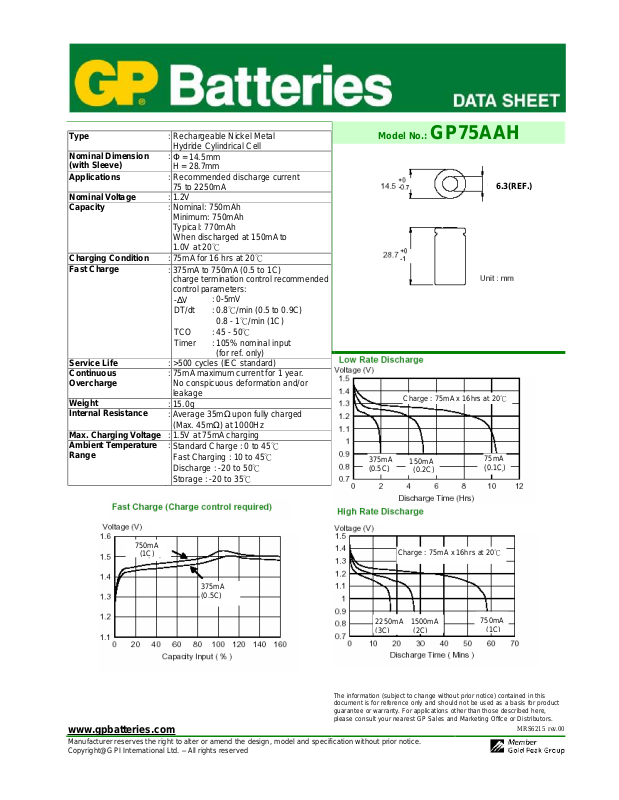

Model No.: GP75AAH
375mA
150mA
6.3(REF.)
75mA
www.gpbatteries.com
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
Copyright@GPI International Ltd. – All rights reserved
750mA
(1C)
375mA
(0.5C)
Charge : 75mA x 16hrs at 20℃
2250mA 1500mA
The information (subject to change without prior notice) contained in this
document is for reference only and should not be used as a basis for product
guarantee or warranty. For applications other than those described here,
please consult your nearest GP Sales and Marketing Office or Distributors.
750mA
MRS6215 rev.00
