Page 1
100

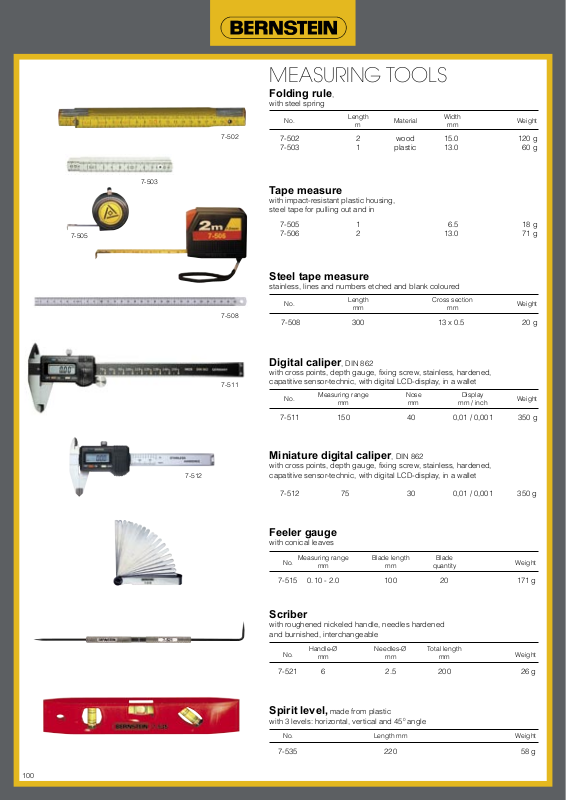

MEASURING TOOLS
Folding rule,
with steel spring
Length Width
No. Material Weight
m mm
7-502 2 wood 15.0 120 g
7-503 1 plastic 13.0 60 g
Tape measure
with impact-resistant plastic housing,
steel tape for pulling out and in
7-505 1 6.5 18 g
7-506 2 13.0 71 g
Steel tape measure
stainless, lines and numbers etched and blank coloured
Length Cross section
No. Weight
mm mm
7-508 300 13 x 0.5 20 g
Digital caliper, DIN 862
with cross points, depth gauge, fixing screw, stainless, hardened,
capatitive sensor-technic, with digital LCD-display, in a wallet
Measuring range Nose Display
No. Weight
mm mm mm / inch
7-511 150 40 0,01 / 0,001 350 g
Miniature digital caliper, DIN 862
with cross points, depth gauge, fixing screw, stainless, hardened,
capatitive sensor-technic, with digital LCD-display, in a wallet
7-512 75 30 0,01 / 0,001 350 g
Feeler gauge
with conical leaves
No.
Measuring range Blade length Blade
Weight
mm mm quantity
7-515 0.10 - 2.0 100 20 171 g
Scriber
with roughened nickeled handle, needles hardened
and burnished, interchangeable
No.
Handle-Ø Needles-Ø Total length
Weight
mm mm mm
7-521 6 2.5 200 26 g
Spirit level, made from plastic
with 3 levels: horizontal, vertical and 450 angle
No. Length mm Weight
7-535 220 58 g
7-502
7-503
7-505
7-511
7-512
7-508
