74V2T03
DUAL 2-INPUT OPEN DRAIN NAND GATE
■ HIGH SPEED: t
■ LOW POWER DISSIPATION:
I
=1µA(MAX.) atTA=25°C
CC
■ COMPATIBLE WITHTTL OUTPUTS:
V
=2V(MIN),VIL=0.8V(MAX)
IH
■ POWER DOWN PROT ECTION ON INPUTS
■ OPERATING VOLTAGE RANGE:
V
(OPR) = 4.5V to 5.5V
CC
■ IMPROVED LATCH-UP IMMUNITY
= 5.4ns (TYP.) at VCC=5V
PD
DESCRIPTION
The 74V2T03 is an advanced high-speed CMOS
DUAL 2-INPUT OPEN DRAIN NAND GA TE
fabricated with sub-micron silicon gate and
double-layer metal wiring C
2
MOS technology.
The internal circuit is composed of 3 stages
including buffer output, which provide high noise
immunity and stable output.
The device can, with an external pull-up resistor,
be used in wired AND configuration. This device
SOT23-8L
ORDER CODES
PACKAGE T & R
SOT23-8L 74V2T03STR
can also be used as a led driver in any other
application requiring current sink.
Power down protection is provided on all inputs
and 0 to 7V can be accepted on inp uts with no
regard to the supply voltage. This device can be
usedto interface 5V to 3V.
PIN CONNECTION AND IEC LOGIC SYMBOLS
1/7June 2003
Page 2
74V2T03
INPUT EQUIVALENT CIRCUIT PIN DESCRIPTION
PIN N° SYMBOL NAME QND FUNCTION
1, 5 1A, 2A Data Input
2, 6 1B, 2B Data Input
7, 3 1Y, 2Y Data Output
4 GND Ground (0V)
8
TRUTH TABLE
ABY
LLZ
LHZ
HLZ
HHL
Z: HighImpedance State
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
V
V
V
I
I
OK
I
or I
I
CC
T
T
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied.
Supply Voltage
CC
DC Input Voltage
I
DC Output Voltage -0.5 to VCC+ 0.5
O
DC Input Diode Current
IK
DC Output Diode Current
DC Output Current
O
DC VCCor Ground Current
GND
Storage Temperature
stg
Lead Temperature (10 sec)
L
V
CC
Positive Supply Voltage
-0.5 to +7.0 V
-0.5 to +7.0 V
-20 mA
± 20 mA
+ 25 mA
± 50 mA
-65 to +150 °C
260 °C
V
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Value Unit
V
V
V
T
dt/dv
1) VINfrom0.8V to 2V
2/7
Supply Voltage
CC
Input Voltage
I
Output Voltage 0 to V
O
Operating Temperature
op
Input Rise and Fall Time (note 1) (V
=5.0±0.5V)
CC
4.5 to 5.5 V
0 to 5.5 V
CC
-55 to 125 °C
0 to 20 ns/V
V
Page 3
DC SPECIFICATIONS
Symbol Parameter
V
V
∆I
High Level Input
IH
Voltage
V
Low Level Input
IL
Voltage
Low Level Output
OL
Voltage
High Impedance
I
OZ
Output Leakage
Current
Input Leakage
I
I
Current
Quiescent Supply
I
CC
Current
Additional Worst
CC
Case Supply
Current
Test Condition Value
= 25°C
T
V
CC
(V)
4.5to
A
Min. Typ. Max. Min. Max. Min. Max.
222V
5.5
4.5to
5.5
4.5
4.5
5.5
0to
5.5
5.5
IO=50 µA 0.0 0.1 0.1 0.1 V
=8 mA 0.36 0.44 0.55
I
O
VI=VIHor V
IL
VO=VCCor GND
VI= 5.5V or GND
V
I=VCC
or GND
One Input at 3.4V,
other input at V
5.5
CC
or GND
74V2T03
-40 to 85°C -55 to 125°C
0.8 0.8 0.8 V
±0.25 ± 2.5 ± 5.0 µA
± 0.1 ± 1.0 ± 1.0 µA
11020µA
1.35 1.5 1.5 mA
Unit
AC ELECTRICAL CHARACTERISTICS (Input t
r=tf
=3ns)
Test Condition Value
Symbol Parameter
t
t
(*) Voltage range is5.0V ± 0.5V
Enable Delay Time
PZL
Disable Delay Time
PLZ
T
V
CC
(V)
C
(pF)
L
A
Min. Typ. Max. Min. Max. Min. Max.
5.0 (*) 15 3.7 7.0 1.0 8.0 1.0 9.0
5.0 (*) 50 4.1 8.0 1.0 9.0 1.0 10.0
5.0 (*) 15 5.4 7.0 1.0 8.0 1.0 9.0
5.0 (*) 50 5.9 8.0 1.0 9.0 1.0 10.0
-40 to 85°C -55 to 125°C
Unit
ns
ns
= 25°C
CAPACITIVE CHARACTERISTICS
Test Condition Value
= 25°C
Symbol Parameter
T
A
Min. Typ. Max. Min. Max. Min. Max.
C
C
C
Input Capacitance
IN
Output
OUT
Capacitance
Power Dissipation
PD
Capacitance
410 10 10pF
510 10 10pF
6pF
(note 1)
1) CPDis defined as the value of the IC’s internal equivalent capacitance which is calculated from the operating current consumption without
load. (Refer to Test Circuit). Average operating current can be obtained by the following equation. I
-40 to 85°C -55 to 125°C
CC(opr)=CPDxVCCxfIN+ICC
Unit
/2
3/7
Page 4
74V2T03

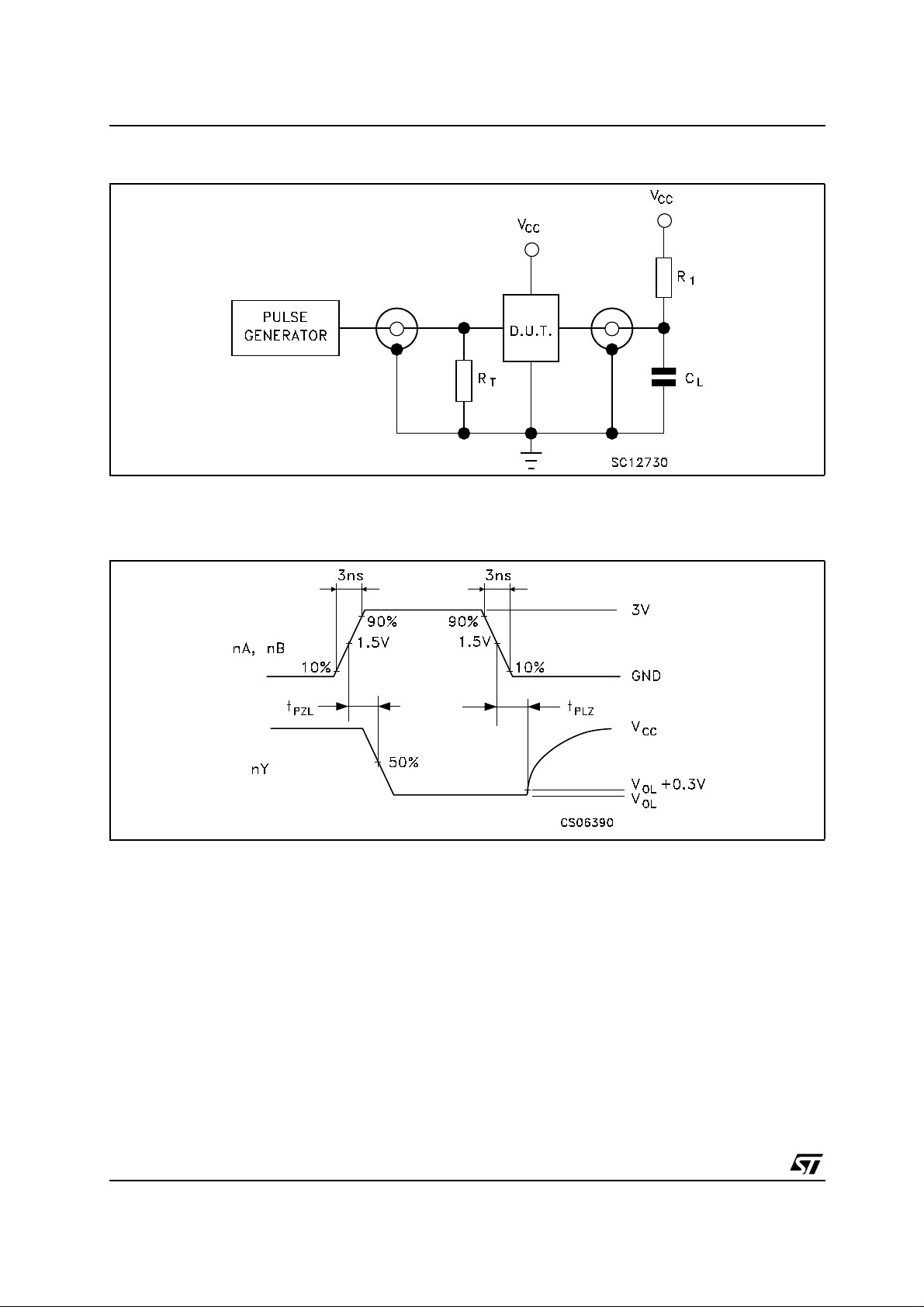

TEST CIRCUIT
CL= 15/50pF or equivalent (includes jig and probe capacitance)
R
=1KΩor equivalent
1
R
T=ZOUT
WAVEFORM: PROPAGATION DELAY (f=1MHz; 50% duty cycle)
of pulse generator (typically 50Ω)
4/7
Page 5
74V2T03
SOT23-8L MECHANICAL DATA
mm. mils
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
A 0.90 1.45 35.4 57.1
A1 0.00 0.15 0.0 5.9
A2 0.90 1.30 35.4 51.2
b 0.22 0.38 8.6 14.9
C 0.09 0.20 3.5 7.8
D 2.80 3.00 110.2 118.1
E 2.60 3.00 102.3 118.1
E1 1.50 1.75 59.0 68.8
e0.65 25.6
e1 1.95 76.7
L 0.35 0.55 13.7 21.6
5/7
Page 6
74V2T03
Tape & Reel SOT23-xL MECHANICAL DATA
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
A 180 7.086
C 12.8 13.0 13.2 0.504 0.512 0.519
D 20.2 0.795
N 60 2.362
T 14.4 0.567
Ao 3.13 3.23 3.33 0.123 0.127 0.131
Bo 3.07 3.17 3.27 0.120 0.124 0.128
Ko 1.27 1.37 1.47 0.050 0.054 0.0.58
Po 3.9 4.0 4.1 0.153 0.157 0.161
P 3.9 4.0 4.1 0.153 0.157 0.161
mm. inch
6/7
Page 7
74V2T03
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the
consequences of use o f suc h inf ormat ion n or f or an y infr ingeme nt of paten ts or oth er ri gh ts of third part ies whic h may resul t f rom
its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications
mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information
previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or
systems without express written approval of STMicroelectronics.
