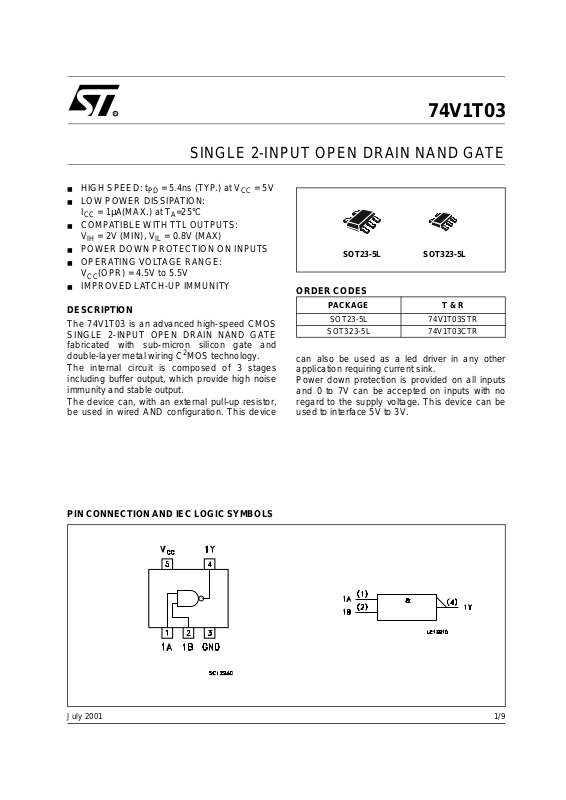

1/9July 2001

■ HIGH SPEED: t

PD

= 5.4ns (TYP.) at VCC = 5V

■ LOW POWER DISSIPATION:

I

CC

= 1µA(MAX.) at TA=25°C

■ COMPA TIBLE WITH TTL OUTPUTS:

V

IH

= 2V (MIN), VIL = 0.8V (MAX)

■ POWER DOWN PROTECTION ON INPUT S

■ OPERATING VOLTAGE RANGE:

V

CC

(OPR) = 4.5V to 5.5V

■ IMPROVED LATCH-UP IMMUNITY

DESCRIPTION

The 74V1T03 is an advanc ed high-speed CM OS
SINGLE 2-INPUT OPEN DRAIN NAND GATE
fabricated with sub-micron silicon gate and
double-layer metal wiring C

2

MOS technology.

The internal circuit is composed of 3 stages
including buffer output, which provide high no ise
immunity and stable output.

The device can, with an external pull-up resistor,
be used in wired AND configuration. This d evice

can also be used as a led driver in any other
application requiring current sink.
Power down protection is provided on all inputs
and 0 to 7V can be accepted on inputs with no
regard to the supply voltage. This device can be
used to interface 5V to 3V.

74V1T03

SINGLE 2-INPUT OPEN DRAIN NAND GATE

PIN CONNECTION AND IEC LOGIC SYMBOLS

ORDER CODES

PACKAGE T & R

SOT23-5L 74V1T03STR

SOT323-5L 74V1T03CTR

SOT323-5LSOT23-5L

74V1T03

2/9

INPUT EQUIVALENT CIRCUIT PIN DESCRIPTION

TRUTH TABLE

Z: High Impedance State

ABSOLUTE MAXIMUM RATINGS

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied.

RECOMMENDED OPERATING CONDITIONS

1) VIN from 0.8V to 2V

PIN No SYMBOL NAME AND FUNCTION

1 1A Data Input
2 1B Data Input
4 1Y Data Output
3 GND Ground (0V)
5

V

CC

Positive Supply Voltage

ABY

LLZ

LHZ
HLZ
HHL

Symbol Parameter Value Unit

V

CC

Supply Voltage

-0.5 to +7.0 V

V

I

DC Input Voltage

-0.5 to +7.0 V

V

O

DC Output Voltage -0.5 to VCC + 0.5

V

I

IK

DC Input Diode Current

- 20 mA

I

OK

DC Output Diode Current

± 20 mA

I

O

DC Output Current

+ 25 mA

I

CC

or I

GND

DC VCC or Ground Current

± 50 mA

T

stg

Storage Temperature

-65 to +150 °C

T

L

Lead Temperature (10 sec)

260 °C

Symbol Parameter Value Unit

V

CC

Supply Voltage

4.5 to 5.5 V

V

I

Input Voltage

0 to 5.5 V

V

O

Output Voltage 0 to V

CC

V

T

op

Operating Temperature

-55 to 125 °C

dt/dv

Input Rise and Fall Time (note 1) (V

CC

= 5.0 ± 0.5V)

0 to 20 ns/V

74V1T03

3/9

DC SPECIFICATIONS

AC ELECTRICAL CHARACTERISTICS (Input t

r

= tf = 3ns)

(*) Vol tage range is 5.0V ± 0.5V

CAPACITIVE CHARACTERISTICS

1) CPD is defined as the value of the IC’s internal equivalent capacitance which is calculated from the operating current consumption without

load. (R ef er to Test Circui t ). Average ope rating curre nt can be obtained by the follow i ng equation. I

CC(opr)

= CPD x VCC x fIN + I

CC

Symbol Parameter

Test Condition Value

Unit

V

CC

(V)

T

A

= 25°C

-40 to 85°C -55 to 125°C

Min. Typ. Max. Min. Max. Min. Max.

V

IH

High Level Input
Voltage

4.5 to

5.5

222V

V

IL

Low Level Input
Voltage

4.5 to

5.5

0.8 0.8 0.8 V

V

OL

Low Level Output
Voltage

4.5

IO=50 µA 0.0 0.1 0.1 0.1 V

4.5

I

O

=8 mA 0.36 0.44 0.55

I

OZ

High Impedance
Output Leakage
Current

5.5

VI = VIH or V

IL

VO = VCC or GND

±0.25 ± 2.5 ± 5.0 µA

I

I

Input Leakage
Current

0 to

5.5

V

I

= 5.5V or GND

± 0.1 ± 1.0 ± 1.0 µA

I

CC

Quiescent Supply
Current

5.5

V

I

= VCC or GND

11020µA



I

CC

Additional Worst
Case Supply
Current

5.5

One Input at 3.4V,
other input at V

CC

or GND

1.35 1.5 1.5 mA

Symbol Parameter

Test Condition Value

Unit

V

CC

(V)

C

L

(pF)

T

A

= 25°C

-40 to 85°C -55 to 125°C

Min. Typ. Max. Min. Max. Min. Max.

t

PZL

Enable Delay Time

5.0 (*) 15 3.7 7.0 1.0 8.0 1.0 9.0
ns

5.0 (*) 50 4.1 8.0 1.0 9.0 1.0 10.0

t

PLZ

Disable Delay Time

5.0 (*) 15 5.4 7.0 1.0 8.0 1.0 9.0
ns

5.0 (*) 50 5.9 8.0 1.0 9.0 1.0 10.0

Symbol Parameter

Test Condition Value

Unit

T

A

= 25°C

-40 to 85°C -55 to 125°C

Min. Typ. Max. Min. Max. Min. Max.

C

IN

Input Capacitance

4101010pF

C

OUT

Output
Capacitance

5101010pF

C

PD

Power Dissipation
Capacitance
(note 1)

6pF

74V1T03

4/9

TEST CIRCUIT

CL = 15/50pF or e qui valent (inc lu des jig and probe capacitance)
R

1

= 1KΩ or equivalent

R

T

= Z

OUT

of pulse generator (typically 50Ω)

WAVEFORM: PROPAGATION DELAY (f=1MHz; 5 0% duty cycle)

74V1T03

5/9

DIM.

mm. mils

MIN. TYP MAX. MIN. TYP. MAX.

A 0.90 1.45 35.4 57.1

A1 0.00 0.15 0.0 5.9

A2 0.90 1.30 35.4 51.2

b 0.35 0.50 13.7 19.7

C 0.09 0.20 3.5 7.8

D 2.80 3.00 110.2 118.1

E 2.60 3.00 102.3 118.1

E1 1.50 1.75 59.0 68.8

e0.95 37.4

e1 1.9 74.8

L 0.35 0.55 13.7 21.6

SOT23-5L MECHANICAL DATA

74V1T03

6/9

DIM.

mm. mils

MIN. TYP MAX. MIN. TYP. MAX.

A 0.80 1.10 31.5 43.3

A1 0.00 0.10 0.0 3.9

A2 0.80 1.00 31.5 39.4

b 0.15 0.30 5.9 11.8

C 0.10 0.18 3.9 7.1

D 1.80 2.20 70.9 86.6

E 1.80 2.40 70.9 94.5

E1 1.15 1.35 45.3 53.1

e0.65 25.6

e1 1.3 51.2

L 0.10 0.30 3.9 11.8

SOT323-5L MECHANICAL DATA

74V1T03

7/9

DIM.

mm. inch

MIN. TYP MAX. MIN. TYP. MAX.

A 180 7.086
C 12.8 13.0 13.2 0.504 0.512 0.519
D 20.2 0.795
N 60 2.362

T 14.4 0.567
Ao 3.13 3.23 3.33 0.123 0.127 0.131
Bo 3.07 3.17 3.27 0.120 0.124 0.128
Ko 1.27 1.37 1.47 0.050 0.054 0.0.58
Po 3.9 4.0 4.1 0.153 0.157 0.161

P 3.9 4.0 4.1 0.153 0.157 0.161

Tape & Reel SOT23-xL MECHANICAL DATA

74V1T03

8/9

DIM.

mm. inch

MIN. TYP MAX. MIN. TYP. MAX.

A 175 180 185 6.889 7.086 7.283

C 12.8 13 13.2 0.504 0.512 0.519

D 20.2 0.795

N 59.5 60 60.5 2.362

T 14.4 0.567
Ao 2.25 0.088
Bo 2.7 0.106
Ko 1.2 0.047
Po 3.98 4 4.2 0.156 0.157 0.165

P 3.98 4 4.2 0.156 0.157 0.165

Tape & Reel SOT323-xL MECHANICAL DATA

74V1T03
