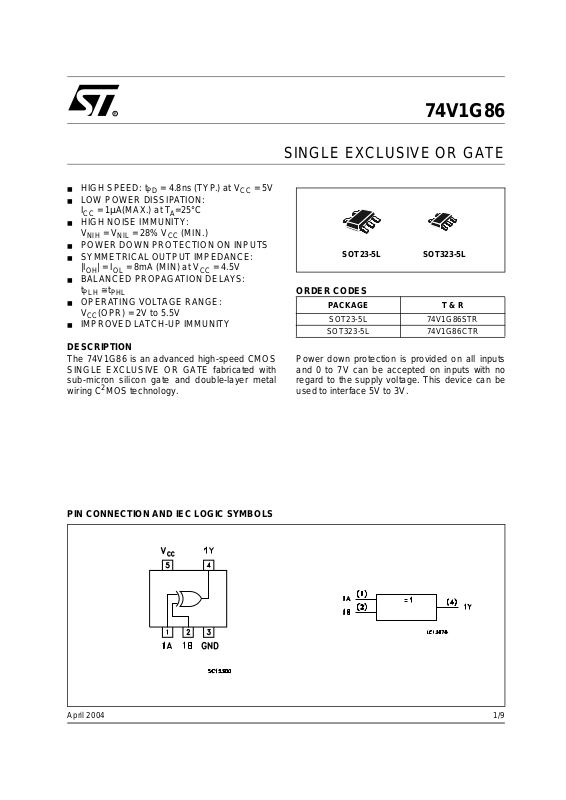

74V1G86

SINGLE EXCLUSIVE OR GATE

■ HIGH SPEED: t

■ LOW POWER DISSIPATION:

I

=1µA(MAX.) at TA=25°C

CC

■ HIGH NOISE IMMUNITY:

V

NIH=VNIL

■ POWER DOWN PROTECTION ON INPUTS

■ SYMMETRICAL OUTPUTIMPEDANCE:

|I

|=IOL=8mA(MIN)atVCC=4.5V

OH

■ BALANCED PROPAGATION DELAYS:

t

≅ t

PLH

■ OPERATING VOLTAGE RANGE:

V

(OPR) = 2V to 5.5V

CC

■ IMPROVED LATCH-UP IMMUNITY

= 28% VCC(MIN.)

PHL

= 4.8ns (TYP.) at VCC=5V

PD

DESCRIPTION

The 74V1G86 is an advanced high-speed CMOS
SINGLE EXCLUSIVE OR GATE fabricated with
sub-micron silicon gate and double-layer metal
wiring C

2

MOS technology.

SOT323-5LSOT23-5L

ORDER CODES

PACKAGE T & R

SOT23-5L 74V1G86STR

SOT323-5L 74V1G86CTR

Power down protection is provide d on all inputs
and 0 to 7V can be acc epted on inputs with no
regard to the s upply voltage. This device can be
usedto interface 5V to 3V.

PIN CONNECTION AND IEC LOGIC SYMBOLS

1/9April 2004

74V1G86

INPUT EQUIVALENT CIRCUIT PIN DESCRIPTION

PIN N° SYMBOL NAME AND FUNCTION

1 1A Data Input
2 1B Data Input
4 1Y Data Output
3 GND Ground (0V)
5

TRUTH TABLE

ABY

LLL

LHH
HLH
HHL

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

V

V

V

I

I

OK

I

I

or I

CC

T

T

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied.

Supply Voltage

CC

DC Input Voltage

I

DC Output Voltage -0.5 to VCC+0.5

O

DC Input Diode Current

IK

DC Output Diode Current
DC Output Current

O

DC VCCor Ground Current

GND

Storage Temperature

stg

Lead Temperature (10 sec)

L

V

CC

Positive Supply Voltage

-0.5 to +7.0 V

-0.5 to +7.0 V

-20 mA

± 20 mA
± 25 mA
± 50 mA

-65 to +150 °C
260 °C

V

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Value Unit

V

V
V
T

dt/dv

1) VINfrom30% to 70% of V

2/9

Supply Voltage

CC

Input Voltage

I

Output Voltage 0 to V

O

Operating Temperature

op

Input Rise and Fall Time (note 1) (V

CC

CC

(V

=5.0± 0.5V)

CC

=3.3± 0.3V)

2to5.5 V
0to5.5 V

CC

-55 to 125 °C
0 to 100

0to20

V

ns/V
ns/V

DC SPECIFICATIONS

Symbol Parameter

V

V

V

High Level Input

IH

Voltage

V

Low Level Input

IL

Voltage

High Level Output

OH

Voltage

Low Level Output

OL

Voltage

Input Leakage

I

I

Current

I

Quiescent Supply

CC

Current

Test Condition Value

V

(V)

CC

= 25°C

A

Min. Typ. Max. Min. Max. Min. Max.

-40 to 85°C -55 to 125°C

T

2.0 1.5 1.5 1.5

3.0to

5.5

0.7V

CC

0.7V

CC

0.7V

CC

2.0 0.5 0.5 0.5

3.0to

5.5

2.0

3.0

4.5

3.0

4.5

2.0

3.0

4.5

3.0

4.5

0to

5.5

5.5

IO=-50 µA

=-50 µA

I

O

=-50 µA

I

O

=-4 mA

I

O

I

=-8 mA

O

IO=50 µA
I

=50 µA

O

=50 µA

I

O

=4 mA

I

O

I

=8 mA

O

VI=5.5VorGND

V

I=VCC

or GND

1.9 2.0 1.9 1.9

2.9 3.0 2.9 2.9

4.4 4.5 4.4 4.4

2.58 2.48 2.4

3.94 3.8 3.7

0.3V

CC

0.3V

CC

0.0 0.1 0.1 0.1

0.0 0.1 0.1 0.1

0.0 0.1 0.1 0.1

0.36 0.44 0.55

0.36 0.44 0.55

± 0.1 ± 1 ± 1 µA

11020µA

74V1G86

Unit

0.3V

CC

V

V

V

V

AC ELECTRICAL CHARACTERISTICS (Input t

r=tf

=3ns)

Test Condition Value

= 25°C

Symbol Parameter

t

PLHtPHL

(*) Voltage rangeis 3.3V ± 0.3V
(**) Voltage range is 5.0V ± 0.5V

Propagation Delay
Time

V

3.3

3.3

5.0

5.0

C

CC

(V)

L

(pF)

(*)

15 6.6 9.5 1.0 11.0 1.0 12.5

(*)

50 7.3 10.5 1.0 12.0 1.0 13.5

(**)

15 4.8 6.8 1.0 8.0 1.0 9.0

(**)

50 5.3 7.5 1.0 9.0 1.0 10.0

T

A

-40 to 85°C -55 to 125°C

Min. Typ. Max. Min. Max. Min. Max.

Unit

ns

CAPACITIVE CHARACTERISTICS

Test Condition Value

T

Symbol Parameter

C

C

Input Capacitance

IN

Power Dissipation

PD

Capacitance
(note 1)

1) CPDis defined as the value of the IC’s internal equivalent capacitance which is calculated from the operating current consumption without
load. (Refer to Test Circuit). Average operating current can be obtained by the following equation. I

= 25°C

A

-40 to 85°C -55 to 125°C

Min. Typ. Max. Min. Max. Min. Max.

410 10 10pF

12 pF

CC(opr)=CPDxVCCxfIN+ICC

Unit

3/9

74V1G86

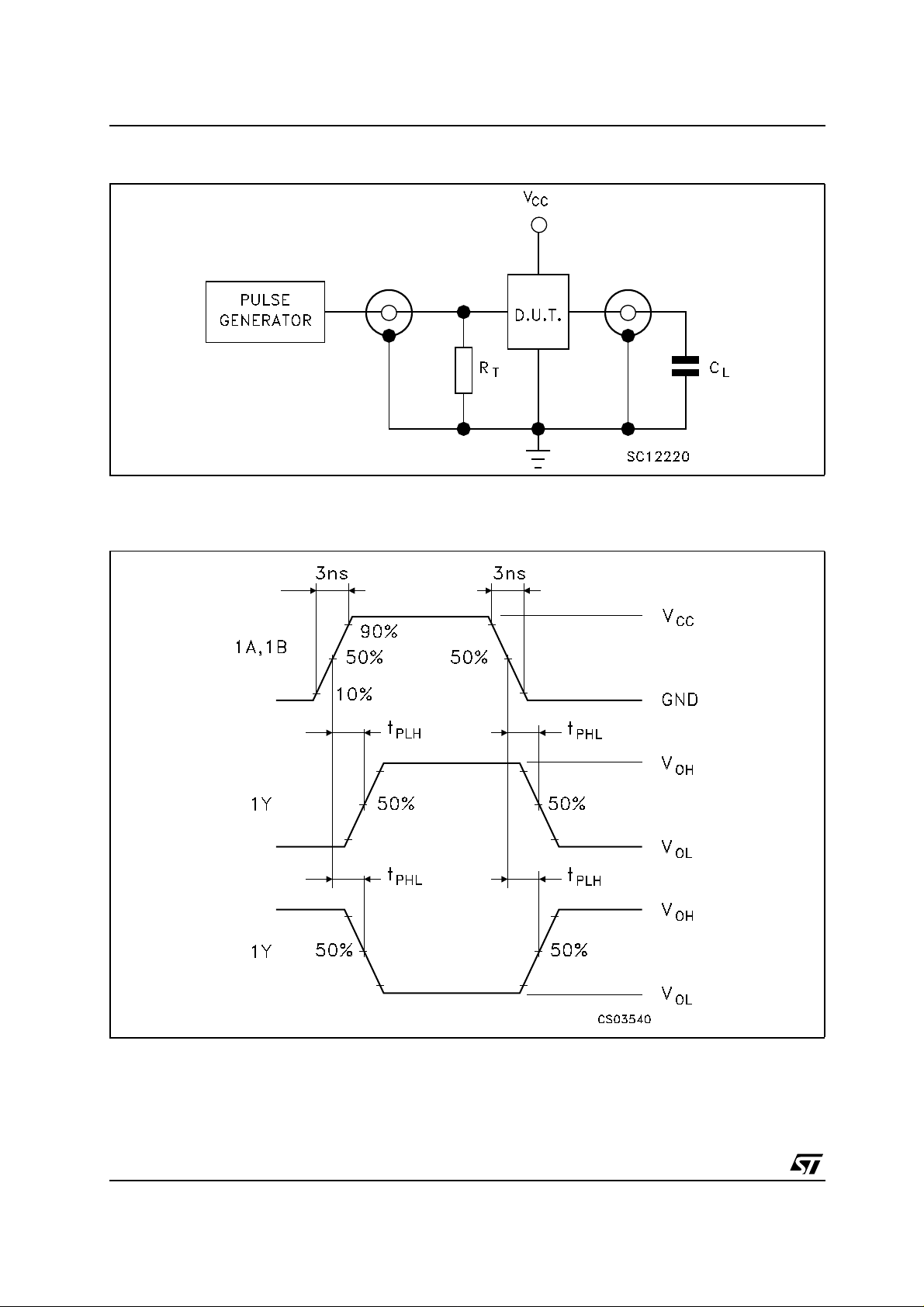

TEST CIRCUIT

CL= 15/50pF or equivalent (includes jig and probe capacitance)
R

T=ZOUT

WAVEFORM: PROPAGATION DELAY (f=1MHz; 50% duty cycle)

of pulse generator (typically 50Ω)

4/9

74V1G86

SOT23-5L MECHANICAL DATA

mm. mils

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 0.90 1.45 35.4 57.1

A1 0.00 0.10 0.0 3.9

A2 0.90 1.30 35.4 51.2

b 0.35 0.50 13.7 19.7

C 0.09 0.20 3.5 7.8

D 2.80 3.00 110.2 118.1

E 1.50 1.75 59.0 68.8

e0.95 37.4

H 2.60 3.00 102.3 118.1

L 0.10 0.60 3.9 23.6

.

7049676C

5/9

74V1G86

SOT323-5L MECHANICAL DATA

mm. mils

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 0.80 1.10 31.5 43.3

A1 0.00 0.10 0.0 3.9

A2 0.80 1.00 31.5 39.4

b 0.15 0.30 5.9 11.8

C 0.10 0.18 3.9 7.1

D 1.80 2.20 70.9 86.6

E 1.80 2.40 70.9 94.5

E1 1.15 1.35 45.3 53.1

e

e1 1.3 51.2

L 0.10 0.30 3.9 11.8

.65

0

25.6

6/9

Tape & Reel SOT23-xL MECHANICAL D ATA

74V1G86

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 180 7.086
C 12.8 13.0 13.2 0.504 0.512 0.519
D 20.2 0.795
N 60 2.362

T 14.4 0.567
Ao 3.13 3.23 3.33 0.123 0.127 0.131
Bo 3.07 3.17 3.27 0.120 0.124 0.128
Ko 1.27 1.37 1.47 0.050 0.054 0.0.58
Po 3.9 4.0 4.1 0.153 0.157 0.161

P 3.9 4.0 4.1 0.153 0.157 0.161

mm. inch

7/9

74V1G86

Tape & Reel SOT323-xL MECHANICAL DATA

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 175 180 185 6.889 7.086 7.283

C 12.8 13 13.2 0.504 0.512 0.519

D 20.2 0.795

N 59.5 60 60.5 2.362

T 14.4 0.567
Ao 2.25 0.088
Bo 2.7 0.106
Ko 1.2 0.047
Po 3.9 4 4.1 0.153 0.157 0.161

P 3.8 4 4.2 0.149 0.157 0.165

mm. inch

8/9

74V1G86
