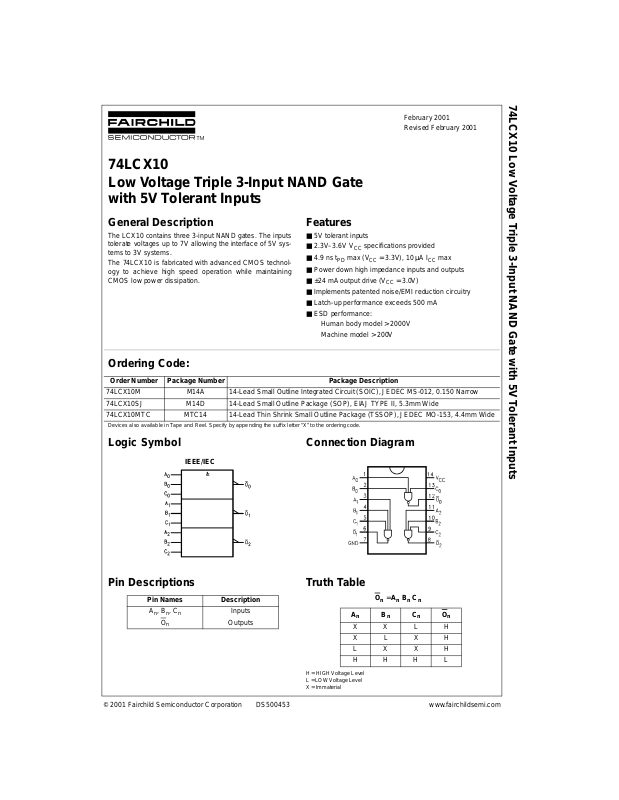

Datasheet 74LCX10 Datasheet (Fairchild Semiconductor)

74LCX10
Low Voltage Triple 3-Input NAND Gate

with 5V Tolerant Inputs

74LCX10 Low Voltage Triple 3-Input NAND Gate with 5V Tolerant Inputs

February 2001
Revised February 2001

General Description

The LCX10 contains three 3-input NAND gates. The inputs
tolerate voltages up to 7V al lowing the in terface of 5 V sys­tems to 3V systems.

The 74LCX10 is fabrica ted with advanced C MOS technol­ogy to achieve high speed operation while maintaining
CMOS low power dissipation.

Features

■ 5V tolerant inputs

■ 2.3V–3.6V V

■ 4.9 ns t

■ Power down high impedance inputs and outputs

■

±24 mA output drive (V

■ Implements patented noise/EMI reduction circuitry

■ Latch-up performance exce eds 500 mA

■ ESD performance:

Human body model
Machine model

specifications provided

CC

max (V

PD

CC

> 200V

= 3.3V), 10 µA I

= 3.0V)

CC

> 2000V

max

CC

Ordering Code:

Order Numbe r Package Numb er Package Description

74LCX10M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
74LCX10SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
74LCX10MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

Devices also availab l e in Tape and Reel. Specify by appending th e s uffix let t er “X” to the ordering code.

Logic Symbol

IEEE/IEC

Connection Diagram

Pin Descriptions Truth Table

Pin Names Descriptio n

, Bn, C

A

n

n

O

n

© 2001 Fairchild Semiconductor Corporation DS500453 www.fairchildsemi.com

Inputs

Outputs

H = HIGH Voltage Level
L = LOW Voltage Level
X = Immaterial

On = An Bn C

A

B

n

n

XXLH
XLXH
LXXH

HHHL

n

C

O

n

n

Absolute Maximum Ratings(Note 1)

Symbol Parameter Value Conditions Units

74LCX10

V
V
V
I

IK

I

OK

I

O

I

CC

I

GND

T

CC
I
O

STG

Supply Voltage −0.5 to +7.0 V
DC Input Voltage −0.5 to +7.0 V
DC Output Voltage −0.5 to VCC + 0.5 Output in HIGH or LOW State (Note 2) V
DC Input Diode Current −50 VI < GND mA
DC Output Diode Current −50 VO < GND

+50 V

O

> V

CC

DC Output Source/Sink Current ±50 mA
DC Supply Current per Supply Pin ±100 mA
DC Ground Current per Ground Pin ±100 mA
Storage Temperature −65 to +150 °C

Recommended Operating Conditions (Note 3)

Symbol Parameter Min Max Units

V

V
V
I

OH/IOL

T

∆t/∆V Input Edge Rate, V

Note 1: The Absolute Maximum Ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be operated
at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the Absolute Maximum Ratings. The “Recom-
mended Operat ing Conditions” table w ill define the condition s fo r ac t ual device operation.

Note 2: I
Note 3: Unused inputs must be held HIGH or LOW. They may not float.

Supply Voltage Operating 2.0 3.6

CC

Data Retention 1.5 3.6

Input Voltage 05.5V

I

Output Voltage HIGH or LOW State 0 V

O

Output Current VCC = 3.0V − 3.6V ±24

= 2.7V - 3.0V ±12

CC

= 2.3V - 2.7V ±8

V

Free-Air Operating Temperature −40 85 °C

A

Absolute Maximum Rating must be observed.

O

= 0.8V–2.0V, VCC = 3.0V 0 10 ns/V

IN

CC

CC

mA

V

V

mAV

DC Electrical Characteristics

Symbol Parameter Conditions

V

IH

V

IL

V

OH

V

OL

I

I

I

OFF

I

CC

∆I

www.fairchildsemi.com 2

HIGH Level Input Voltage 2.3 − 2.7 1.7

LOW Level Input Voltage 2.3 − 2.7 0.7

HIGH Level Output Voltage IOH = −100 µA2.3 − 3.6 VCC − 0.2

IOH = −8 mA 2.3 1.8
IOH = −12 mA 2.7 2.2
IOH = −18 mA 3.0 2.4

LOW Level Output Voltage IOL = 100 µA2.3 − 3.6 0.2

Input Leakage Current 0 ≤ VI ≤ 5.5V 2.3 − 3.6 ±5.0 µA
Power-Off Leakage Current VI or VO = 5.5V 0 10 µA
Quiescent Supply Current VI = VCC or GND 2 .3 − 3.6 10

Increase in ICC per Input VIH = VCC −0.6V 2.3 − 3.6 500 µA

CC

IOH = −24 mA 3.0 2.2

IOL = 8mA 2.3 0.6
IOL = 12 mA 2.7 0.4
IOL = 16 mA 3.0 0.4
IOL = 24 mA 3.0 0.55

3.6V ≤ VI ≤ 5.5V 2.3 − 3.6 ±10

V

CC

(V) Min Max

2.7 − 3.6 2.0

2.7 − 3.6 0.8

TA = −40°C to +85°C

Units

V

V

V

V

µA

AC Electrical Characteristics

= −40°C to +85°CF, RL = 500Ω

T

A

Symbol Parameter

V

= 3.3V ± 0.3V VCC = 2.7V VCC = 2.5V ± 0.2V

CC

= 50pF CL = 50pF CL = 30pF

C

L

Min Max Min Max Min Max

t

PHL

t

PLH

t

OSHL

t

OSLH

Note 4: Skew is defined as t he absolute value of the difference between the actu al propagation delay for any two s eparate outputs of t he same device. T h e
specification applies t o any outputs switchi ng in the same direction, either HIGH-to-LOW (t

Propagation Delay 1.5 4.9 1.5 5.8 1.5 5.9

1.5 4 .9 1.5 5.8 1.5 5.9

Output to Output Skew (Note 4) 1.0

1.0

) or LOW-to-HIGH (t

OSHL

OSLH

).

Dynamic Switching Characteristics

Symbol Parameter Conditions

V

OLP

Quiet Output Dynamic Peak V

OL

CL = 50 pF, VIH = 3.3V, VIL = 0V 3.3 0 .8
CL = 30 pF, VIH = 2.5V, VIL = 0V 2.5 0 .6

V

OLV

Quiet Output Dynamic Valley V

OL

CL = 50 pF, VIH = 3.3V, VIL = 0V 3.3 −0.8

= 30 pF, VIH = 2.5V, VIL = 0V 2.5 −0.6

C

L

V

(V) Typical

CCTA

= 25°C

Capacitance

Symbol Parameter Conditions Typical Units

C

IN

C

OUT

C

PD

Input Capacitance VCC = Open, VI = 0V or V
Output Capacitance VCC = 3.3V, VI = 0V or V

CC

CC

7pF
8pF

Power Dissipation Capacitance VCC = 3.3V, VI = 0V or VCC, f = 10 MHz 25 pF

74LCX10

Units

ns

ns

Unit

V

V

3 www.fairchildsemi.com

AC LOADING and WAVEFORMS Generic for LCX Family

74LCX10

FIGURE 1. AC Test Circuit (C

Test Switch

, t

t

PLH

PHL

t

, t

PZL

PLZ

t

PZH,tPHZ

Waveform for Inverting and Non-Inverting Functions

Propagation Delay. Pulse Width and t

Waveforms

rec

includes probe and jig capacitance)

L

Open
6V at VCC = 3.3 ± 0.3V

x 2 at VCC = 2.5 ± 0.2V

V

CC

GND

3-STATE Output High Enable and

Disable Times for Logic

Setup Time, Hold Time and Recovery Time for Logic

3-STATE Output Low Enable and

Disable Times for Logic

FIGURE 2. Waveforms

(Input Characteristics; f =1MH z, t

Symbol

V

mi

V

mo

V

x

V

y

3.3V ± 0.3V 2.7V 2.5V ± 0.2V

1.5V 1.5V VCC/2

1.5V 1.5V VCC/2
VOL + 0.3V VOL + 0.3V VOL + 0.15V
VOH − 0.3V VOH − 0.3V VOH − 0.15V

www.fairchildsemi.com 4

V

CC

= tf = 3ns)

r

t

and t

rise

fall

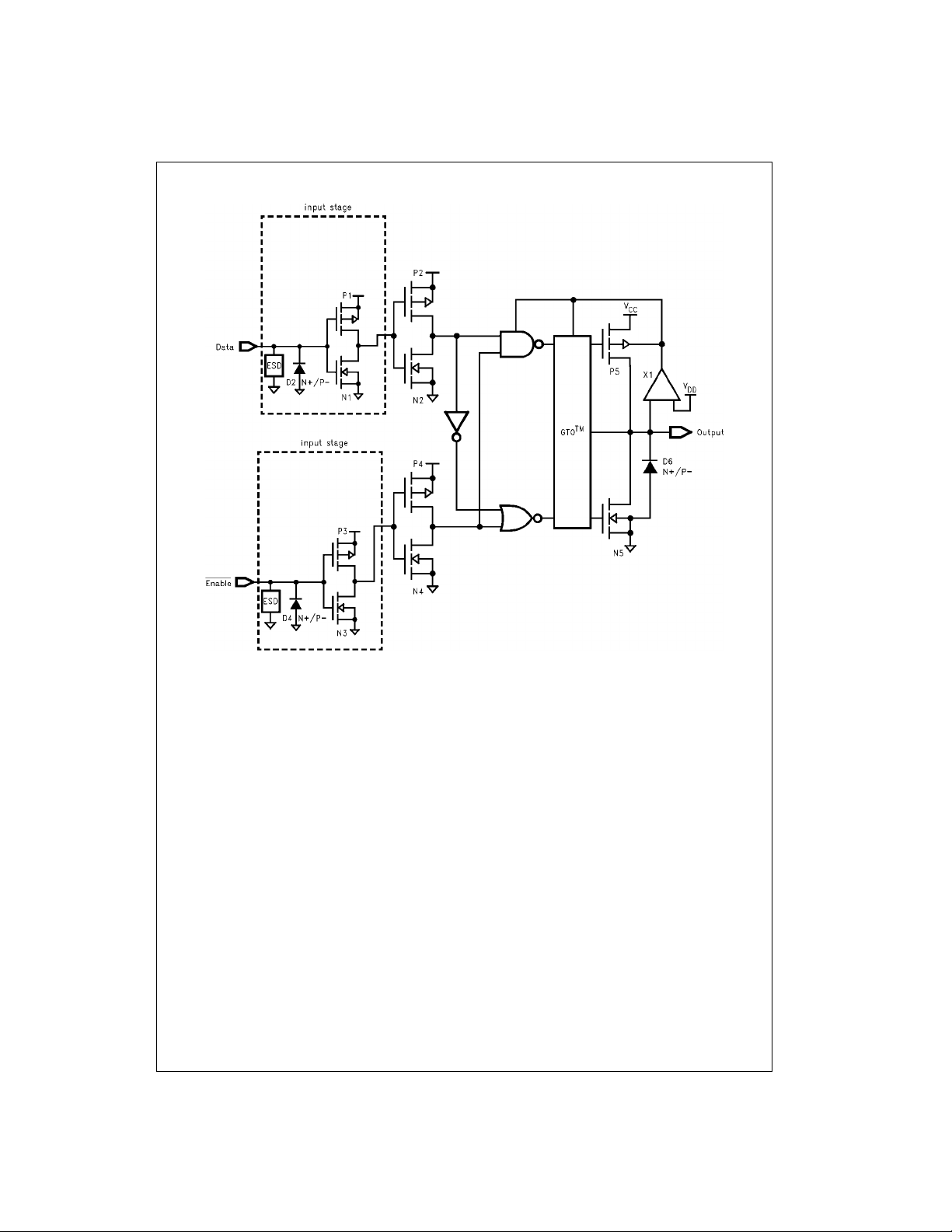

Schematic Diagram Generic for LCX Family

74LCX10

5 www.fairchildsemi.com

Physical Dimensions inches (millimeters) unless otherwise noted

74LCX10

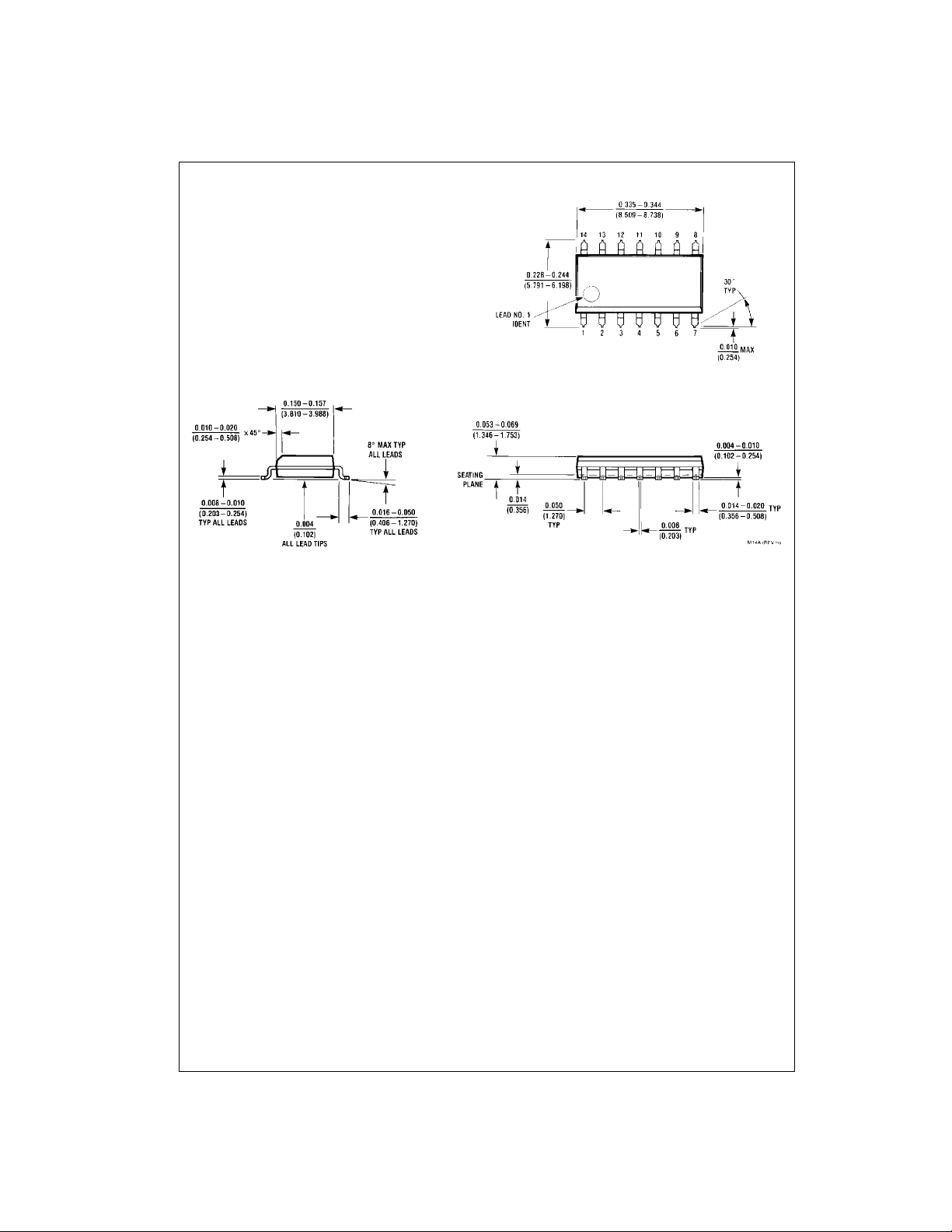

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow

Package Number M14A

www.fairchildsemi.com 6

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

74LCX10

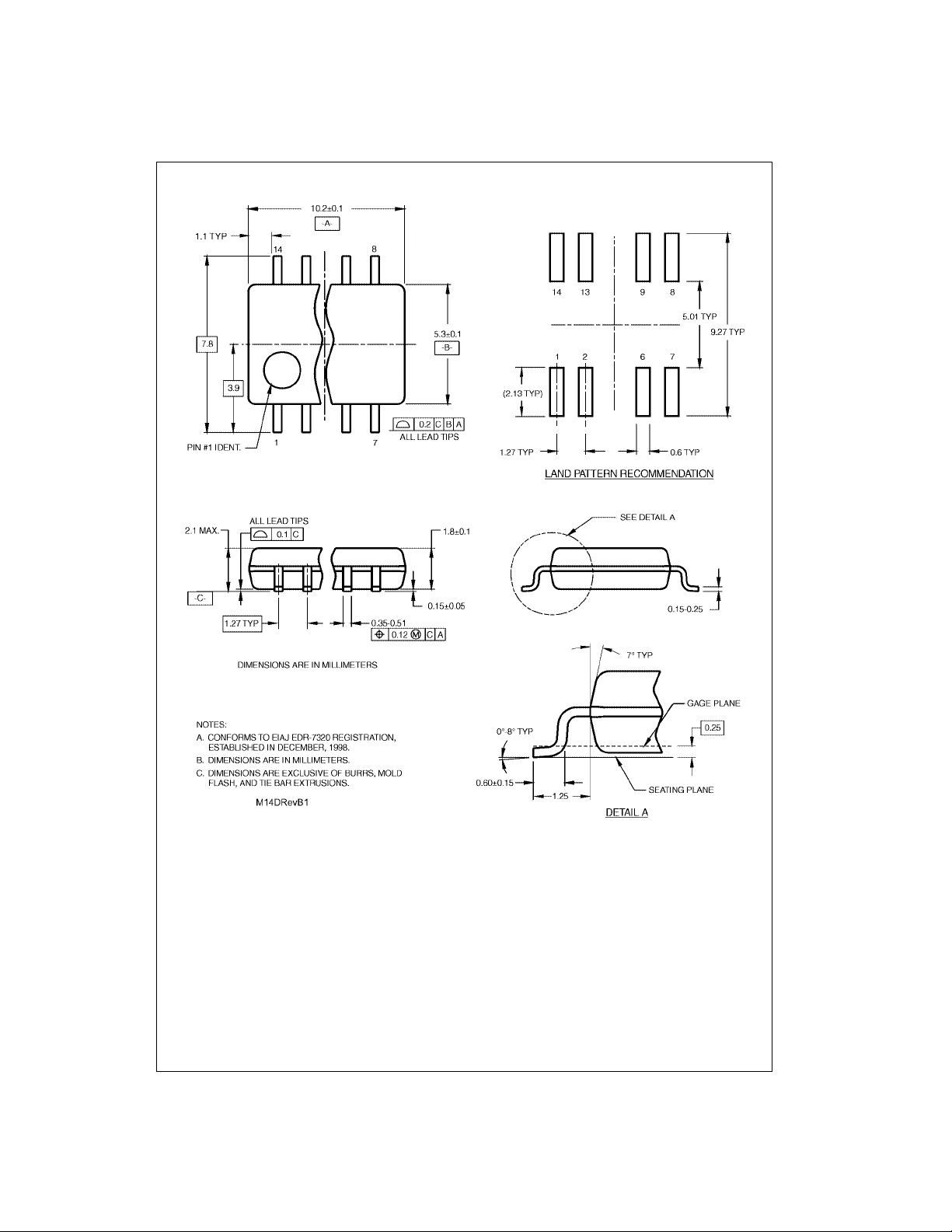

14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

Package Number M14D

7 www.fairchildsemi.com

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

74LCX10 Low Voltage Triple 3-Input NAND Gate with 5V Tolerant Inputs

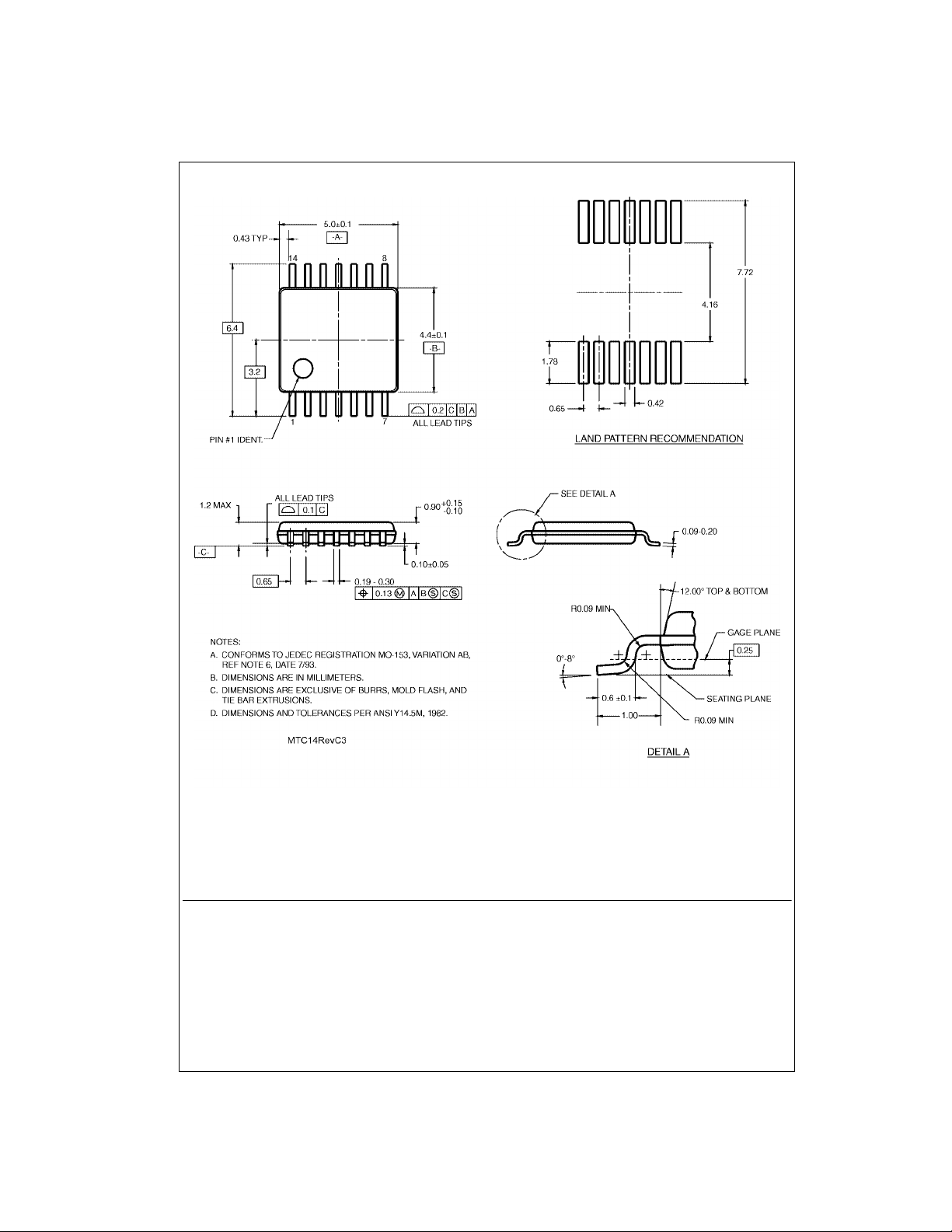

14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
