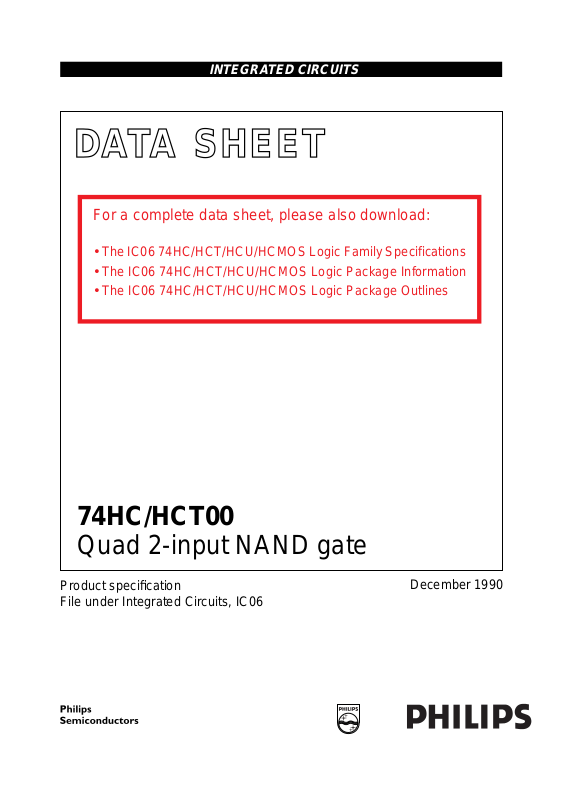

Page 1
DATA SH EET
Product specification
File under Integrated Circuits, IC06
December 1990
INTEGRATED CIRCUITS
74HC/HCT00
Quad 2-input NAND gate
For a complete data sheet, please also download:
•The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications
•The IC06 74HC/HCT/HCU/HCMOS Logic Package Information
•The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines
Page 2
December 1990 2
Philips Semiconductors Product specification
Quad 2-input NAND gate 74HC/HCT00
FEATURES
• Output capability: standard
• ICC category: SSI
GENERAL DESCRIPTION
The 74HC/HCT00 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL).
They are specified in compliance with JEDEC standard no. 7A.
The 74HC/HCT00 provide the 2-input NAND function.
QUICK REFERENCE DATA
GND = 0 V; T
amb
= 25 °C; tr= tf= 6 ns
Notes
1. C
PD
is used to determine the dynamic power dissipation (PDin µW):
PD= CPD× V
CC
2
× fi+ ∑ (CL× V
CC
2
× fo) where:
fi= input frequency in MHz
fo= output frequency in MHz
CL= output load capacitance in pF
VCC= supply voltage in V
Σ (CL× V
CC
2
× fo) = sum of outputs
2. For HC the condition is VI= GND to V
CC
For HCT the condition is VI= GND to VCC− 1.5 V
ORDERING INFORMATION
See
“74HC/HCT/HCU/HCMOS Logic Package Information”
.
SYMBOL PARAMETER CONDITIONS
TYPICAL
UNIT
HC HCT
t
PHL
/ t
PLH
propagation delay nA, nB to nY CL= 15 pF; VCC=5V 7 10 ns
C
I
input capacitance 3.5 3.5 pF
C
PD
power dissipation capacitance per gate notes 1 and 2 22 22 pF
Page 3
December 1990 3
Philips Semiconductors Product specification
Quad 2-input NAND gate 74HC/HCT00
PIN DESCRIPTION
PIN NO. SYMBOL NAME AND FUNCTION
1, 4, 9, 12 1A to 4A data inputs
2, 5, 10, 13 1B to 4B data inputs
3, 6, 8, 11 1Y to 4Y data outputs
7 GND ground (0 V)
14 V
CC
positive supply voltage
Fig.1 Pin configuration. Fig.2 Logic symbol. Fig.3 IEC logic symbol.
Fig.4 Functional diagram. Fig.5 Logic diagram (one gate).
FUNCTION TABLE
Note
1. H = HIGH voltage level
L = LOW voltage level
INPUTS OUTPUT
nA nB nY
L
L
H
H
L
H
L
H
H
H
H
L
Page 4
December 1990 4
Philips Semiconductors Product specification
Quad 2-input NAND gate 74HC/HCT00
DC CHARACTERISTICS FOR 74HC
For the DC characteristics see
“74HC/HCT/HCU/HCMOS Logic Family Specifications”
.
Output capability: standard
ICCcategory: SSI
AC CHARACTERISTICS FOR 74HC
GND = 0 V; t
r
= tf= 6 ns; CL= 50 pF
DC CHARACTERISTICS FOR 74HCT
For the DC characteristics see
“74HC/HCT/HCU/HCMOS Logic Family Specifications”
.
Output capability: standard
ICCcategory: SSI
Note to HCT types
The value of additional quiescent supply current (∆ICC) for a unit load of 1 is given in the family specifications.
To determine ∆I
CC
per input, multiply this value by the unit load coefficient shown in the table below.
AC CHARACTERISTICS FOR 74HCT
GND = 0 V; t
r
= tf= 6 ns; CL= 50 pF
SYMBOL PARAMETER
T
amb
(°C)
UNIT
TEST CONDITIONS
74HC
V
CC
(V)
WAVEFORMS+25 −40 to +85 −40 to +125
min. typ. max. min. max. min. max.
t
PHL
/ t
PLH
propagation delay
nA, nB to nY
25
9
7
90
18
15
115
23
20
135
27
23
ns
2.0
4.5
6.0
Fig.6
t
THL
/ t
TLH
output transition
time
19
7
6
75
15
13
95
19
16
110
22
19
ns
2.0
4.5
6.0
Fig.6
INPUT UNIT LOAD COEFFICIENT
nA, nB 1.50
SYMBOL PARAMETER
T
amb
(°C)
UNIT
TEST CONDITIONS
74HCT
V
CC
(V)
WAVEFORMS+25 −40 to +85 −40 to +125
min. typ. max. min. max. min. max.
t
PHL
/ t
PLH
propagation delay
nA, nB to nY
12 19 24 29 ns 4.5 Fig.6
t
THL
/ t
TLH
output transition time 7 15 19 22 ns 4.5 Fig.6
Page 5
December 1990 5
Philips Semiconductors Product specification
Quad 2-input NAND gate 74HC/HCT00
AC WAVEFORMS
PACKAGE OUTLINES
See
“74HC/HCT/HCU/HCMOS Logic Package Outlines”
.
Fig.6 Waveforms showing the input (nA, nB) to output (nY) propagation delays and the output transition times.
HC : VM= 50%; VI= GND to V
CC
HCT: VM= 1.3 V; VI= GND to 3 V.
