Datasheet 74FR245SJX, 74FR245SJ, 74FR245SCX, 74FR245SC, 74FR245PC Datasheet (Fairchild Semiconductor)

© 1999 Fairchild Semiconductor Corporation DS010887 www.fairchildsemi.com

August 1990
Revised August 1999

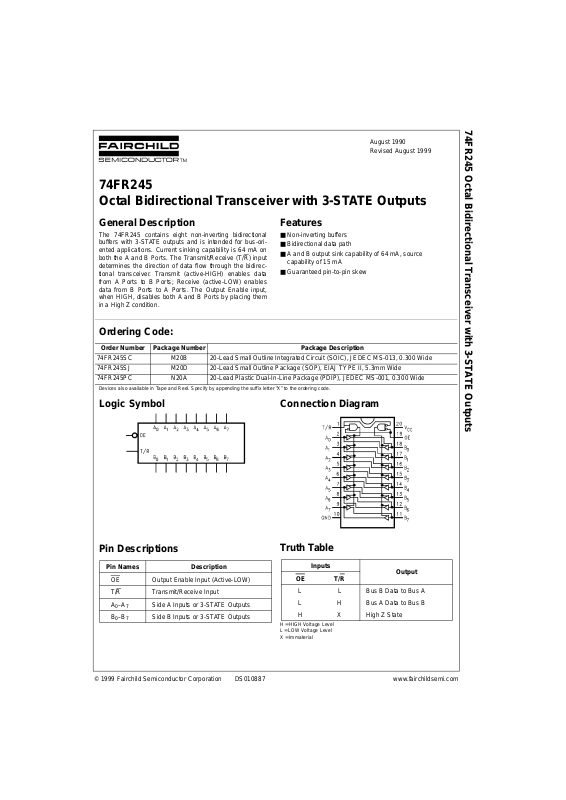

74FR245 Octal Bidirectional Transceiver with 3-STATE Outputs

74FR245
Octal Bidirectional Transceiver with 3-STATE Outputs

General Description

The 74FR245 contains eight non-inverting bidirectional
buffers with 3-STATE outputs and is intended for bu s-ori­ented applications. Current sinking capability is 64 mA on
both the A and B Ports. The Transmit/Receive (T /R

) input
determines the directio n of data flow through the b idirec­tional transceiver. Transmit (active-HIGH) enables data
from A Ports to B Ports; Receive (active-LOW) enables
data from B Ports to A Ports. The Output Enable input,
when HIGH, disables both A and B P orts by placi ng them
in a High Z condition.

Features

■ Non-inverting buffers

■ Bidirectional data path

■ A and B output sink capability of 64 mA, source

capability of 15 mA

■ Guarante ed pin-to-pin skew

Ordering Code:

Devices also availab le in Tape and Reel. Specify by appending th e s uffix let t er “X” to the ordering code.

Logic Symbol

Pin Descriptions

Connection Diagram

Truth Table

H = HIGH Voltage Level
L = LOW Voltage Level
X = Immaterial

Order Number Package Number Package Description

74FR245SC M20B 20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
74FR245SJ M20D 20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
74FR245PC N20A 20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Pin Names Description

OE

Output Enable Input (Active-LOW)

T/R

Transmit/Receive Input

A

0–A7

Side A Inputs or 3-STATE Outputs

B

0–B7

Side B Inputs or 3-STATE Outputs

Inputs

Output

OE

T/R

L L Bus B Data to Bus A
L H Bus A Data to Bus B
H X High Z State

www.fairchildsemi.com 2

74FR245

Logic Diagram

3 www.fairchildsemi.com

74FR245

Absolute Maximum Ratings(Note 1) Recommended Operating

Conditions

Note 1: Absolute maximum ratings are values beyon d which the device

may be damaged or have its useful life impaired . Functional operation
under these condit ions is not implied.

Note 2: Either voltage limit or curren t limit is sufficient to protect in puts.

DC Electrical Characteristics

Storage Temperature −65°C to +150°C
Ambient Temperature under Bias −55°C to +125°C
Junction Temperature under Bias −55°C to +150°C
V

CC

Pin Potential to Ground Pin −0.5V to +7.0V
Input Voltage (Note 2) −0.5V to +7.0V
Input Current (Note 2) −30 mA to +5.0 mA
Voltage Applied to Output

in HIGH State (with V

CC

= 0V)

Standard Output −0.5V to V

CC

3-STATE Output −0.5V to +5.5V

Current Applied to Output

in LOW State (Max) twice the rated I

OL

(mA)

ESD Last Passing Voltage (Min) 4000V

Free Air Ambi ent Temperature 0°C to +70°C
Supply Voltage +4.5V to +5.5V

Symbol Parameter Min Typ Max Units

V

CC

Conditions

V

IH

Input HIGH Voltage 2.0 V Recognized HIGH Signal

V

IL

Input LOW Voltage 0.8 V Recognized LOW Signal

V

CD

Input Clamp Diode Voltage −1.2 V Min IIN = −18 mA

V

OH

Output HIGH Voltage 2.4 V Min IOH = −3 mA (An, Bn)

2.0 V Min IOH = −15 mA (An, Bn)

V

OL

Output LOW Voltage 0.55 V Min IOL = 64 mA (An, Bn)

I

IH

Input HIGH Current 5 µAMax

VIN = 2.7V (OE, T/R)

I

BVI

Input HIGH Current

7 µAMaxVIN = 7.0V (OE, T/R)

Breakdown Test

I

BVIT

Input HIGH Current

100 µAMaxVIN = 5.5V (An, Bn)

Breakdown Test (I/O)

I

IL

Input LOW Current −250 µAMax

VIN = 0.5V (OE, T/R)

V

ID

Input Leakage Test 4.75 V 0.0 IID = 1.9 µA

All Other Pins Grounded

I

OD

Output Circuit

3.75 µA0.0

V

IOD

= 150 mV

Leakage Current All Other Pins Grounded

IIH + I

OZH

Output Leakage Current 25 µAMaxV

OUT

= 2.7V (An, Bn)

IIL + I

OZL

Output Leakage Current −150 µAMaxV

OUT

= 0.5V (An, Bn)

I

OS

Output Short-Circuit Current −100 −225 mA Max V

OUT

= 0.0V (An, Bn)

I

CEX

Output HIGH Leakage Current 50 µAMaxV

OUT

= VCC (An, Bn)

I

ZZ

Bus Drainage Test 100 µA0.0V

OUT

= 5.25V (An, Bn)

I

CCH

Power Supply Current 55 75 mA Max All Outputs HIGH

I

CCL

Power Supply Current 75 110 mA Max All Outputs LOW

I

CCZ

Power Supply Current 55 75 mA Max Outputs 3-STATE

C

IN

Input Capacitance 8.0 pF 5.0

OE, T/R

17.0 pF 5.0 An, B

n

www.fairchildsemi.com 4

74FR245

AC Electrical Characteristics

Extended AC Characteristics

Note 3: This spec ification is gu arante ed but not te sted. T he lim its app ly to propag ation d elays for a ll path s desc ribed switchin g in phase, i.e. , all LOW-to-

HIGH, HIGH-to-LOW, 3-STATE-to-HIGH, etc.
Note 4: These specific ations guarant eed but no t tested. The limits repres ent propaga tion delays wi th 250 pF l oad capacitors in place of the 50 pF load

capacitors in the standard AC load. This s pecification pertains to s ingle output switching only.
Note 5: Skew is defined as the absolute value of t he difference betw een the actual p ropagation delays f or any two outp ut s of the same device. T he specifi-

cation applies to any outputs switching HIGH-to-LOW (t

OSHL

), LOW-to-HIGH (t

OSLH

), or HIGH-to-L OW an d/or LOW -to-H IG H (t

OST

). Specifications guara n-

teed with all outputs switching in phase.

Symbol Parameter

TA = +25°CT

A

= 0°C to +70°C

Units

VCC = +5.0V VCC = +5.0V

CL = 50 pF CL = 50 pF

Min Typ Max Min Max

t

PLH

Propagation Delay 1.0 2.6 3.9 1.0 3.9

ns

t

PHL

An to Bn or Bn to A

n

1.0 1.7 3.9 1.0 3.9

t

PZH

Output Enable Time 2.5 5.0 7.0 2.5 7.0

ns

t

PZL

2.5 4.3 7.0 2.5 7.0

t

PHZ

Output Disable Time 1.7 3.7 6.5 1.7 6.5

ns

t

PLZ

1.7 3.6 6.5 1.7 6.5

Symbol Parameter TA = 0°C to +70°CT

A

= 0°C to +70°CUnits

VCC = +5.0V VCC = +5.0V

CL = 50 pF CL = 250 pF

Eight Outputs Switching (Note 4)

(Note 3)

Min Max Min Max

t

PLH

Propagation Delay 1.0 5.9 2.5 7.5

ns

t

PHL

An to Bn or Bn to A

n

1.05.92.57.5

t

PZH

Output Enable Time 2.5 11.9

ns

t

PZL

2.5 11.9

t

PHZ

Output Disable Time 1.3 6.5

ns

t

PLZ

1.3 6.5

t

OSHL

Pin to Pin Skew

1.7 ns

(Note 5) for HL Transitions
t

OSLH

Pin to Pin Skew

1.0 ns

(Note 5) for LH Transitions
t

OST

Pin to Pin Skew

3.3 ns

(Note 5) for HL/LH Transitions

5 www.fairchildsemi.com

74FR245

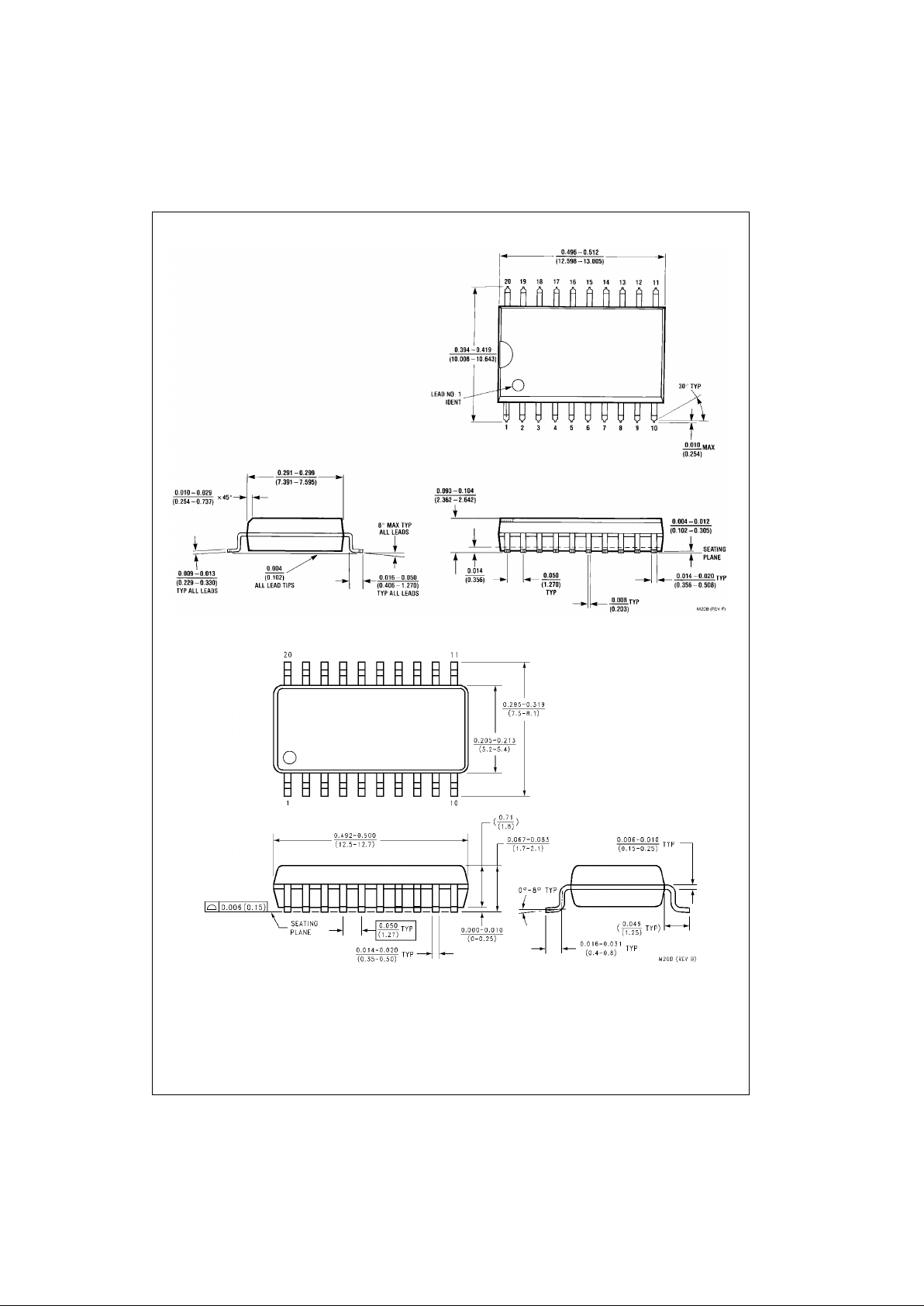

Physical Dimensions inches (millimeters) unless otherwise noted

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide

Package Number M20B

20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

Package Number M20D

www.fairchildsemi.com 6

74FR245 Octal Bidirectional Transceiver with 3-STATE Outputs

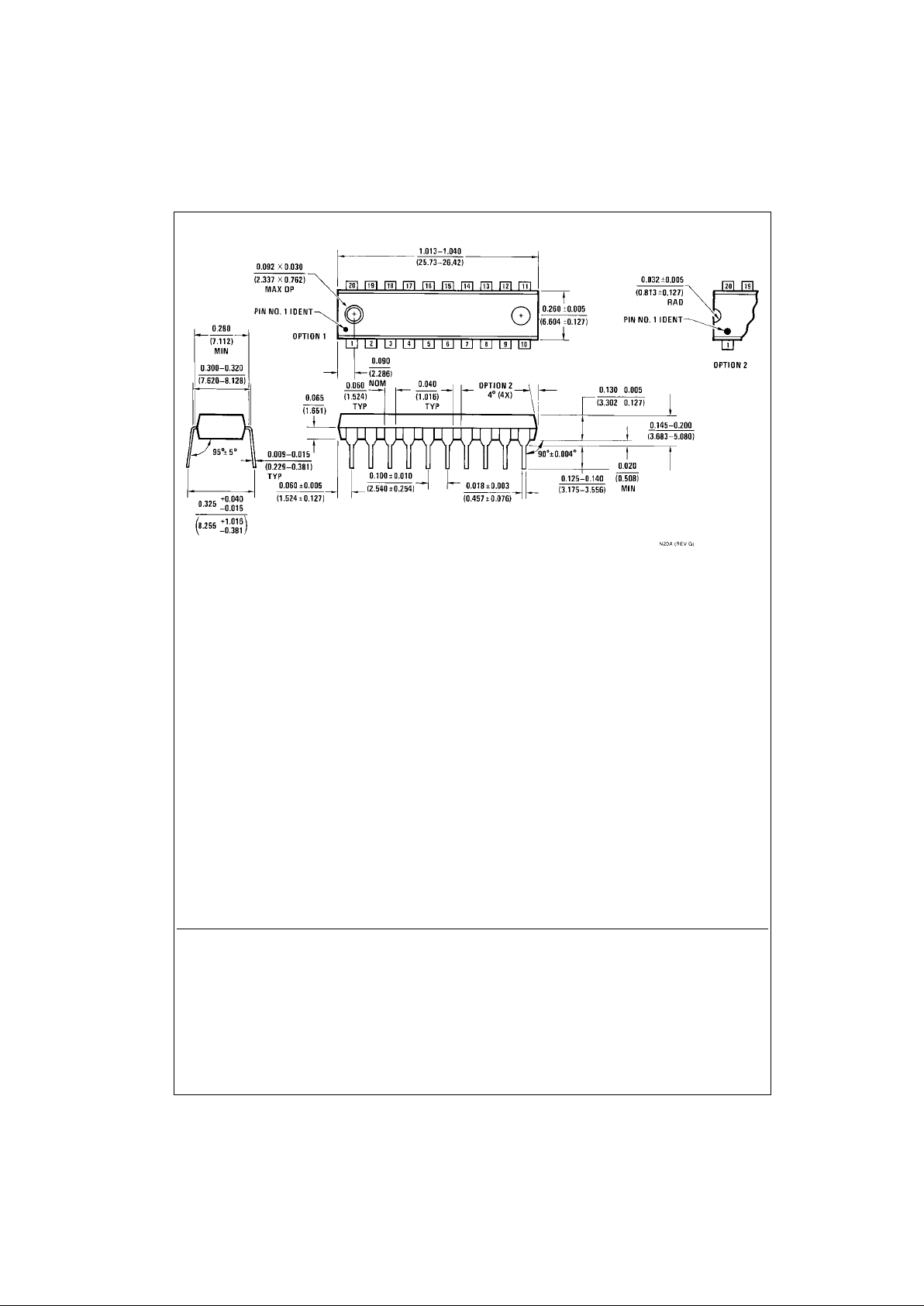

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Package Number N20A
