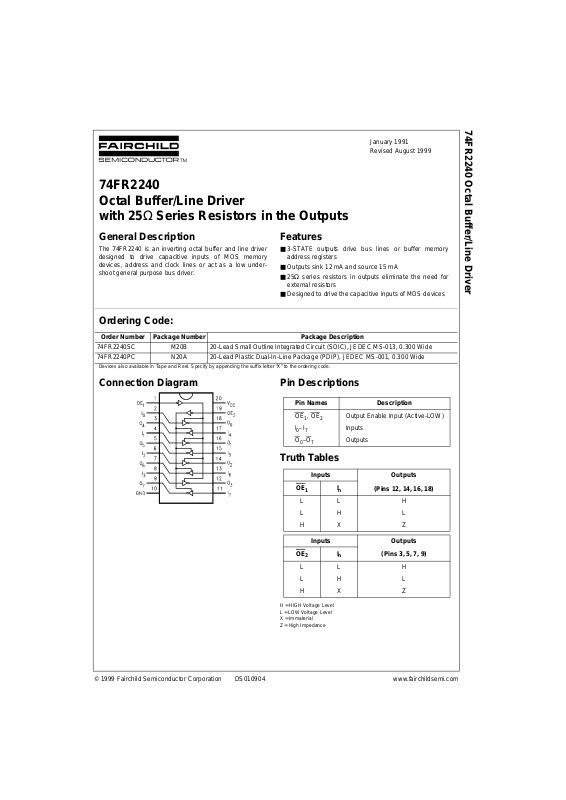

74FR2240 Octal Buffer/Line Driver
74FR2240
Octal Buffer/Line Driver
with 25Ω Series Resistors in the Outputs
General Description
The 74FR2 240 is an inverting octal buffer and line driver
designed to drive capacitive inputs of MOS memory
devices, address and clock line s or act as a low undershoot general purpose bus driver.
Features
■ 3-STATE outputs drive bus lines or buffer memory
address registers
■ Outputs sink 12 mA and source 15 mA
■ 25Ω series resistors in outputs eliminate the need for
external resistors
■ Designed to drive the capacitive inputs of MOS devices
Ordering Code:
Devices also availab le in Tape and Reel. Specify by appending th e s uffix let t er “X” to the ordering code.
Connection Diagram Pin Descriptions
Truth Tables
H = HIGH Voltage Level
L = LOW Voltage Level
X = Immaterial
Z = High Impedance
Order Number Package Number Package Description
74FR2240SC M20B 20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
74FR2240PC N20A 20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Pin Names Description
OE
1
, OE
2
Output Enable Input (Active-LOW)
I
0–I7
Inputs
O
0–O7
Outputs
Inputs Outputs
OE
1
I
n
(Pins 12, 14, 16, 18)
LL H
LH L
HX Z
Inputs Outputs
OE
2
I
n
(Pins 3, 5, 7, 9)
LL H
LH L
HX Z
Page 2
www.fairchildsemi.com 2
74FR2240
Absolute Maximum Ratings(Note 1) Recommended Operating
Conditions
Note 1: Absolute maximum ratings are values beyond which the device
may be damaged or have its useful life impaired. Functional operation
under these conditi ons is not implied.
Note 2: Either voltage limit or curren t limit is sufficient to protect in put s .
DC Electrical Characteristics
Storage Temperature −65°C to +150°C
Ambient Temperature under Bias −55°C to +125°C
Junction Temperature under Bias −55°C to +150°C
V
CC
Pin Potential to Ground Pin −0.5V to +7.0V
Input Voltage (Note 2) −0.5V to +7.0V
Input Current (Note 2) −30 mA to +5.0 mA
Voltage Applied to Output
in HIGH State (with V
CC
= 0V)
Standard Output −0.5V to V
CC
3-STATE Output −0.5V to +5.5V
Current Applied to Output
in LOW State (Max) Twice the Rated I
OL
(mA)
ESD Last Passing Voltage (Min) 4000V
Free Air Ambient Temperature 0°C to +70°C
Supply Voltage +4.5V to +5.5V
Symbol Parameter Min Typ Max Units
V
CC
Conditions
V
IH
Input HIGH Voltage 2.0 V Recognized HIGH Signal
V
IL
Input LOW Voltage 0.8 V Recognized LOW Signal
V
CD
Input Clamp Diode Voltage −1.2 V Min IIN = −18 mA
V
OH
Output HIGH Voltage 2.4 V Min IOH = −3 mA
2.0 V Min IOH = −15 mA
V
OL
Output LOW Voltage 0.5 V Min IOL = 1 mA
0.75 V Min IOL = 12 mA
I
IH
Input HIGH Current 5 µAMaxVIN = 2.7V
I
BVI
Input HIGH Current
7 µAMaxVIN = 7.0V
Breakdown Test
I
IL
Input LOW Current −150 µAMaxVIN = 0.5V
V
ID
Input Leakage Test 4.75 V 0.0 IID = 1.9 µA
All Other Pins Grounded
I
OD
Output Circuit Leakage Current 3.75 µA0.0V
IOD
= 150 mV
All Other Pins Grounded
I
OZH
Output Leakage Current 20 µAMaxV
OUT
= 2.7V
I
OZL
Output Leakage Current −20 µAMaxV
OUT
= 0.5V
I
OS
Output Short-Circuit Current −100 −225 mA Max V
OUT
= 0.0V
I
CEX
Output HIGH Leakage Current 50 µAMaxV
OUT
= V
CC
I
ZZ
Bus Drainage Test 100 µA0.0V
OUT
= 5.25V
I
CCH
Power Supply Current 9 13 mA Max All Outputs HIGH
I
CCL
Power Supply Current 37 45 mA Max All Outputs LOW
I
CCZ
Power Supply Current 30 38 mA Max Outputs 3-STATE
Page 3
3 www.fairchildsemi.com
74FR2240
AC Electrical Characteristics
Extended AC Electrical Characteristics
Note 3: This specifica ti on is guaranteed but no t tes t ed. The limits apply to pr opagation delays for all pa t hs described switching in phase,
i.e., all LOW-to-HIGH, H IG H -t o-LOW, 3-STATE-to-HIGH, etc.
Note 4: These specific ations guaran teed but no t tested. The limits repres ent propaga tion delays with 250 pF load capacito rs in place of th e 50 pF load
capacitors in the standard AC load. This spe c if ic at ion pertains to single output switching only.
Note 5: Skew is def ined as the abs olute value of the difference betwee n the actual pro pagation delays fo r any two outputs of the same dev ic e. T he specifi-
cation applies to any outputs swit c hing HIGH-to-LOW, (t
OSHL
), LOW-to-HIGH, (t
OSLH
), or HIGH-to-LOW and/or LOW -t o-H I GH, (t
OST
). Specifications guaran-
teed with all outputs sw it c hing in phase.
Symbol Parameter
TA = +25°CT
A
= 0°C to +70°C
Units
VCC = +5.0V VCC = +5.0V
CL = 50 pF CL = 50 pF
Min Typ Max Min Max
t
PLH
Propagation Delay 1.7 3.3 4.7 1.7 4.7
ns
t
PHL
An to Bn or Bn to A
n
1.72.94.71.74.7
t
PZH
Output Enable Time 2.6 4.0 8.5 2.6 8.5
ns
t
PZL
2.66.38.52.68.5
t
PHZ
Output Disable Time 2.1 3.9 6.6 2.1 6.6
ns
t
PLZ
2.13.46.62.16.6
Symbol Parameter
TA = 0°C to +70°CT
A
= 0°C to +70°C
Units
VCC = +5.0V VCC = +5.0V
CL = 50 pF CL = 250 pF
Eight Outputs Switching (Note 4)
(Note 3)
Min Max Min Max
t
PLH
Propagation Delay 1.7 6.4 4.2 8.6
ns
t
PHL
An to Bn or Bn to A
n
1.7 6.4 4.2 8.6
t
PZH
Output Enable Time 2.6 8.9
ns
t
PZL
2.6 8.9
t
PHZ
Output Disable Time 2.1 6.8
ns
t
PLZ
2.1 6.8
t
OSHL
Pin-to-Pin Skew
1.0 ns
(Note 5) for HL Transitions
t
OSLH
Pin-to-Pin Skew
1.1 ns
(Note 5) for LH Transitions
t
OST
Pin-to-Pin Skew
3.0 ns
(Note 5) for HL/LH Transitions
Page 4
www.fairchildsemi.com 4
74FR2240
Physical Dimensions inches (millimeters) unless otherwise noted

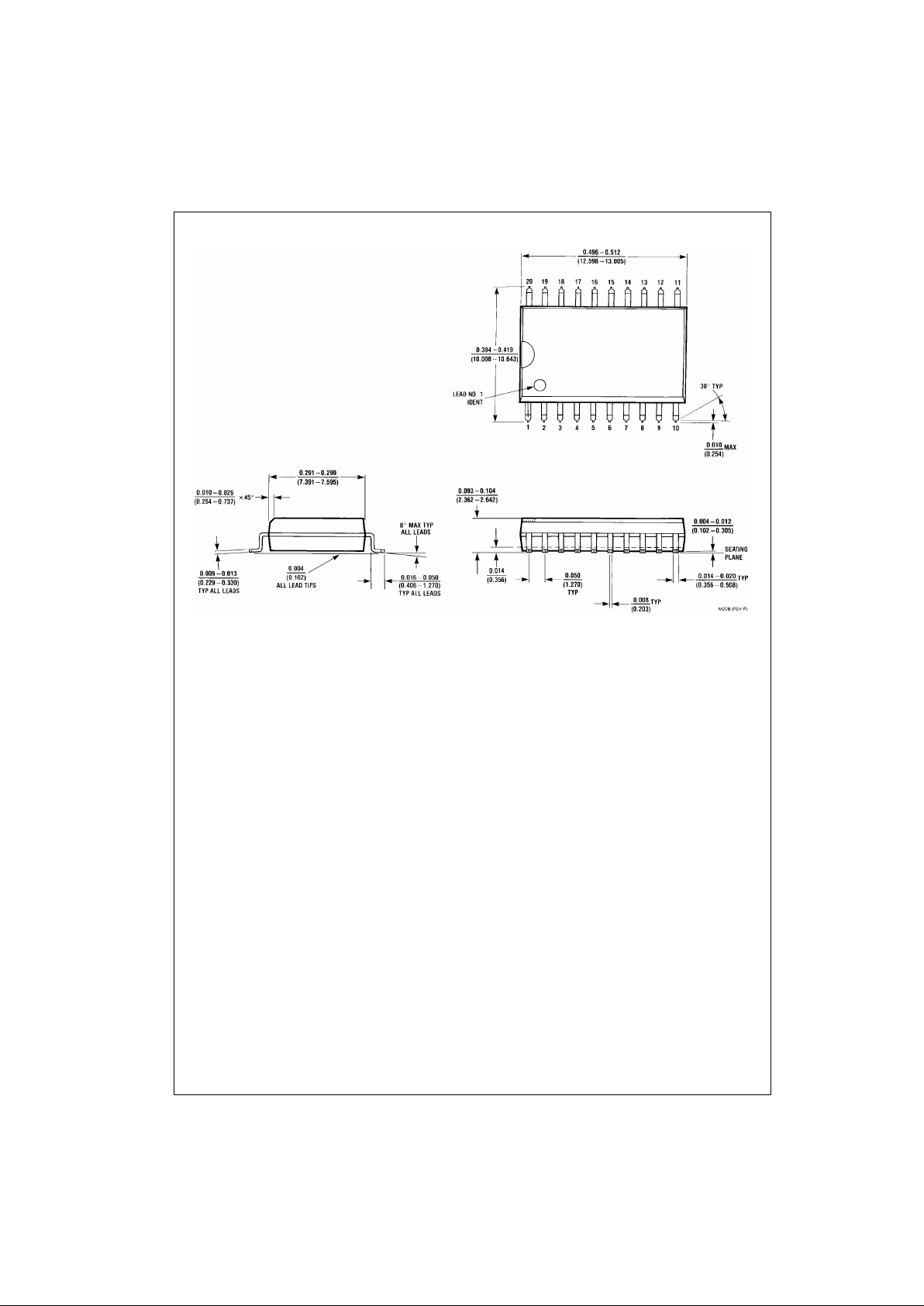

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
Package Number M20B
Page 5
5 www.fairchildsemi.com
74FR2240 Octal Buffer/Line Driver
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

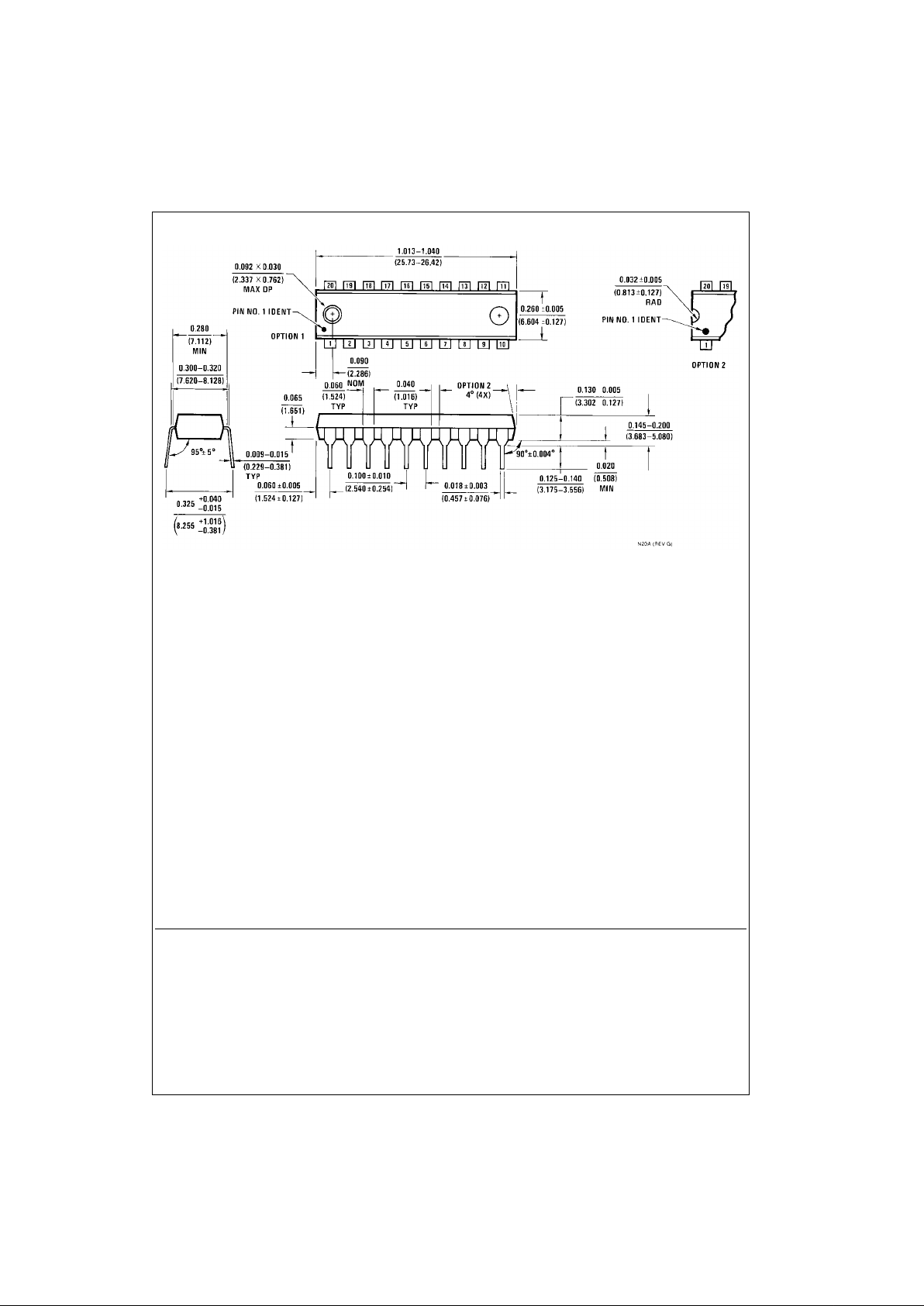

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N20A
Fairchild does not assume any responsibility for use of any circu itry described, no circuit patent license s are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are dev ic es or syste ms
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided i n the labe li ng, can be re asonably expected to result in a significant injury to the
user.
2. A critical componen t in any com ponent o f a l ife supp ort
device or system whose failu re to perform can b e reasonably expected to c ause th e fa i lure of the li fe s upp or t
device or system, or to affect its safety or effectiveness.
