Page 1
© 1999 Fairchild Semiconductor Corporation DS009601 www.fairchildsemi.com
April 1988
Revised August 1999

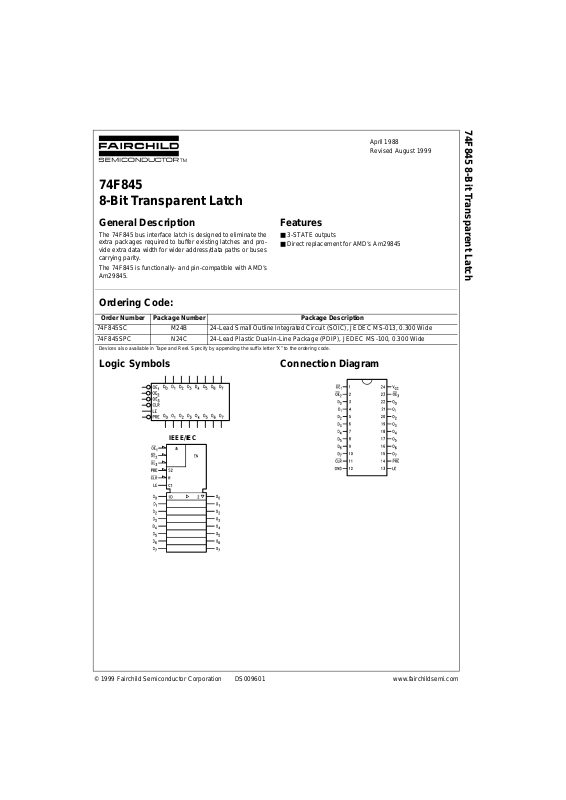

74F845 8-Bit Transparent Latch
74F845
8-Bit Transparent Latch
General Description
The 74F845 bus interface latch is designed to eliminate the
extra packages required to buffer existing latches and provide extra data width for wider address/data paths or buses
carrying parity.
The 74F845 is function all y- an d pin -compatible with AMD’s
Am29845.
Features
■ 3-STATE outputs
■ Direct replacement for AMD’s Am29845
Ordering Code:
Devices also availab le in Tape and Reel. Specify by appending th e s uffix let t er “X” to the ordering code.

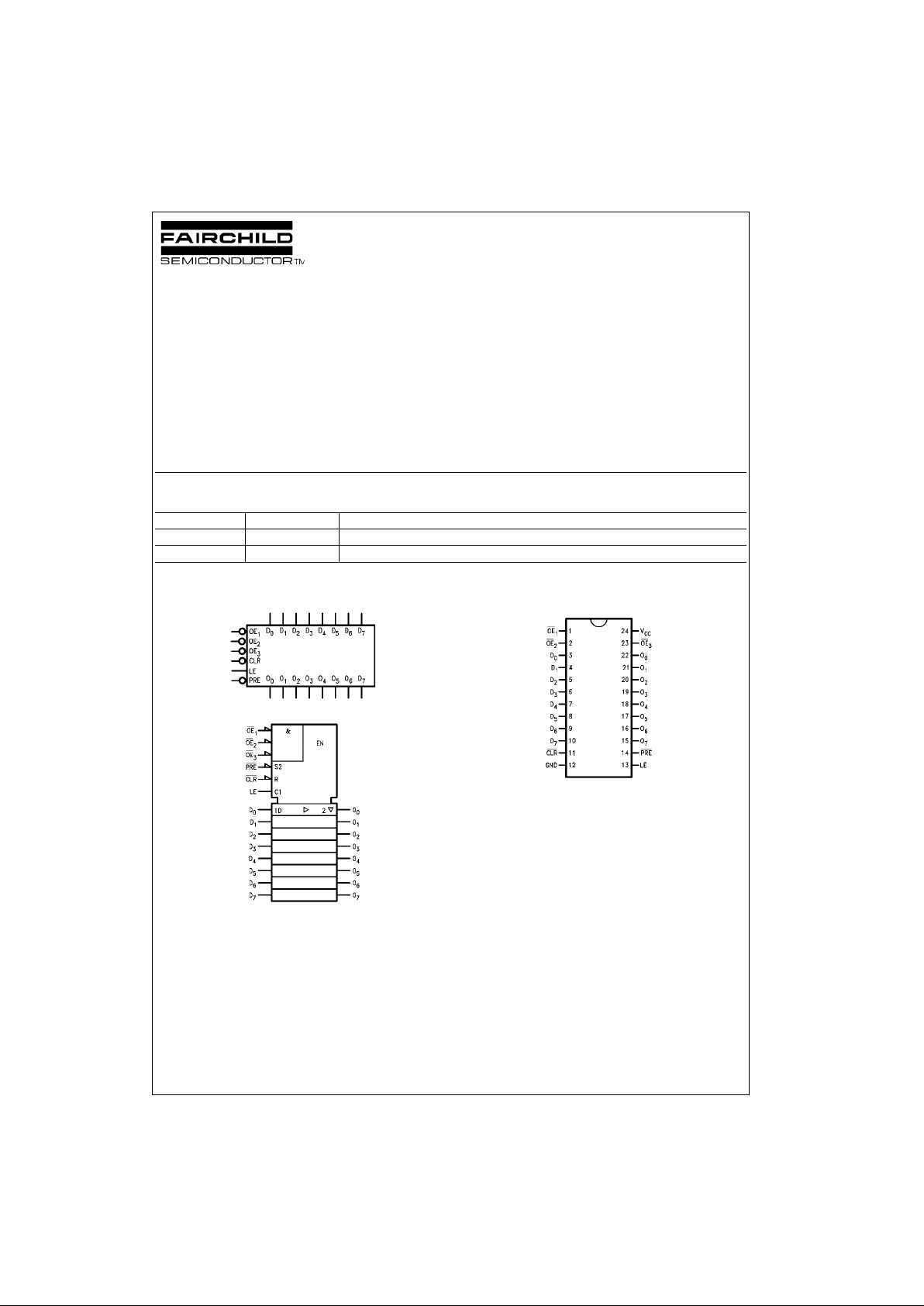

Logic Symbols
IEEE/IEC
Connection Diagram
Order Number Package Number Package Description
74F845SC M24B 24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
74F845SPC N24C 24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-100, 0.300 Wide
Page 2
www.fairchildsemi.com 2
74F845
Unit Loading/Fan Out
Functional Description
The 74F845 consists of ei ght D-t ype latche s with 3 -STATE
outputs. The flip-flops appear transparent to the data when
Latch Enable (LE) is HIGH. This allows asynchronous
operation as the ou tpu t tr ansit i on f oll ows t he data i n t ran sition. On the LE HIGH-to-LOW transition, the data that
meets the setup times is latched. Data appears on the bus
when the output Enable (OE
) is LOW. When OE is HIGH,
the bus output is in the high impedance state.
Function Table
H = HIGH Voltage Level Z = High Impedance
L = LOW Voltage Level NC = No Change
X = Immaterial

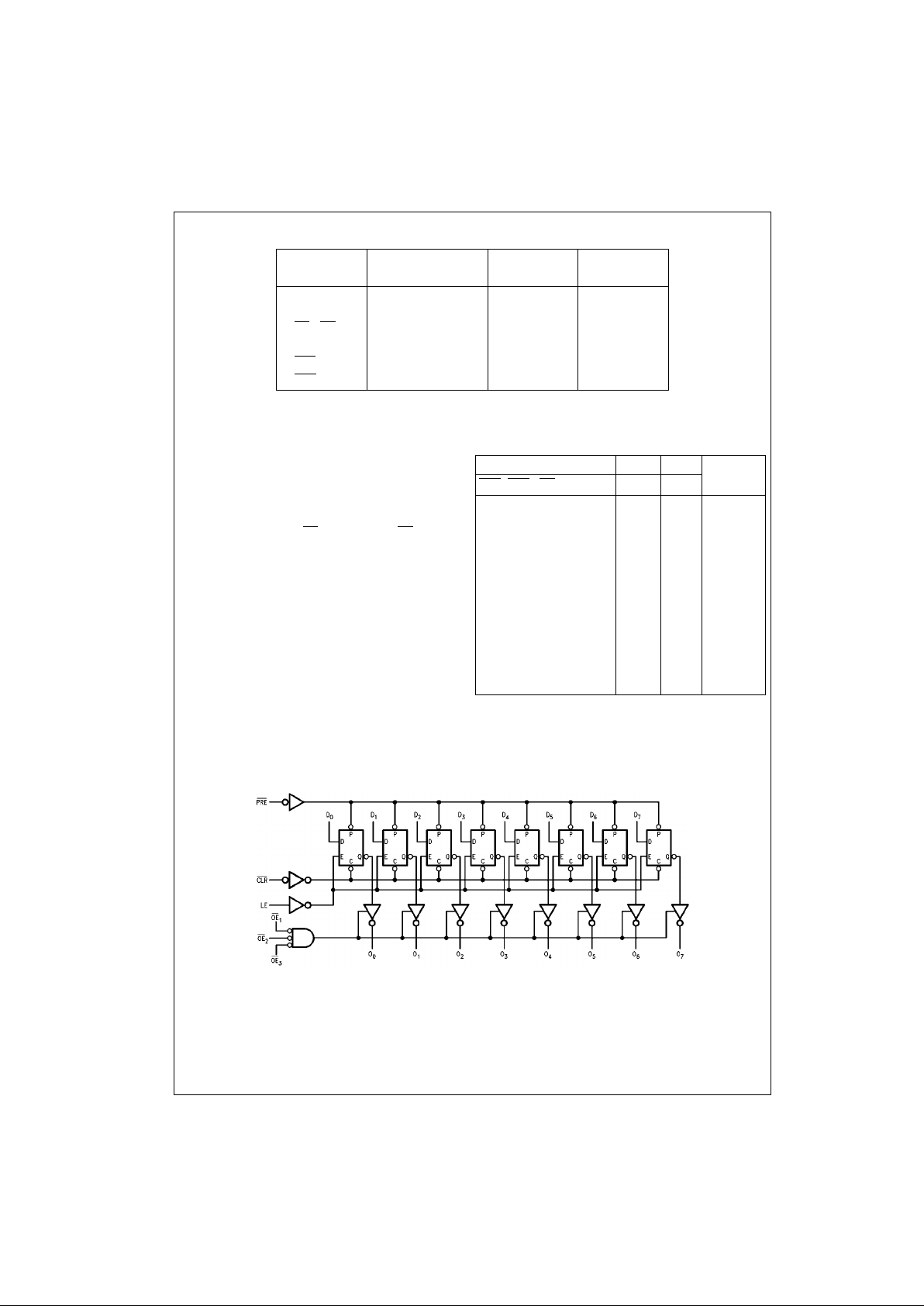

Logic Diagram
Please note that this diagram is provided o nly f or t he understanding of lo gic operations and should not be used to estimate propagation delays.
Pin Names Description
U.L.
Input I
IH/IIL
HIGH/LOW
Output I
OH/IOL
D0–D
7
Data Inputs 1.0/1.0 20 µA/−0.6 mA
O
0–O7
Data Outputs 150/40 −3.0 µA/24 mA
OE
1
–OE
3
Output Enables 1.0/1.0 20 µA/−0.6 mA
LE Latch Enable 1.0/1.0 20 µA/−0.6 mA
CLR
Clear 1.0/1.0 20 µA/−0.6 mA
PRE
Preset 1.0/1.0 20 µA/−0.6 mA
Inputs Internal Output
Function
CLR
PRE OE LE D Q O
H H H X X X Z High Z
H H H H L L Z High Z
H H H H H H Z High Z
HHHLX NC ZLatched
H H L H L L L Transparent
H H L H H H H Transparent
H H L L X NC NC Latched
H L L X X H H Preset
L H L X X L L Clear
L L L X X H H Preset
L H H L X L Z Latched
H L H L X H Z Latched
Page 3
3 www.fairchildsemi.com
74F845
Absolute Maximum Ratings(Note 1) Recommended Operating
Conditions
Note 1: Absolute maximum ratings are values beyon d which the device
may be damaged or have its useful life impaired . Functional operation
under these condit ions is not implied.
Note 2: Either voltage limit or curren t limit is sufficient to protect in puts.
DC Electrical Characteristics
Storage Temperature −65°C to +150°C
Ambient Temperature under Bias −55°C to +125°C
Junction Temperature under Bias −55°C to +150°C
V
CC
Pin Potential to Ground Pin −0.5V to +7.0V
Input Voltage (Note 2) −0.5V to +7.0V
Input Current (Note 2) −30 mA to +5.0 mA
Voltage Applied to Output
in HIGH State (with V
CC
= 0V)
Standard Output −0.5V to V
CC
3-STATE Output −0.5V to +5.5V
Current Applied to Output
in LOW State (Max) twice the rated I
OL
(mA)
Free Air Ambi ent Temperat ure 0°C to +70°C
Supply Voltage +4.5V to +5.5V
Symbol Parameter Min Typ Max Units
V
CC
Conditions
V
IH
Input HIGH Voltage 2.0 V Recognized as a HIGH Signal
V
IL
Input LOW Voltage 0.8 V Recognized as a LOW Signal
V
CD
Input Clamp Diode Voltage −1.2 V Min IIN = −18 mA
V
OH
Output HIGH 10% V
CC
2.5 IOH = −1 mA
Voltage 10% V
CC
2.4
VMin
IOH = −3 mA
5% V
CC
2.7 IOH = −1 mA
5% V
CC
2.7 IOH = −3 mA
V
OL
Output LOW Voltage 10% V
CC
0.5 V Min IOL = 24 mA
I
IH
Input HIGH Current 5.0 µAMaxVIN = 2.7V
I
BVI
Input HIGH Current
7.0 µAMaxVIN = 7.0V
Breakdown Test
I
CEX
Output HIGH
50 µAMaxV
OUT
= V
CC
Leakage Current
V
ID
Input Leakage
4.75 V 0.0
IID = 1.9 µA
Test All Other Pins Grounded
I
OD
Output Leakage
3.75 µA0.0
V
IOD
= 150 mV
Circuit Current All Other Pins Grounded
I
IL
Input LOW Current −0.6 mA Max VIN = 0.5V
I
OZH
Output Leakage Current 50 µAMaxV
OUT
= 2.7V
I
OZL
Output Leakage Current −50 µAMaxV
OUT
= 0.5V
I
OS
Output Short-Circuit Current −60 −150 mA Max V
OUT
= 0V
I
ZZ
Bus Drainage Test 500 µA0.0VV
OUT
= 5.25V
I
CCZ
Power Supply Current 63 85 mA Max VO = HIGH Z
Page 4
www.fairchildsemi.com 4
74F845
AC Electrical Characteristics
AC Operating Requirements
Symbol Parameter
TA = +25°CT
A
= 0°C to +70°C
Units
VCC = +5.0V VCC = +5.0V
CL = 50 pF CL = 50 pF
Min Typ Max Min Max
t
PLH
Propagation Delay 2.5 4.8 8.0 2.0 9.0
ns
t
PHL
Dn to O
n
1.5 3.6 6.5 1.5 7.0
t
PLH
Propagation Delay 5.0 8.1 12.0 4.5 13.5
ns
t
PHL
LE to O
n
2.0 4.4 7.5 2.0 8.0
t
PLH
Propagation Delay
3.0 5.9 10.0 2.5 11.0 ns
PRE to O
n
t
PHL
Propagation Delay
3.0 6.5 10.0 2.5 11.0 ns
CLR to O
n
t
PZH
Output Enable Time 2.5 5.8 9.5 2.0 10.5
ns
t
PZL
OE to O
n
2.5 7.6 12.0 2.0 13.0
t
PHZ
Output Disable Time 1.0 3.1 7.5 1.0 8.5
ns
t
PLZ
OE to O
n
1.0 2.8 6.5 1.0 7.5
Symbol Parameter
TA = +25°CT
A
= 0°C to +70°C
UnitsVCC = +5.0V VCC = +5.0V
Min Max Min Max
tS(H) Setup Time, HIGH or LOW 2.0 2.5
ns
tS(L) Dn to LE 2.0 2.5
tH(H) Hold Time, HIGH or LOW 2.5 3.0
ns
tH(L) Dn to LE 3.0 3.5
tW(H) LE Pulse Width, HIGH 4.0 4.0 ns
tW(L) PRE Pulse Width, LOW 5.0 5.0 ns
tW(L)
CLR Pulse Width, LOW
5.0 5.0 ns
t
REC PRE Recovery Time
10.0 10.0 ns
t
REC CLR Recovery Time
12.0 13.0 ns
Page 5
5 www.fairchildsemi.com
74F845

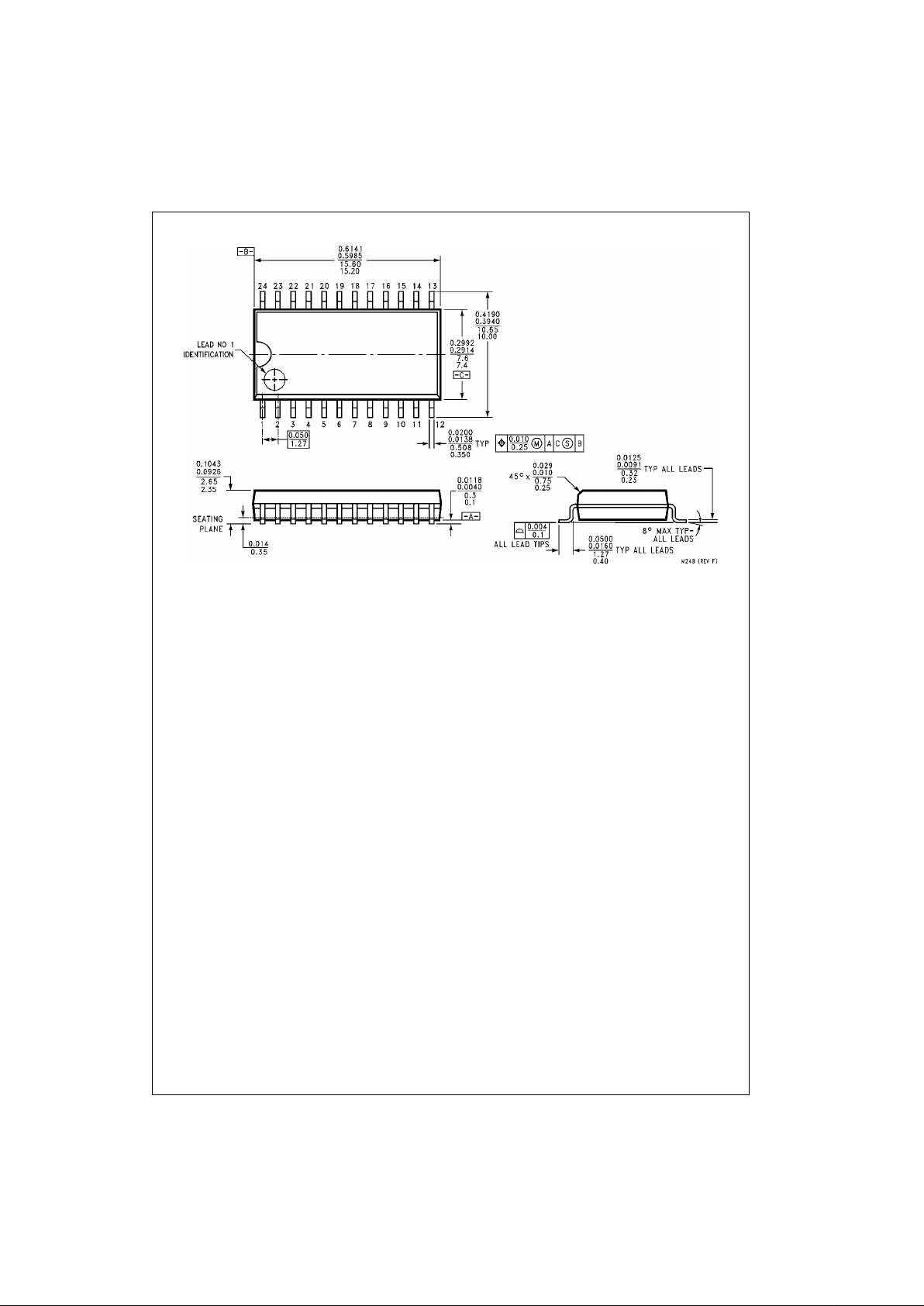

Physical Dimensions inches (millimeters) unless otherwise noted
24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
Package Number M24B
Page 6
www.fairchildsemi.com 6
74F845 8-Bit Transparent Latch
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-100, 0.300 Wide
Package Number N24C
