74F350 4-Bit Shifter with 3-STATE Outputs
74F350
4-Bit Shifter with 3-STAT E Outputs
General Description
The 74F350 is a specialized multiplexer that accepts a 4-bit
word and shifts it 0, 1, 2 or 3 places, as determined by two
Select (S
0
, S1) inputs. For expansion to longer words, three
linking inputs are p rovided for lower-order bits; thus tw o
packages can shift an 8-b it word, four packages a 16- bit
word, etc. Shifting by m ore than three places is accomplished by paralleling the 3-STATE outputs of different
packages and using the Output Enable (OE
) inputs as a
third Select level. With appropriate interconnections, the
74F350 can perform zero-backfill, sign-extend or endaround (barrel) shift functions.
Features
■ Linking inputs for word expansion
■ 3-STATE outputs for extending shift range
Ordering Code:
Devices also availab le in Tape and Reel. Specify by appending th e s uffix let t er “X” to the ordering code.
Logic Symbols
IEEE/IEC
Connection Diagram
Truth Table
H = HIGH Voltage Level
L = LOW Voltage Level
X = Immaterial
Z = High Impedance
Order Number Package Number Package Description
74F350SC M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
74F350SJ M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
74F350PC N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Inputs Outputs
OE
S1S0O0O1O2O
3
HXXZZZZ
LLLI
0I1I2I3
LLHI−1I0I1I
2
LHLI−2I−1I0I
1
LHHI−3I−2I−1I
0
Page 2
www.fairchildsemi.com 2
74F350
Unit Loading/Fan Out
Functional Description
The 74F350 is operationally equivalent to a 4-input multiplexer with the inputs con nected so that the select code
causes successive one-bit shifts of the data word. This
internal connection makes it possible to perform shifts of 0,
1, 2 or 3 places on words of any length.
A 4-bit data word is introduced at the I
n
inputs and is
shifted according to the code applied to the select inputs
S
0
, S1. Outputs O0–O3 are 3-STATE, controlled by an
active LOW output en able (OE
). When OE is LOW, data
outputs will follow selected data inputs; when HIGH, the
data outputs will be forced to t he high impedance state.
This feature allows shifters to be cascaded on the same
output lines or to a co mmon bus. T he shift f uncti on can b e
logical, with zeros pulled in at either or both ends of the
shifting field; arith met i c, wh er e t he sign bit is repea ted du ring a shift down; or end around, where the data word forms
a continuous loop.
Logic Equations
O0 = S0S1I0 + S0S1I−1 + S0S1I−2 + S0S1I
−3
O1 = S0S1I1 + S0S1I0 + S0S1I−1 + S0S1I
−2
O2 = S0S1I2 + S0S1I1 + S0S1I0 + S0S1I
−1
O3 = S0S1I3 + S0S1I2 + S0S1I1 + S0S1I
0
Logic Diagram
Please note that this diagram is provided o nly f or t he understanding of lo gic operations and should not be used to estimate propagation delays.
Pin Names Description
U.L.
Input I
IH/IIL
HIGH/LOW
Output I
OH/IOL
S0, S
1
Select Inputs 1.0/2.0 20 µA/−1.2 mA
I
−3–I3
Data Inputs 1.0/2.0 20 µA/−1.2 mA
OE
Output Enable Input (Active LOW) 1.0/2.0 20 µA/−1.2 mA
O
0–O3
3-STATE Outputs 150/40 (33.3) −3 mA/24 mA (20 mA)
Page 3
3 www.fairchildsemi.com
74F350
Applications
16-Bit Shift-Up 0 to 3 Places, Zero Backfill
Function Table
8-Bit End Around Shift 0 to 7 Places
Function Table
S
1
S
0
Shift Functi on
L L No Shift
L H Shift 1 Place
H L Shift 2 Places
H H Shift 3 Places
S
2
S
1
S
0
Shift Function
L L L No Shift
L L H Shift End Around 1
L H L Shift End Around 2
L H H Shift End Around 3
H L L Shift End Around 4
H L H Shift End Around 5
H H L Shift End Around 6
H H H Shift End Around 7
Page 4
www.fairchildsemi.com 4
74F350

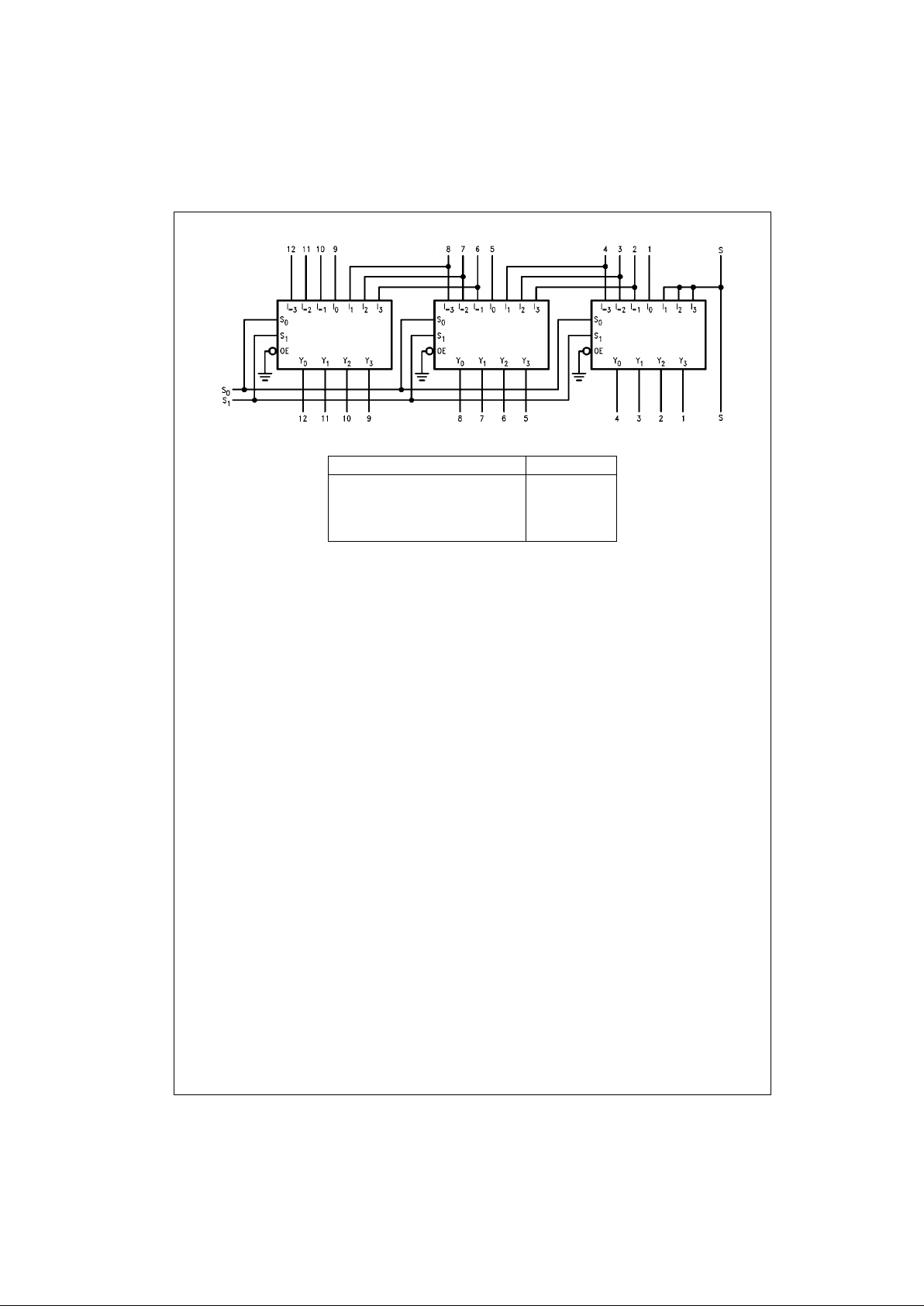

13-Bit Twos Complement Scaler
Function Table
S
1
S
0
Scale
LL÷8
1
/
8
LH÷4
1
/
4
HL÷2 ½
H H No Change 1
Page 5
5 www.fairchildsemi.com
74F350
Absolute Maximum Ratings(Note 1) Recommended Operating
Conditions
Note 1: Absolute maximum ratings are values beyon d which the device
may be damaged or have its useful life impaired . Functional operation
under these condit ions is not implied.
Note 2: Either voltage limit or curren t limit is sufficient to protect in puts.
DC Electrical Characteristics
Storage Temperature −65°C to +150°C
Ambient Temperature under Bias −55°C to +125°C
Junction Temperature under Bias −55°C to +150°C
V
CC
Pin Potential to Ground Pin −0.5V to +7.0V
Input Voltage (Note 2) −0.5V to +7.0V
Input Current (Note 2) −30 mA to +5.0 mA
Voltage Applied to Output
in HIGH State (with V
CC
= 0V)
Standard Output −0.5V to V
CC
3-STATE Output −0.5V to +5.5V
Current Applied to Output
in LOW State (Max) twice the rated I
OL
(mA)
Free Air Ambi ent Temperature 0°C to +70°C
Supply Voltage +4.5V to +5.5V
Symbol Parameter Min Typ Max Units
V
CC
Conditions
V
IH
Input HIGH Voltage 2.0 V Recognized as a HIGH Signal
V
IL
Input LOW Voltage 0.8 V Recognized as a LOW Signal
V
CD
Input Clamp Diode Voltage −1.2 V Min IIN = −18 mA
V
OH
Output HIGH 10% V
CC
2.5 V Min IOH = −1 mA
Voltage 10% V
CC
2.4 IOH = −3 mA
5% V
CC
2.7 IOH = −1 mA
10% V
CC
2.7 IOH = −3 mA
V
OL
Output LOW Voltage 10% V
CC
0.5 V Min IOL = 24 mA
I
IH
Input HIGH Current 5.0 µAMaxVIN = 2.7V
I
BVI
Input HIGH Current
7.0 µAMaxVIN = 7.0V
Breakdown Test
I
CEX
Output HIGH
50 µAMaxV
OUT
= V
CC
Leakage Current
V
ID
Input Leakage
4.75 V 0.0
IID = 1.9 µA
Test All Other Pins Grounded
I
OD
Output Leakage
3.75 µA0.0
V
IOD
= 150 mV
Circuit Current All Other Pins Grounded
I
IL
Input LOW Current −1.2 mA Max VIN = 0.5V
I
OZH
Output Leakage Current 50 µAMaxV
OUT
= 2.7V
I
OZL
Output Leakage Current −50 µAMaxV
OUT
= 0.5V
I
OS
Output Short-Circuit Current −60 −150 mA Max V
OUT
= 0V
I
ZZ
Bus Drainage Test 500 µA0.0VV
OUT
= 5.25V
I
CCH
Power Supply Current 34 42 mA Max VO = HIGH
I
CCL
Power Supply Current 40 57 mA Max VO = LOW
I
CCZ
Power Supply Current 40 57 mA Max VO = HIGH Z
Page 6
www.fairchildsemi.com 6
74F350
AC Electrical Characteristics
Symbol Parameter
TA = +25°CT
A
= 0°C to +70°C
Units
VCC = +5.0V VCC = +5.0V
CL = 50 pF CL = 50 pF
Min Typ Max Min Max
t
PLH
Propagation Delay 3.0 4.5 6.0 3.0 7.0
ns
t
PHL
In to On 2.5 4.0 5.5 2.5 6.5
t
PLH
Propagation Delay 4.0 7.8 10.0 4.0 13.5
ns
t
PHL
Sn to On 3.0 6.5 8.5 3.0 9.5
t
PZH
Output Enable Time 2.5 5.0 7.0 2.5 8.0
ns
t
PZL
4.0 7.0 9.0 4.0 10.0
t
PHZ
Output Disable Time 2.0 3.9 5.5 2.0 6.5
t
PLZ
2.0 4.0 5.5 2.0 7.5
Page 7
7 www.fairchildsemi.com
74F350

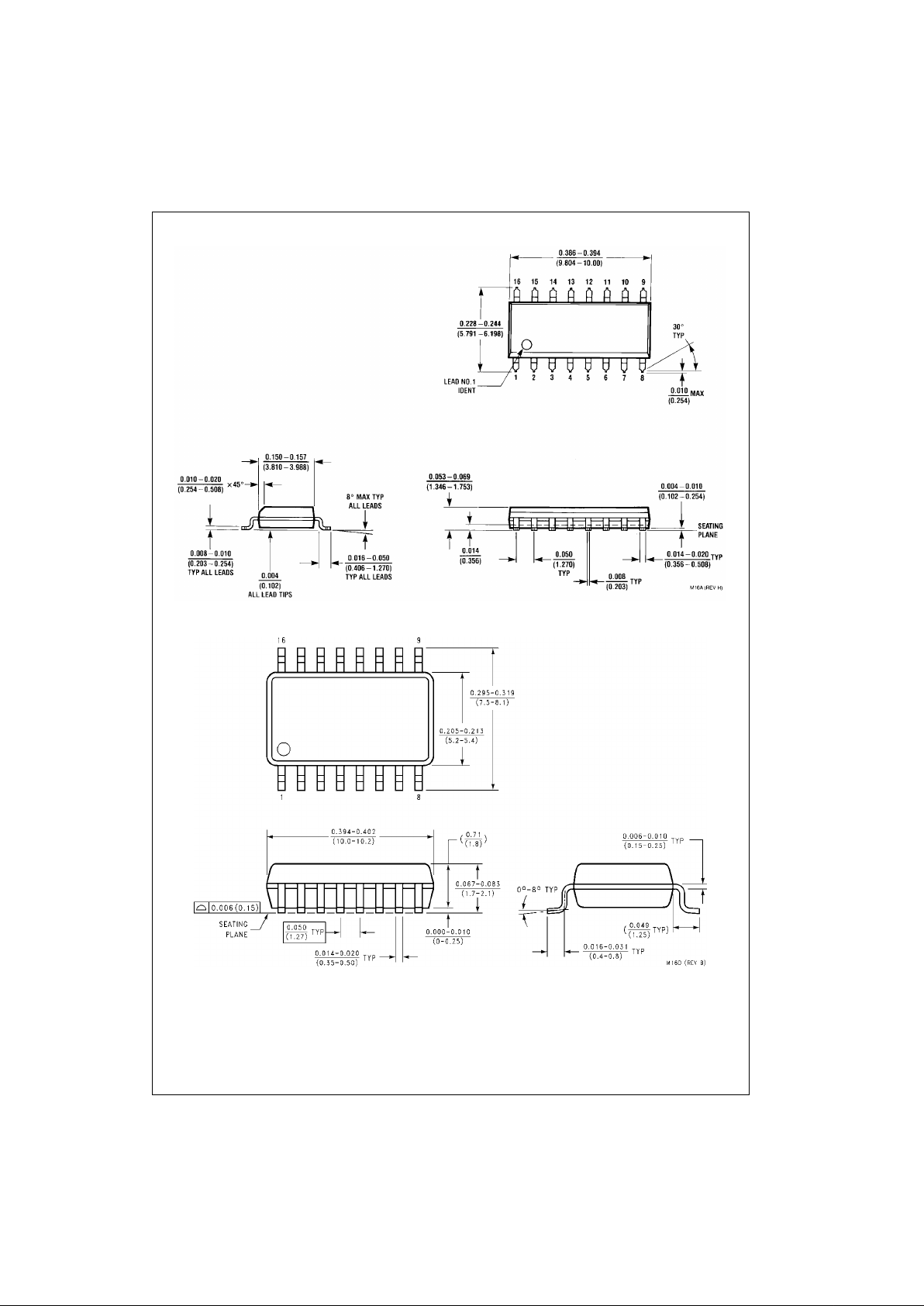

Physical Dimensions inches (millimeters) unless otherwise noted
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
Package Number M16A
16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
Package Number M16D
Page 8
www.fairchildsemi.com 8
74F350 4-Bit Shifter with 3-STATE Outputs

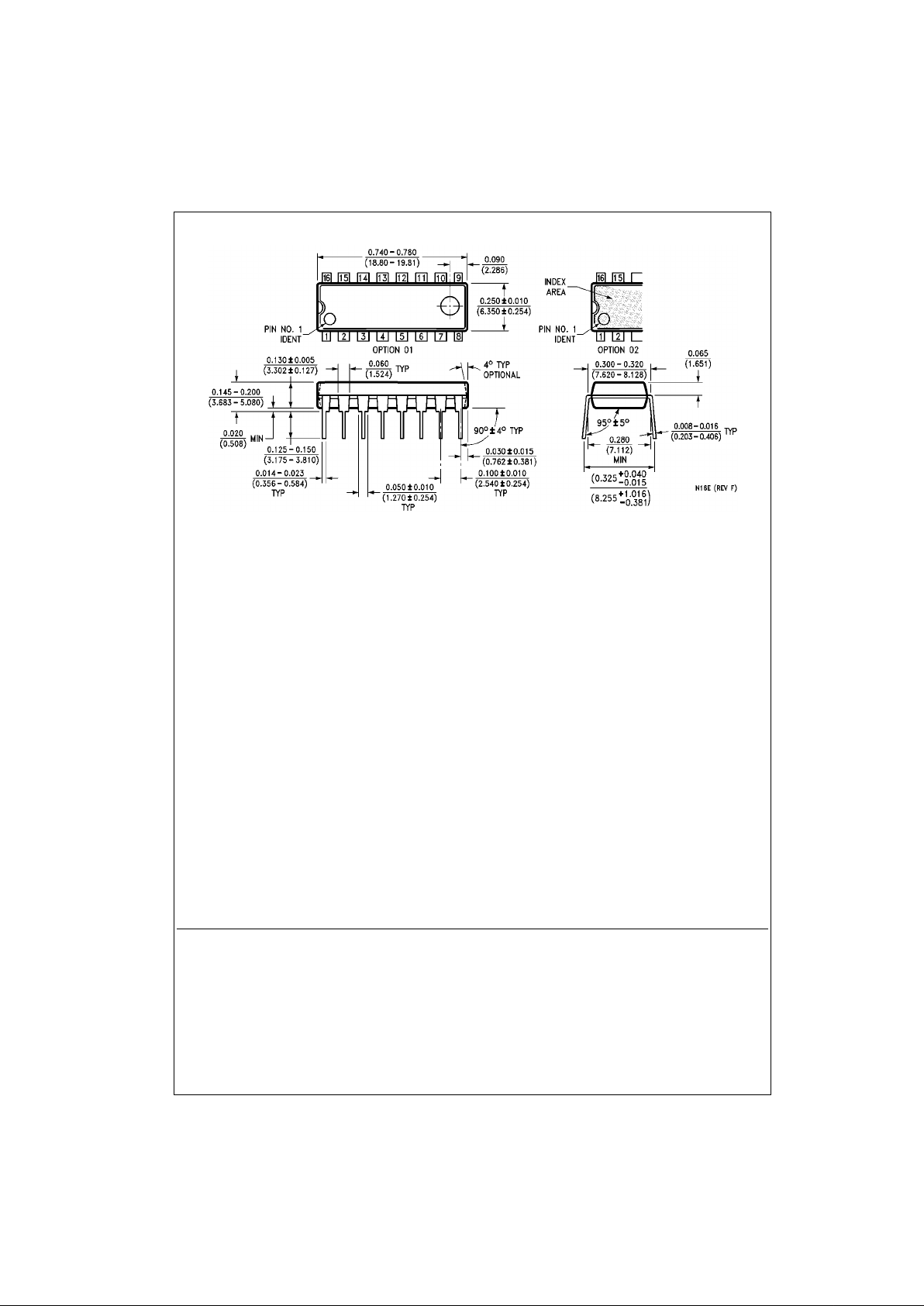

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N16E
