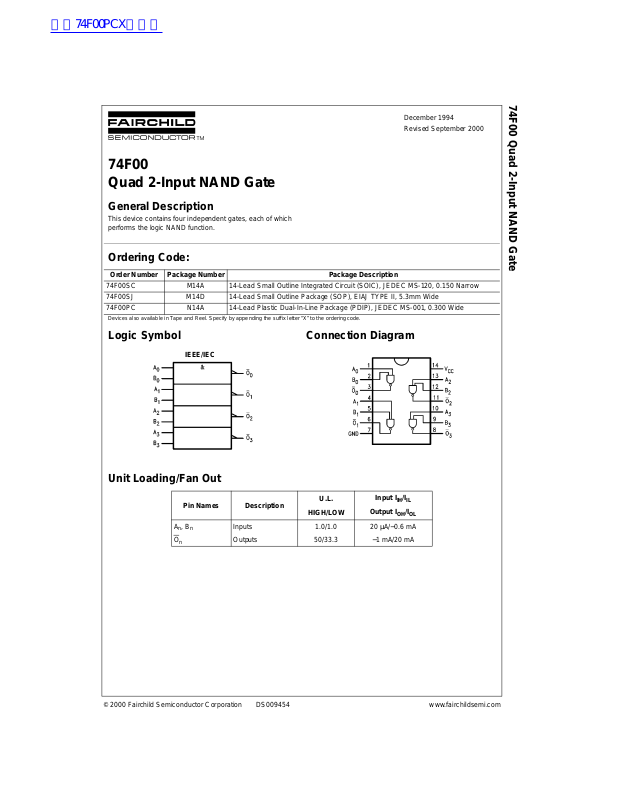

74F00
Quad 2-Input NAND Gate
General Description
This device contains four independent gates, each of which
performs the logic NAND function.
Ordering Code:
Order Number Package Number Package Description
74F00SC M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
74F00SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
74F00PC N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also availab le in Tape and Reel. Specify by appending the suffix letter “X” to the o rdering code.
74F00 Quad 2-Input NAND Gate
December 1994
Revised September 2000
Logic Symbol
IEEE/IEC
Unit Loading/Fan Out
Pin Names Description
An, B
n
O
n
Connection Diagram
U.L.
HIGH/LOW
Inputs 1.0/1.0 20 µA/−0.6 mA
Outputs 50/33.3 −1 mA/20 mA
Input I
Output I
IH/IIL
OH/IOL
© 2000 Fairchild Semiconductor Corporation DS009454 www.fairchildsemi.com
Page 2
Absolute Maximum Ratings(Note 1) Recommended Operating
74F00
Storage Temperature −65°C to +150°C
Ambient Temperature under Bias
Junction Temperature under Bias
Pin Potential to Ground Pin −0.5V to +7.0V
V
CC
Input Voltage (Note 2)
Input Current (Note 2)
−55°C to +125°C
−55°C to +150°C
−0.5V to +7.0V
−30 mA to +5.0 mA
Voltage Applied to Output
in HIGH State (with V
Standard Output
CC
= 0V)
−0.5V to V
3-STATE Output −0.5V to +5.5V
Current Applied to Output
in LOW State (Max) twice the rated I
ESD Last Passing Voltage (Min) 4000V
OL
Conditions
Free Air Ambient Temperature 0
Supply Voltage
CC
Note 1: Absolute maximum ratings are values beyond which the device
may be damaged or have its useful life impair ed. Functional operation
under these conditi ons is not implied.
(mA)
Note 2: Either voltage lim it or c urrent limit is sufficient to prot ect inputs.
DC Electrical Characteristics
Symbol Parameter Min Typ Max Units
V
V
V
V
V
I
I
I
V
I
I
I
I
I
IH
IL
CD
OH
OL
IH
BVI
CEX
ID
OD
IL
OS
CCH
CCL
Input HIGH Voltage 2.0 V Recognized as a HIGH Signal
Input LOW Voltage 0.8 V Recognized as a LOW Signal
Input Clamp Diode Voltage −1.2 V Min IIN = −18 mA
Output HIGH 10% V
Voltage 5% V
Output LOW 10% V
Voltage
Input HIGH 5.0 µAMaxVIN = 2.7V
Current
Input HIGH Current 7.0 µAMaxVIN = 7.0V
Breakdown Test
Output HIGH 50 µAMaxV
Leakage Current
Input Leakage
Test All other pins grounded
Output Leakage
Circuit Current All other pins grounded
Input LOW Current −0.6 mA Max VIN = 0.5V
Output Short-Circuit Current −60 −150 mA Max V
Power Supply Current 1.9 2.8 mA Max VO = HIGH
Power Supply Current 6.8 10.2 mA Max VO = LOW
CC
CC
CC
2.5 V Min IOH = −1 mA
2.7 IOH = −1 mA
0.5 V Min IOL = 20 mA
4.75 V 0.0
3.75 µA0.0
V
CC
= V
OUT
IID = 1.9 µA
V
= 150 mV
IOD
= 0V
OUT
°C to +70°C
+4.5V to +5.5V
Conditions
CC
AC Electrical Characteristics
TA = +25°CT
Symbol Parameter
t
PLH
t
PHL
Propagation Delay 2.4 3.7 5.0 2.0 7.0 2.4 6.0
An, Bn to O
n
www.fairchildsemi.com 2
VCC = +5.0V VCC = +5.0V VCC = +5.0V
CL = 50 pF CL = 50 pF CL = 50 pF
Min Typ Max Min Max Min Max
1.53.24.31.56.51.55.3
= −55°C to +125°CTA = 0°C to +70°C
A
Units
ns
Page 3

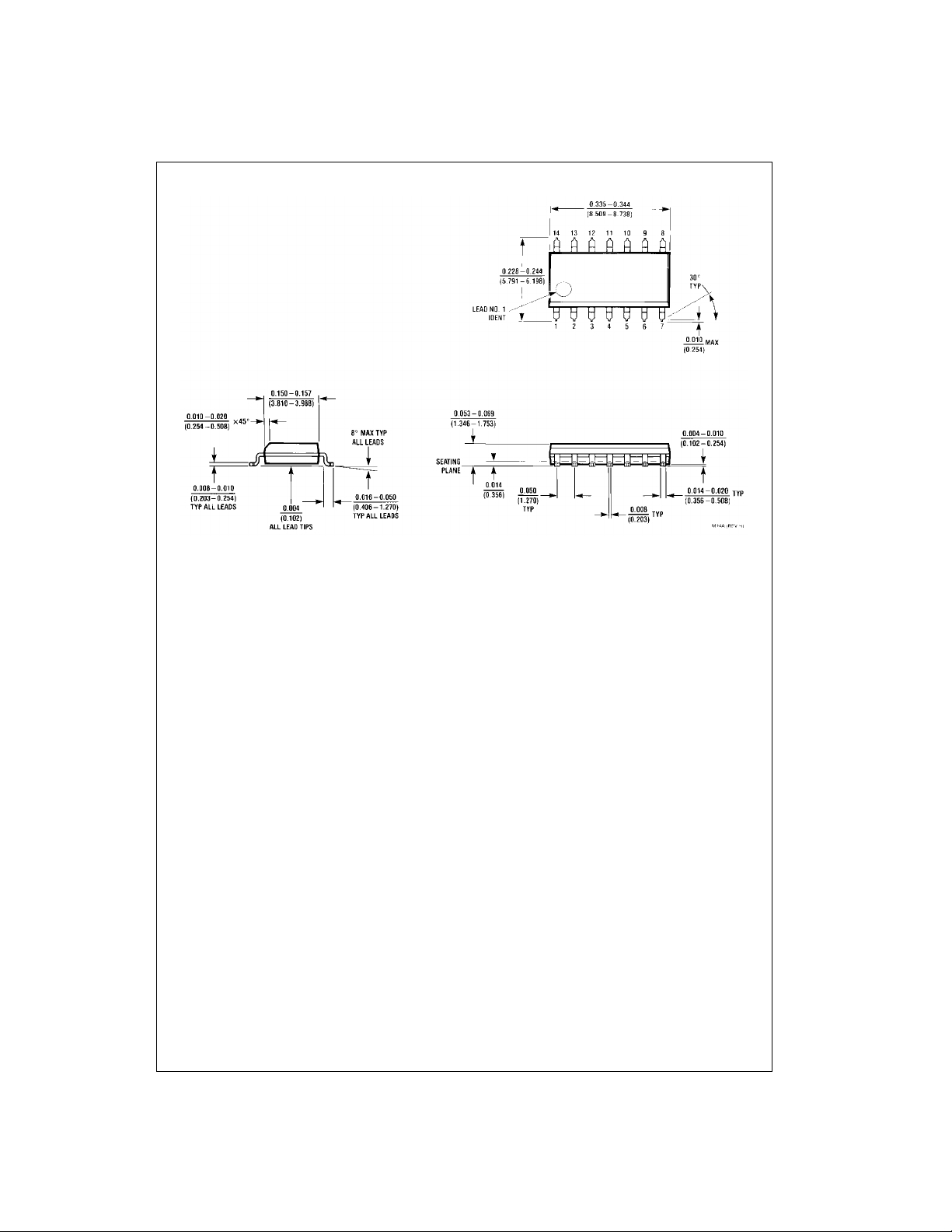

Physical Dimensions inches (millimeters) unless otherwise noted
74F00
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
Package Number M14A
3 www.fairchildsemi.com
Page 4

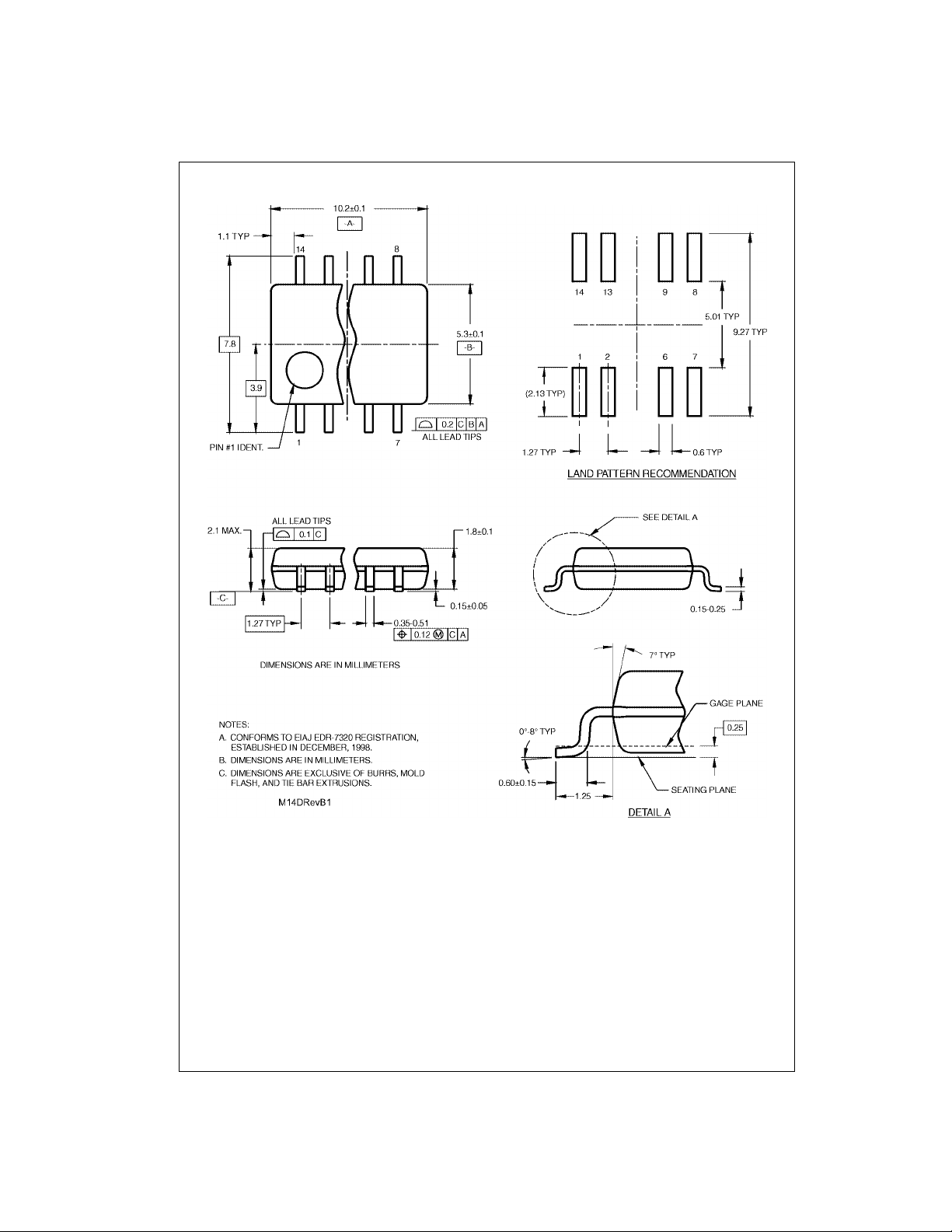

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
74F00
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
www.fairchildsemi.com 4
Package Number M14D
Page 5
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
74F00 Quad 2-Input NAND Gate
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
