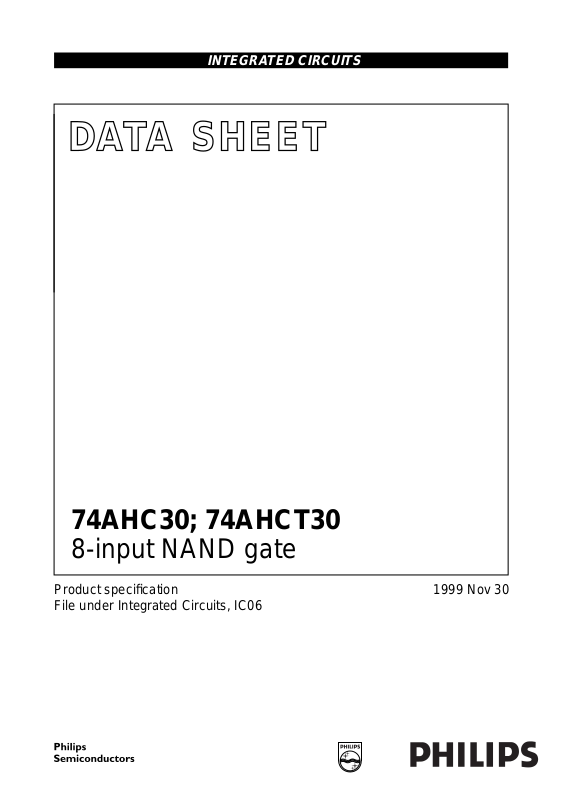

INTEGRATED CIRCUITS

DATA SH EET

74AHC30; 74AHCT30

8-input NAND gate

Product specification
File under Integrated Circuits, IC06

1999 Nov 30

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

FEATURES

• ESD protection:
HBM EIA/JESD22-A114-A exceeds 2000 V
MM EIA/JESD22-A115-A exceeds 200 V
CDM EIA/JESD22-C101 exceeds 1000 V

• Balanced propagation delays

• Inputs accept voltages higher than V

CC

DESCRIPTION

The 74AHC/AHCT30 are high-speed Si-gate CMOS
devices and are pin compatible with Low power Schottky
TTL (LSTTL). They are specified in compliance with
JEDEC standard no. 7A.

The 74AHC/AHCT30 provide the 8-input NAND function.

• For AHC only: operates with CMOS input levels

• For AHCT only: operates with TTL input levels

• Output capability: standard

• ICC category: SSI

• Specified from −40 to +85 °C and −40 to +125 °C.

QUICK REFERENCE DATA

GND = 0 V; T

=25°C; tr=tf≤3.0 ns.

amb

SYMBOL PARAMETER CONDITIONS

t

PHL/tPLH

propagation delay

CL= 15 pF; VCC= 5 V 3.6 3.3 ns

A, B, C, D, E, F, G, H to Y

C

I

C

O

C

PD

input capacitance 3.0 3.0 pF
output capacitance 4.0 4.0 pF
power dissipation capacitance CL= 50 pF; f = 1 MHz;

notes 1 and 2

TYPICAL

UNIT

AHC AHCT

10 12 pF

Notes

1. C

is used to determine the dynamic power dissipation (PDin µW).

PD

2

P

D=CPD

× V

× fi+ ∑ (CL× V

CC

fi= input frequency in MHz;
fo= output frequency in MHz;
∑ (CL× V

2

× fo) = sum of outputs;

CC

CL= output load capacitance in pF;
VCC= supply voltage in Volts.

2. The condition is VI= GND to VCC.

2

× fo) where:

CC

1999 Nov 30 2

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

FUNCTION TABLE

See note 1.

INPUTS OUTPUTS

ABCDEFGH Y

LXXXXXXX H
XLXXXXXX H
XXLXXXXX H
XXXLXXXX H
XXXXLXXX H
XXXXXLXX H
XXXXXXLX H
XXXXXXXL H

HHHHHHΗHL

Note

1. H = HIGH voltage level;
L = LOW voltage level;
X = don’t care.

ORDERING INFORMATION

PACKAGES

TYPE NUMBER

74AHC30D −40 to +125 °C 14 SO plastic SOT108-1
74AHCT30D 14 SO plastic SOT108-1
74AHC30PW 14 TSSOP plastic SOT402-1
74AHCT30PW 14 TSSOP plastic SOT402-1

PINNING

PIN SYMBOL DESCRIPTION

1 A data input
2 B data input
3 C data input
4 D data input
5 E data input
6 F data input
7 GND ground (0 V)
8 Y data output

9, 10 and 13 n.c. not connected

11 G data input
12 H data input
14 V

TEMPERATURE

RANGE

CC

PINS PACKAGE MATERIAL CODE

DC supply voltage

1999 Nov 30 3

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

handbook, halfpage

A

1

B

2
3

C

4

D

E
F

GND

30

5
6
7

MNA487

Fig.1 Pin configuration.

V

14

CC

13

n.c.

12

H

11

G

10

n.c.

9

n.c.

8

Y

handbook, halfpage

1

A

2

B

3

C

4

D

5

E

6

F

11

G

12

H

Y

MNA488

8

Fig.2 Functional diagram.

handbook, halfpage

1
2
3
4
5

6
11
12

&

8

MNA489

Fig.3 IEC logic symbol.

1999 Nov 30 4

handbook, halfpage

A

B

C

D

E

F

G

H

Y

MNA490

Fig.4 Logic diagram.Fig.4 Logic diagram.

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

RECOMMENDED OPERATING CONDITIONS

SYMBOL PARAMETER CONDITIONS

UNIT

MIN. TYP. MAX. MIN. TYP. MAX.

74AHC 74AHCT

V

CC

V

I

V

O

T

amb

t

(∆t/∆f) input rise and fall rates VCC= 3.3 ±0.3 V −−100 −−−ns/V

r,tf

DC supply voltage 2.0 5.0 5.5 4.5 5.0 5.5 V
input voltage 0 − 5.5 0 − 5.5 V
output voltage 0 − V
operating ambient

temperature

see DC and AC
characteristics per device

V

=5±0.5 V −−20 −−20

CC

−40 +25 +85 −40 +25 +85 °C

−40 +25 +125 −40 +25 +125 °C

0 − V

CC

CC

V

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134); voltages are referenced to GND (ground=0V).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

CC

V

I

I

IK

I

OK

I

O

I

CC

T

stg

P

D

DC supply voltage −0.5 +7.0 V
input voltage −0.5 +7.0 V
DC input diode current VI< −0.5 V; note 1 −−20 mA
DC output diode current VO< −0.5 Vor VO>VCC+ 0.5 V; note 1 −±20 mA
DC output source or sink current −0.5V<VO<VCC+ 0.5 V −±25 mA
DC VCC or GND current −±75 mA
storage temperature −65 +150 °C
power dissipation per package for temperature range from

− 500 mW

−40 to +125 °C; note 2

Notes

1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

2. For SO-packages: above 70 °C the value of PD derates linearly with 8 mW/K.
For TSSOP-packages: above 60 °C the value of PD derates linearly with 5.5 mW/K.

1999 Nov 30 5

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

DC CHARACTERISTICS
Family 74AHC

Over recommended operating conditions; voltages are referenced to GND (ground=0V).

SYMBOL PARAMETER

V

IH

HIGH-level input
voltage

V

IL

LOW-level input
voltage

V

OH

HIGH-level output
voltage

V

OL

LOW-level output
voltage

I

I

input leakage
current

I

OZ

3-state output
OFF current

I

CC

quiescent supply
current

C

I

input capacitance −−310−10 − 10 pF

TEST CONDITIONS T

25 −40 to +85 −40 to +125

amb

(°C)

UNIT

OTHER VCC(V)

MIN. TYP. MAX. MIN. MAX. MIN. MAX.

2.0 1.5 −−1.5 − 1.5 − V

3.0 2.1 −−2.1 − 2.1 − V

5.5 3.85 −−3.85 − 3.85 − V

2.0 −− 0.5 − 0.5 − 0.5 V

3.0 −− 0.9 − 0.9 − 0.9 V

5.5 −− 1.65 − 1.65 − 1.65 V

VI=VIHor V

IL

IO= −50 µA 2.0 1.9 2.0 − 1.9 − 1.9 − V
I

= −50 µA 3.0 2.9 3.0 − 2.9 − 2.9 − V

O

I

= −50 µA 4.5 4.4 4.5 − 4.4 − 4.4 − V

O

= −4.0 mA 3.0 2.58 −−2.48 − 2.40 − V

I

O

I

= −8.0 mA 4.5 3.94 −−3.8 − 3.70 − V

O

VI=VIHor V

IL

IO=50µA 2.0 − 0 0.1 − 0.1 − 0.1 V
I

=50µA 3.0 − 0 0.1 − 0.1 − 0.1 V

O

I

=50µA 4.5 − 0 0.1 − 0.1 − 0.1 V

O

= 4.0 mA 3.0 −− 0.36 − 0.44 − 0.55 V

I

O

I

= 8.0 mA 4.5 −− 0.36 − 0.44 − 0.55 V

O

VI=VCCor GND 5.5 −− 0.1 − 1.0 − 2.0 µA

VI=VIHor VIL;

5.5 −− ±0.25 −±2.5 −±10.0 µA

VO=VCCor GND
VI=VCCor GND;

5.5 −− 2.0 − 20 − 40 µA

IO=0

1999 Nov 30 6

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

Family 74AHCT

Over recommended operating conditions; voltages are referenced to GND (ground=0V).

SYMBOL PARAMETER

V

IH

HIGH-level input
voltage

V

IL

LOW-level input
voltage

V

OH

HIGH-level output
voltage

V

OL

LOW-level output
voltage

I

I

input leakage
current

I

OZ

3-state output
OFF current

I

CC

quiescent supply
current

∆I

CC

additional
quiescent supply
current per input
pin

C

I

input capacitance −−310−10 − 10 pF

TEST CONDITIONS T

amb

(°C)

25 −40 to +85 −40 to +125

OTHER VCC(V)

MIN. TYP. MAX. MIN. MAX. MIN. MAX.

4.5 to 5.5 2.0 −−2.0 − 2.0 − V

4.5 to 5.5 −− 0.8 − 0.8 − 0.8 V

VI=VIHor V

IL

IO= −50 µA 4.5 4.4 4.5 − 4.4 − 4.4 − V
I

= −8.0 mA 4.5 3.94 −−3.8 − 3.70 − V

O

VI=VIHor V

IL

IO=50µA 4.5 − 0 0.1 − 0.1 − 0.1 V
I

= 8.0 mA 4.5 −− 0.36 − 0.44 − 0.55 V

O

VI=VIHor V

VI=VIHor VIL;

5.5 −− 0.1 − 1.0 − 2.0 µA

IL

5.5 −− ±0.25 −±2.5 −±10.0 µA
VO=VCCor GND
per input pin;
other inputs at
VCCor GND;
IO=0

VI=VCCor GND;

5.5 −− 2.0 − 20 − 40 µA
IO=0

VI=VCC− 2.1 V;

4.5 to 5.5 −− 1.35 − 1.5 − 1.5 mA
other inputs at
VCCor GND;
IO=0

UNIT

1999 Nov 30 7

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

AC CHARACTERISTICS
Type 74AHC30

GND = 0 V; tr=tf≤3.0 ns.

SYMBOL PARAMETER

VCC= 3.0 to 3.6 V; note 1

t

PHL/tPLH

propagation delay
A, B, C, D,E, F, G,
HtoY

VCC= 4.5 to 5.5 V; note 2
t

PHL/tPLH

propagation delay
A, B, C, D,E, F, G,
HtoY

Notes

1. Typical values at V

CC

= 3.3 V.

2. Typical values at VCC= 5.0 V.

Type 74AHCT30

GND = 0 V; tr=tf≤3.0 ns.

SYMBOL PARAMETER

TEST CONDITIONS T

25 −40 to +85 −40 to +125

WAVEFORMS C

L

MIN. TYP. MAX. MIN. MAX. MIN. MAX.

amb

(°C)

UNIT

see Figs 5 and 6 15 pF − 5.0 9.5 1.0 11.0 1.0 12.0 ns

50 pF − 6.7 12.0 1.0 14.5 1.0 15.5 ns

see Figs 5 and 6 15 pF − 3.6 6.5 1.0 7.5 1.0 8.0 ns

50 pF − 4.9 8.0 1.0 9.5 1.0 10.5 ns

TEST CONDITIONS T

25 −40 to +85 −40 to +125

WAVEFORMS C

L

MIN. TYP. MAX. MIN. MAX. MIN. MAX.

amb

(°C)

UNIT

VCC= 4.5 to 5.5 V; note 1

t

PHL/tPLH

propagation delay
A, B, C, D,E, F, G,

see Figs 5 and 6 15 pF − 3.3 6.5 1.0 7.5 1.0 8.0 ns

50 pF − 4.7 8.5 1.0 9.5 1.0 10.5 ns

HtoY

Note

1. Typical values at V

CC

= 5.0 V.

1999 Nov 30 8

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

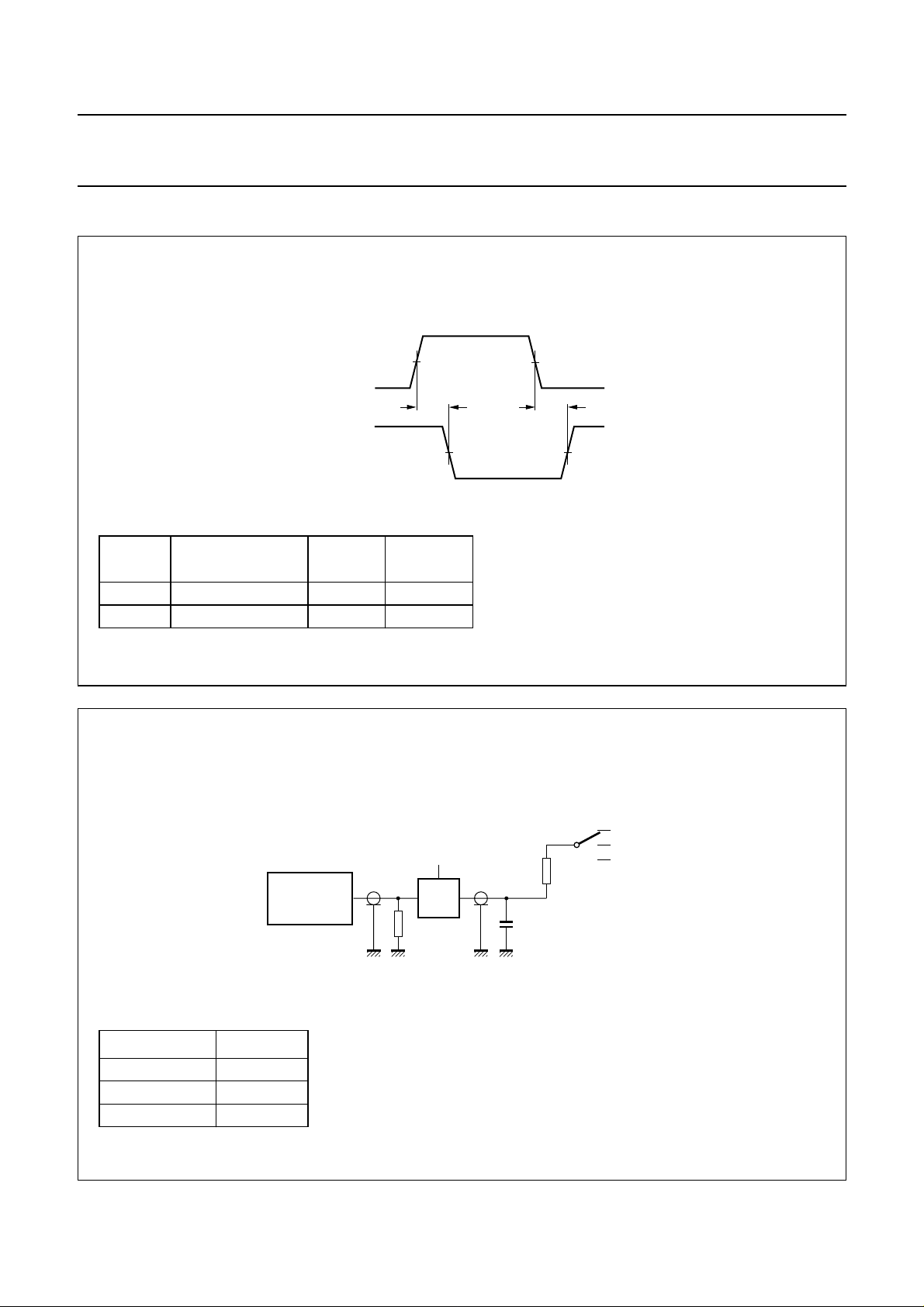

AC WAVEFORMS

handbook, halfpage

A, B, C, D,

E, F, G, H

input

V

M

Y output

FAMILY

VI INPUT

REQUIREMENTS

AHC GND to V

CC

V

INPUT

50% V

M

CC

AHCT GND to 3.0 V 1.5 V 50% V

Fig.5 The input (A, B, C, D, E, F, G and H) to output (Y) propagation delays.

handbook, full pagewidth

V

PULSE

GENERATOR

I

t

PHL

V

M

OUTPUT

50% V

V

D.U.T.

R

T

CC
CC

CC

t

PLH

V

M

MNA491

S1

V

CC

open
GND

C

1000 Ω

L

MNA183

V

O

TEST S1

t

PLH/tPHL

t

PLZ/tPZL

t

PHZ/tPZH

open
V

CC

GND

Definitions for test circuit:

= load capacitance including jig and probe capacitance (See Chapter “AC characteristics”);

C

L

RT= termination resistance should be equal to the output impedance Zo of the pulse generator.

Fig.6 Test circuitry for switching times.

1999 Nov 30 9

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

PACKAGE OUTLINES

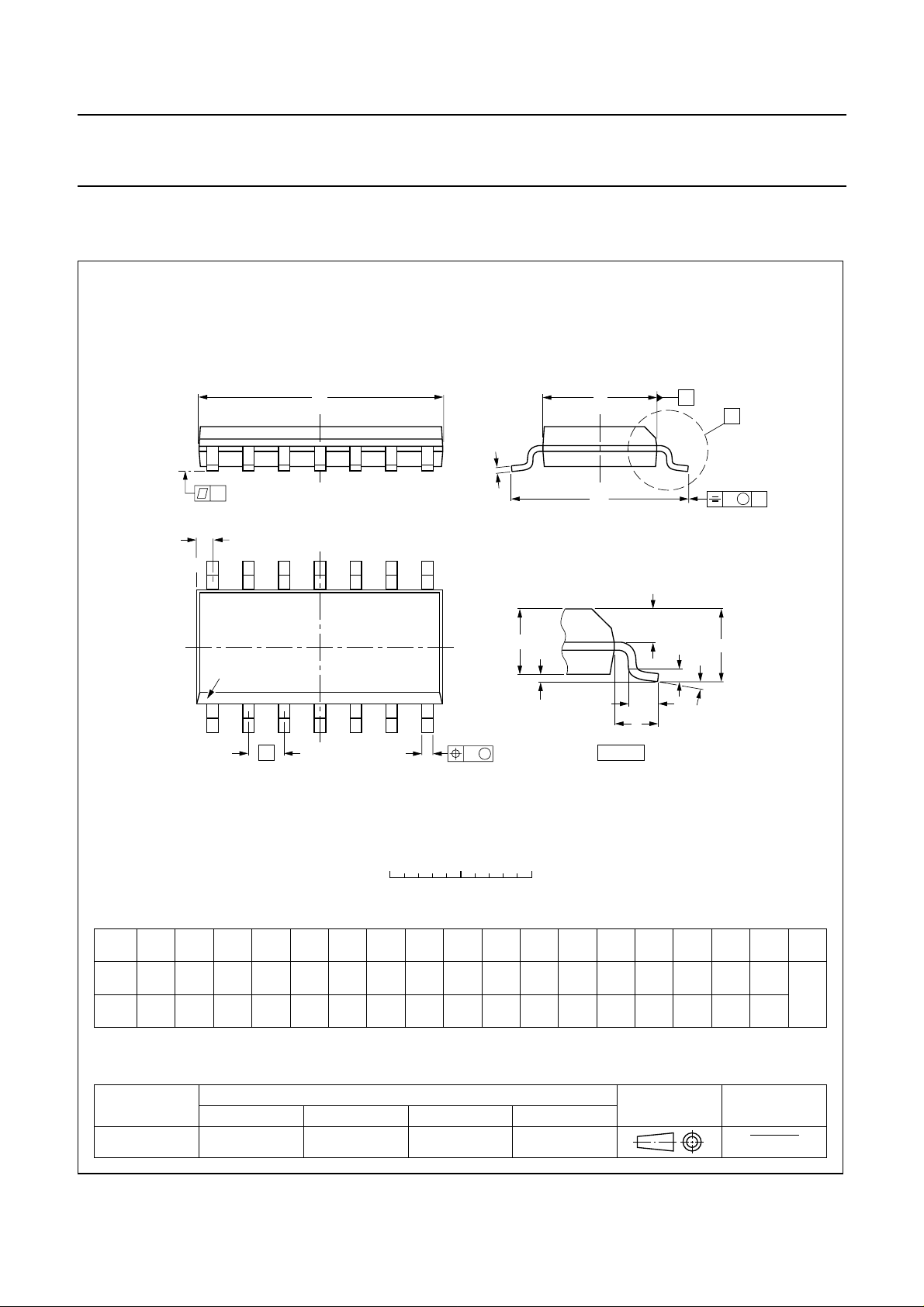

SO14: plastic small outline package; 14 leads; body width 3.9 mm

D

c

y

Z

14

pin 1 index

1

e

8

A

2

7

w M

b

p

SOT108-1

E

H

E

A

1

L

detail X

A

X

v M

A

Q

(A )

L

p

A

3

θ

0 2.5 5 mm

scale

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

mm

OUTLINE
VERSION

SOT108-1

A

max.

1.75

0.069

A2A

A

1

0.25

0.10

0.010

0.004

1.45

1.25

0.057

0.049

3

0.25

0.01

IEC JEDEC EIAJ

076E06S MS-012AB

b

p

0.49

0.36

0.019

0.014

0.25

0.19

0.0100

0.0075

UNIT

inches

Note

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

(1)E(1)

cD

8.75

8.55

0.35

0.34

REFERENCES

4.0

3.8

0.16

0.15

1.27

0.050

1999 Nov 30 10

eHELLpQZywv θ

1.05

0.041

1.0

0.4

0.039

0.016

0.7

0.25

0.6

0.028

0.01 0.004

0.024

EUROPEAN

PROJECTION

0.25 0.1

0.01

6.2

5.8

0.244

0.228

(1)

0.7

0.3

0.028

0.012

ISSUE DATE

95-01-23
97-05-22

o

8

o

0

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

TSSOP14: plastic thin shrink small outline package; 14 leads; body width 4.4 mm

D

c

y

Z

14

pin 1 index

8

17

w M

b

e

p

A

2

A

1

E

H

E

L

detail X

SOT402-1

A

X

v M

A

Q

(A )

3

A

θ

L

p

0 2.5 5 mm

scale

DIMENSIONS (mm are the original dimensions)

UNIT A1A2A

Notes

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

2. Plastic interlead protrusions of 0.25 mm maximum per side are not included.

A

max.

0.15

mm

1.10

OUTLINE
VERSION

SOT402-1 MO-153

0.05

0.95

0.80

IEC JEDEC EIAJ

0.25

b

3

p

0.30

0.19

(1)E(2) (1)

cD

0.2

5.1

4.5

0.1

REFERENCES

4.9

4.3

0.65

1999 Nov 30 11

eHELLpQZywv θ

6.6

6.2

0.75

0.50

0.4

0.3

EUROPEAN

PROJECTION

0.13 0.10.21.0

0.72

0.38

ISSUE DATE

94-07-12
95-04-04

o

8

o

0

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

SOLDERING
Introduction to soldering surface mount packages

Thistextgivesaverybriefinsighttoacomplex technology.
A more in-depth account of soldering ICs can be found in
our

“Data Handbook IC26; Integrated Circuit Packages”

(document order number 9398 652 90011).
There is no soldering method that is ideal for all surface

mount IC packages. Wave soldering isnot always suitable
for surface mount ICs, or for printed-circuit boards with
high population densities. In these situations reflow
soldering is often used.

Reflow soldering

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
totheprinted-circuitboardbyscreen printing, stencilling or
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 100 and 200 seconds depending on heating
method.

Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 230 °C.

Wave soldering

Conventional single wave soldering is not recommended
forsurfacemountdevices(SMDs)orprinted-circuitboards
with a high component density, as solder bridging and
non-wetting can present major problems.

To overcome these problems the double-wave soldering
method was specifically developed.

If wave soldering is used the following conditions must be
observed for optimal results:

• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.

• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint

longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;

– smaller than 1.27 mm, the footprint longitudinal axis

must be parallel to the transport direction of the
printed-circuit board.

The footprint must incorporate solder thieves at the
downstream end.

• Forpackageswithleadsonfoursides, the footprint must
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Manual soldering

Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.

When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.

1999 Nov 30 12

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

Suitability of surface mount IC packages for wave and reflow soldering methods

PACKAGE

WAVE REFLOW

(1)

BGA, LFBGA, SQFP, TFBGA not suitable suitable

SOLDERING METHOD

HBCC, HLQFP, HSQFP, HSOP, HTQFP, HTSSOP, SMS not suitable

(3)

PLCC

, SO, SOJ suitable suitable
LQFP, QFP, TQFP not recommended
SSOP, TSSOP, VSO not recommended

(2)

(3)(4)
(5)

suitable

suitable
suitable

Notes

1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum
temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the

“Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”

.

2. These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink
(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).

3. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.
The package footprint must incorporate solder thieves downstream and at the side corners.

4. Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8 mm;
it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

5. Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is
definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1999 Nov 30 13

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

NOTES

1999 Nov 30 14

Philips Semiconductors Product specification

8-input NAND gate 74AHC30; 74AHCT30

NOTES

1999 Nov 30 15

Philips Semiconductors – a w orldwide compan y

Argentina: see South America
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]

Hungary: seeAustria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips DevelopmentCorporation, SemiconductorsDivision,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS,Via Casati, 23 - 20052 MONZA (MI),
Tel. [phone], Fax [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

1999

Internet: http://www.semiconductors.philips.com

68

Printed in The Netherlands 245002/01/pp16 Date of release:1999 Nov 30 Document order number: 9397 750 06465
