Datasheet 74ACTQ74SJX, 74ACTQ74SJ, 74ACTQ74SCX, 74ACTQ74SC, 74ACTQ74PC Datasheet (Fairchild Semiconductor)
...Page 1
© 1999 Fairchild Semiconductor Corporation DS010920 www.fairchildsemi.com
March 1993
Revised November 1999

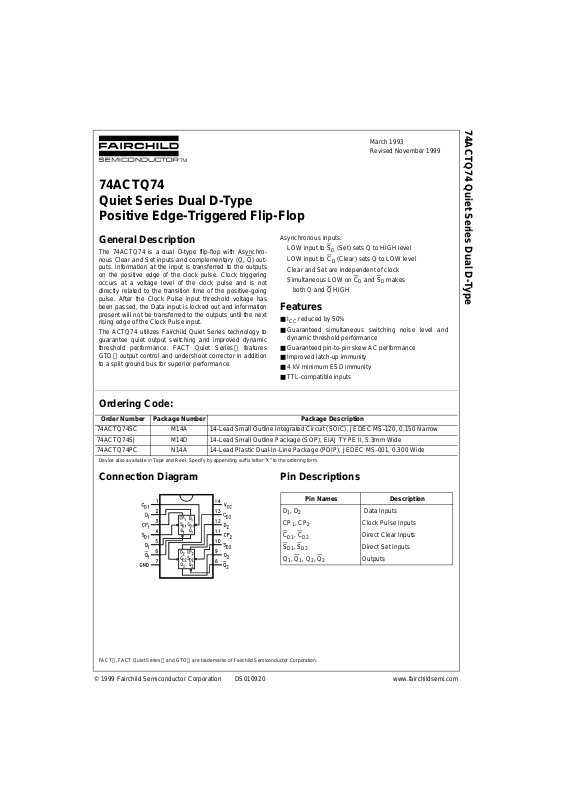

74ACTQ74 Quiet Series Dual D-Type
74ACTQ74
Quiet Series Dual D-Type
Positive Edge-Triggered Flip-Flop
General Description
The 74ACTQ74 is a dual D-type flip-flop with Asynchronous Clear and Set inputs and complem entary (Q, Q
) outputs. Information at th e input is transferred to the outputs
on the positive edge of the clock pulse. Clock triggering
occurs at a voltage level of the clock pulse and is not
directly related t o the transition ti me of the positive-go ing
pulse. After the Clock Pulse input threshold voltage has
been passed, the Data input is lock ed out and informat ion
present will not be transferred to the out puts until the n ext
rising edge of the Clock Pulse input.
The ACTQ74 utilizes Fairchild Quiet Series technology to
guarantee quiet output switching and improved dynamic
threshold performance. FACT Quiet Series features
GTO output control and unde rshoot corre ctor in add ition
to a split ground bus for superior performance.
Asynchronous Inputs:
LOW input to S
D
(Set) sets Q to HIGH level
LOW input to C
D
(Clear) sets Q to LOW level
Clear and Set are independent of clock
Simultaneous LOW on C
D
and SD makes
both Q and Q
HIGH
Features
■ ICC reduced by 50%
■ Guaranteed simultaneous switching noise level and
dynamic threshold performan ce
■ Guarante ed pin-to-pin skew AC performance
■ Improved latch-up immunity
■ 4 kV minimum ESD immunity
■ TTL-compatible inputs
Ordering Code:
Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering form.
Connection Diagram Pin Descriptions
FACT, FACT Quiet Series and GTO are trademarks of Fairchild Semiconductor Corporation.
Order Number Package Number Package Description
74ACTQ74SC M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
74ACTQ74SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
74ACTQ74PC N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Pin Names Description
D
1
, D
2
Data Inputs
CP
1
, CP
2
Clock Pulse Inputs
C
D1
, C
D2
Direct Clear Inputs
S
D1
, S
D2
Direct Set Inputs
Q
1
, Q1, Q2, Q
2
Outputs
Page 2
www.fairchildsemi.com 2
74ACTQ74
Truth Table
(Each Half)
H = HIGH Voltage Level
L = LOW Voltage Level
X = Immaterial
= LOW-to-HIGH Clo c k Transi ti on
Q
0(Q0
) = Previous Q(Q) before LOW-to-HIGH Transition of Clock
Logic Symbols
IEEE/IEC
Block Diagram
Please note that this diagram is provided only for the understanding of logic operations and should not be used to estimate propagation delays.
Inputs Outputs
S
D
C
D
CP D Q Q
LHXXHL
HLXXLH
LLXXHH
HH
HHL
HH
LLH
HHLXQ
0
Q
0
Page 3
3 www.fairchildsemi.com
74ACTQ74
Absolute Maximum Ratings(Note 1) Recommended Operating
Conditions
Note 1: Absolute maximu m rating s are thos e values be yond wh ich dam-
age to the device may occur. The databook specifications should be met,
without exception, to ensure that the system design is reliable over its
power supply, temperature, an d output/input loading variables. Fair child
does not re c om m end operation of FACT circuits outside datab ook specifications.
DC Electrical Characteristics
Note 2: All outputs loaded; thres holds on input associate d w it h output under test.
Note 3: Maximum test duration 2.0 ms, one output loaded at a time.
Note 4: PDIP package.
Note 5: Max number of outputs defined as (n). Data inputs are driven 0V to 3V. One output @ GND.
Note 6: Max number of data input s (n ) s w it c hing. (n − 1) inputs switching 0V to 3V. Input-under-test switching:
3V to threshold (V
ILD
), 0V to threshold (V
IHD
), f = 1 MHz.
Supply Voltage (VCC) −0.5V to +7.0V
DC Input Diode Current (I
IK
)
V
I
= −0.5V −20 mA
V
I
= VCC + 0.5V +20 mA
DC Input Voltage (V
I
) −0.5V to VCC + 0.5V
DC Output Diode Current (I
OK
)
V
O
= −0.5V −20 mA
V
O
= VCC + 0.5V +20 mA
DC Output Voltage (V
O
) −0.5V to VCC + 0.5V
DC Output Source
or Sink Current (I
O
) ± 50 mA
DC V
CC
or Ground Current
per Output Pin (I
CC
or I
GND
) ± 50 mA
Storage Temperature (T
STG
) −65°C to +150°C
DC Latch-Up Source or Sink Current ± 300 mA
Junction Temperature (T
J
) PDIP 140°C
Supply Voltage (V
CC
) 4.5V to 5.5V
Input Voltage (V
I
) 0V to V
CC
Output Voltage (VO) 0V to V
CC
Operating Temperature (TA) −40°C to +85°C
Minimum Input Edge Rate ∆V/∆t
V
IN
from 0.8V to 2.0V
V
CC
@ 4.5V, 5.5V 125 mV/ns
Symbol Parameter
V
CC
TA = +25°C TA = −40°C to +85°C
Units Conditions
(V) Typ Guaranteed Limits
V
IH
Minimum HIGH Level 4.5 1.5 2.0 2.0
V
V
OUT
= 0.1V
Input Voltage 5.5 1.5 2.0 2.0 or VCC − 0.1V
V
IL
Maximum LOW Level 4.5 1.5 0.8 0.8
V
V
OUT
= 0.1V
Input Voltage 5.5 1.5 0.8 0.8 or VCC − 0.1V
V
OH
Minimum HIGH Level 4.5 4.49 4.4 4.4
VI
OUT
= −50 µA
Output Voltage 5.5 5.49 5.4 5.4
4.5 3.86 3.76
V
VIN = V
IL
or V
IH
IOH = −24 mA
IOH = −24 mA (Note 2)
5.5 4.86 4.76
V
OL
Maximum LOW Level 4.5 0.001 0.1 0.1
VI
OUT
= 50 µA
Output Voltage 5.5 0.001 0.1 0.1
4.5 0.36 0.44
V
VIN = VIL or V
IH
IOL = 24 mA
I
OL
= 24 mA (Note 2)
5.5 0.36 0.44
I
IN
Maximum Input Leakage Current 5.5 ± 0.1 ± 1.0 µAVI = VCC, GND
I
OZ
Maximum 3- STATE
5.5 ± 0.5 ± 5.0 µA
VI = VIL, V
IH
Leakage Current VO = VCC, GND
I
CCT
Maximum ICC/Input 5.5 0.6 1.5 mA VI = VCC − 2.1V
I
OLD
Minimum Dynamic 5.5 75 mA V
OLD
= 1.65V Max
I
OHD
Output Current (Note 2) 5.5 −75 mA V
OHD
= 3.85V Min
I
CC
Maximum Quiescent Supply Current 5.5 2.0 20.0 µAVIN = VCC or GND
V
OLP
Quiet Output Maximum
5.0 1.1 1.5 V
Figure 1, Figure 2
Dynamic V
OL
(Note 4)(Note 5)
V
OLV
Quiet Output Minimum
5.0 −0.6 −1.2 V
Figure 1, Figure 2
Dynamic V
OL
(Note 4)(Note 5)
V
IHD
Minimum HIGH Level Dynamic Input Voltage 5.0 1.9 2.2 V (Note 4)(Note 6)
V
ILD
Maximum LOW Level Dynamic Input Voltage 5.0 1.2 0.8 V (Note 4)(Note 6)
Page 4
www.fairchildsemi.com 4
74ACTQ74
AC Electrical Characteristics
Note 7: Voltage Range 5.0 is 5.0V ± 0.5V.
Note 8: Skew is defined as the absolute value of the difference between the actual propagation delay for any two separate outputs of the same device. The
specification applies to an y outputs switching in the same direction, either HIGH-to-LOW (t
OSHL
) or LOW-to-HIGH (t
OSLH
). Parameter guarant eed by design.
AC Operating Requirements
Note 9: Voltage Range 5.0 is 5.0V ± 0.5V
Capacitance
Symbol Parameter
V
CC
TA = +25°C T
A
= −40°C to +85°C
Units
(V)
C
L
= 50 pF CL = 50 pF
(Note 7) Min Typ Max Min Max
f
MAX
Maximum Clock Frequency 5.0 145 200 125 MHz
t
PLH
Propagation Delay
5.0 3.0 7.0 8.5 3.0 9.0 ns
t
PHL
CDn or SDn to Qn or Q
n
t
PLH
Propagation Delay
5.0 3.0 6.5 8.0 3.0 8.6 ns
t
PHL
CPn to Qn or Q
n
t
OSLH
Output to Output
5.0 0.5 1.0 1.0 ns
t
OSHL
Skew (Note 8)
Symbol Parameter
V
CC
TA = +25°CT
A
= −40°C to +85°C
Units
(V)
CL = 50 pF CL = 50 pF
(Note 9) Typ Guaranteed Minimum
t
S
Setup Time, HIGH or LOW
5.0 1.0 3.0 3.0 ns
Dn to CP
n
t
H
Hold Time, HIGH or LOW
5.0 −0.5 1.5 1.5 ns
Dn to CP
n
t
W CP
n
or CDn or S
Dn
5.0 3.0 4.0 4.0 ns
Pulse Width
t
REC
Recovery Time
5.0 −2.5 1.5 1.5 ns
C
Dn
or SDn to CP
Symbol Parameter Typ Units Conditions
C
IN
Input Capacitance 4.5 pF VCC = OPEN
C
PD
Power Dissipation Capacitance 60.0 pF VCC = 5.0V
Page 5
5 www.fairchildsemi.com
74ACTQ74
FACT Noise Characteristics
The setup of a noise characteristics measurement is critical
to the accuracy and repeatability of the tests. The following
is a brief description of the setup used to measure the
noise characteristics of FACT.
Equipment:
Hewlett Packard Model 8180A Word Generator
PC-163A Test Fixture
Tektronics Model 7854 Oscilloscope
Procedure:
1. Verify Test Fixture Loading: Standard Load 50pF,
500Ω.
2. Deskew the HFS ge nerator so that no two channels
have greater than 150 ps skew between them. This
requires that the oscilloscope be deskewed first. It is
important to deskew the HFS generator channels
before testing. This will ensure that the outputs switch
simultaneously.
3. Terminate all inputs and outputs to ensure proper loading of the outputs and that the input levels are at the
correct voltage.
4. Set the HFS gener ator to toggle al l but on e outpu t at a
frequency of 1 MHz. Greater frequencies will increase
DUT heating and effect the results of the measurement.
V
OHV
and V
OLP
are measured with re s pect to ground reference.
Input pulses have th e following characteristics: f = 1MHz, t
r
= 3ns,
t
f
= 3 ns, skew < 150 ps.

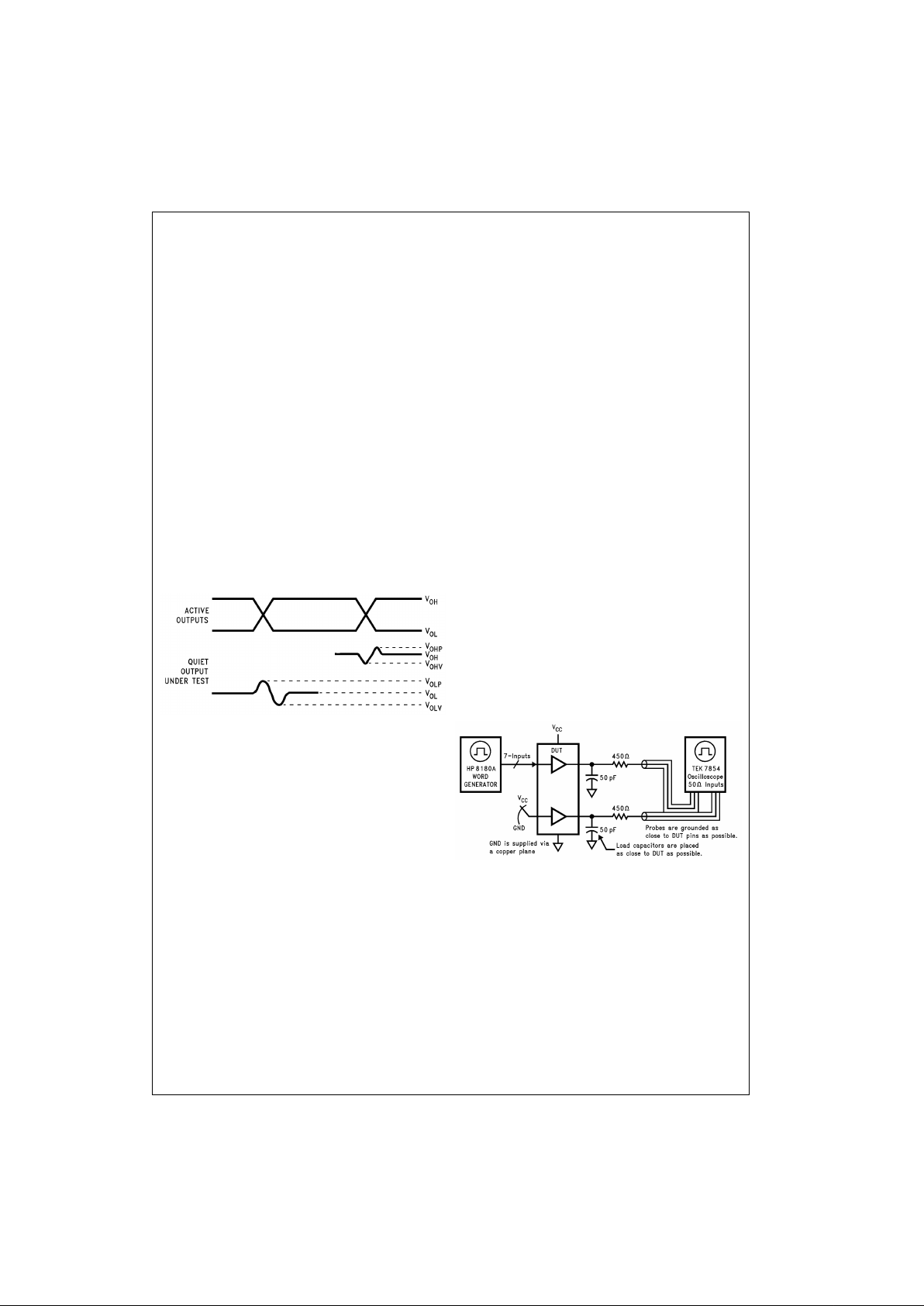

FIGURE 1. Quiet Output Noise Voltage Waveforms
5. Set the HFS gen erator input le vels at 0V LOW and 3V
HIGH for ACT devices and 0V LOW and 5V HIGH for
AC devices. Verify levels with an oscilloscope.
V
OLP/VOLV
and V
OHP/V OHV
:
• Determine the quiet output pin that demonstrates the
greatest noise levels. The worst case pin will us ually be
the furthest from th e g rou nd pin . Monitor the output vol tages using a 50Ω coaxial ca ble plug ged i nto a stand ard
SMB type connector on the test fixture. Do not use an
active FET probe.
• Measure V
OLP
and V
OLV
on the quiet output du ring the
worst case transition for active and enable. Measure
V
OHP
and V
OHV
on the quiet output during the worst
case transition for active and enable.
• Verify that the GND refer ence recorded on the oscilloscope has not drifted to ensure the accuracy and repeatability of the measurements.
V
ILD
and V
IHD
:
• Monitor one of the switching outputs using a 50Ω coaxial
cable plugged into a st andard SMB type connector on
the test fixture. Do not use an active FET probe.
• First increase the input LOW voltage level, V
IL
, until the
output begins to oscillate or steps o ut a min of 2 ns.
Oscillation is defined as noise on the output LOW level
that exceeds V
IL
limits, or on output HIGH levels that
exceed V
IH
limits. The input LOW voltage level at which
oscillation occurs is defined as V
ILD
.
• Next decrease the input HIGH voltage level, V
IH
, until
the output begins to osci llate or steps o ut a m in o f 2 ns .
Oscillation is defined as noise on the output LOW level
that exceeds V
IL
limits, or on output HIGH levels that
exceed V
IH
limits. The input HIGH voltage level at which
oscillation occurs is defined as V
IHD
.
• Verify that the GND refer ence recorded on the oscilloscope has not drifted to ensure the accuracy and repeatability of the measurements.
FIGURE 2. Simultaneous Switching Test Circuit
Page 6
www.fairchildsemi.com 6
74ACTQ74

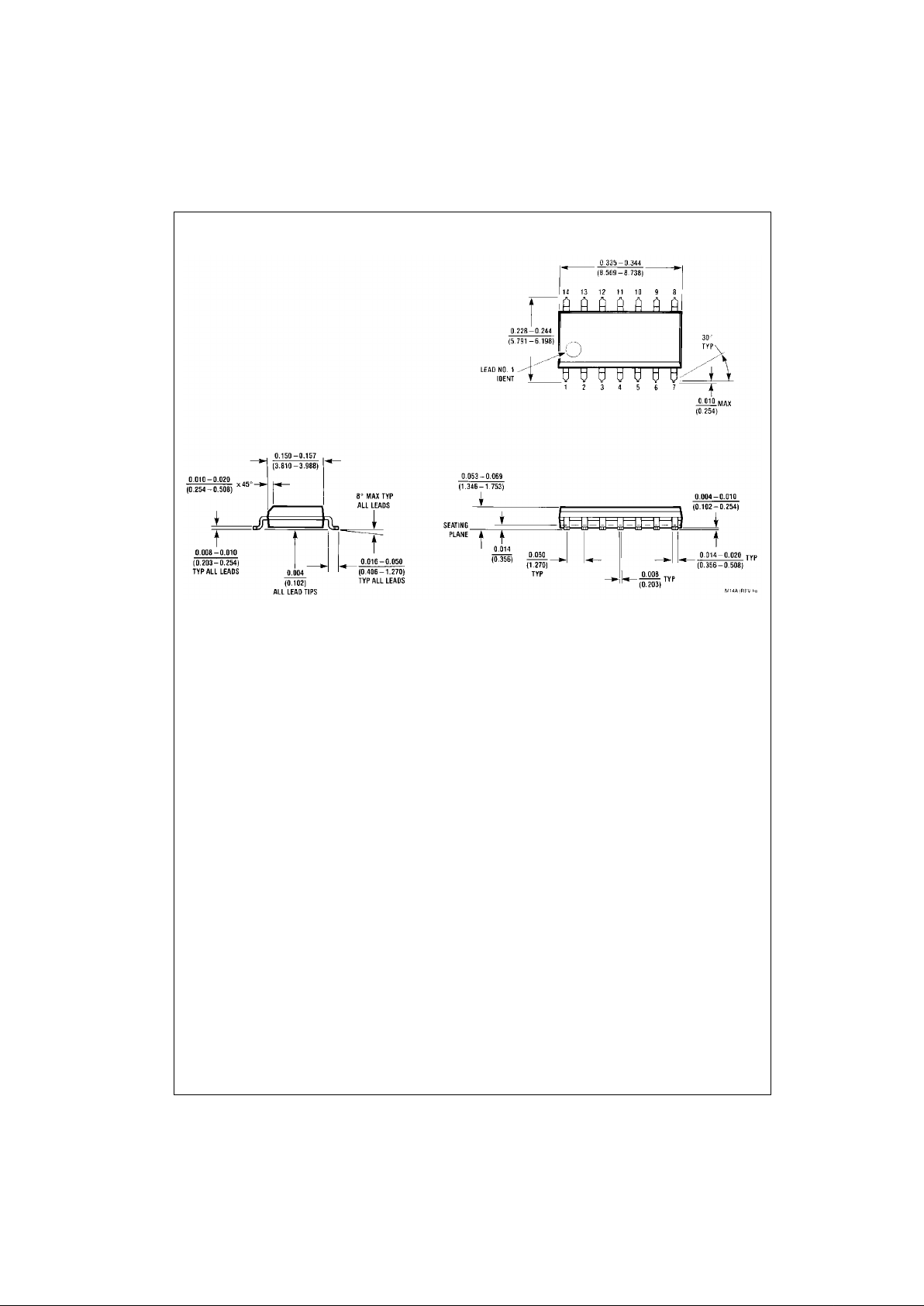

Physical Dimensions inches (millimeters) unless otherwise noted
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
Package Number M14A
Page 7
7 www.fairchildsemi.com
74ACTQ74

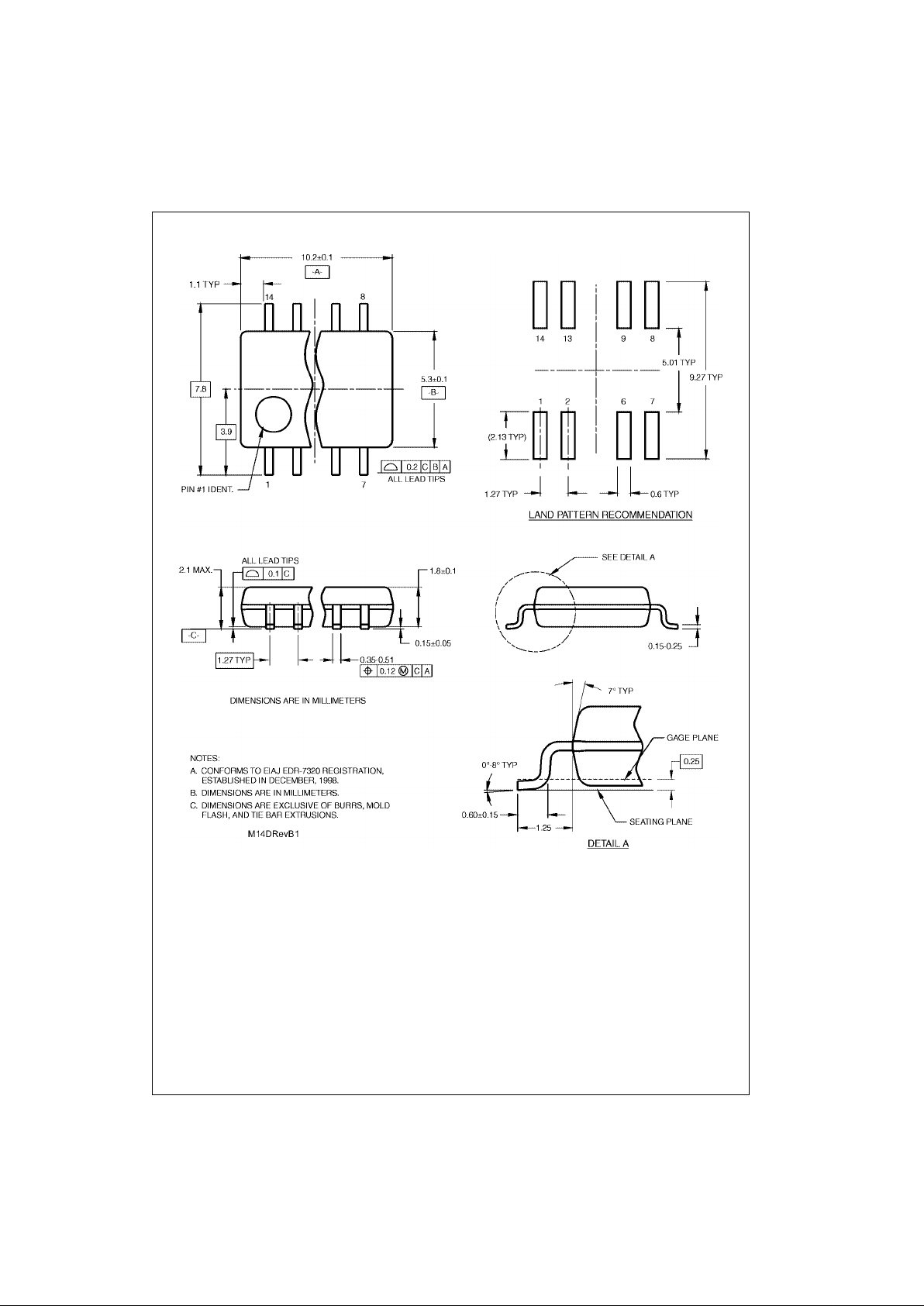

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
Package Number M14D
Page 8
www.fairchildsemi.com 8
74ACTQ74 Quiet Series Dual D-Type
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

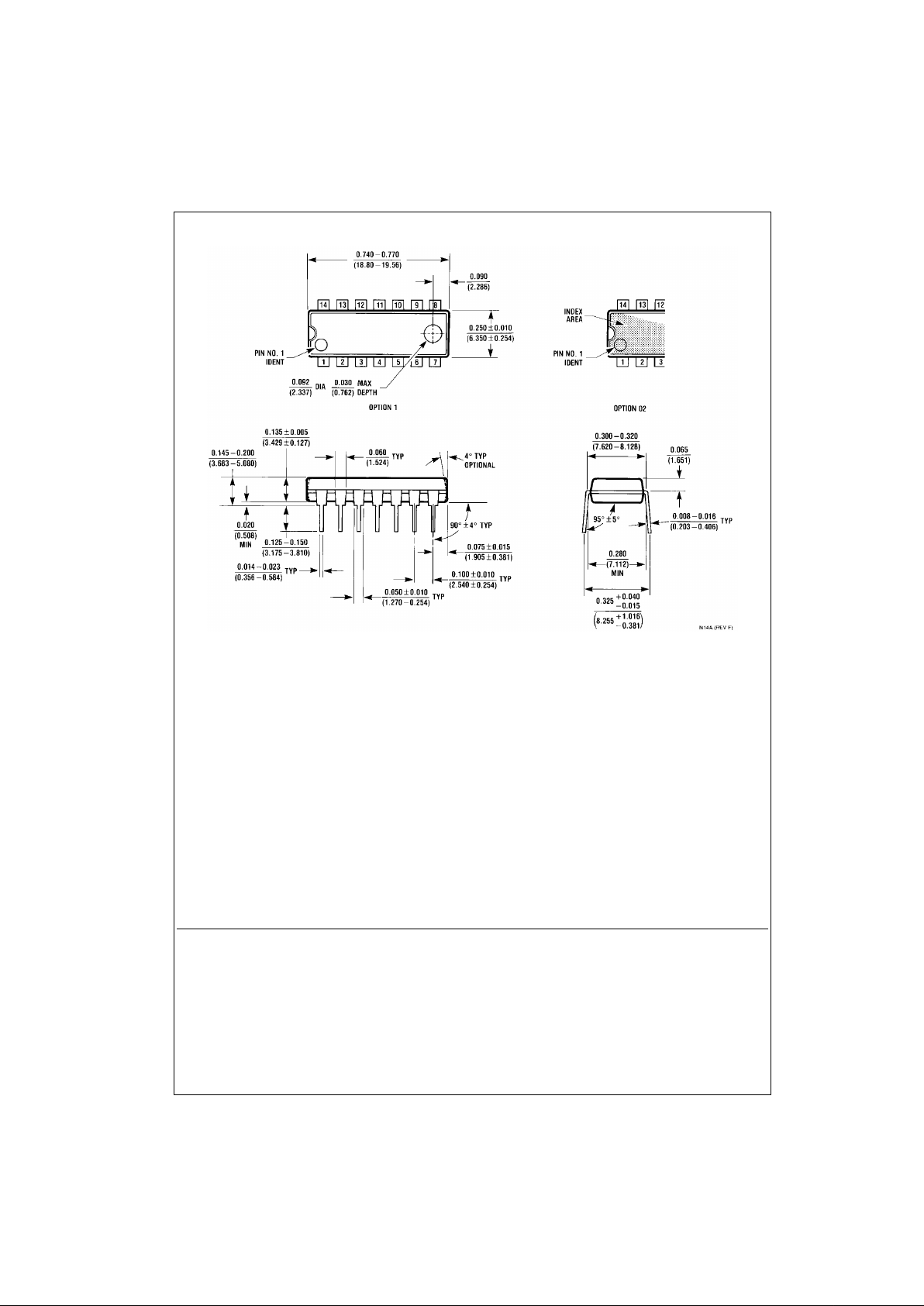

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N14A
Fairchild does not assume any responsibility for use of any circuitr y described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or syste ms
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be reasonably expected to result in a significant inju ry to the
user.
2. A critical component in any compon ent of a lif e supp ort
device or system whose failure t o perform can be reasonably expected to ca use the failure of the life supp ort
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
Loading...
