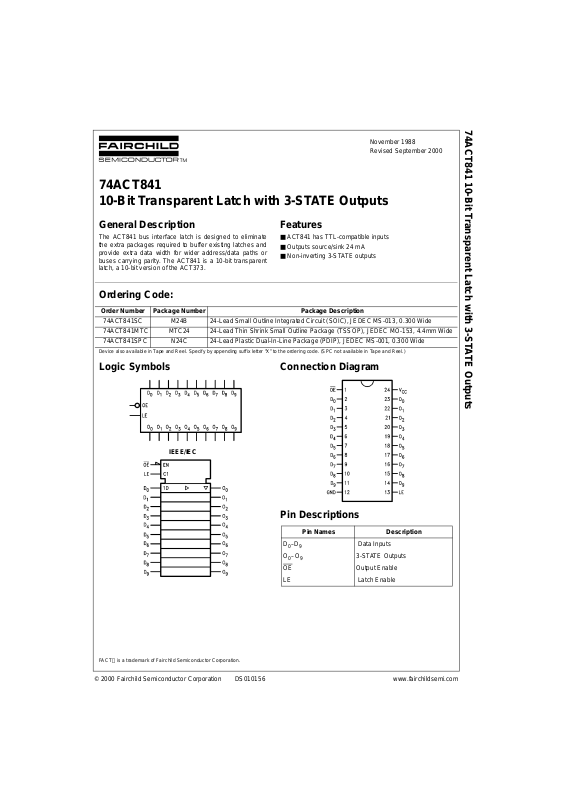

74ACT841 10-Bit Transparent Latch with 3-STATE Outputs

General Description

The ACT841 bus inter face latch is designed to e liminate the extra packages required to buffer existing latch es and provide extra data width for wider address/data paths or buses carrying parity. The ACT841 is a 10-bit transpare nt latch, a 10-bit version of the ACT373.

Features

■ ACT841 has TTL-compatible inputs

■ Outputs source/sink 24 mA

■ Non-inverting 3-STATE outputs

Ordering Code:

Device also available in Tape and Reel. Specify by appending s uffix let te r “X” to the ordering code. (SPC not available in Tape and Reel.)

Logic Symbols

IEEE/IEC

Connection Diagram

Pin Descriptions

FACT is a trademark of Fairchild Semiconductor Corporation.

Order Number Package Number Package Description

74ACT841SC M24B 24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide 74ACT841MTC MTC24 24-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide 74ACT841SPC N24C 24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Pin Names Description

D

0–D9

Data Inputs

O

0–O9

3-STATE Outputs

OE

Output Enable

LE Latch Enable

www.fairchildsemi.com 2

74ACT841

Functional Description

The ACT841 consists of ten D-type latches with 3-STATE outputs. The flip-flops a ppe ar tran spa ren t to th e da ta w he n Latch Enable (LE) is HIGH. This allows asynchronous operation, as the output transition follows the data in transition.

On the LE HIGH-to-LOW transition, the data that meets the setup and hold time is latch ed. Data appears on the bus when the Output Enable (OE

) is LOW. When OE is HIGH

the bus output is in the high impedance state.

Function Table

H = HIGH Voltage Level L = LOW Voltage Level X = Immaterial Z = High Impedance NC = No Change

Logic Diagram

Please note that this diagram is provided only for the understanding of logic operations and should not be used to estimate propagation delays.

Inputs Internal Output

Function

OE

LE D Q O

X X X X Z High Z H H L L Z High Z H H H H Z High Z H L X NC Z Latched L H L L L Transparent L H H H H Transparent L L X NC NC Latched

3 www.fairchildsemi.com

74ACT841

Absolute Maximum Ratings(Note 1) Recommended Operating

Conditions

Note 1: Absolute max imum ratings are those values beyond w hich damage

to the device may occu r. The databook spe cificatio ns shou ld be met, wit hout exception, to ensure that the system de sign is relia ble over its p ower supply, temperature, and output/input loading variables. Fairchild does not recommend operation of FACT circuits outside databook specif ic at ions.

DC Electrical Characteristics

Note 2: All outputs loaded; thres holds on input associate d w it h output under test. Note 3: Maximum test duration 2.0 ms, one output loaded at a time.

Supply Voltage (VCC) −0.5V to +7.0V DC Input Diode Current (I

IK

)

V

I

= −0.5V −20 mA

V

I

= VCC + 0.5V +20 mA

DC Input Voltage (V

I

) −0.5V to VCC + 0.5V

DC Output Diode Current (I

OK

)

V

O

= −0.5V −20 mA

V

O

= VCC + 0.5V +20 mA

DC Output Voltage (V

O

) −0.5V to VCC + 0.5V

DC Output Source or Sink Current (I

O

) ±50 mA

DC V

CC

or Ground Current

per Output Pin (I

CC

or I

GND

) ±50 mA

Storage Temperature (T

STG

) −65°C to +150°C

Junction Temperature (T

J

)

PDIP 140

°C

Supply Voltage (V

CC

) 4.5V to 5.5V

Input Voltage (V

I

) 0V to V

CC

Output Voltage (VO) 0V to V

CC

Operating Temperature (TA) −40°C to +85°C Minimum Input Edge Rate (

∆V/∆t) 125 mV/ns

V

IN

from 0.8V to 2.0V

V

CC

@ 4.5V, 5.5V

Symbol Parameter

V

CC

TA = +25°CT

A

= −40°C to +85°C

Units Conditions

(V) Typ Guaranteed Limits

V

IH

Minimum HIGH Level 4.5 1.5 2.0 2.0

V

OUT

= 0.1V

Input Voltage 5.5 1.5 2.0 2.0 or VCC − 0.1V

V

IL

Maximum LOW Level 4.5 1.5 0.8 0.8

V

OUT

= 0.1V

Input Voltage 5.5 1.5 0.8 0.8 or VCC − 0.1V

V

OH

Minimum HIGH Level 4.5 4.49 4.4 4.4

V I

OUT

= −50 µA

Output Voltage 5.5 5.49 5.4 5.4

VIN = VIL or V

IH

4.5 3.86 3.76 V IOH = −24 mA

5.5 4.86 4.76 IOH = −24 mA (Note 2)

V

OL

Maximum LOW Level 4.5 0.001 0.1 0.1

V I

OUT

= 50 µA

Output Voltage 5.5 0.001 0.1 0.1

VIN = VIL or V

IH

4.5 0.36 0.44 V IOL = 24 mA

5.5 0.36 0.44 I

OL

= 24 mA (Note 2)

I

IN

Maximum Input

5.5 ±0.1 ±1.0 µA V

I

= VCC, GND

Leakage Current

I

OZ

Maximum 3- STATE

5.5 ±0.5 ±5.0 µA

VI = VIL, V

IH

Leakage Current VO = VCC, GND

I

CCT

Maximum

5.5 0.6 1.5 µA VI = VCC − 2.1V

ICC/Input

I

OLD

Minimum Dynamic 5.5 75 mA V

OLD

= 1.65V Max

I

OHD

Output Current (Note 3) 5.5 −75 mA V

OHD

= 3.85V Min

I

CC

Maximum Quiescent

5.5 8.0 80.0 µA

VIN = V

CC

Supply Current or GND

www.fairchildsemi.com 4

74ACT841

AC Electrical Characteristics

Note 4: Voltage Range 5.0 is 5.0V ± 0.5V

AC Operating Requirements

Note 5: Voltage Range 5.0 is 5.0V ± 0.5V

Capacitance

V

CC

TA = +25°CT

A

= −40°C to +85°C

Symbol Parameter (V)

C

L

= 50 pF CL = 50 pF

Units

(Note 4) Min Typ Max Min Max

t

PLH

Propagation Delay

5.0 2.0 5.5 9.5 2.0 10.0 ns

D

n

to O

n

t

PHL

Propagation Delay

5.0 2.0 5.5 9.5 2.0 10.0 ns

D

n

to O

n

t

PLH

Propagation Delay

5.0 2.0 5.5 9.0 2.0 10.0 ns

LE to O

n

t

PHL

Propagation Delay

5.0 2.0 5.5 9.0 2.0 10.0 ns

LE to O

n

t

PZH

Output Enable Time

5.0 2.0 5.5 9.5 2.0 10.5 ns

OE

to O

n

t

PZL

Output Enable Time

5.0 2.0 5.5 9.5 2.0 10.5 ns

OE to O

n

t

PHZ

Output Disable Time

5.0 2.0 6.0 10.5 2.0 11.0 ns

OE

to O

n

t

PLZ

Output Disable Time

5.0 2.0 6.0 10.5 2.0 11.0 ns

OE

to O

n

V

CC

TA = +25°CT

A

= −40°C to +85°C

Symbol Parameter (V)

C

L

= 50 pF CL = 50 pF

Units

(Note 5) Typ Guaranteed Minimum

t

S

Setup Time, HIGH or LOW

5.0 −0.5 0.5 1.0 ns

D

n

to LE

t

H

Hold Time, HIGH or LOW

5.0 0.5 2.0 2.0 ns

D

n

to LE

t

W

LE Pulse Width, HIGH 5.0 2.0 3.5 3.5 ns

Symbol Parameter Typ Units Conditions

C

IN

Input Capacitance 4.5 pF VCC = OPEN

C

PD

Power Dissipation Capacitance 44 pF VCC = 5.0V

5 www.fairchildsemi.com

74ACT841

Physical Dimensions inches (millimeters) unless otherwise noted

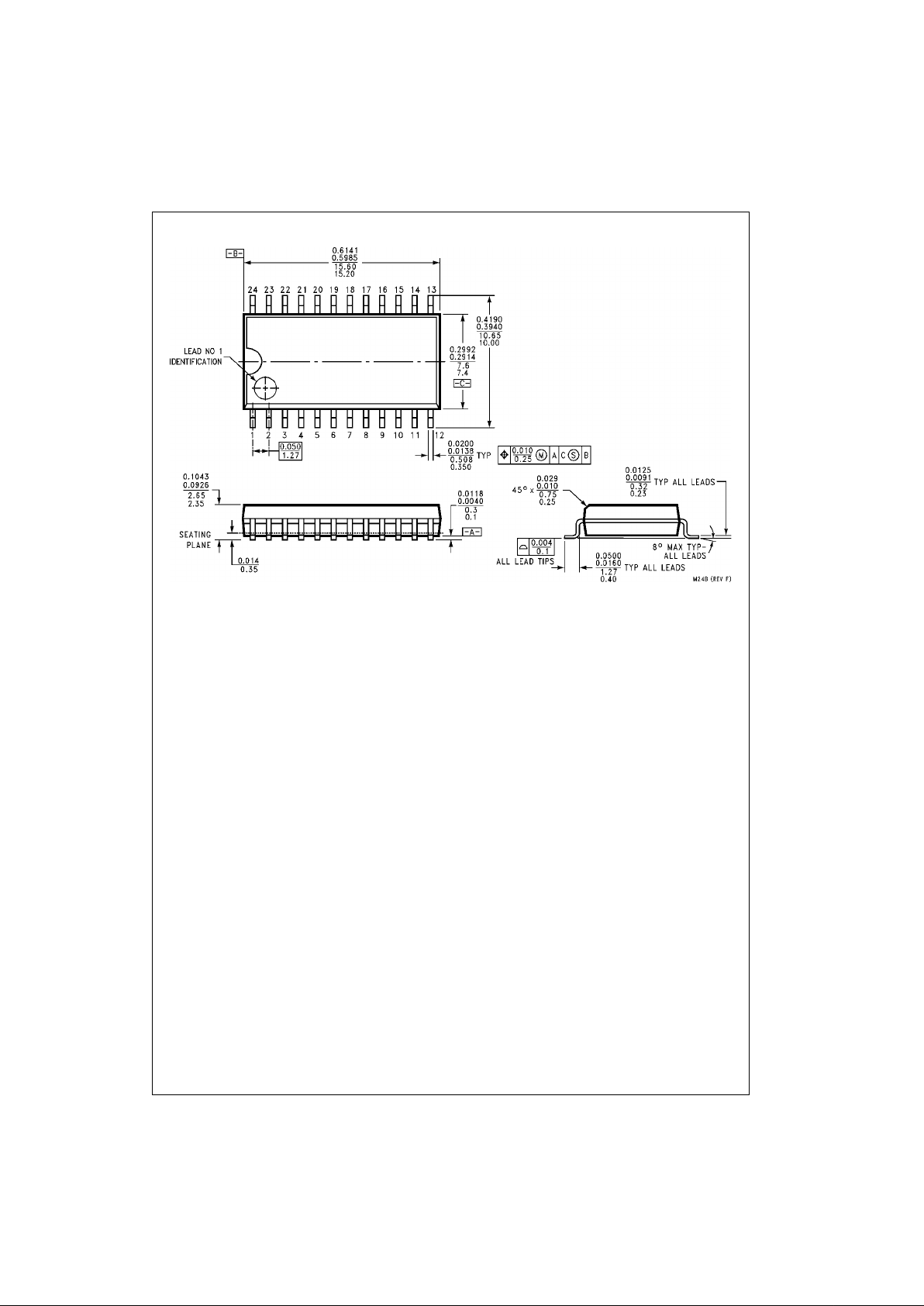

24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide

Package Number M24B

www.fairchildsemi.com 6

74ACT841

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

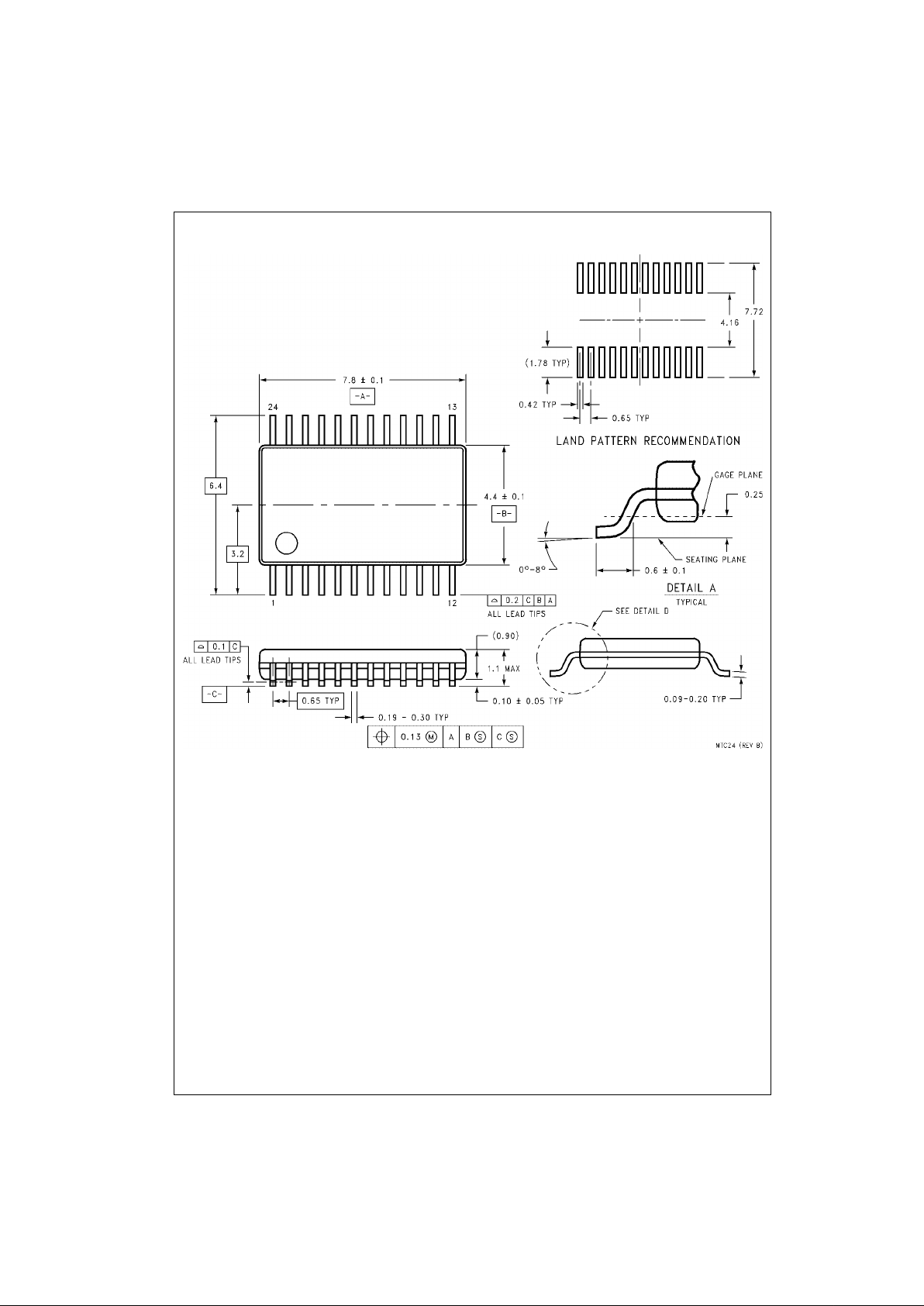

24-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

Package Number MTC24

7 www.fairchildsemi.com

74ACT841 10-Bit Transparent Latch with 3-STATE Outputs

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

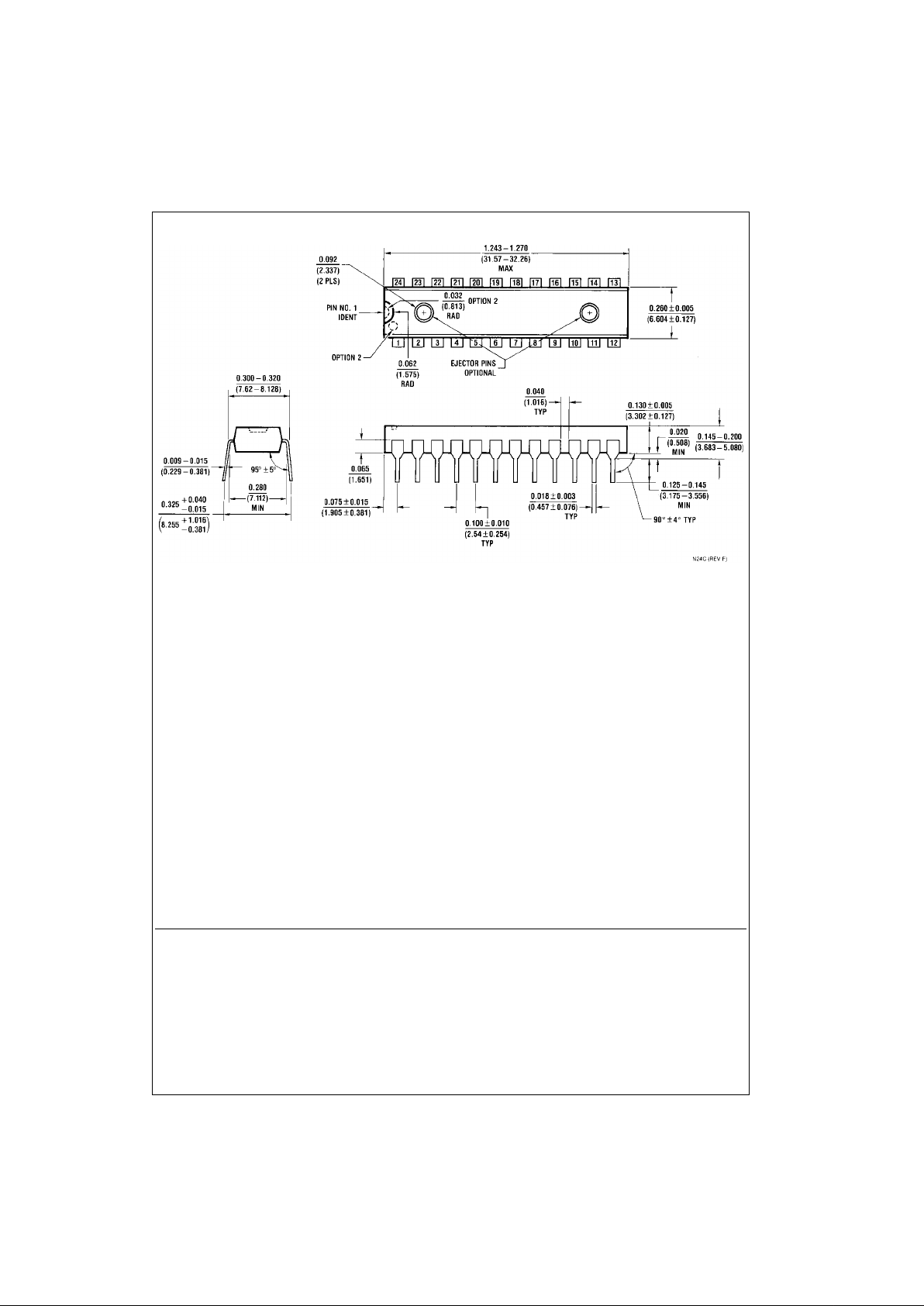

24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Package Number N24C
