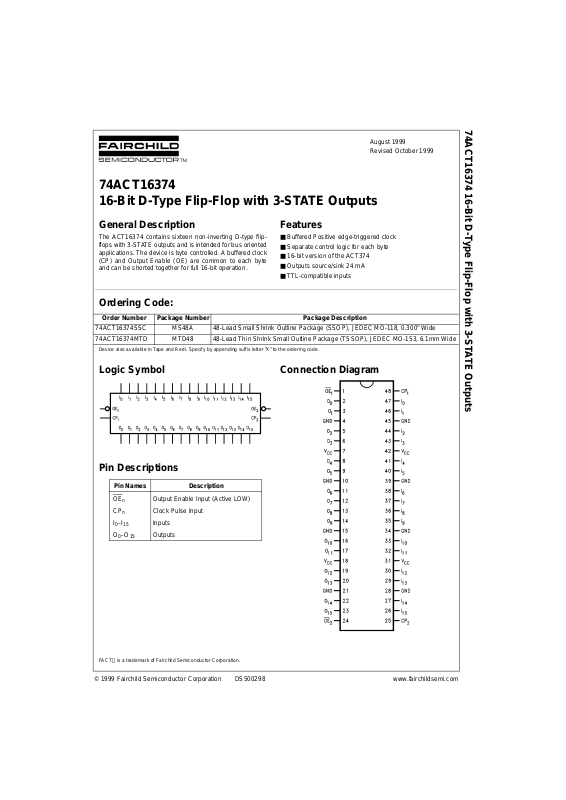

74ACT16374 16-Bit D-Type Flip-Flop with 3-STATE Outputs
74ACT16374
16-Bit D-Type Flip-Flop with 3-STATE Outputs
General Description
The ACT16374 conta ins sixteen non-inverti ng D-type flipflops with 3-STATE outputs and is intended for bus oriented
applications. The device is byte controlled. A buffered clock
(CP) and Output Enable (OE) are common to each byte
and can be shorted together for full 16-bit operation.
Features
■ Buffered Positive edge-triggered clock
■ Separate control logic for each byte
■ 16-bit version of the ACT374
■ Outputs source/sink 24 mA
■ TTL-compatible inputs
Ordering Code:
Device also available in Tape and Reel. Specify by appending s uffix let te r “X” to the ordering code.
Logic Symbol
Pin Descriptions
Connection Diagram
FACT is a trade m ark of F airchild Semicondu ctor Corporation.
Order Number Package Number Package Description
74ACT16374SSC MS48A 48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300” Wide
74ACT16374MTD MTD48 48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Pin Names Description
OE
n
Output Enable Input (Active LOW)
CP
n
Clock Pulse Input
I
0–I15
Inputs
O
0–O15
Outputs
Page 2
www.fairchildsemi.com 2
74ACT16374
Functional Description
The ACT16374 consists of sixteen edge-triggered flip-flops
with individual D-type inputs and 3-STATE true outputs.
The device is byte controlled with each byte functioning
identically, but independent of the ot her. The control pins
can be shorted together to obtain full 16-bit operation.
Each byte has a buffered clock and buffered Output Enable
common to all flip-flo ps within that byte. The description
which follows applies to each byte. Each flip-flop will store
the state of their individual D inputs that meet the setup and
hold time requirem ents on the LOW-to-HIG H Clock (CP
n
)
transition. With the Output Enable (OE
n
) LOW, the con-
tents of the flip-flops a re available at the outputs. When
OE
n
is HIGH, the outputs go to the high imped ance state.
Operation of the OE
n
input does not affect the st ate of the
flip-flops.
Tr uth Tables
H = HIGH Voltage Level
L = LOW Voltage Level
X= Immaterial
Z = HIGH Impedance
= LOW-to-HIGH Transition
Logic Diagrams
Byte 1 (0:7)
Byte 2 (8:15)
Inputs Outputs
CP
1
OE
1
I0–I
7
O0–O
7
LH H
LL L
L L X (Previous)
XHX Z
Inputs Outputs
CP
2
OE
2
I8–I
15
O8–O
15
LH H
LL L
L L X (Previous)
XHX Z
Page 3
3 www.fairchildsemi.com
74ACT16374
Absolute Maximum Ratings(Note 1) Recommended Operating
Conditions
Note 1: Absolute maximum ratings are those values beyond which damage
to the device may occur. The databook specifications should be met, without exception to ensure that the system design is reliable over its power
supply, temperature, and ou tput/inp ut load ing vari ables. Fairchild does n ot
recommend operat ion of FACT circuits outside da t abook specifications.
DC Electrical Characteristics
Note 2: All outputs loaded; thresholds assoc iated with output under t es t .
Note 3: Maximum test duration 2.0 ms; one output loaded at a time.
Supply Voltage (VCC) −0.5V to +7.0V
DC Input Diode Current (I
IK
)
V
I
= −0.5V −20 mA
V
I
= VCC + 0.5V +20 mA
DC Output Diode Current (I
OK
)
V
O
= −0.5V −20 mA
V
O
= VCC + 0.5V +20 mA
DC Output Voltage (V
O
) −0.5V to VCC + 0.5V
DC Output Source/Sink Current (I
O
) ±50 mA
DC V
CC
or Ground Current
per Output Pin ± 50 mA
Storage Temperature −65°C to +150°C
Supply Voltage (V
CC
) 4.5V to 5.5V
Input Voltage (V
I
)0V to V
CC
Output Voltage (VO)0V to V
CC
Operating Temperature (TA) −40°C to +85°C
Minimum Input Edge Rate (∆V/∆t) 125 mV/ns
V
IN
from 0.8V to 2.0V
V
CC
@ 4.5V, 5.5V
Symbol Parameter
V
CC
TA = +25°CT
A
= −40°C to +85°C
Units Conditions
(V) Typ Guaranteed Limits
V
IH
Minimum HIGH 4.5 1.5 2.0 2.0
V
V
OUT
= 0.1V
Input Voltage 5.5 1.5 2.0 2.0 or VCC − 0.1V
V
IL
Maximum LOW 4.5 1.5 0.8 0.8
V
V
OUT
= 0.1V
Input Voltage 5.5 1.5 0.8 0.8 or VCC − 0.1V
V
OH
Minimum HIGH 4.5 4.49 4.4 4.4
VI
OUT
= −50 µA
Output Voltage 5.5 5.49 5.4 5.4
VIN = VIL or V
IH
4.5 3.86 3.76 V IOH = −24 mA
5.5 4.86 4.76 IOH = −24 mA (Note 2)
V
OL
Maximum LOW 4.5 0.001 0.1 0.1
VI
OUT
= 50 µA
Output Voltage 5.5 0.001 0.1 0.1
VIN = VIL or V
IH
4.5 0.36 0.44 V IOL = 24 mA
5.5 0.36 0.44 IOL = 24 mA (Note 2)
I
OZ
Maximum 3- STATE
5.5 ± 0.5 ± 5.0 µA
VI = VIL, V
IH
Leakage Current VO = VCC, GND
I
IN
Maximum Input
5.5 ± 0.1 ± 1.0 µAVI = VCC, GND
Leakage Current
I
CCT
Maximum ICC/Input 5.5 0.6 1.5 mA VI = VCC − 2.1V
I
CC
Maximum Quiescent
5.5 8.0 80.0 µAVIN = VCC or GND
Supply Current
I
OLD
Minimum Dynamic
5.5
75 mA V
OLD
= 1.65V Max
I
OHD
Output Current (Note 3) −75 mA V
OHD
= 3.85V Min
Page 4
www.fairchildsemi.com 4
74ACT16374
AC Electrical Characteristics
Note 4: Voltage Range 5.0 is 5. 0V ± 0.5V.
AC Operating Requirements
Note 5: Voltage Range 5.0 is 5. 0V ± 0.5V.
Capacitance
V
CC
TA = +25°CT
A
= −40°C to +85°C
Symbol Parameter (V)
C
L
= 50 pF CL = 50 pF
Units
(Note 4) Min Typ Max Min Max
f
MAX
Maximum Clock Frequency 5.0 71 67 MHz
t
PLH
Propagation Delay
5.0
3.1 5.3 7.9 3.1 8.4
ns
t
PHL
CP to O
n
3.0 5.1 7.3 3.0 7.8
t
PZH
Output Enable Time
5.0
2.5 4.7 7.4 2.5 7.9
ns
t
PZL
3.0 5.4 8.0 2.0 8.5
t
PHZ
Output Disable Time
5.0
2.1 5.1 7.9 2.1 8.2
ns
t
PLZ
2.0 4.8 7.4 2.0 7.9
V
CC
TA = +25°CT
A
= −40°C to +85°C
Symbol Parameter (V)
CL = 50 pF CL = 50 pF
Units
(Note 5) Typ Guaranteed Limits
t
S
Setup Time, HIGH or
5.0 0.7 3.0 3.0 ns
LOW, Input to Clock
t
H
Hold Time, HIGH or
5.0 0.8 1.0 1.0 ns
LOW, Input to Clock
t
W
CP Pulse Width,
5.0 1.5 5.0 5.0 ns
HIGH or LOW
Symbol Parameter Typ Units Conditions
C
IN
Input Capacitance 4.5 pF VCC = 5.0V
C
PD
Power Dissipation Capacitance 30 pF VCC = 5.0V
Page 5
5 www.fairchildsemi.com
74ACT16374
Physical Dimensions inches (millimeters) unless otherwise noted

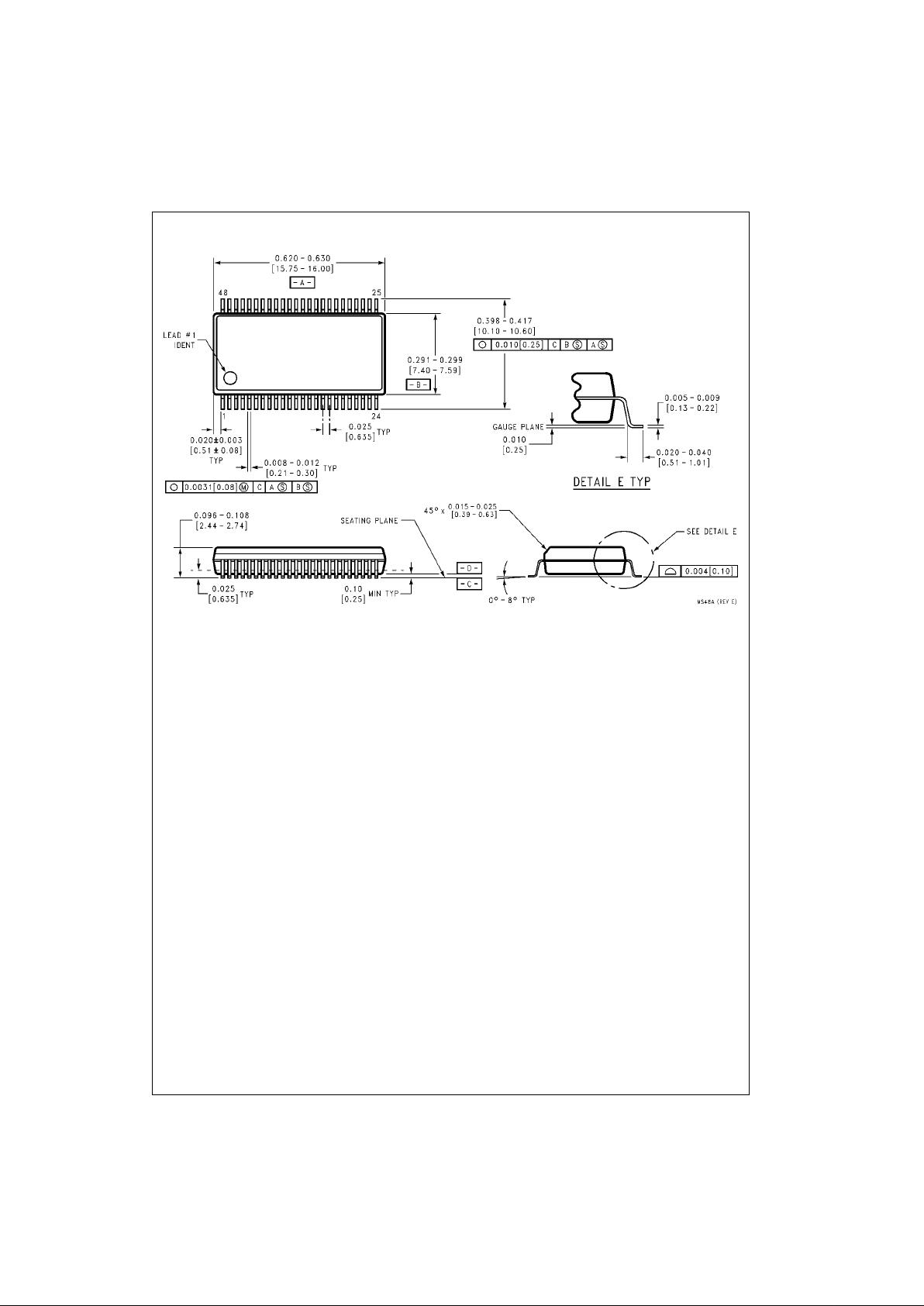

48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300” Wide
Package Number MS48A
Page 6
www.fairchildsemi.com 6
74ACT16374
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

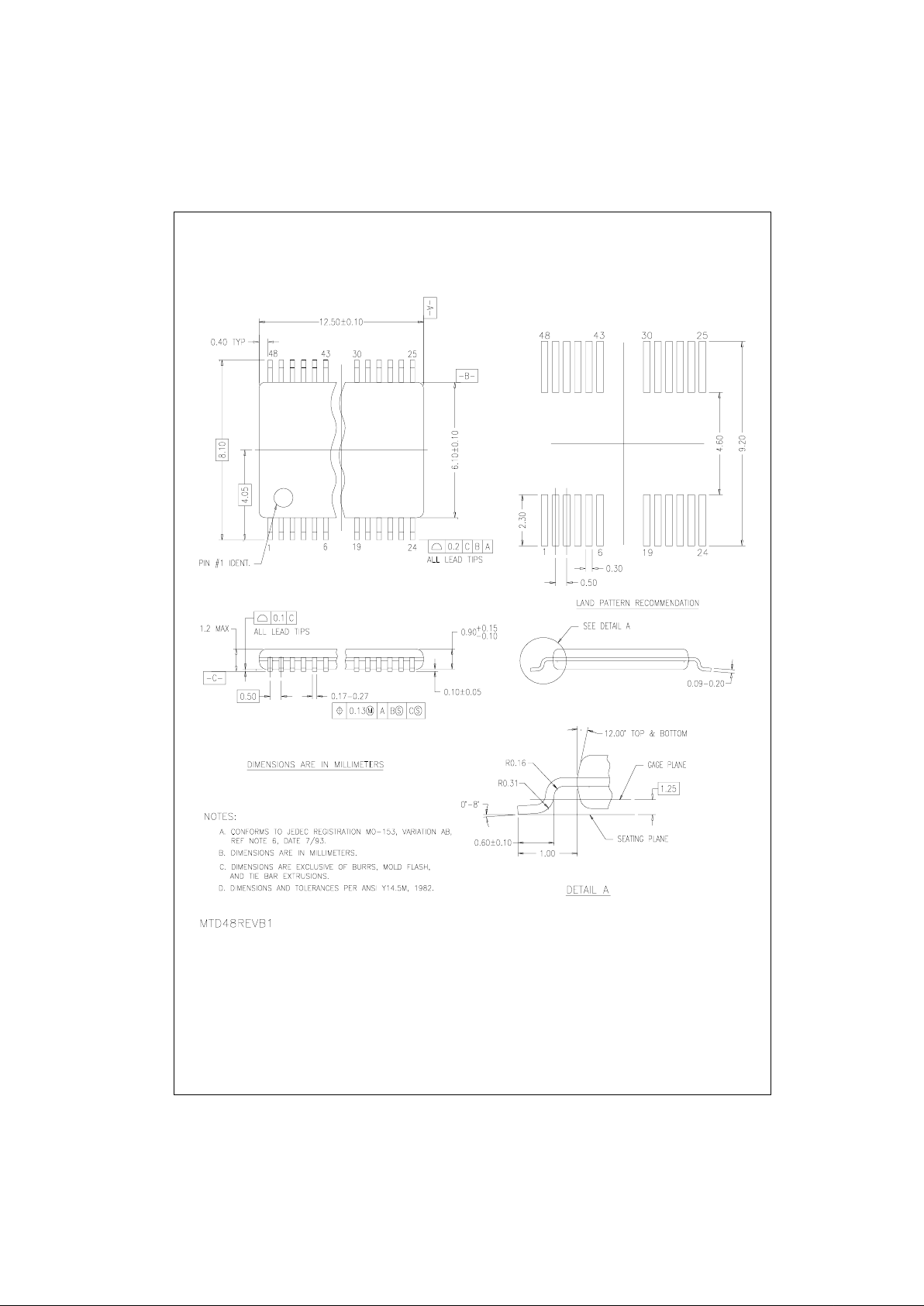

48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Package Number MTD48
Page 7
7 www.fairchildsemi.com
74ACT16374 16-Bit D-Type Flip-Flop with 3-STATE Outputs
