© 1999 Fairchild Semiconductor Corporation DS009930 www.fairchildsemi.com
November 1988
Revised November 1999

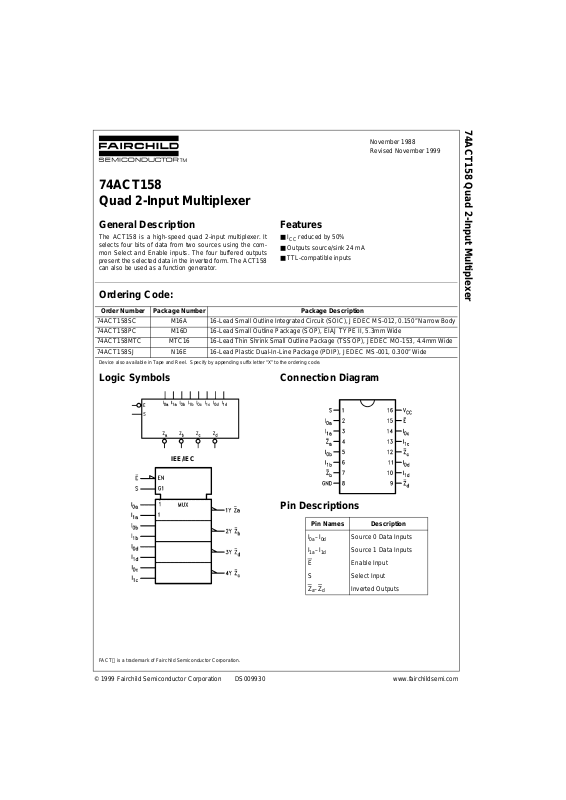

74ACT158 Quad 2-Input Multiplexer
74ACT158
Quad 2-Input Multiplexer
General Description
The ACT158 is a high-sp eed quad 2-input multiplexer. It
selects four bits of data from two sources using the common Select and Enable inputs. The four buffered outputs
present the selected data in the inverted form. The ACT158
can also be used as a function generator.
Features
■ ICC reduced by 50%
■ Outputs source/sink 24 mA
■ TTL-compatible inputs
Ordering Code:
Device also available in Tape and Reel. Specify by appending su ffix le tter “X” to the ordering code.
Logic Symbols
IEE/IEC
Connection Diagram
Pin Descriptions
FACT is a trademark of Fairchild Semiconductor Corporation.
Order Number Package Number Package Description
74ACT158SC M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow Body
74ACT158PC M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
74ACT158MTC MTC16 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
74ACT158SJ N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
Pin Names Description
I
0a–I0d
Source 0 Data Inputs
I
1a–I1d
Source 1 Data Inputs
E
Enable Input
S Select Input
Z
a–Zd
Inverted Outputs
Page 2
www.fairchildsemi.com 2
74ACT158
Functional Description
The ACT158 quad 2 -input multiplexer selects four bits of
data from two sources under the control of a common
Select input (S) and pr esents the data in invert ed form at
the four outputs. The Enable input (E
) is active-LOW. When
E
is HIGH, all of the outputs (Z) are force d HIGH regardless of all other i np uts. Th e ACT 15 8 is th e l o gic im pl em en tation of a 4-pole, 2-position switch where the position of
the switch is determined by the logi c levels supplied t o the
Select input.
A common use of the ACT1 58 is the moving of dat a from
two groups of registers to four common output busses. The
particular r egi s ter f r om wh i ch t h e da t a co me s is d et erm i n ed
by the state of the Select input. A less obvious use is as a
function generator. The ACT 158 can generate four functions of two variables with one variable common. This is
useful for implementing gating functions.
Tr uth Table
H = HIGH Voltage Level
L = LOW Voltage Level
X = Immaterial
Logic Diagram
Please note that this diagram is provided only for the understanding of logic operations and should not be used to estimate propagation delays.
Inputs Outputs
E
SI0I
1
Z
HX X X H
LL L X H
LLH X L
LH X L H
LH X H L
Page 3
3 www.fairchildsemi.com
74ACT158
Absolute Maximum Ratings(Note 1) Recommended Operating
Conditions
Note 1: Absolute max imum ratings are those values beyond w hich damage
to the device may occu r. The databook spe cificatio ns shou ld be met, wit hout exception, to ensure that the system de sign is relia ble over its p ower
supply, temperature, and output/input loading variable. Fairchild does not
recommend operation of FACT circuits outside databook specifications.
DC Electrical Characteristics
Note 2: All outputs loaded; thres holds on input associate d w it h output under test.
Note 3: Maximum test duration 2.0 ms, one output loaded at a time.
Supply Voltage (VCC) −0.5V to +7.0V
DC Input Diode Current (I
IK
)
V
I
= −0.5V −20 mA
V
I
= VCC + 0.5V +20 mA
DC Input Voltage (V
I
) −0.5V to VCC + 0.5V
DC Output Diode Current (I
OK
)
V
O
= −0.5V −20 mA
V
O
= VCC + 0.5V +20 mA
DC Output Voltage (V
O
) −0.5V to VCC + 0.5V
DC Output Source
or Sink Current (I
O
) ±50 mA
DC V
CC
or Ground Current
per Output Pin (I
CC
or I
GND
) ±50 mA
Storage Temperature (T
STG
) −65°C to +150°C
Junction Temperature (T
J
) 140°C
Supply Voltage (V
CC
) 4.5V to 5.5V
Input Voltage (V
I
)0V to V
CC
Output Voltage (VO)0V to V
CC
Operating Temperature (TA) −40°C to +85°C
Minimum Input Edge Rate (∆V/∆t)
V
IN
from 0.8V to 2.0V
V
CC
@ 4.5V, 5.5V 125 mV/ns
Symbol Parameter
V
CC
TA = +25°C TA = −40°C to +85°C
Units Conditions
(V) Typ Guaranteed Limits
V
IH
Minimum HIGH Level 4.5 1.5 2.0 2.0
V
V
OUT
= 0.1V
Input Voltage 5.5 1.5 2.0 2.0 or VCC − 0.1V
V
IL
Maximum LOW Level 4.5 1.5 0.8 0.8
V
V
OUT
= 0.1V
Input Voltage 5.5 1.5 0.8 0.8 or VCC − 0.1V
V
OH
Minimum HIGH Level 4.5 4.49 4.4 4.4
VI
OUT
= −50 µA
Output Voltage 5.5 5.49 5.4 5.4
VIN = V
IL
or V
IH
4.5 3.86 3.76 V IOH = −24 mA
5.5 4.86 4.76 IOH = −24 mA (Note 2)
V
OL
Maximum LOW Level 4.5 0.001 0.1 0.1
VI
OUT
= 50 µA
Output Voltage 5.5 0.001 0.1 0.1
VIN = VIL or V
IH
4.5 0.36 0.44 V IOL = 24 mA
5.5 0.36 0.44 I
OL
= 24 mA (Note 2)
I
IN
Maximum Input
5.5 ±0.1 ±1.0 µAVI = VCC, GND
Leakage Current
I
CCT
Maximum
5.5 0.6 1.5 mA VI = VCC − 2.1V
ICC/Input
I
OLD
Minimum Dynamic 5.5 75 mA V
OLD
= 1.65V Max
I
OHD
Output Current (Note 3) 5.5 −75 mA V
OHD
= 3.85V Min
I
CC
Maximum Quiescent
5.5 4.0 40.0 µA
VIN = V
CC
Supply Current or GND
Page 4
www.fairchildsemi.com 4
74ACT158
AC Electrical Characteristics
Note 4: Voltage Range 5.0 is 5.0V ± 0.5V
Capacitance
Symbol Parameter
V
CC
(V)
(Note 4)
T
A
= +25°C
C
L
= 50 pF
T
A
= −40°C to +85°C
C
L
= 50 pF
Units
Min Typ Max Min Max
t
PLH
Propagation Delay
5.0 2.5 6.0 9.5 2.0 11.0 ns
S to Z
n
t
PHL
Propagation Delay
5.0 1.5 5.5 9.0 1.5 10.0 ns
S to Z
n
t
PLH
Propagation Delay
5.0 1.5 5.5 9.5 1.5 10.5 ns
E to Z
n
t
PHL
Propagation Delay
5.0 1.5 5.5 9.5 1.5 10.5 ns
E
to Z
n
t
PLH
Propagation Delay
5.0 1.5 4.5 8.0 1.0 8.5 ns
I
n
to Z
n
t
PHL
Propagation Delay
5.0 1.5 4.0 6.5 1.0 7.5 ns
In to Z
n
Symbol Parameter Typ Units Conditions
C
IN
Input Capacitance 4.5 pF VCC = OPEN
C
PD
Power Dissipation Capacitance 45.0 pF VCC = 5.0V
Page 5
5 www.fairchildsemi.com
74ACT158

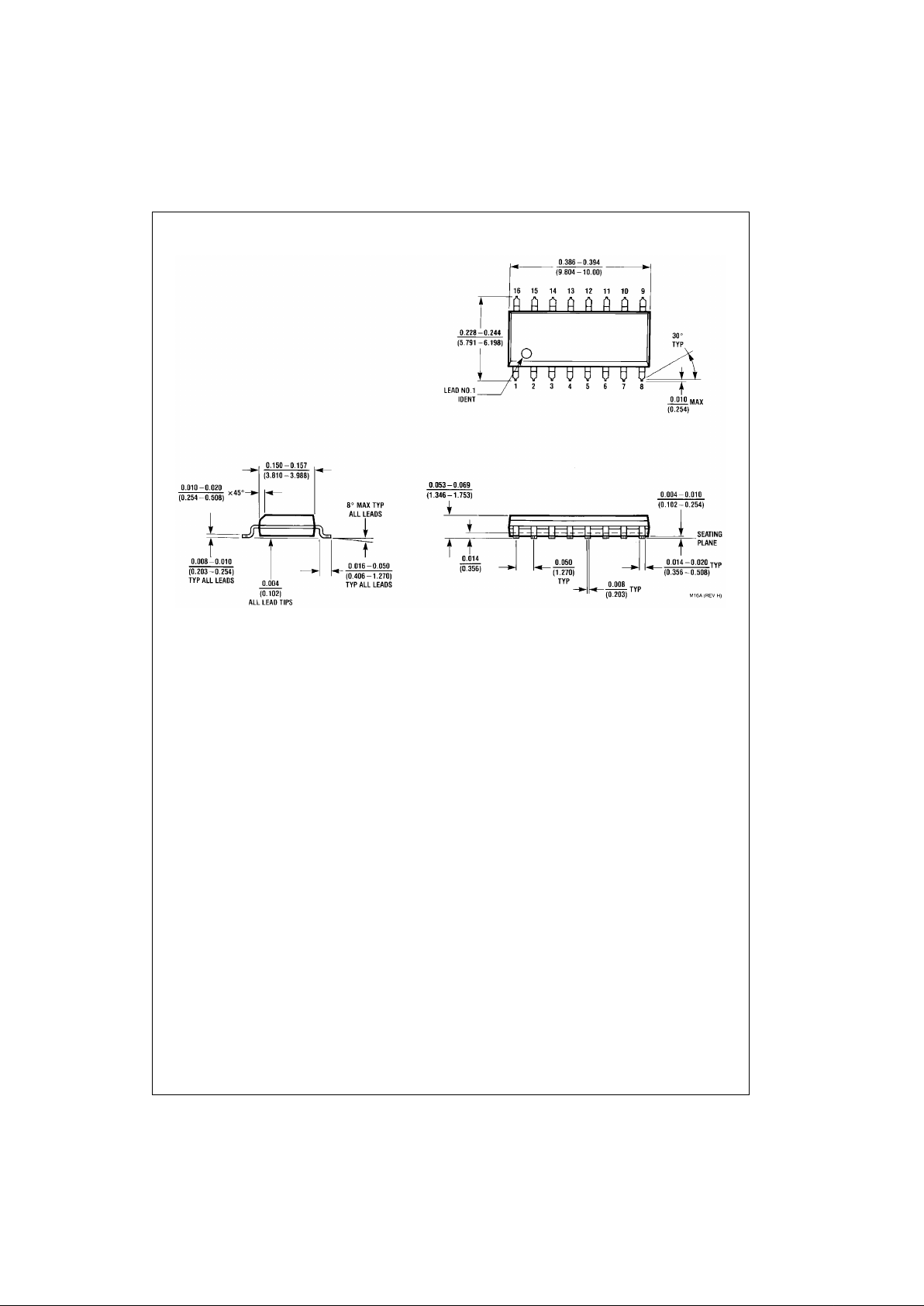

Physical Dimensions inches (millimeters) unless otherwise noted
16- Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow Body
Package Number M16A
Page 6
www.fairchildsemi.com 6
74ACT158

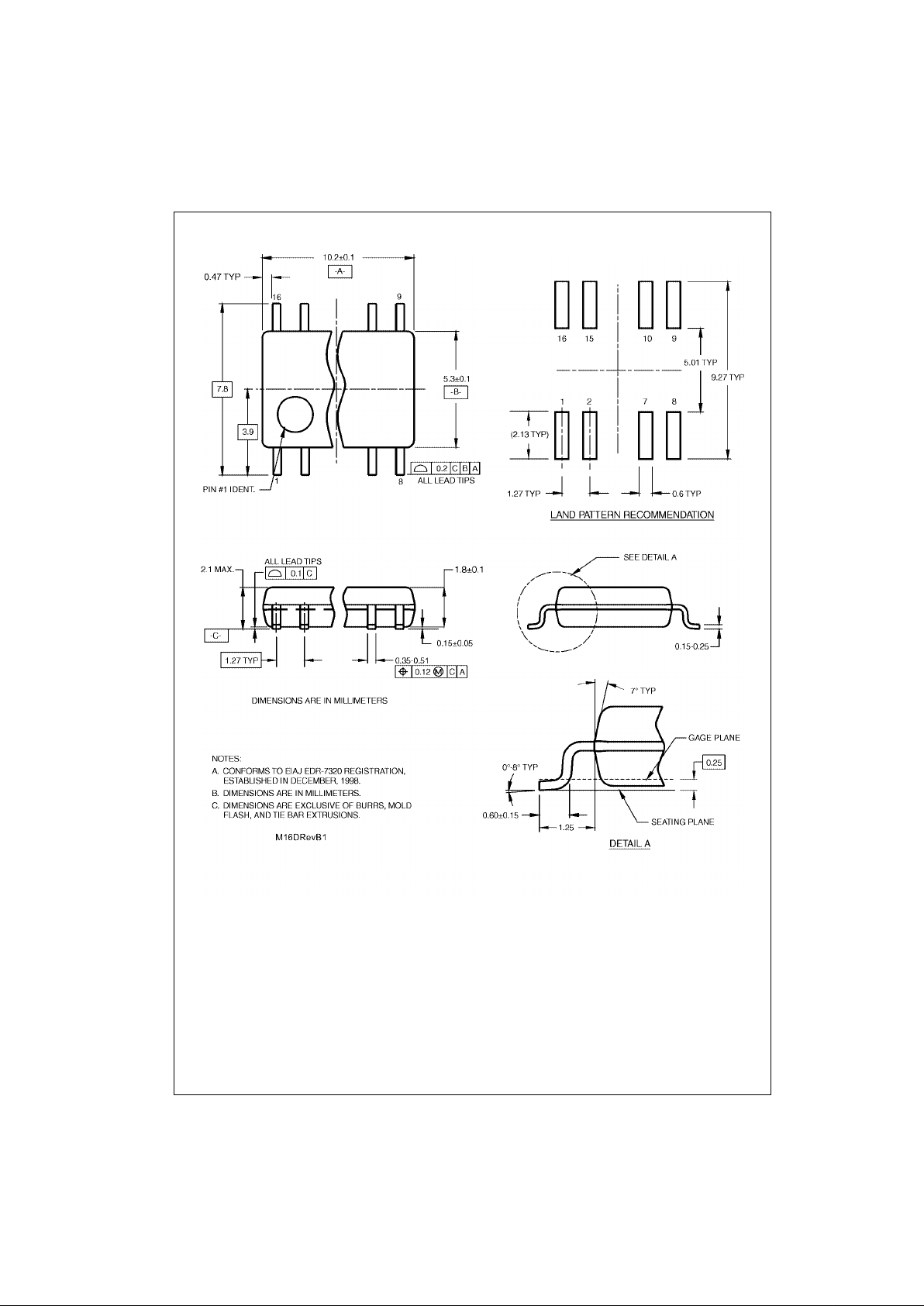

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
Package Number M16D
Page 7
7 www.fairchildsemi.com
74ACT158

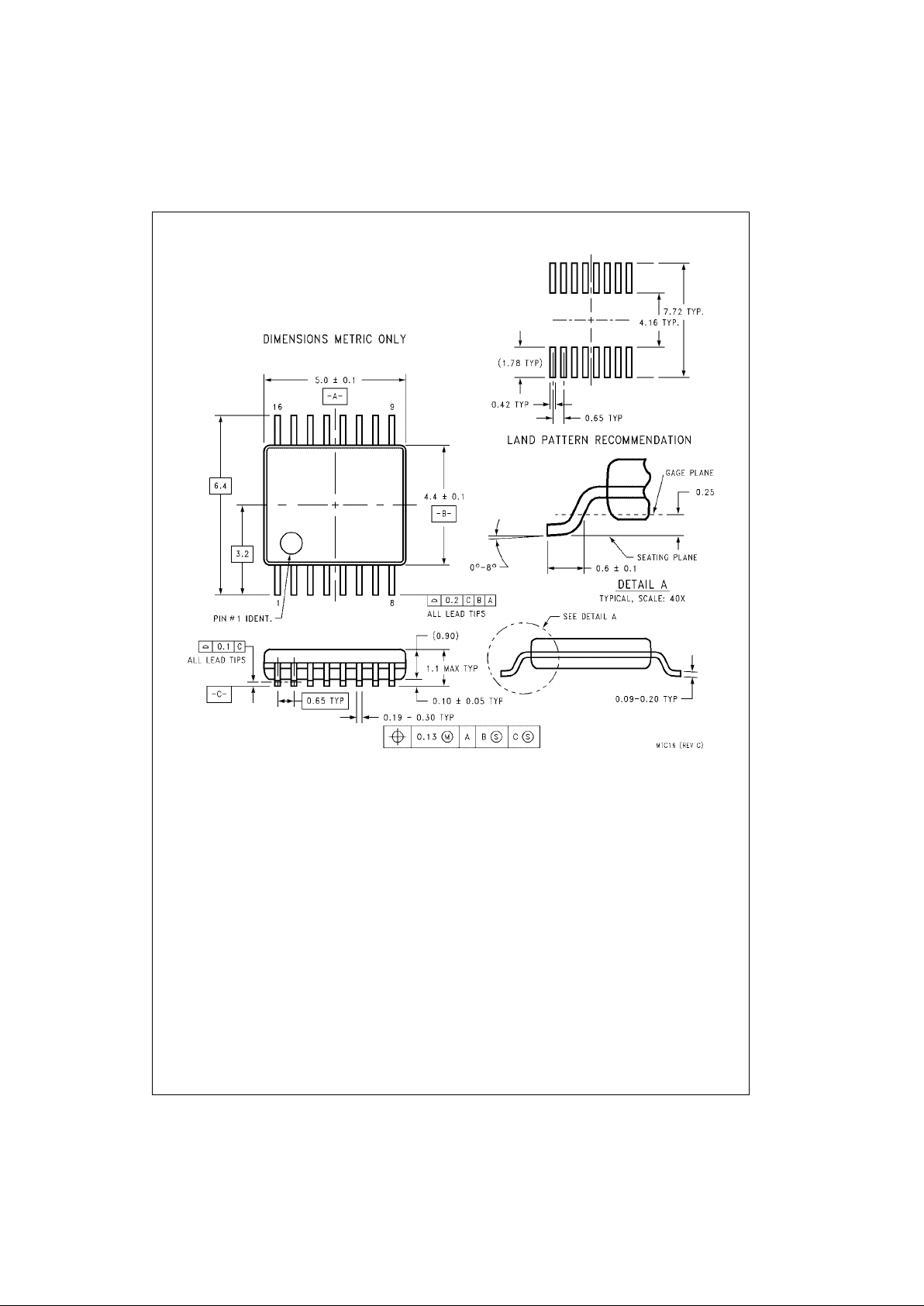

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
16-Lead Thin Shrink Sm all Ou tline Pa ck age (TS SO P), JE DE C MO-153, 4.4mm Wide
Package Number MTC16
Page 8
www.fairchildsemi.com 8
74ACT158 Quad 2-Input Multiplexer

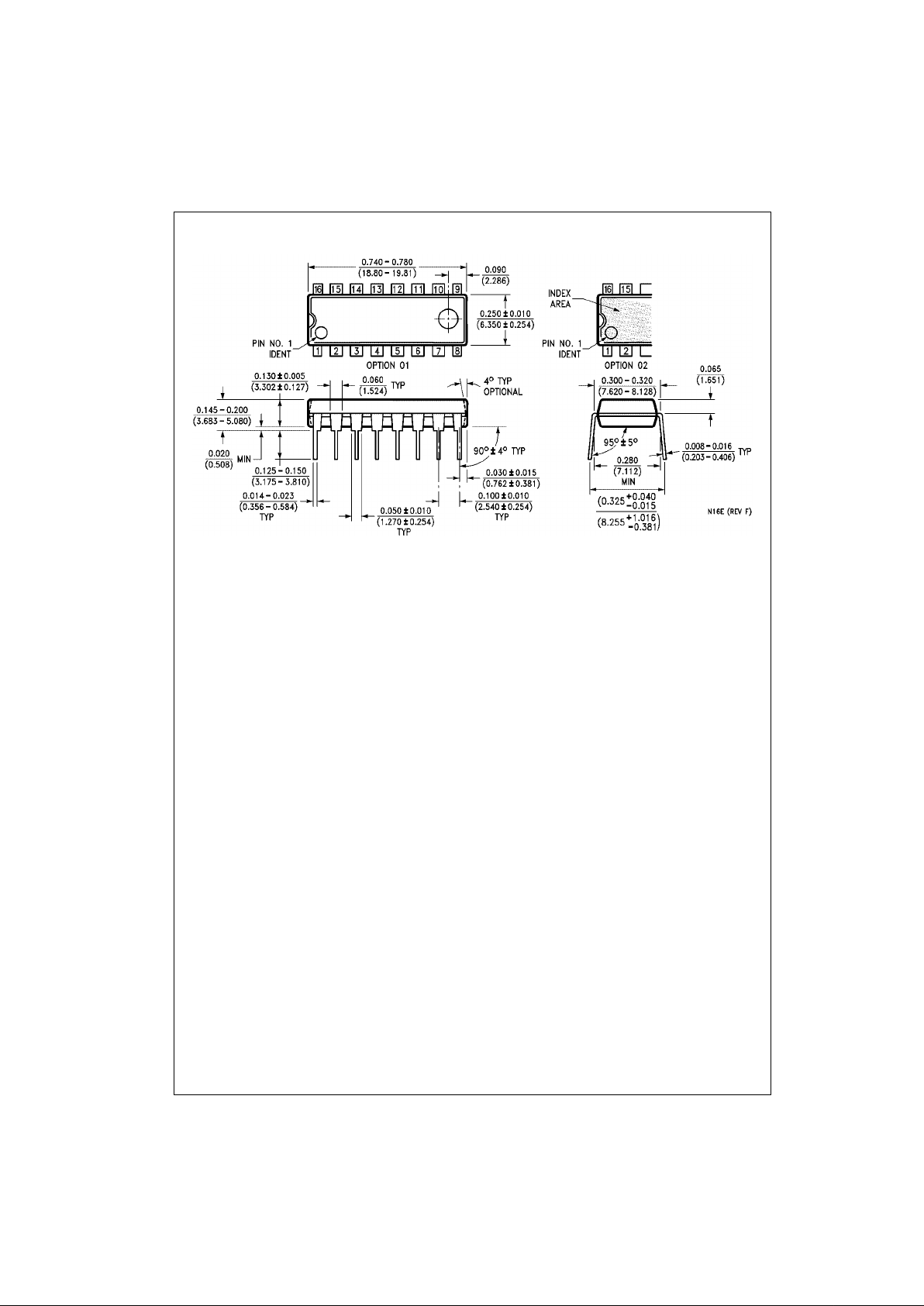

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
16- Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
Package Number N16E
Fairchild does not assume any responsibility for use of any circuitr y described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or syste ms
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be reasonably expected to result in a significant inju ry to the
user.
2. A critical component in any compon ent of a lif e supp ort
device or system whose failure t o perform can be reasonably expected to ca use the failure of the life supp ort
device or system, or to affect its safety or effectiveness.
