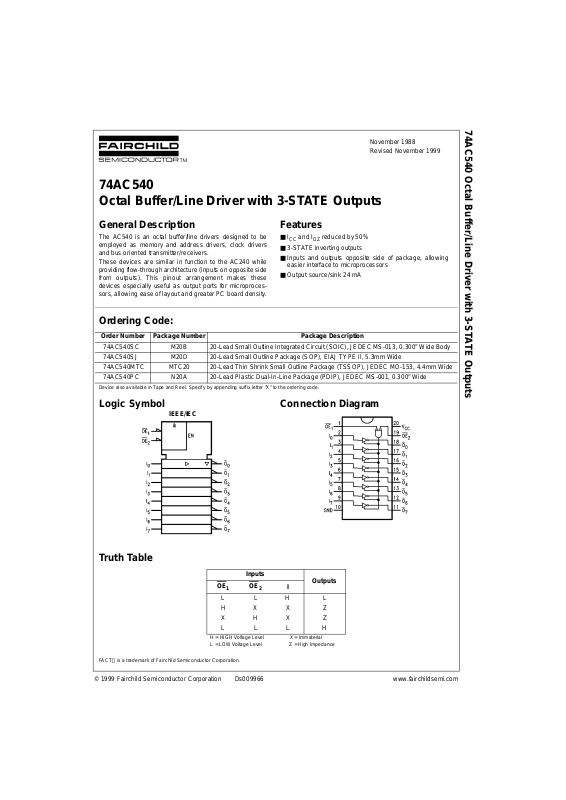

74AC540 Octal Buffer/Line Driver with 3-STATE Outputs

74AC540
Octal Buffer/Line Driv e r wit h 3- S TATE Outputs

General Description

The AC540 is an octal buffer/line driv ers designed to be
employed as memory a nd address drivers, clock drivers
and bus oriented transmitter/receivers.

These devices are simila r in function to the AC240 while
providing flow-through architecture (inputs on opposite side
from outputs). This pinout arrangement makes these
devices especially useful as outpu t ports for microproces­sors, allowing ease of layout and greater PC board density.

Features

■ ICC and IOZ reduced by 5 0%

■ 3-STATE inverting outputs

■ Inputs and outputs opposite si de of package, allowing

easier interface to microprocessors

■ Output source/sink 24 mA

Ordering Code:

Device also available in Tape and Reel. Specify by appending s uffix let te r “X” to the ordering code.

Logic Symbol

IEEE/IEC

Connection Diagram

Truth Table

H = HIGH Voltage Level X = Immaterial
L = LOW Voltage Level Z = High Impedance

FACT is a trademark of Fairchild Semiconductor Corporation.

Order Number Package Number Package Description

74AC540SC M20B 20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300” Wide Body
74AC540SJ M20D 20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
74AC540MTC MTC20 20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
74AC540PC N20A 20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide

Inputs

Outputs

OE

1

OE

2

I

LLH L
HXX Z
XHX Z
LLL H

www.fairchildsemi.com 2

74AC540

Absolute Maximum Ratings(Note 1) Recommended Operating

Conditions

Note 1: Absolute maximum ratings are those values beyond which damage

to the device may occur. The databook specifications should be met, with­out exception, to ensure that the system design is reliable over its power
supply, temperature, and ou tput/inp ut loadi ng varia bles. Fairchild does no t
recommend operat ion of FACT circuits outside da t abook specifications.

DC Electrical Characteristics

Note 2: All outputs loaded; thresholds on input assoc iat ed with output under tes t.
Note 3: Maximum test duratio n 2. 0 ms, one output loade d at a time.
Note 4: I

IN

and ICC @ 3.0V are guaranteed to be less than or equa l to th e respective limit @ 5.5V VCC.

Supply Voltage (VCC) −0.5V to +7.0V
DC Input Diode Current (I

IK

)

V

I

= −0.5V −20 mA

V

I

= VCC + 0.5V +20 mA

DC Input Voltage (V

I

) −0.5V to VCC + 0.5V

DC Output Diode Current (I

OK

)

V

O

= −0.5V −20 mA

V

O

= VCC + 0.5V +20 mA

DC Output Voltage (V

O

) −0.5V to VCC + 0.5V

DC Output Source

or Sink Current (I

O

) ±50 mA

DC V

CC

or Ground Current

per Output Pin (I

CC

or I

GND

) ±50 mA

Storage Temperature (T

STG

) −65°C to +150°C

Junction Temperature (T

J

)

PDIP 140°C

Supply Voltage (V

CC

) 2.0V to 6.0V

Input Voltage (V

I

) 0V to V

CC

Output Voltage (VO) 0V to V

CC

Operating Temperature (TA) −40°C to +85°C
Minimum Input Edge Rate (∆V/∆t) 125 mV/ns

V

IN

from 30% to 70% of V

CC

VCC @ 3.3V, 4.5V, 5.5V

Symbol Parameter

V

CC

TA = +25°CTA = −40° C to +85°C

Units Conditions

(V) Typ Guaranteed Limits

V

IH

Minimum HIGH Level 3.0 1.5 2.1 2.1 V

OUT

= 0.1V

Input Voltage 4.5 2.25 3.15 3.15 V or VCC − 0.1V

5.5 2.75 3.85 3.85

V

IL

Maximum LOW Level 3.0 1.5 0.9 0.9 V

OUT

= 0.1V

Input Voltage 4.5 2.25 1.35 1.35 V or VCC − 0.1V

5.5 2.75 1.65 1.65

V

OH

Minimum HIGH Level 3.0 2.99 2.9 2.9
Output Voltage 4.5 4.49 4.4 4.4 V I

OUT

= −50 µA

5.5 5.49 5.4 5.4
VIN = VIL or V

IH

3.0 2.56 2.46 IOH = −12 mA

4.5 3.86 3.76 V I

OH

= −24 mA

5.5 4.86 4.76 IOH = −24 mA (Note 2)

V

OL

Maximum LOW Level 3.0 0.002 0.1 0.1
Output Voltage 4.5 0.001 0.1 0.1 V I

OUT

= 50 µA

5.5 0.001 0.1 0.1
VIN = VIL or V

IH

3.0 0.36 0.44 IOL = 12 mA

4.5 0.36 0.44 V IOL = 24 mA

5.5 0.36 0.44 IOL = 24 mA (Note 2)

IIN Maximum Input

5.5 ±0.1 ±1.0 µAVI = VCC, GND

(Note 4) Leakage Current
I

OZ

Maximum 3-STATE VI (OE) = VIL, V

IH

Current 5.5 ±0.25 ±2.5 µAVI = VCC, GND

VO = VCC, GND

I

OLD

Minimum Dynamic 5.5 75 mA V

OLD

= 1.65V Max

I

OHD

Output Current (Note 3) 5.5 −75 mA V

OHD

= 3.85V Min

ICC Maximum Quiescent

5.5 4.0 40.0 µA

VIN = V

CC

(Note 4) Supply Current or GND

3 www.fairchildsemi.com

74AC540

AC Electrical Characteristics

Note 5: Voltage Range 3.3 is 3.3V ± 0.3V

Voltage Range 5.0 is 5.0V ± 0.5V

Capacitance

V

CC

TA = +25°CT

A

= −40°C to +85°C

Symbol Parameter (V)

C

L

= 50 pF CL = 50 pF

Units

(Note 5) Min Typ Max Min Max

t

PLH

Propagation Delay 3.3 1.5 5.5 7.5 1.0 8.0

ns

Data to Output 5.0 1.5 4.0 6.0 1.0 6.5

t

PHL

Propagation Delay 3.3 1.5 5.0 7.0 1.0 7.5

ns

Data to Output 5.0 1.5 4.0 5.5 1.0 6.0

t

PZH

Output Enable Time 3.3 3.0 8.5 11.0 2.5 12.0

ns

5.0 2.0 6.5 8.5 2.0 9.5

t

PZL

Output Enable Time 3.3 2.5 7.5 10.0 2.0 11.0

ns

5.0 2.0 6.0 7.5 1.5 8.5

t

PHZ

Output Disable Time 3.3 2.5 8.5 13.0 1.5 14.0

ns

5.0 1.5 7.5 10.5 1.0 11.0

t

PLZ

Output Disable Time 3.3 2.5 7.0 10.0 2.0 11.0

ns

5.0 1.5 6.0 8.0 1.5 9.0

Symbol Parameter Typ Units Conditions

C

IN

Input Capacitance 4.5 pF VCC = OPEN

C

PD

Power Dissipation Capacitance 30.0 pF VCC = 5.0V

www.fairchildsemi.com 4

74AC540

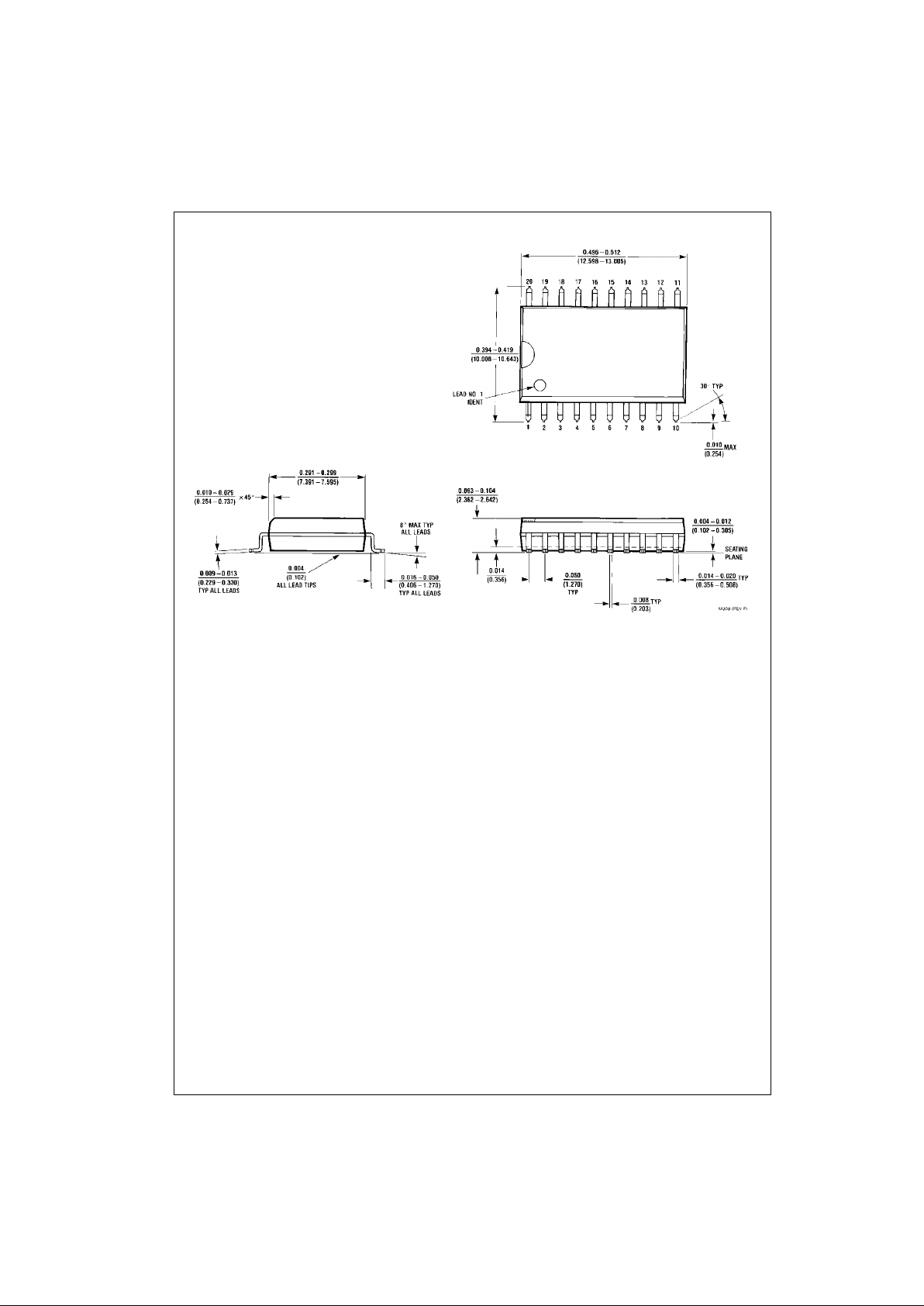

Physical Dimensions inches (millimeters) unless otherwise noted

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300” Wide Body

Package Number M20B

5 www.fairchildsemi.com

74AC540

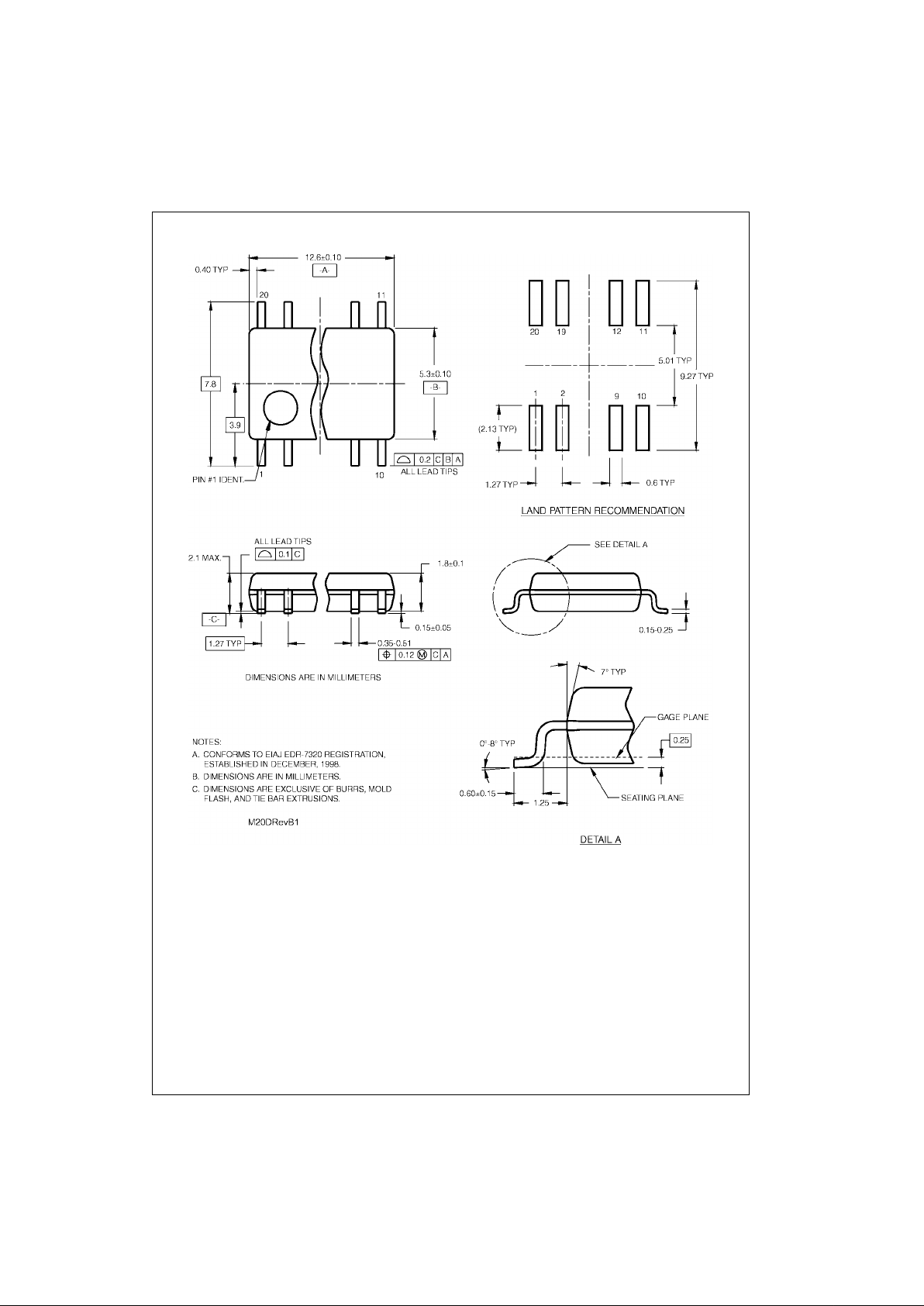

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

Package Number M20D

www.fairchildsemi.com 6

74AC540

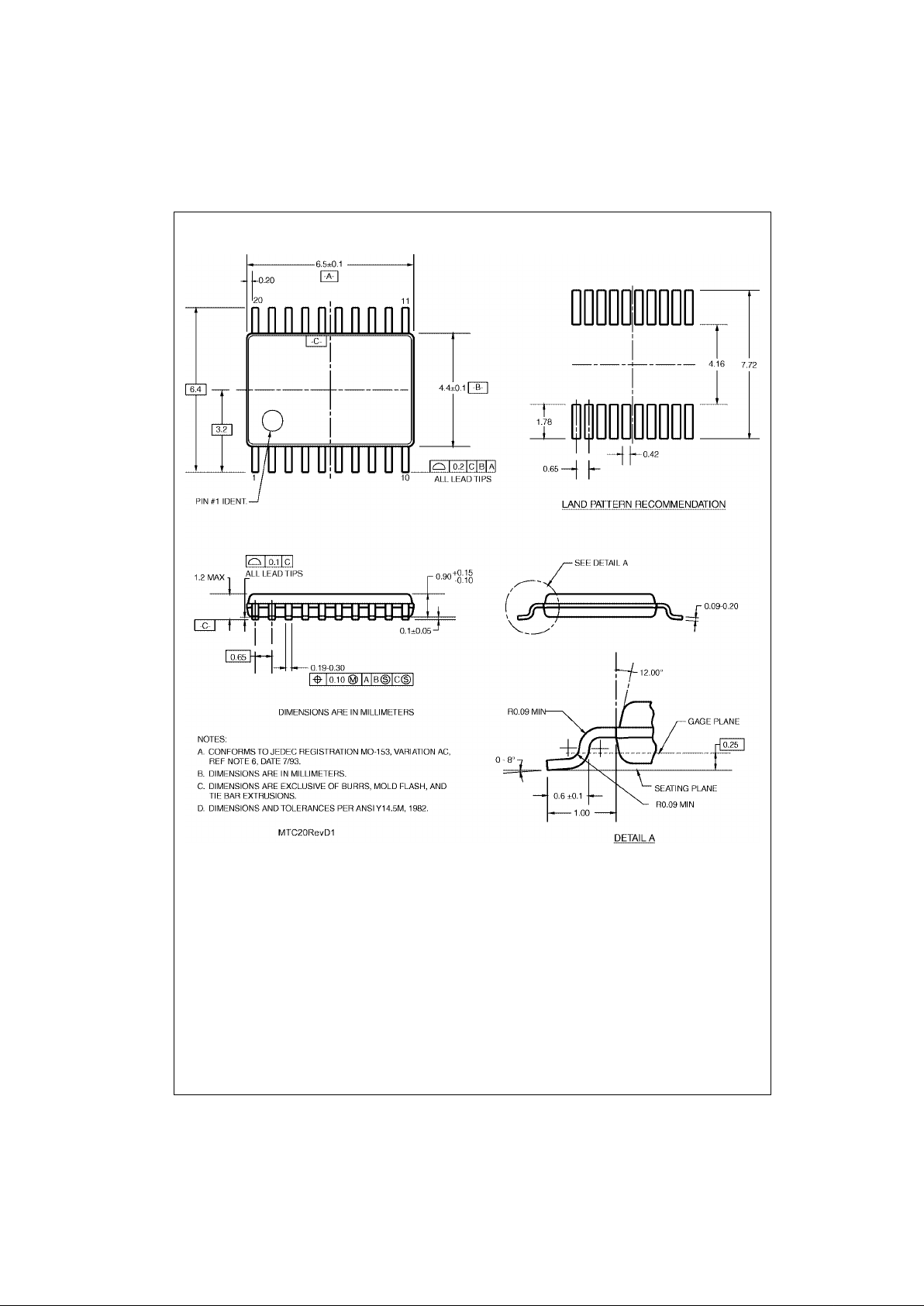

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

Package Number MTC20

7 www.fairchildsemi.com

74AC540 Octal Buffer/Line Driver with 3-STATE Outputs

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.3 00” Wide

Package Number N20A
