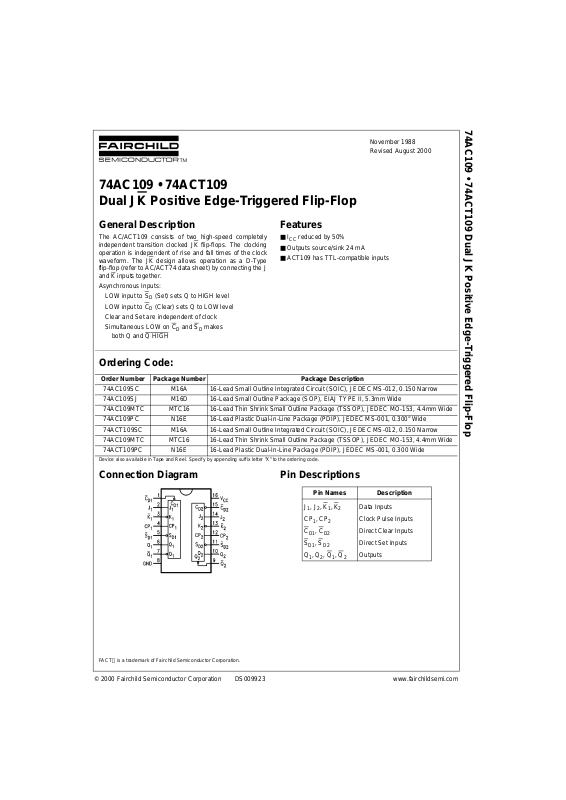

74AC109 • 74ACT109 Dual JK Positive Edge-Triggered Flip-Flop

74AC109 • 74ACT109
Dual JK

Positive Edge-Triggered Flip-Flop

General Description

The AC/ACT109 consists of two high-speed completely
independent transition clocked JK

flip-flops. The clocking
operation is independe nt of rise and fall times of the cl ock
waveform. The JK

design allows operation as a D-Type
flip-flop (refer to AC/ACT74 data sheet) by connecting the J
and K

inputs together.

Asynchronous Inputs:

LOW input to S

D

(Set) sets Q to HIGH level

LOW input to C

D

(Clear) sets Q to LOW level

Clear and Set are independent of clock
Simultaneous LOW on C

D

and SD makes

both Q and Q HIGH

Features

■ ICC reduced by 50%

■ Outputs source/sink 24 mA

■ ACT109 has TTL-compatible inputs

Ordering Code:

Device also available in Tape and Reel. Specify by appending s uffix let te r “X” to the ordering code.

Connection Diagram Pin Descriptions

FACT is a trademark of Fairchild Semiconductor Corporation.

Order Number Package Number Package Description

74AC109SC M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
74AC109SJ M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
74AC109MTC MTC16 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
74AC109PC N16E 16-Lead Plastic Dual-in-Line Package (PDIP), JEDEC MS-001, 0.300” Wide

74ACT109SC M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
74AC109MTC MTC16 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
74ACT109PC N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Pin Names Description

J

1

, J2, K1, K

2

Data Inputs

CP

1

, CP

2

Clock Pulse Inputs

C

D1

, C

D2

Direct Clear Inputs

S

D1

, S

D2

Direct Set Inputs

Q

1

, Q2, Q1, Q2Outputs

www.fairchildsemi.com 2

74AC109 • 74ACT109

Logic Symbols

IEEE/IEC

Truth Table

(each half)

H = HIGH Voltage Level

L = LOW Voltage Level



= LOW-to-HIGH Transition

X = Immaterial

Q

0(Q0

) = Previous Q0(Q0) before LOW-to-HIGH Transition of Clock

Logic Diagram (one half shown)

Please note that this diagram is provided only for the understanding of logic operations and should not be used to estimate propagation delays.

Inputs Outputs

S

D

C

D

CP J K QQ

LHXXXHL
HLXXXLH
LLXXXHH
HH



LL L H

HH



HL Toggle

HH



LHQ0Q

0

HH



HH H L

HHLXXQ

0

Q

0

3 www.fairchildsemi.com

74AC109 • 74ACT109

Absolute Maximum Ratings(Note 1) Recommended Operating

Conditions

Note 1: Absolute max imum ratings are those values beyond w hich damage

to the device may occu r. The databook spe cificatio ns shou ld be met, wit h­out exception, to ensure that the system de sign is relia ble over its p ower
supply, temperature, and output/input loading variables.Fairchild does not
recommend operation of FACT circuits outside databook specif ic at ions.

DC Electrical Characteristics for AC

Note 2: All outputs loaded; thres holds on input associate d w it h output under test.
Note 3: Maximum test duration 2.0 ms, one output loaded at a time.
Note 4: I

IN

and ICC @ 3.0V are guaranteed to be less than or equa l t o th e respective limit @ 5.5V VCC.

Supply Voltage (VCC) −0.5V to +7.0V
DC Input Diode Current (I

IK

)

V

I

= −0.5V −20 mA

V

I

= VCC + 0.5V +20 mA

DC Input Voltage (V

I

) −0.5V to VCC + 0.5V

DC Output Diode Current (I

OK

)

V

O

= −0.5V −20 mA

V

O

= VCC + 0.5V +20 mA

DC Output Voltage (V

O

) −0.5V to VCC + 0.5V

DC Output S ource

or Sink Current (I

O

) ± 50 mA

DC V

CC

or Ground Current

per Output Pin (I

CC

or I

GND

) ± 50 mA

Storage Temperature (T

STG

) −65°C to +150°C

Junction Temperature (T

J

)

PDIP 140

°C

Supply Voltage (V

CC

)
AC 2.0V to 6.0V
ACT 4.5V to 5.5V

Input Voltage (V

I

)0V to V

CC

Output Voltage (VO)0V to V

CC

Operating Temperature (TA) −40°C to +85°C
Minimum Input Edge Rate (

∆V/∆t)

AC Devices
V

IN

from 30% to 70% of V

CC

VCC @ 3.3V, 4.5V, 5.5V 125 mV/ns

Minimum Input Edge Rate (

∆V/∆t)

ACT Devices
V

IN

from 0.8V to 2.0V

V

CC

@ 4.5V, 5.5V 125 mV/ns

Symbol Parameter

V

CC

TA = +25°CT

A

= −40°C to +85°C

Units Conditions

(V) Typ Guaranteed Limits

V

IH

Minimum HIGH Level 3.0 1.5 2.1 2.1 V

OUT

= 0.1V

Input Voltage 4.5 2.25 3.15 3.15 V or VCC − 0.1V

5.5 2.75 3.85 3.85

V

IL

Maximum LOW Level 3.0 1.5 0.9 0.9 V

OUT

= 0.1V

Input Voltage 4.5 2.25 1.35 1.35 V or VCC − 0.1V

5.5 2.75 1.65 1.65

V

OH

Minimum HIGH Level 3.0 2.99 2.9 2.9
Output Voltage 4.5 4.49 4.4 4.4 V I

OUT

= −50 µA

5.5 5.49 5.4 5.4
VIN = VIL or V

IH

3.0 2.56 2.46 IOH = −12 mA

4.5 3.86 3.76 V I

OH

= −24 mA

5.5 4.86 4.76 I

OH

= −24 mA (Note 2)

V

OL

Maximum LOW Level 3.0 0.002 0.1 0.1
Output Voltage 4.5 0.001 0.1 0.1 V I

OUT

= 50 µA

5.5 0.001 0.1 0.1
VIN = VIL or V

IH

3.0 0.36 0.44 IOL = 12 mA

4.5 0.36 0.44 V IOL = 24 mA

5.5 0.36 0.44 IOL = 24 mA (Note 2)

I

IN

Maximum Input

5.5 ± 0.1 ± 1.0 µA

VI = V

CC,

(Note 4) Leakage Current GND
I

OLD

Minimum Dynamic 5.5 75 mA V

OLD

= 1.65V Max

I

OHD

Output Current (Note 3) 5.5 −75 mA V

OHD

= 3.85V Min

I

CC

Maximum Quiescent

5.5 2.0 20.0 µA

VIN = VCC

(Note 4) Supply Current or GND

www.fairchildsemi.com 4

74AC109 • 74ACT109

DC Electrical Characteristics for ACT

Note 5: All outputs loaded; thresholds on input assoc iat ed with output under tes t.
Note 6: Maximum test duratio n 2. 0 ms, one output loaded at a time.

AC Electrical Characteristics for AC

Note 7: Voltage Range 3.3 is 3.3V ± 0.3V

Voltage Range 5.0 is 5.0V ± 0.5V

Symbol Parameter

V

CC

TA = +25°CTA = −40°C to +85°C

Units Conditions

(V) Typ Guaranteed Limits

V

IH

Minimum HIGH Level 4.5 1.5 2.0 2.0

V

V

OUT

= 0.1V

Input Voltage 5.5 1.5 2.0 2.0 or VCC − 0.1V

V

IL

Maximum LOW Level 4.5 1.5 0.8 0.8

V

V

OUT

= 0.1V

Input Voltage 5.5 1.5 0.8 0.8 or V

CC

− 0.1V

V

OH

Minimum HIGH Level 4.5 4.49 4.4 4.4

VI

OUT

= −50 µA

Output Voltage 5.5 5.49 5.4 5.4

VIN = VIL or V

IH

4.5 3.86 3.76 V IOH = −24 mA

5.5 4.86 4.76 I

OH

= −24 mA (Note 5)

V

OL

Maximum LOW Level 4.5 0.001 0.1 0.1

VI

OUT

= 50 µA

Output Voltage 5.5 0.001 0.1 0.1

VIN = VIL or V

IH

4.5 0.36 0.44 V IOL = 24 mA

5.5 0.36 0.44 IOL = 24 mA (Note 5)

I

IN

Maximum Input Leakage Current 5.5 ± 0.1 ± 1.0 µAFVI = VCC, GND

I

CCT

Maximum ICC/Input 5.5 0.6 1.5 mA VI = VCC − 2.1V

I

OLD

Minimum Dynamic 5.5 75 mA V

OLD

= 1.65V Max

I

OHD

Output Current (Note 6) 5.5 −75 mA V

OHD

= 3.85V Min

I

CC

Maximum Quiescent

5.5 2.0 20.0 µAVIN = VCC or GND

Supply Current

V

CC

TA = +25°CT

A

= −40°C to +85°C

Symbol Parameter (V)

CL = 50 pF CL = 50 pF

Units

(Note 7) Min Typ Max Min Max

f

MAX

Maximum Clock 3.3 125 150 100

MHz

Frequency 5.0 150 175 125

t

PLH

Propagation Delay 3.3 4.0 8.0 13.5 3.5 16.0

ns

CPn to Qn or Q

n

5.0 2.5 6.0 10.0 2.0 10.5

t

PHL

Propagation Delay 3.3 3.0 8.0 14.0 3.0 14.5

ns

CPn to Qn or Q

n

5.0 2.0 6.0 10.0 1.5 10.5

t

PLH

Propagation Delay 3.3 3.0 8.0 12.0 2.5 13.0

ns

CDn or SDn to Qn or Q

n

5.0 2.5 6.0 9.0 2.0 10.0

t

PHL

Propagation Delay 3.3 3.0 10.0 12.0 3.0 13.5

ns

CDn or SDn to Qn or Q

n

5.0 2.0 7.5 9.5 2.0 10.5

5 www.fairchildsemi.com

74AC109 • 74ACT109

AC Operating Requirements for AC

Note 8: Voltage Range 3.3 is 3.3V ± 0.3V

Voltage Range 5.0 is 5.0V ± 0.5V

AC Electrical Characteristics for ACT

Note 9: Voltage Range 5.0 is 5.0V ± 0.5V

AC Operating Requirements for ACT

Note 10: Voltage Ran ge 5.0 is 5.0V ± 0.5V

Capacitance

V

CC

TA = +25°CT

A

= −40°C to +85°C

Symbol Parameter (V)

C

L

= 50 pF CL = 50 pF

Units

(Note 8) Typ Guaranteed Minimum

t

S

Setup Time, HIGH or LOW 3.3 3.5 6.5 7.5

ns

J

n

or Kn to CP

n

5.0 2.0 4.5 5.0

t

H

Hold Time, HIGH or LOW 3.3 −1.5 0 0

ns

J

n

or Kn to CP

n

5.0 −0.5 0.5 0.5

t

W

Pulse Width 3.3 2.0 7.0 7.5

ns

CDn or S

Dn

5.0 2.0 4.5 5.0

t

REC

Recovery Time 3.3 −2.5 0 0

ns

C

Dn

or SDn to CP

n

5.0 −1.5 0 0

V

CC

TA = +25°CT

A

= −40°C to +85°C

Symbol Parameter (V)

C

L

= 50 pF CL = 50 pF

Units

(Note 9) Min Typ Max Min Max

f

MAX

Maximum Clock Frequency 5.0 145 210 125 MHz

t

PLH

Propagation Delay

5.0 4.0 7.0 11.0 3.5 13.0 ns

CPn to Qn or Q

n

t

PHL

Propagation Delay

5.0 3.0 6.0 10.0 2.5 11.5 ns

CPn to Qn or Q

n

t

PLH

Propagation Delay

5.0 2.5 5.5 9.5 2.0 10.5 ns

CDn or SDn to Qn or Q

n

t

PHL

Propagation Delay

5.0 2.5 6.0 10.0 2.0 11.5 ns

C

Dn

or SDn to Qn or Q

n

V

CC

TA = +25°CT

A

= −40°C to +85°C

Symbol Parameter (V)

C

L

= 50 pF CL = 50 pF

Units

(Note 10) Typ Guaranteed Minimum

t

S

Setup Time, HIGH or LOW

5.0 0.5 2.0 2.5 ns

J

n

or Kn to CP

n

t

H

Hold Time, HIGH or LOW

5.0 0 2.0 2.0 ns

Jn or Kn to CP

n

t

W

Pulse Width

5.0 3.0 5.0 6.0 ns

CPn or CDn or S

Dn

t

rec

Recovery Time

5.0 −2.5 0 0 ns

CDn or SDn to CP

n

Symbol Parameter Typ Units Conditions

C

IN

Input Capacitance 4.5 pF VCC = OPEN

C

PD

Power Dissipation Capacitance 35.0 pF VCC = 5.0V

www.fairchildsemi.com 6

74AC109 • 74ACT109

Physical Dimensions inches (millimeters) unless otherwise noted

16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow

Package Number M16A

7 www.fairchildsemi.com

74AC109 • 74ACT109

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

Package Number M16D

www.fairchildsemi.com 8

74AC109 • 74ACT109

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

Package Number MTC16

9 www.fairchildsemi.com

74AC109 • 74ACT109 Dual JK Positive Edge-Triggered Flip-Flop

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Package Number N16E

Fairchild does not assume any responsibility for use of any circuitry described , no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or syste ms
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provide d in the labe l ing, can be re a­sonably expected to result in a significant injury to the
user.

2. A critical component in any compo nent o f a l ife supp ort
device or system whose failure to perform can be rea­sonably expected to cause the failure of the l ife support
device or system, or to affect its safety or effectiveness.

www.fairchildsemi.com
