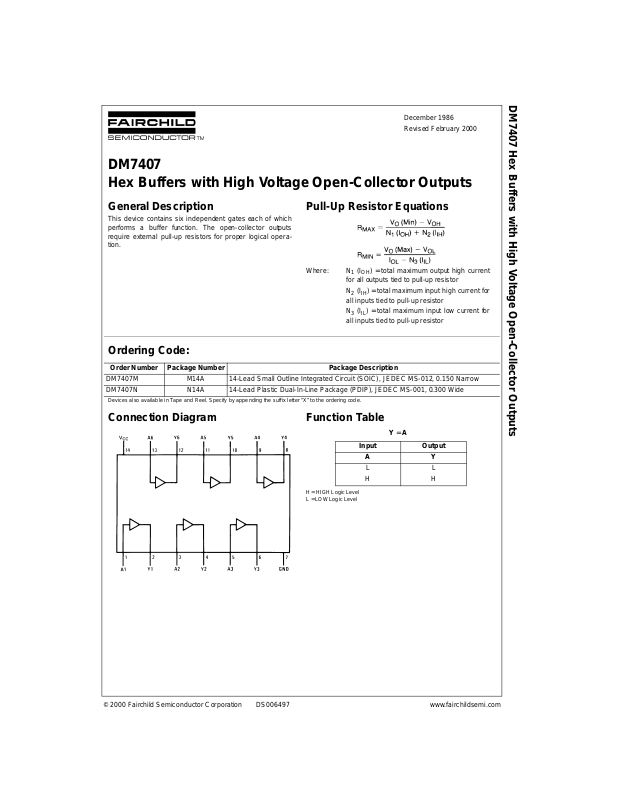

DM7407
Hex Buffers with High Voltage Open-Collector Outputs
DM7407 Hex Buffers with High Voltage Open-Collector Outputs
General Description
This device contain s six independe nt gates eac h of which
performs a buffer function. The open-collector outputs
require external pull-up resi stors for proper logical operation.
Pull-Up Resistor Equations
Where: N1 (IOH) = total maximum output high c urrent
N
for all outputs tied to pull-up resistor
(IIH) = total maximum input high current for
2
all inputs tied to pull-up resistor
(IIL) = total maximum input low current for
N
3
all inputs tied to pull-up resistor
Ordering Code:
Order Number Package Number Package Description
DM7407M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
DM7407N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also availab le in Tape and Reel. Specify by appending th e s uffix let t er “X” to the ordering cod e.

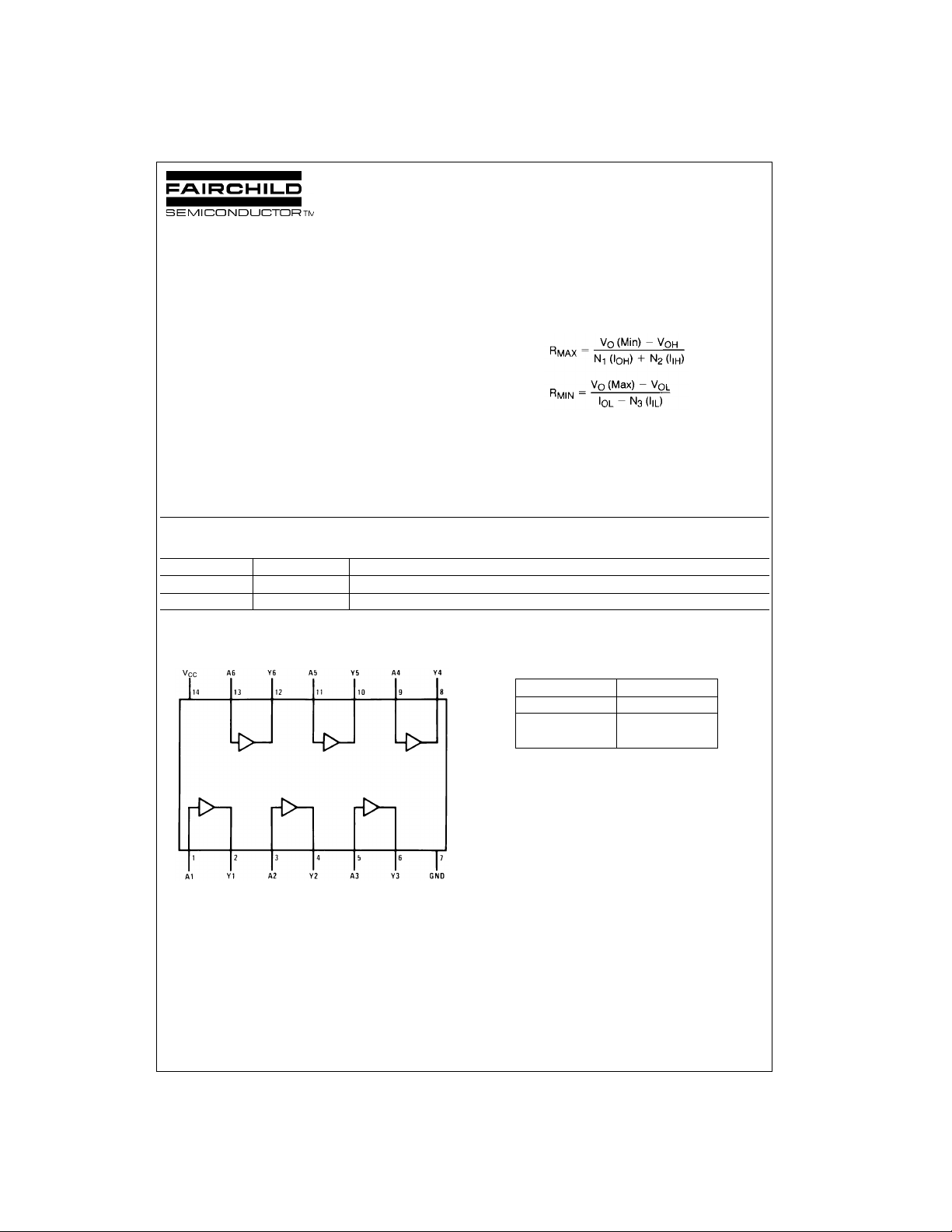

Connection Diagram Function Table
Y = A
Input Output
AY
LL
HH
H = HIGH Logic Level
L = LOW Logic Level
© 2000 Fairchild Semiconductor Corporation DS006497 www.fairchildsemi.com
Page 2
Absolute Maximum Ratings(Note 1)
Supply Voltage 7V
DM7407
Input Voltage 5.5V
Output Voltage 30V
Operating Free Air Temperature Range 0°C to +70°C
Storage Temperature Range −65°C to +150°C
Note 1: The “Absolute Maximum Ratings” are those values beyond which
the safety of the dev ice cannot be guaranteed. T he device sh ould not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommend ed O peratin g Cond itions” t able w ill defin e the c ondit ions
for actual device operation.
Recommended Operating Conditions
Symbol Parameter Min Nom Max Units
V
CC
V
IH
V
IL
V
OH
I
OL
T
A
Supply Voltage 4.75 5 5.25 V
High Level Input Voltage 2 V
Low Level Input Voltage 0.8 V
High Level Output Voltage 30 V
Low Level Output Current 40 mA
Free Air Operating Temperature 0 70 °C
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Symbol Parameter Conditions Min
V
I
I
CEX
V
OL
I
I
I
IH
I
IL
I
CCH
I
CCL
Note 2: All typicals are at VCC = 5V, TA = 25°C.
Input Clamp Voltage VCC = Min, II = −12 mA −1.5 V
HIGH Level VCC = Min, VO = 30V
Output Current VIH = Min
LOW Level VCC = Min, IOL = Max
Output Voltage VIL = Max V
IOL = 16 mA, VCC = Min 0.4
Input Current @ Max Input Voltage VCC = Max, VI = 5.5V 1 mA
HIGH Level Input Current VCC = Max, VI = 2.4V 40 µA
LOW Level Input Current VCC = Max, VI = 0.4V −1.6 mA
Supply Current with Outputs HIGH VCC = Max 29 41 mA
Supply Current with Outputs LOW VCC = Max 21 30 mA
Typ
(Note 2)
Max Units
250 µA
0.7
Switching Characteristics
at VCC = 5V and TA = 25°C
Symbol Paramete r Conditions Min Max Units
t
PLH
t
PHL
www.fairchildsemi.com 2
Propagation Delay Time CL = 15 pF
LOW-to-HIGH Level Output RL = 110Ω
Propagation Delay Time
HIGH-to-LOW Level Output
10 ns
30 ns
Page 3
Physical Dimensions inches (millimeters) unless otherwise noted
DM7407

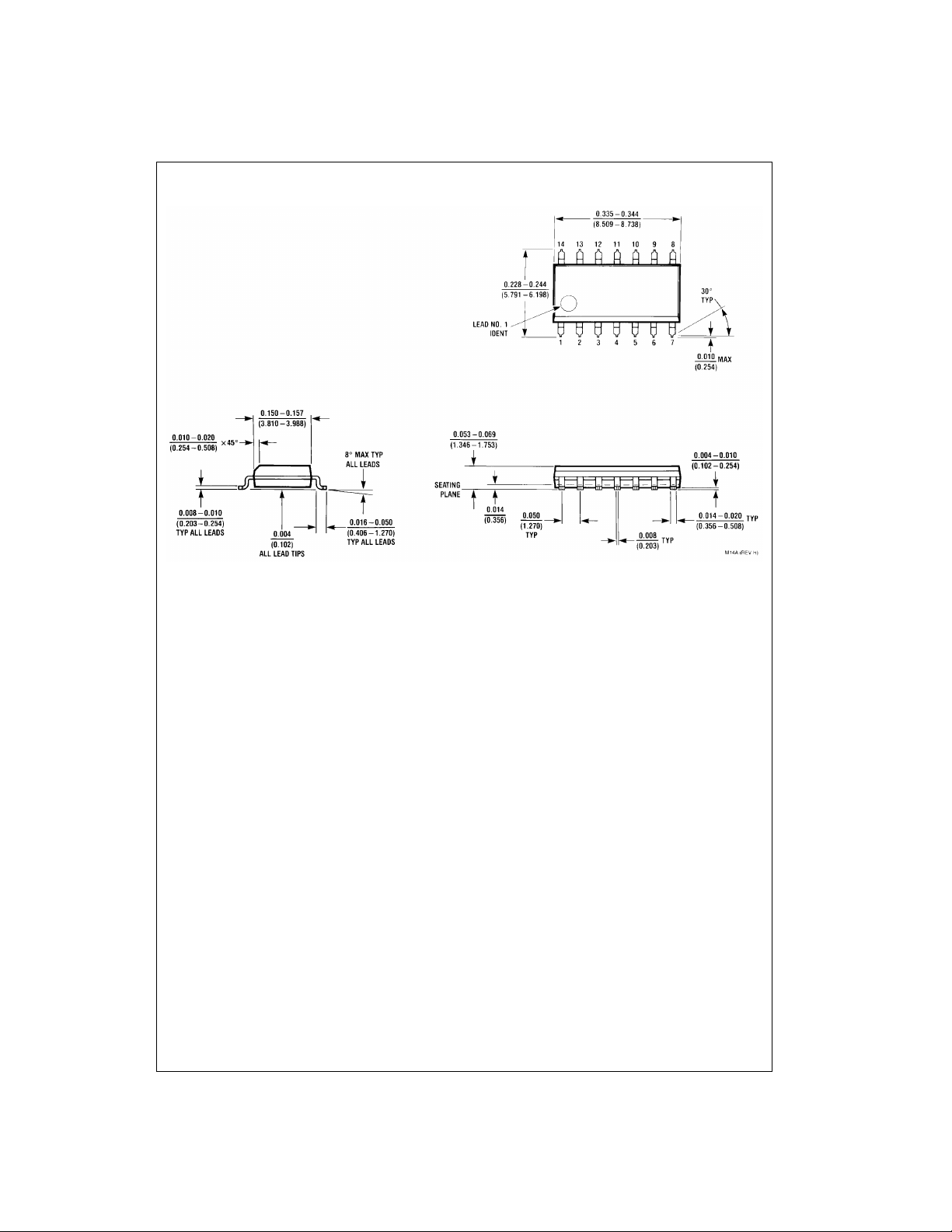

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
Package Number M14A
3 www.fairchildsemi.com
Page 4
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

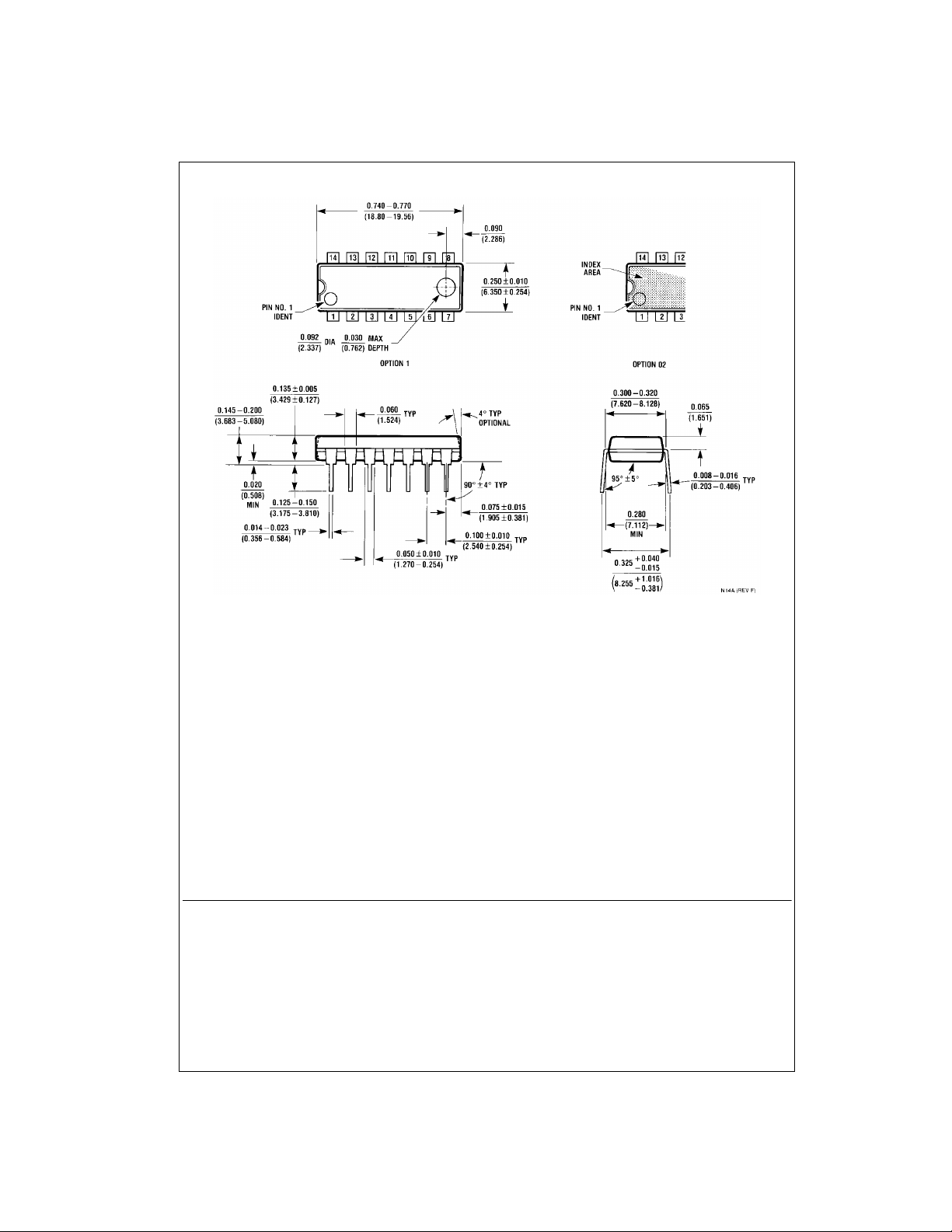

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N14A
DM7407 Hex Buffers with High Voltage Open-Collector Outputs
Fairchild does not assume any responsibility for us e of any circuitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
