Datasheet 7344-15SUBC/C470 Specification

Technical Data Sheet

7344-15SUBC/C470/S400-AX

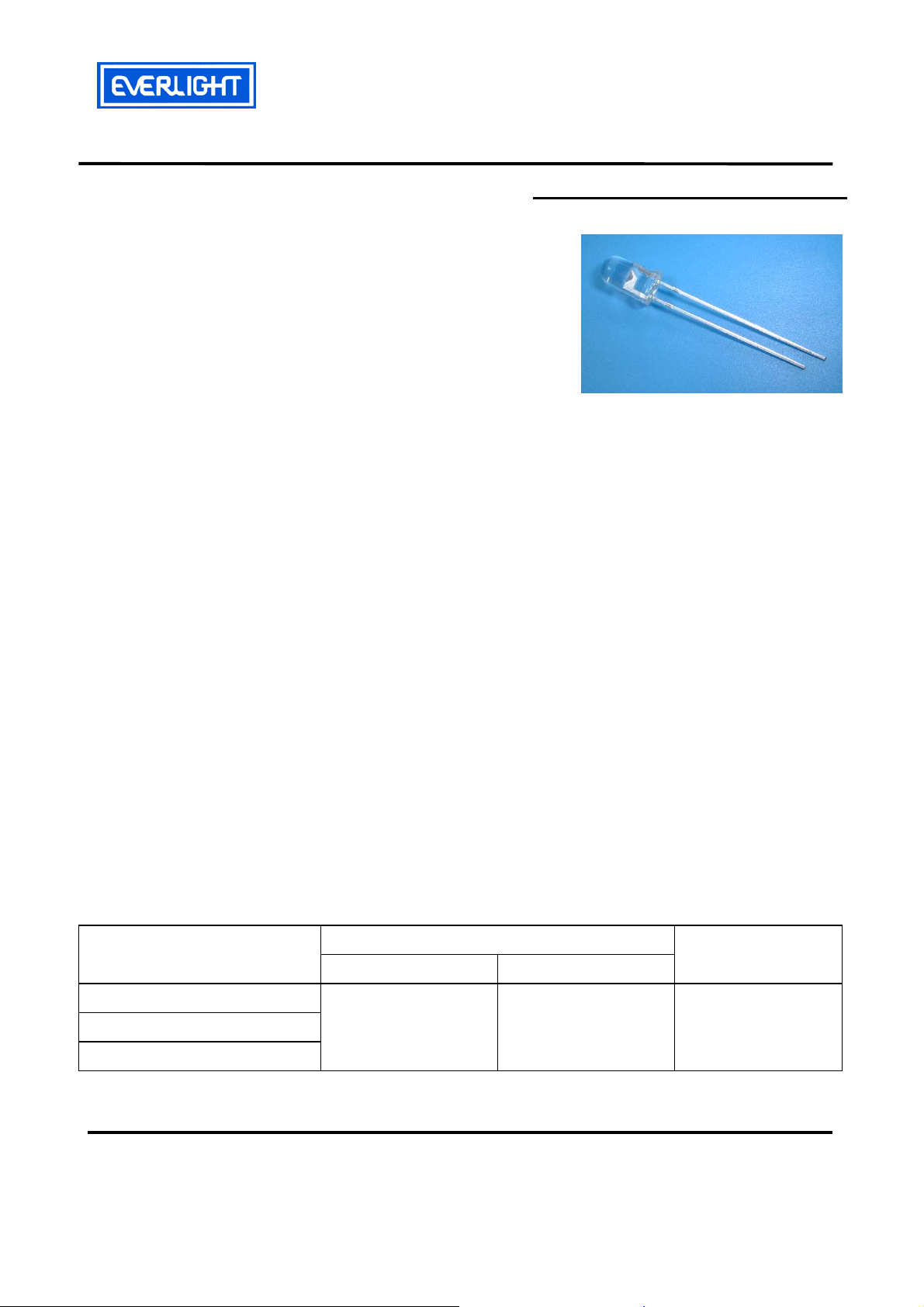

Features

․Popular T-1 3/4package.
․High efficiency.
․General purpose leads.
․Selected minimum intensities.
․Available on tape and reel.

․Pb free .

Descriptions

․The series is specially designed for applications
requiring higher brightness.

․The LED lamps are available with different
colors, intensities, epoxy colors ,etc.

․Superior performance in outdoor environment.

Applications

․Status indicators.
․Commercial use.
․Advertising Signs.

Device Selection Guide

LED Part No.

Material Emitted Color

Chip

Lens Color

7344-15SUBC/C470/S400-A4
7344-15SUBC/C470/S400-A5
7344-15SUBC/C470/S400-A6

InGaN Super Blue Water Clear

Everlight Electronics Co., Ltd. http\\:www.everlight.com Rev 1.0 Page: 1 of 5
Device Number : DLE-734-B11 Prepared date:2004/07/30 Prepared by: M.T CHANG

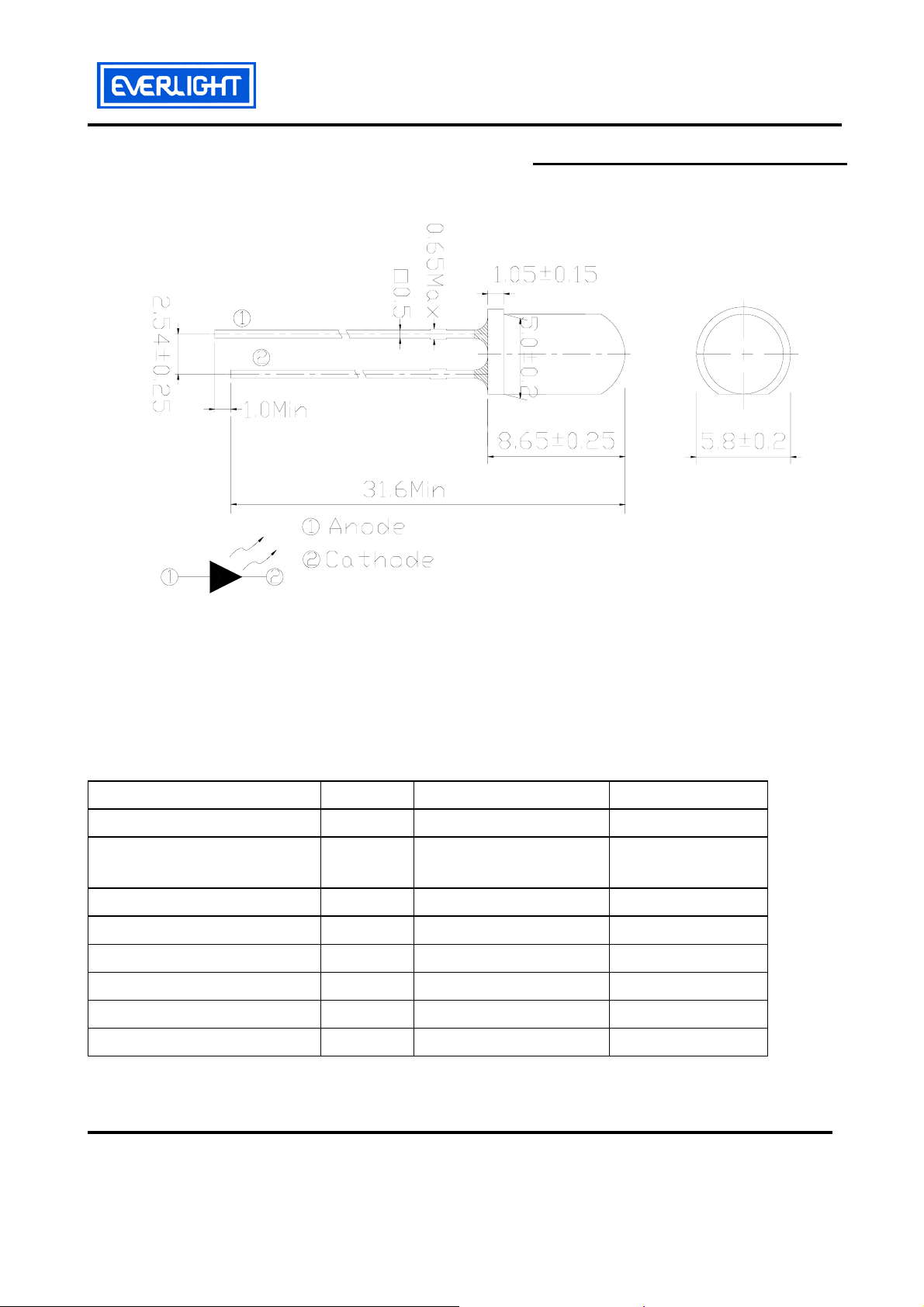

Package Dimensions

7344-15SUBC/C470/S400-AX

Notes:

․All dimensions are in millimeters, tolerance is 0.25mm except being specified.
․Lead spacing is measured where the lead emerges from the package.
․Protruded resin under flange is 1.5mm Max LED.

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Rating Units

Forward Current IF 25 mA
Pulse Forward Current

(Duty1/10@ 1KHz)
Operating Temperature T

Storage Temperature T
Electrostatic Discharge ESD 150 V
Soldering Temperature T
Power Dissipation Pd 110 mW

IFP 100 mA

-40 ~ +85

opr

-40 ~ +100

stg

sol

260 ±5 ℃

℃
℃

Reverse Voltage VR 5 V

Notes: Soldering time≦5 seconds.

Everlight Electronics Co., Ltd. http\\:www.everlight.com Rev 1.0 Page: 2 of 5
Device Number : DLE-734-B11 Prepared date:2004/07/30 Prepared by: M.T CHANG

7344-15SUBC/C470/S400-AX

Electro-Optical Characteristics (Ta=25℃)

Parameter Symbol

Luminous

Intensity

Viewing Angle 2θ

Peak Wavelength λp ----- ----- 468 ----- nm

Dominant

Wavelength

Spectrum
Radiation

Bandwidth

IV

1/2

λ

d

△λ

Chip

Rank

A4 500 800 ----­A5 630 1000 ----­A6 800 1250 -----

----- ----- 30 ----- deg

----- -----

----- -----

Min. Typ. Max. Unit Condition

mcd

470 -----

35 -----

nm

nm

IF=20mA

Forward Voltage VF ----- -----

Reverse Current IR ----- ----- -----

3.5 4.3

7344-15SUBC/C470/S400-AX

Chip Rank

50

V

μA VR=5V

Everlight Electronics Co., Ltd. http\\:www.everlight.com Rev 1.0 Page: 3 of 5
Device Number : DLE-734-B11 Prepared date:2004/07/30 Prepared by: M.T CHANG

7344-15SUBC/C470/S400-AX

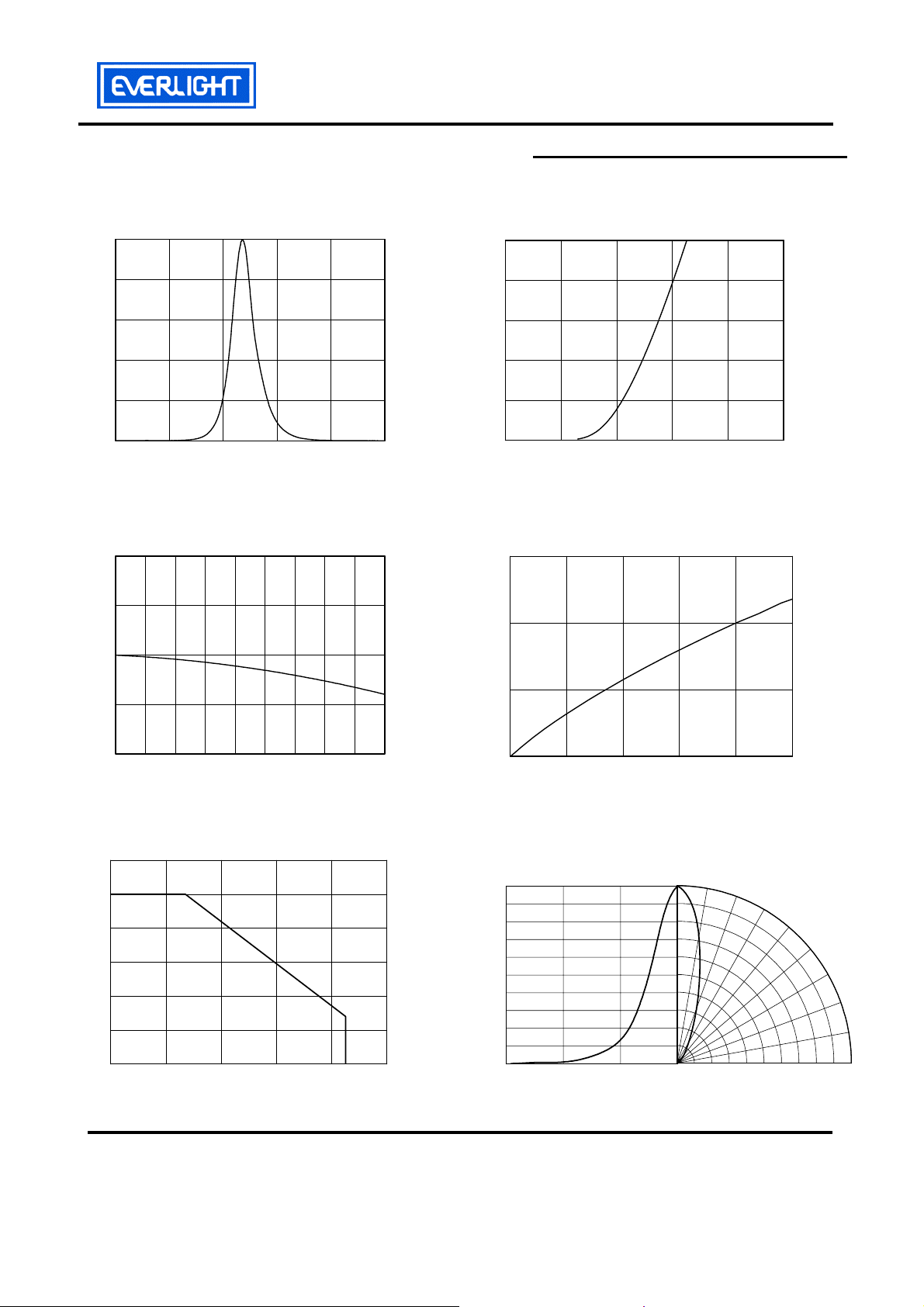

Typical Electro-Optical Characteristics Curves

Relative Intensity vs. Wavelength Forward Current vs. Forward Voltage

1.0

0.8

0.6

0.4

0.2

Relative Intensity(a.u.)

0.0
350 400 450 500 550 600

Wavelength(nm)

Relative Intensity vs. Ambient Temp Forward Current vs. Relative Intensity

2.0

1.5

25

20

15

10

5

Forward Current(mA)

0

2.0 2.5 3.0 3.5 4.0 4.5

Forward Voltage(V)

1.5

1.0

1.0

0.5

0.5

0.0

Relative Luminous Intensity(a.u.)

25 30 35 40 45 50 55 60 65 70

Ambient Temperature Ta(OC)

0.0

Relative Luminous Int ensity(a.u.)

0 5 10 15 20 25

Forward Current(mA)

Forward Current vs. Ambient Temp. Radiation Characteristics

30

25

20

15

10

60

O

O

90

1.0

0.5

O

30

0

5

Forward Current(mA)

0

0 20406080100

Ambient Temperature Ta(OC)

Relative Luminusity

0

0

Radiation Angle

O

O

10

O

20

O

30

O

40

O

50

O

0.5

60

70

1.0

80

90

O

O

O

Everlight Electronics Co., Ltd. http\\:www.everlight.com Rev 1.0 Page: 4 of 5
Device Number : DLE-734-B11 Prepared date:2004/07/30 Prepared by: M.T CHANG

E

Packing Quantity Specification

1. 500 PCS/1 Anti ESD Bag

2. 5 Anti ESD Bags /1 Box

3. 10 Boxes/1 Carton

Label Form Specification

EVERLIGHT

CPN:
P/N:

7344-15SUBC/C470/S400-AX
QTY：

LOT NO：

CAT:
HUE:
REF:

7344-15SUBC/C470/S400-AX

CPN: Customer’s Production Number
P/N : Production Number
7344-15SUBC/C470/S400-AX:Production name
QTY: Packing Quantity
CAT: Ranks of Luminous and Forward Voltage
HUE: Ranks of Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place

MADE IN TAIWAN

Notes

1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.

2. When using this product, please observe the absolute maximum ratings and the instructions
for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
maximum ratings and the instructions included in these specification sheets.

3. These specification sheets include materials protected under copyright of EVERLIGHT
corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s
consent.
