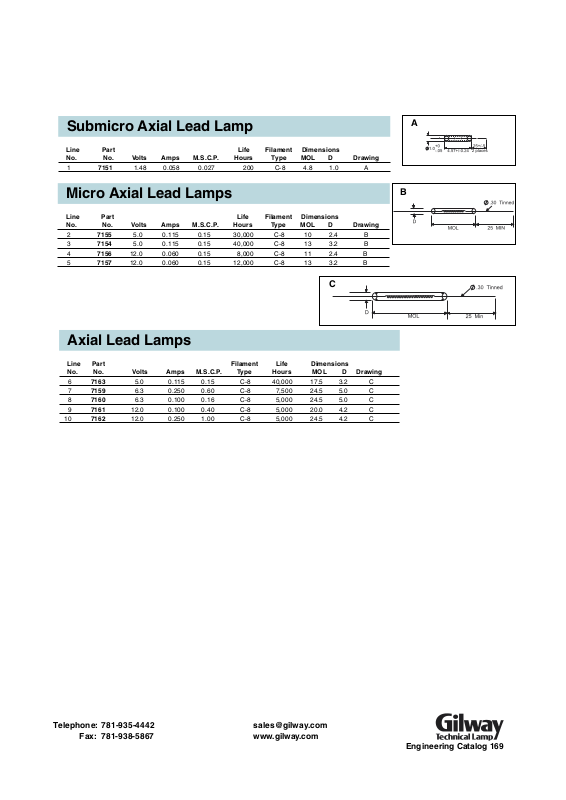

Datasheet 7160, 7159, 7157, 7156, 7155 Datasheet (Gilway)

Telephone: [phone] [email protected]
Fax: [phone] www.gilway.com

Engineering Catalog 169

B

A

Submicro Axial Lead Lamp

Line Part Life Filament Dimensions
No. No. Volts Amps M.S.C.P. Hours Type MOL D Drawing

1 7151 1.48 0.058 0.027 200 C-8 4.8 1.0 A

Micro Axial Lead Lamps

Line Part Life Filament Dimensions
No. No. Volts Amps M.S.C.P. Hours Type MOL D Drawing

2 7155 5.0 0.115 0.15 30,000 C-8 10 2.4 B
3 7154 5.0 0.115 0.15 40,000 C-8 13 3.2 B
4 7156 12.0 0.060 0.15 8,000 C-8 11 2.4 B
5 7157 12.0 0.060 0.15 12,000 C-8 13 3.2 B

Axial Lead Lamps

Line Part Filament Life Dimensions
No. No. Volts Amps M.S.C.P. Type Hours MOL D Drawing

6 7163 5.0 0.115 0.15 C-8 40,000 17.5 3.2 C
7 7159 6.3 0.250 0.60 C-8 7,500 24.5 5.0 C
8 7160 6.3 0.100 0.16 C-8 5,000 24.5 5.0 C
9 7161 12.0 0.100 0.40 C-8 5,000 20.0 4.2 C

10 7162 12.0 0.250 1.00 C-8 5,000 24.5 4.2 C

C
