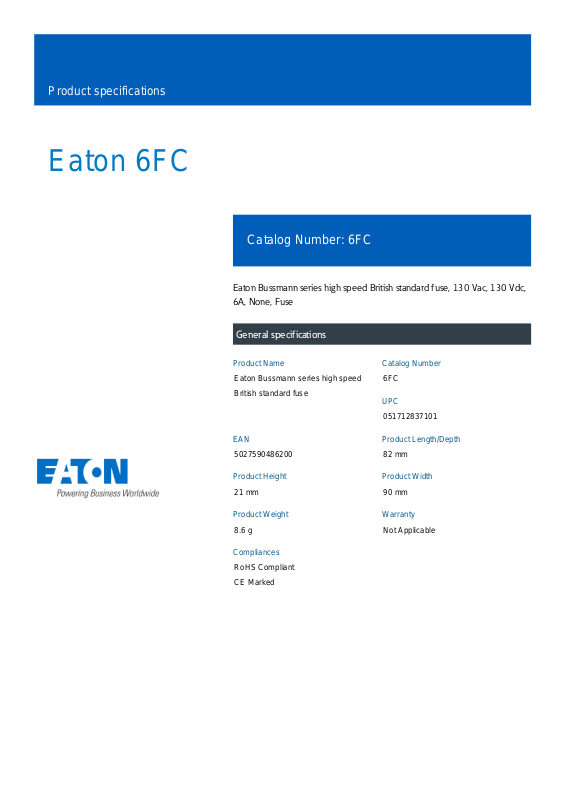

Page 1
Product specifications
Eaton 6FC
Catalog Number: 6FC
Eaton Bussmann series high speed British standard fuse, 130 Vac, 130 Vdc,
6A, None, Fuse
General specifications
Product Name Catalog Number
Eaton Bussmann series high speed
British standard fuse
6FC
UPC
051712837101
EAN Product Length/Depth
5027590486200 82 mm
Product Height Product Width
21 mm 90 mm
Product Weight Warranty
8.6 g Not Applicable
Compliances
RoHS Compliant
CE Marked
Page 2
Electrical data
Product specifications
Amperage Rating
6 A
Voltage rating
690 V
Rated voltage AC
690 V
Class
Class aR
Pre arc (I2T)
1.5
Clearing (I2T)
6 at 415 V, 9 at 690 V
Watt losses
2 W
Application
Semiconductor, DC Common bus, DC drives, power
converters/rectifiers
Fuse indicator
None
Resources
Catalogs
IEC high speed fuse links
Bussmann series complete full line catalog no. 1007
Certification reports
DA-DC-00004682
DA-DC-00004685
Compliance information
UKCA Low voltage fuse-links *AET,*AEET,*AFEE etc
