6A05G
THRU
6A10G

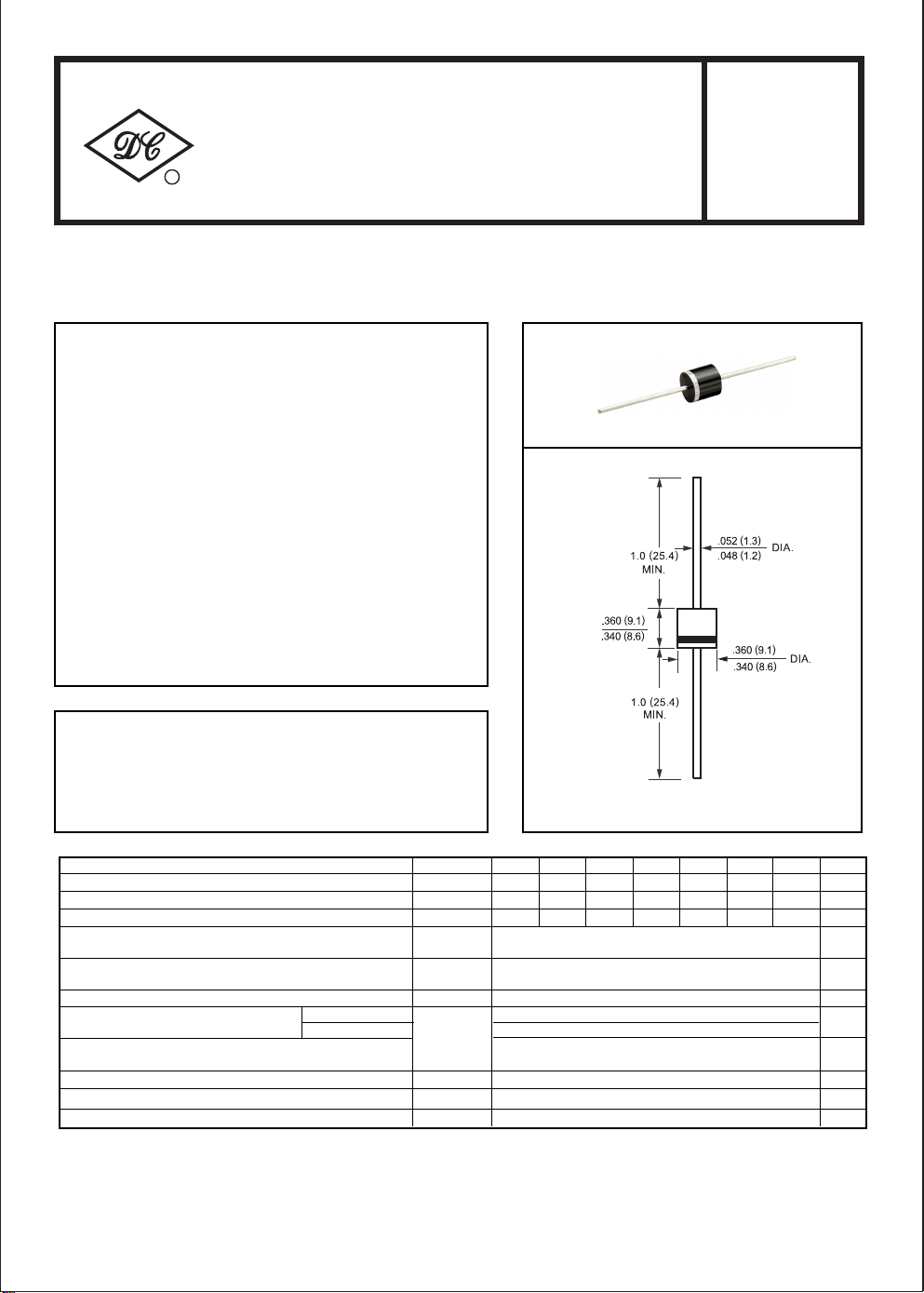

TECHNICAL SPECIFICATIONS OF
GLASS PASSIVATED
VOLTAGE RANGE - 50 to 1000 Volts CURRENT - 6.0 Amperes
FEATURES
* Low cost
* Low leakage
* Low forward voltage drop
* High current capability
* High surge current capability
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 2.08 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25oC ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Dimensions in inches and (millimeters)
RECTIFIER
R-6
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at T
A
= 60oC
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC Method)
Maximum Instantaneous Forward Voltage at 6.0A DC Volts
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Maximum Full Load Reverse Current Average Full Cycle
.375*(9.5mm) lead length at TL = 75oC
Typical Junction Capacitance (Note)
Typical Thermal Resistance
Operating and Storage Temperature Range
NOTES :
Measured at 1 MHZ and applied reverse voltage of 4.0 volts
@TA= 25oC
@TA= 100oC
V
V
V
I
R θ
TJ, T
6A05G 6A1G 6A2G 6A4G 6A6G 6A8G 6A10G
RRM
RMS
DC
I
O
FSM
V
I
C
R
J
50 100 400 800 1000
35
50
F
JA
STG
70
100
200
280
140
400
200
6.0
400
1.1
10
500
50
150 pF
10
-65 to + 175
600
420
600
560
800
700
1000
144
UNITS
Volts
Volts
Volts
Amps
Amps
uAmps
uAmps
0
C/W
0
C
